The XQF22-A Pneumatic 1 Spool Monoblock Directional Valve is a high-performance valve designed for use in a wide range of industrial applications. With a rated flow of 60 L/min and a maximum pressure of 200 bar, this valve is well-suited for handling demanding hydraulic systems. Its compact design and monoblock construction make it ideal for applications where space is limited.
| Serie XQF Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Pneumatico |
| Spoo | 1 Spola |
| Intervallo di temperatura ambiente | -40°C to +60°C (-40°F to +140°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1 |
| Intervallo di viscosità operativa | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| Portata nominale | 50 L/min (13.2 US gpm) |
| Pressione massima | 200 bar (2900 psi) |
| Attacco di ingresso | G1/4 |
| Attacco di uscita | G1/4 |
| Dimensione attacco | G1/4 |

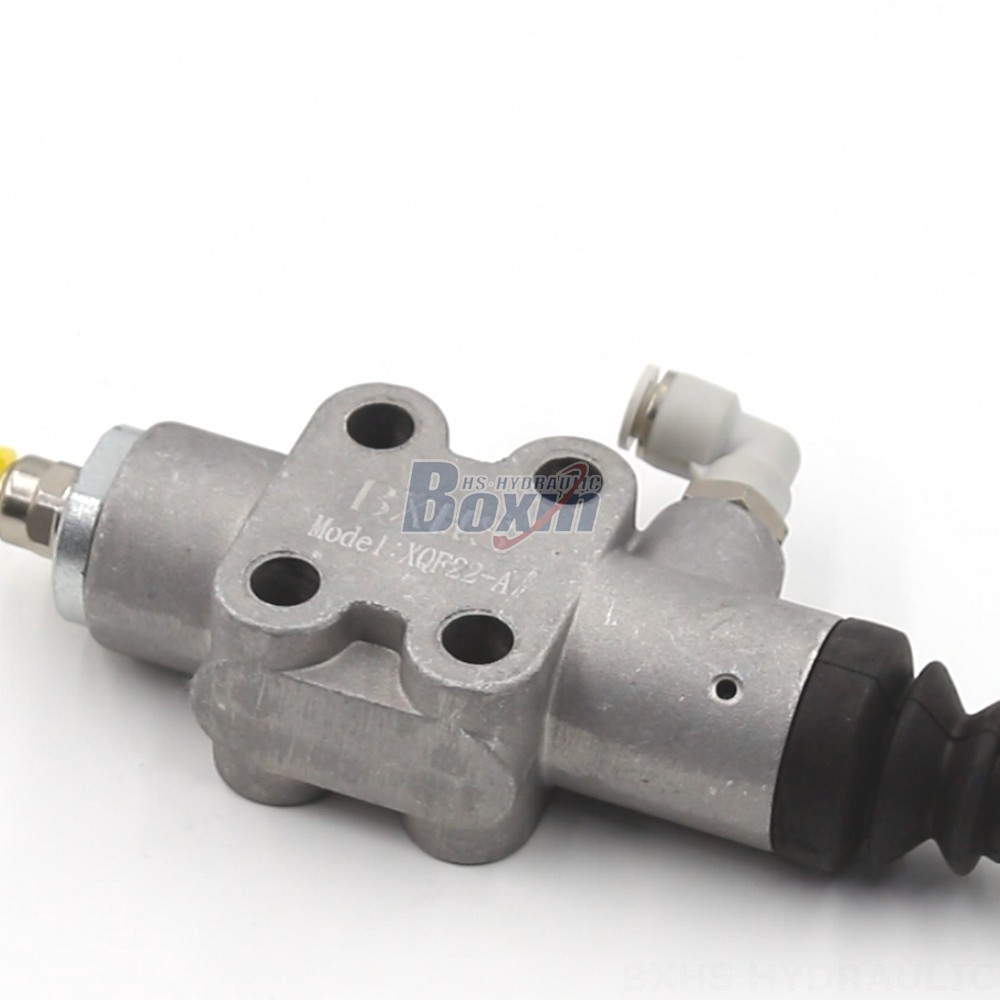

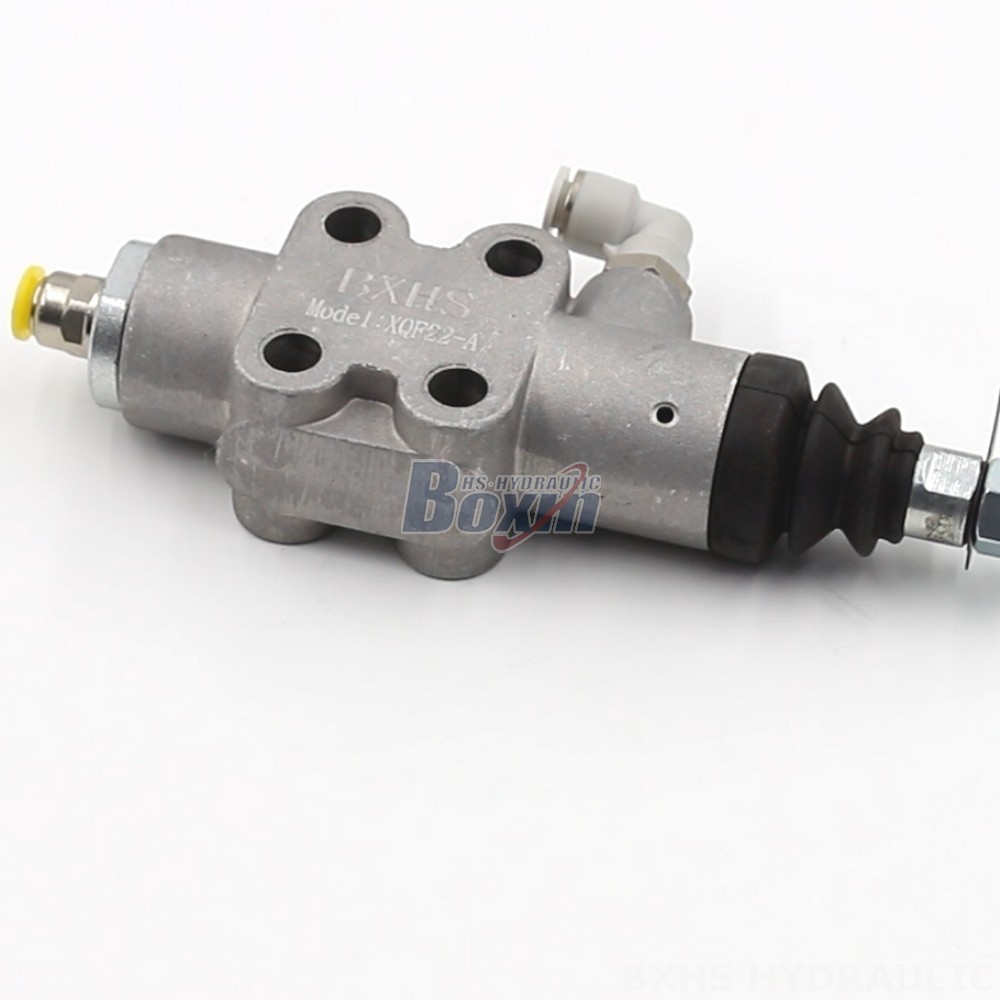

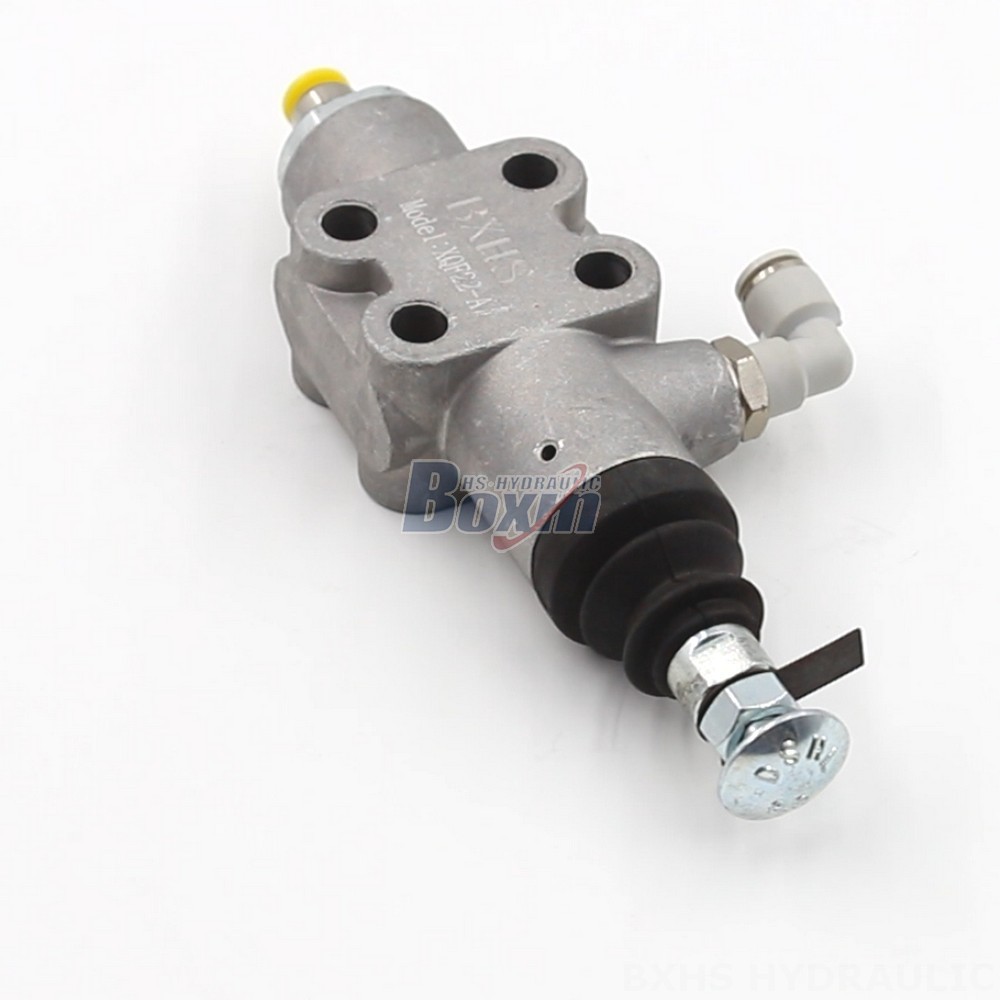

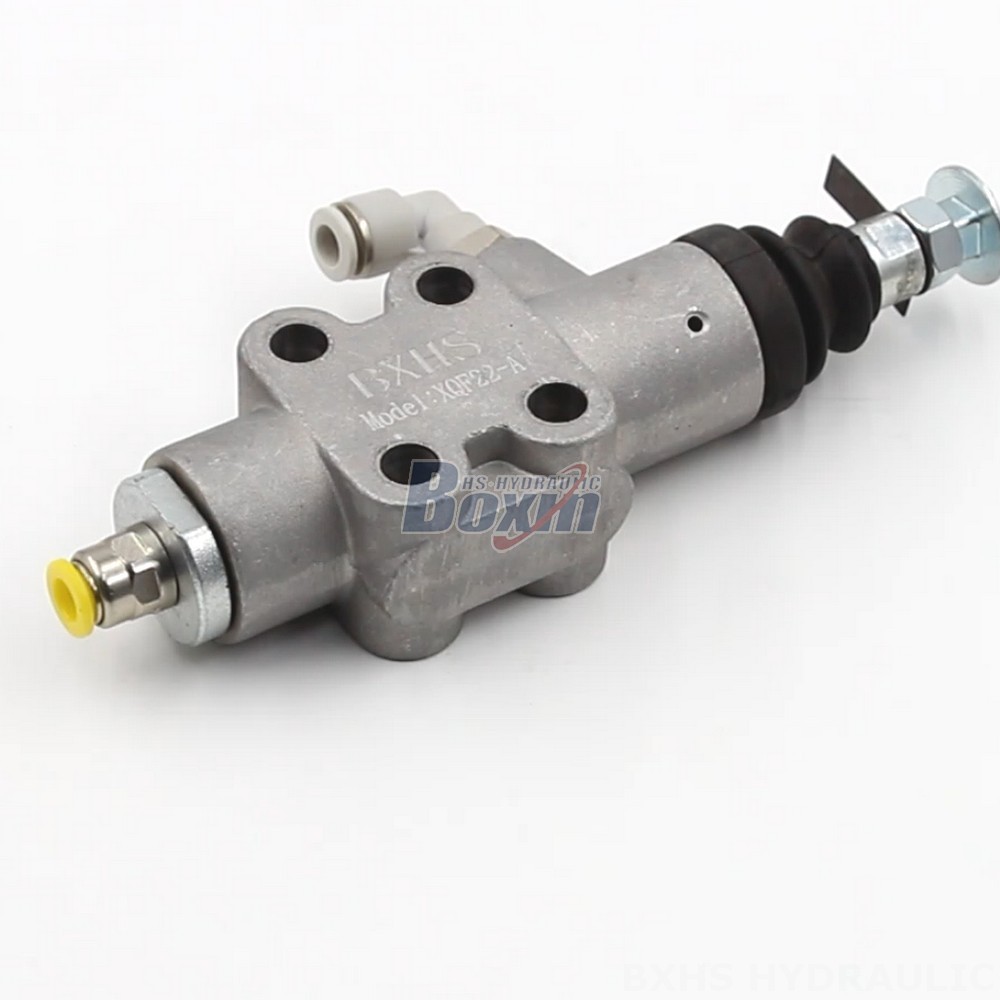

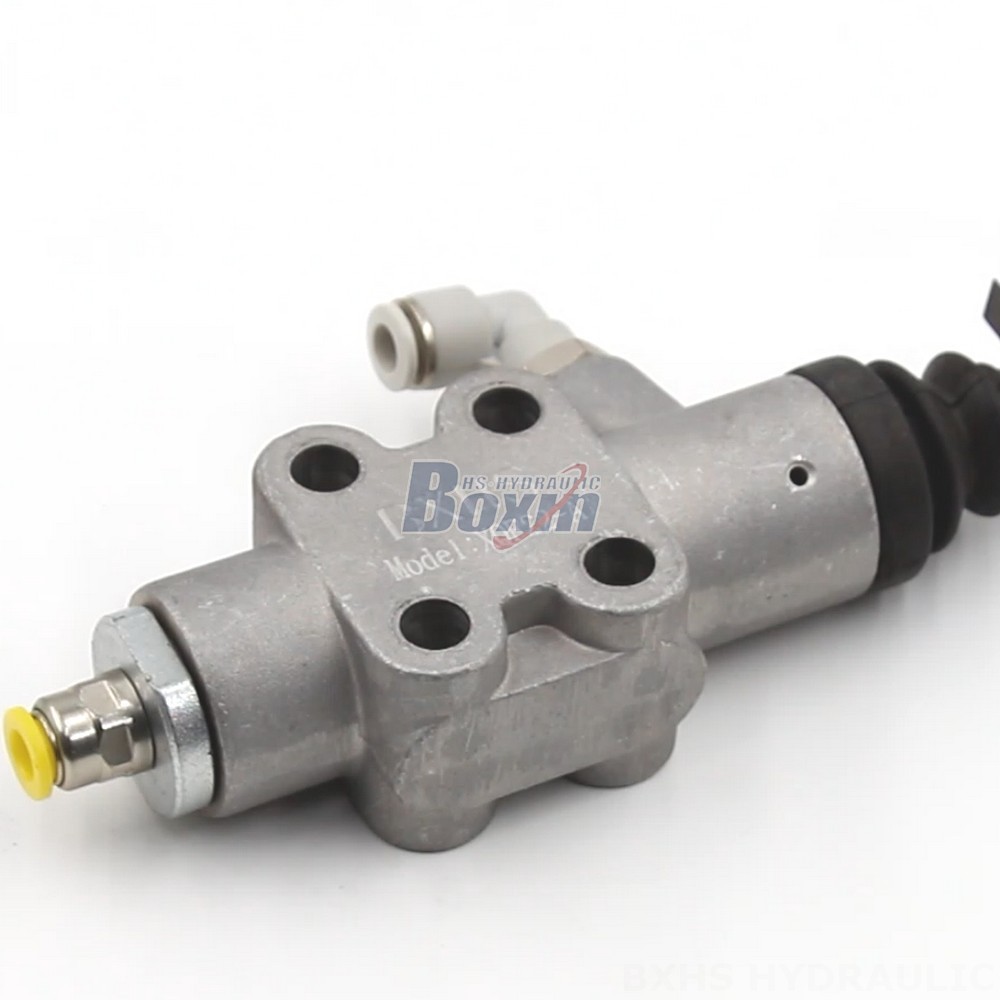

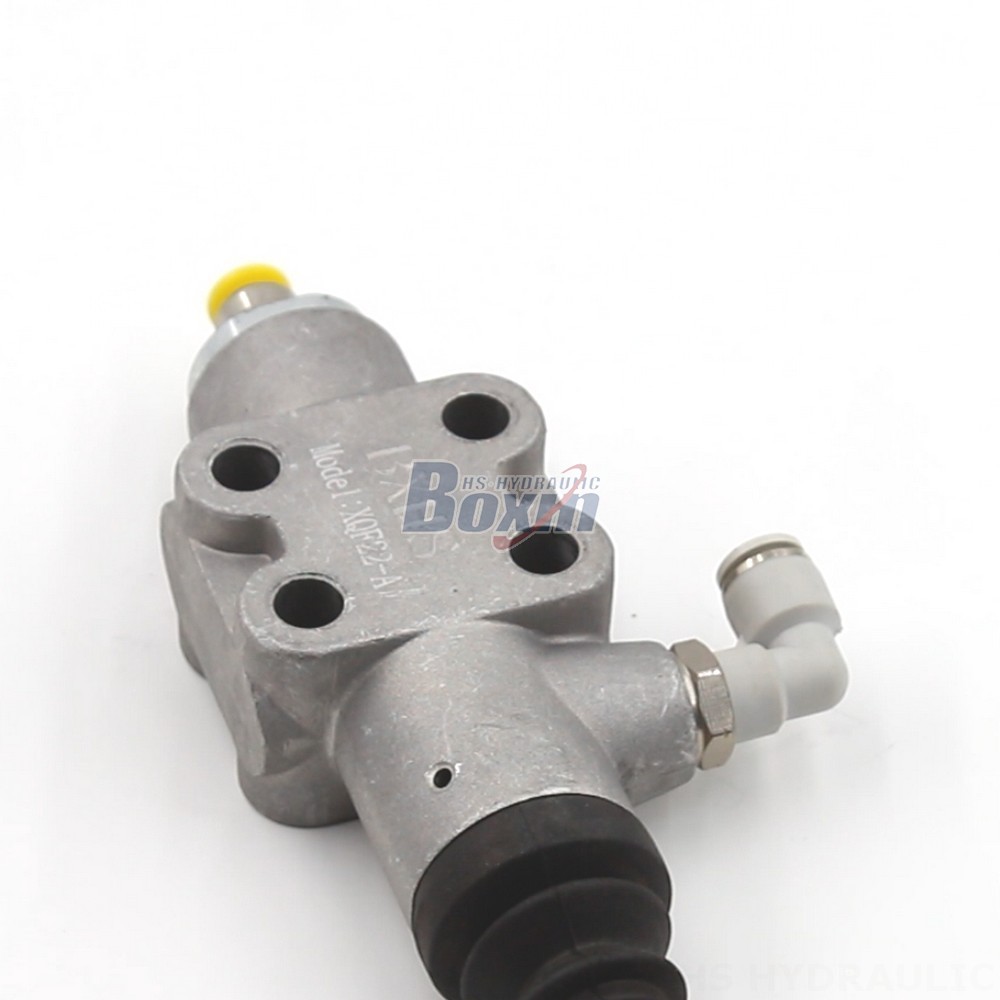

**XQF22-A Pneumatic 1 Spool Monoblock Directional Valve**
**Control Method:** Pneumatic
**Section:** 1 Section
**Rated Flow:** 60 L/min (15.8 US gpm)
**Max Pressure:** 200 bar (2900 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Ambient Temperature Range:** -40°C to +60°C (-40°F to +140°F)
**Spool:** 1 Spool
**Series:** XQF22-A Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER,TRACTOR AND FRONT-END LOADER
The XQF22-A Pneumatic 1 Spool Monoblock Directional Valve is a versatile and reliable valve that is well-suited for a wide range of applications. Its compact design and high performance make it an ideal choice for demanding hydraulic systems.
