Produzione e consegna
Tempi di produzione di 15-30 giorni

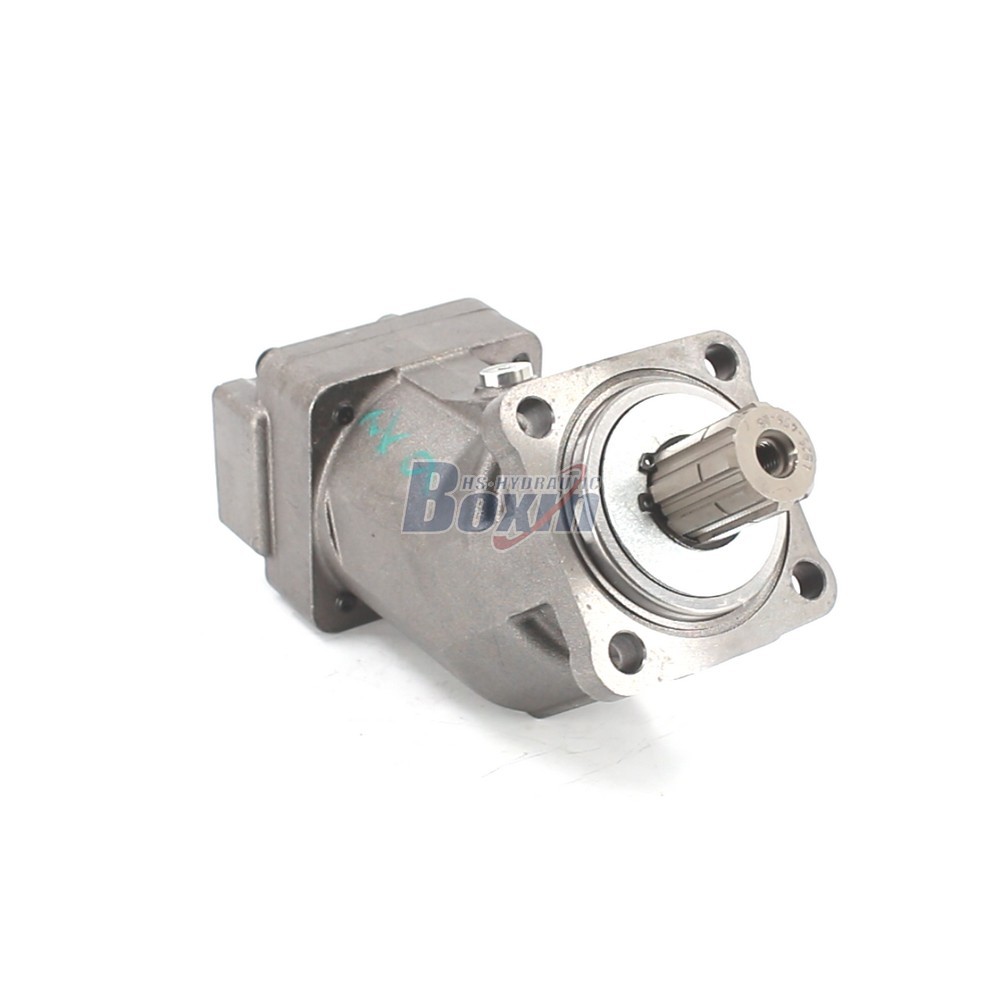

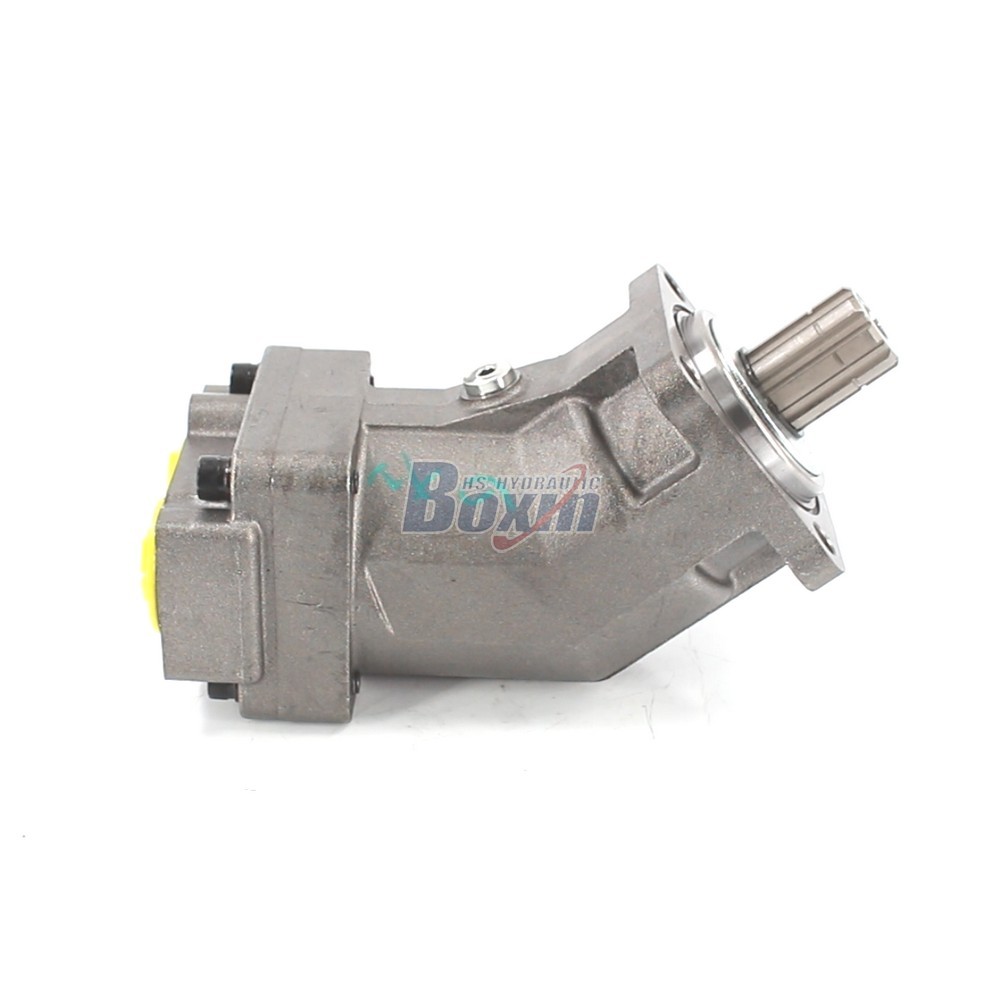

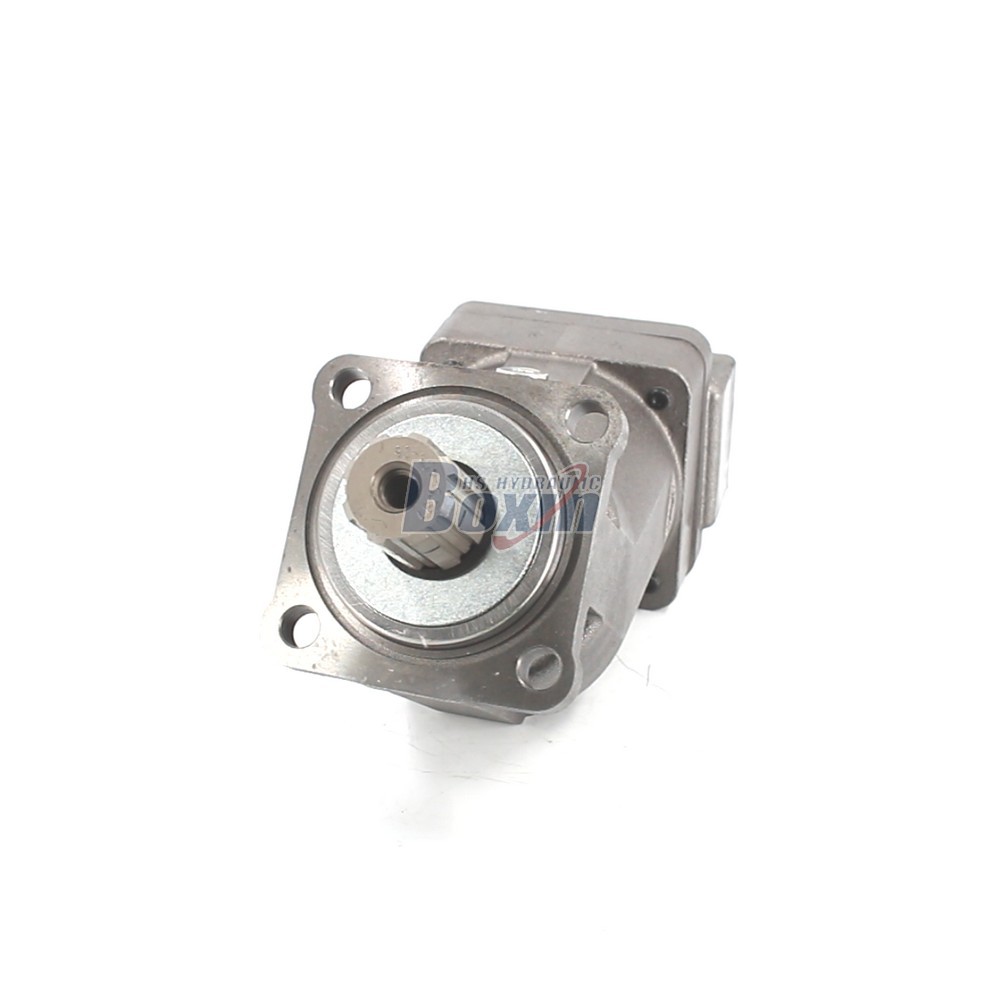

The XPI-108L Series is a high-performance 108 cc/rev fixed displacement axial piston pump designed for demanding hydraulic systems. Operating at a rated pressure of 38 MPa with peaks up to 42 MPa, this left-hand rotation pump is engineered for durability and efficiency in heavy-duty applications ranging from construction machinery to agricultural equipment.
| Serie XPI Pompa a pistoni idraulica Parametri | |
|---|---|
| Cilindrata | 32 cc/giro, 40 cc/giro, 45 cc/giro, 50 cc/giro, 63 cc/giro, 80 cc/giro, 25 cc/giro, 108 cc/giro |
| Pressione nominale | 38 MPa (5511 psi) |
| Pressione massima | 42 MPa (6091 psi) |
| Velocità nominale | 1600 giri/min |
| Velocità massima | 1900 giri/min |
| Rotazione | L: Sinistra (in senso antiorario), R: Destra (in senso orario) |
| Materiale | Ghisa |
| Struttura | Pistone obliquo |
| Versione flangia | Fori di montaggio ISO-4 |
| Tipo di albero | H: Scanalatura rettangolare |
As a leading large-scale manufacturer of hydraulic solutions, we offer the XPI-108L Series Hydraulic Piston Pump, specifically engineered for high-pressure environments. With a displacement of 108 cc/rev and a maximum speed of 1900 r/min, this pump is ideal for concrete boom pumps, wheel loaders, mini-excavators, and truck-mounted cranes. We provide comprehensive manufacturing services including OEM, private labeling, and custom engineering to meet specific technical requirements. Our factory direct supply ensures competitive wholesale pricing for global markets. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. Whether you need bulk procurement or specialized customization for material handling and earthmoving equipment, our facility provides reliable support and consistent quality. Join our global distribution network and benefit from our extensive manufacturing expertise in industrial vehicle and agricultural hydraulic systems.
