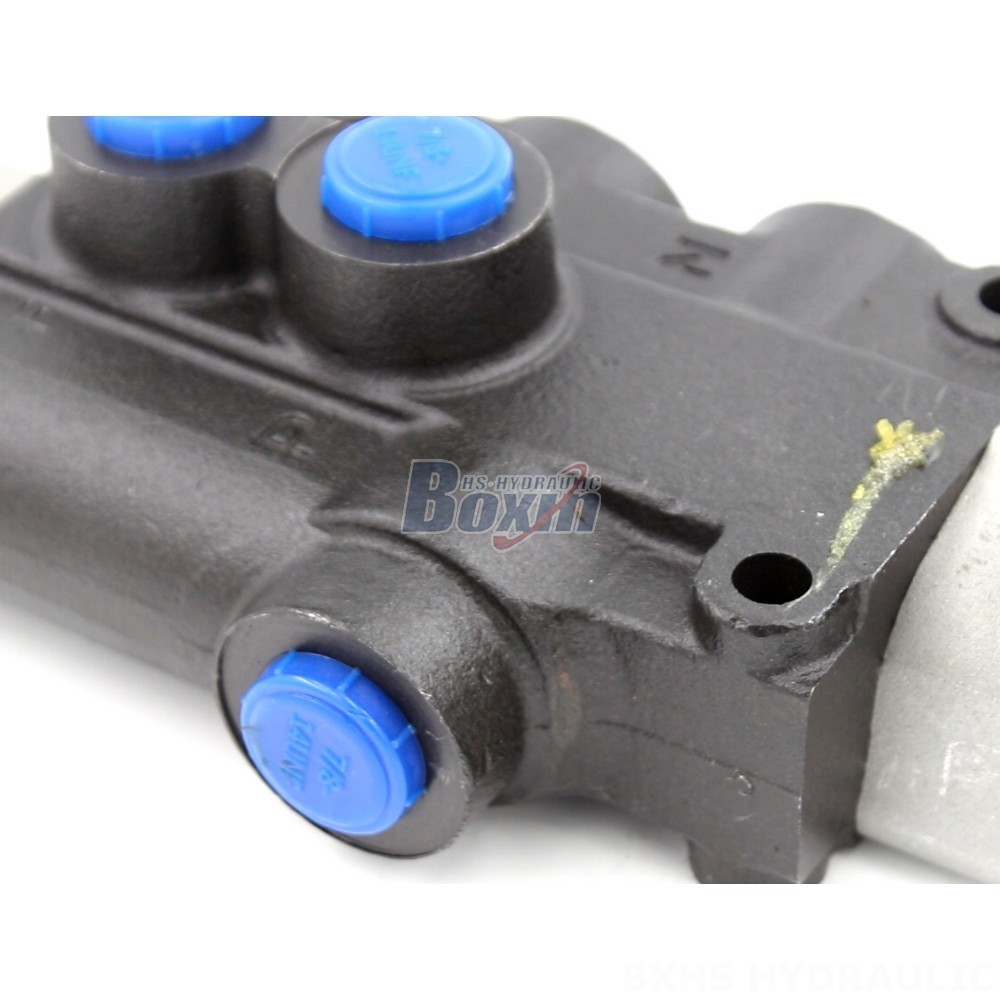

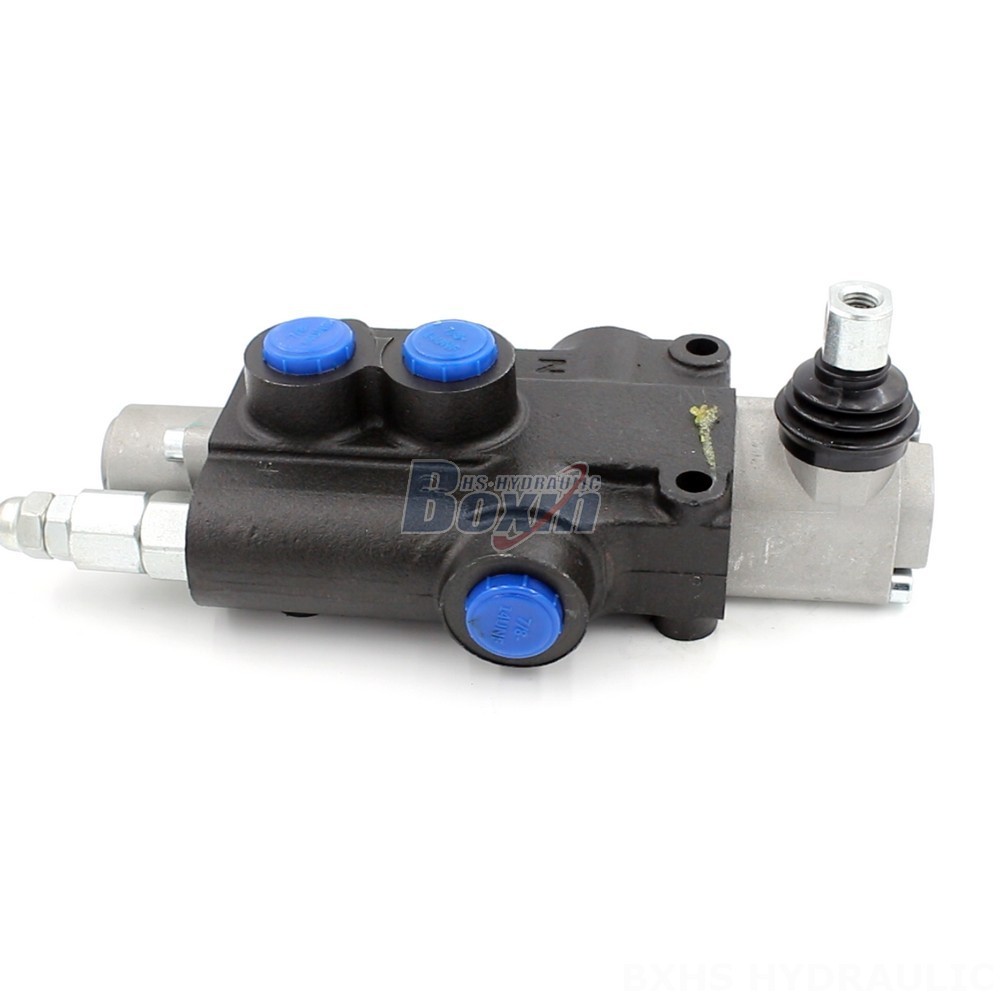

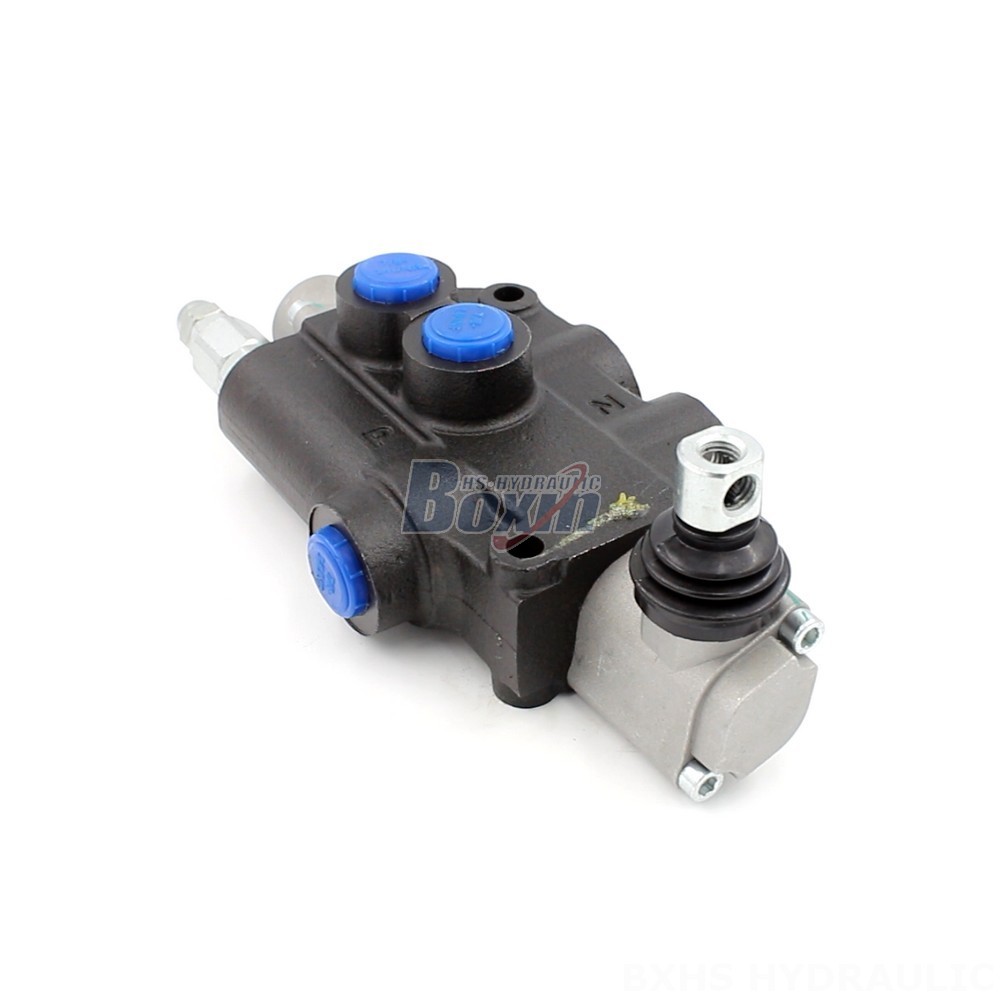

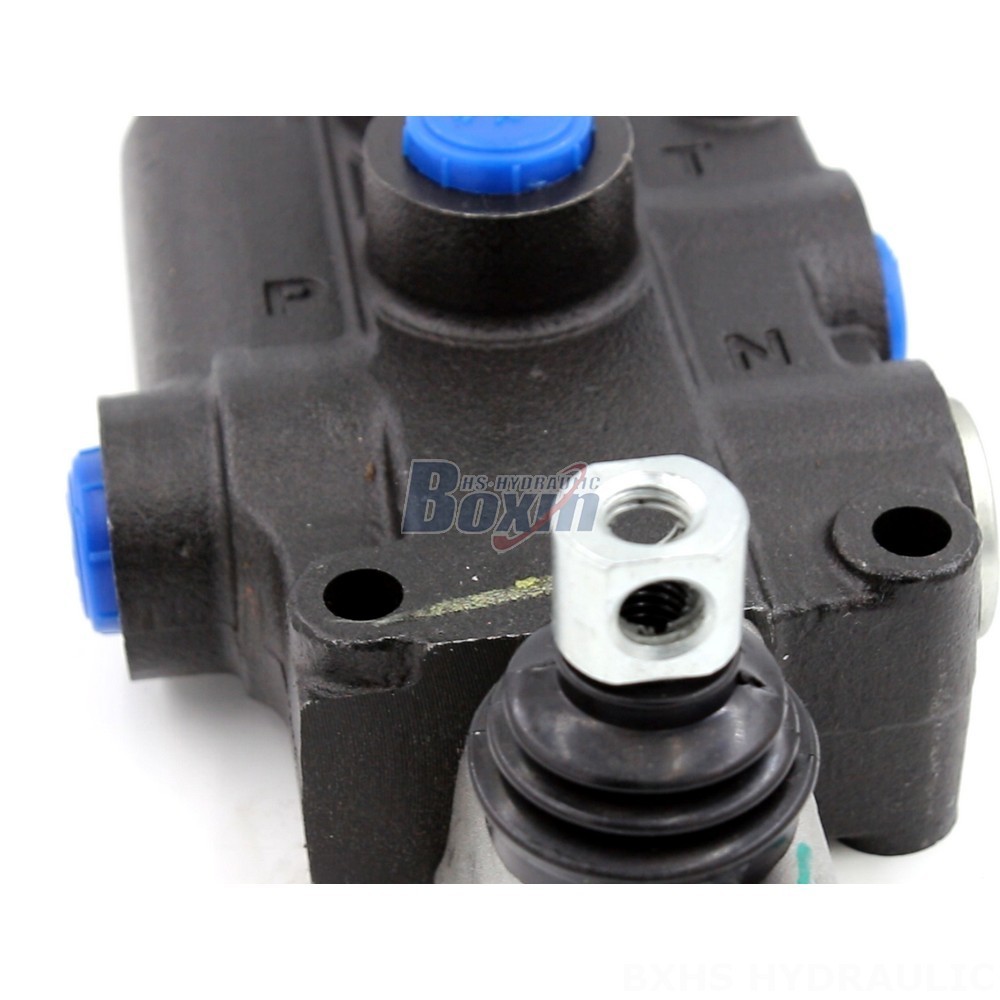

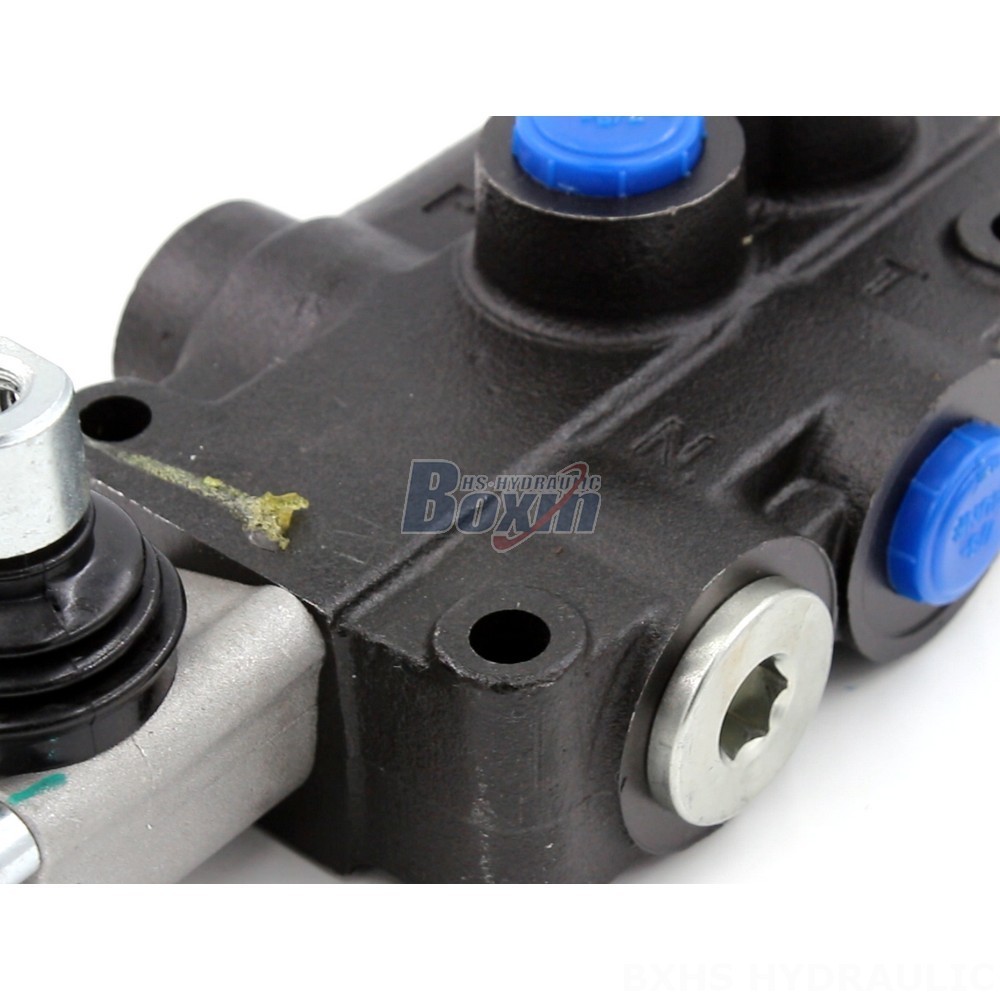

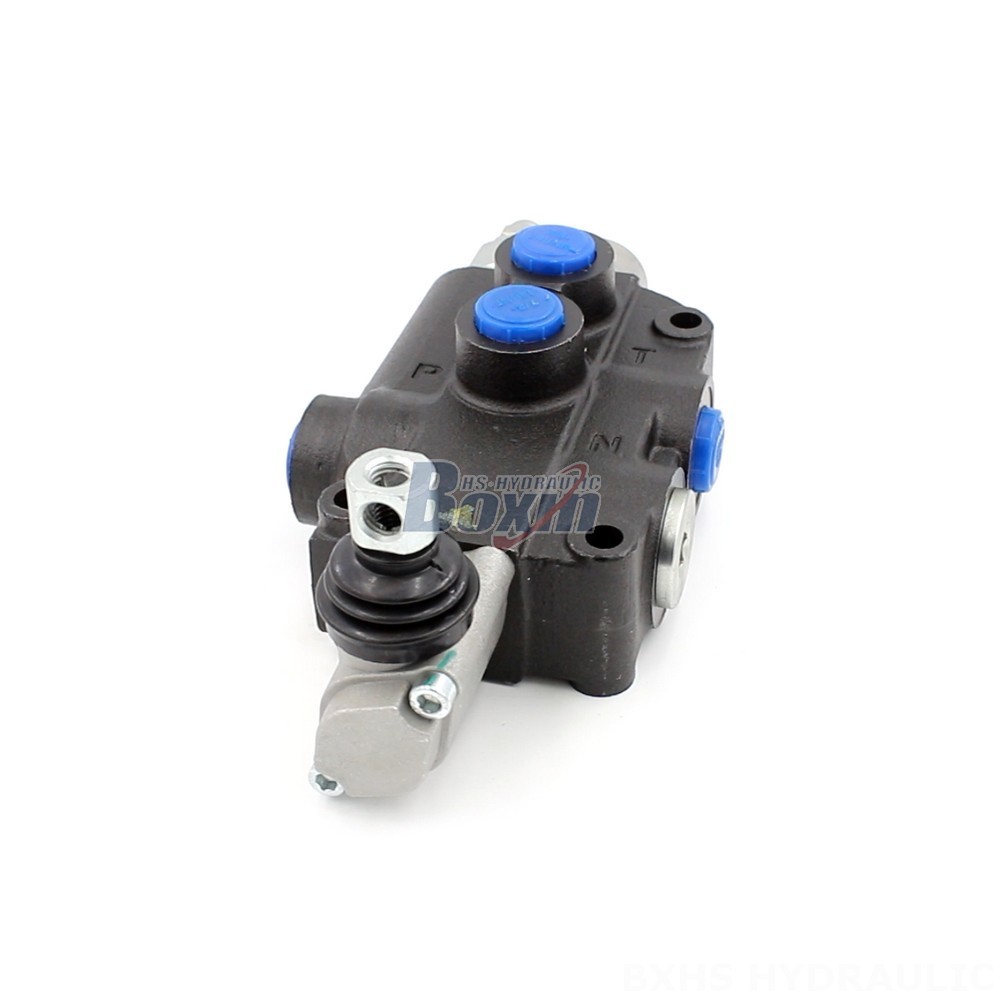

The P80-U78-1OT Series Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve provides precise flow control and reliable operation in challenging hydraulic systems.
| Serie P80 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Manuale e joystick |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 80 L/min (21.2 US gpm) |
| Pressione massima | 315 bar (4600 psi) |
| Attacco di ingresso | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Attacco di uscita | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimensione attacco | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features:**
- **Manual Control:** Allows for direct and intuitive operation of the valve.
- **1 Section Design:** Simplifies system integration and reduces potential leak points.
- **Monoblock Construction:** Provides structural rigidity and durability, ensuring long-term performance.
- **High Flow Capacity:** Handles high flow rates with minimal pressure drop, optimizing system efficiency.
- **Wide Operating Pressure Range:** Suitable for various hydraulic applications, from low to high-pressure systems.
- **Optimal Viscosity Range:** Operates effectively with a wide range of hydraulic fluids, ensuring compatibility with different system requirements.
- **Versatile Applications:** Ideal for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
**Benefits:**
- Enhanced system control and precision
- Improved efficiency and reduced energy consumption
- Increased durability and reliability in demanding operating conditions
- Ease of installation and maintenance
