Source ZT20 Directional Control Valves from a Trusted Manufacturer

Metodo di Controllo:Manuale

Spoo:2 Spole

Portata nominale:90 L/min (23.8 US gpm)

Pressione massima:250 bar (3600 psi)

Attacco di ingresso:G3/4

Attacco di uscita:G3/4

Dimensione attacco:G3/4

Marchio:BXHS

Tipo di prodotto:Valvola di Controllo Idraulico

Serie di prodotti:Serie ZT20 Valvola di Controllo Idraulico

Dimensioni dell'imballaggio:23*18*11

Peso lordo:7.91 kg

Disponibilità: In magazzino

1147 Le visualizzazioni cercano questo prodotto

Source ZT20 Directional Control Valves from a Trusted Manufacturer

Source ZT20 Directional Control Valves from a Trusted Manufacturer

Source ZT20 Directional Control Valves from a Trusted Manufacturer drawing image

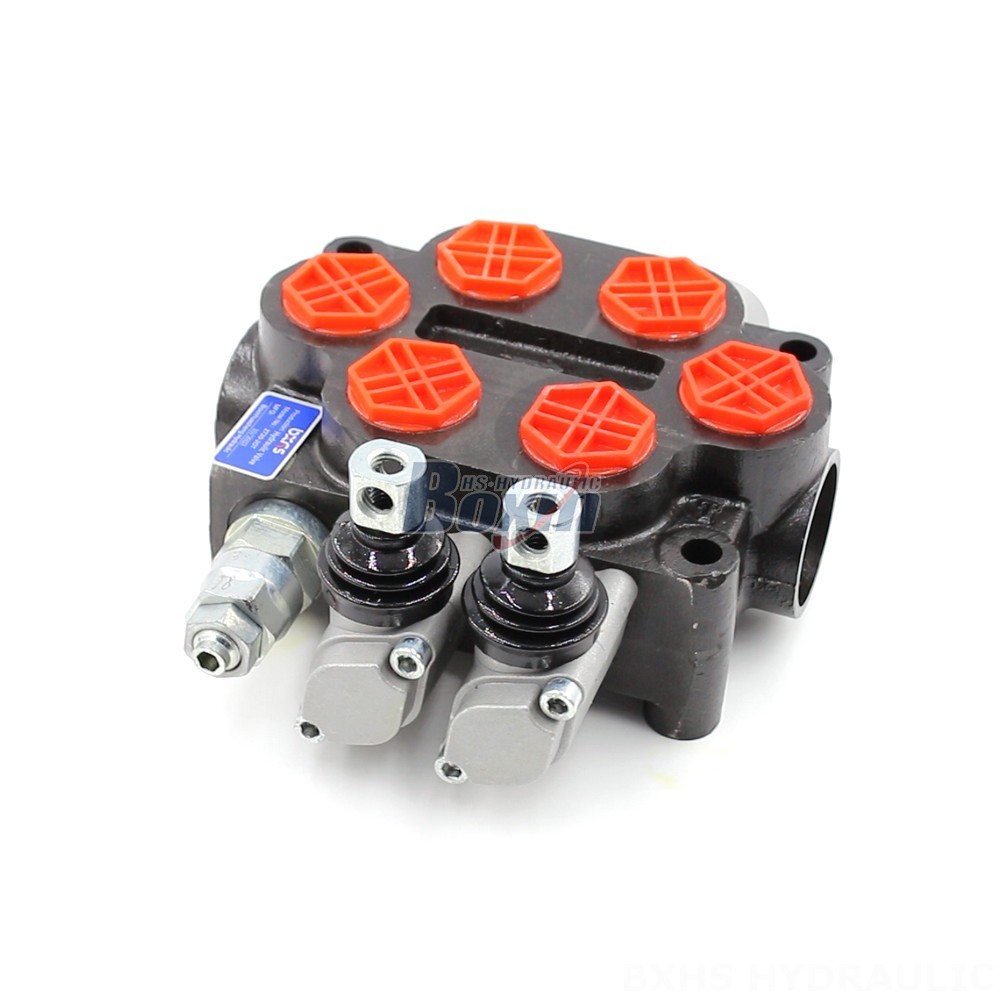

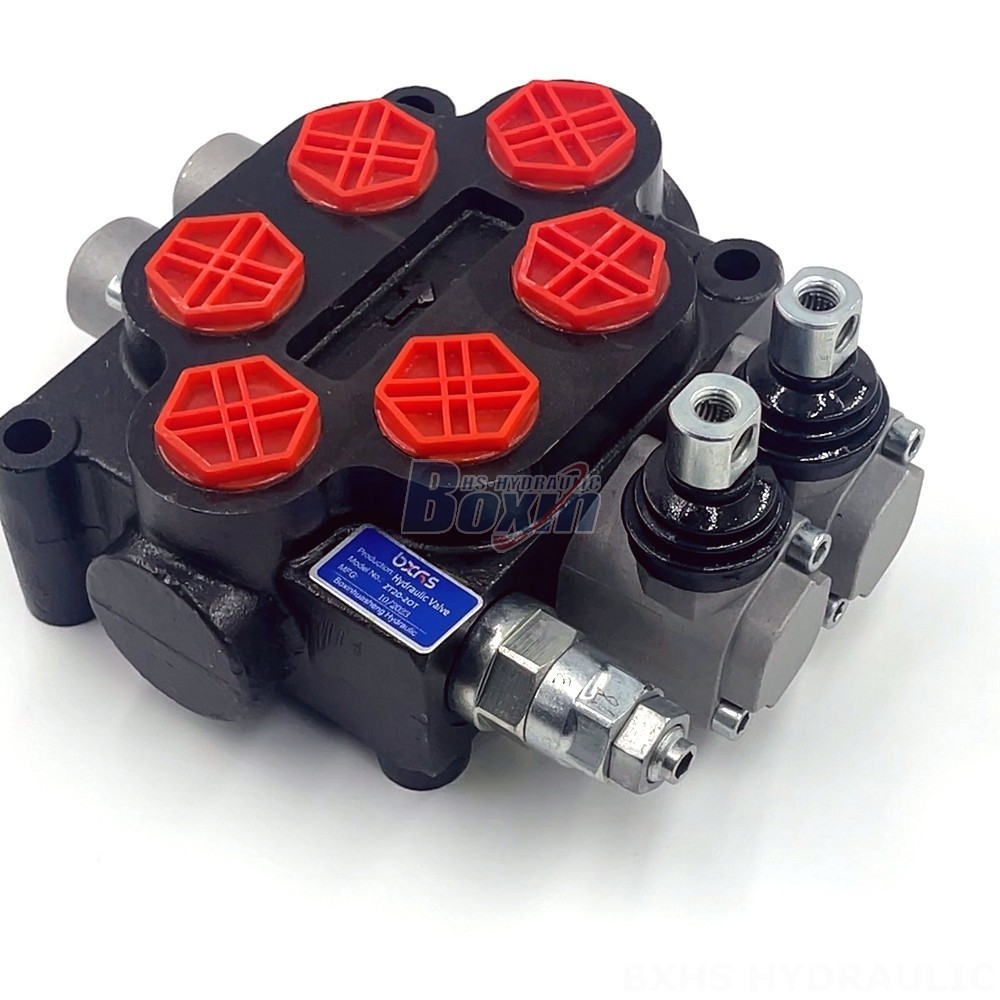

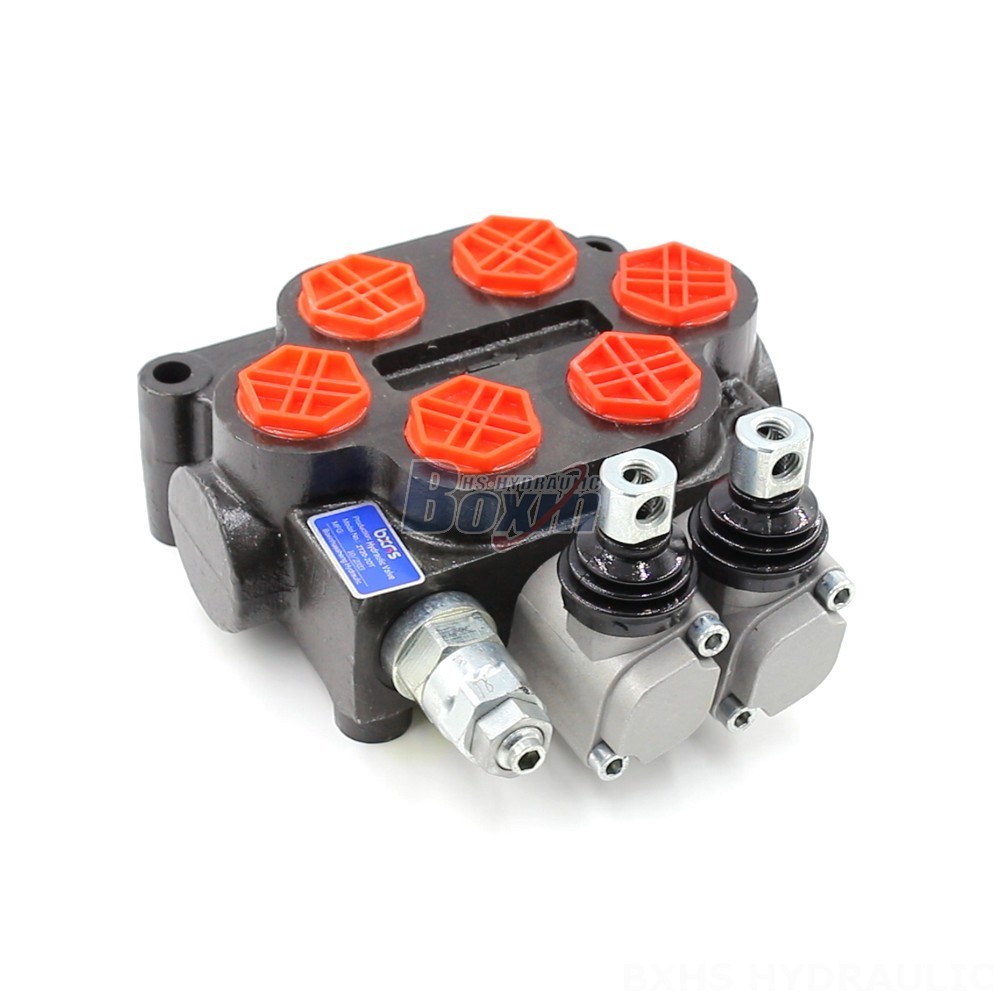

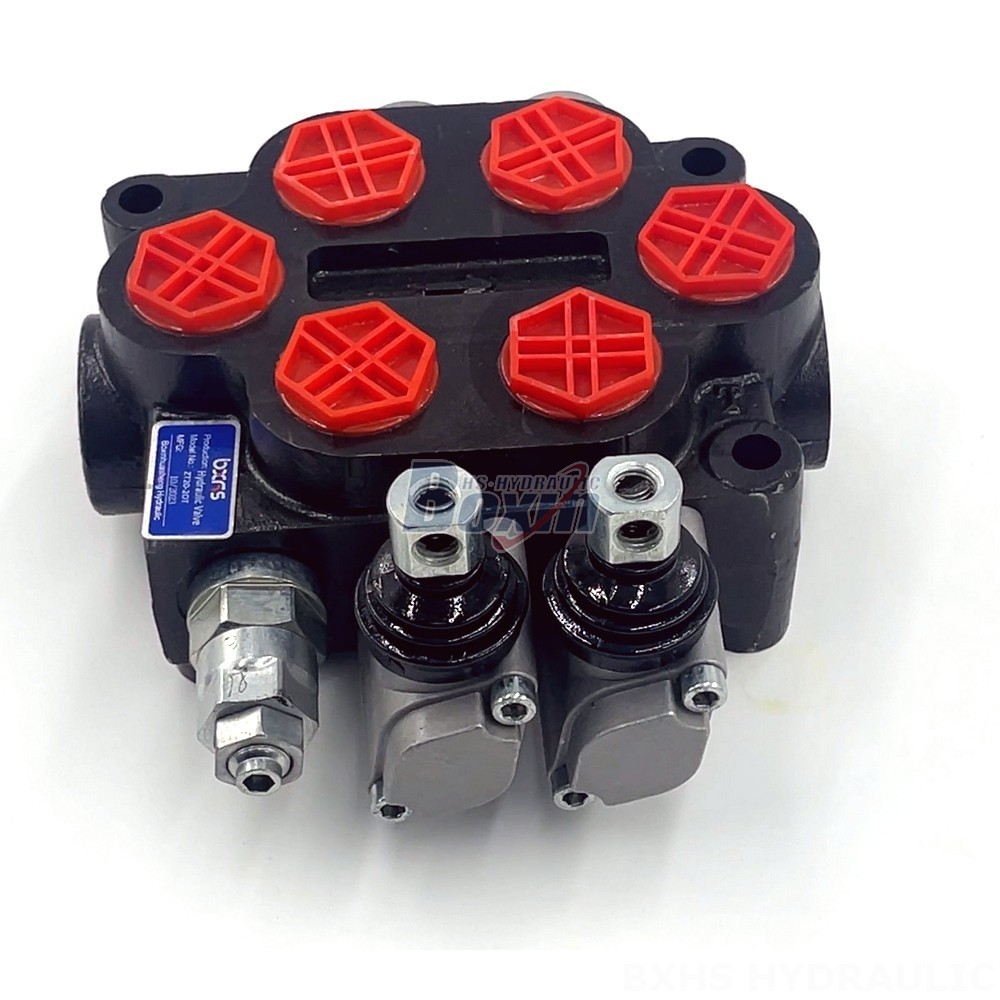

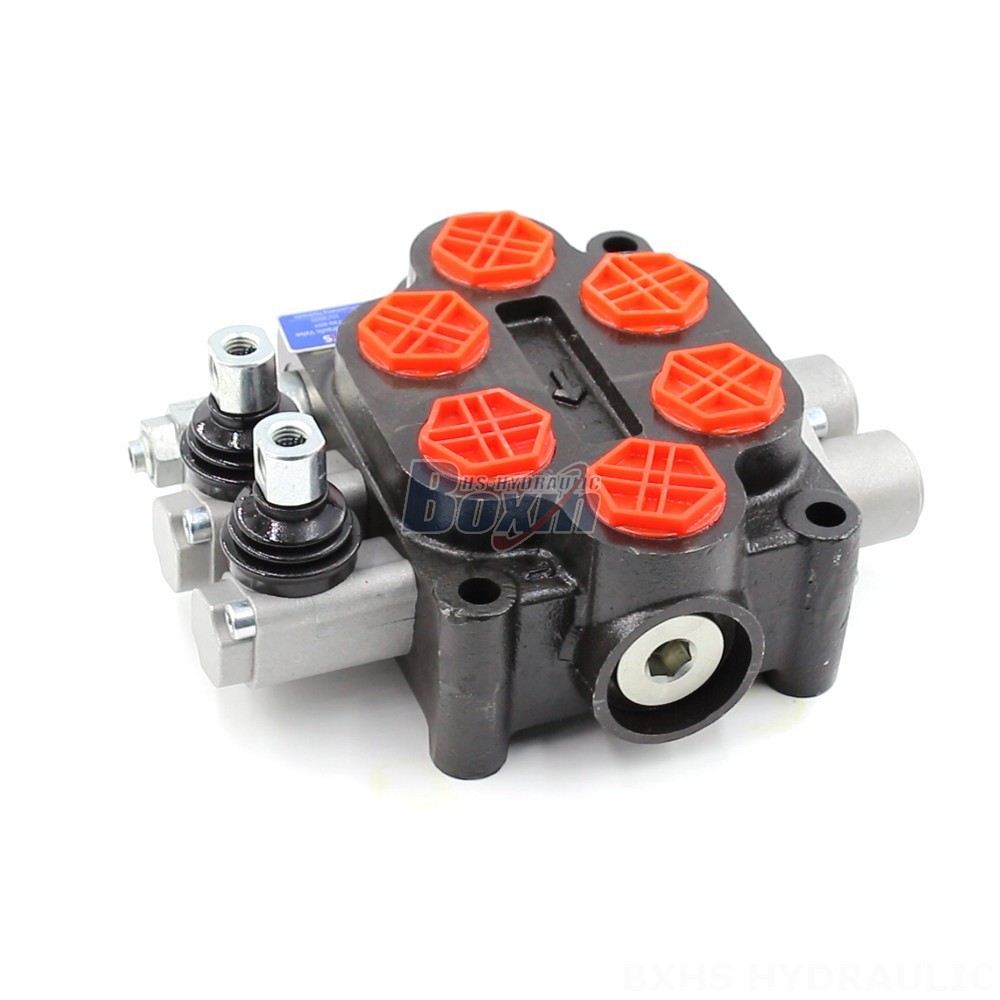

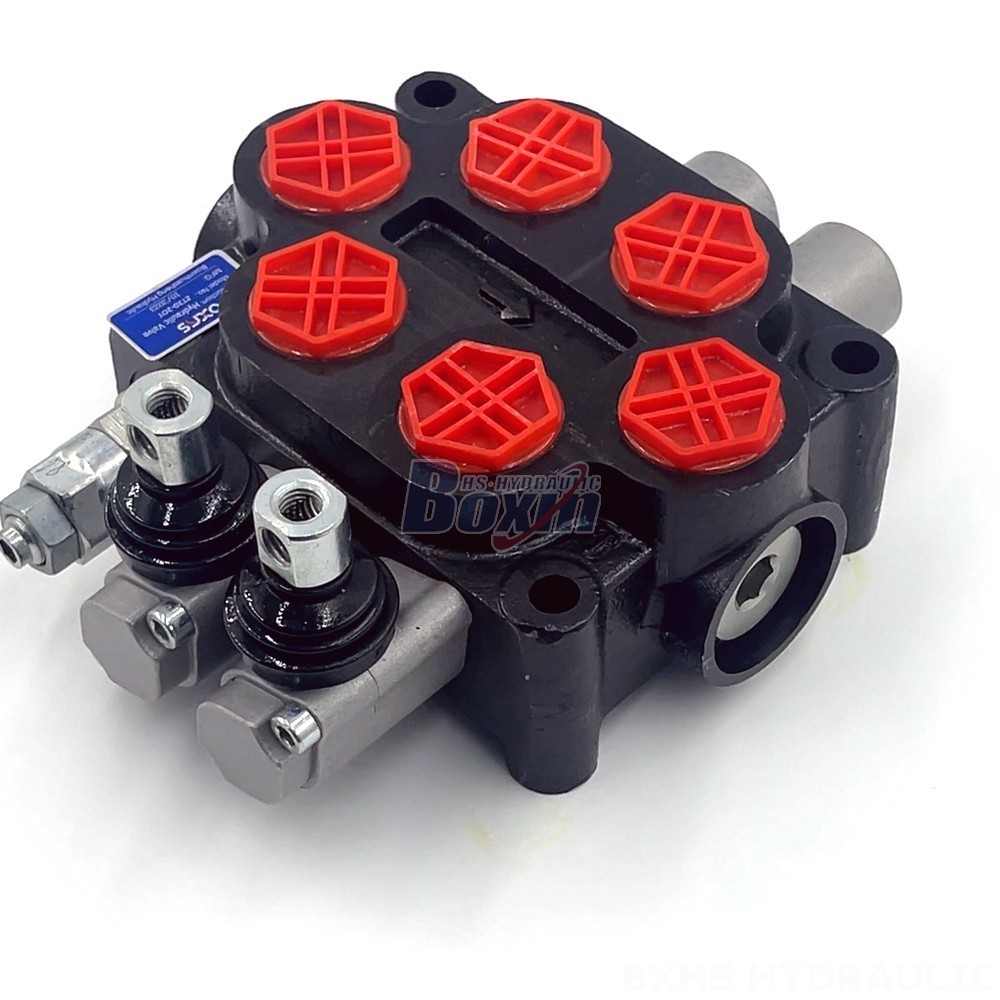

The ZT20 Series Directional Control Valve is a high-performance, 2-section monoblock valve designed for a variety of applications in material handling, construction, agriculture, and industrial vehicles. It features manual control, 100 L/min rated flow, and 250 bar maximum pressure.

Serie ZT20 Valvola di Controllo Idraulico Parametri
Metodo di Controllo Manuale, Cavo, Joystick, Manuale e joystick
Spoo 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole
Portata nominale 100 L/min (26.5 US gpm)
Pressione massima 250 bar (3600 psi)
Attacco di ingresso G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Attacco di uscita G1/2, G3/4, M22×1.5, M27×2.0, SAE 8, SAE 10, 1/2 NPT, 3/4 NPT
Dimensione attacco G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Sezione Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6
Tipo di struttura Valvola monoblocco
Intervallo di temperatura ambiente -40°C to +80°C (-40°F to +176°F)
Intervallo di viscosità operativa 15 - 75 mm²/s (15 cSt to 75 cSt)

This ZT20 Series Directional Control Valve is a reliable and durable solution for your hydraulic system needs. It features a compact, monoblock design with a 2-section configuration, offering precise control and efficient operation. With a rated flow of 100 L/min and a maximum pressure of 250 bar, this valve is suitable for a wide range of applications. Its manual control allows for easy operation and adjustment. The valve is designed for use in various industries, including material handling, construction, earthmoving, agriculture, and industrial vehicles. It is particularly well-suited for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. With a robust construction and high-quality materials, this ZT20 Series valve delivers long-lasting performance and reliability.
