Source Directly & Save: SD25 Valves from the Factory Producer

Metodo di Controllo:Manuale

Spoo:1 Spola

Portata nominale:240 L/min (63.4 US gpm)

Pressione massima:315 bar (4600 psi)

Attacco di ingresso:G1

Attacco di uscita:G1-1/4

Dimensione attacco:G1

Marchio:BXHS

Tipo di prodotto:Valvola direzionale sezionale

Serie di prodotti:Serie SD25 Valvola direzionale sezionale

Dimensioni dell'imballaggio:30*45*20

Peso lordo:28.50 kg

Disponibilità: In magazzino

1165 Le visualizzazioni cercano questo prodotto

Source Directly & Save: SD25 Valves from the Factory Producer

Source Directly & Save: SD25 Valves from the Factory Producer

Source Directly & Save: SD25 Valves from the Factory Producer drawing image

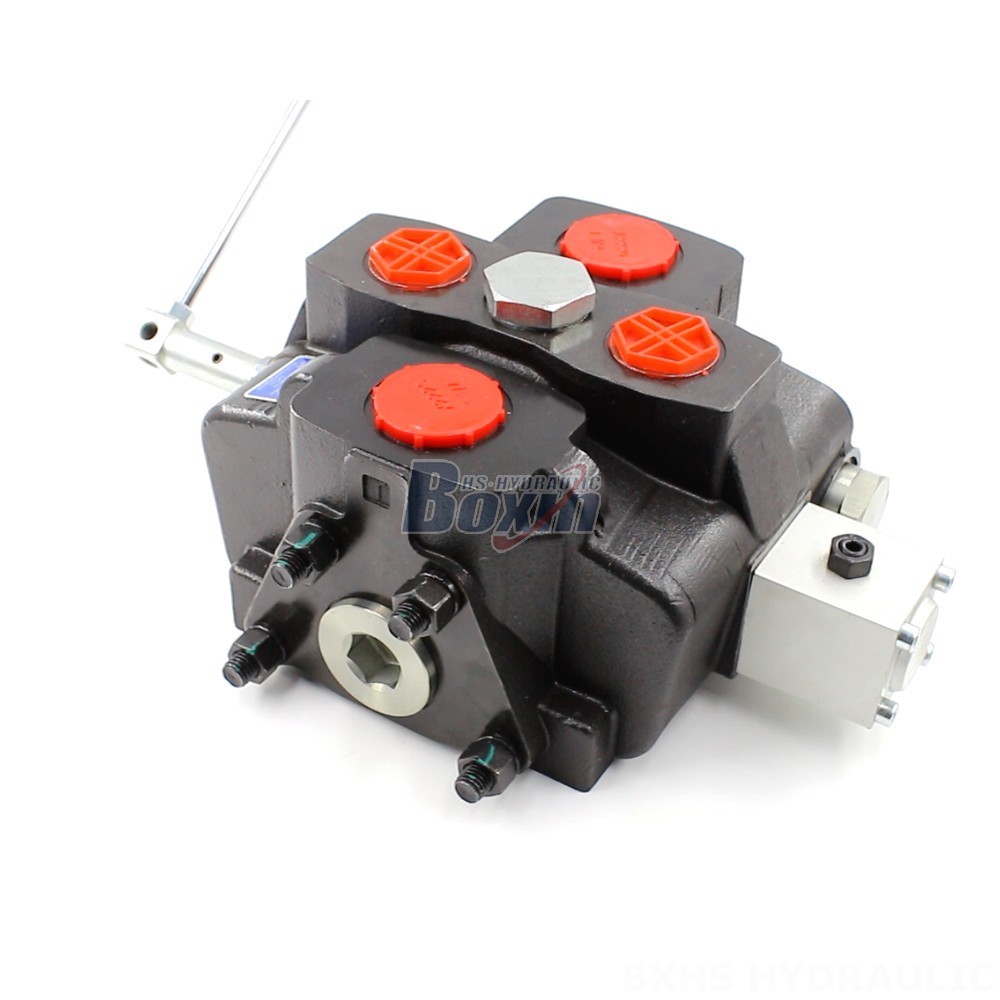

Our SD25 series two spool hydraulic control valve is a high-performance, reliable option for various applications, including construction equipment, material handling, agriculture, and industrial vehicles. This manual control valve offers a rated flow of 240 L/min (63.4 US gpm) and a max pressure of 315 bar (4600 psi). Designed for durability and efficiency, it is suitable for demanding environments.

Serie SD25 Valvola direzionale sezionale Parametri
Metodo di Controllo Manuale, Elettroidraulico, Idraulico
Spoo 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole
Intervallo di temperatura ambiente -40°C to +80°C (-40°F to +176°F)
Tipo di struttura Valvola sezionale
Sezione Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7, Sezione 8, Sezione 9, Sezione 10
Intervallo di viscosità operativa 12 - 400 mm²/s (12 cSt to 400 cSt)
Portata nominale 240 L/min (63.4 US gpm)
Pressione massima 315 bar (4600 psi)
Attacco di ingresso G1, SAE 16
Attacco di uscita G1-1/4, SAE 16
Dimensione attacco G1, G1-1/4, SAE 12

The SD25 series two spool hydraulic control valve is a reliable and efficient solution for various applications. Manufactured directly from our factory, we offer wholesale pricing and direct supply, ensuring competitive pricing and high-quality products. This monoblock valve features manual control, a rated flow of 240 L/min (63.4 US gpm), and a maximum pressure of 315 bar (4600 psi). It operates within a viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt) and is suitable for ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). Designed for various applications in material handling, construction and earth moving, agriculture, and industrial vehicles, this valve is perfect for telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. Choose our SD25 series two spool hydraulic control valve for reliable performance and cost-effectiveness, directly from the factory.
