Produzione e consegna
Tempi di produzione di 15-30 giorni

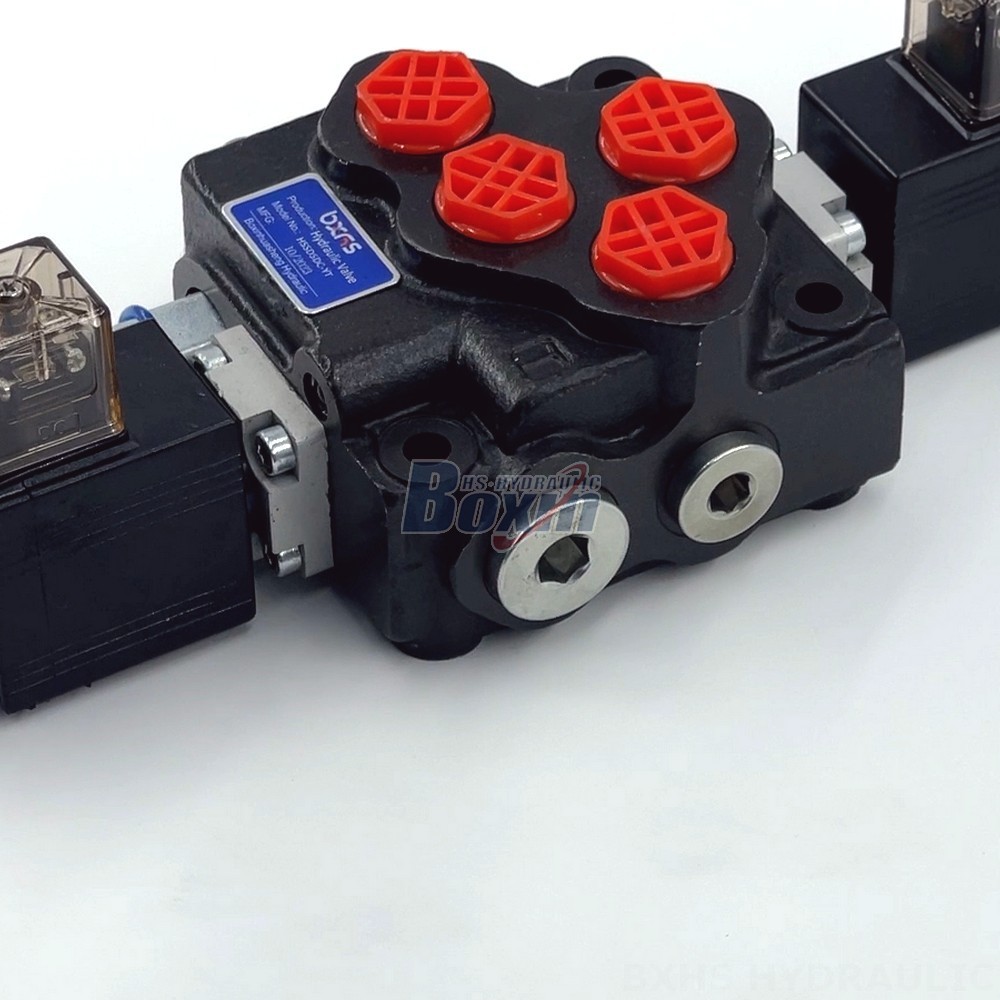

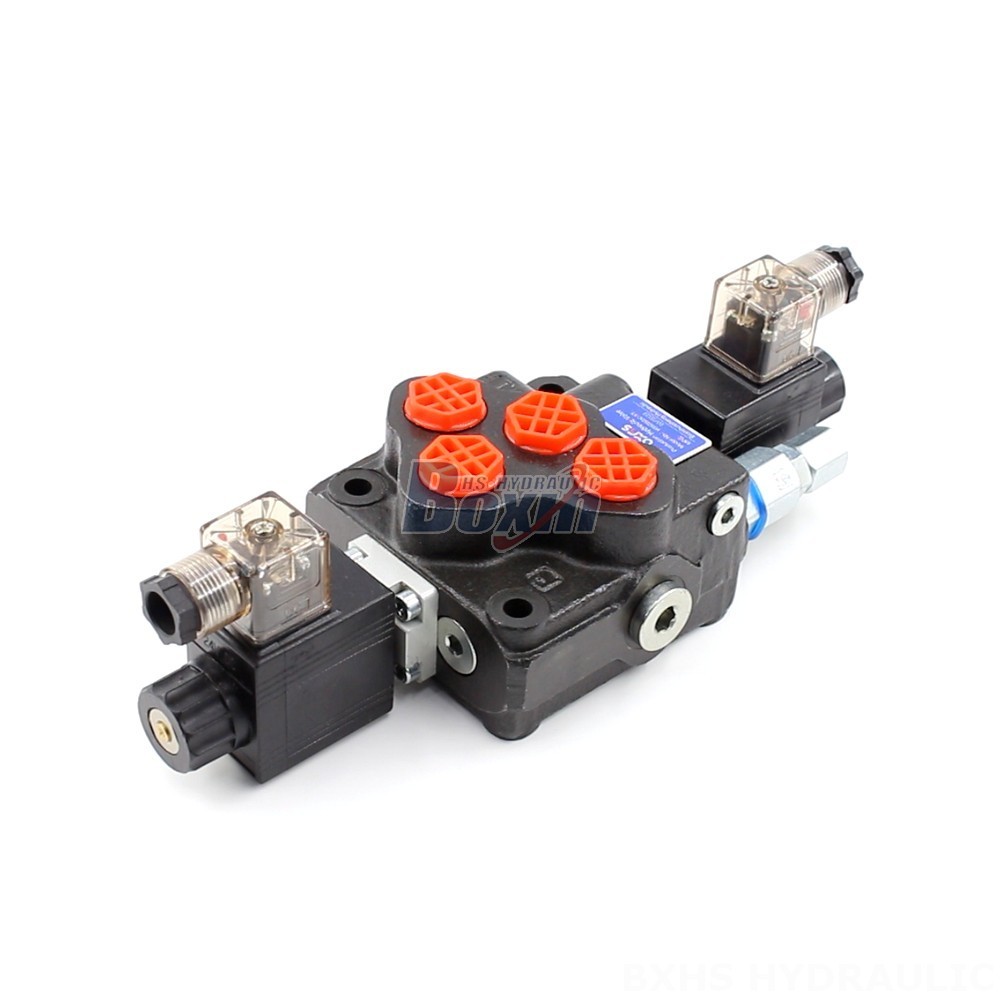

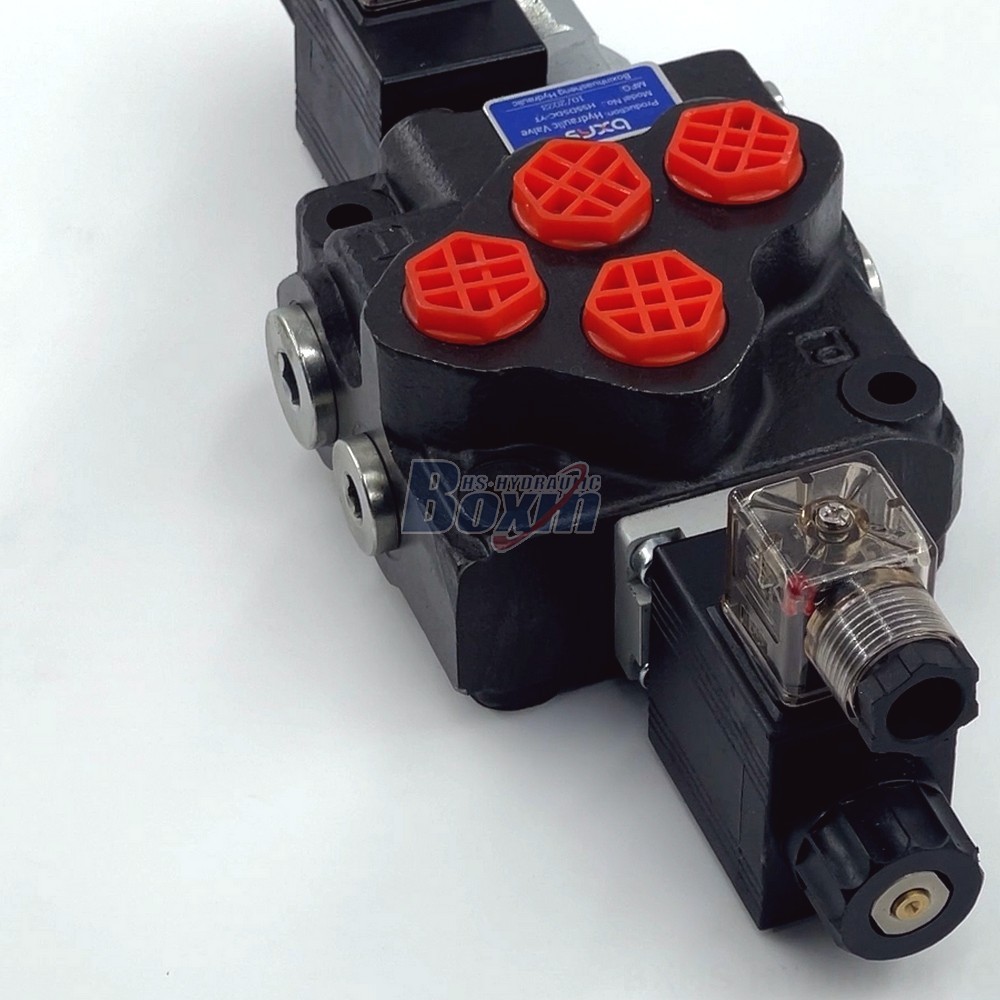

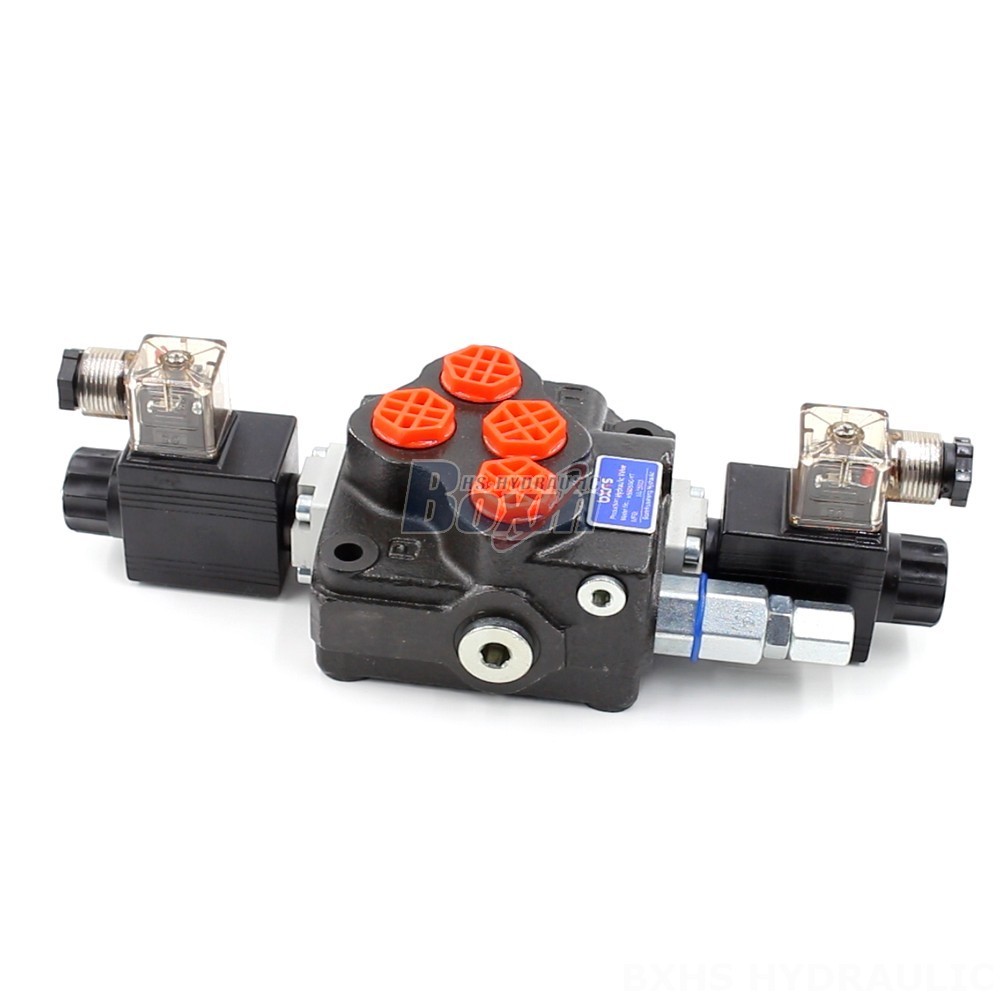

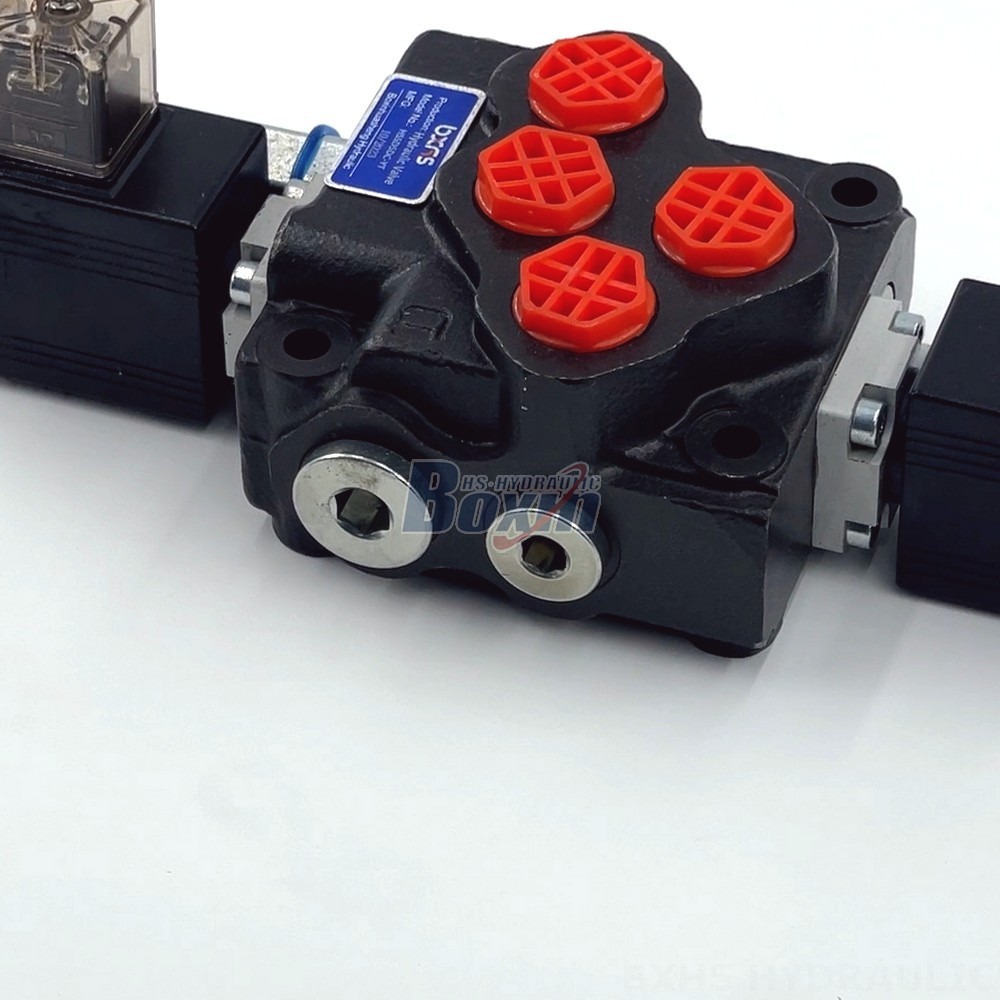

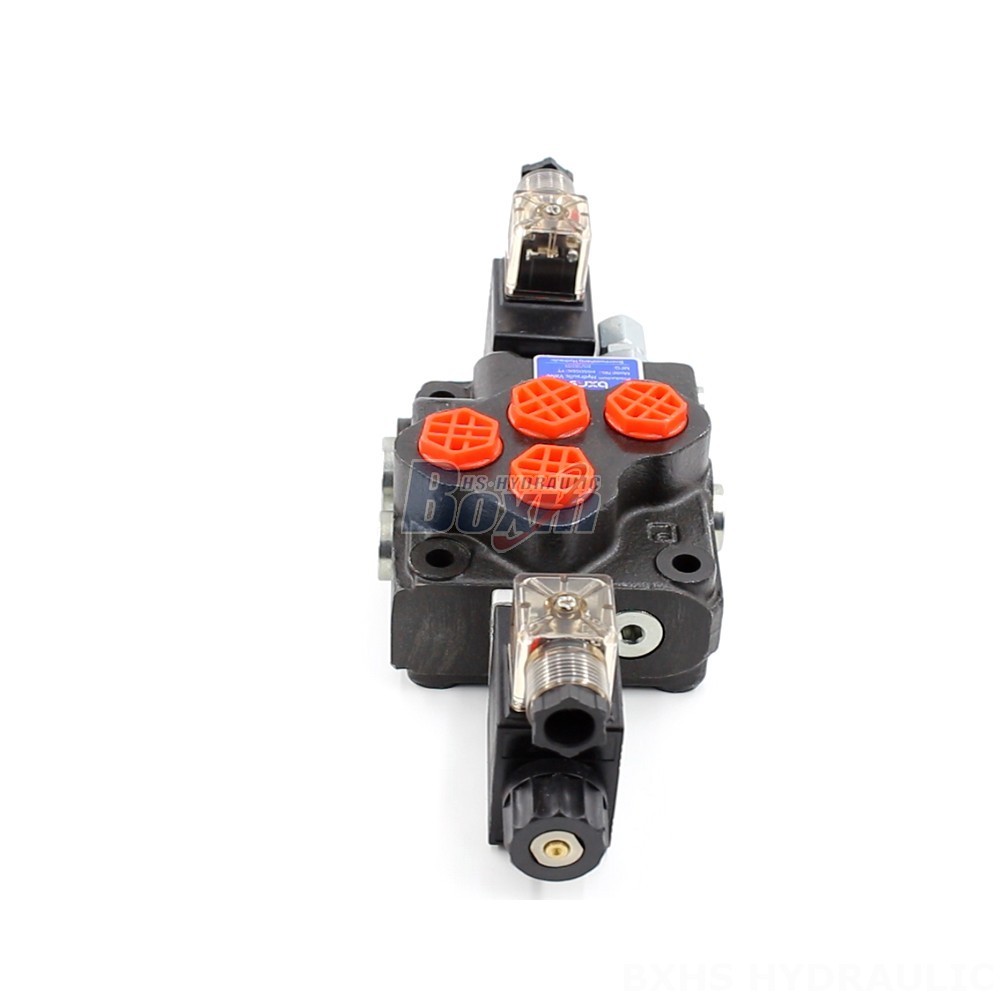

The SD5 Series Log Splitter Spool Valve Solenoid Hydraulic Valve is a durable and reliable valve designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles. This monoblock valve features a solenoid control method, 1 section, 40 L/min rated flow, and 305 bar maximum pressure. It's available directly from the factory and can be customized to meet your specific needs.
| Serie SD5 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +60°C (-40°F to +140°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 40 L/min (10.5 US gpm) |
| Pressione massima | 305 bar (4400 psi) |
| Attacco di ingresso | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Attacco di uscita | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Dimensione attacco | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5 Series Log Splitter Spool Valve Solenoid Hydraulic Valve is a high-performance, heavy-duty valve designed for use in demanding applications. It features a compact design, robust construction, and reliable performance. This monoblock valve is controlled by a solenoid, offering precise and responsive operation. The valve is available in a variety of configurations to meet your specific needs. It is also available with a range of options and accessories, including custom-engineered solutions. The SD5 Series is the perfect choice for a wide range of applications including material handling, construction, agriculture, and industrial vehicles. It is also suitable for use in a variety of harsh environments. Contact us today to learn more about this high-quality hydraulic valve.
