Seeking Global Distributorship for P40-U78 Monoblock Valve

Metodo di Controllo:Manuale

Spoo:3 Spole

Portata nominale:40 L/min (10.5 US gpm)

Pressione massima:250 bar (3600 psi)

Attacco di ingresso:SAE 10

Attacco di uscita:SAE 10

Dimensione attacco:SAE 10

Marchio:BXHS

Tipo di prodotto:Valvola direzionale monoblocco

Serie di prodotti:Serie P40 Valvola direzionale monoblocco

Dimensioni dell'imballaggio:24*21*13

Peso lordo:6.60 kg

Disponibilità: In magazzino

1082 Le visualizzazioni cercano questo prodotto

Seeking Global Distributorship for P40-U78 Monoblock Valve

Seeking Global Distributorship for P40-U78 Monoblock Valve

Seeking Global Distributorship for P40-U78 Monoblock Valve drawing image

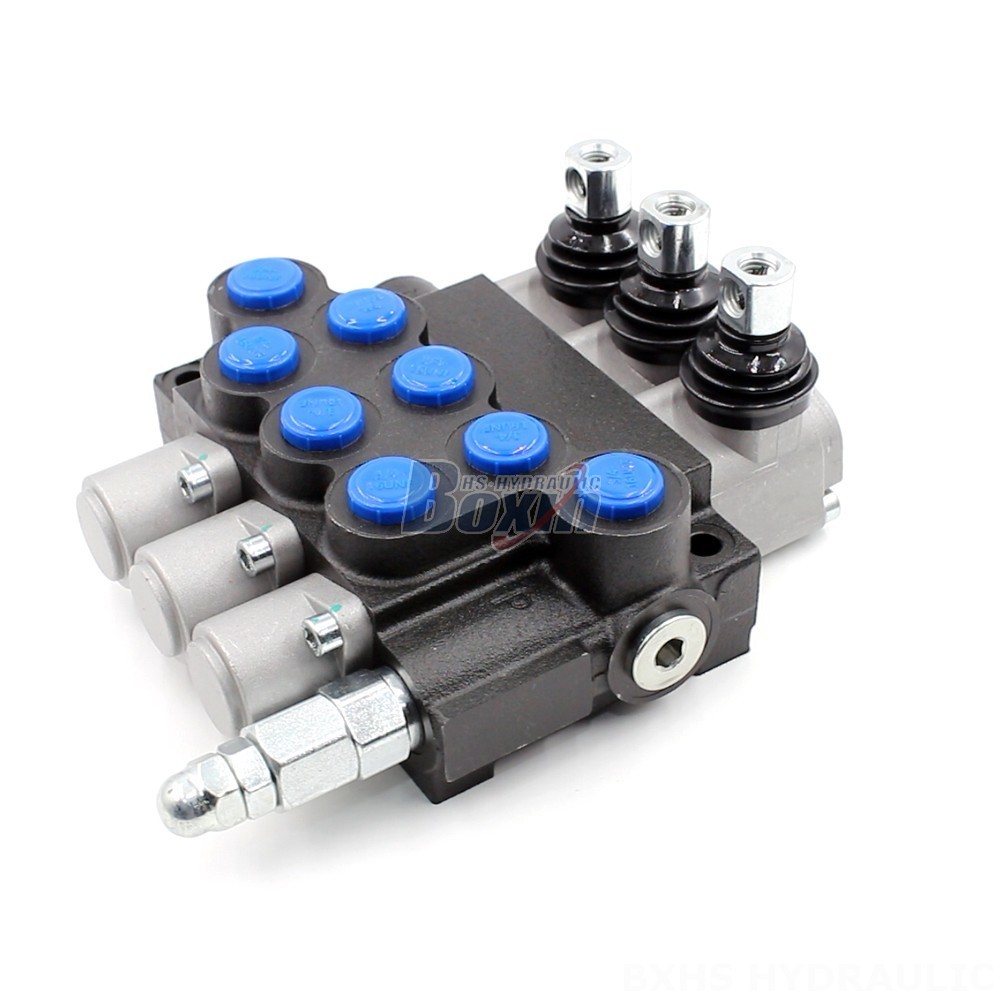

The P40-U78 Monoblock Valve is a high-performance, remote-controlled hydraulic control valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. Featuring a compact design, 3 sections, and a 40 L/min flow rate, this valve is built to withstand high pressures (up to 250 bar) and challenging environments.

Serie P40 Valvola direzionale monoblocco Parametri
Metodo di Controllo Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Solenoide e joystick, Manuale e joystick, A solenoide e a cavo
Spoo 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole
Intervallo di temperatura ambiente -40°C to +80°C (-40°F to +176°F)
Tipo di struttura Valvola monoblocco
Sezione Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7
Intervallo di viscosità operativa 15 - 75 mm²/s (15 cSt to 75 cSt)
Portata nominale 40 L/min (10.5 US gpm)
Pressione massima 250 bar (3600 psi)
Attacco di ingresso G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Attacco di uscita G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Dimensione attacco G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40 Series hydraulic control valve boasts a robust monoblock construction, offering superior durability and reliability. The valve's remote control capability provides for convenient operation, while its 3-section design ensures versatility in controlling hydraulic systems. With a rated flow of 40 L/min and a maximum pressure rating of 250 bar, this valve is well-suited for various heavy-duty applications. It is compatible with a wide range of equipment, including telehandlers, forklifts, cranes, excavators, loaders, and more. The P40-U78 Monoblock Valve operates within a viscosity range of 15-75 mm²/s and can withstand ambient temperatures from -40°C to +80°C, ensuring optimal performance across a variety of operating conditions.
