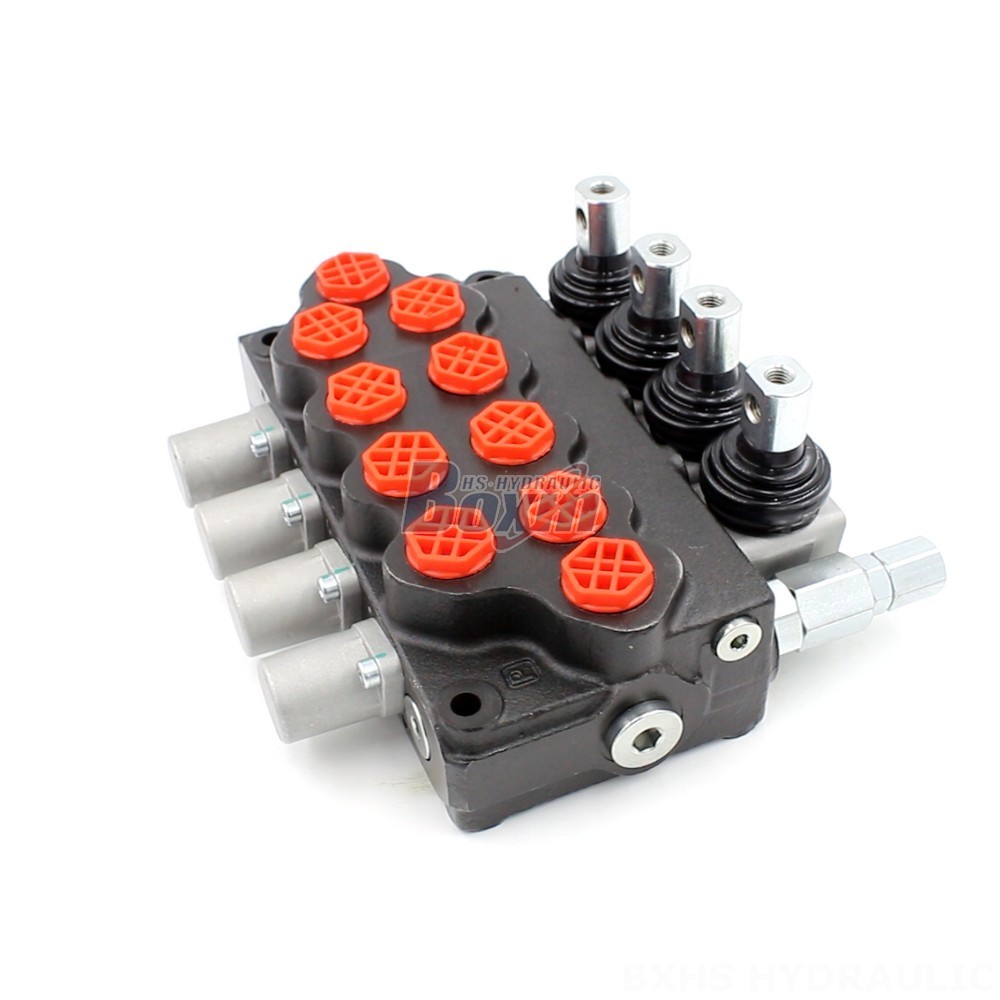

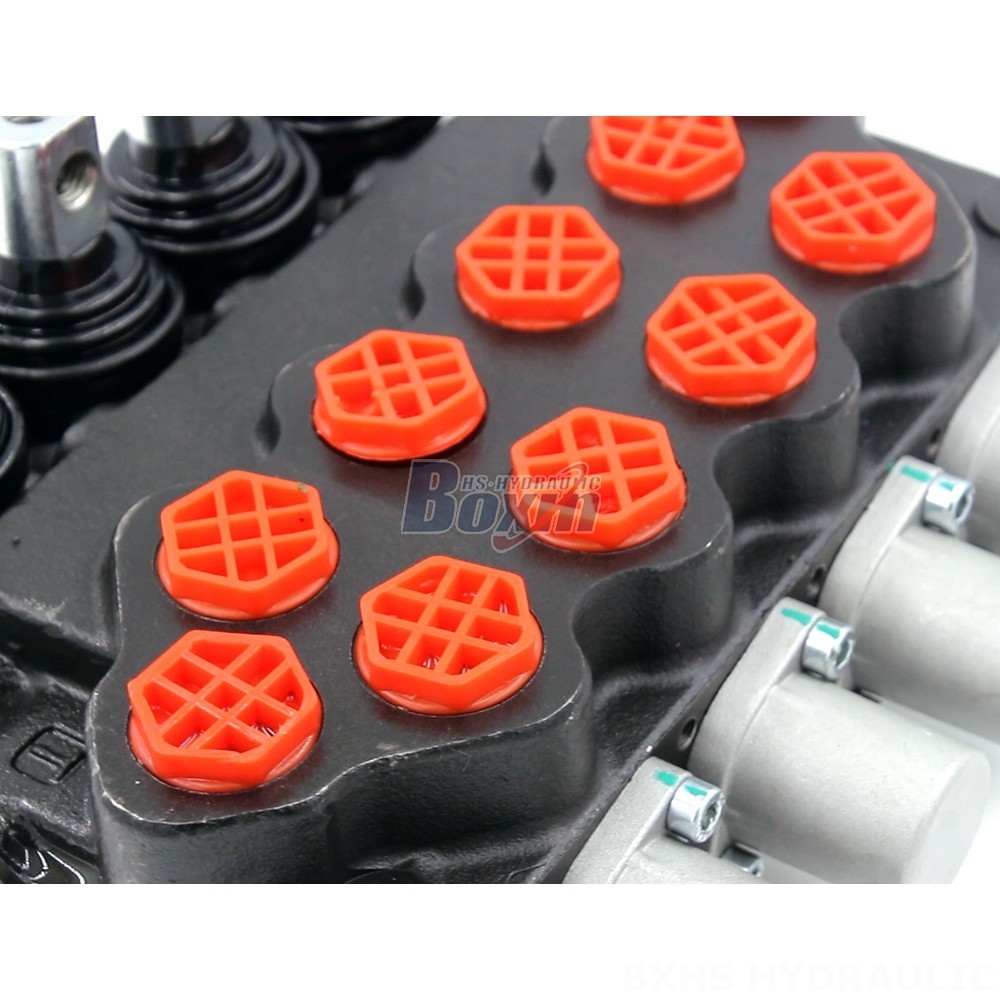

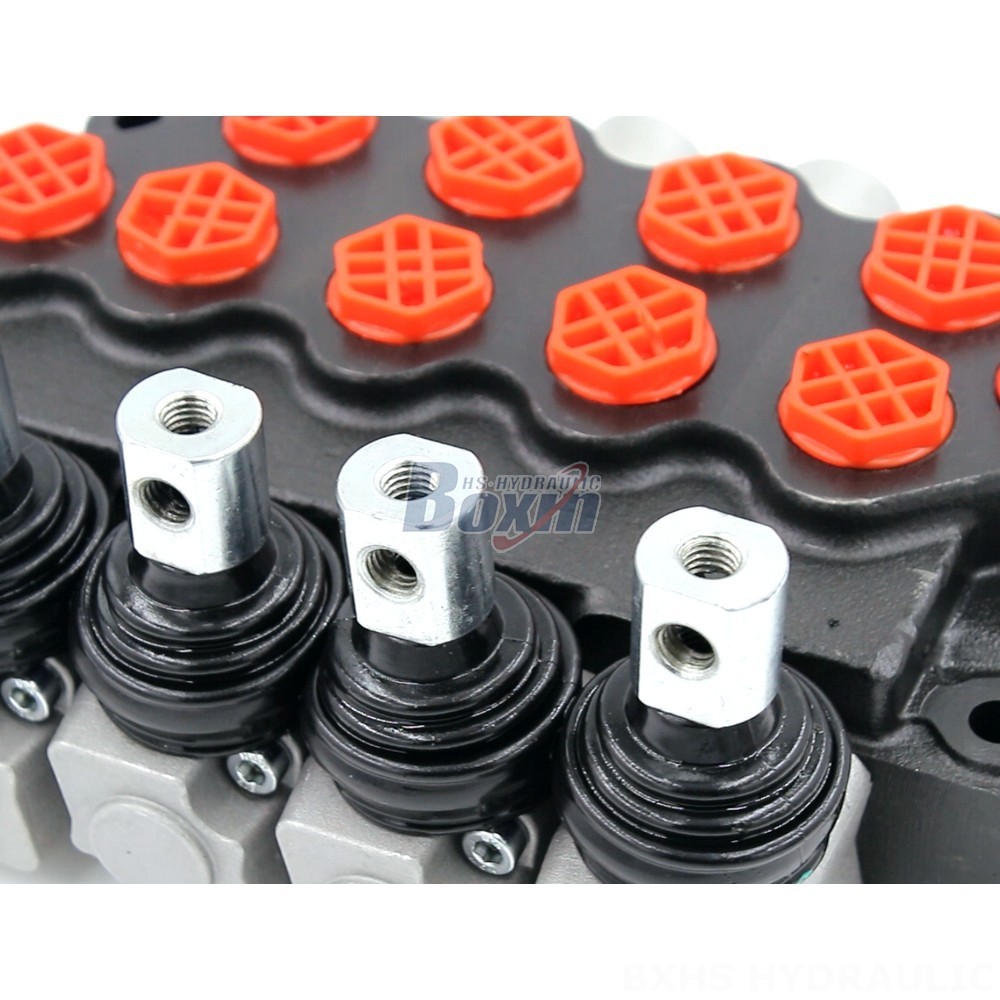

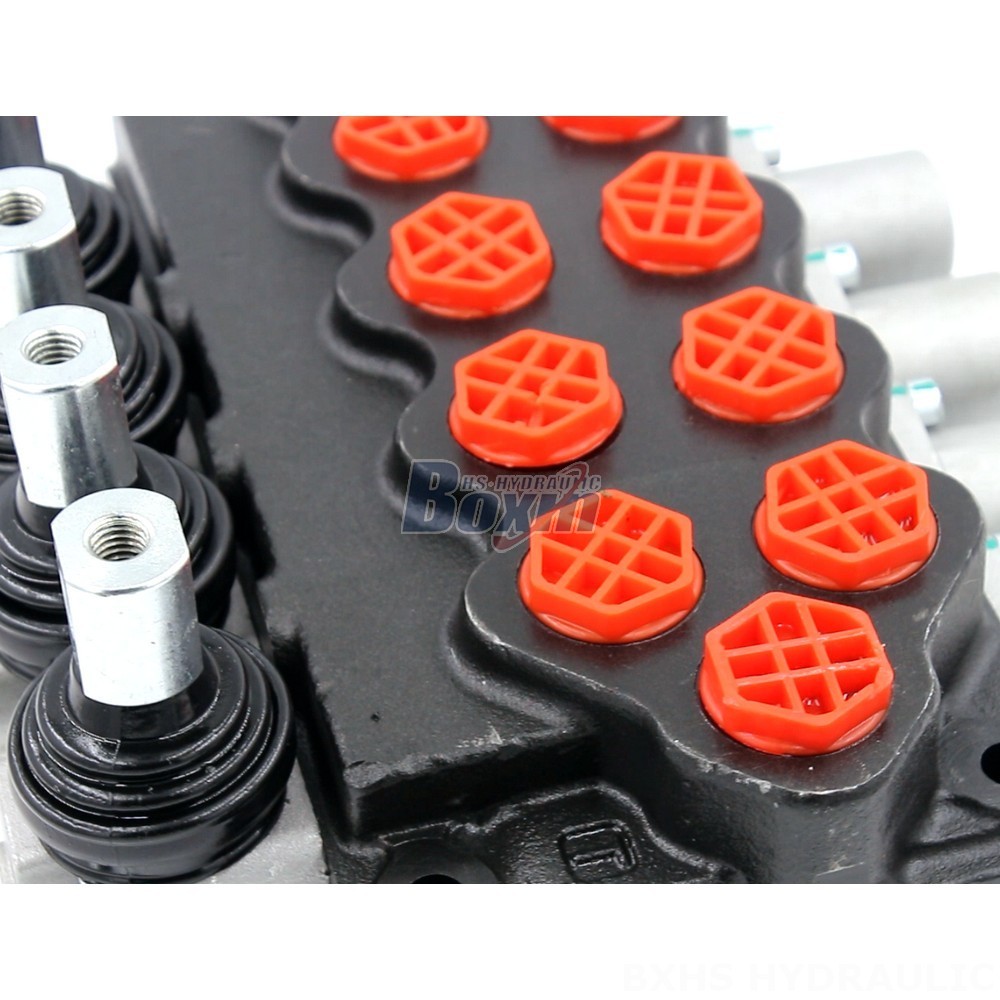

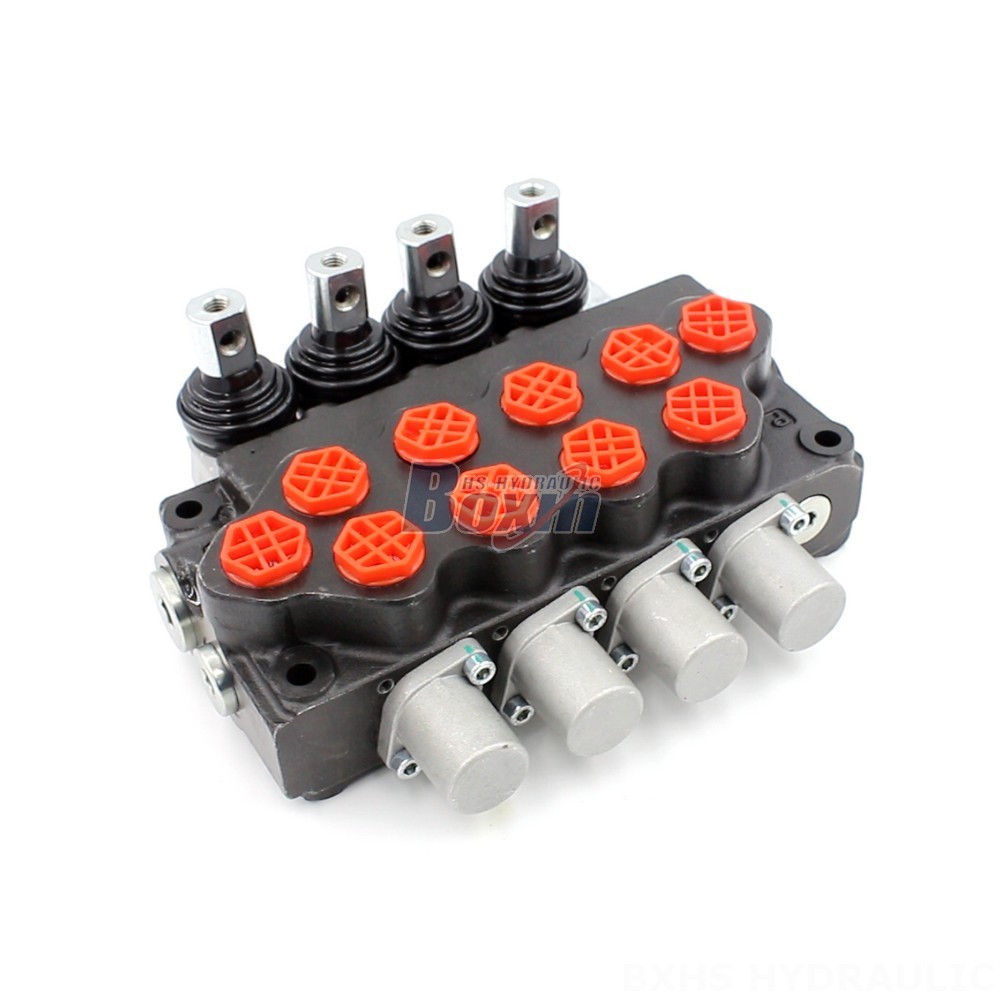

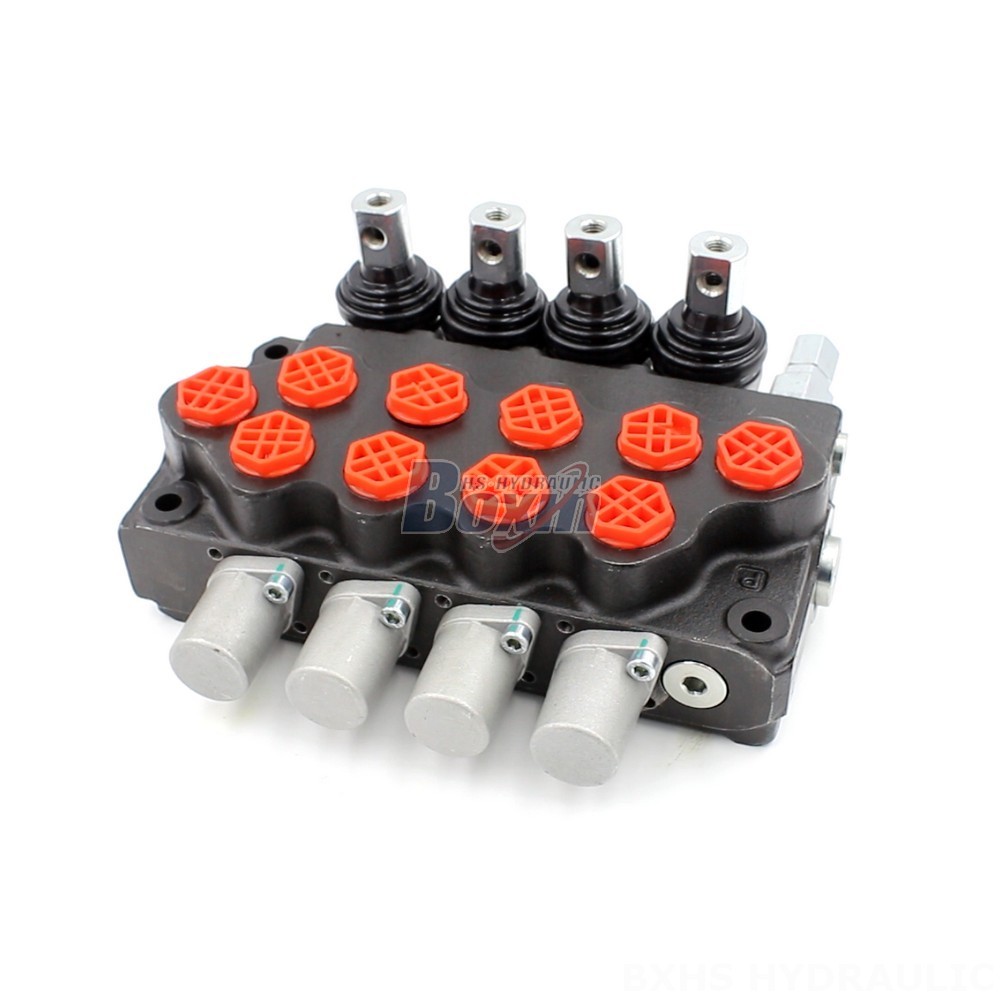

The SD5-G38 4-Spool Hydraulic Valve is a premium hydraulic solution designed for demanding applications in various industries. Its robust construction, high flow capacity, and exceptional pressure handling capabilities make it ideal for heavy-duty machinery and equipment.
| Serie SD5 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +60°C (-40°F to +140°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 40 L/min (10.5 US gpm) |
| Pressione massima | 305 bar (4400 psi) |
| Attacco di ingresso | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Attacco di uscita | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Dimensione attacco | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
**Key Features:**
* **4-Spool Design:** Provides precise control over multiple hydraulic circuits.
* **Monoblock Construction:** Ensures durability and leak-free operation.
* **Manual Control:** Offers intuitive and responsive operation.
* **High Flow Rate (40 L/min):** Supports efficient operation of hydraulic systems.
* **High Pressure Capacity (305 bar):** Handles demanding pressure requirements with ease.
* **Versatile Temperature Range (-40°C to +60°C):** Suitable for operation in extreme environments.
* **Wide Application Area:** Ideal for material handling, construction, earth moving, agriculture, and industrial vehicles.
* **Compatible Models:** Telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, MIDI-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
