Produzione e consegna
Tempi di produzione di 15-30 giorni

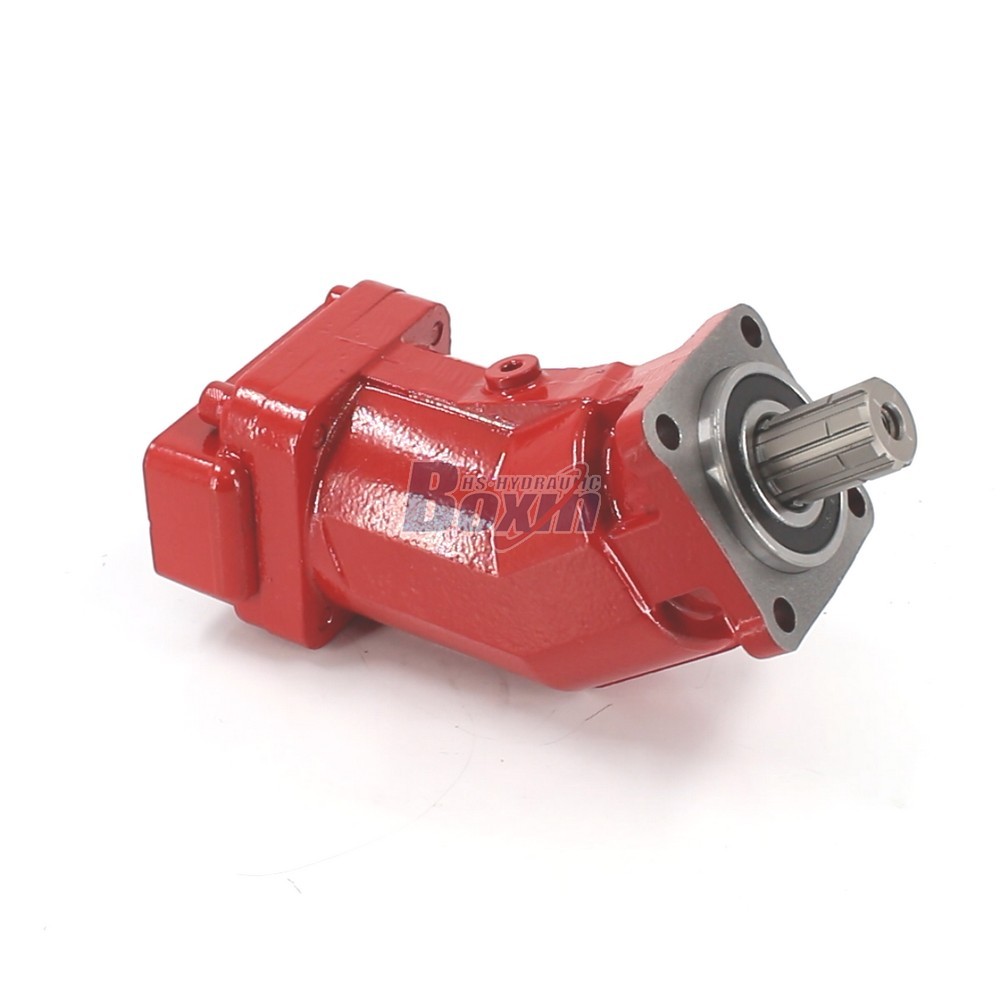

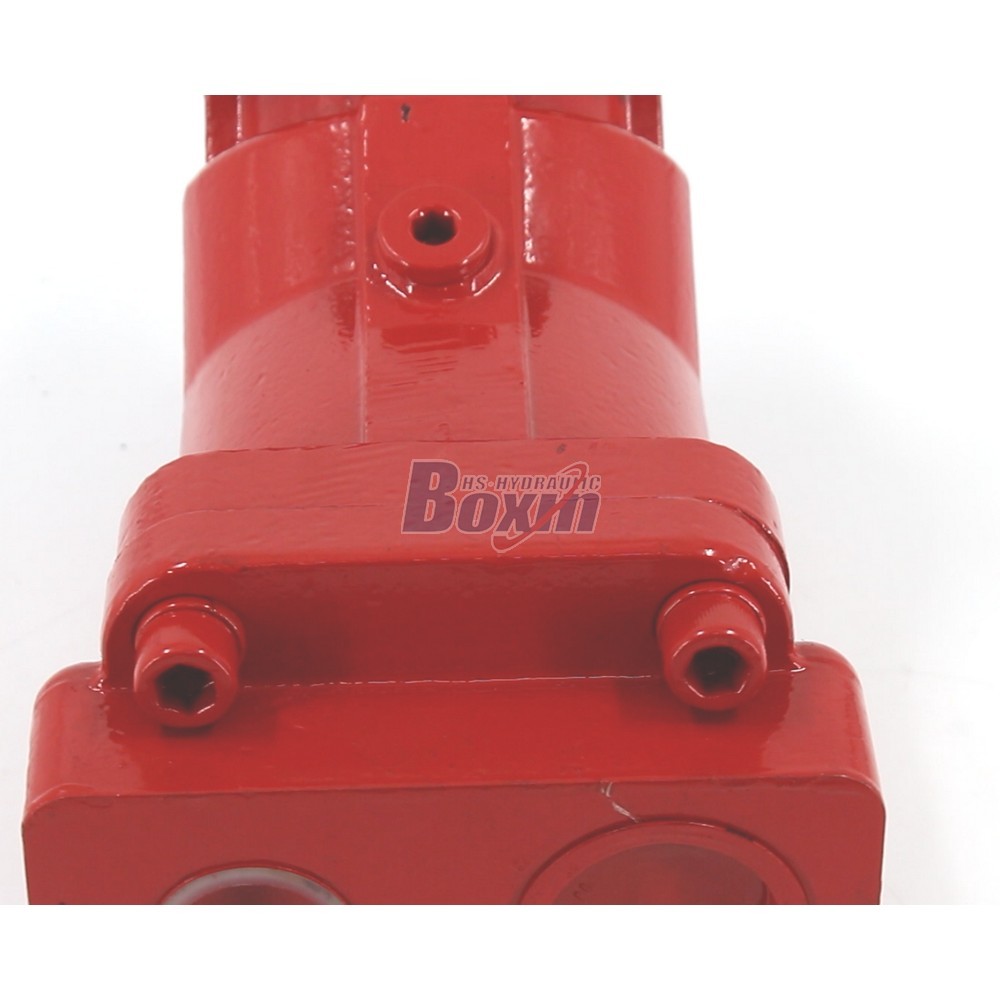

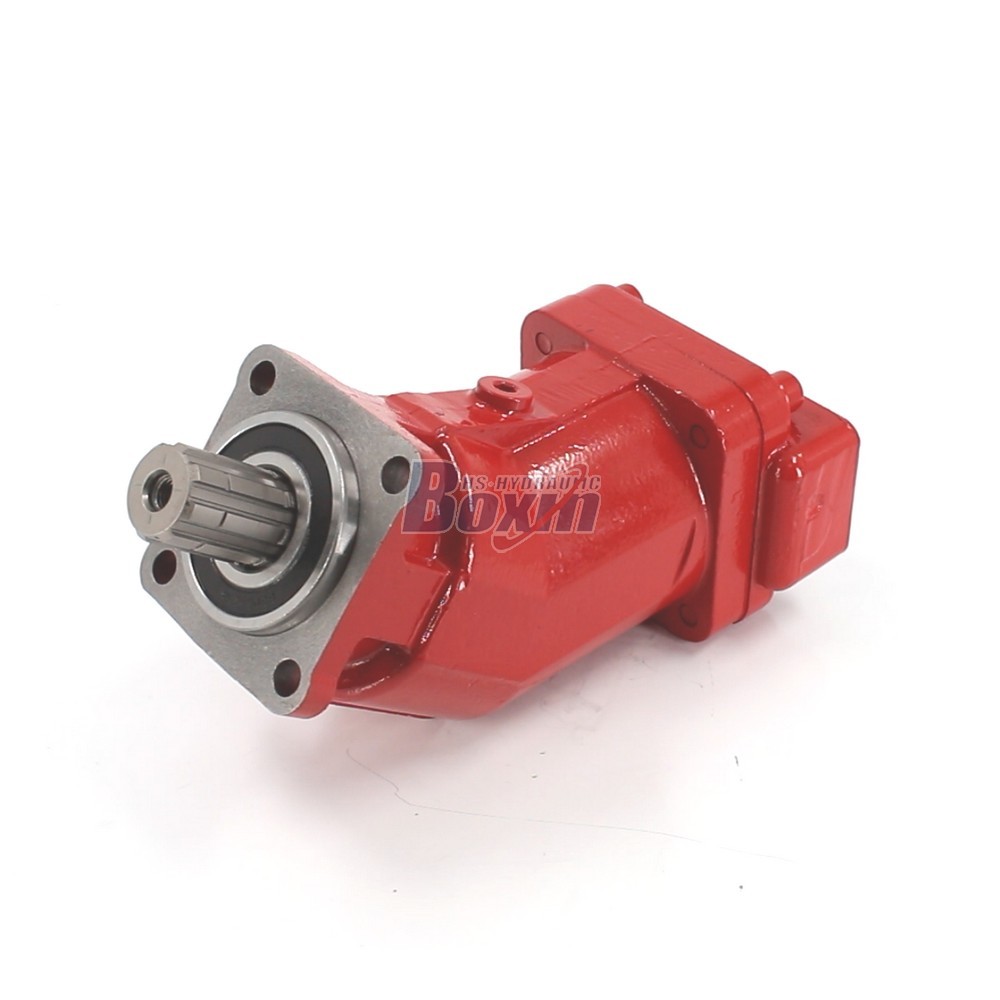

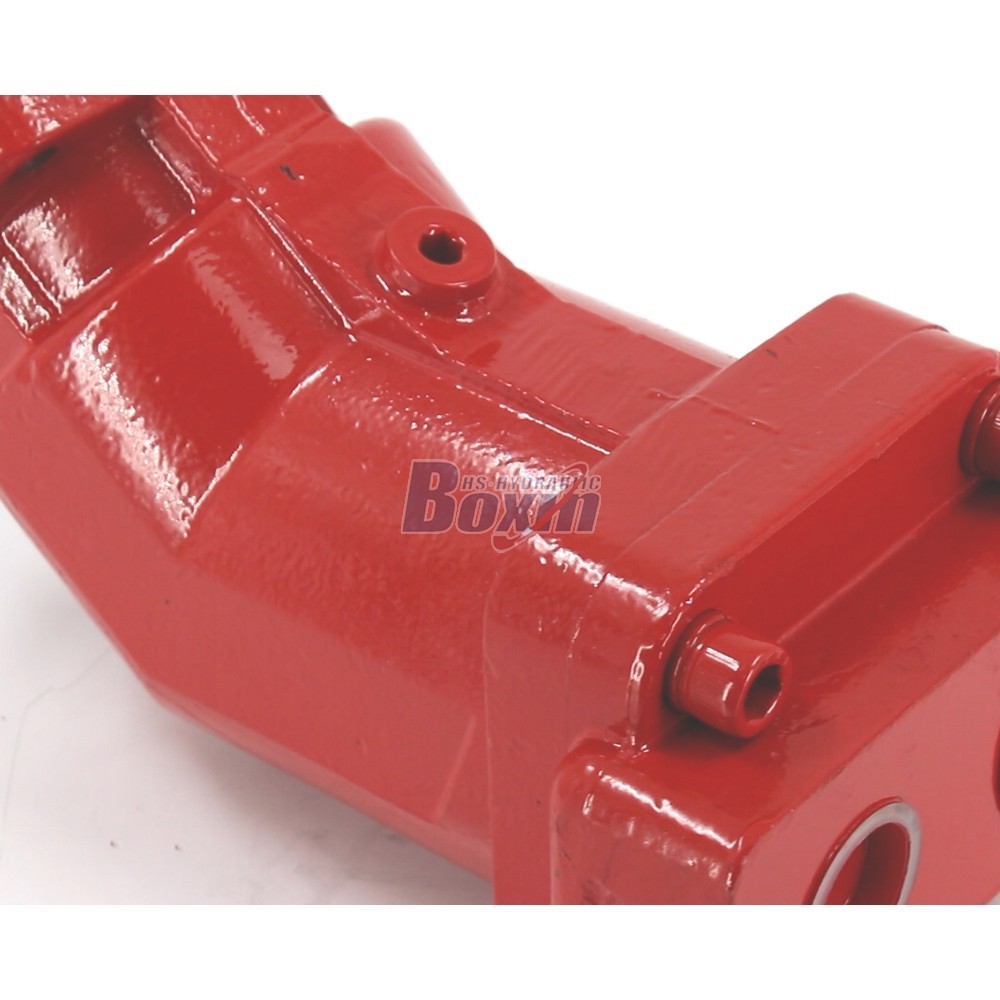

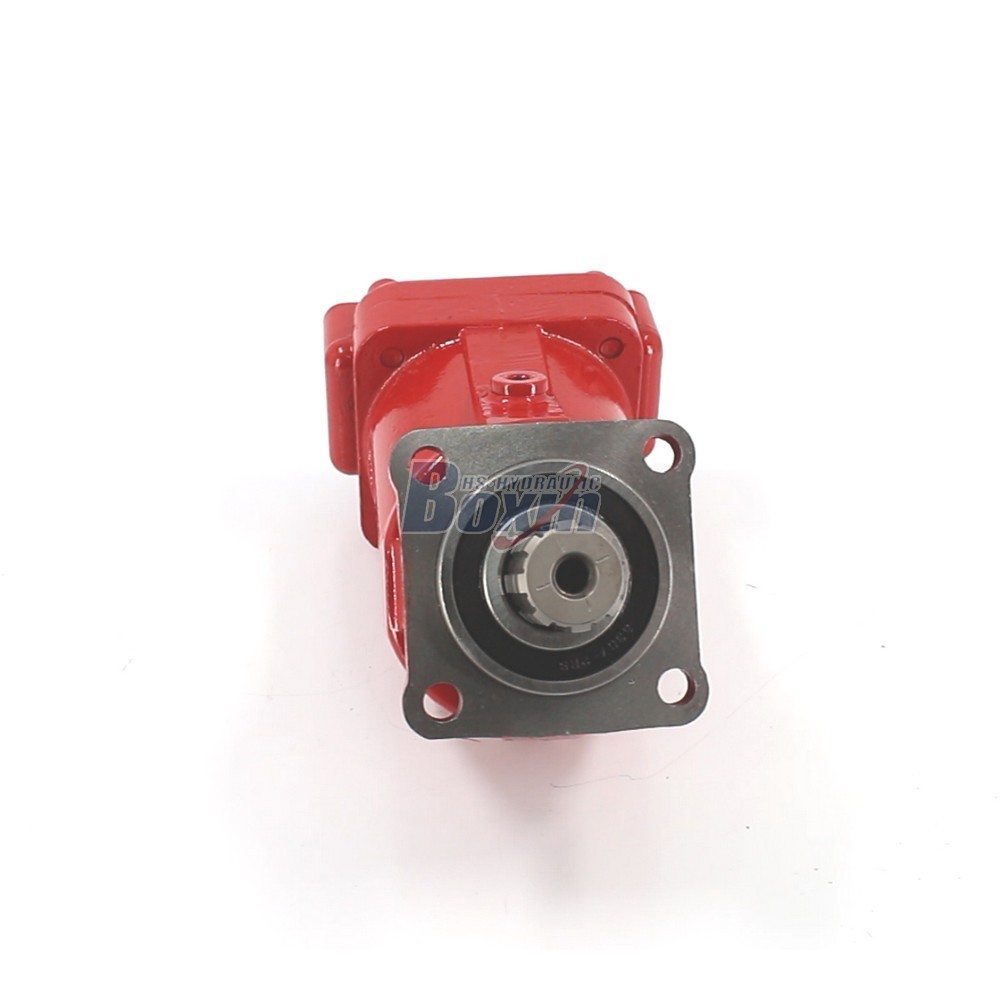

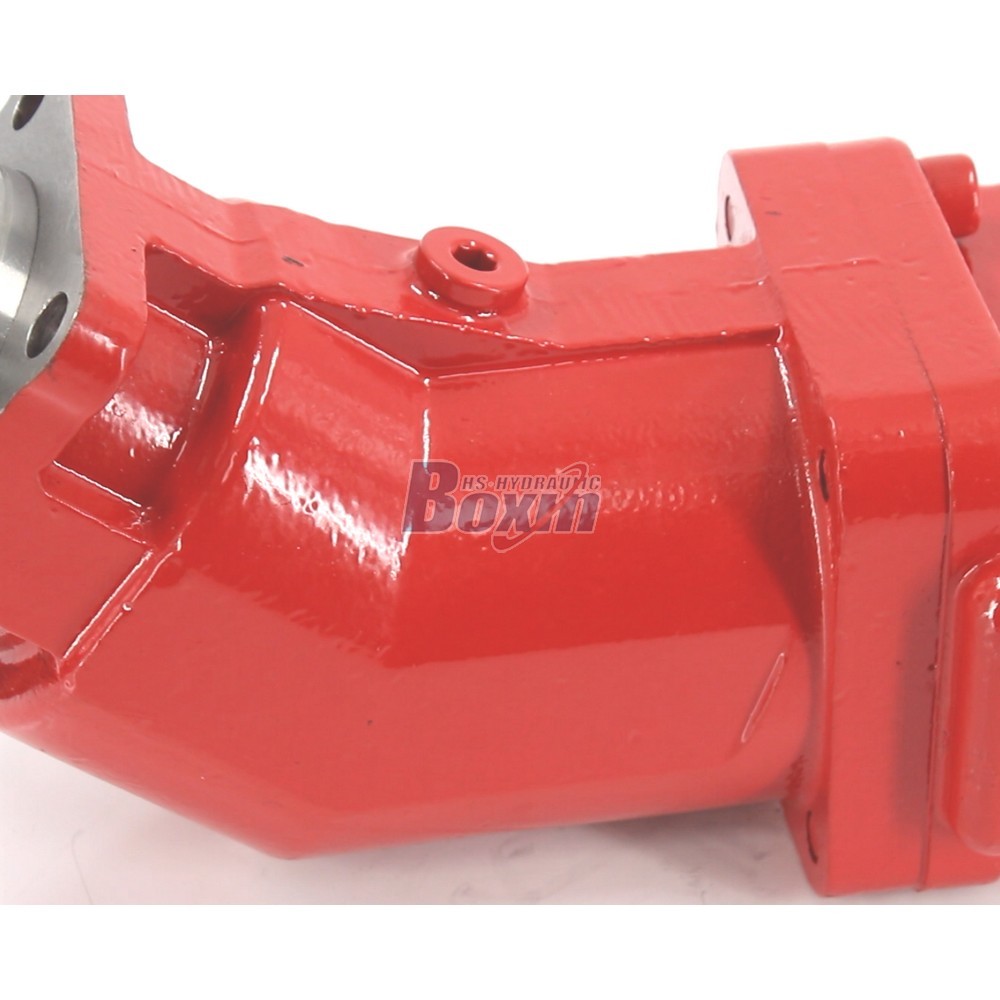

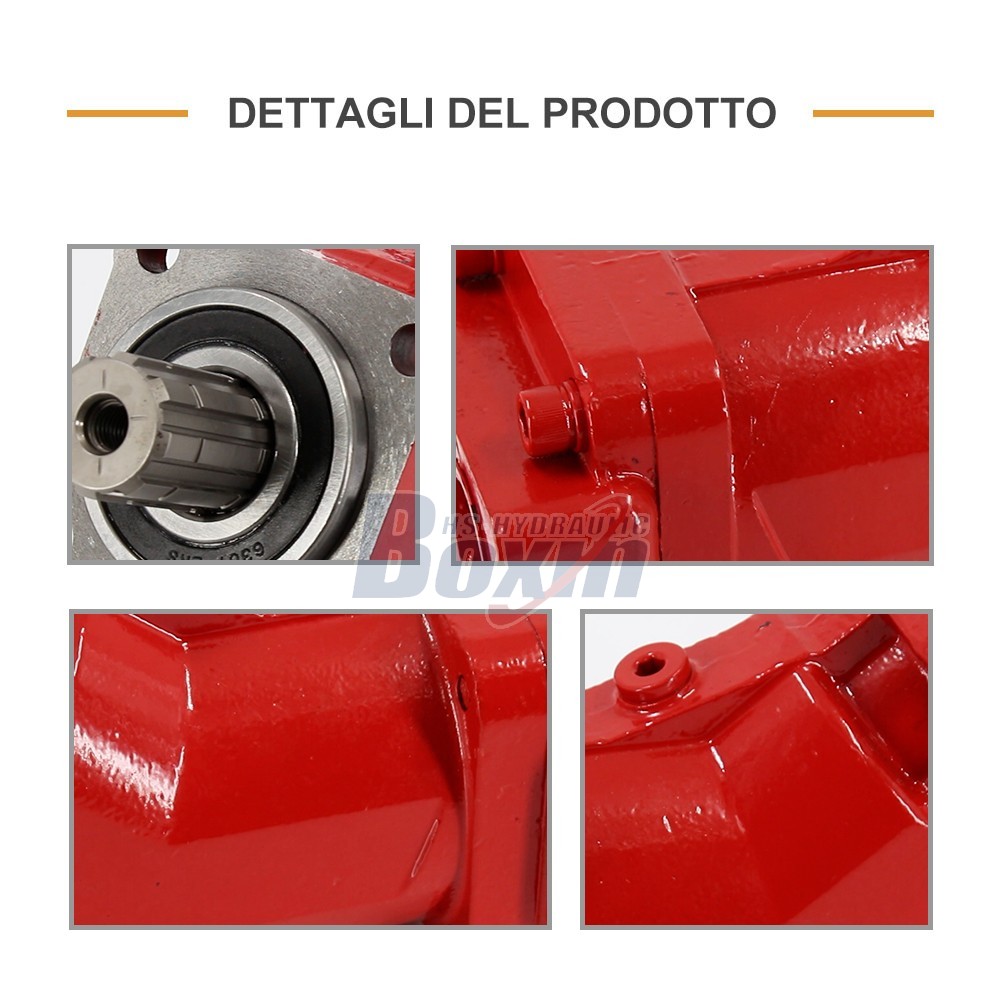

The XPI-63L Series is a high-performance 63 cc/rev hydraulic piston pump engineered for demanding mobile and industrial applications. Designed for reliability under high-pressure conditions up to 42 MPa, this left-rotation pump is essential for construction, agriculture, and material handling machinery, providing efficient power delivery for excavators, loaders, and concrete pumps.

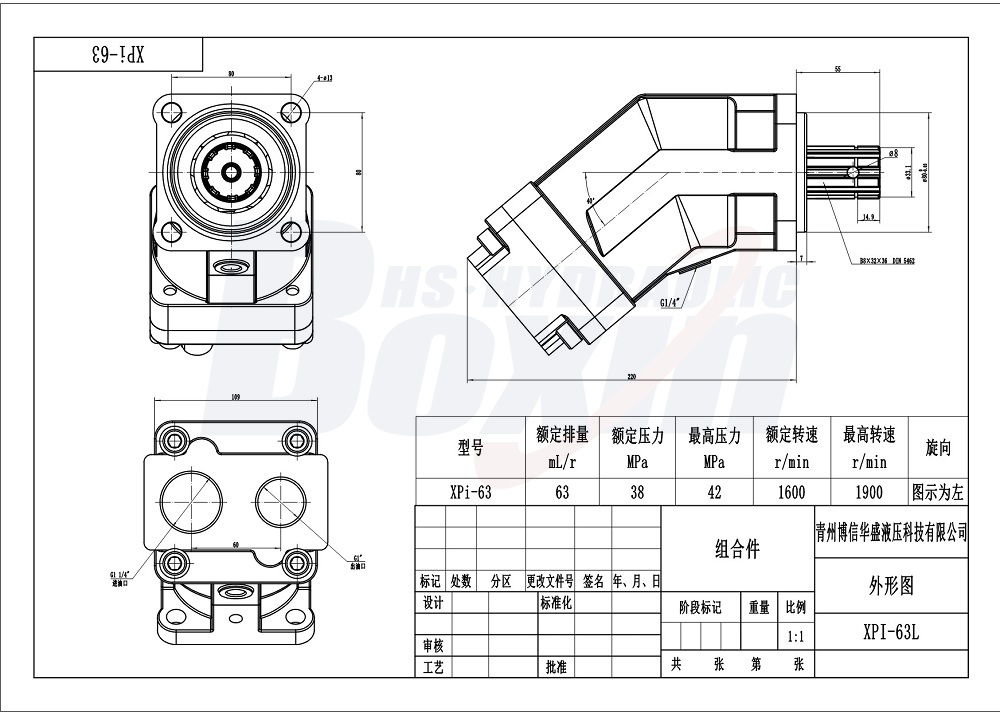

| Serie XPI Pompa a pistoni idraulica Parametri | |
|---|---|
| Cilindrata | 32 cc/giro, 40 cc/giro, 45 cc/giro, 50 cc/giro, 63 cc/giro, 80 cc/giro, 25 cc/giro, 108 cc/giro |
| Pressione nominale | 38 MPa (5511 psi) |
| Pressione massima | 42 MPa (6091 psi) |
| Velocità nominale | 1600 giri/min |
| Velocità massima | 1900 giri/min |
| Rotazione | L: Sinistra (in senso antiorario), R: Destra (in senso orario) |
| Materiale | Ghisa |
| Struttura | Pistone obliquo |
| Versione flangia | Fori di montaggio ISO-4 |
| Tipo di albero | H: Scanalatura rettangolare |
As a leading manufacturer of hydraulic solutions, we offer the XPI-63L Series 63 cc/rev Hydraulic Piston Pump for the global market. Operating at a rated pressure of 38 MPa and speeds up to 1900 r/min, this pump delivers consistent performance for heavy-duty machinery including mini-excavators, wheel loaders, and harvesters. We specialize in factory-direct supply, providing extensive opportunities for OEM, private labeling, and custom manufacturing to meet specific technical requirements. Our facility supports large-scale wholesale production with rigorous quality control. We are actively seeking long-term partnerships with professional distributors, wholesalers, agents, and international traders. By choosing our factory-direct wholesale services, partners benefit from reliable supply chains and competitive manufacturing capabilities for construction, agricultural, and industrial vehicle sectors.
