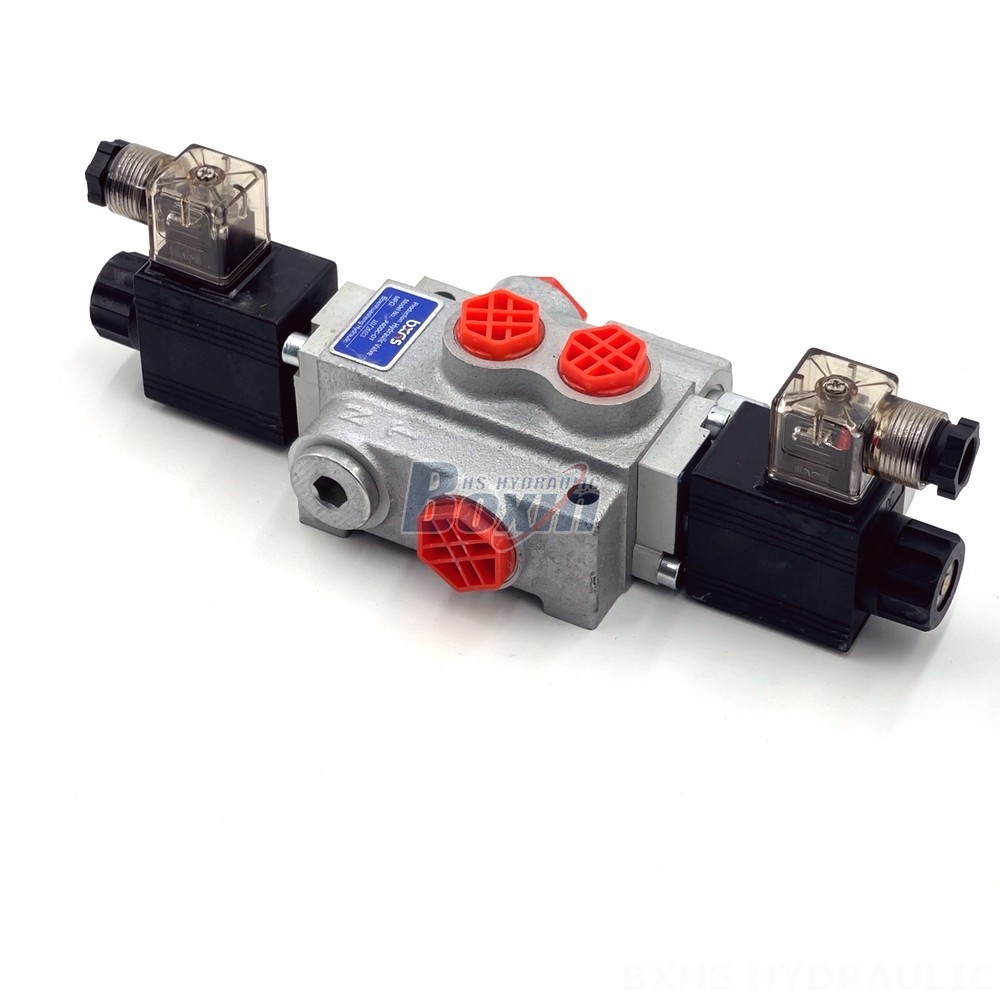

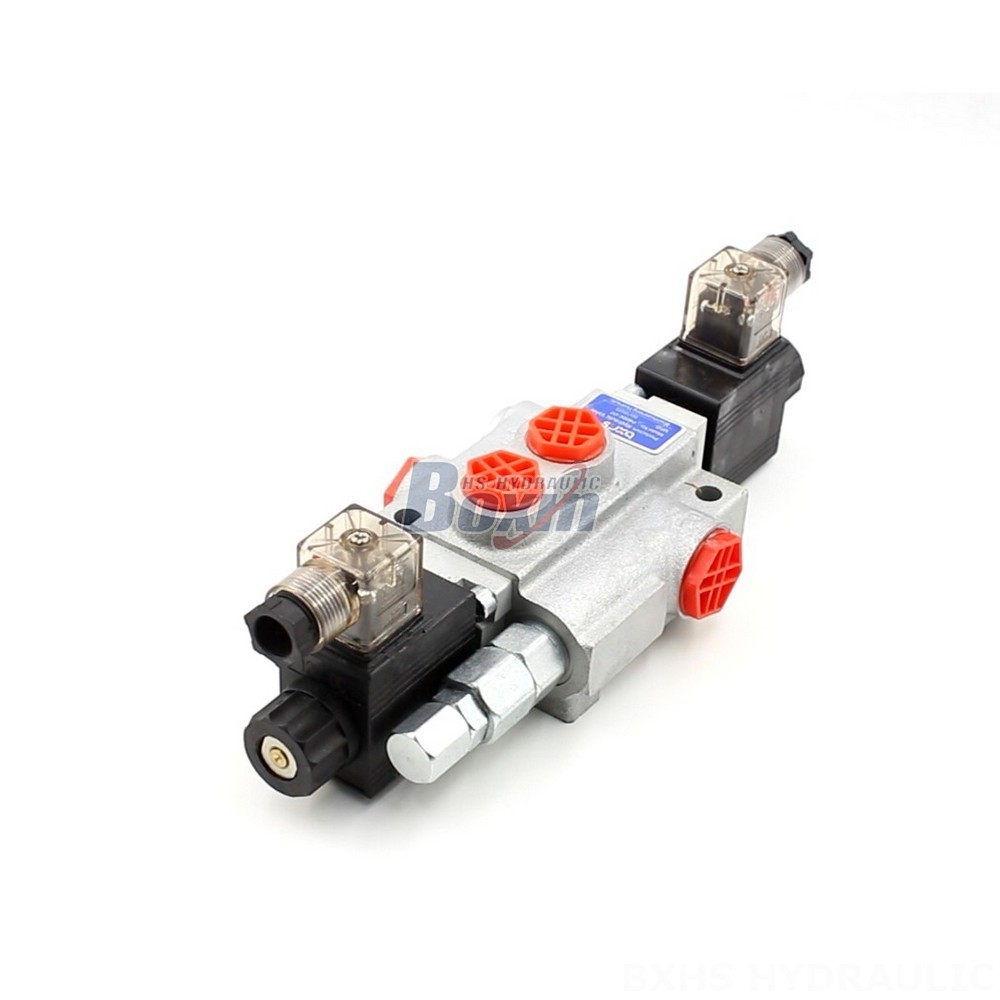

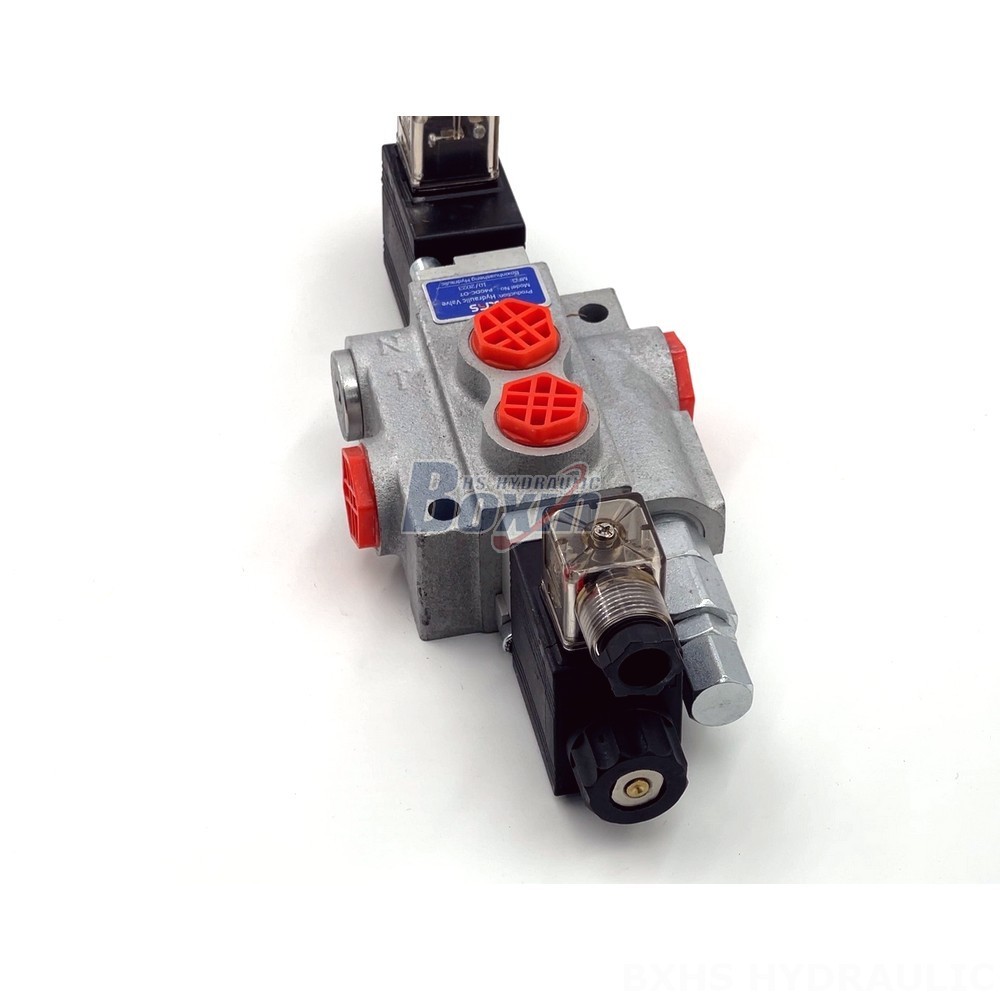

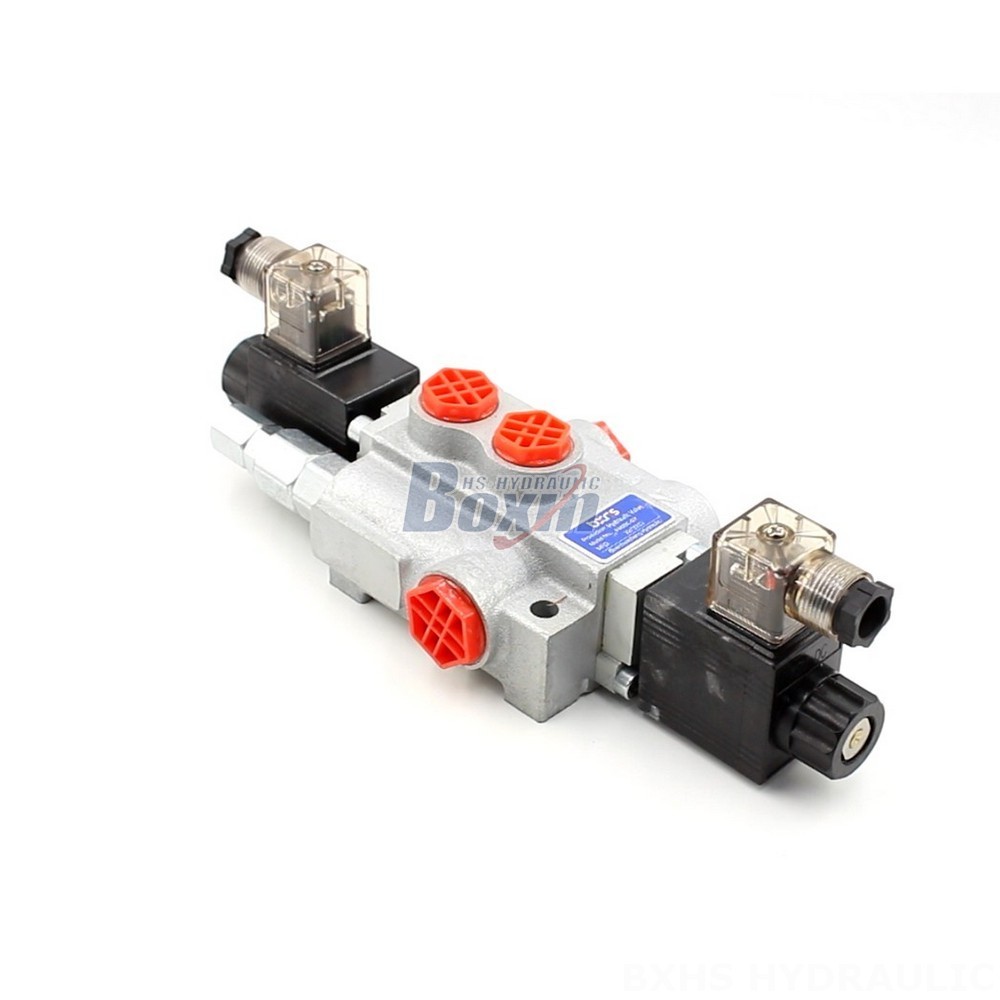

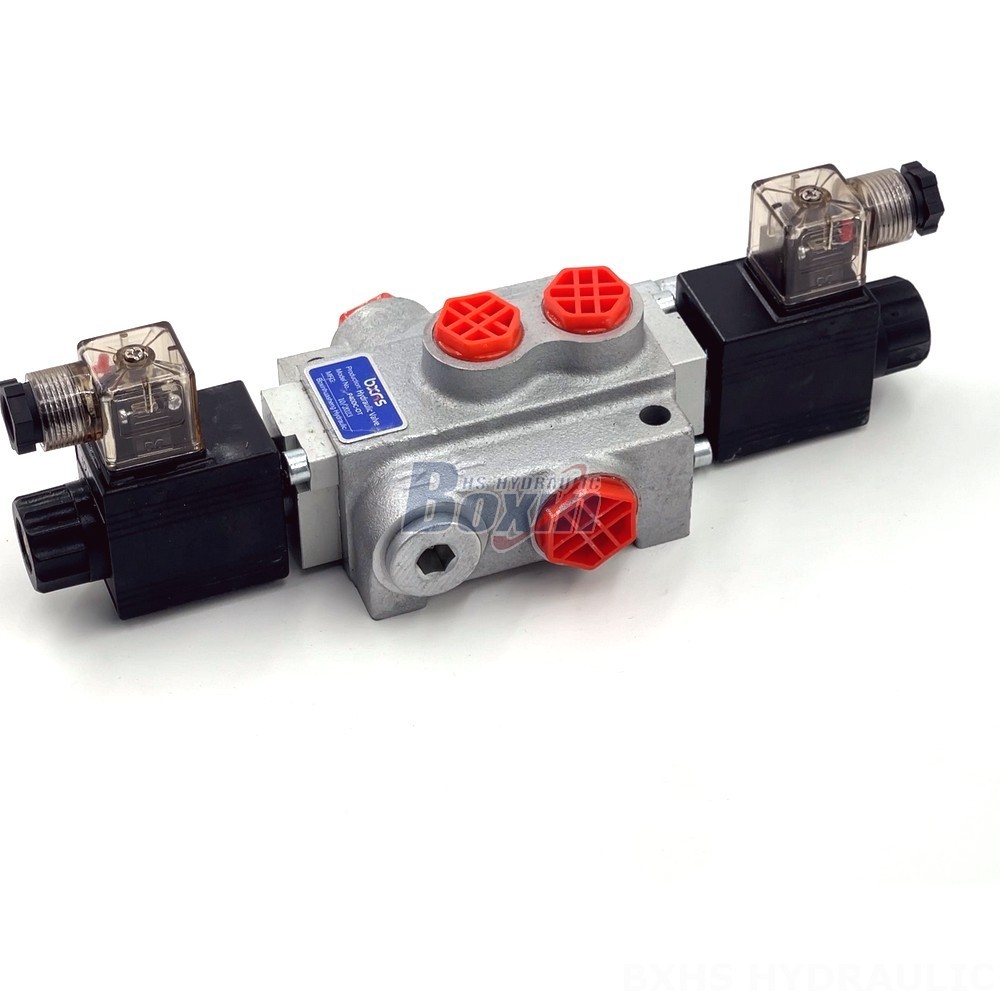

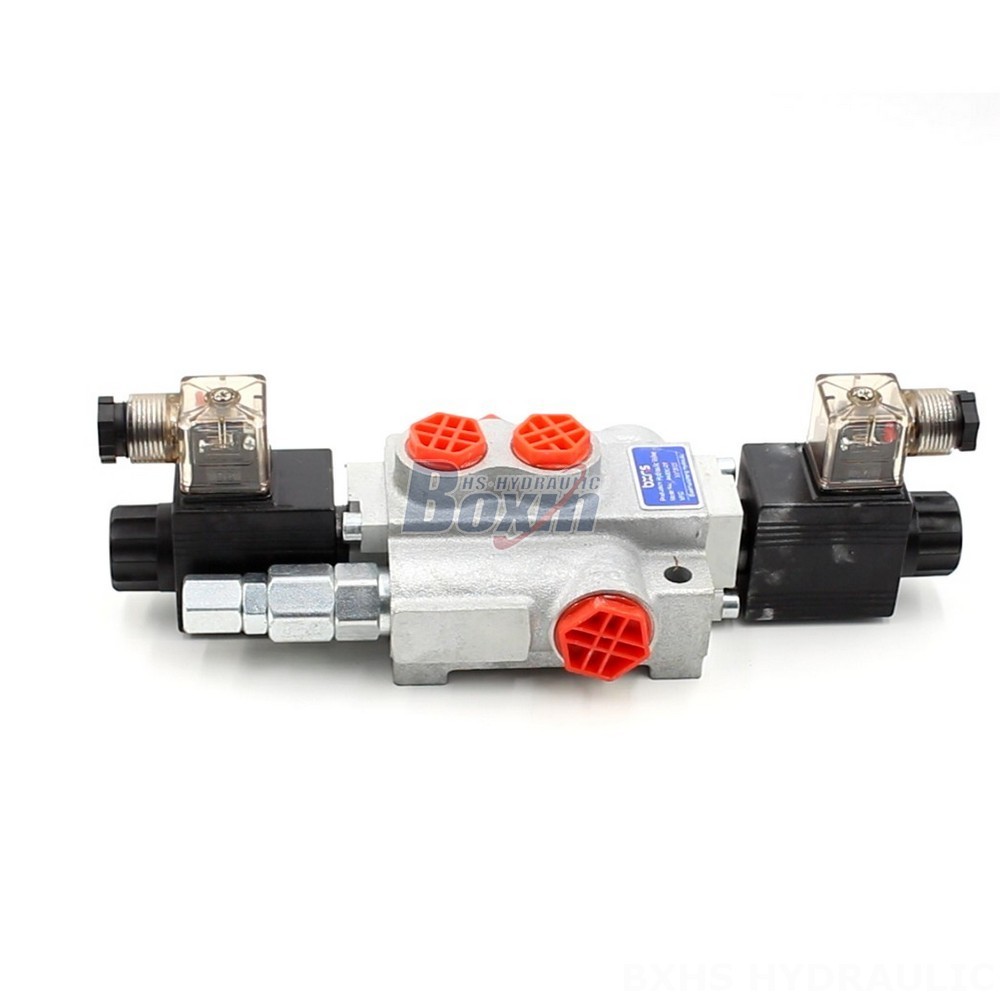

Quality Assured: Certified Production of P40-DKL Directional Valves

Metodo di Controllo:Solenoide

Spoo:1 Spola

Portata nominale:40 L/min (10.5 US gpm)

Pressione massima:250 bar (3600 psi)

Attacco di ingresso:G1/2

Attacco di uscita:G1/2

Dimensione attacco:G3/8

Marchio:BXHS

Tipo di prodotto:Valvola direzionale monoblocco

Serie di prodotti:Serie P40-DKL Valvola direzionale monoblocco

Dimensioni dell'imballaggio:31*16*17

Peso lordo:5.30 kg

Disponibilità: In magazzino

1188 Le visualizzazioni cercano questo prodotto

Quality Assured: Certified Production of P40-DKL Directional Valves

Quality Assured: Certified Production of P40-DKL Directional Valves

Quality Assured: Certified Production of P40-DKL Directional Valves drawing image

The Hydraulic Distributor R 80 is a high-quality, certified directional valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It features a monoblock design with solenoid control and a rated flow of 40 L/min.

Serie P40-DKL Valvola direzionale monoblocco Parametri
Metodo di Controllo Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Manuale e joystick
Spoo 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole
Portata nominale 40 L/min (10.5 US gpm)
Pressione massima 250 bar (3600 psi)
Attacco di ingresso G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Attacco di uscita G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Dimensione attacco G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Sezione Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7
Tipo di struttura Valvola monoblocco
Intervallo di temperatura ambiente -40°C to +80°C (-40°F to +176°F)
Intervallo di viscosità operativa 15 - 75 mm²/s (15 cSt to 75 cSt)

The Hydraulic Distributor R 80 is a P40-DKL series monoblock valve with solenoid control. This high-quality directional valve is certified for its reliable performance and durability. It features a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve is designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. Specifically, it is suitable for telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. The valve's compact design and robust construction make it ideal for demanding environments. Its operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), and it can operate in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). The Hydraulic Distributor R 80 is a high-performance, reliable, and durable solution for your hydraulic system needs.
