The P40-DKL Precision Directional Control Valves are a high-performance solution for industrial applications. These 4-section monoblock valves feature a solenoid control method, a rated flow of 40 L/min, and a maximum pressure of 250 bar. With their wide operating viscosity range and temperature range, these valves are suitable for a variety of applications in material handling, construction, earth moving, agriculture, and industrial vehicles.
| Serie P40-DKL Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Manuale e joystick |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Portata nominale | 40 L/min (10.5 US gpm) |
| Pressione massima | 250 bar (3600 psi) |
| Attacco di ingresso | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Attacco di uscita | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimensione attacco | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Tipo di struttura | Valvola monoblocco |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |

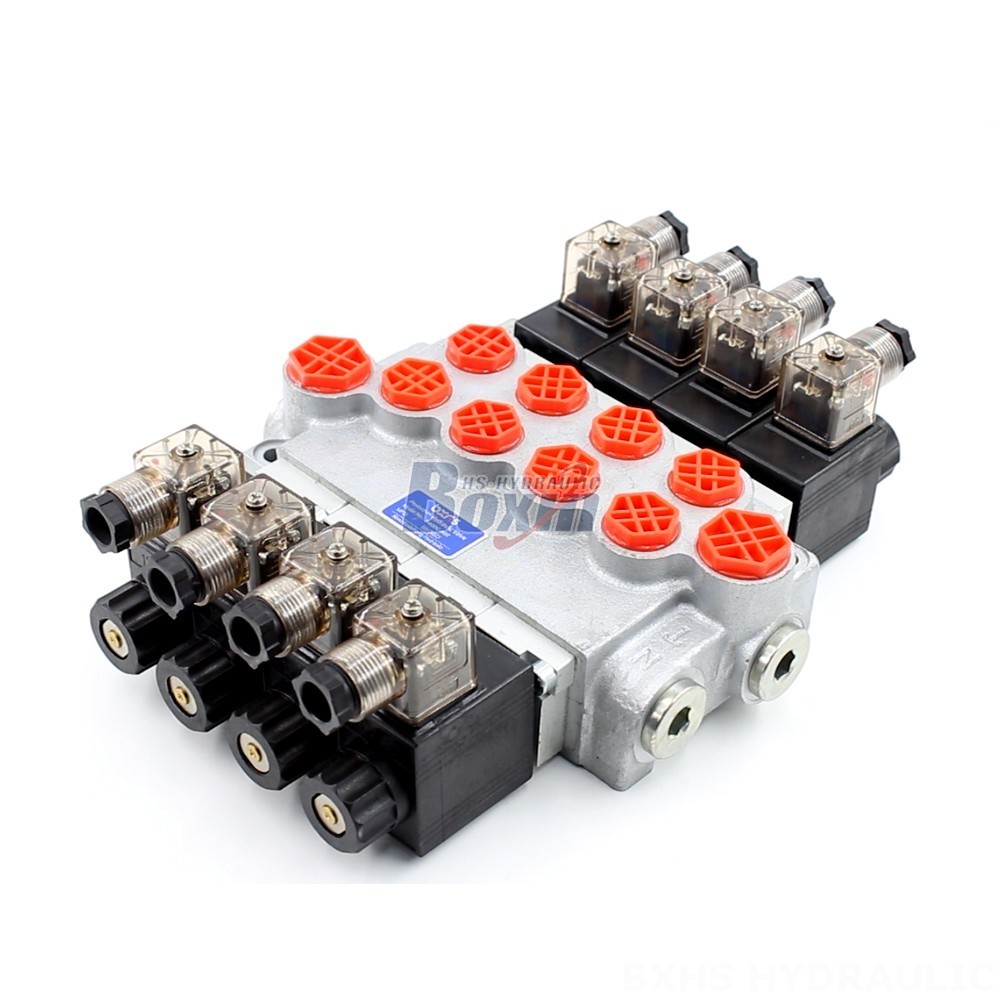

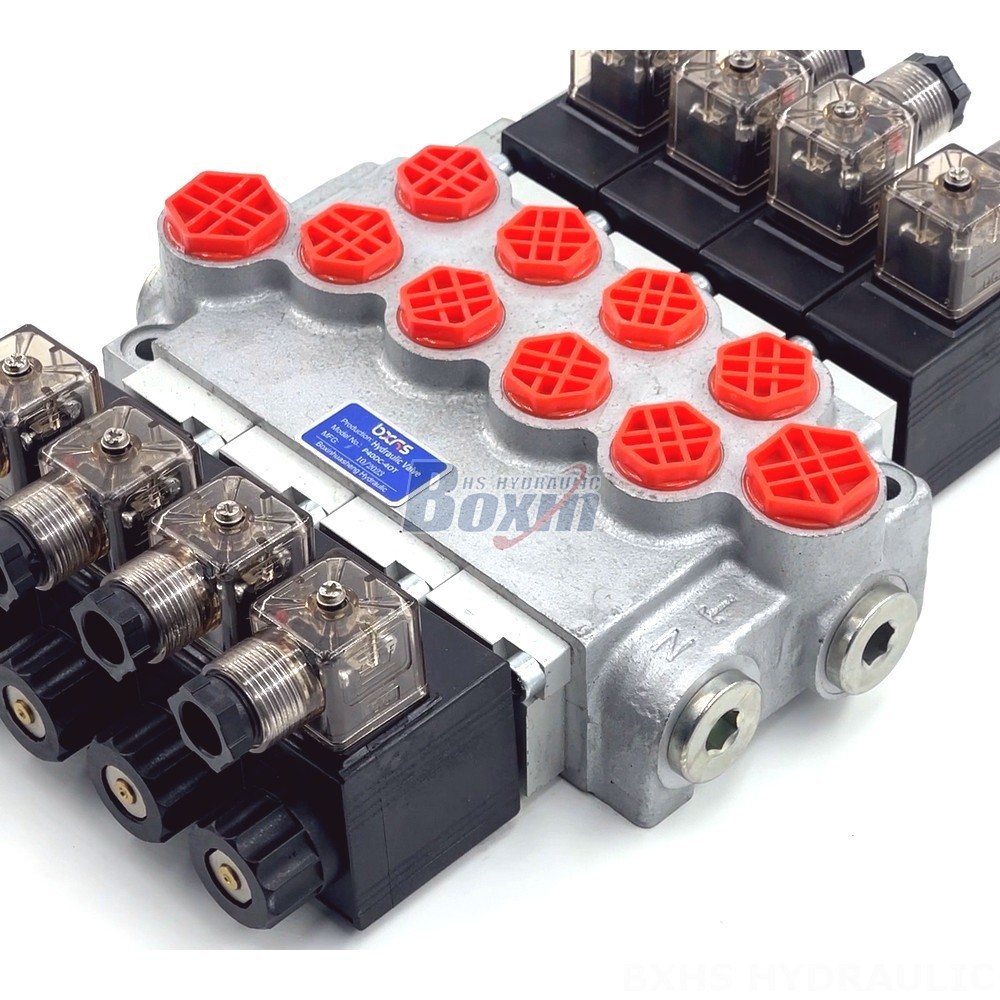

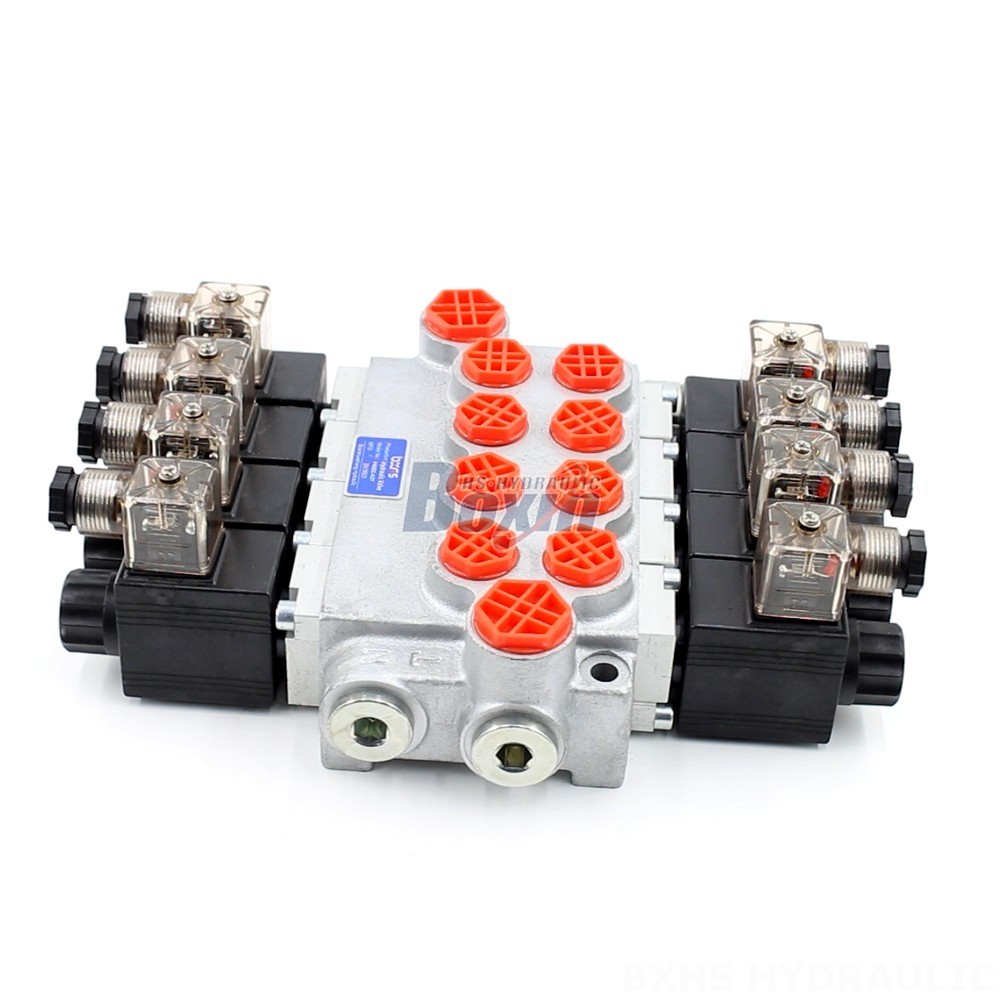

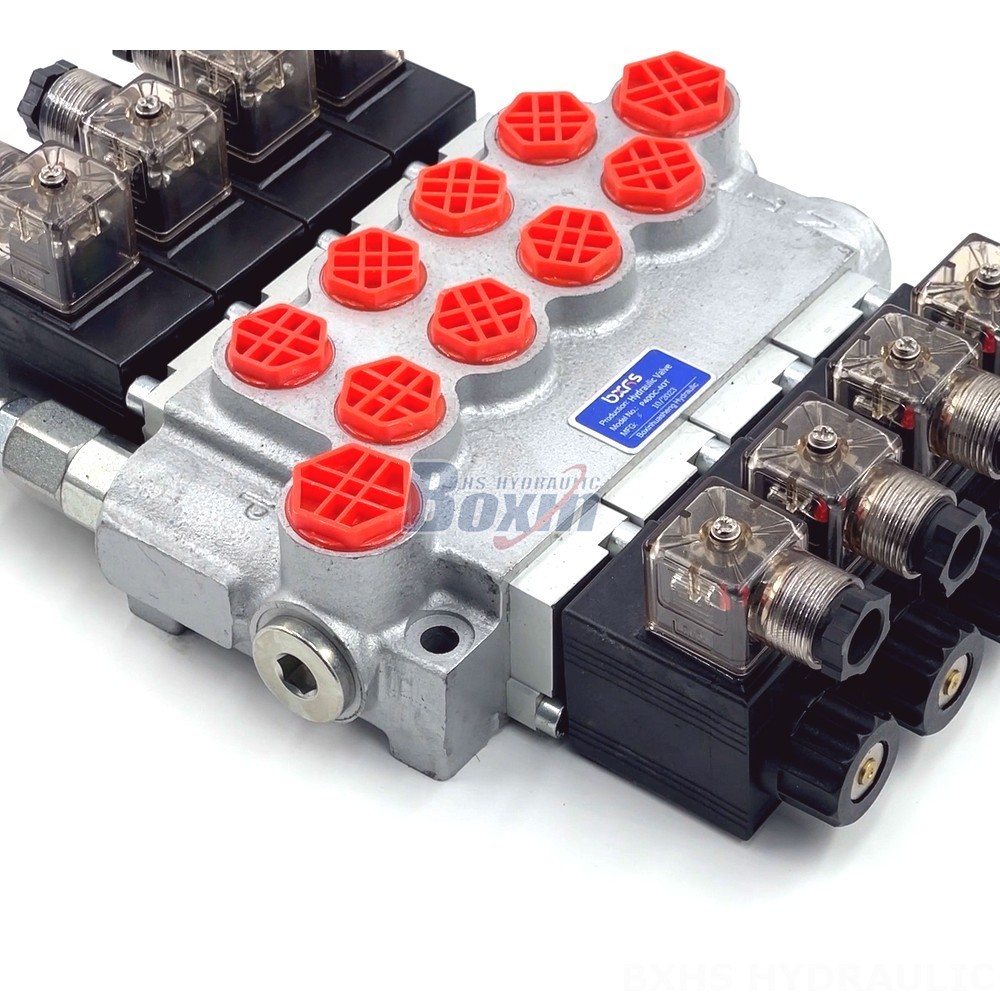

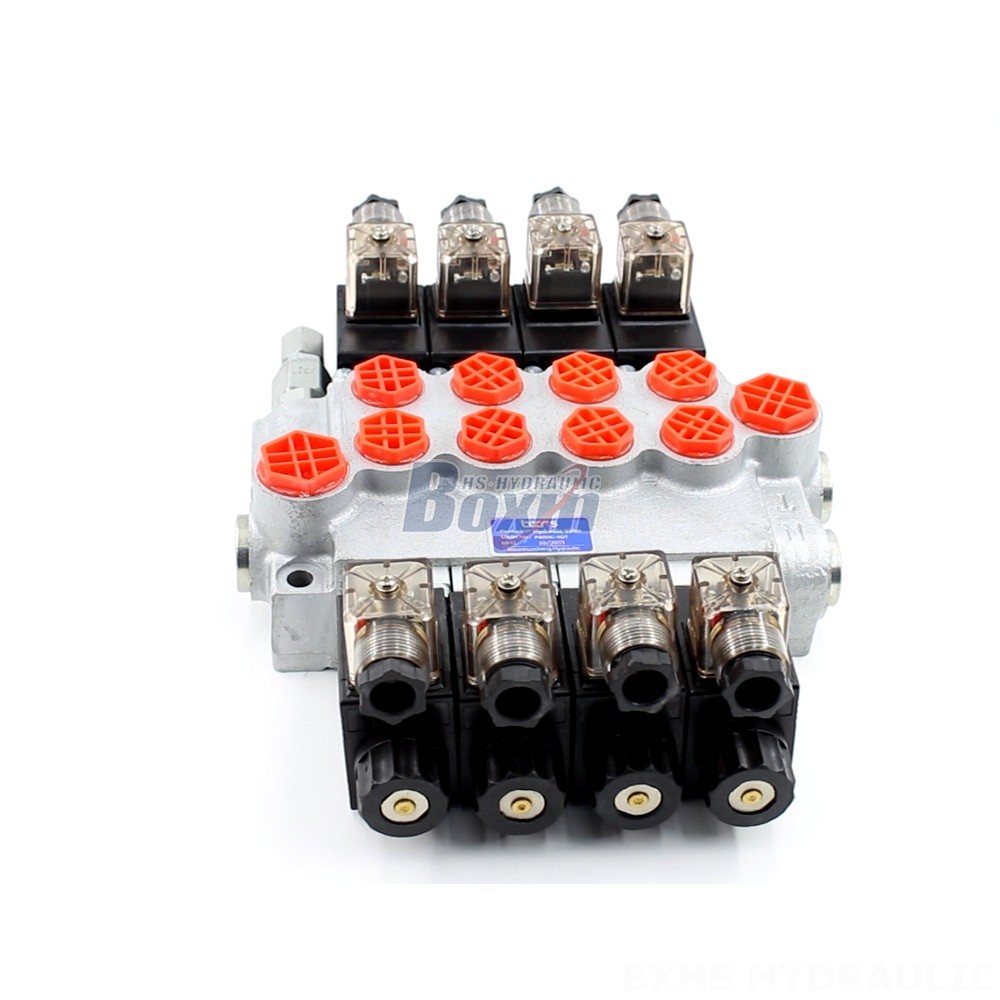

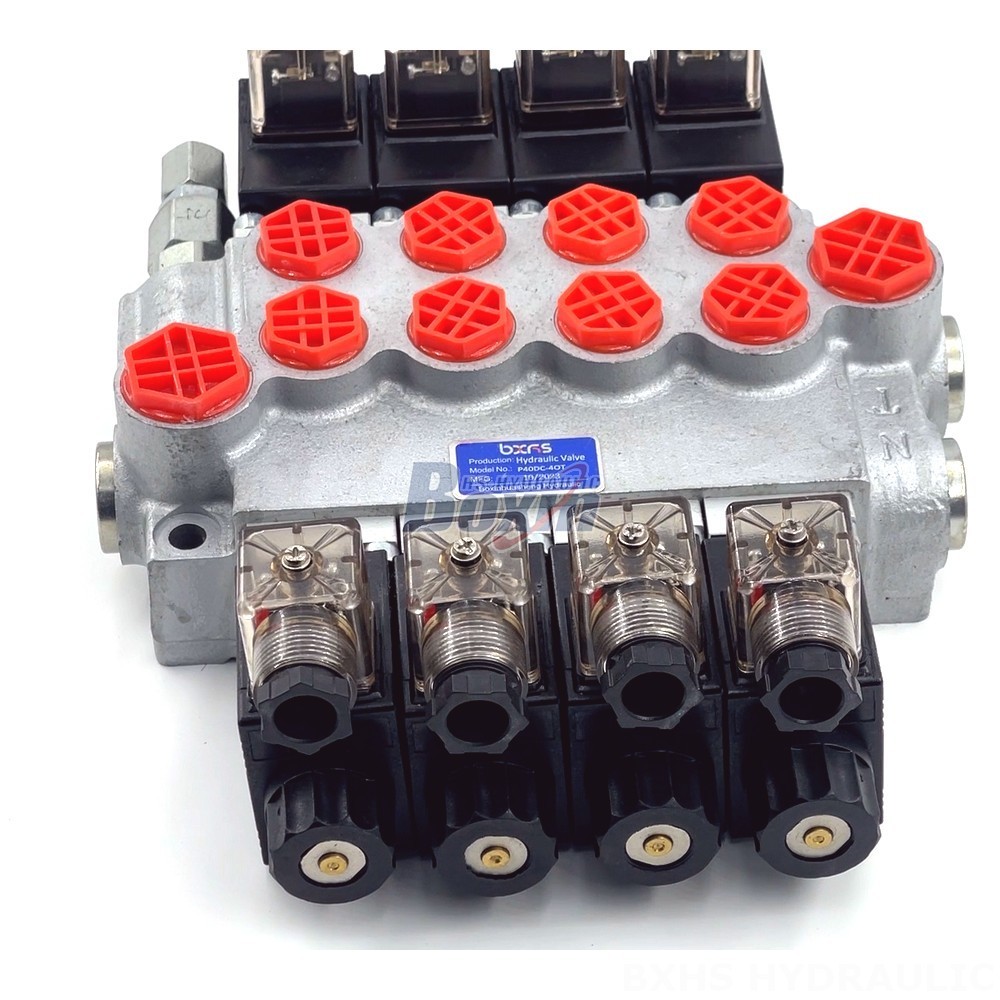

**P40-DKL Precision Directional Control Valves**
The P40-DKL Precision Directional Control Valves are designed for demanding industrial applications. These valves feature a robust monoblock construction and a solenoid control method for precise and reliable operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, these valves can handle high-pressure hydraulic systems. They also have a wide operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C, making them suitable for various operating conditions.
**Key Features:**
* 4-section monoblock valve
* Solenoid control method
* Rated flow: 40 L/min
* Maximum pressure: 250 bar
* Operating viscosity range: 15 - 75 mm²/s
* Ambient temperature range: -40°C to +80°C
* 4 spool
* Suitable for material handling, construction, earth moving, agriculture, and industrial vehicles
