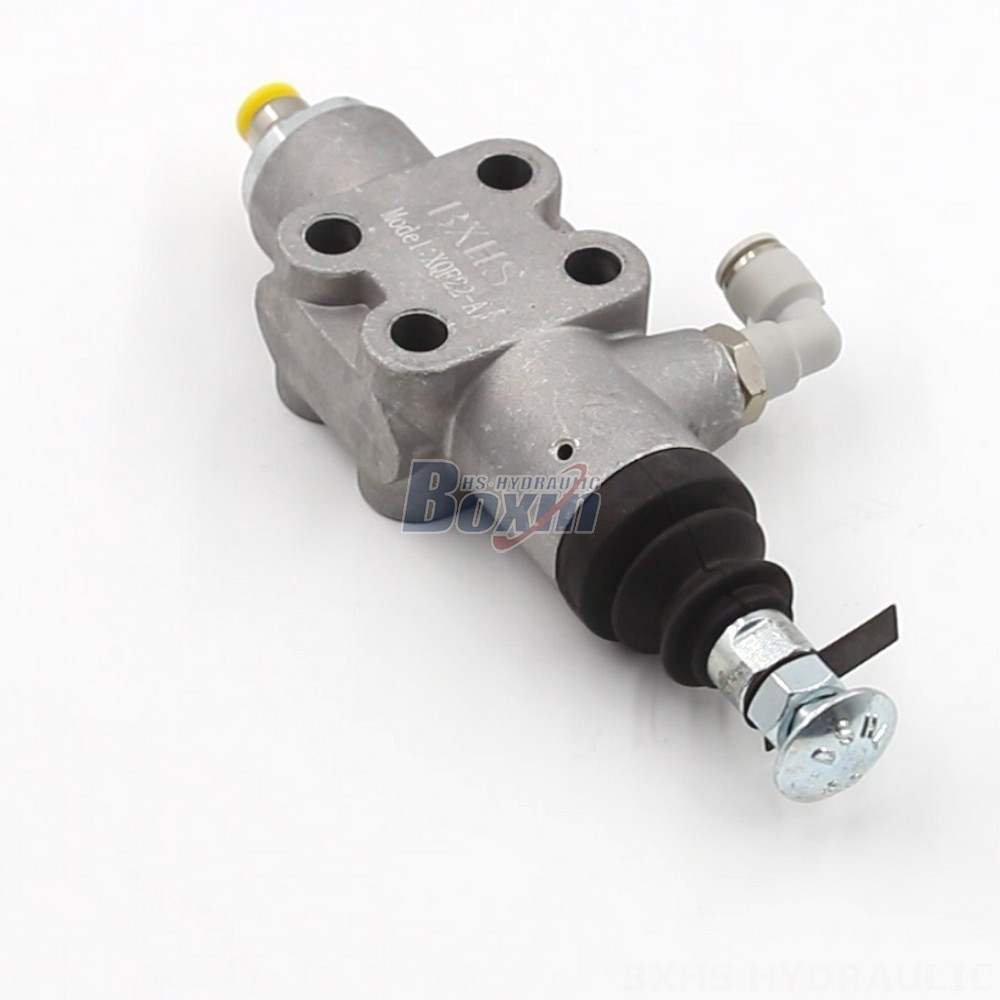

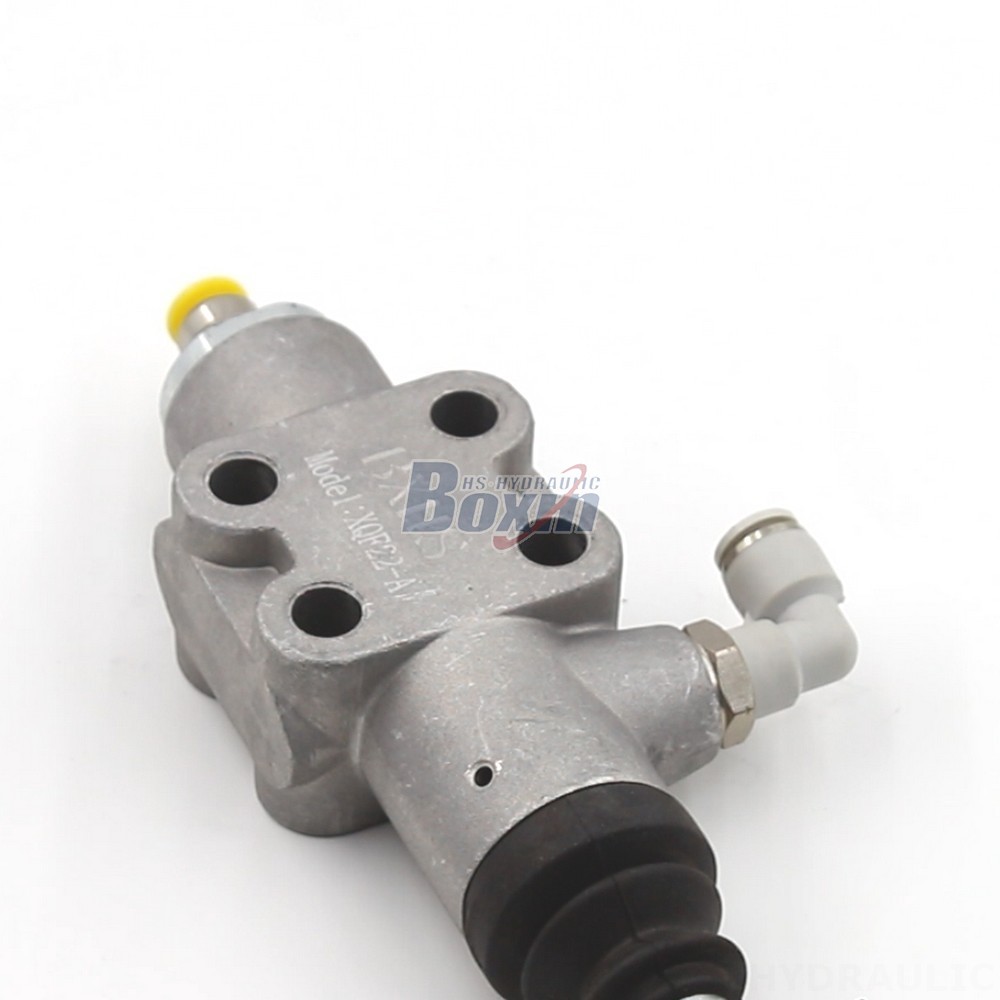

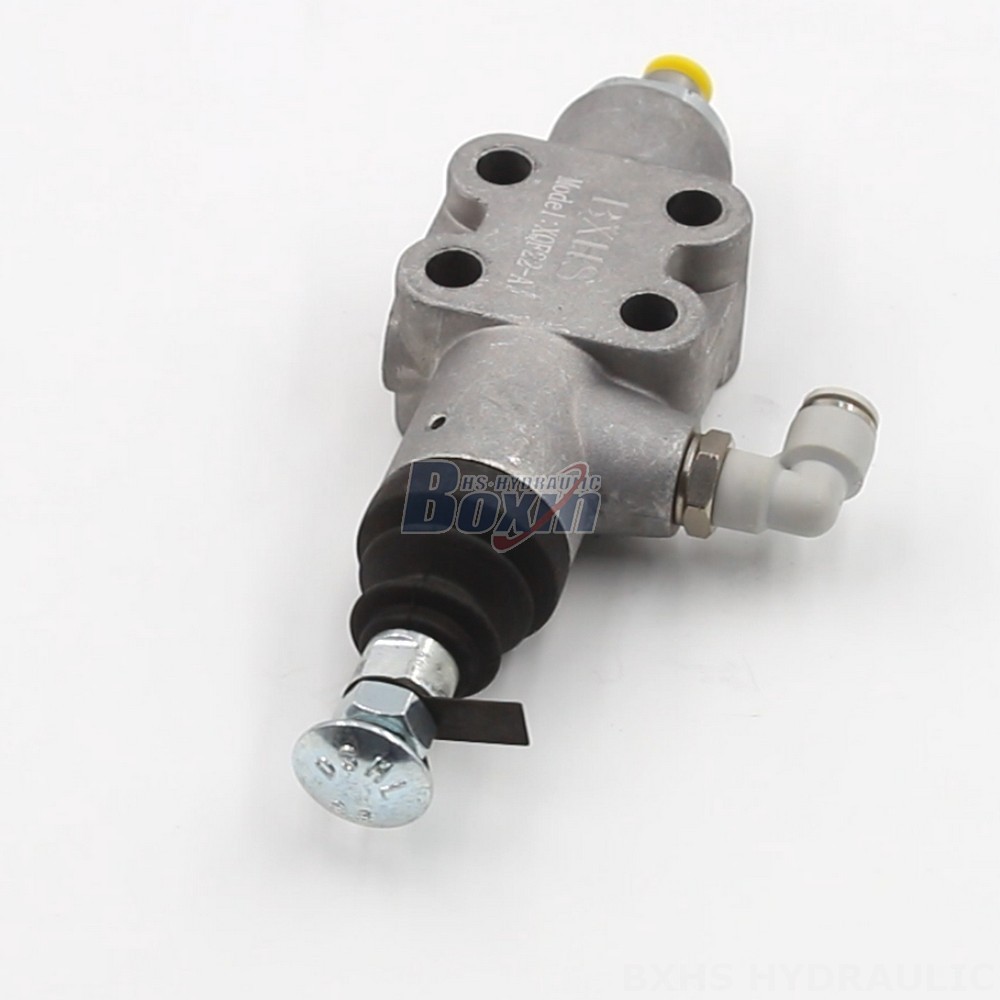

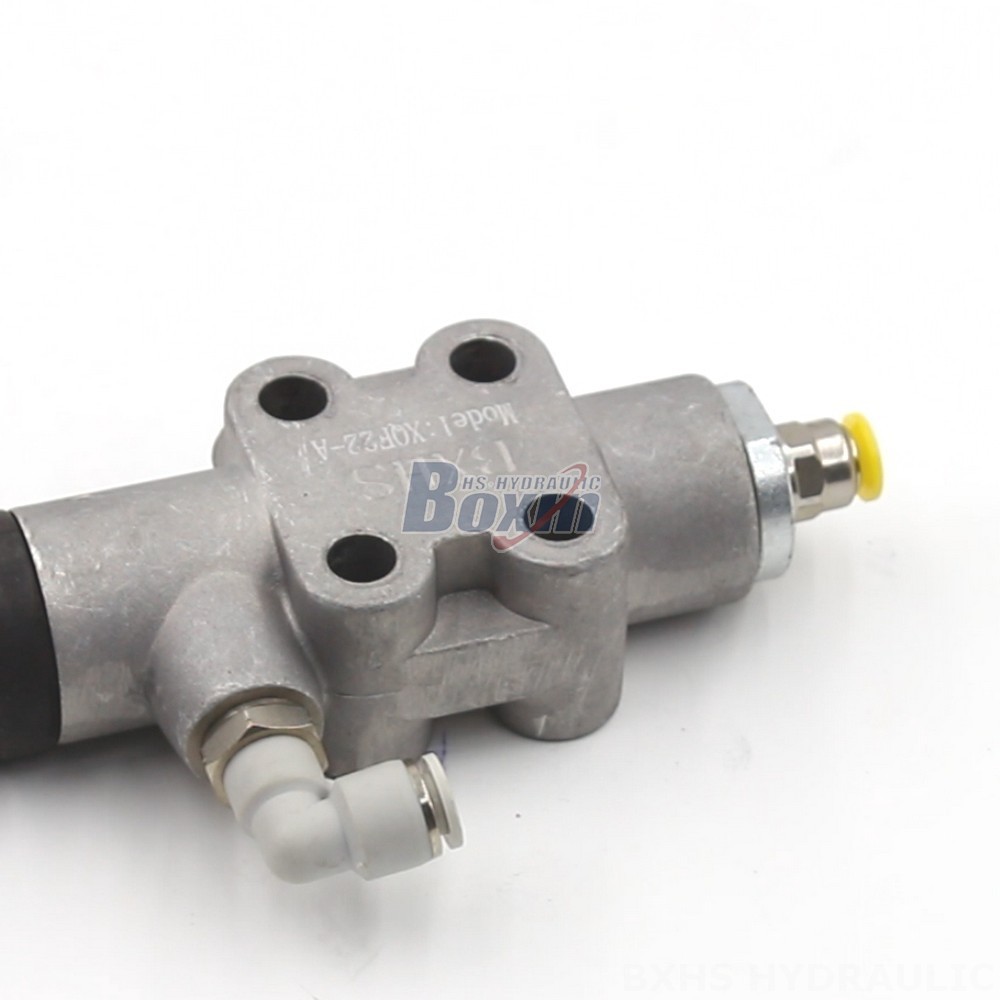

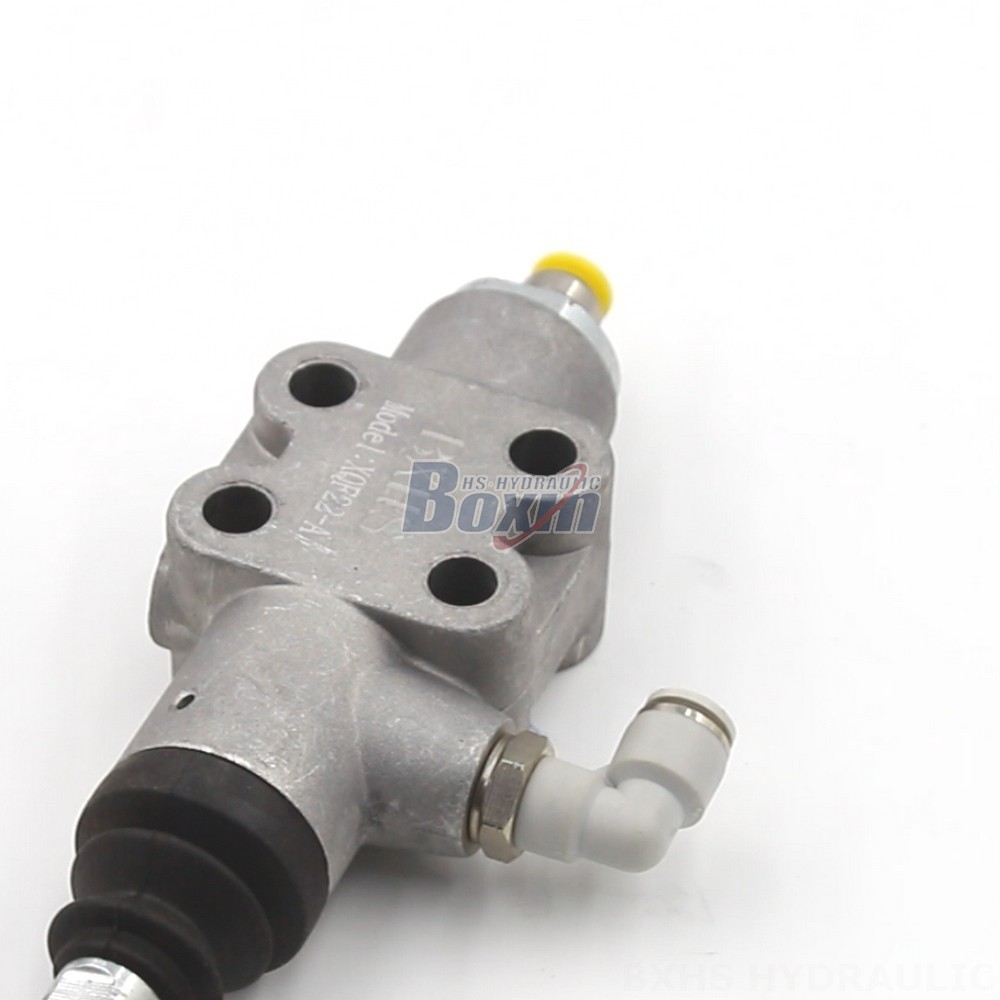

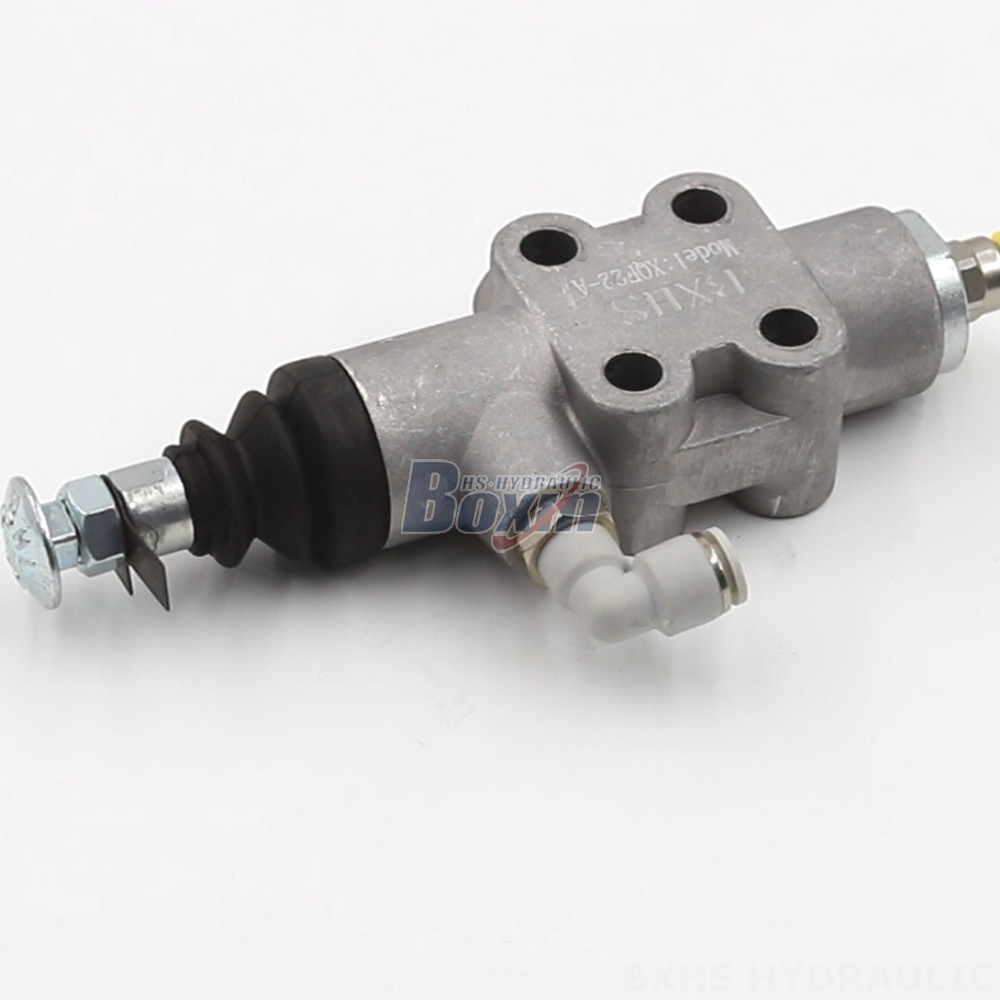

The XQF22-A Pneumatic Valve is a high-performance valve designed for use in material handling, construction, agriculture, and industrial vehicle applications. With a rated flow of 60 L/min, a maximum pressure of 200 bar, and an operating viscosity range of 12 - 400 mm²/s, this valve is suitable for a wide range of applications.
| Serie XQF Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Pneumatico |
| Spoo | 1 Spola |
| Intervallo di temperatura ambiente | -40°C to +60°C (-40°F to +140°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1 |
| Intervallo di viscosità operativa | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| Portata nominale | 50 L/min (13.2 US gpm) |
| Pressione massima | 200 bar (2900 psi) |
| Attacco di ingresso | G1/4 |
| Attacco di uscita | G1/4 |
| Dimensione attacco | G1/4 |
The XQF22-A Pneumatic Valve features a monoblock design for increased durability and reliability. The valve is also equipped with a 1 spool for precise control of fluid flow. The valve's wide operating temperature range of -40°C to +60°C makes it suitable for use in a variety of environments.
Key features of the XQF22-A Pneumatic Valve include:
* Pneumatic control
* 1 section
* 60 L/min rated flow
* 200 bar max pressure
* 12 - 400 mm²/s operating viscosity range
* -40°C to +60°C ambient temperature range
* 1 spool
* Monoblock design
* Material handling, construction, agriculture, and industrial vehicle applications
