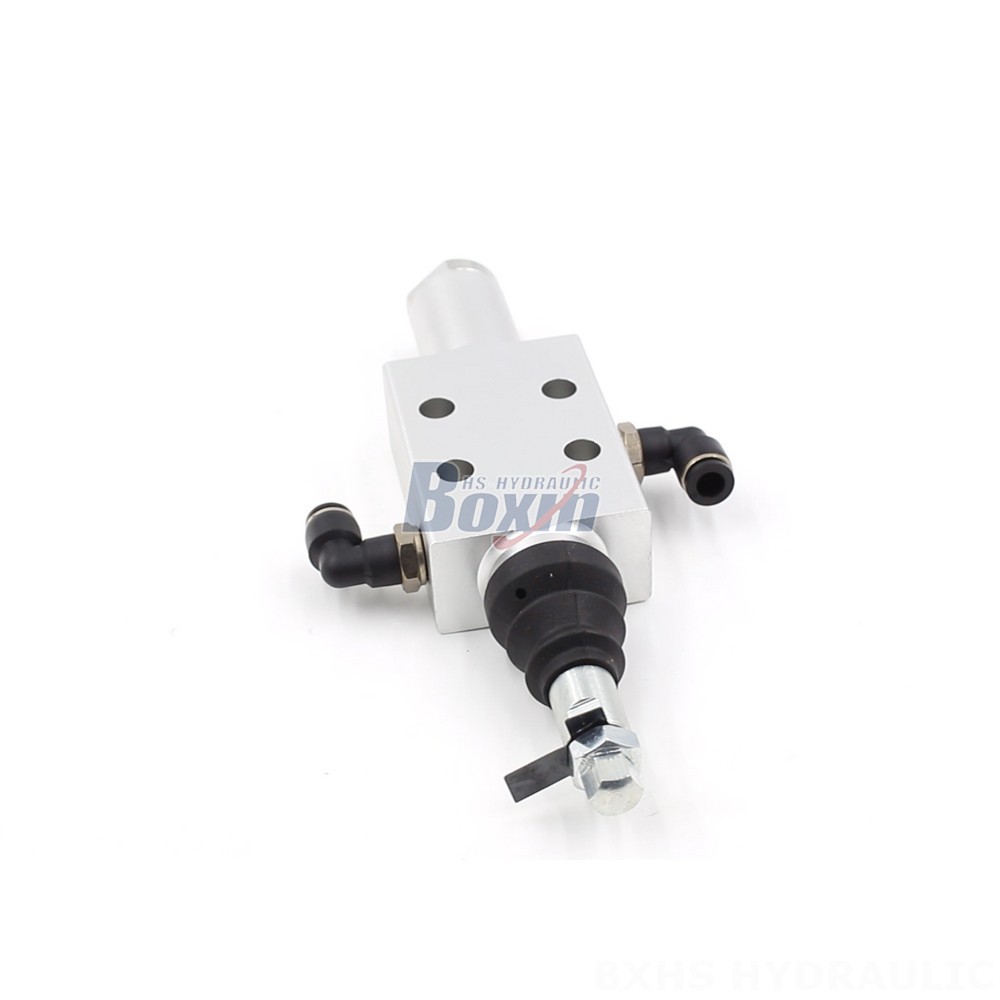

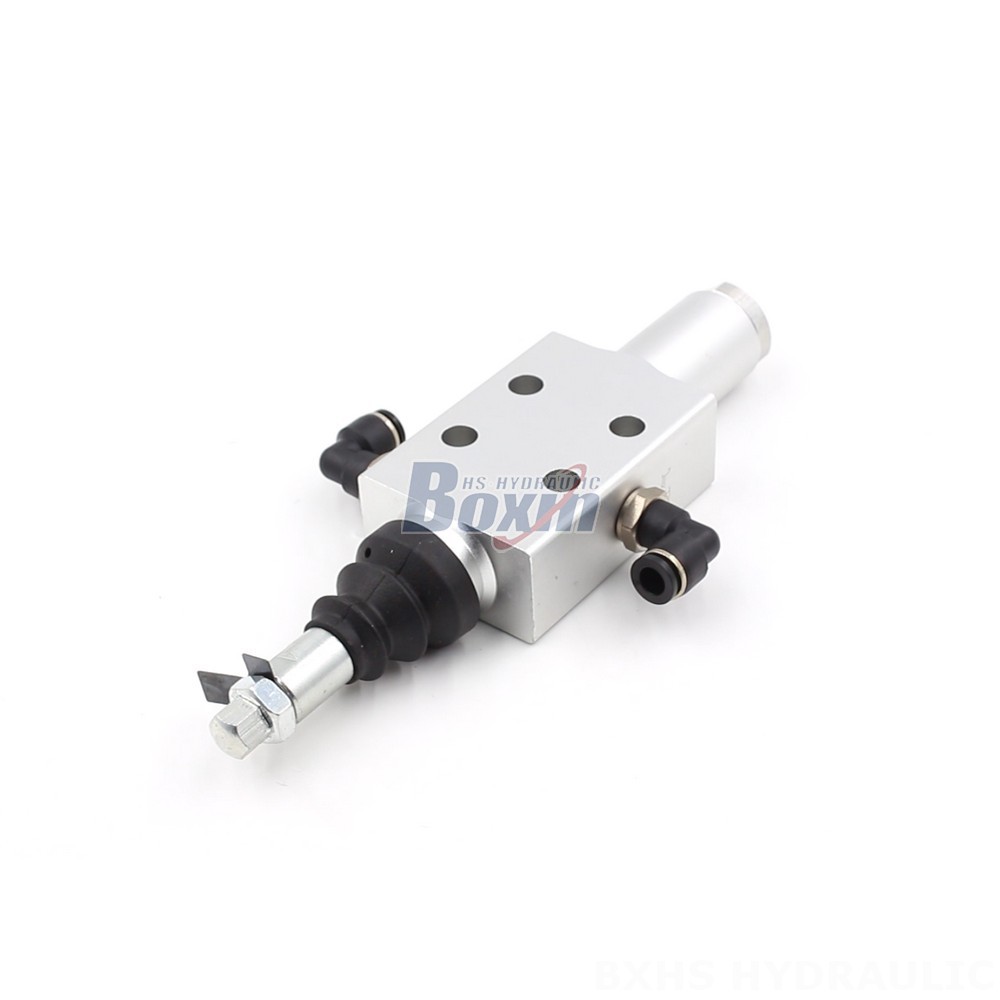

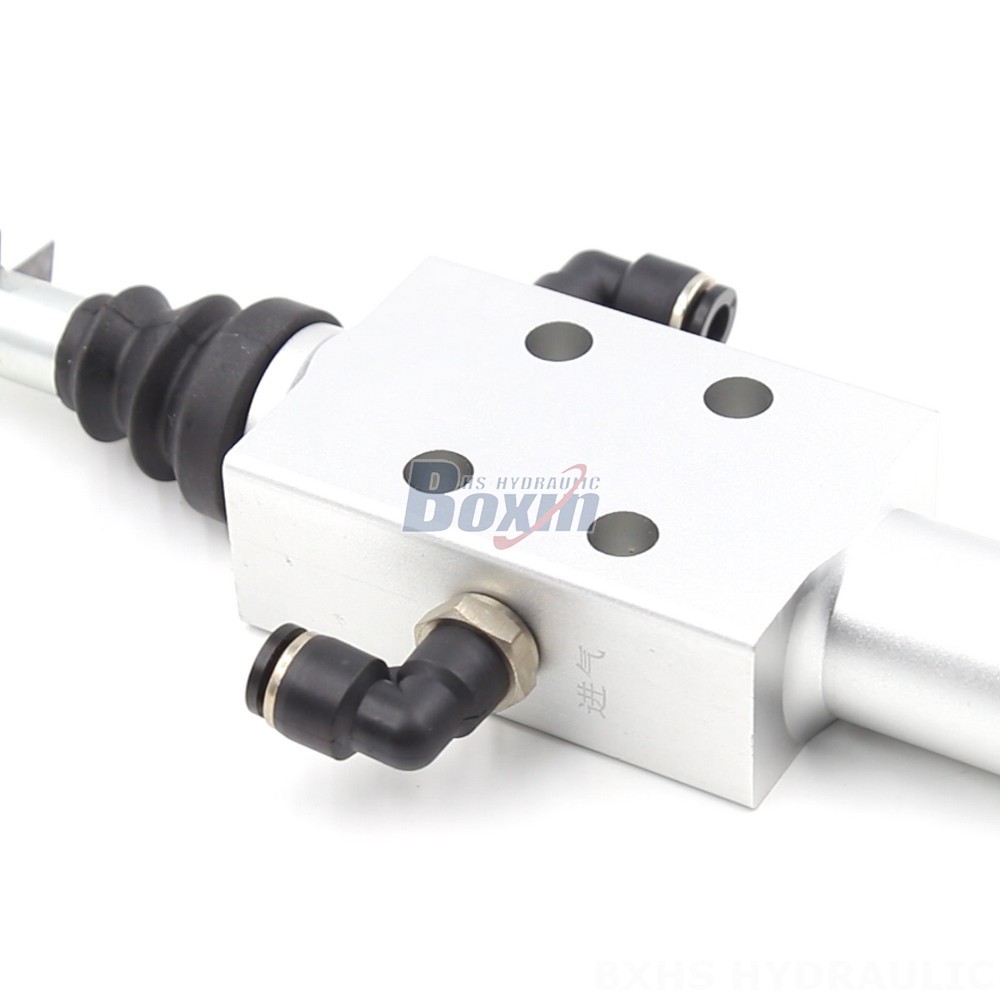

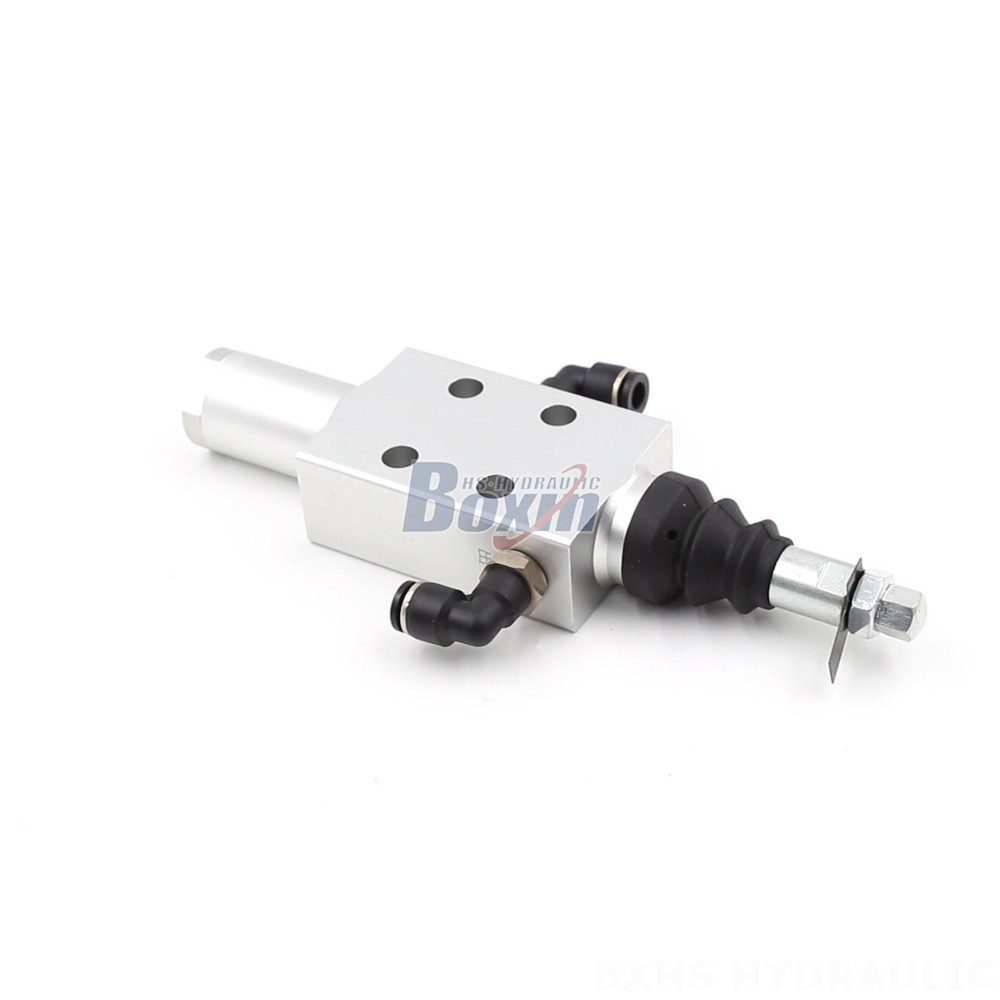

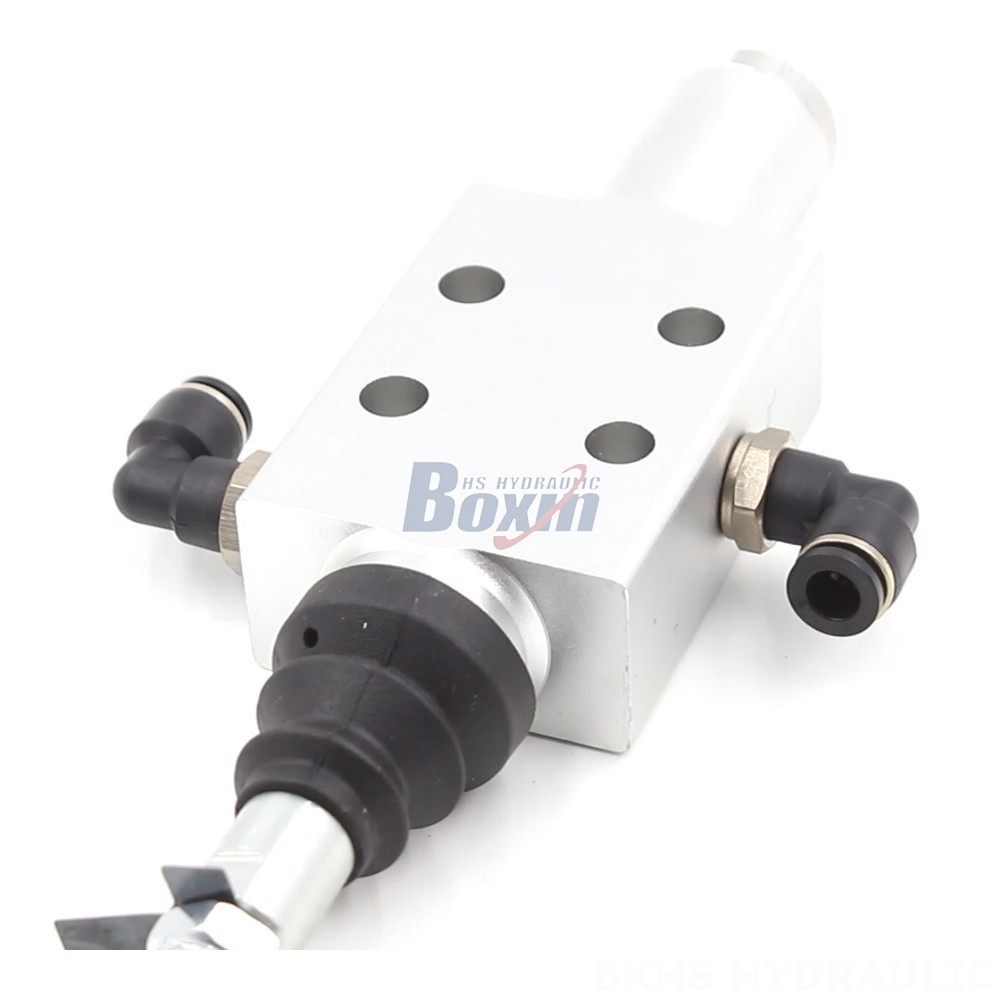

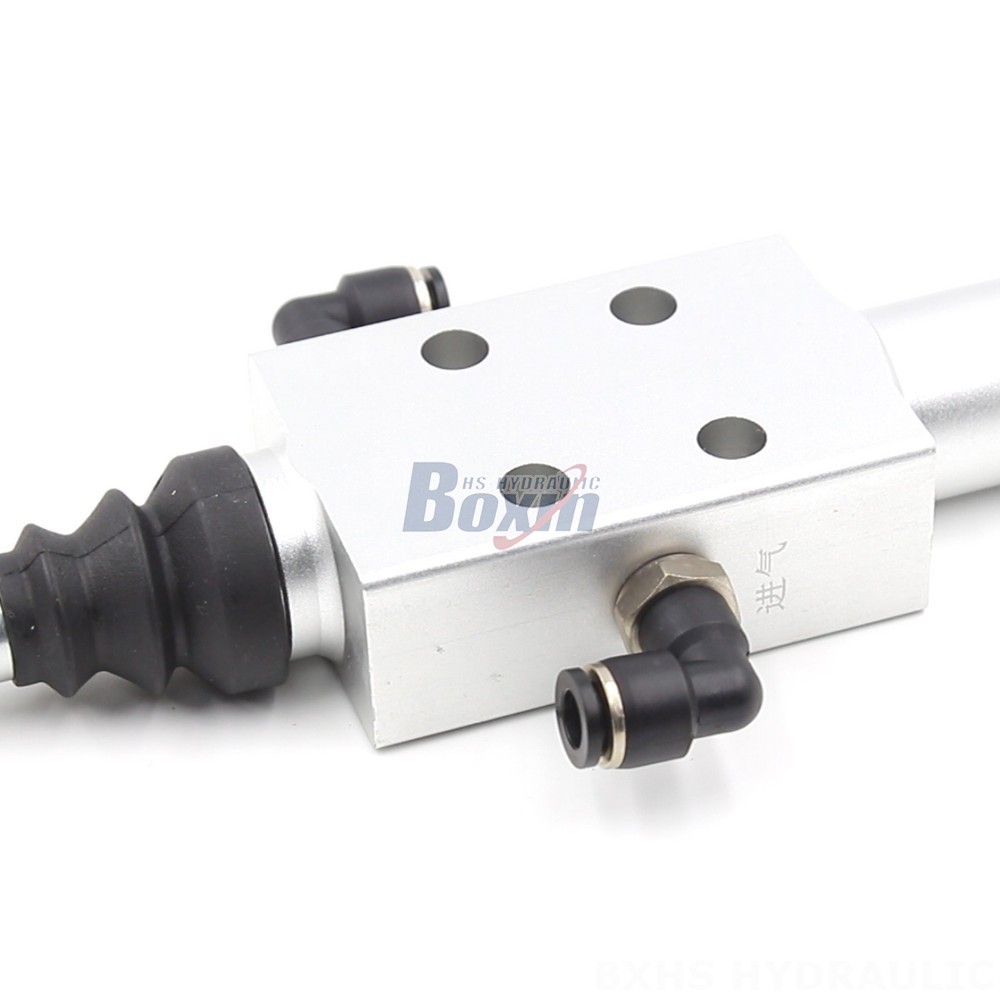

This XQF Series 24v pneumatic solenoid valve is a heavy-duty, monoblock directional valve designed for use in material handling, construction and earthmoving, agriculture, and industrial vehicles. It features a 1 spool design and operates at pressures up to 200 bar (2900 psi) with an operating viscosity range of 12-400 mm²/s (12 cSt to 400 cSt).
| Serie XQF Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Pneumatico |
| Spoo | 1 Spola |
| Intervallo di temperatura ambiente | -40°C to +60°C (-40°F to +140°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1 |
| Intervallo di viscosità operativa | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| Portata nominale | 50 L/min (13.2 US gpm) |
| Pressione massima | 200 bar (2900 psi) |
| Attacco di ingresso | G1/4 |
| Attacco di uscita | G1/4 |
| Dimensione attacco | G1/4 |
The XQF Series 24v pneumatic solenoid valve is a reliable and durable option for a wide range of applications. It is constructed with a monoblock structure, offering a robust and compact design. The valve features a single spool, providing precise directional control. With a maximum pressure rating of 200 bar (2900 psi) and an operating viscosity range of 12-400 mm²/s (12 cSt to 400 cSt), this valve is suitable for heavy-duty applications. The valve is designed to withstand ambient temperatures ranging from -40°C to +60°C (-40°F to +140°F), ensuring reliable performance in a variety of environments. This 24v pneumatic solenoid valve is ideal for use in forklifts, telehandlers, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and sprayers.
