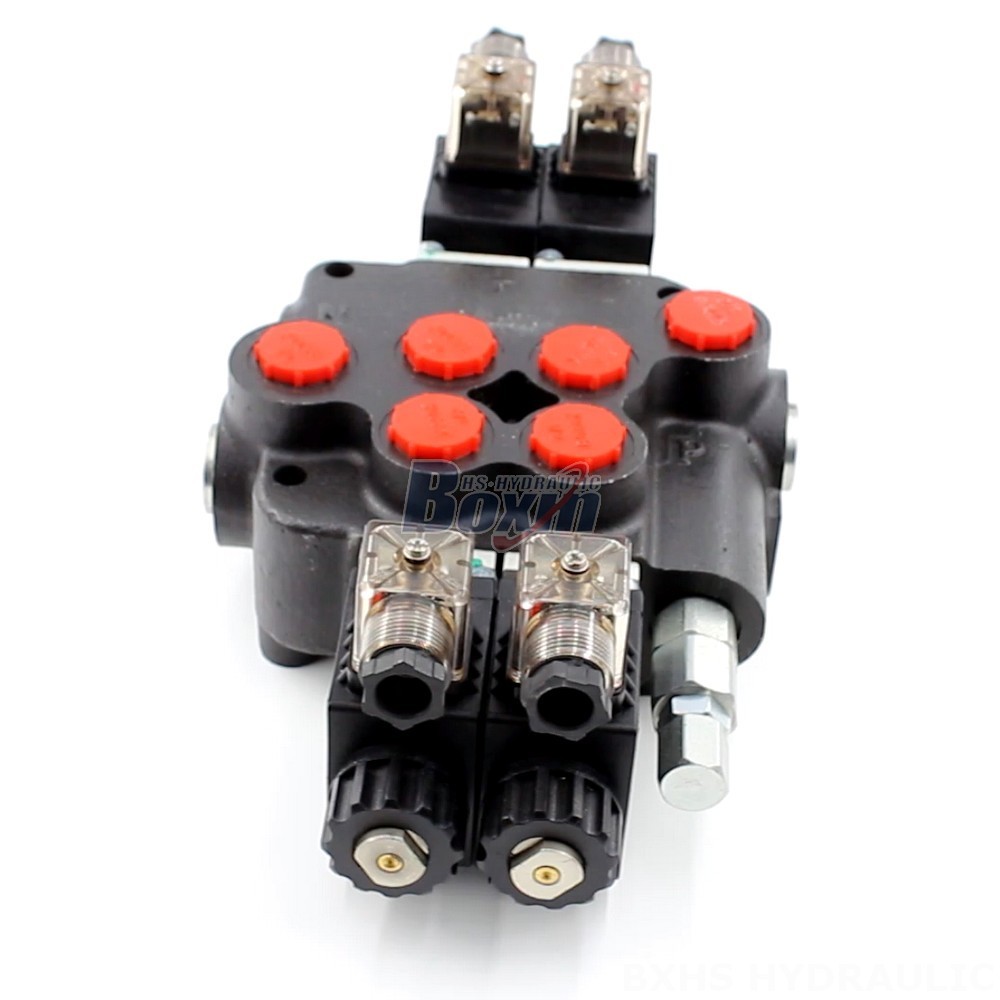

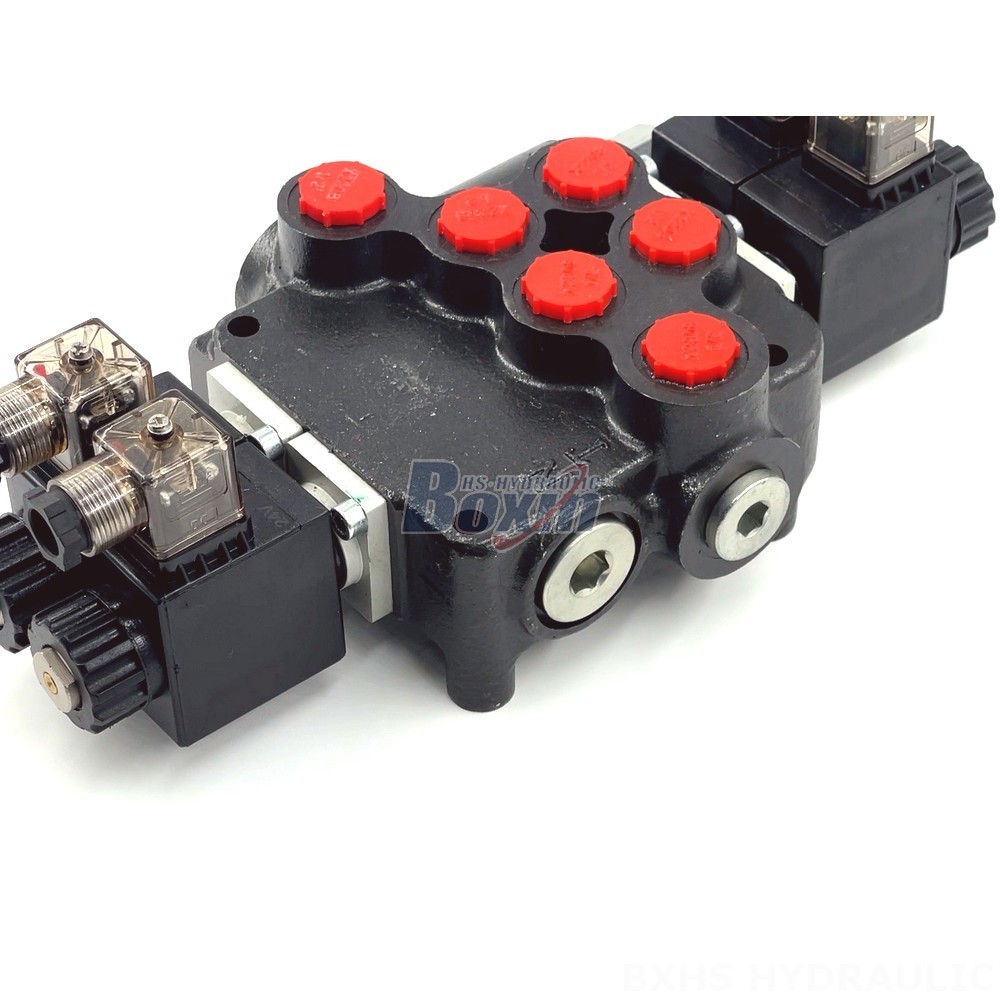

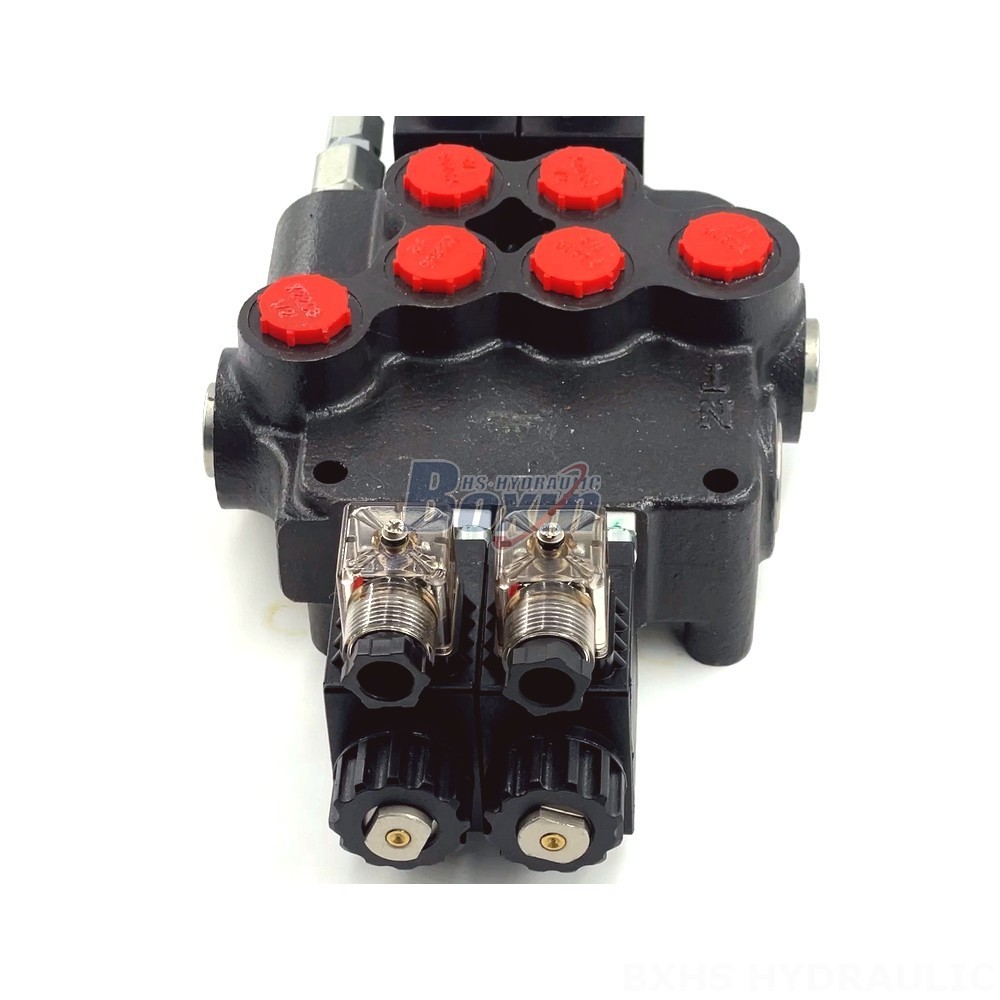

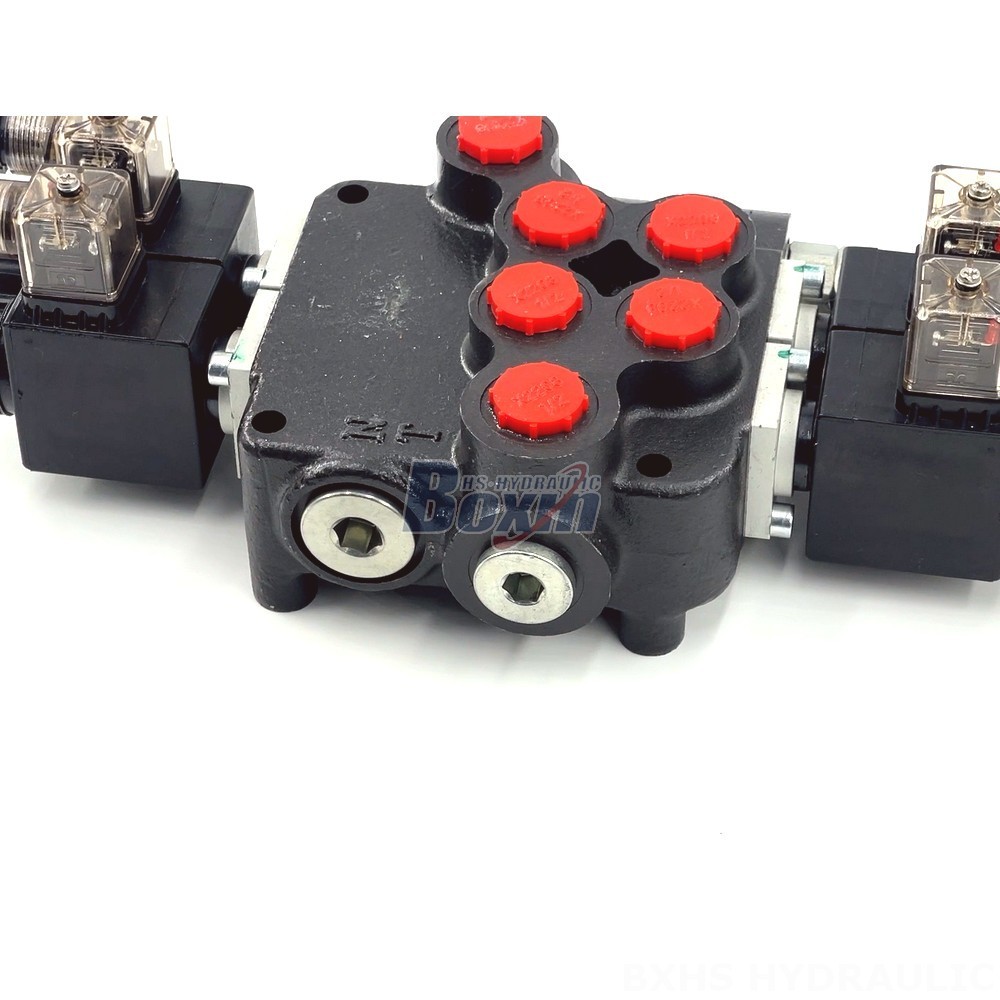

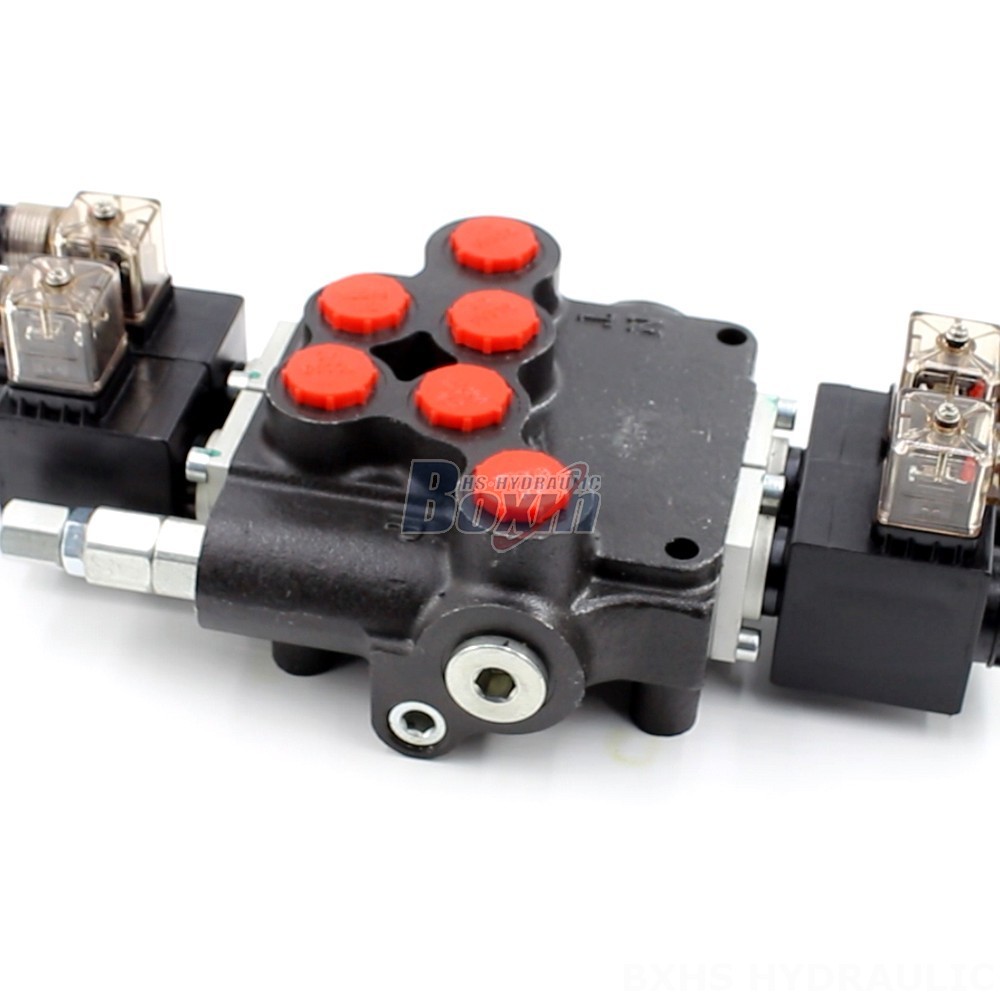

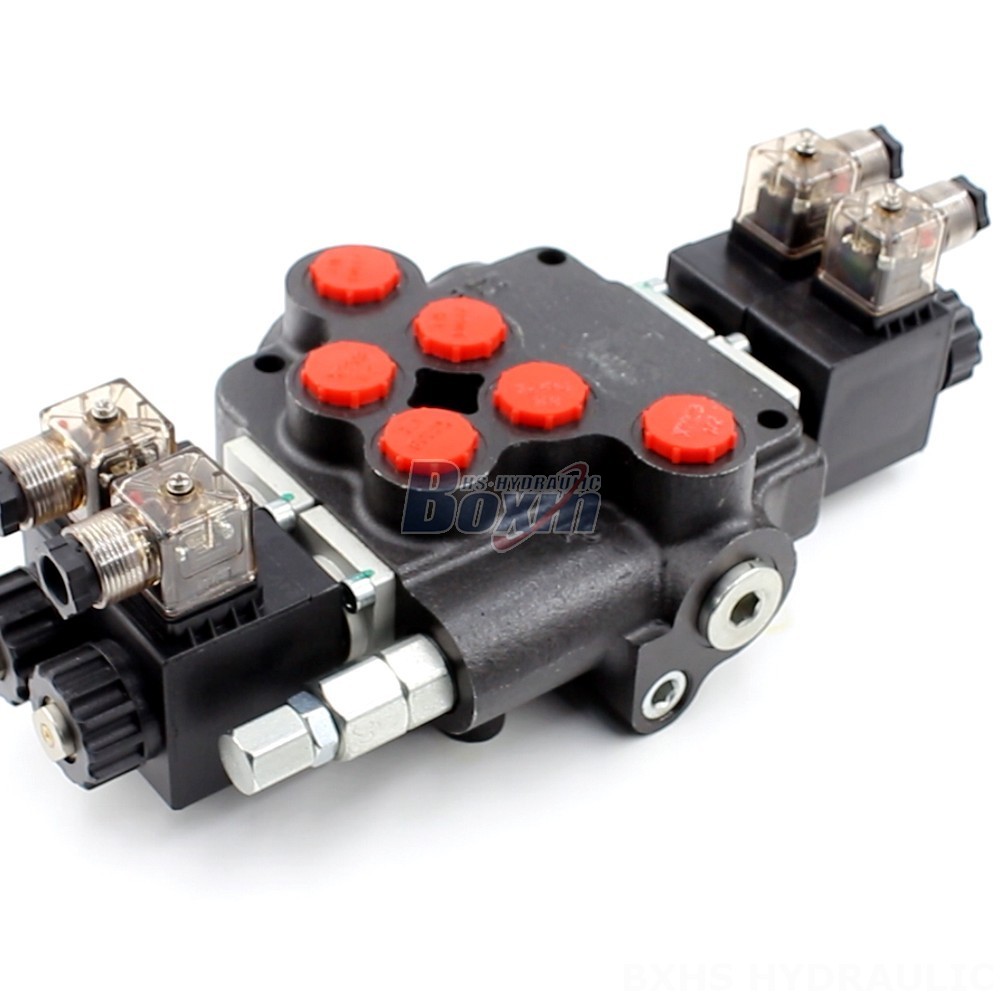

The Partner with Us: Distribute the P80 Solenoid 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. It features a solenoid control method, 2 section monoblock structure, 80 L/min rated flow, 250 bar max pressure, and 15-75 mm²/s operating viscosity range. It also has a wide ambient temperature range of -40 to 80°C and is available in 2 spool and P80 Series configurations. The valve is suitable for use in a variety of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
| Serie P80 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Manuale e joystick |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 80 L/min (21.2 US gpm) |
| Pressione massima | 315 bar (4600 psi) |
| Attacco di ingresso | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Attacco di uscita | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimensione attacco | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The Partner with Us: Distribute the P80 Solenoid 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles.
The valve features a solenoid control method, 2 section monoblock structure, 80 L/min rated flow, 250 bar max pressure, and 15-75 mm²/s operating viscosity range. It also has a wide ambient temperature range of -40 to 80°C and is available in 2 spool and P80 Series configurations.
The valve is suitable for use in a variety of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
We are looking for distributors, wholesalers, agents, and traders to help us distribute the P80 Solenoid 2 Spool Monoblock Directional Valve to a global market. We offer a variety of support services to our partners, including marketing materials, technical support, and training. If you are interested in becoming a partner, please contact us today.
