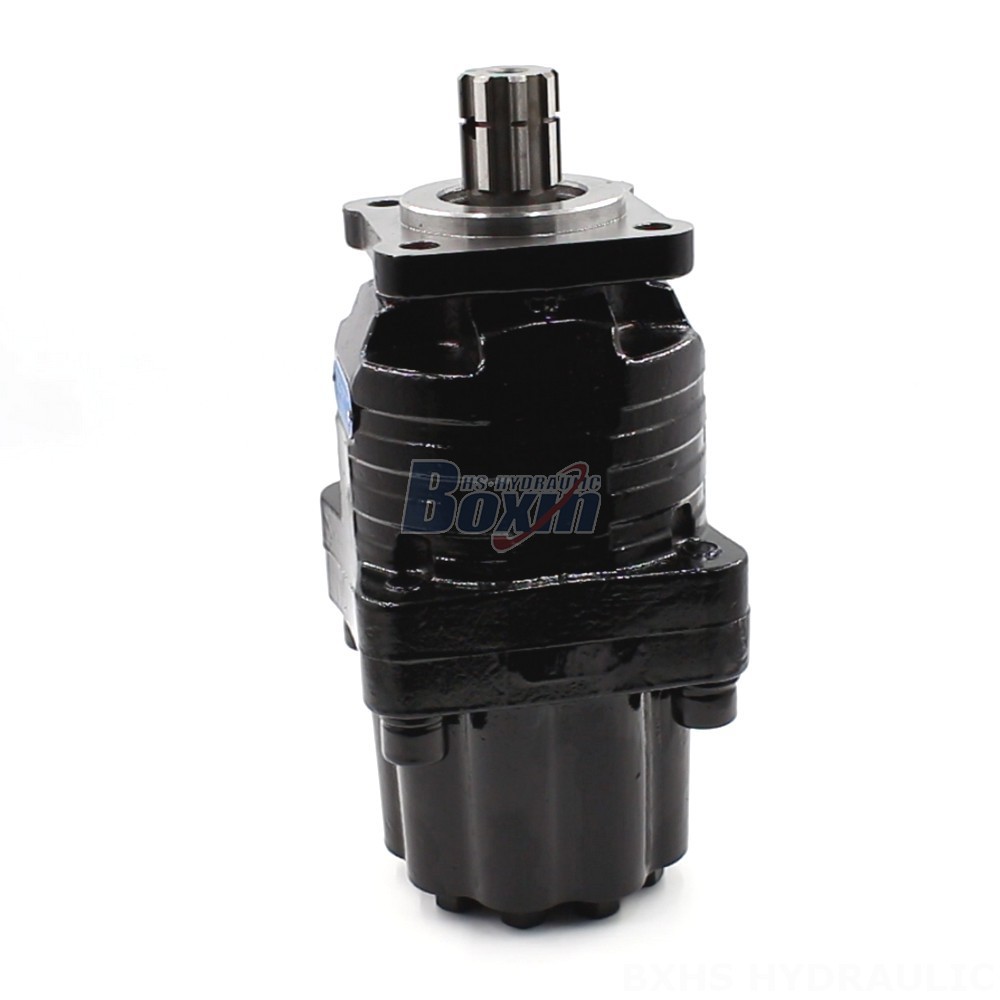

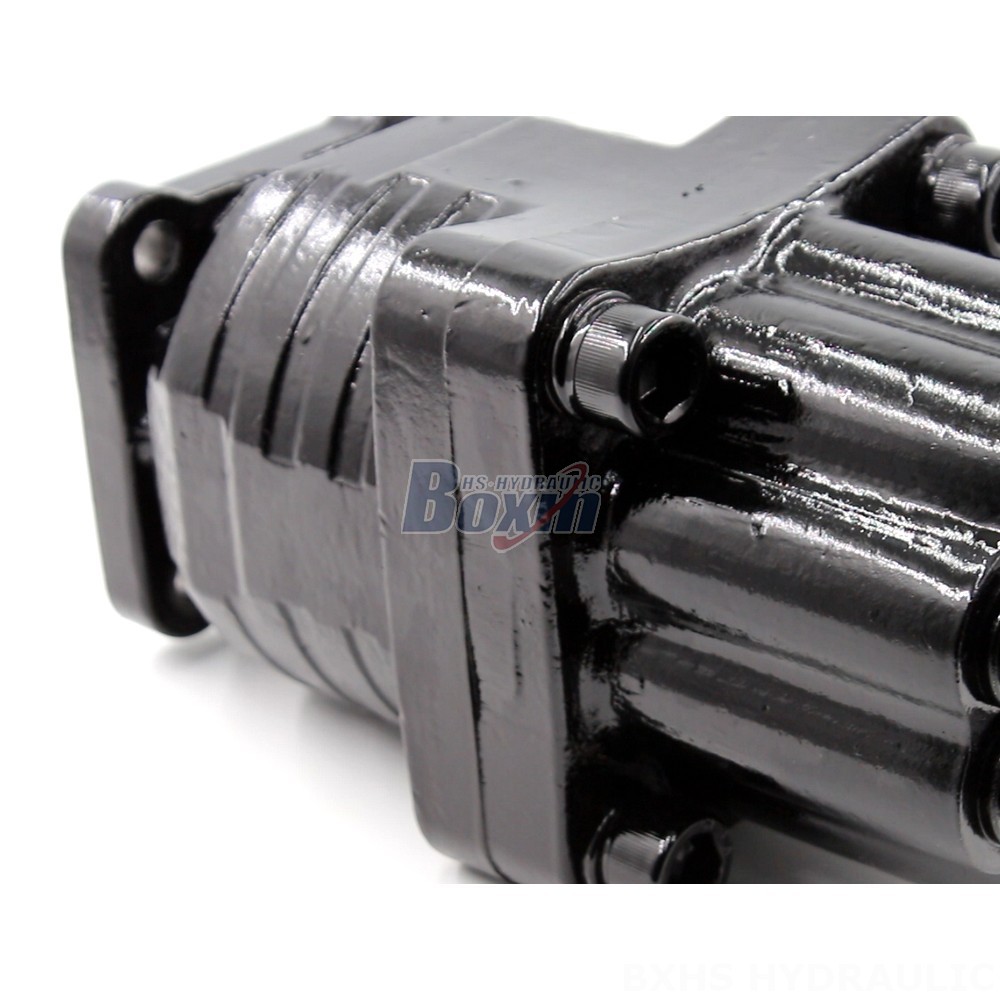

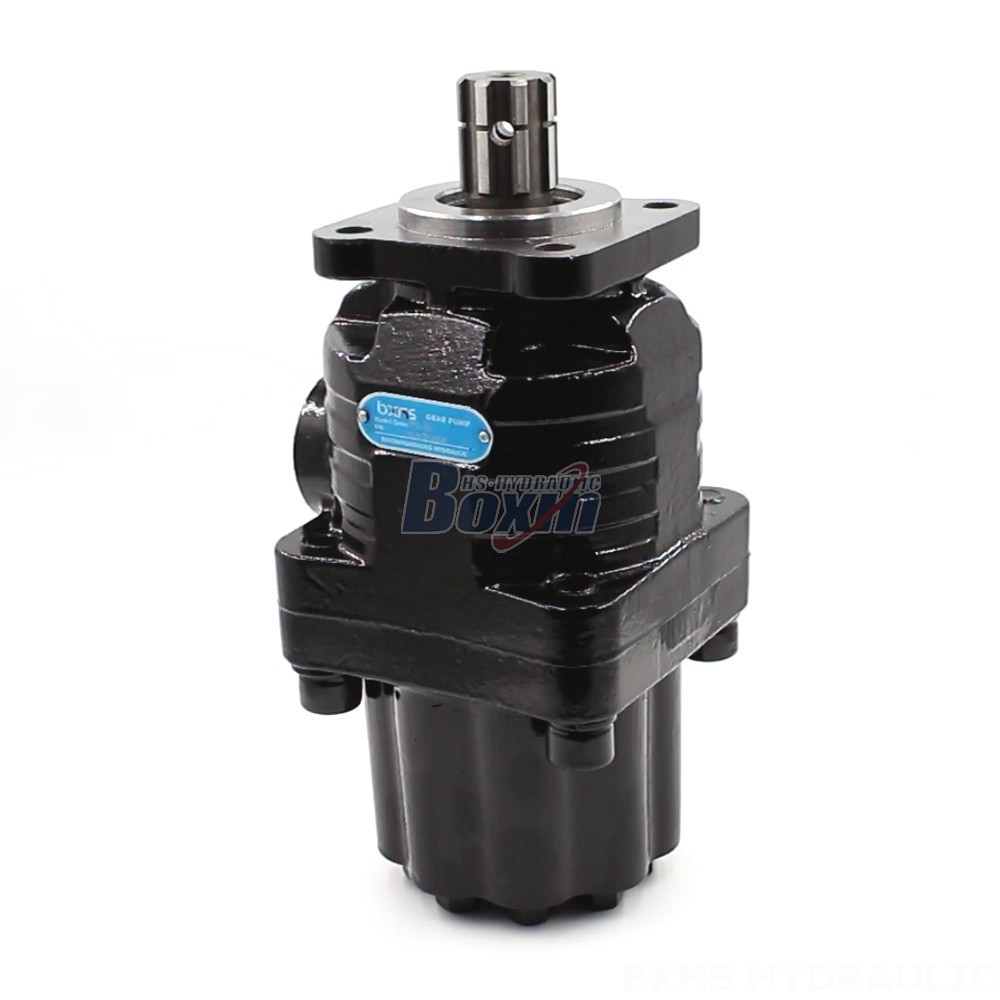

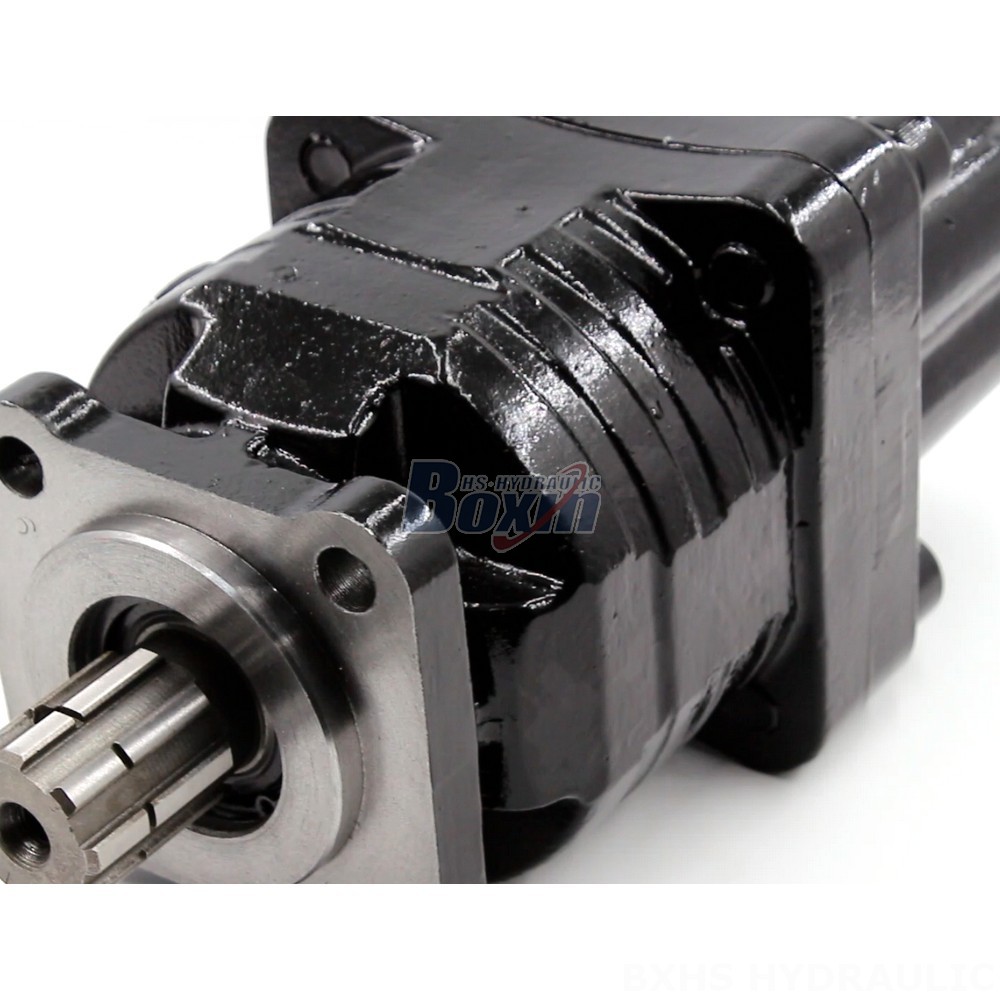

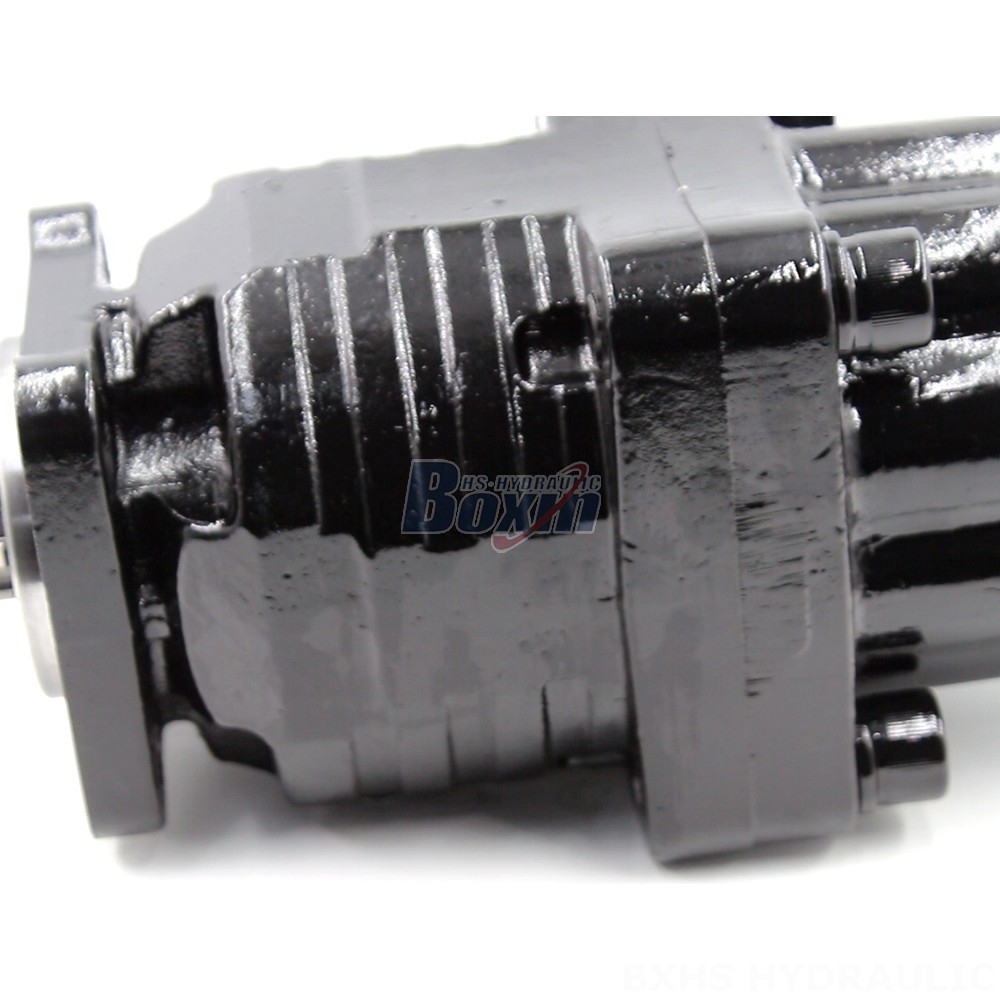

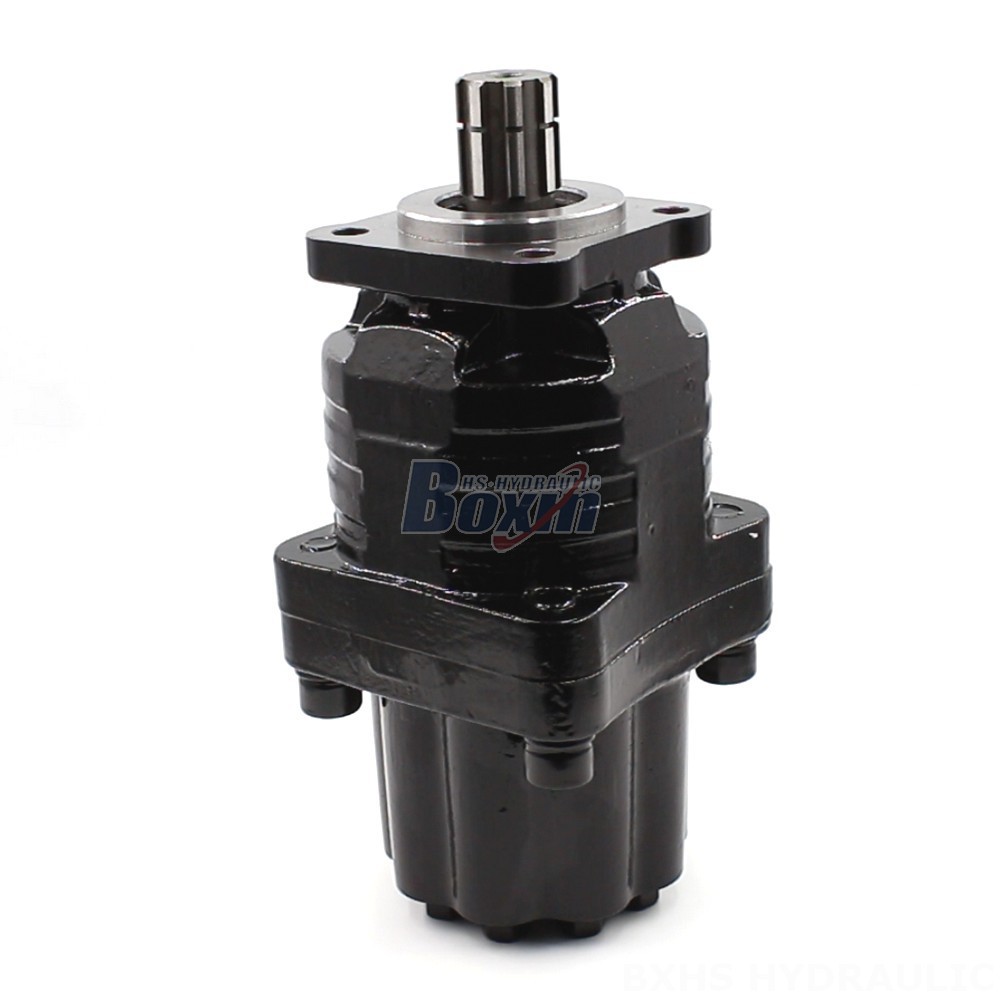

The P9-80 80 cc/rev Hydraulic Piston Pump is a high-performance pump designed for demanding applications in material handling, construction, earth moving, agriculture, and industrial vehicles. With a rated pressure of 30 MPa, a rated speed of 1300 r/min, and a maximum speed of 1000 r/min, this pump delivers exceptional power and efficiency.
| Serie P Pompa a pistoni idraulica Parametri | |
|---|---|
| Cilindrata | 40 cc/giro, 63 cc/giro, 80 cc/giro |
| Pressione nominale | 25 MPa (3625 psi) |
| Pressione massima | 30 MPa (4351 psi) |
| Velocità nominale | 800 giri/min |
| Velocità massima | 1300 giri/min |
| Rotazione | Bidirezionale |
| Struttura | Pompa a ingranaggi esterna, Pompa a ingranaggi interna |
| Materiale | Ghisa |
| Versione flangia | Fori di montaggio ISO-4, Fori di montaggio UNI-3 |
| Tipo di albero | H: Scanalatura rettangolare |
The P9-80 80 cc/rev Hydraulic Piston Pump features a swashplate structure and is constructed from durable cast iron. It is available with various flange versions, including ISO-4 mounting holes and UNI-3 mounting holes, and a rectangle spline shaft type. This pump is ideally suited for applications such as telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
