Metodo di Controllo:Manuale

Spoo:2 Spole

Portata nominale:80 L/min (21.2 US gpm)

Pressione massima:250 bar (3600 psi)

Attacco di ingresso:G1/2

Attacco di uscita:G1/2

Dimensione attacco:G1/2

Marchio:BXHS

Tipo di prodotto:Valvola direzionale monoblocco

Serie di prodotti:Serie P80A Valvola direzionale monoblocco

Dimensioni dell'imballaggio:28*30*13

Peso lordo:8.00 kg

Disponibilità: In magazzino

1049 Le visualizzazioni cercano questo prodotto

P80A Hydraulic System Components | Factory Supply & Distribution

P80A Hydraulic System Components | Factory Supply & Distribution

P80A Hydraulic System Components | Factory Supply & Distribution drawing image

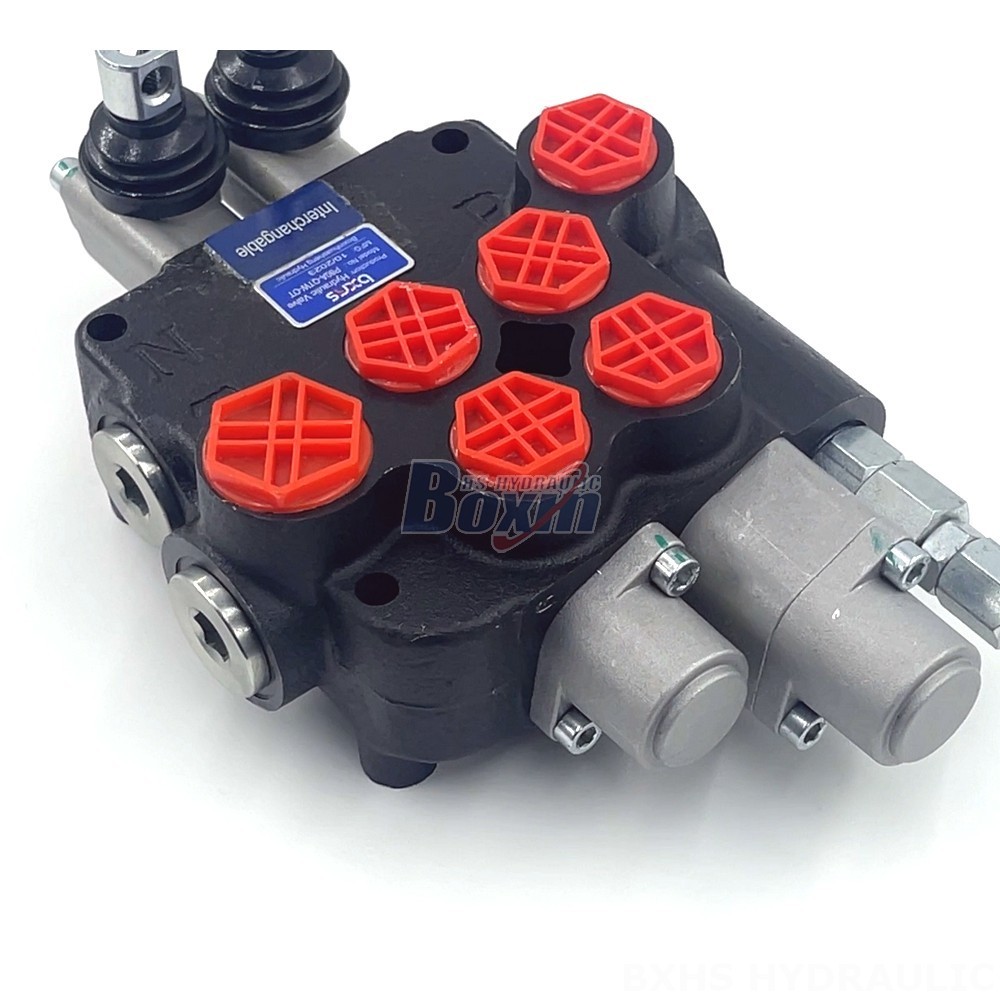

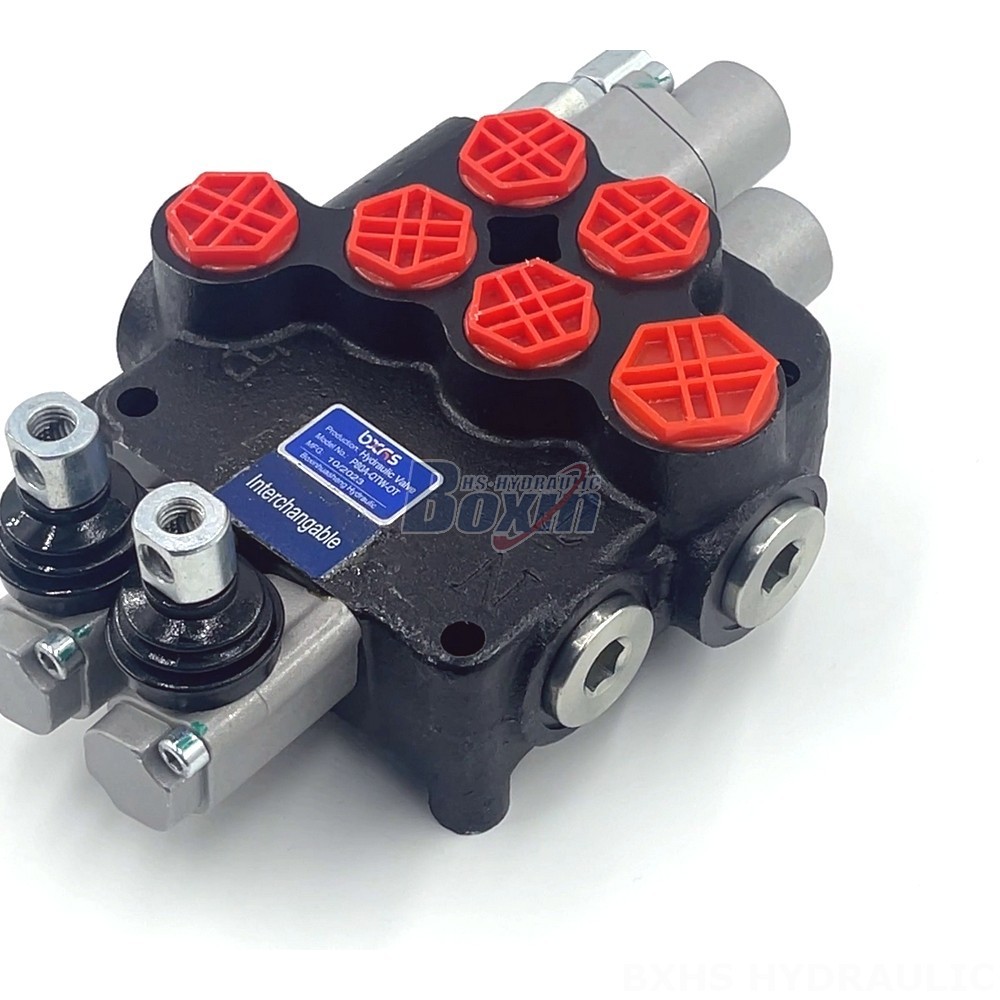

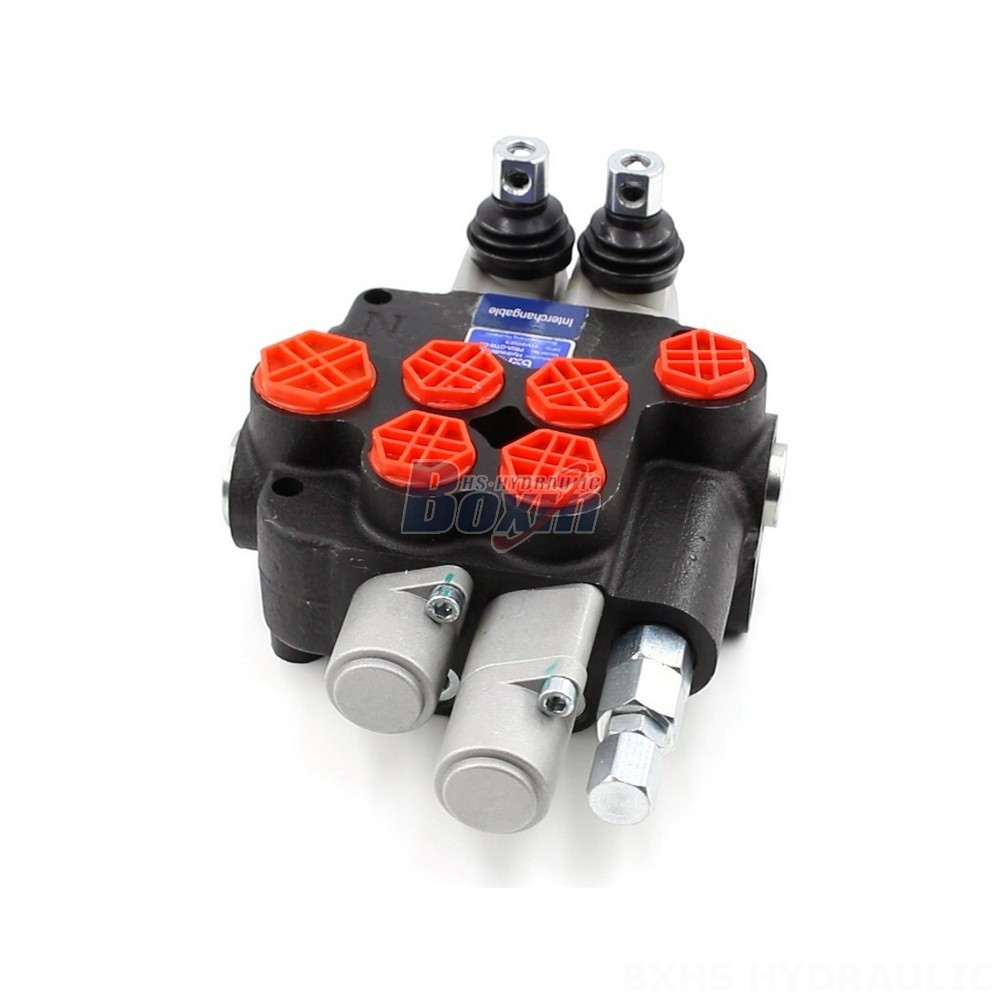

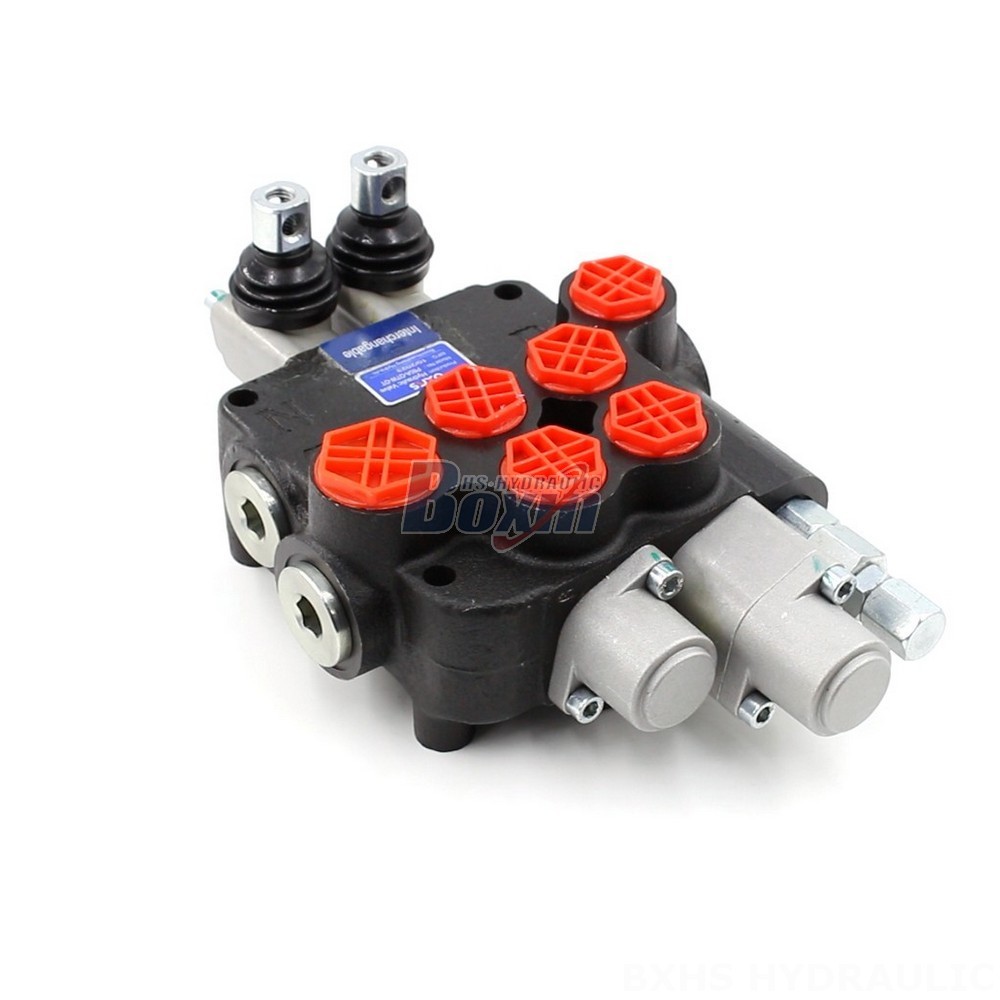

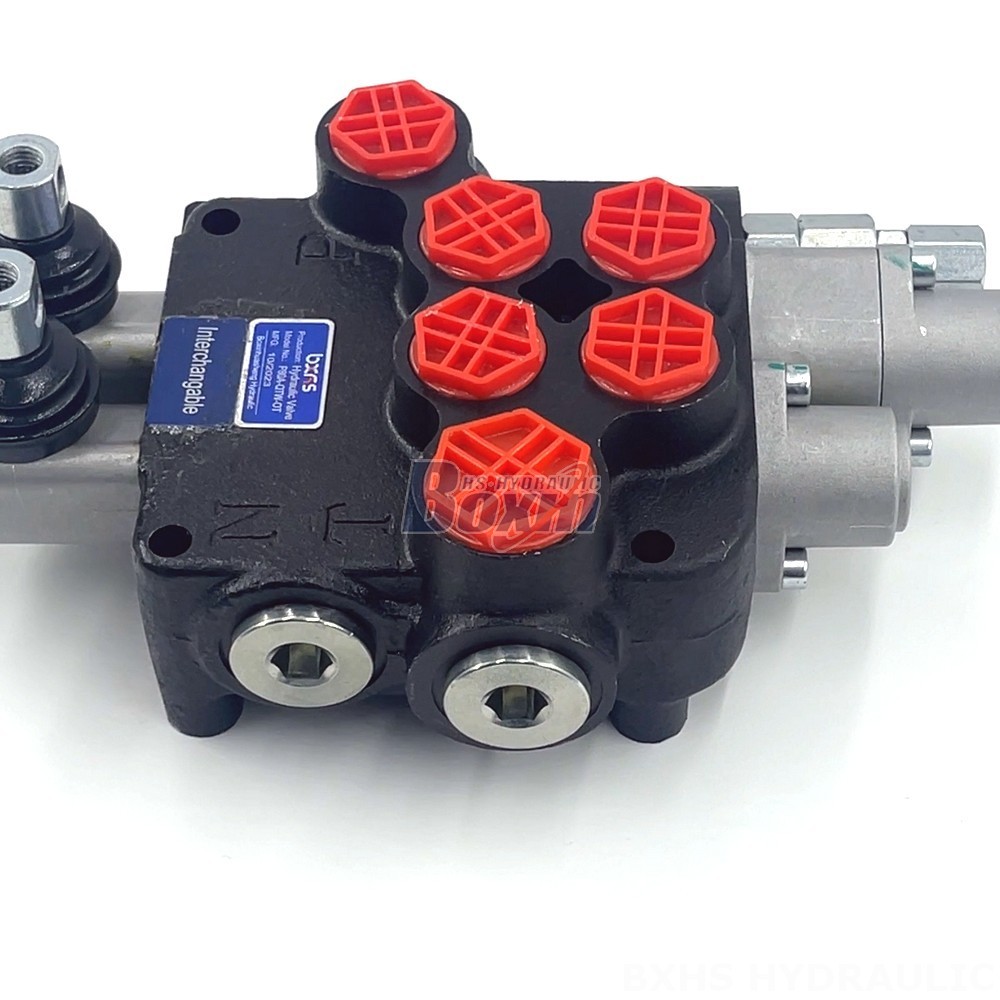

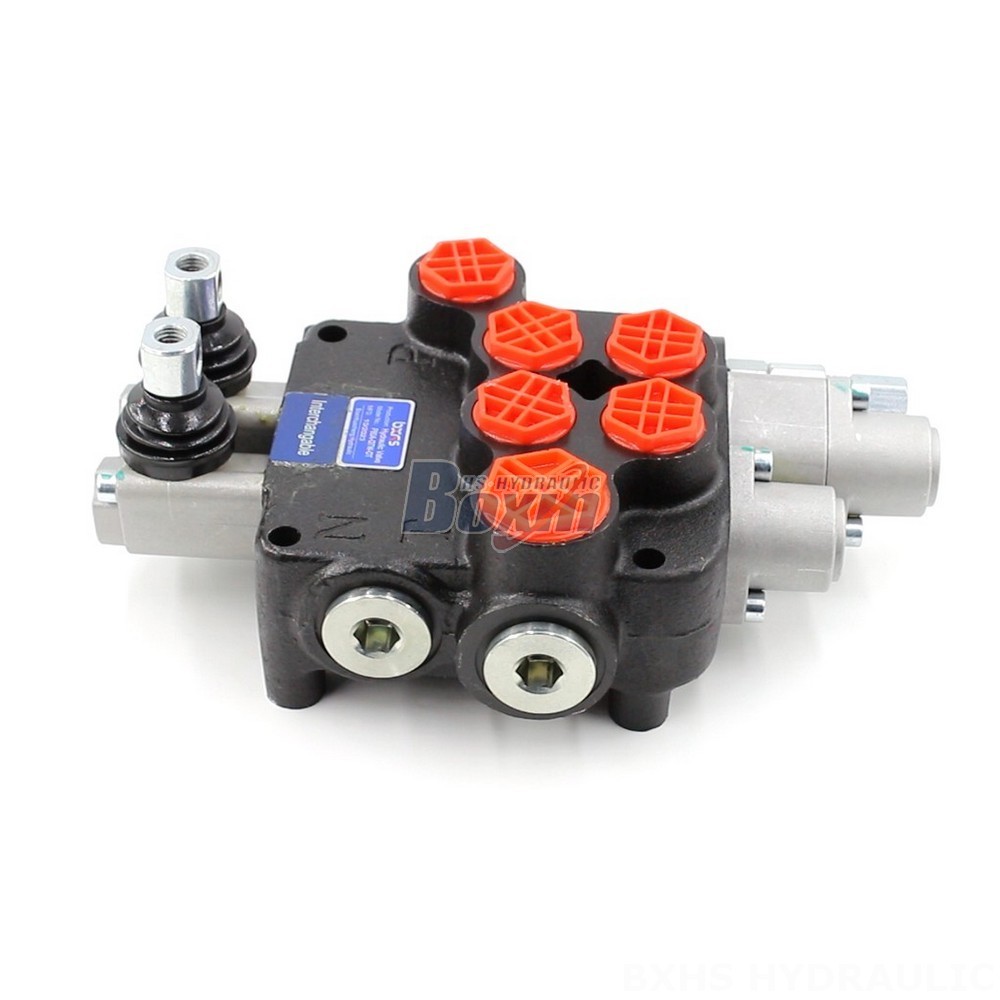

The P80A Series Hydraulic Control Valve is a high-performance, 2-section monoblock valve designed for manual control of hydraulic systems. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it's ideal for various applications in material handling, construction, and agriculture.

Serie P80A Valvola direzionale monoblocco Parametri
Metodo di Controllo Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Elettrico, Elettrovalvola e Manuale, Solenoide e joystick, Manuale e joystick
Spoo 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole
Intervallo di temperatura ambiente -40°C to +80°C (-40°F to +176°F)
Tipo di struttura Valvola monoblocco
Sezione Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7
Intervallo di viscosità operativa 15 - 75 mm²/s (15 cSt to 75 cSt)
Portata nominale 80 L/min (21.2 US gpm)
Pressione massima 315 bar (4600 psi)
Attacco di ingresso G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Attacco di uscita G1/2, G3/4, M27×2.0, SAE 12, 1/2 NPT, 3/4 NPT
Dimensione attacco G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

The P80A Series Hydraulic Control Valve is a reliable and durable solution for a wide range of hydraulic applications. It features a robust monoblock construction, a manual control method, and a 2-section design for versatile operation. The valve is rated for a flow of 80 L/min and can withstand a maximum pressure of 250 bar, making it suitable for heavy-duty applications. Its 2-spool configuration allows for precise control of hydraulic functions. The P80A Series is ideal for use in a variety of equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, and mini-excavators. We offer manufacturing, OEM, private label, and customization options to meet your specific requirements. We are also looking for distributors, wholesalers, agents, and traders worldwide to partner with us in bringing our high-quality hydraulic products to a wider audience.
