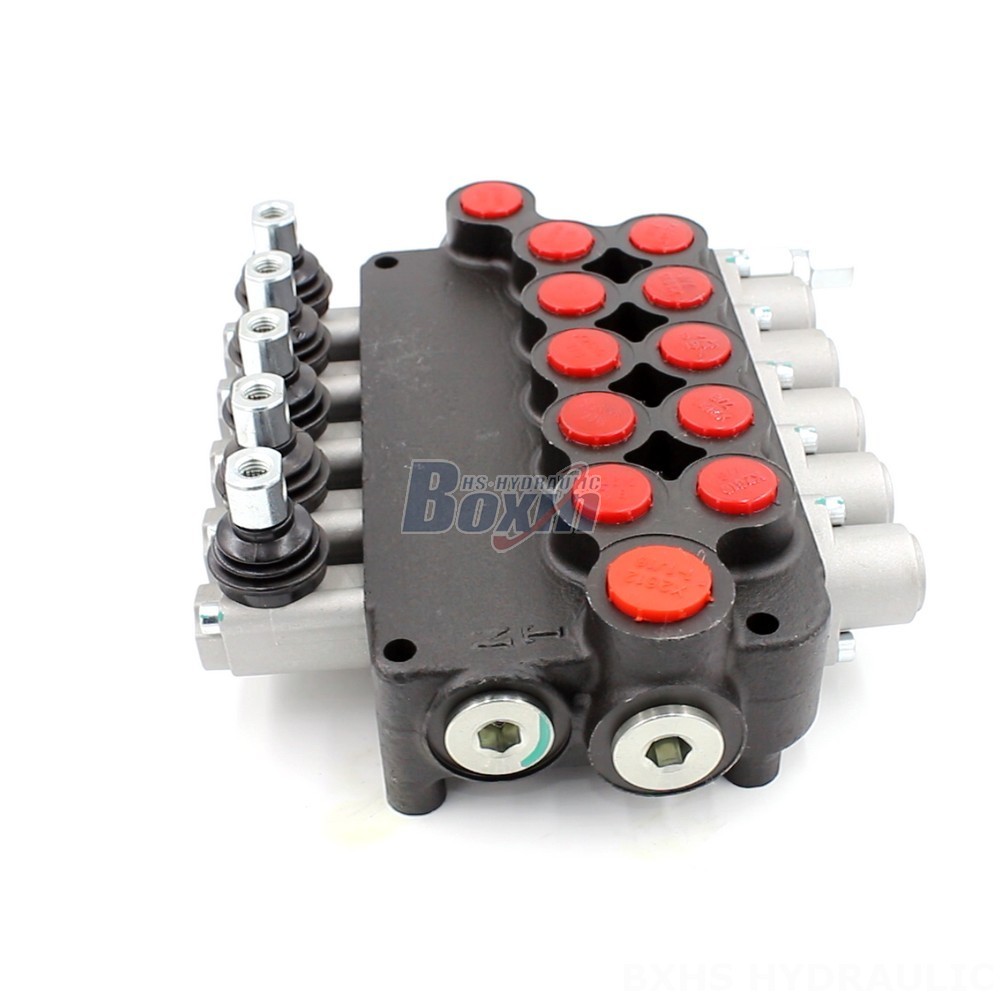

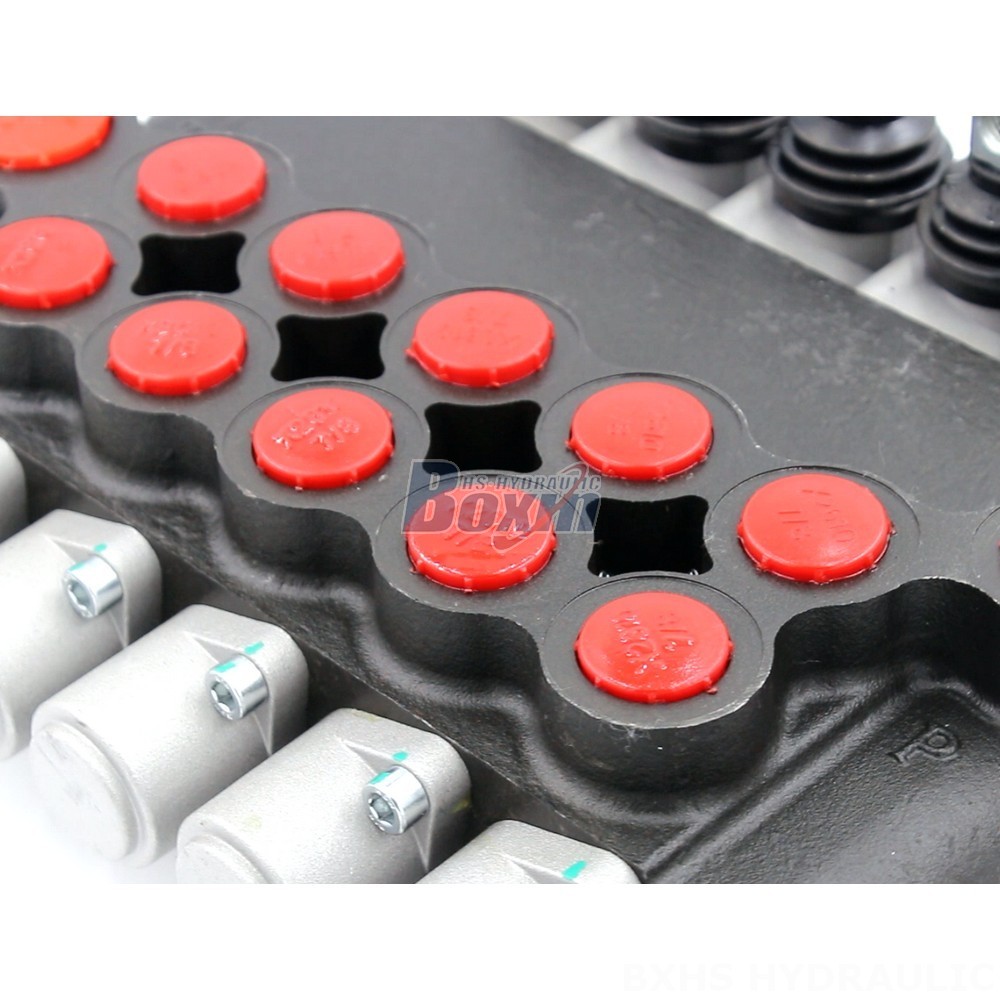

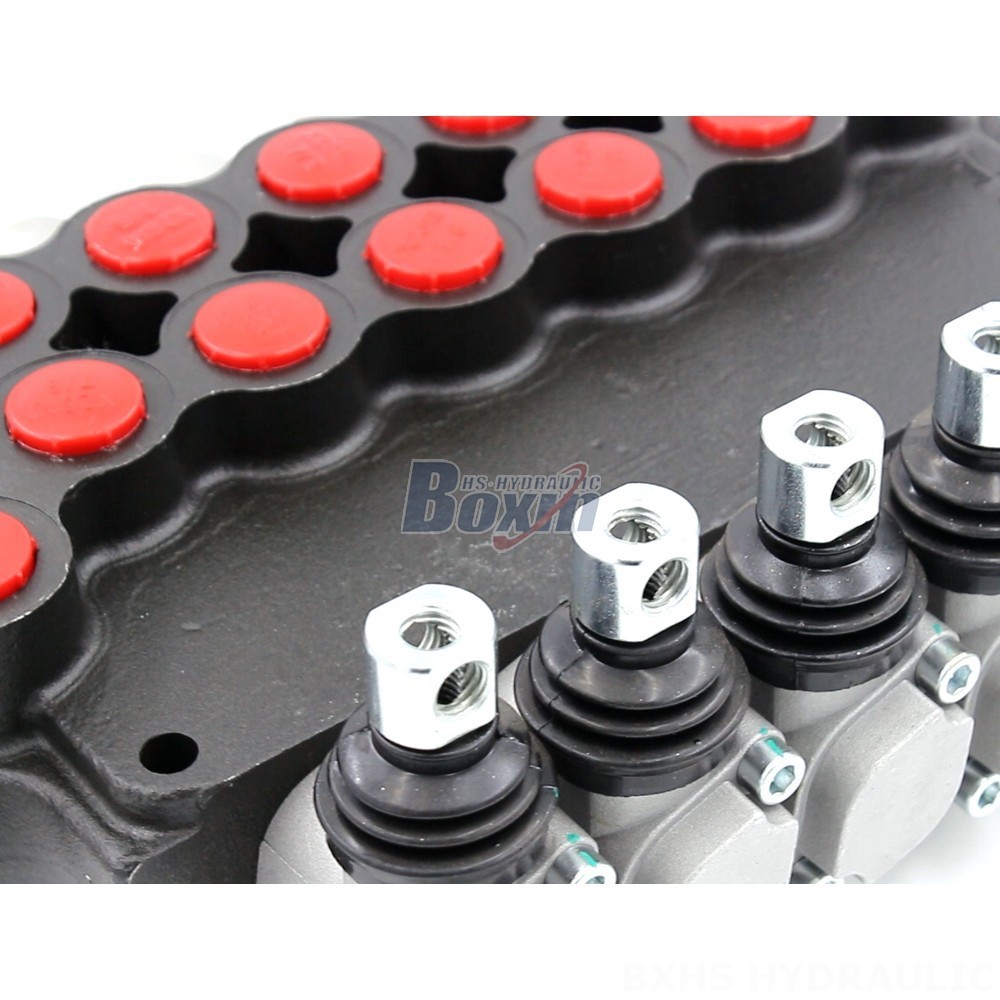

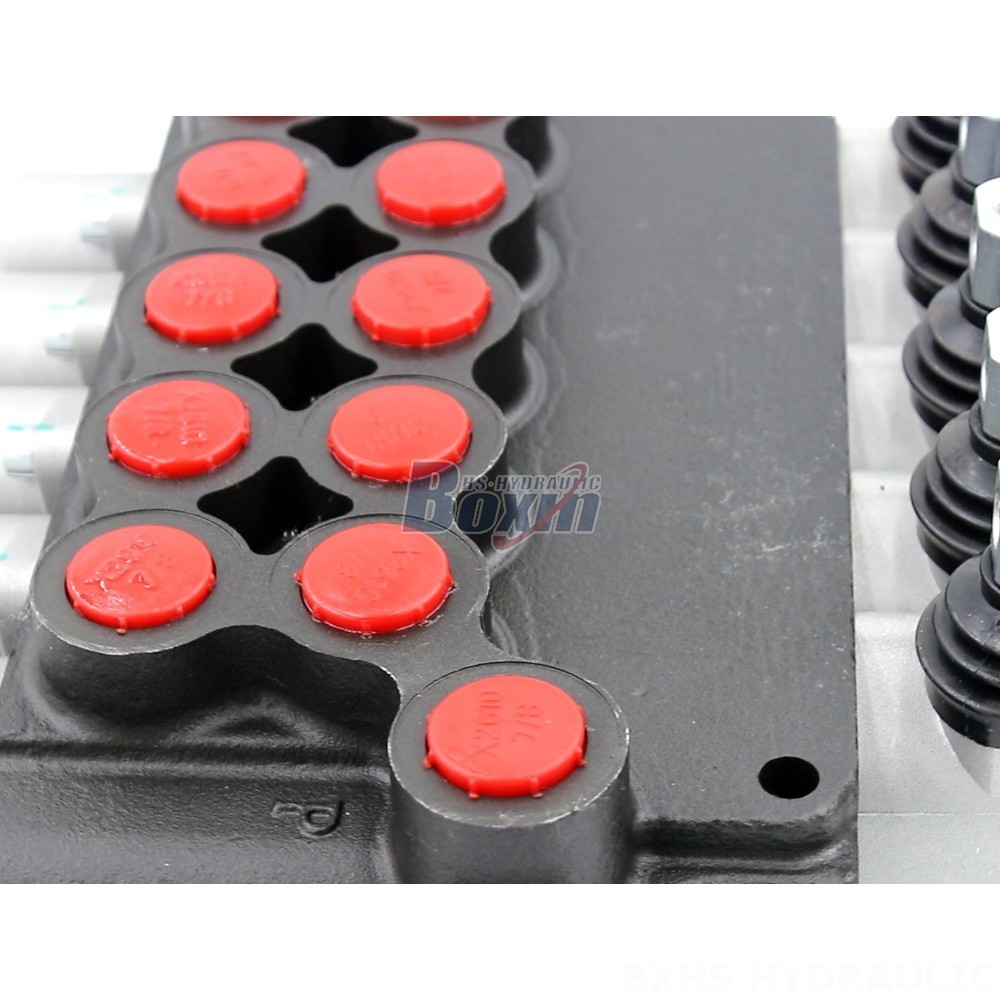

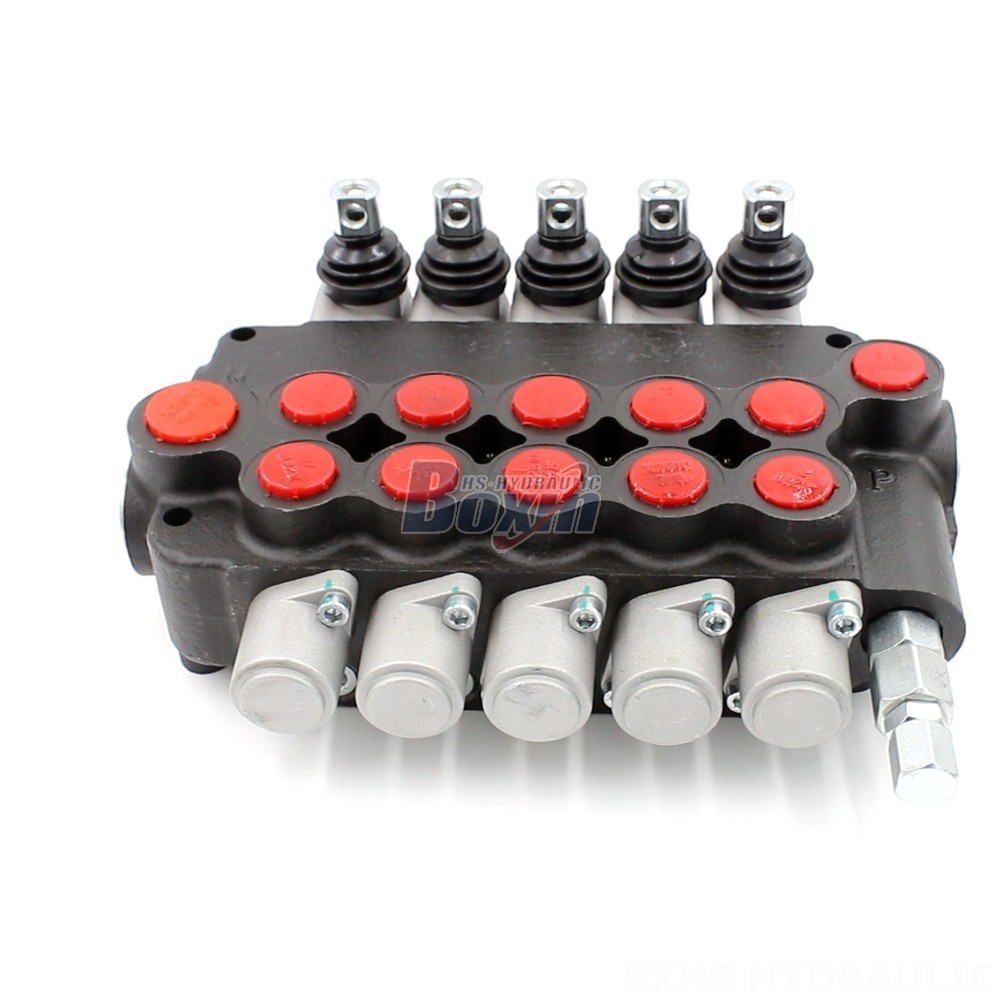

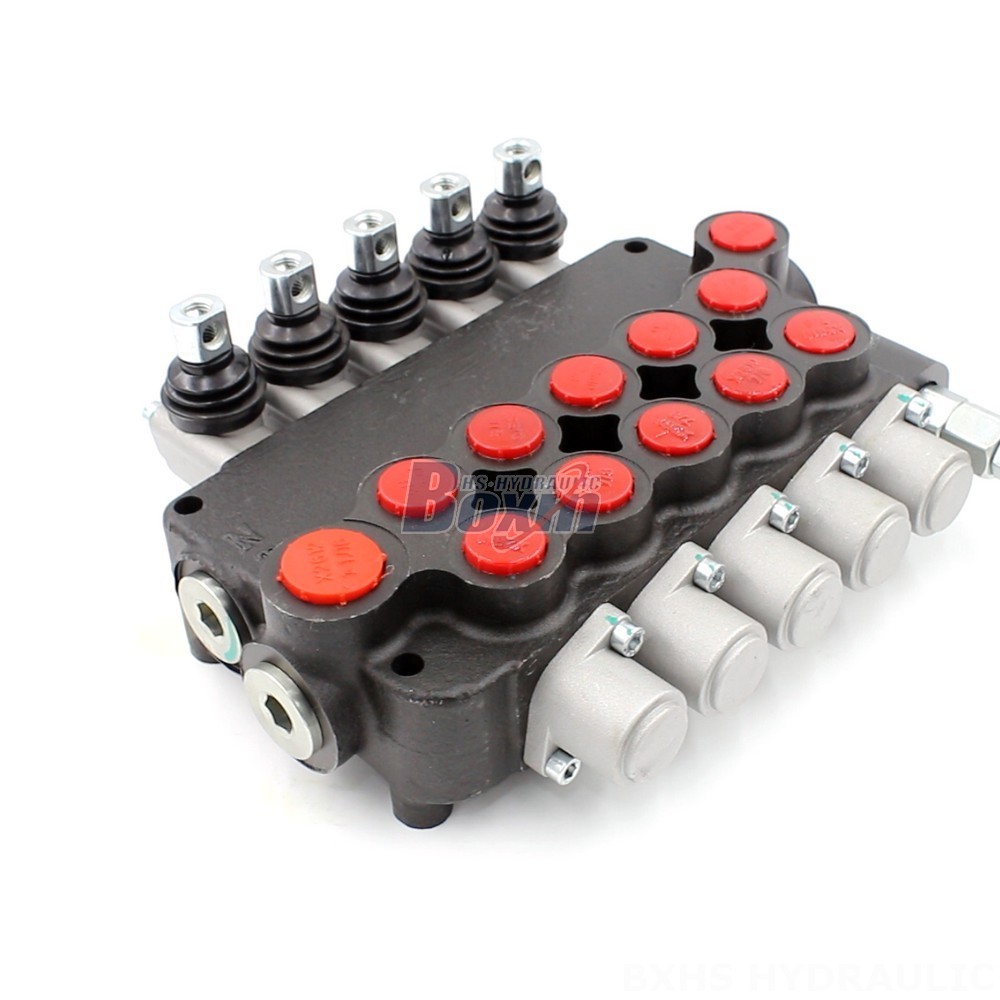

The P80-U116-U78-5OT Monoblock Valve is a high-performance hydraulic flow control valve designed for a wide range of construction and industrial equipment, including telehandlers, forklifts, and excavators. It features a 5-section, manual control design, a rated flow of 80 L/min, and a maximum pressure of 250 bar.
| Serie P80 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Manuale e joystick |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 80 L/min (21.2 US gpm) |
| Pressione massima | 315 bar (4600 psi) |
| Attacco di ingresso | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Attacco di uscita | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimensione attacco | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-U116-U78-5OT Monoblock Valve is a robust and reliable hydraulic flow control valve designed for demanding applications in construction, material handling, and industrial vehicles. It features a 5-section monoblock valve design with manual control, providing precise control of hydraulic fluid flow. The valve is rated for a flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), making it suitable for a wide range of equipment sizes and operating conditions. The valve operates within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and is designed to function in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). With its 5 spool design and P80 Series designation, this valve offers a high degree of versatility and reliability, ensuring optimal performance in a variety of applications.
