P40-G38 Hydraulic Valve: Advanced Technology for Superior Performance

Metodo di Controllo:Manuale

Spoo:1 Spola

Portata nominale:40 L/min (10.5 US gpm)

Pressione massima:250 bar (3600 psi)

Attacco di ingresso:G3/8

Attacco di uscita:G3/8

Dimensione attacco:G3/8

Marchio:BXHS

Tipo di prodotto:Valvola direzionale monoblocco

Serie di prodotti:Serie P40 Valvola direzionale monoblocco

Dimensioni dell'imballaggio:23*16*11

Peso lordo:3.00 kg

Disponibilità: In magazzino

955 Le visualizzazioni cercano questo prodotto

P40-G38 Hydraulic Valve: Advanced Technology for Superior Performance

P40-G38 Hydraulic Valve: Advanced Technology for Superior Performance

P40-G38 Hydraulic Valve: Advanced Technology for Superior Performance drawing image

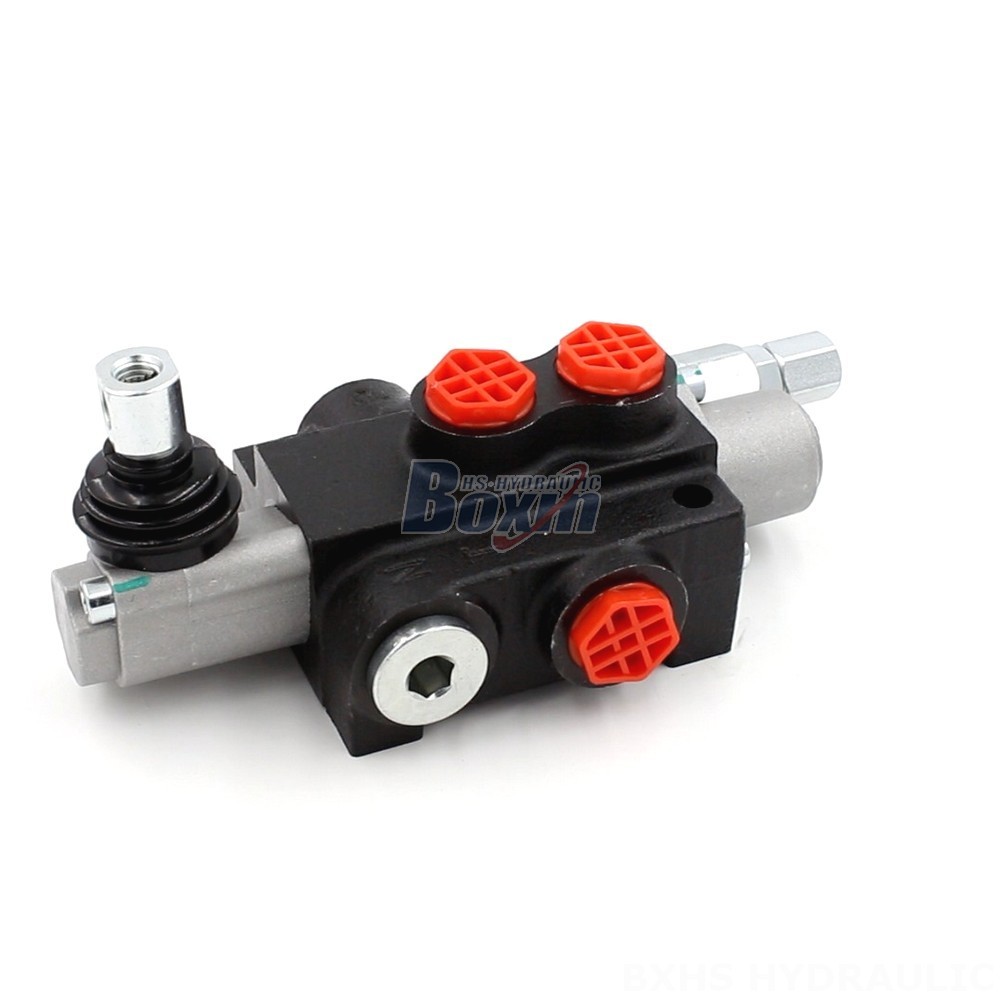

The P40-G38 6 Port Hydraulic Valve is a high-performance, manual, monoblock valve designed for various applications in material handling, construction, agriculture, and industrial vehicles. This valve features a rated flow of 40 L/min and a maximum pressure of 250 bar.

Serie P40 Valvola direzionale monoblocco Parametri
Metodo di Controllo Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Solenoide e joystick, Manuale e joystick, A solenoide e a cavo
Spoo 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole
Intervallo di temperatura ambiente -40°C to +80°C (-40°F to +176°F)
Tipo di struttura Valvola monoblocco
Sezione Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7
Intervallo di viscosità operativa 15 - 75 mm²/s (15 cSt to 75 cSt)
Portata nominale 40 L/min (10.5 US gpm)
Pressione massima 250 bar (3600 psi)
Attacco di ingresso G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Attacco di uscita G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Dimensione attacco G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G38 6 Port Hydraulic Valve is a reliable and efficient solution for controlling hydraulic systems in a wide range of applications. This manual, monoblock valve provides superior performance with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). Its robust design ensures durability and long-lasting operation in demanding environments. The valve is suitable for operating viscosities between 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). Its compact and versatile design makes it ideal for use in various machines, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. This advanced hydraulic valve offers reliable control and precision, enhancing the overall performance of your equipment.
