Our P40-G12-G38-OT-QTW 2-Spool Hydraulic Directional Valve is a high-performance valve designed for various industrial applications, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve offers precise control and durability. The manual and joystick control options provide versatility and ease of use.
| Serie P40 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Solenoide e joystick, Manuale e joystick, A solenoide e a cavo |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 40 L/min (10.5 US gpm) |
| Pressione massima | 250 bar (3600 psi) |
| Attacco di ingresso | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Attacco di uscita | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimensione attacco | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

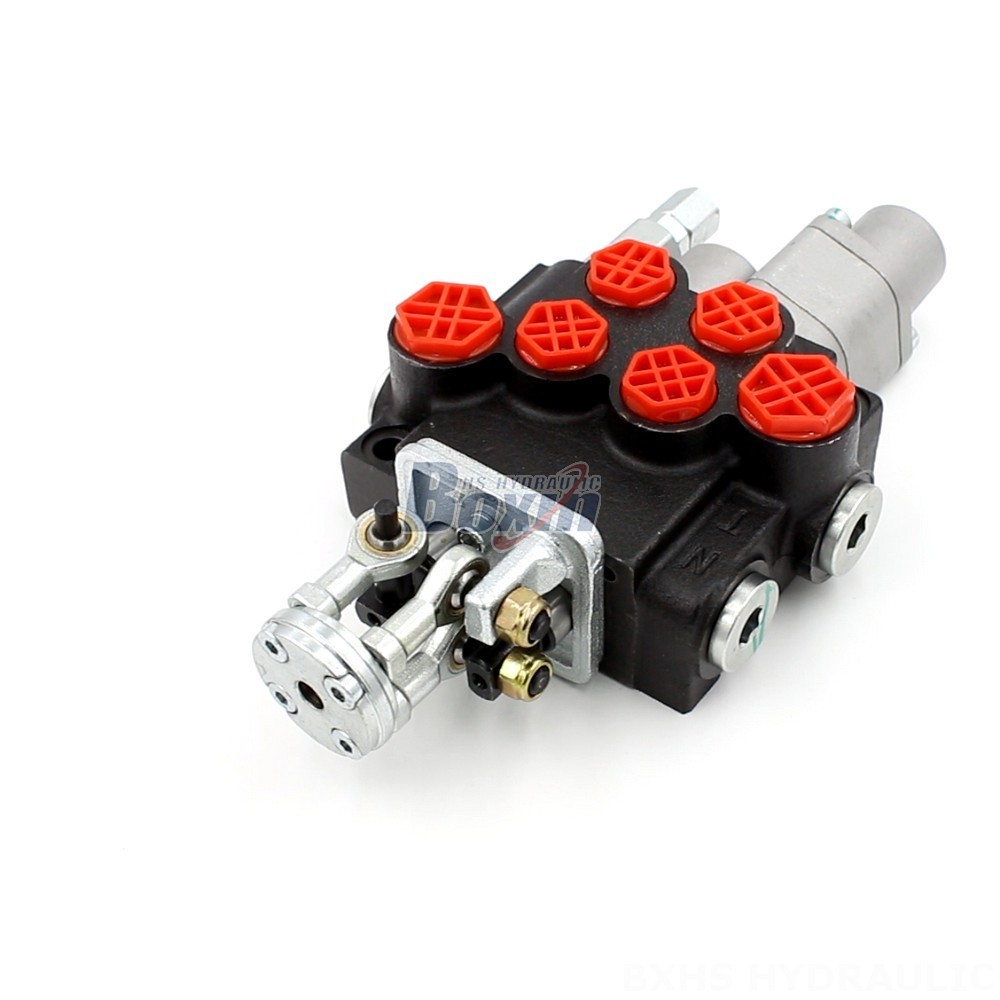

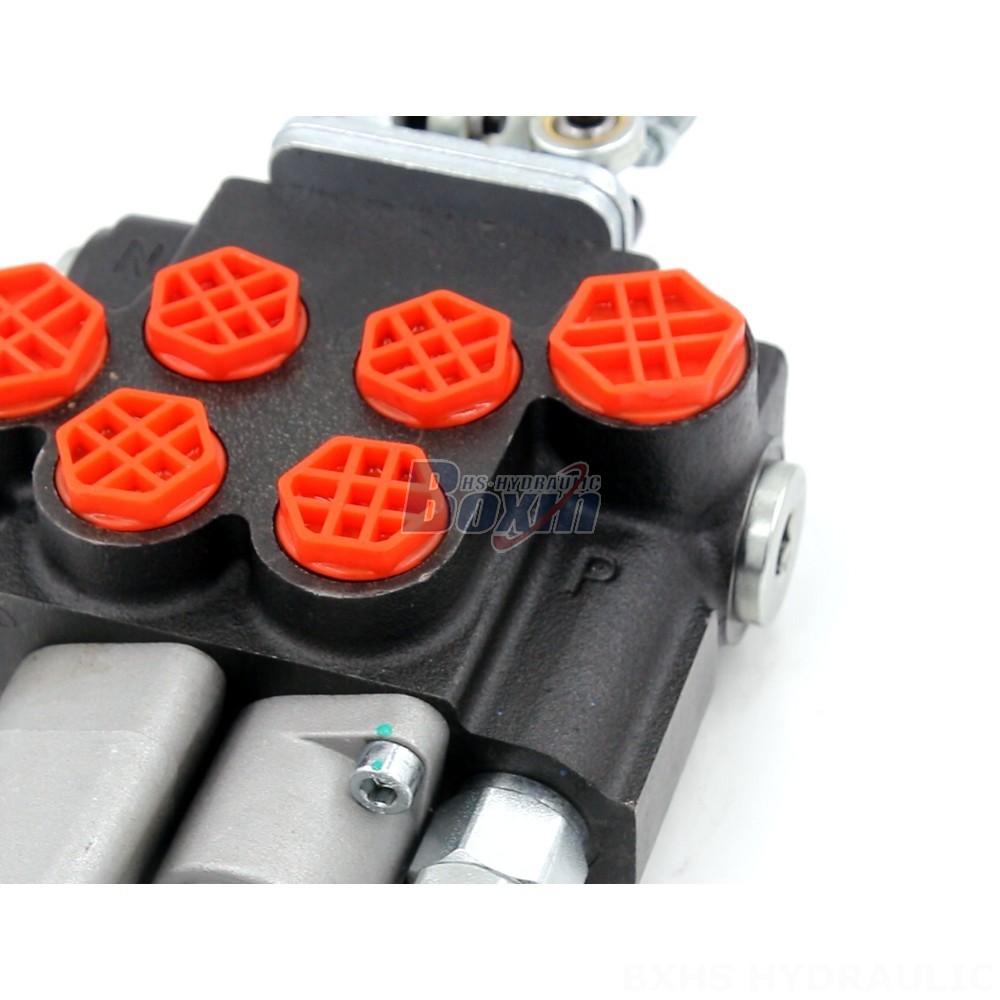

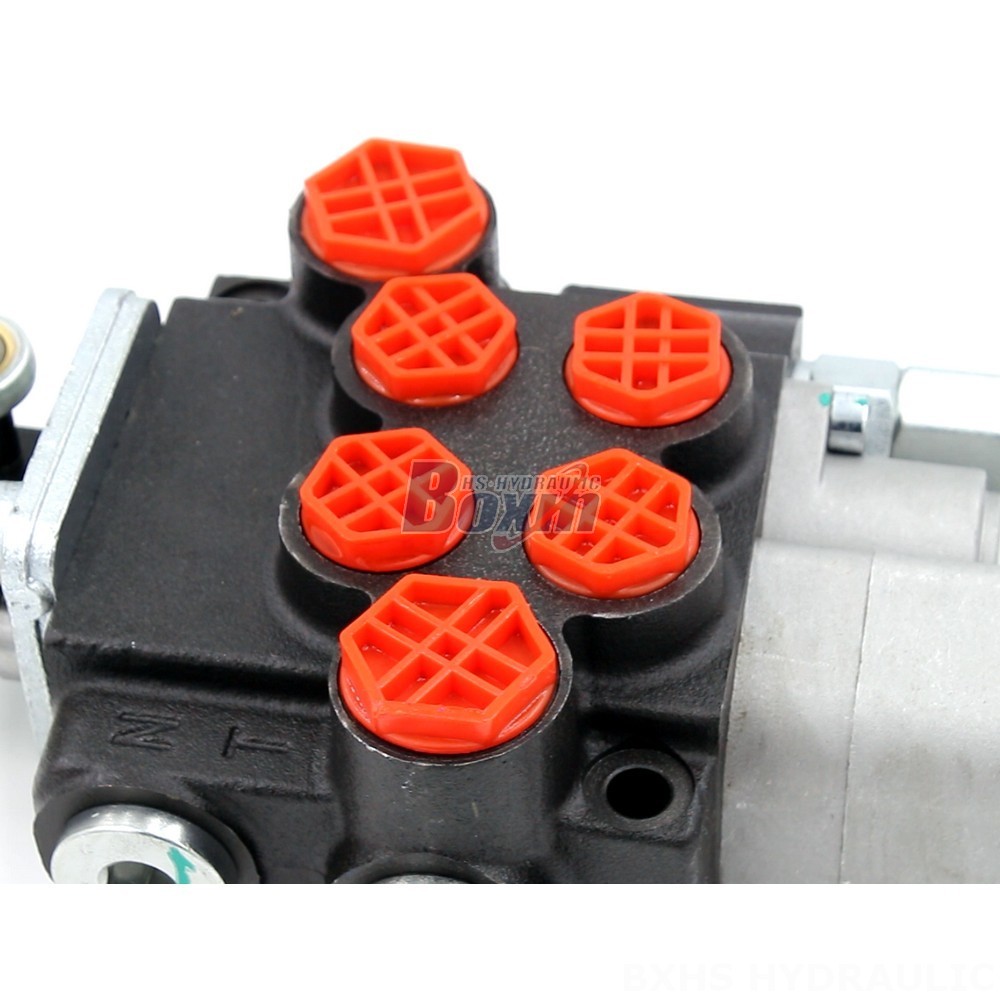

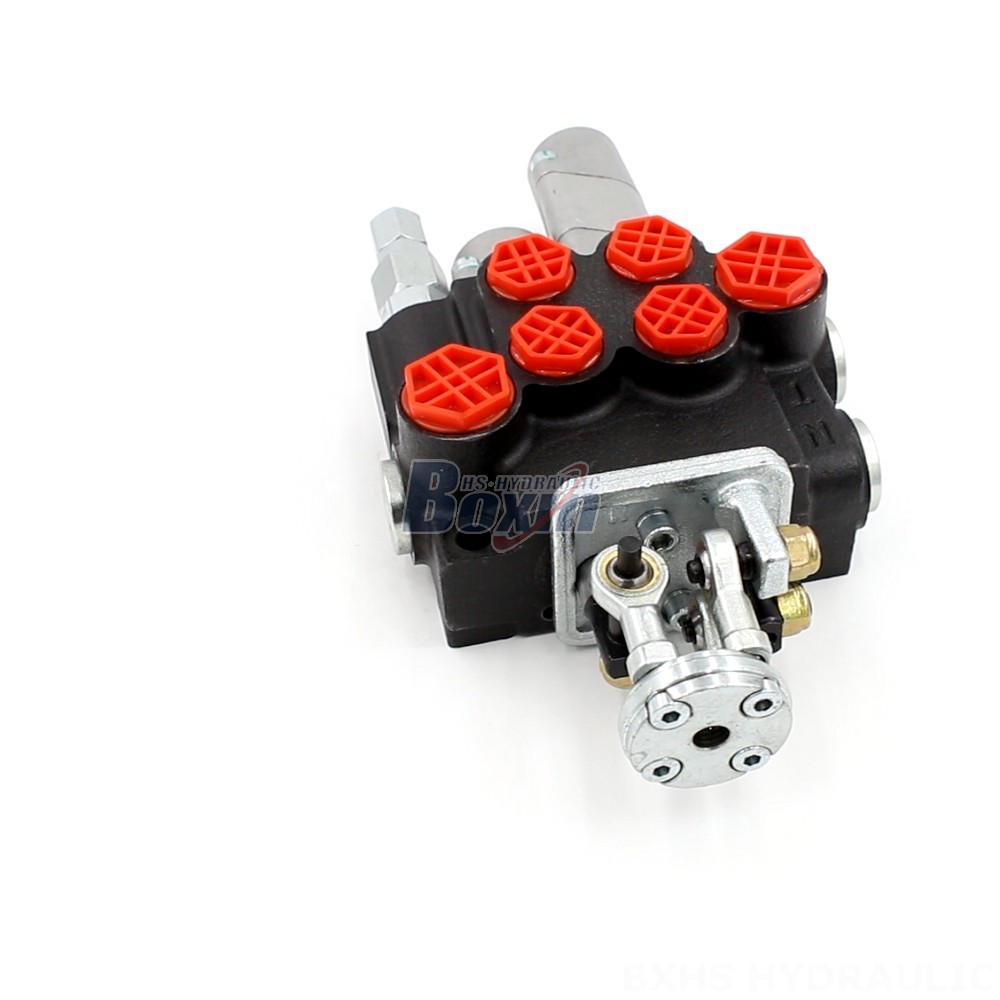

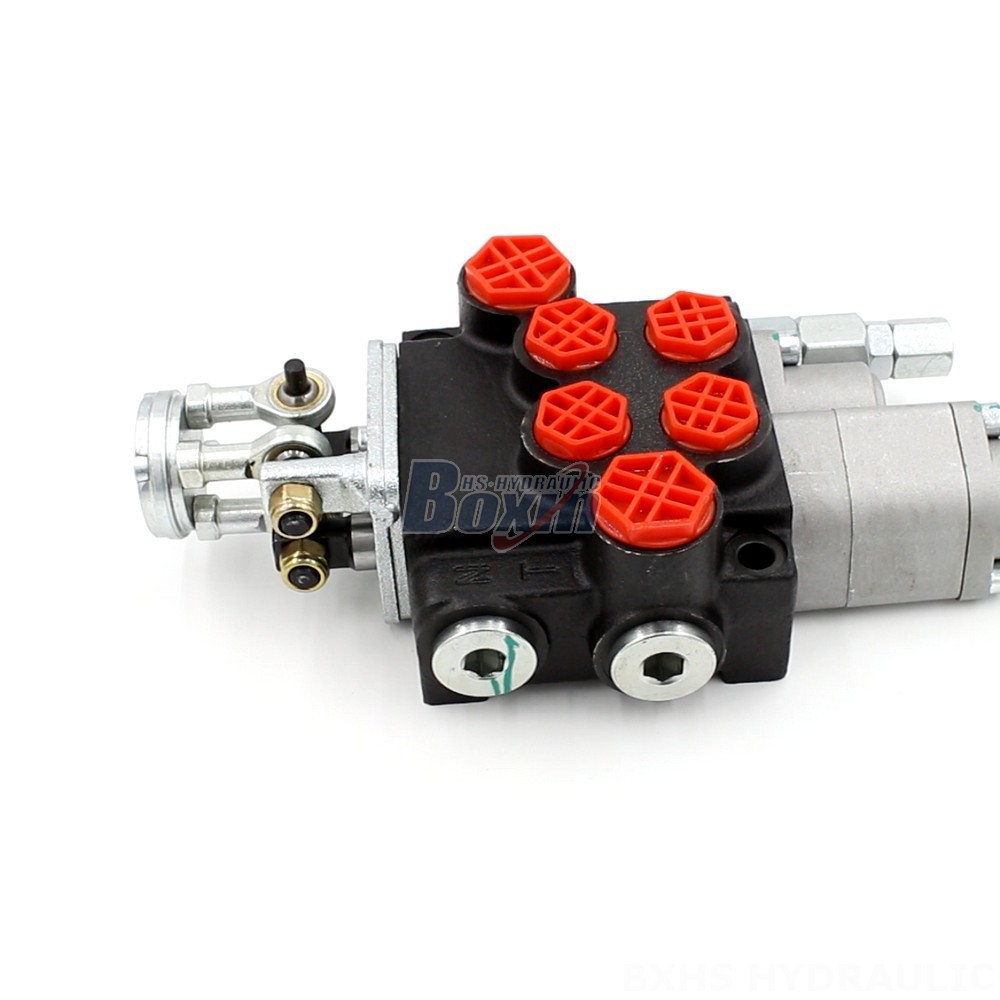

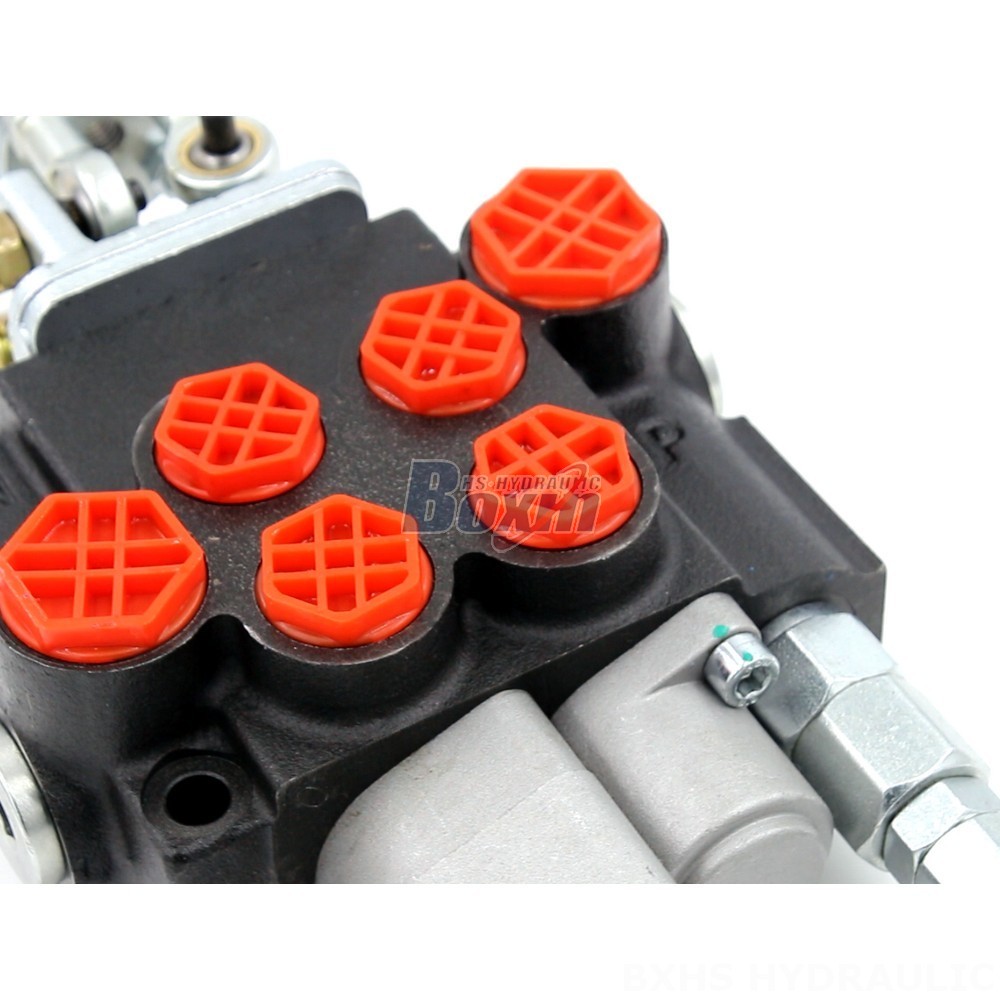

**P40-G12-G38-OT-QTW 2-Spool Hydraulic Directional Valve**
**Product Overview:**
- 2-spool hydraulic directional valve with manual and joystick control options
- Monoblock valve construction for compact and reliable design
- Rated flow: 40 L/min (10.5 US gpm)
- Maximum pressure: 250 bar (3600 psi)
- Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
**Key Features:**
- Precise flow control and smooth operation
- Durable construction for demanding applications
- Versatile control options for ease of use
- Suitable for a wide range of hydraulic systems
**Applications:**
- Material handling equipment (forklifts, telehandlers, stackers)
- Construction machinery (excavators, graders, skid steer loaders)
- Agricultural machinery (tractors, harvesters, sprayers)
- Industrial vehicles (aerial platforms, compact wheel loaders)
