Produzione e consegna
Tempi di produzione di 15-30 giorni
L’innovazione guida lo sviluppo e la tecnologia forgia il futuro
1124 Le visualizzazioni cercano questo prodotto

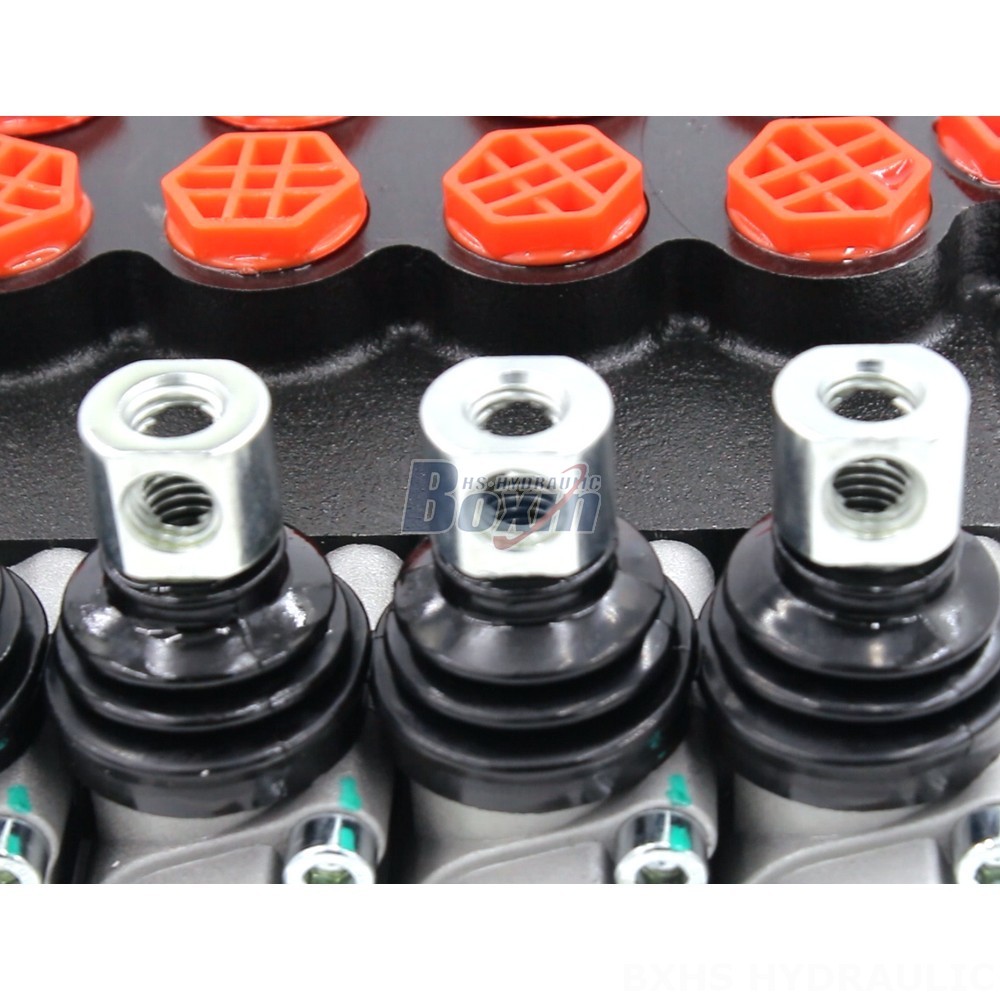

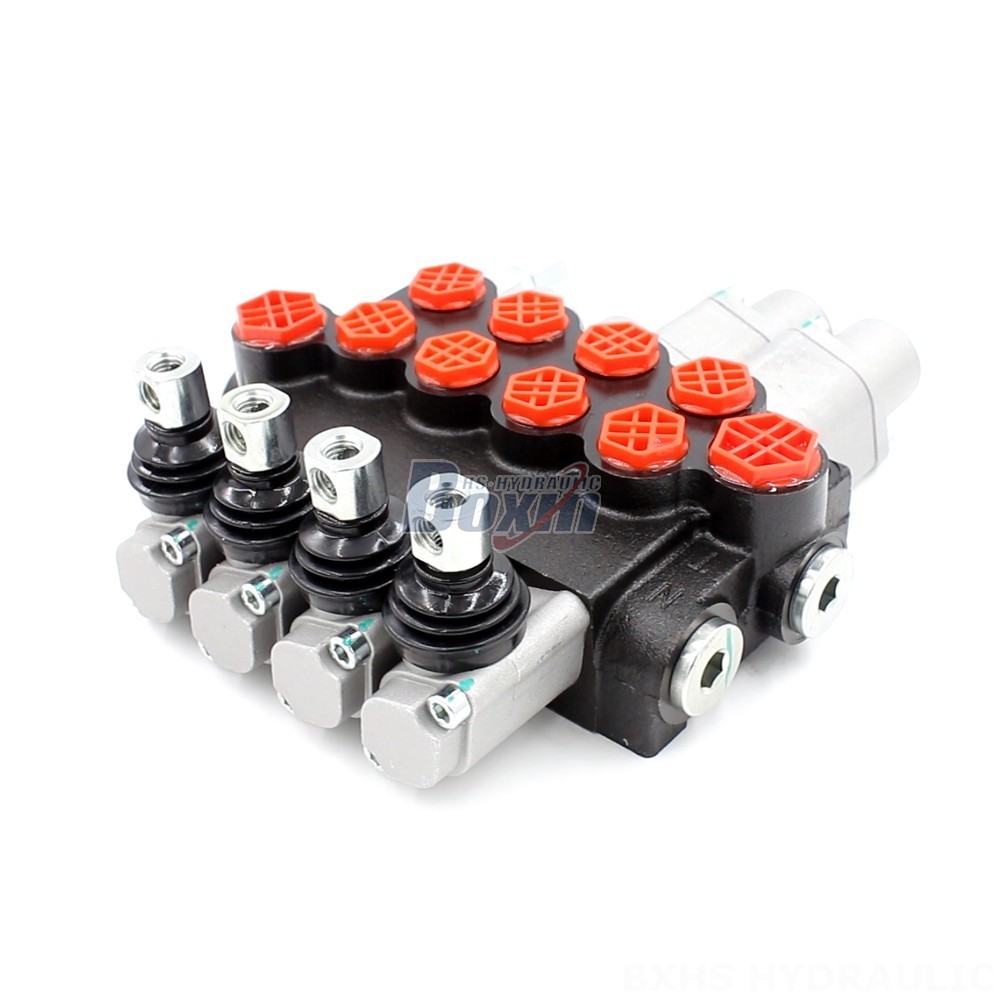

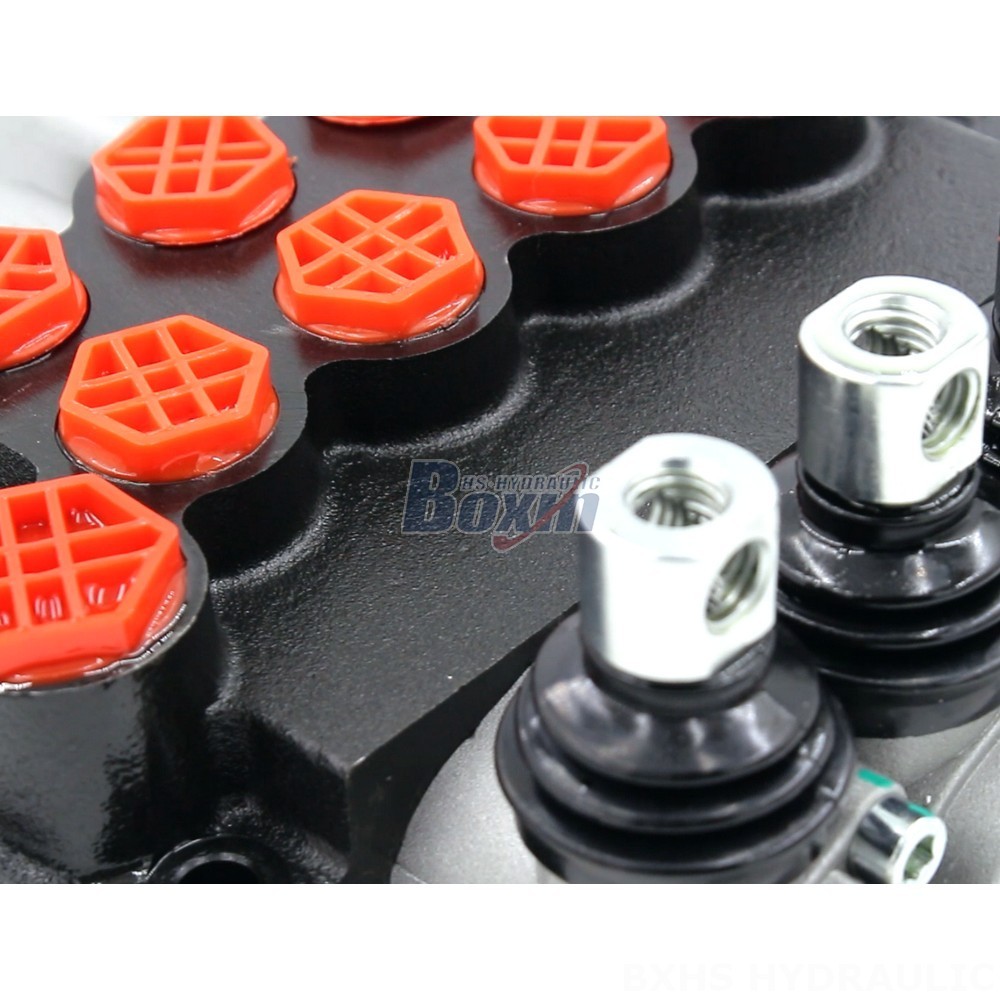

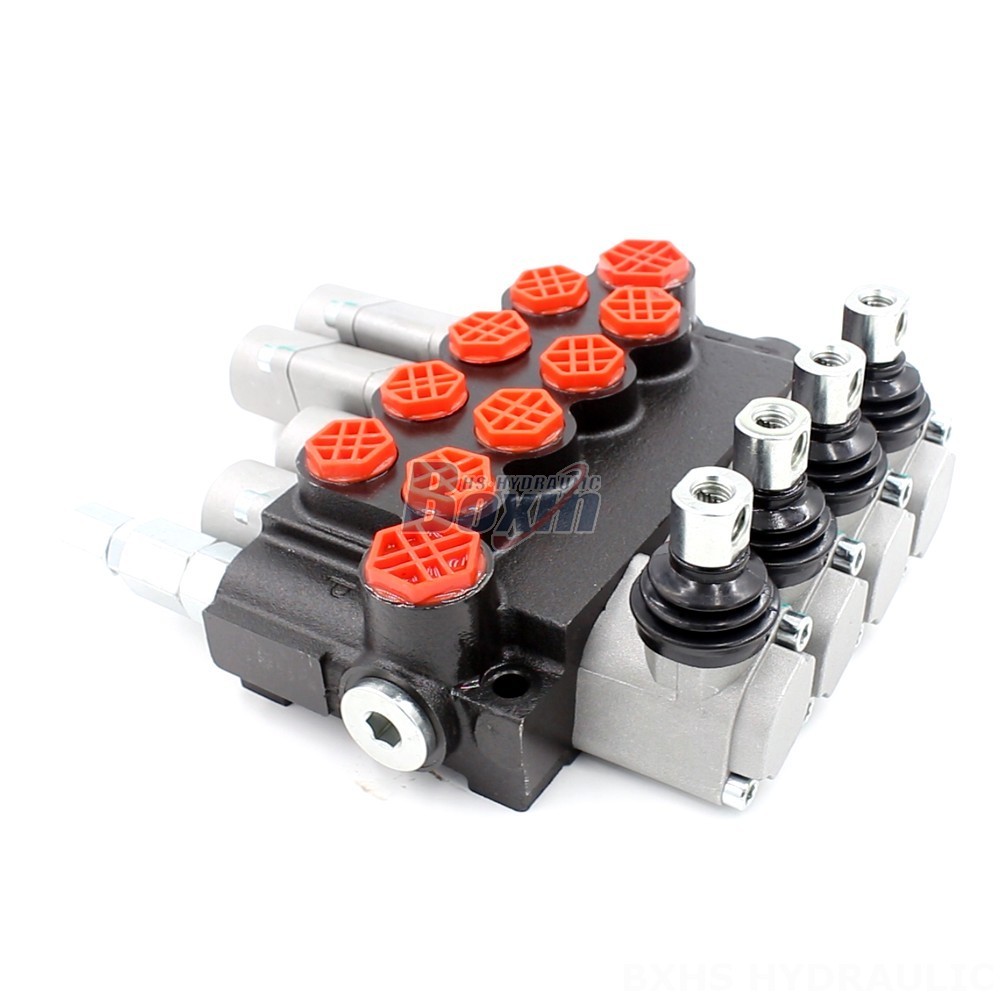

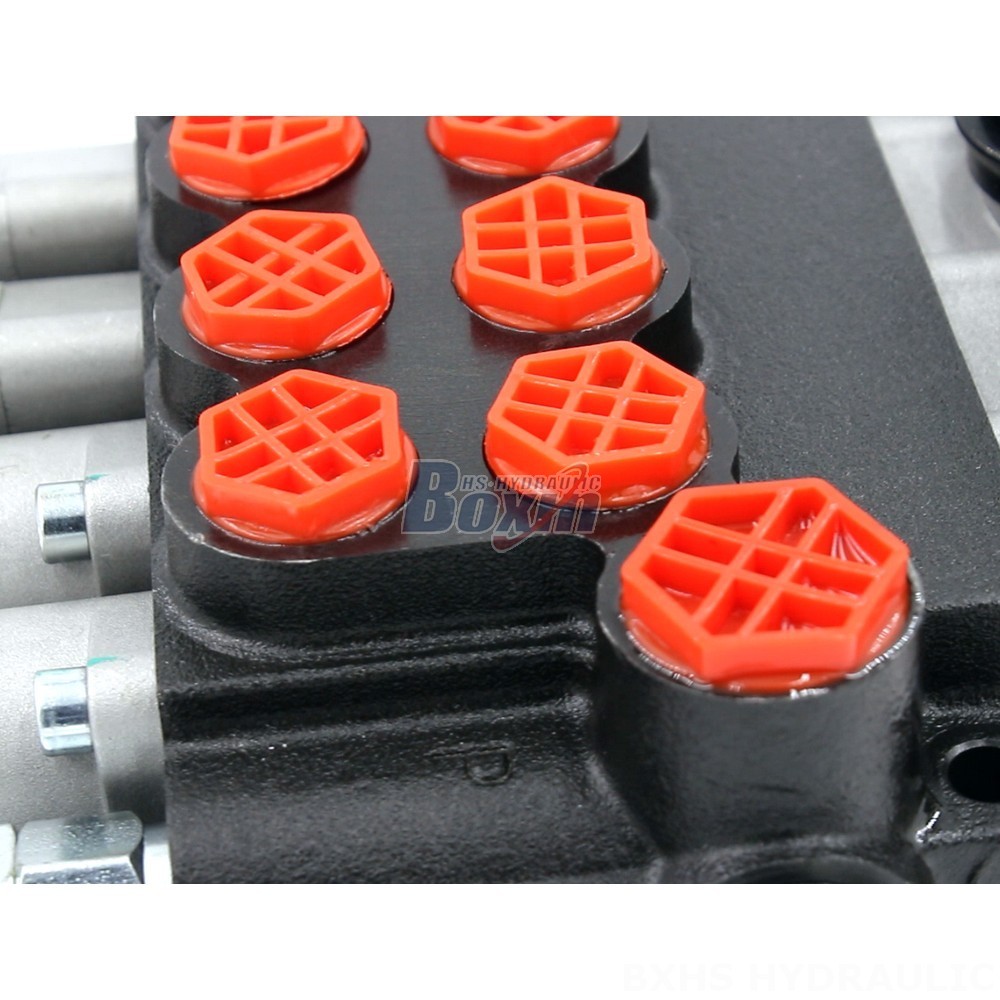

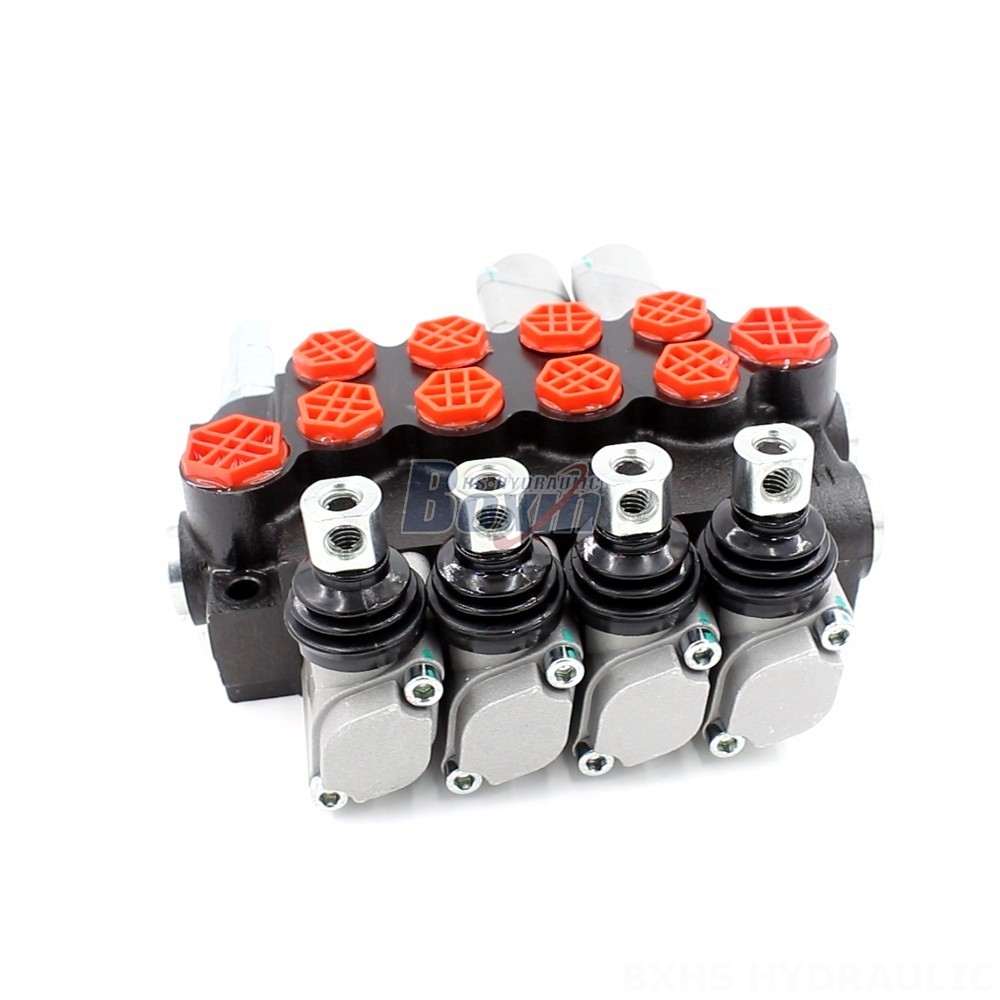

Introducing the P40-G12-G38 Monoblock Directional Valve, a high-performance hydraulic valve designed for precision and durability in demanding hydraulic applications. This 4-section, manually controlled valve boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for a wide range of hydraulic systems.
| Serie P40 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Solenoide e joystick, Manuale e joystick, A solenoide e a cavo |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 40 L/min (10.5 US gpm) |
| Pressione massima | 250 bar (3600 psi) |
| Attacco di ingresso | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Attacco di uscita | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimensione attacco | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40-G12-G38 Monoblock Directional Valve: Precision and Durability in Hydraulics**
**Key Features:**
- **Manual Control** for precise and reliable operation
- **4 Section** design for versatile hydraulic system configurations
- **Monoblock Valve** construction for compact and robust performance
- **Rated Flow of 40 L/min** for efficient hydraulic fluid flow
- **Maximum Pressure of 250 bar** for demanding hydraulic applications
- **Operating Viscosity Range of 15 - 75 mm²/s** for compatibility with various hydraulic fluids
- **Ambient Temperature Range of -40°C to +80°C** for reliable operation in harsh environments
- **4 Spool** design for precise flow control
- **P40 Series** compatibility for seamless integration with other hydraulic components
**Application Areas:**
- Material Handling (e.g., forklifts, telehandlers)
- Construction and Earth Moving (e.g., excavators, motor graders)
- Agriculture (e.g., tractors, harvesters)
- Industrial Vehicles (e.g., skid steer loaders, compact wheel loaders)
**Applicable Models:**
- Telehandlers
- Forklifts
- All Terrain Cranes
- Stackers
- Aerial Platforms
- Motor Graders
- Midi-Excavators
- Mini-Excavators
- Skid Steer Loaders
- Compact Wheel Loaders
The P40-G12-G38 Monoblock Directional Valve is the ideal choice for hydraulic systems that demand precision, durability, and reliable performance. Its advanced design and robust construction ensure long-lasting operation even in the most challenging hydraulic applications.
