Produzione e consegna
Tempi di produzione di 15-30 giorni
L’innovazione guida lo sviluppo e la tecnologia forgia il futuro
840 Le visualizzazioni cercano questo prodotto

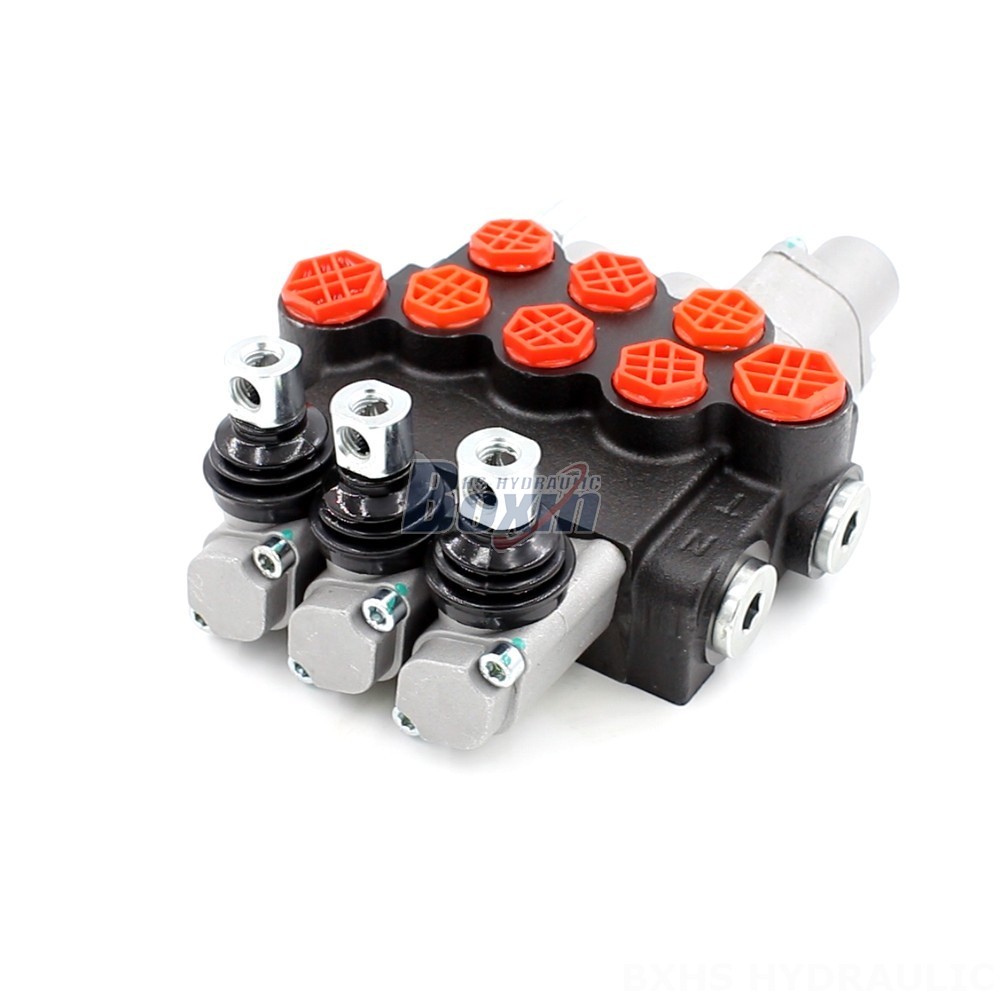

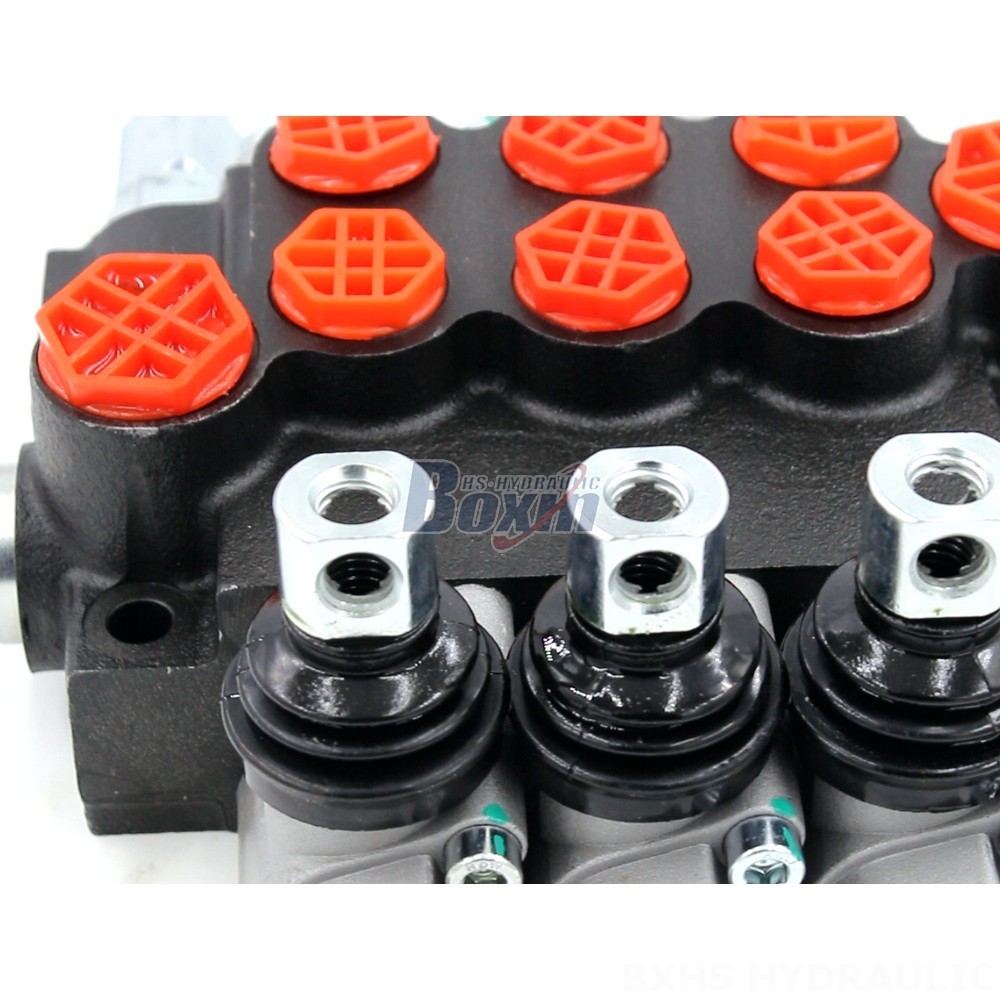

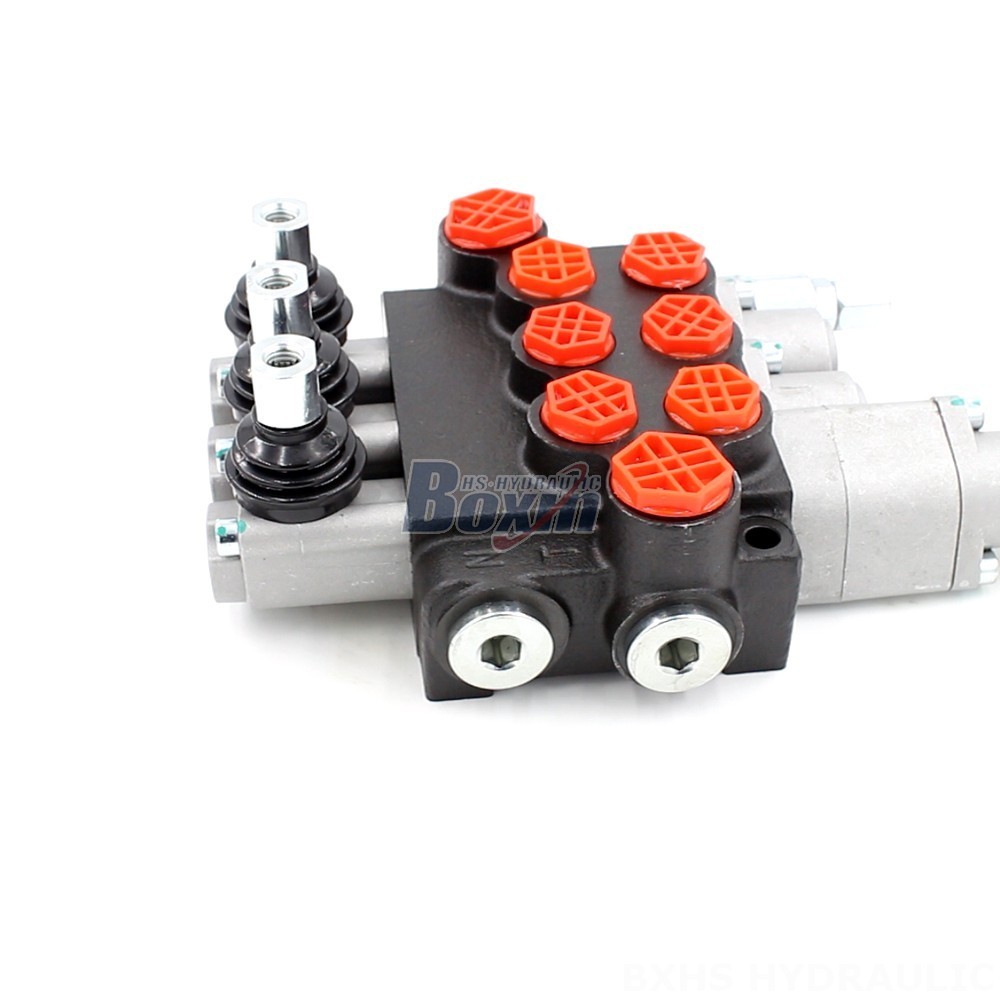

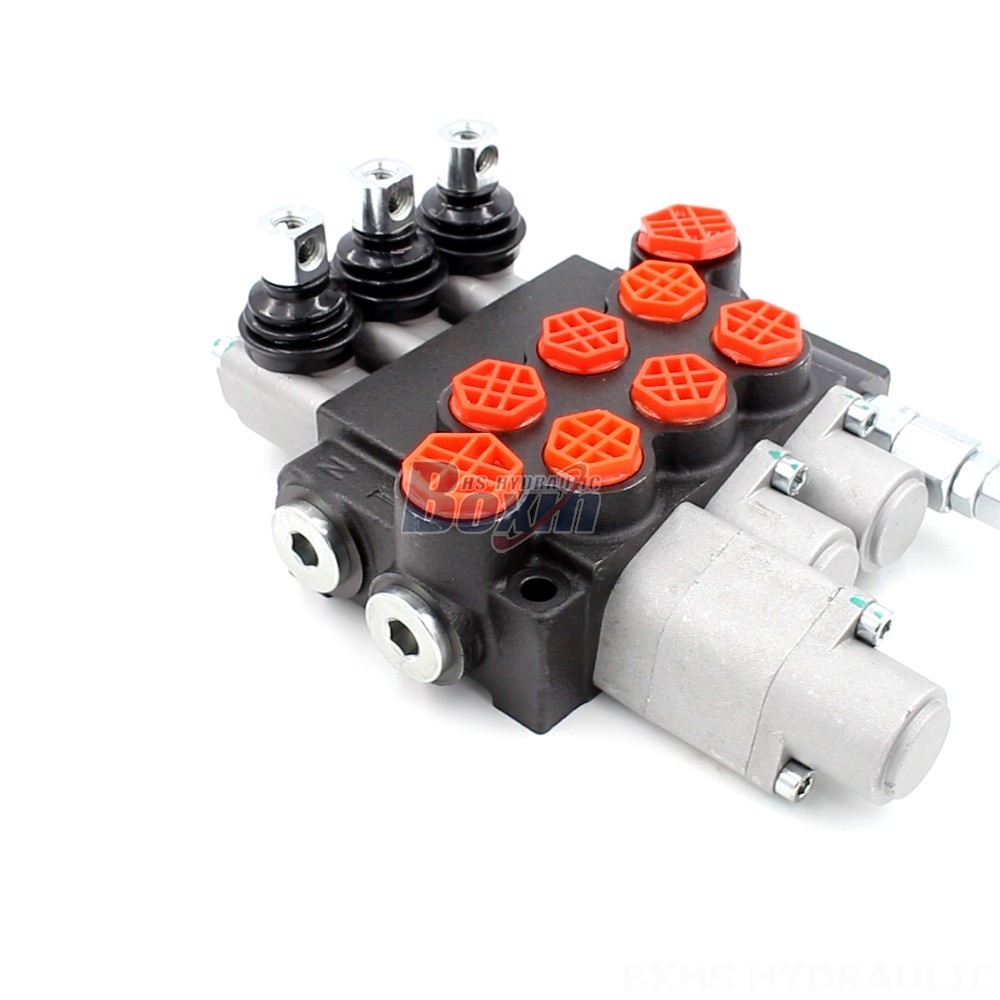

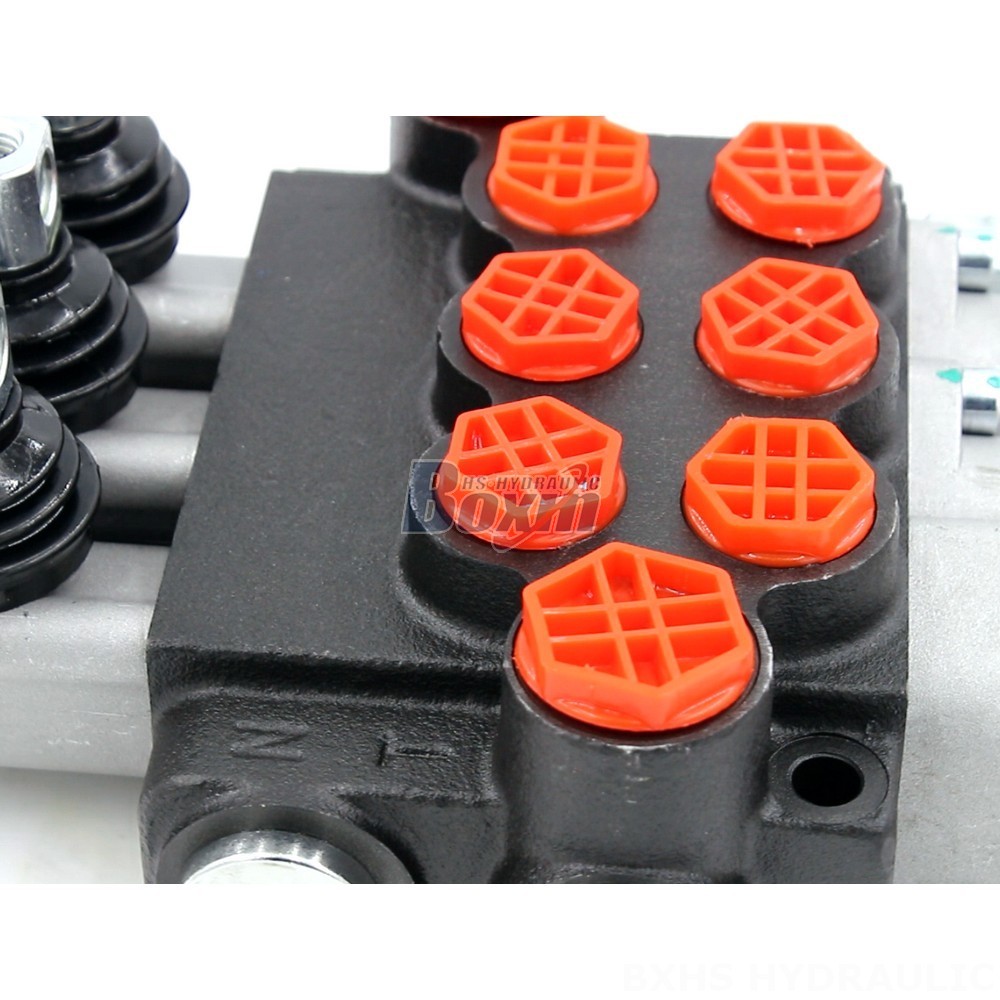

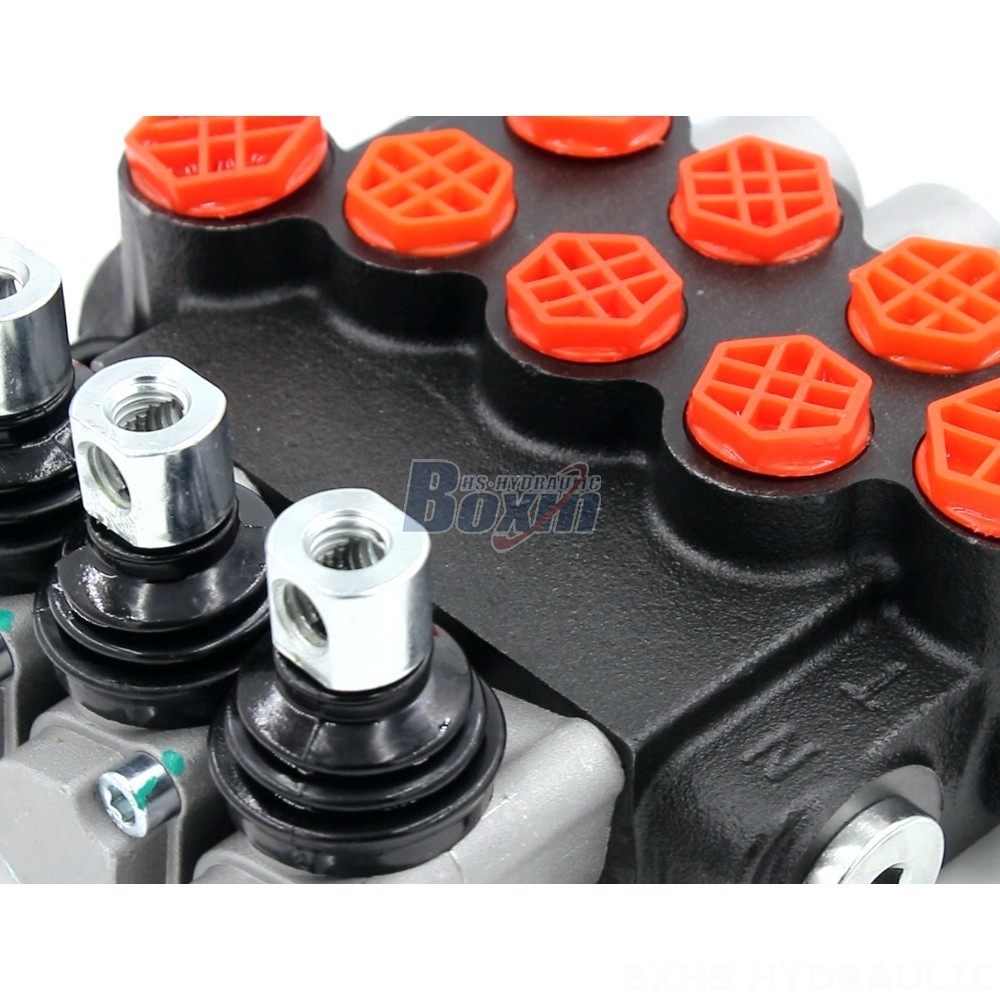

The P40-G12-G38-2OT-QTW Monoblock Directional Valve is a high-performance hydraulic valve designed for use in demanding applications. It features manual control, a 3 section monoblock structure, a rated flow of 40 L/min, a max pressure of 250 bar, and an operating viscosity range of 15 - 75 mm²/s. The valve also has an ambient temperature range of -40°C to +80°C and is constructed with 3 spool. It is ideal for use in material handling, construction, agriculture, and industrial vehicles.
| Serie P40 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Solenoide e joystick, Manuale e joystick, A solenoide e a cavo |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 40 L/min (10.5 US gpm) |
| Pressione massima | 250 bar (3600 psi) |
| Attacco di ingresso | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Attacco di uscita | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimensione attacco | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40-G12-G38-2OT-QTW Monoblock Directional Valve**
**Control Method:** Manual
**Section:** 3 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 3 Spool
**Series:** P40 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER,WHEEL LOADER,BACKHOE LOADER,DUMPER,TRACTOR AND FRONT-END LOADER,TELEHANDLER,HARVESTER,SEEDING MACHINE,BACKHOE
The P40-G12-G38-2OT-QTW Monoblock Directional Valve is a high-quality hydraulic valve that is designed to meet the demands of the most challenging applications. It is constructed with durable materials and components, and it is backed by a comprehensive warranty. If you are looking for a reliable and high-performance hydraulic valve, the P40-G12-G38-2OT-QTW Monoblock Directional Valve is the perfect choice.
