Produzione e consegna
Tempi di produzione di 15-30 giorni

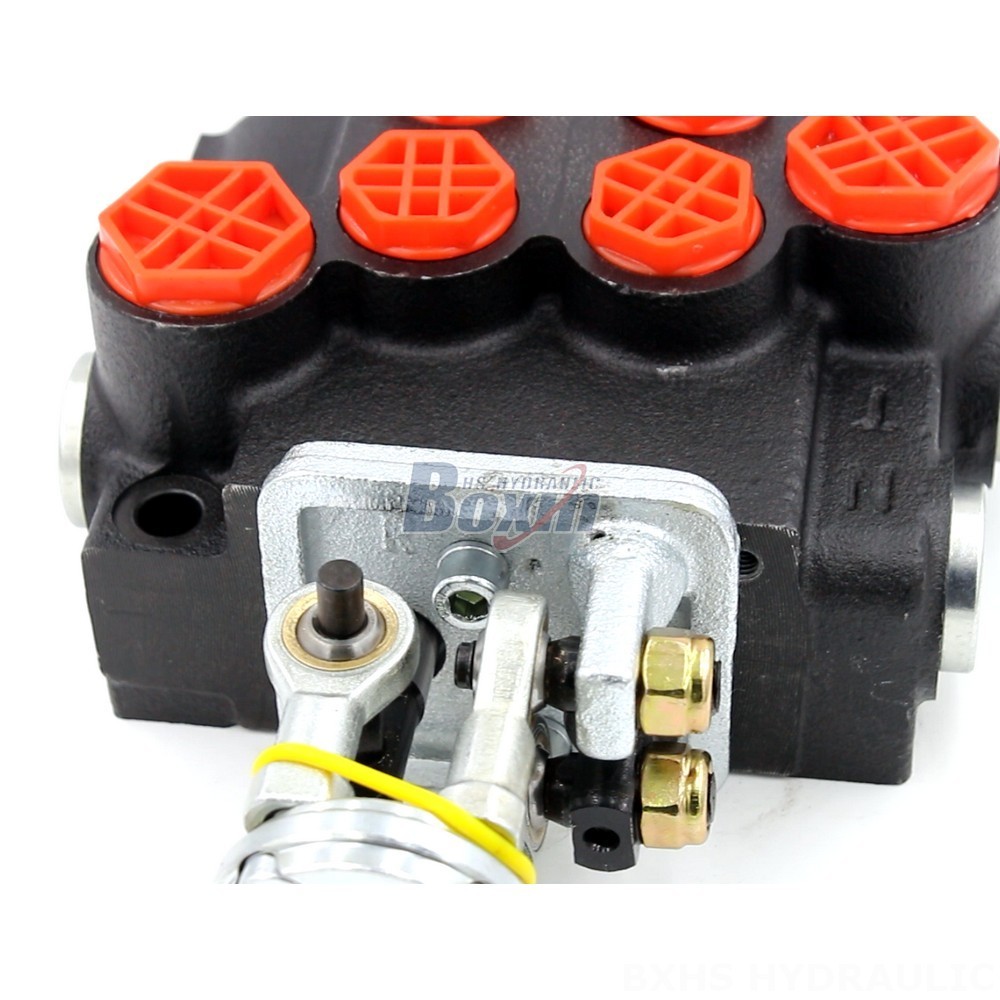

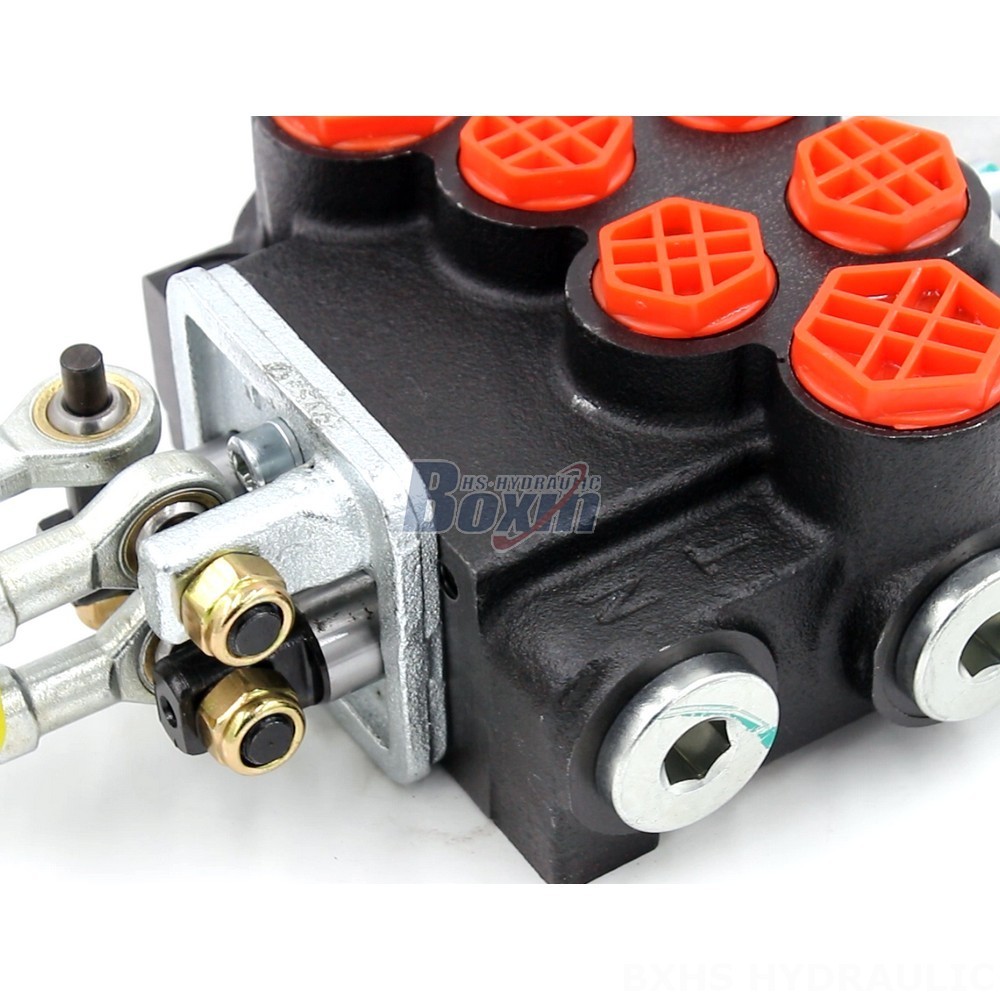

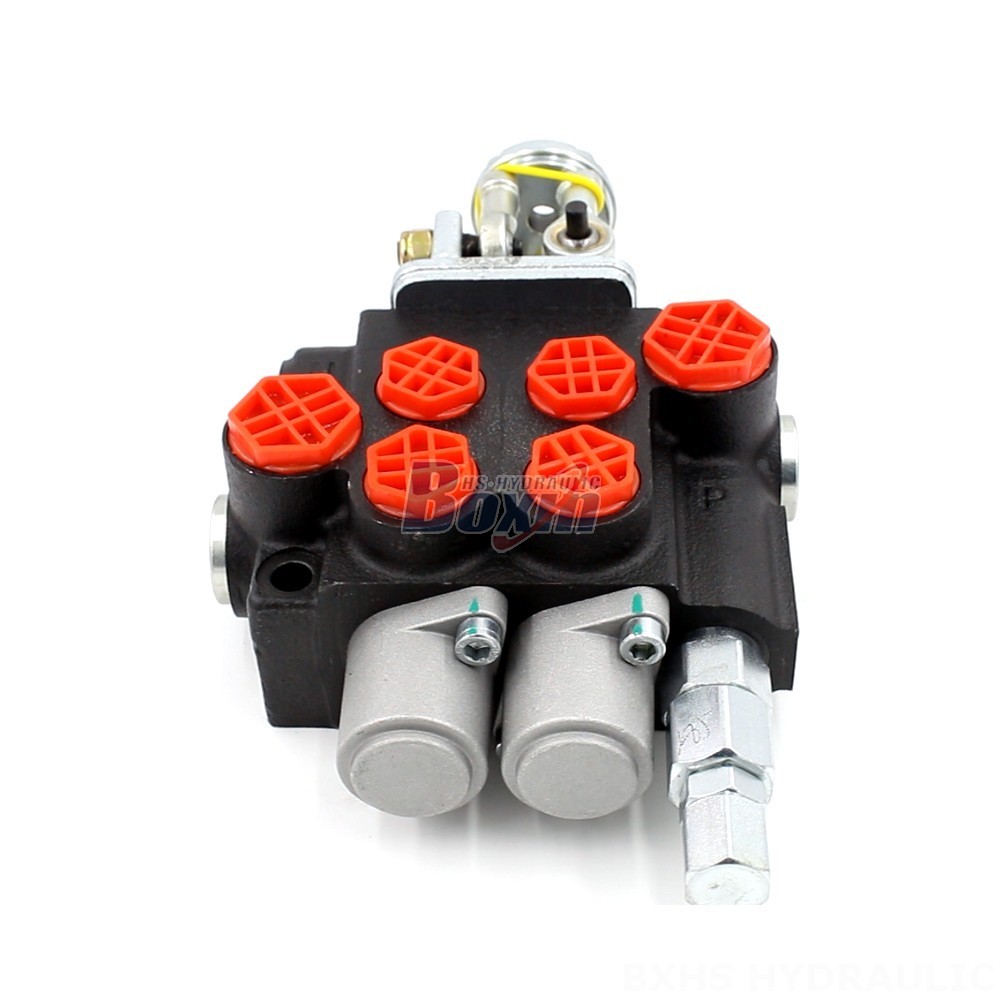

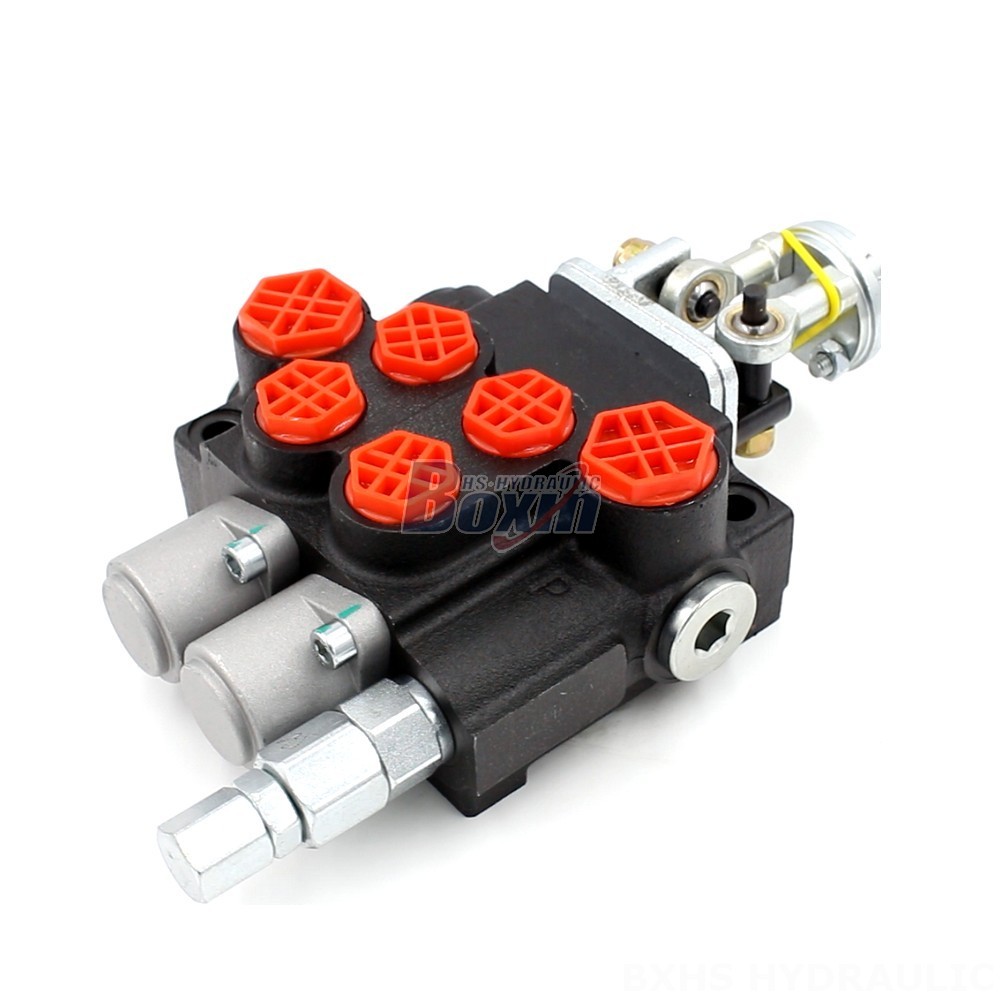

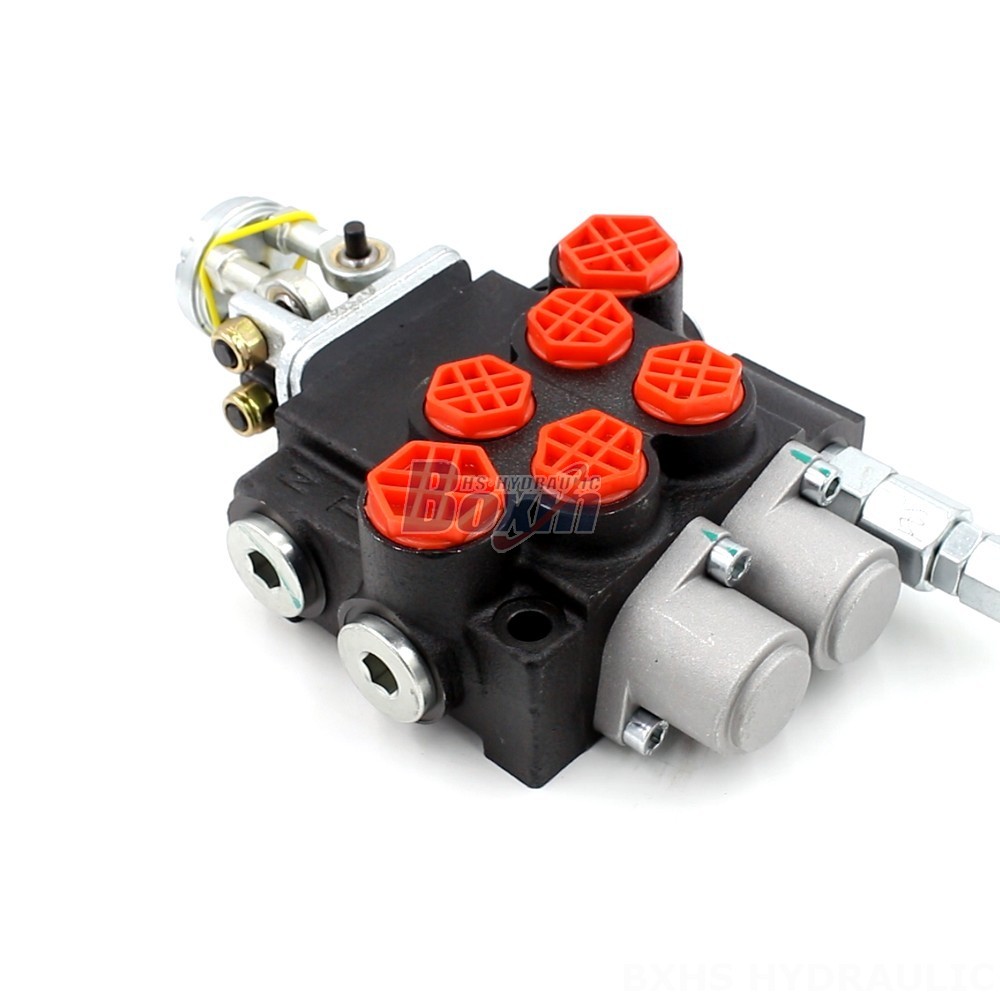

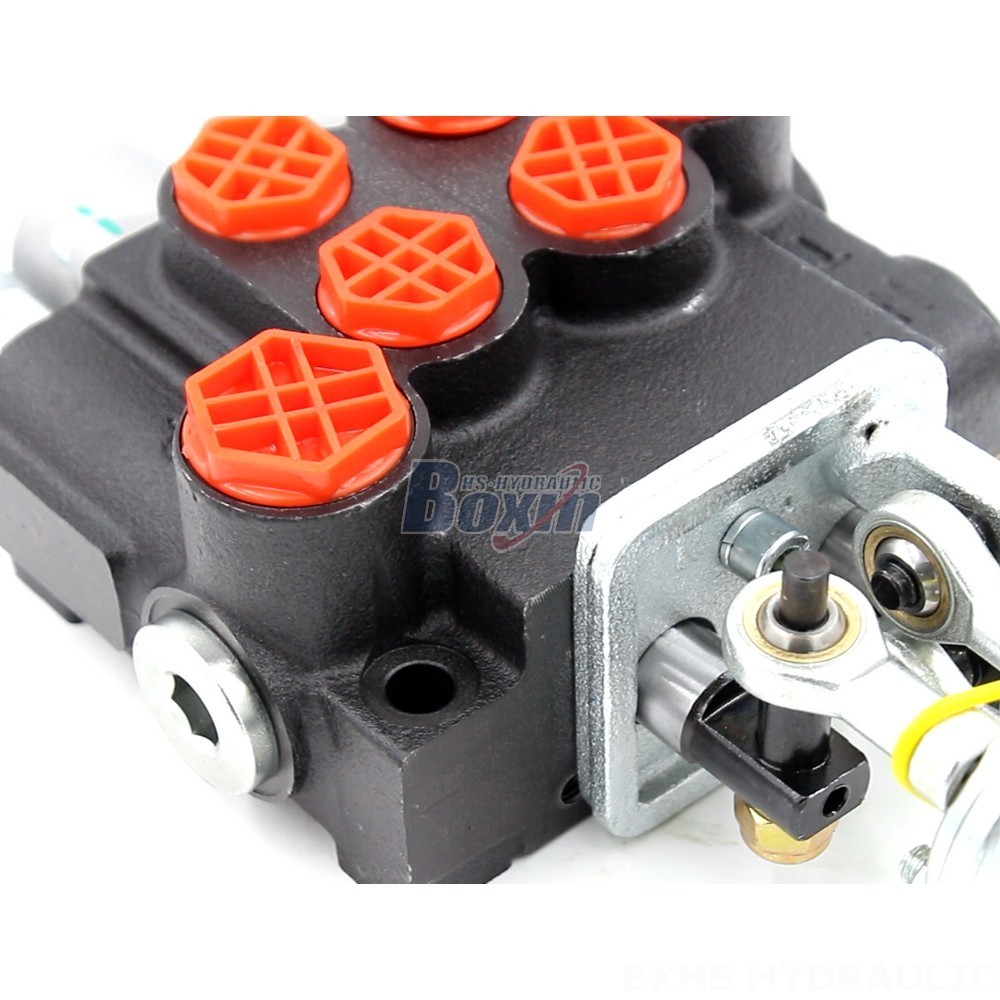

The P40-2OT is a 4 Spool Hydraulic Valve Monoblock in the P40 Series, designed for a variety of applications in construction, material handling, agriculture and industrial vehicles. This valve features 2 sections, a rated flow of 40 L/min and a maximum pressure of 250 bar. It's available with manual or joystick control and is customizable to meet your specific needs.
| Serie P40 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Solenoide e joystick, Manuale e joystick, A solenoide e a cavo |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 40 L/min (10.5 US gpm) |
| Pressione massima | 250 bar (3600 psi) |
| Attacco di ingresso | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Attacco di uscita | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimensione attacco | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-2OT is a high-performance 4 Spool Hydraulic Valve Monoblock designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. It features a compact and robust design, offering superior reliability and durability. This valve offers a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), making it suitable for a wide range of hydraulic systems. The P40-2OT comes with 2 sections and a choice of manual or joystick control, providing flexibility in operation. The valve features a Monoblock structure, ensuring leak-free performance and long service life. It can handle a wide range of operating viscosities, from 15 to 75 mm²/s, and is designed to withstand temperatures ranging from -40°C to +80°C. This valve is fully customizable, allowing you to specify the spool configuration, control method, and other features to meet your specific requirements. The P40-2OT is suitable for use in various vehicles and equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
