Produzione e consegna
Tempi di produzione di 15-30 giorni
L’innovazione guida lo sviluppo e la tecnologia forgia il futuro
1140 Le visualizzazioni cercano questo prodotto

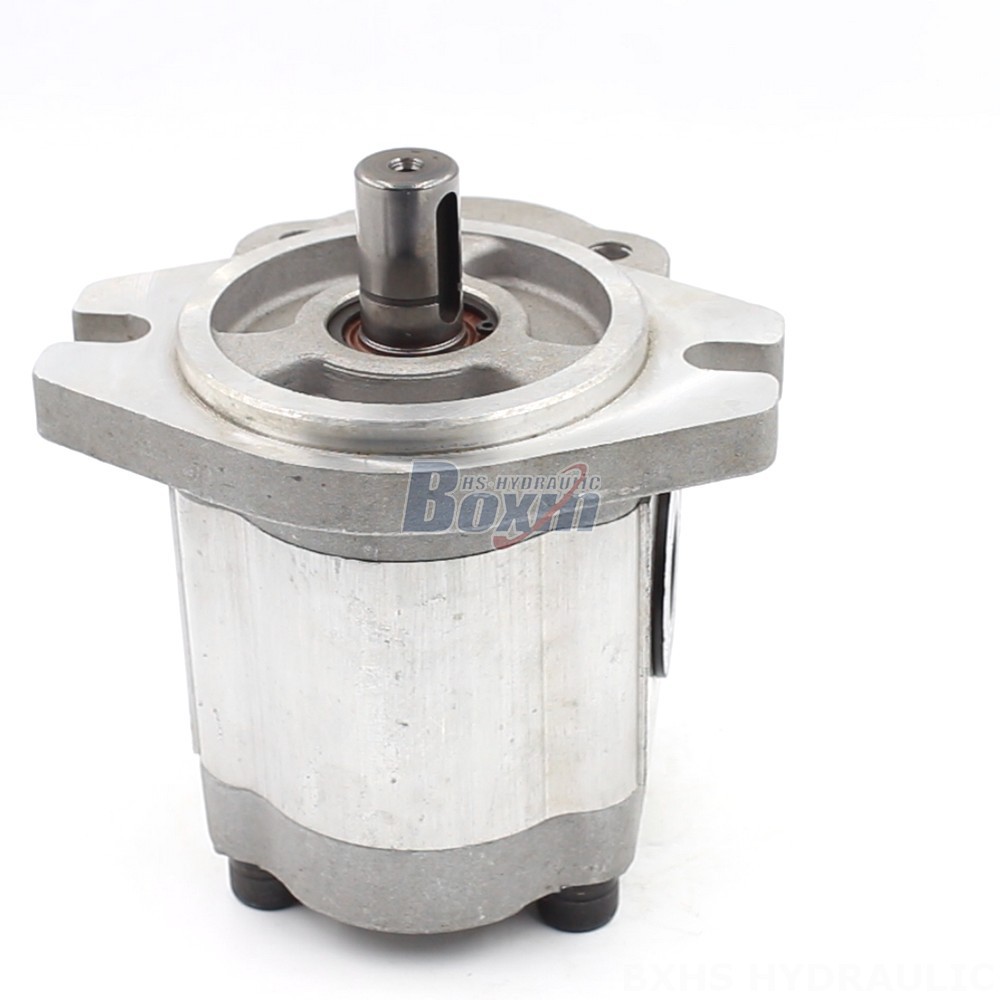

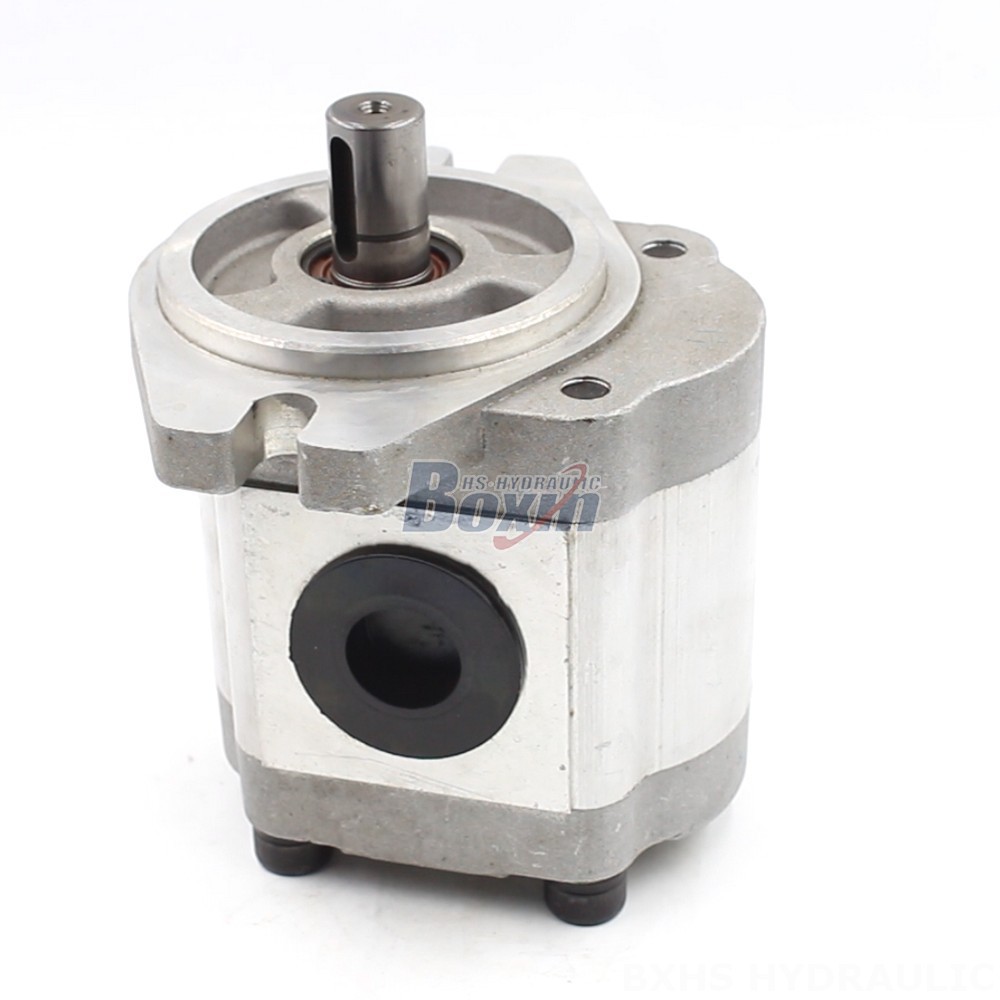

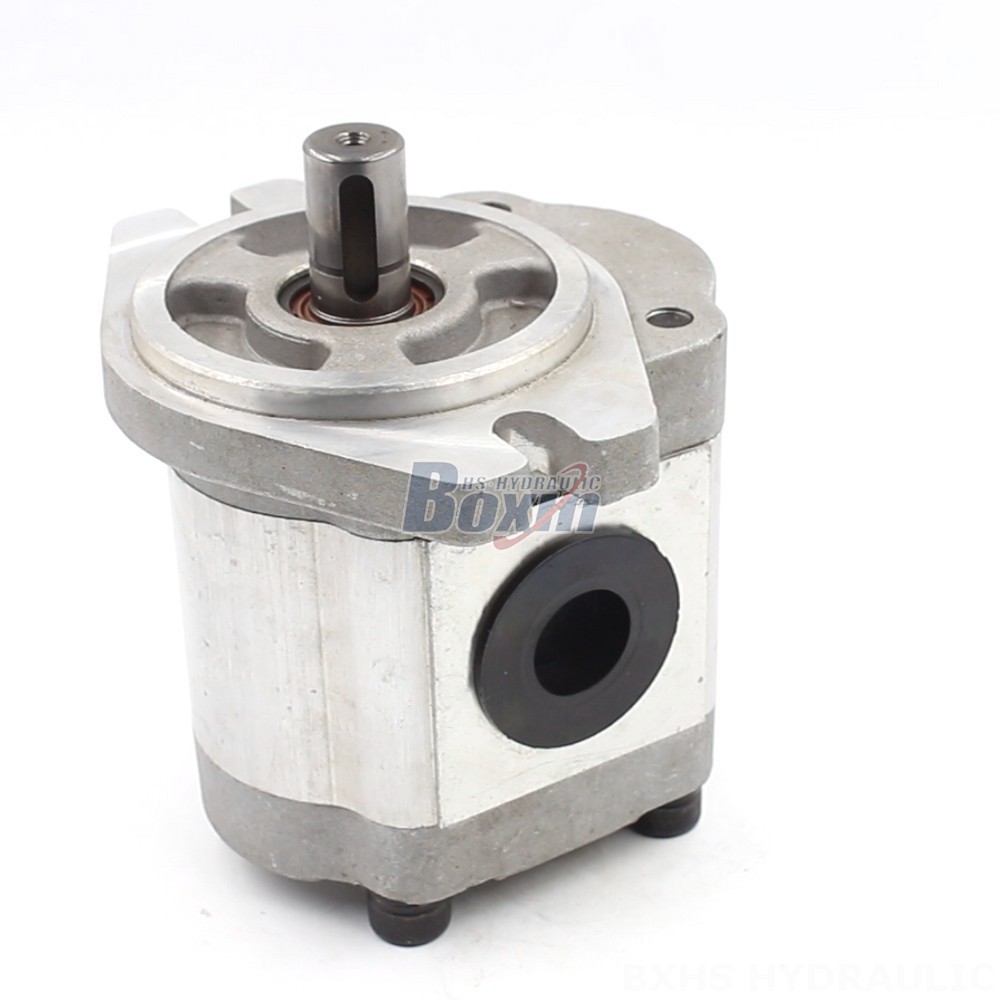

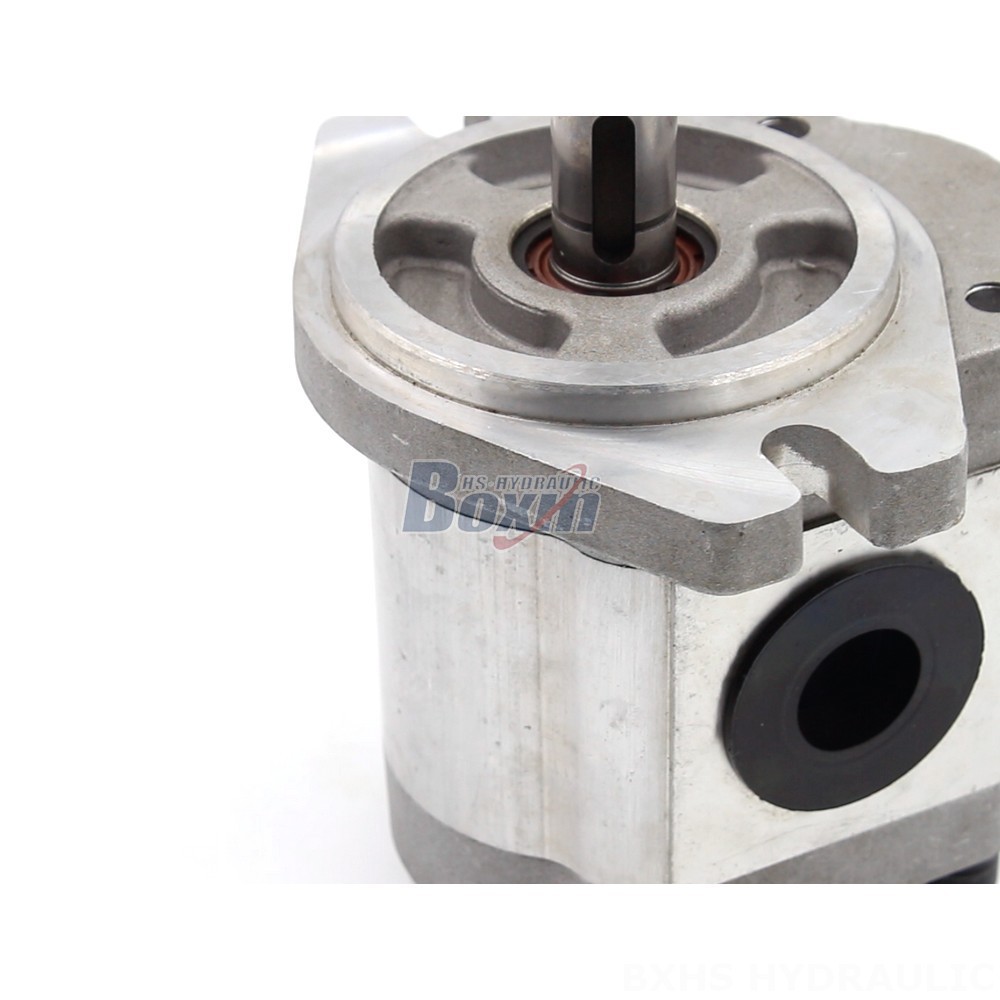

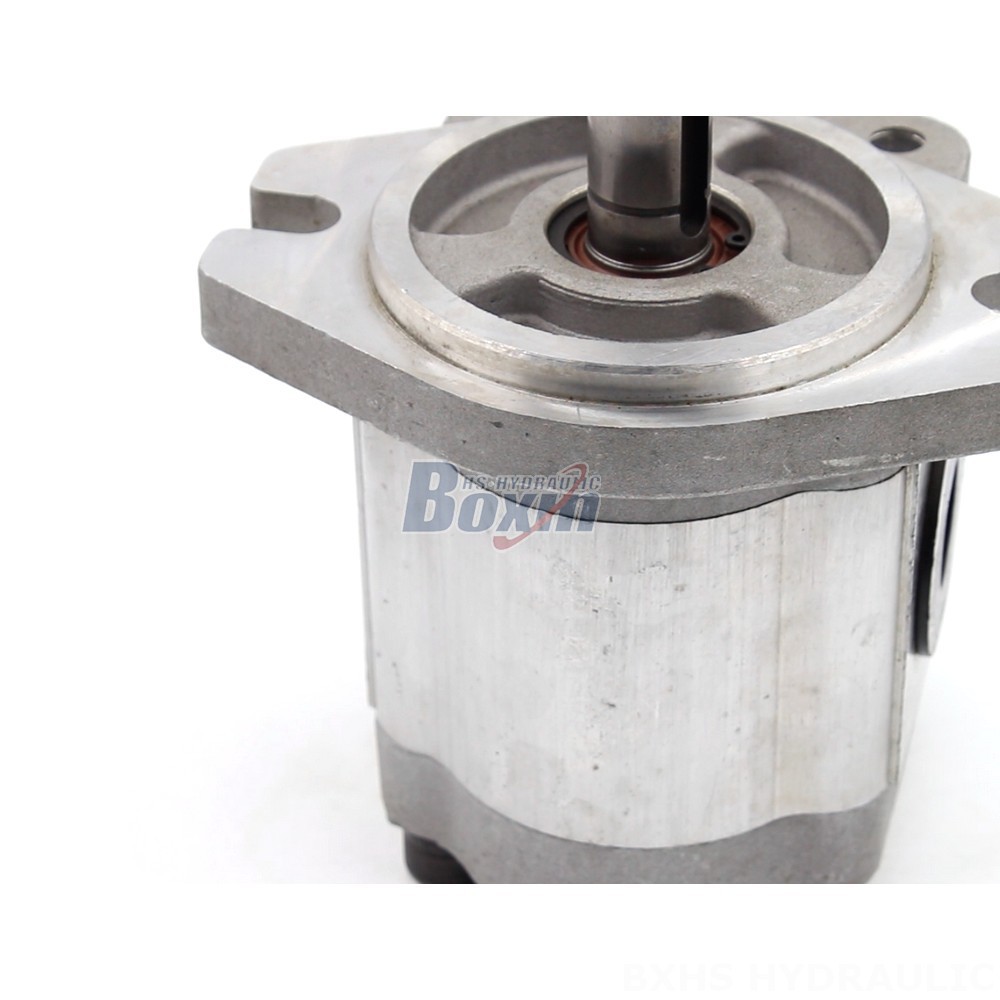

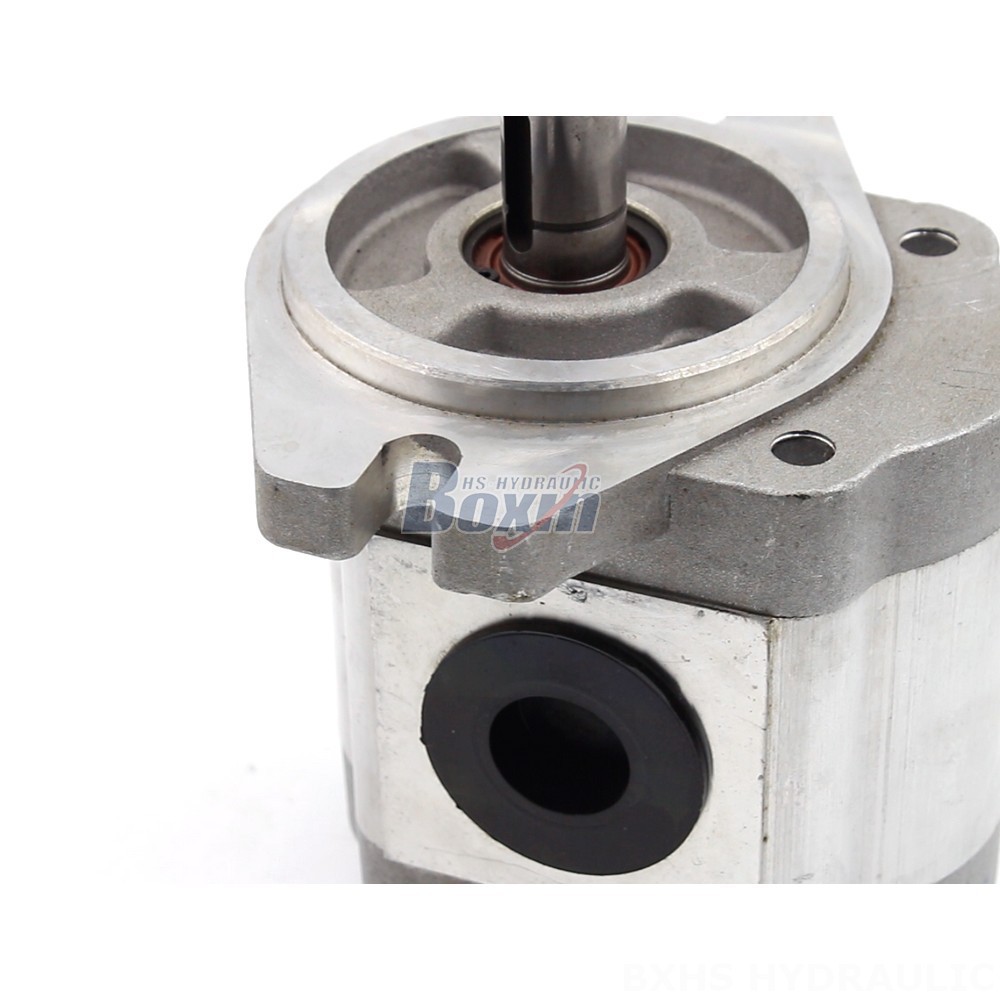

This industrial-grade 14 cc/rev hydraulic gear pump offers customizable solutions for a wide range of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles. It features a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min. The pump is constructed with an internal gear design and aluminium material, providing reliable performance and durability.
| Serie CBHS-FL3 Pompa a ingranaggi idraulica Parametri | |
|---|---|
| Cilindrata | 10 cc/giro, 4 cc/giro, 20 cc/giro, 16 cc/giro, 14 cc/giro, 6 cc/giro |
| Pressione nominale | 20 MPa (2900 psi) |
| Pressione massima | 25 MPa (3625 psi) |
| Velocità nominale | 2000 giri/min |
| Velocità massima | 3000 giri/min |
| Rotazione | L: Sinistra (in senso antiorario), R: Destra (in senso orario) |
| Materiale | Alluminio |
| Struttura | Pompa a ingranaggi esterna |
| Versione flangia | Flangia a forma ovale di tipo A |
| Tipo di albero | H: Scanalatura rettangolare, X: Scanalatura evolvente, P: Chiave semplice |
This high-performance hydraulic gear pump is designed for demanding industrial applications. It boasts a displacement of 10 cc/rev and a rated pressure of 20 MPa (2900 psi), ensuring powerful and efficient operation. The pump can handle speeds up to 3000 r/min and is available in both left and right rotation configurations. Its internal gear pump design, combined with its robust aluminium construction, provides exceptional durability and reliability. The A-Oval flange and plain key shaft make it compatible with a wide range of systems. This versatile pump is ideally suited for use in forklifts, telehandlers, mini-excavators, skid steer loaders, and tractors, making it a valuable asset for various industries.
