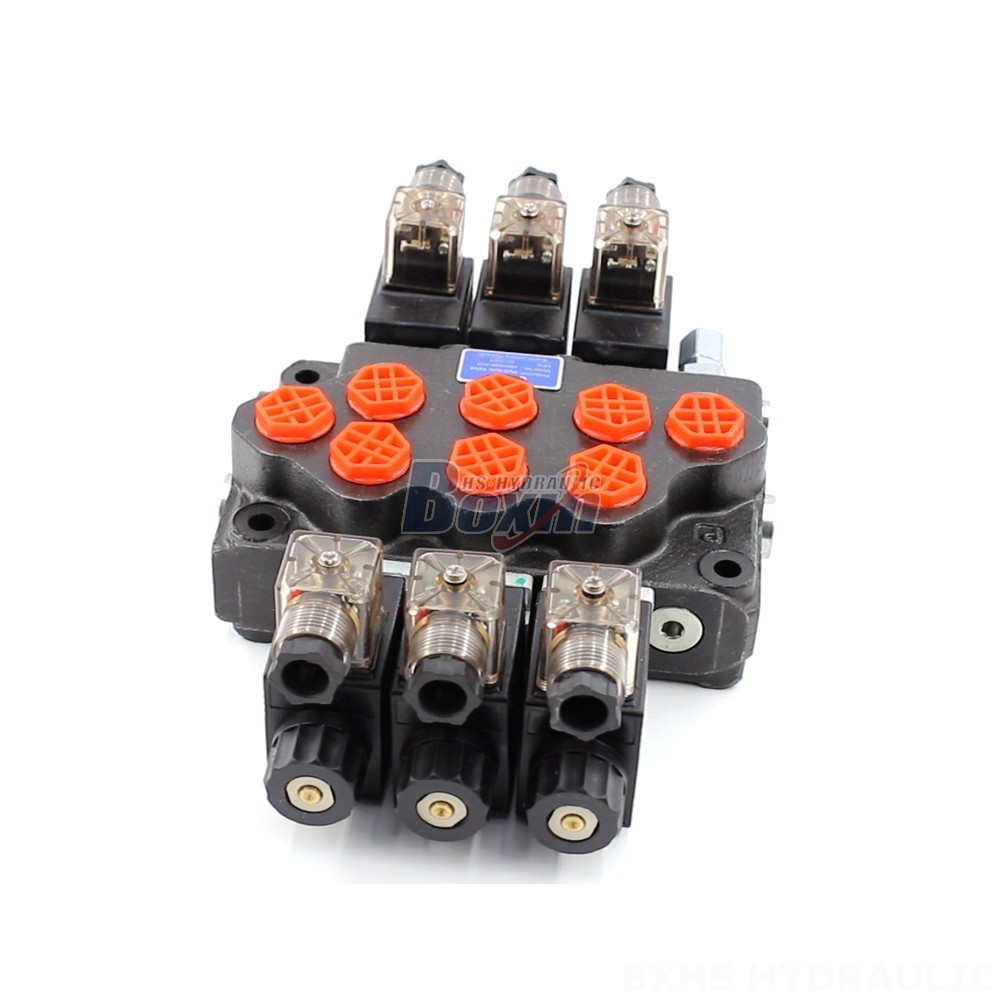

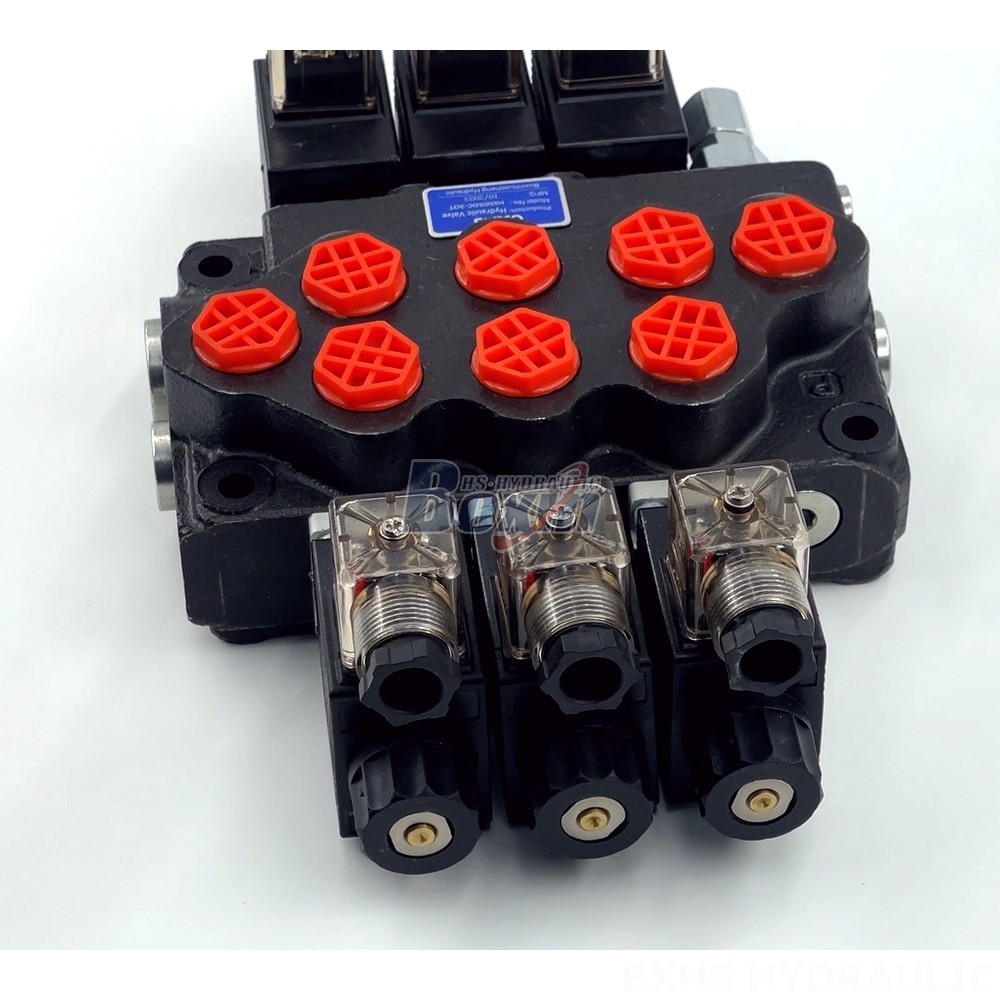

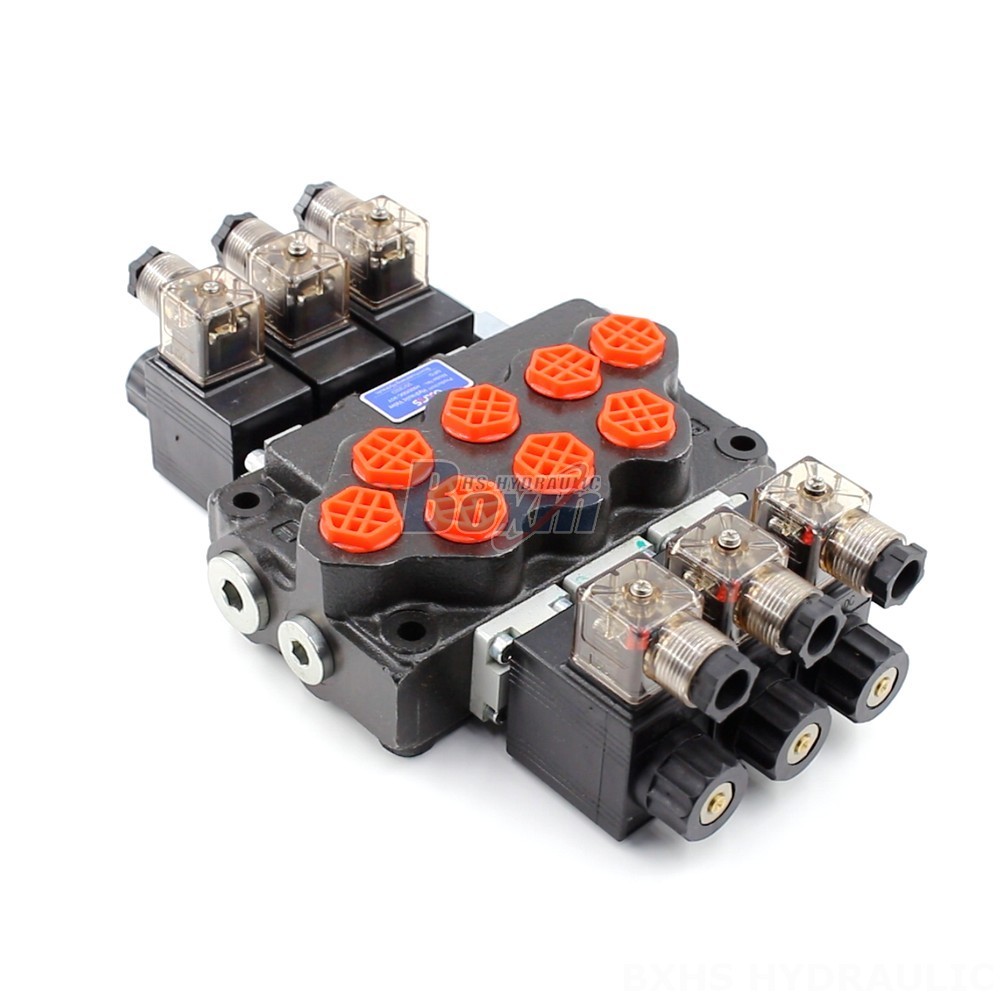

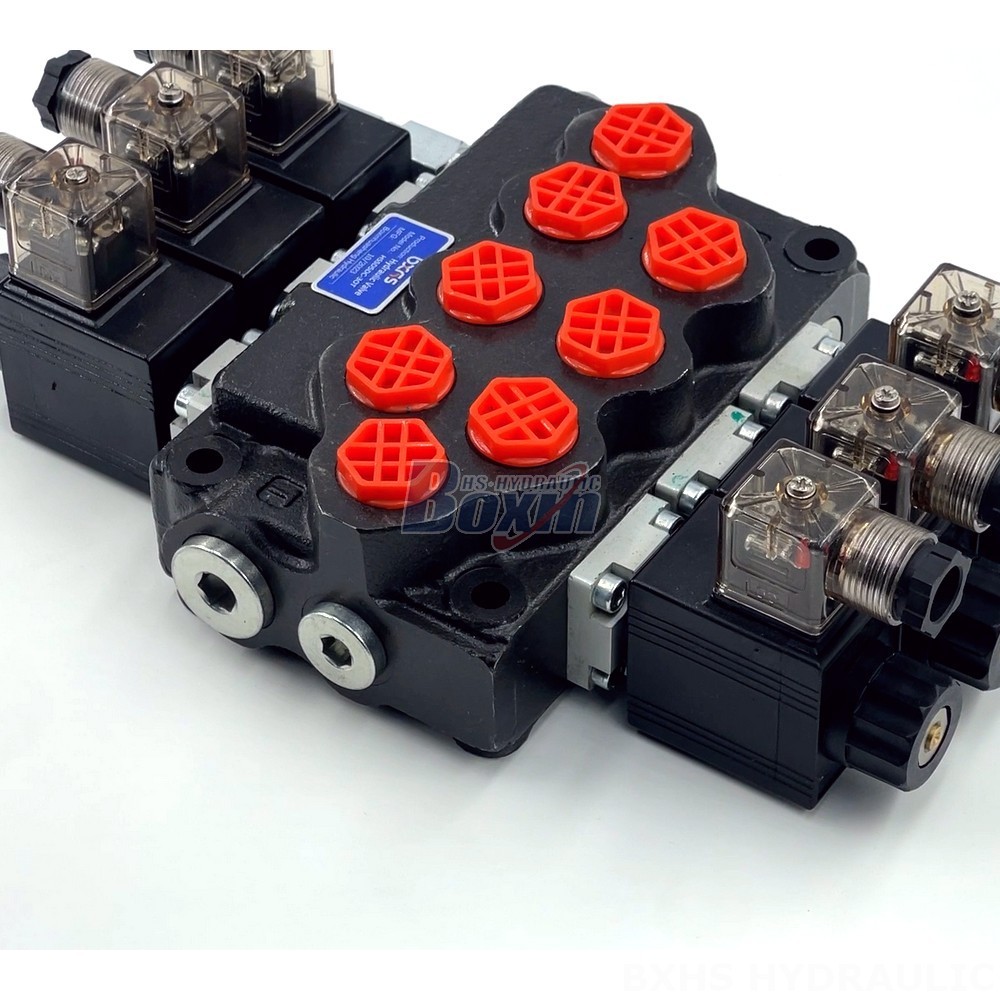

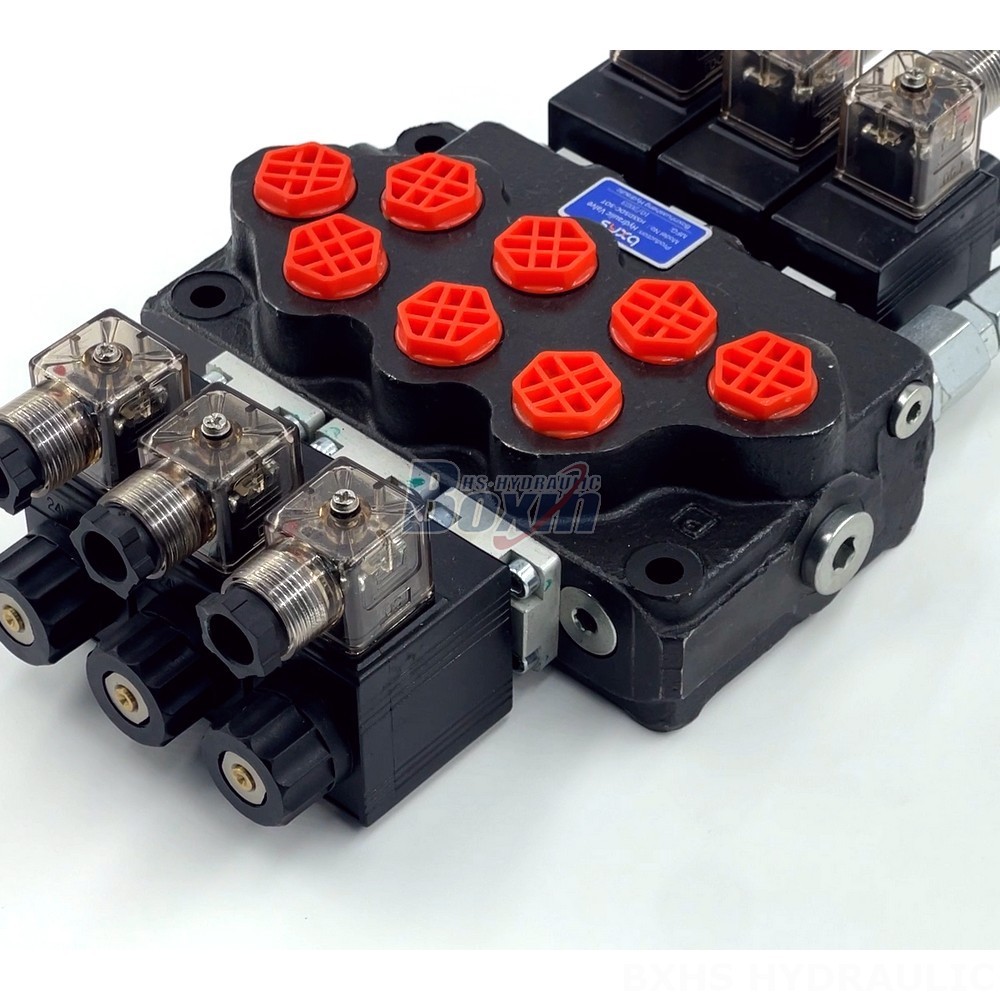

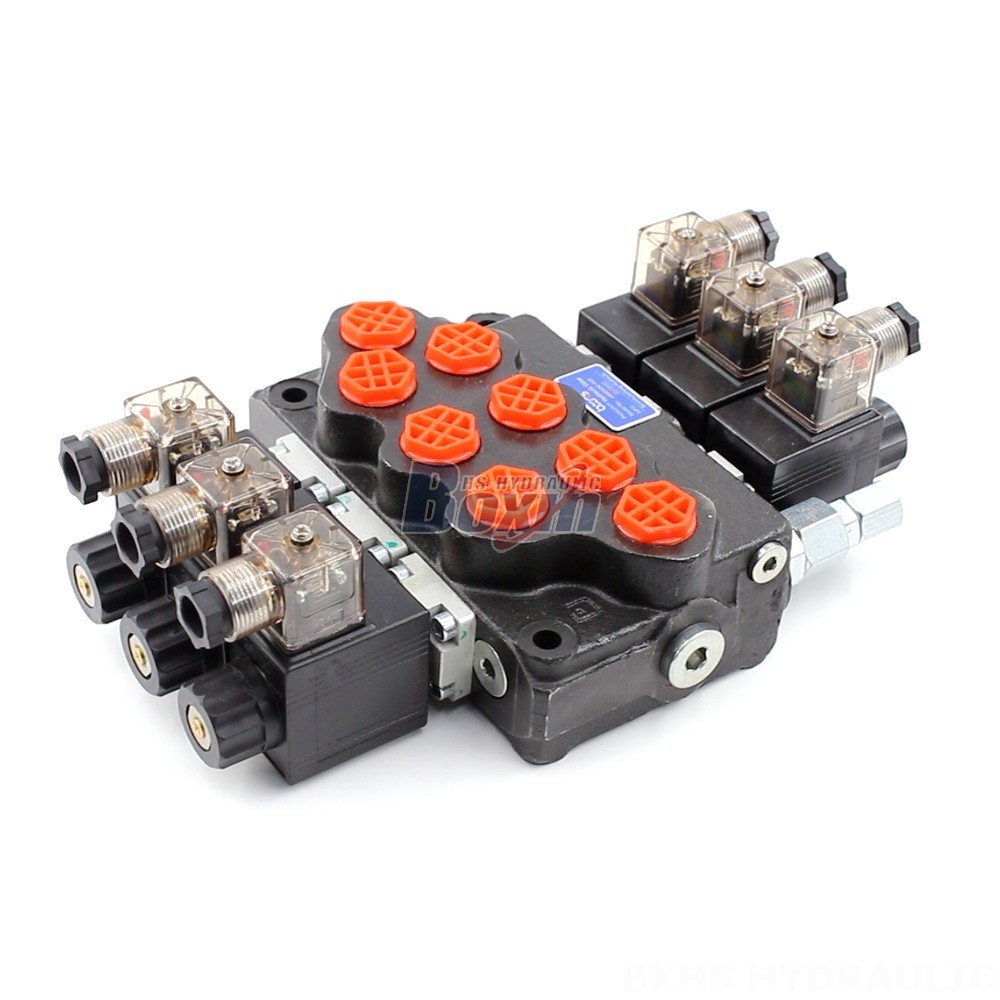

Introducing the SD5 Series Hydraulic Valve, manufactured by us, a leading global provider of hydraulic solutions. This high-performance valve is designed to meet the demanding hydraulic requirements of various industries, including material handling, construction, agriculture, and industrial vehicles.
| Serie SD5 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +60°C (-40°F to +140°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 40 L/min (10.5 US gpm) |
| Pressione massima | 305 bar (4400 psi) |
| Attacco di ingresso | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Attacco di uscita | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Dimensione attacco | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5 Series Hydraulic Valve features a solenoid control method, 3-section design, and monoblock valve structure. It delivers a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi). The valve operates within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +60°C (-40°F to +140°F). Its versatile 3-spool design makes it suitable for a wide range of applications, including telehandlers, forklifts, cranes, stackers, and excavators. As a manufacturer, we offer competitive factory prices and wholesale options for bulk orders. Contact us today to learn more and discuss your hydraulic valve requirements.
