Hydraulic Monoblock Directional Valve - P40-G12 Series: Wholesale & OEM

Metodo di Controllo:Manuale

Spoo:3 Spole

Portata nominale:40 L/min (10.5 US gpm)

Pressione massima:250 bar (3600 psi)

Attacco di ingresso:G1/2

Attacco di uscita:G1/2

Dimensione attacco:G1/2

Marchio:BXHS

Tipo di prodotto:Valvola direzionale monoblocco

Serie di prodotti:Serie P40 Valvola direzionale monoblocco

Dimensioni dell'imballaggio:24*21*13

Peso lordo:6.60 kg

Disponibilità: In magazzino

1033 Le visualizzazioni cercano questo prodotto

Hydraulic Monoblock Directional Valve - P40-G12 Series: Wholesale & OEM

Hydraulic Monoblock Directional Valve - P40-G12 Series: Wholesale & OEM

Hydraulic Monoblock Directional Valve - P40-G12 Series: Wholesale & OEM drawing image

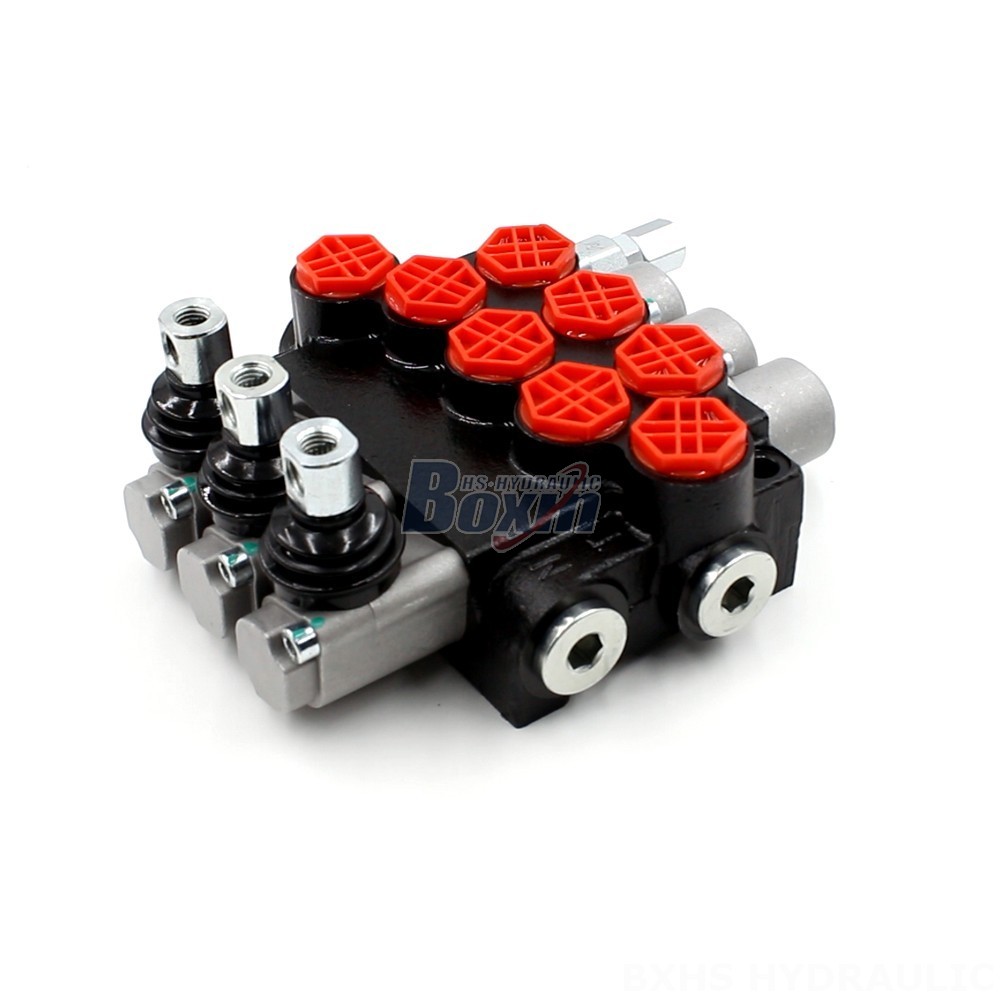

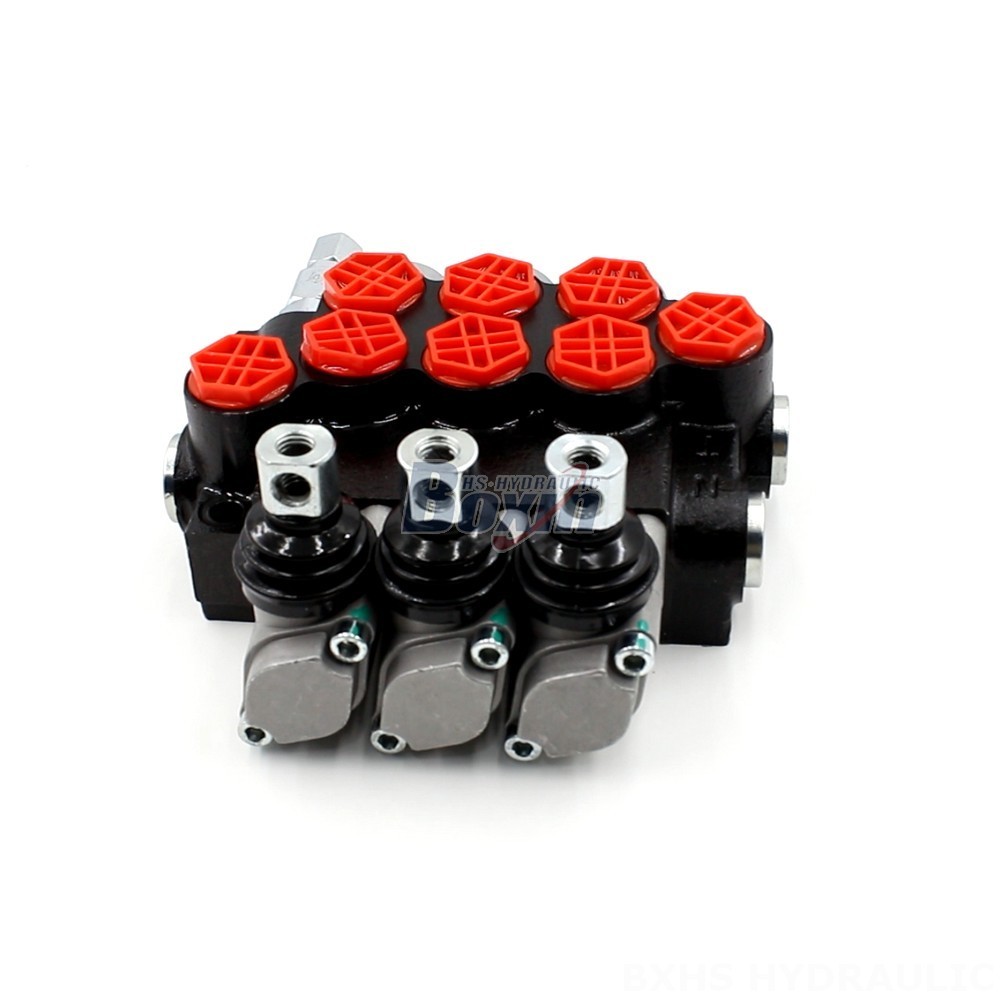

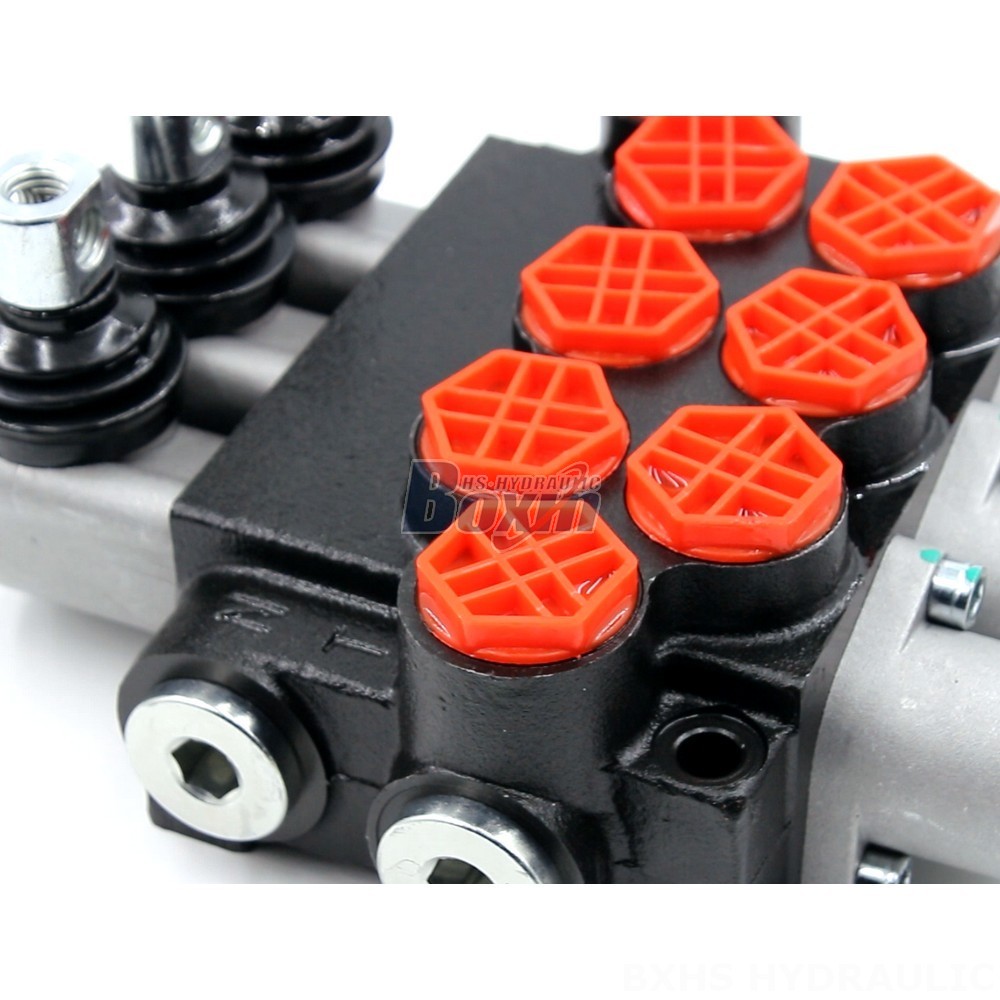

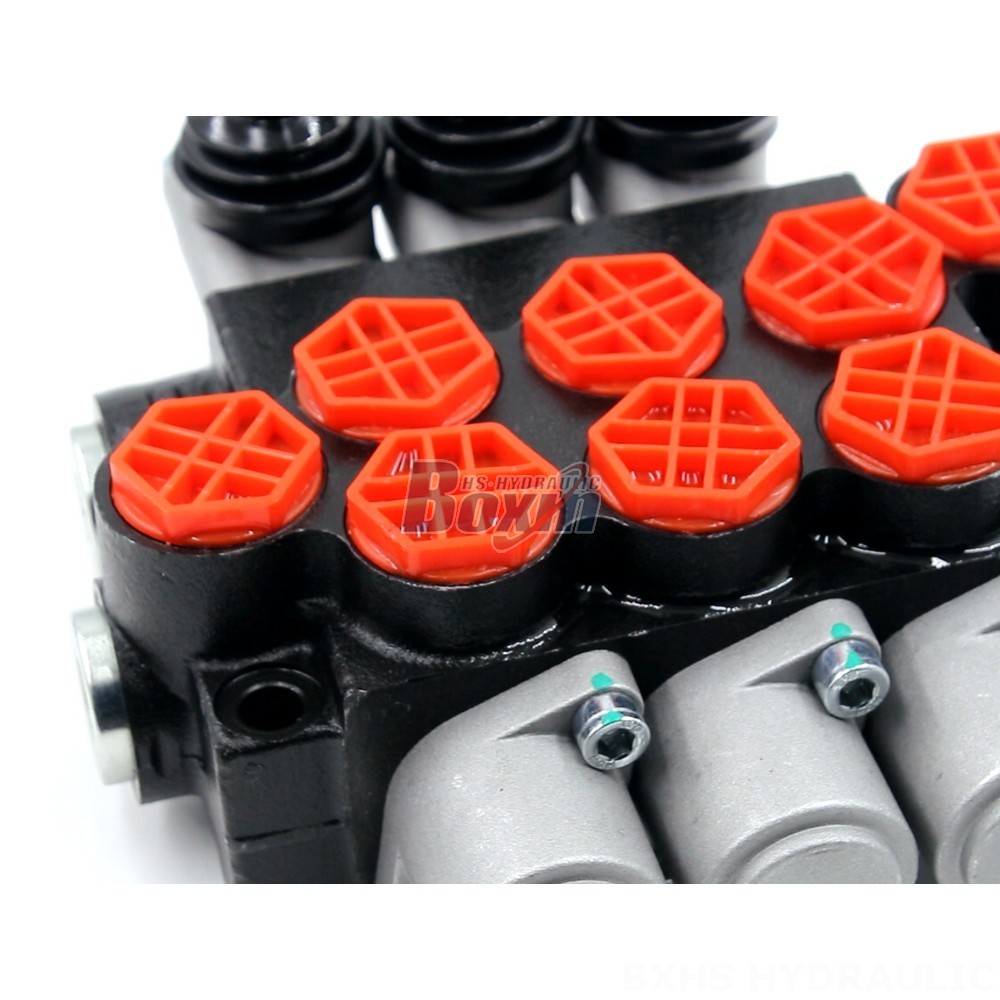

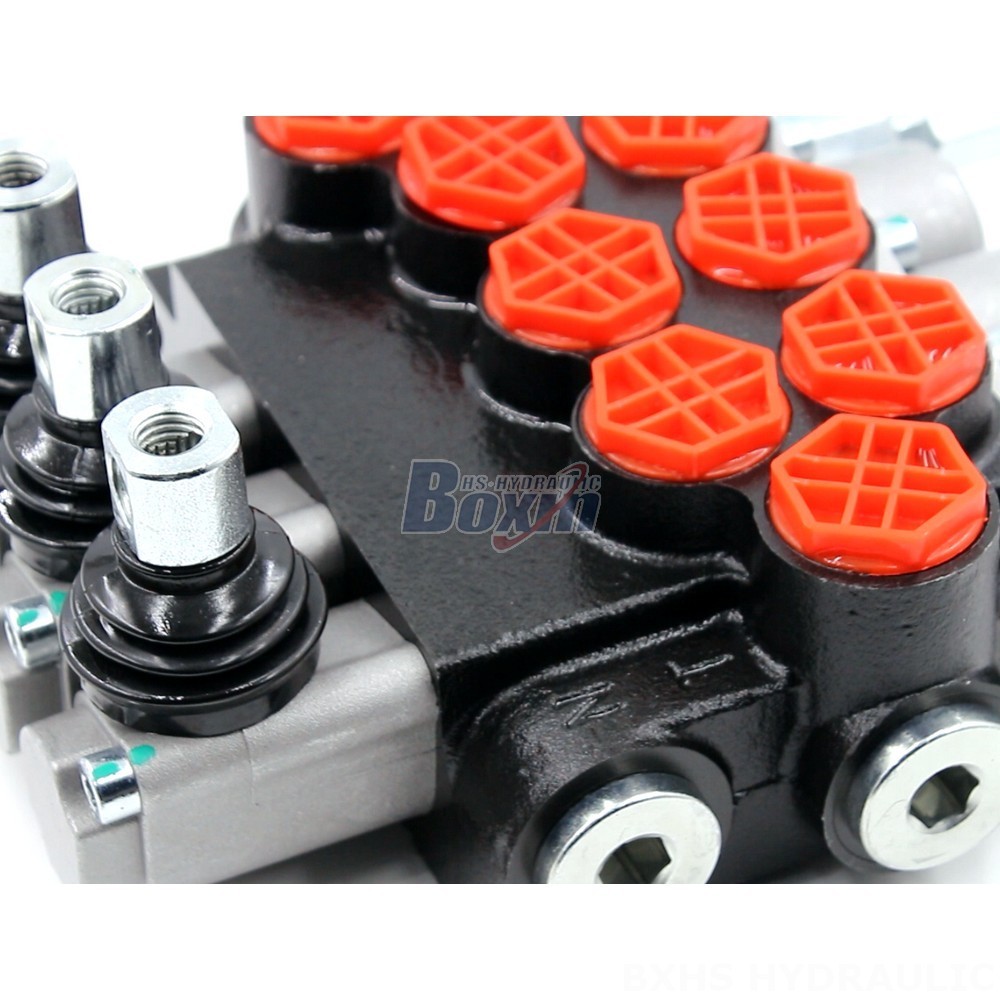

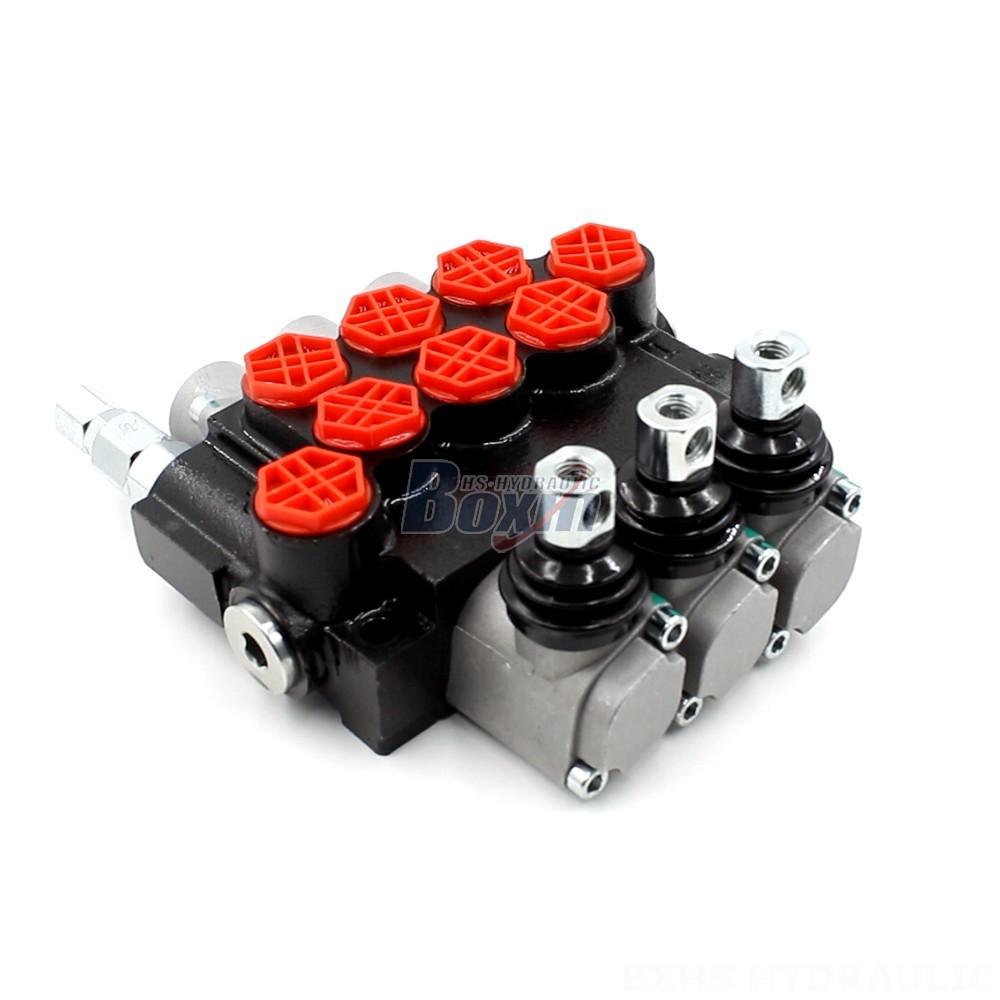

The P40-G12 Series Hydraulic Monoblock Directional Valve is a high-performance, versatile valve designed for various applications in material handling, construction, agriculture, and industrial vehicles. This manual control valve features a 3-section monoblock structure with a rated flow of 40 L/min and a maximum pressure of 250 bar. It's perfect for telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.

Serie P40 Valvola direzionale monoblocco Parametri
Metodo di Controllo Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Solenoide e joystick, Manuale e joystick, A solenoide e a cavo
Spoo 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole
Intervallo di temperatura ambiente -40°C to +80°C (-40°F to +176°F)
Tipo di struttura Valvola monoblocco
Sezione Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7
Intervallo di viscosità operativa 15 - 75 mm²/s (15 cSt to 75 cSt)
Portata nominale 40 L/min (10.5 US gpm)
Pressione massima 250 bar (3600 psi)
Attacco di ingresso G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Attacco di uscita G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Dimensione attacco G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40-G12 Series Hydraulic Monoblock Directional Valve is a robust and reliable solution for controlling hydraulic systems in various applications. It features a 3-section monoblock structure, offering superior strength and durability. The valve is equipped with a 3-spool design and has a rated flow of 40 L/min, making it suitable for various demanding applications. It can withstand pressures up to 250 bar, ensuring efficient operation in high-pressure environments. With an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C, this valve can handle diverse operating conditions. This valve is specifically designed for use in various applications including material handling, construction and earth moving, agriculture, and industrial vehicles. It is compatible with a range of machines like telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
