The Hydraulic Directional Valve P40-OW is engineered for durability and reliability. This monoblock valve features a rated flow of 40 L/min (10.5 US gpm), a maximum pressure of 250 bar (3600 psi), and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It has an ambient temperature range of -40°C to +80°C (-40°F to +176°F) and comes with 1 spool. The P40-OW is suitable for various applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| Serie P40 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Solenoide e joystick, Manuale e joystick, A solenoide e a cavo |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 40 L/min (10.5 US gpm) |
| Pressione massima | 250 bar (3600 psi) |
| Attacco di ingresso | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Attacco di uscita | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimensione attacco | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

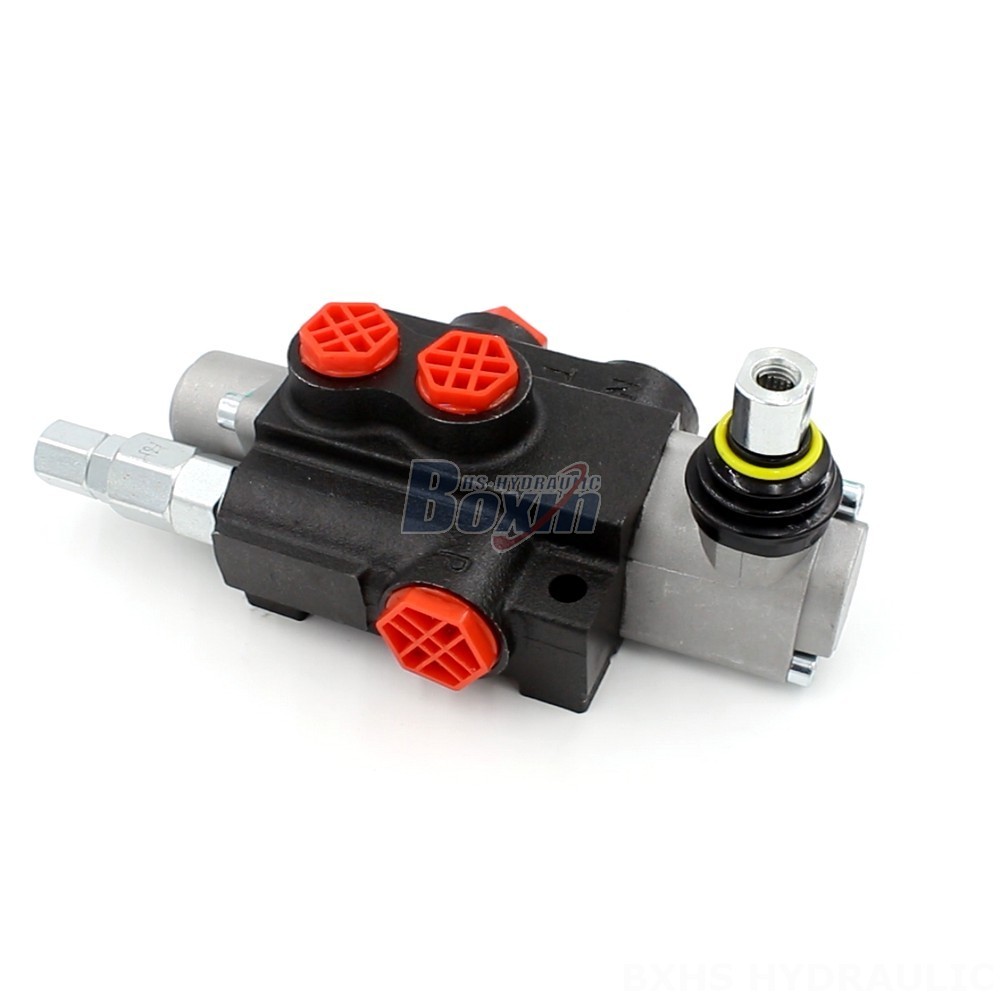

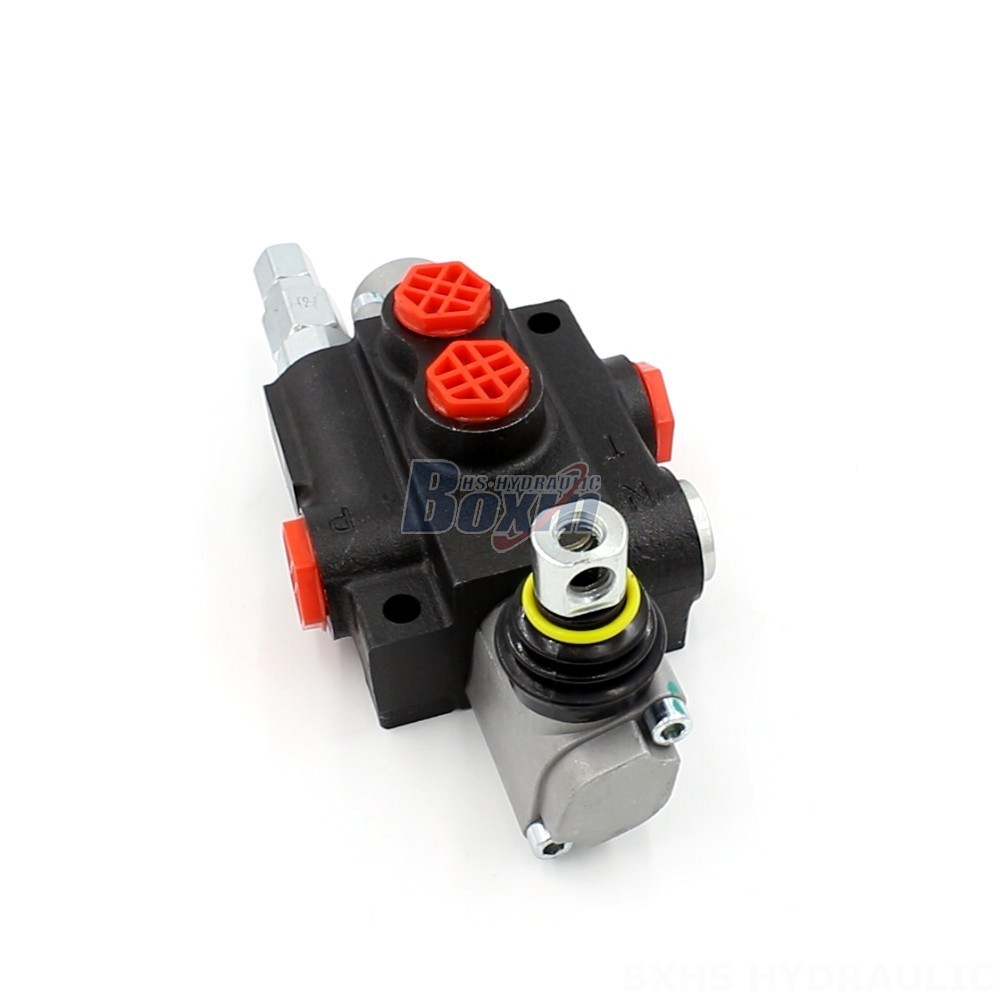

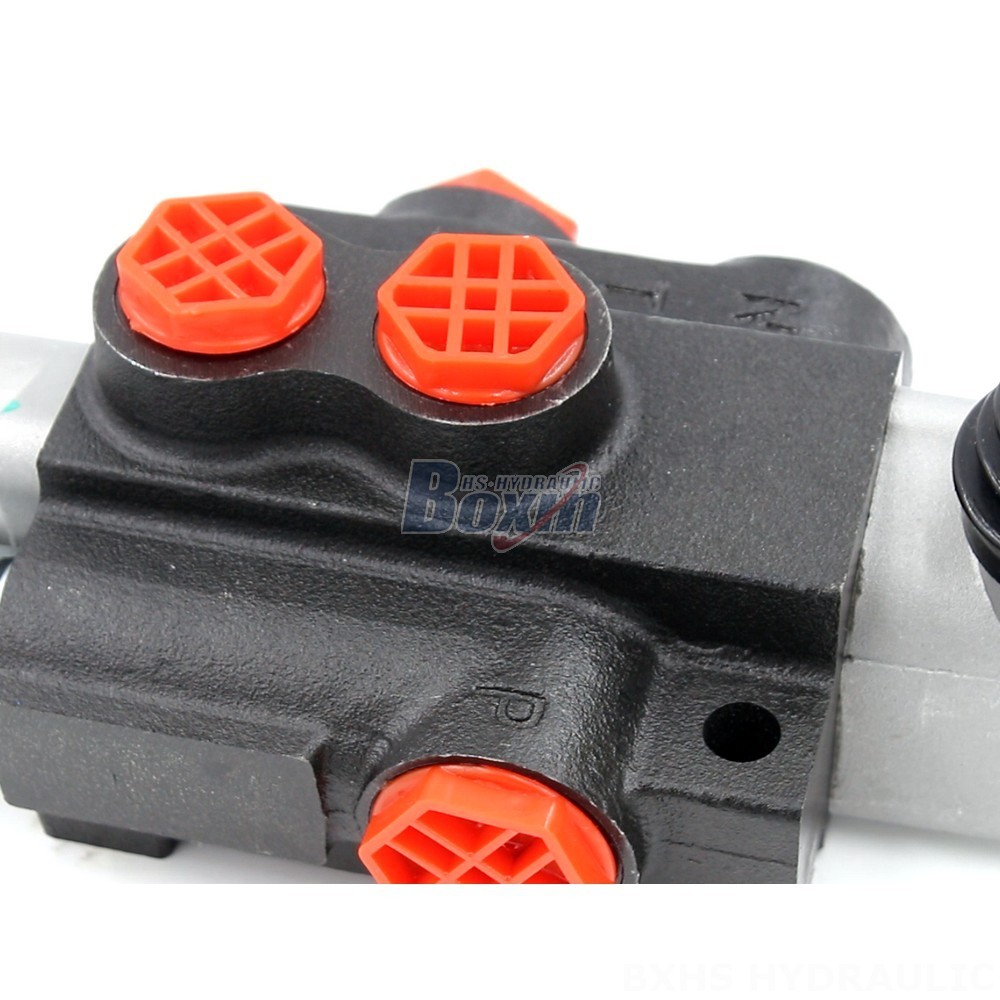

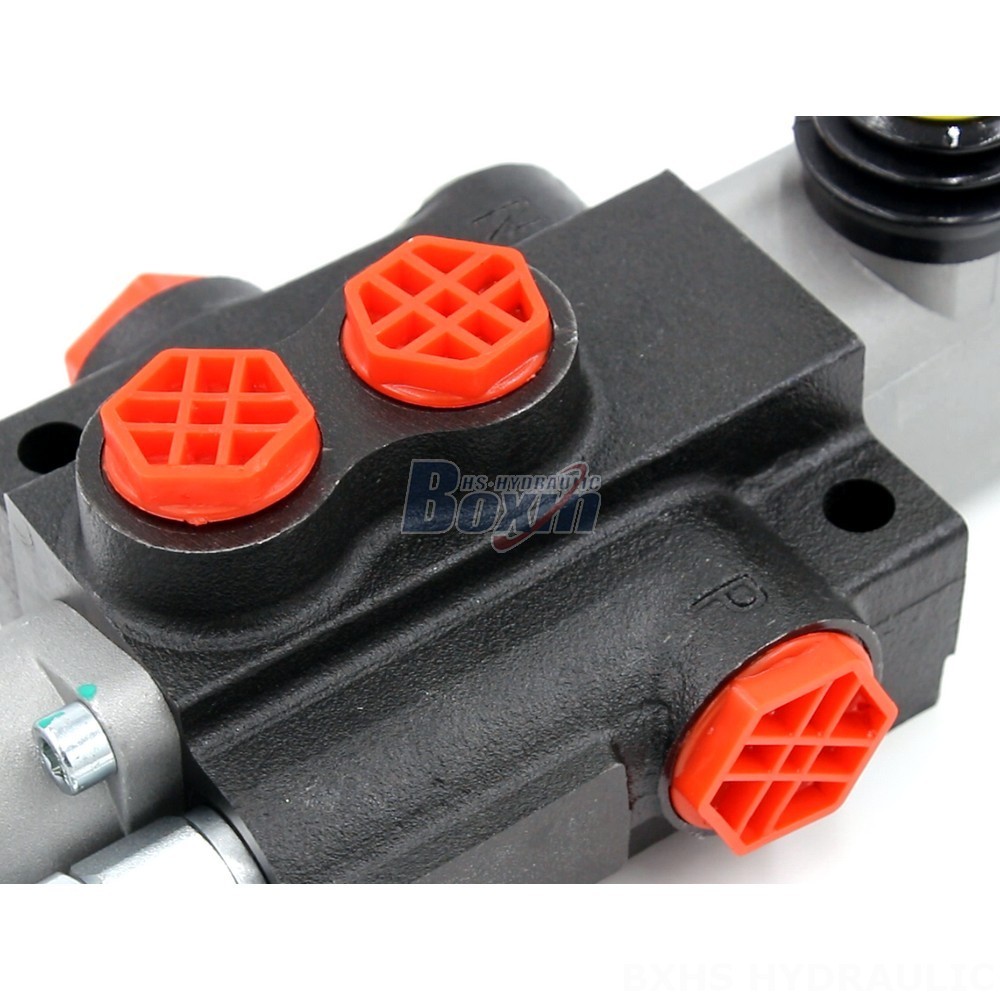

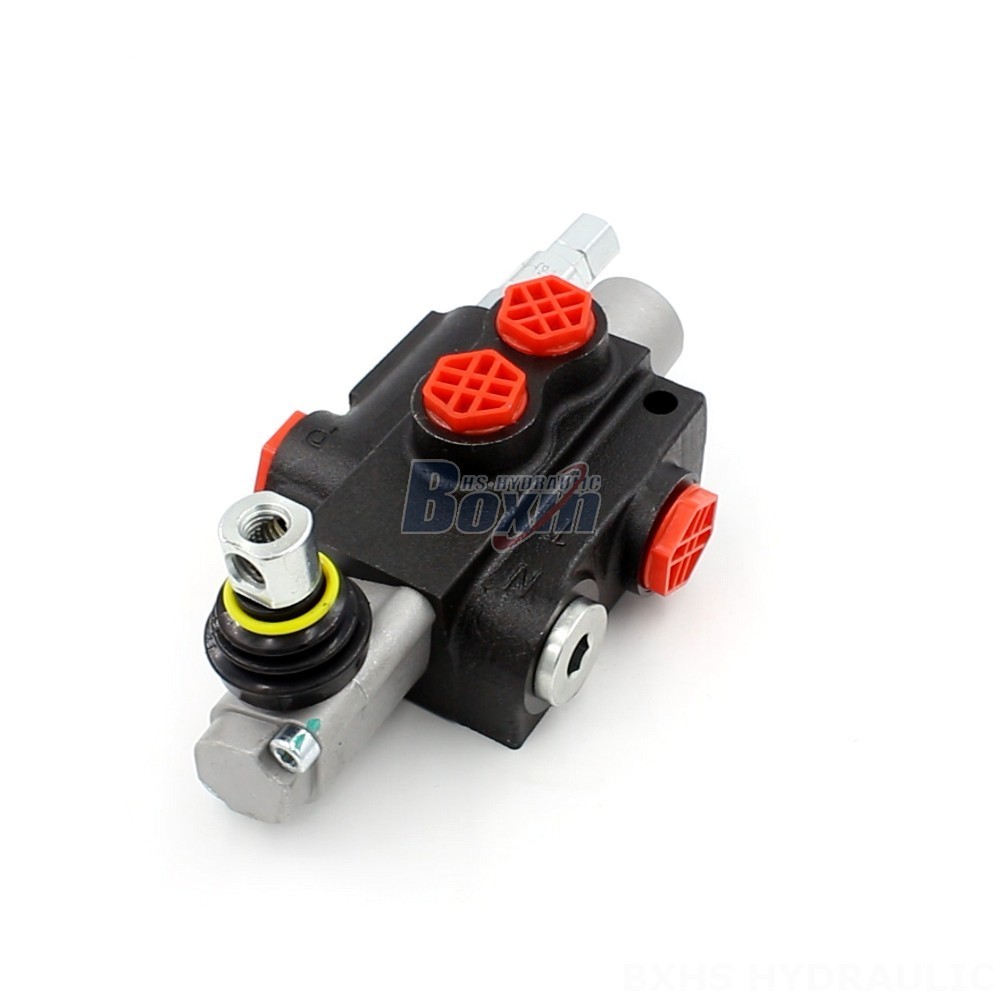

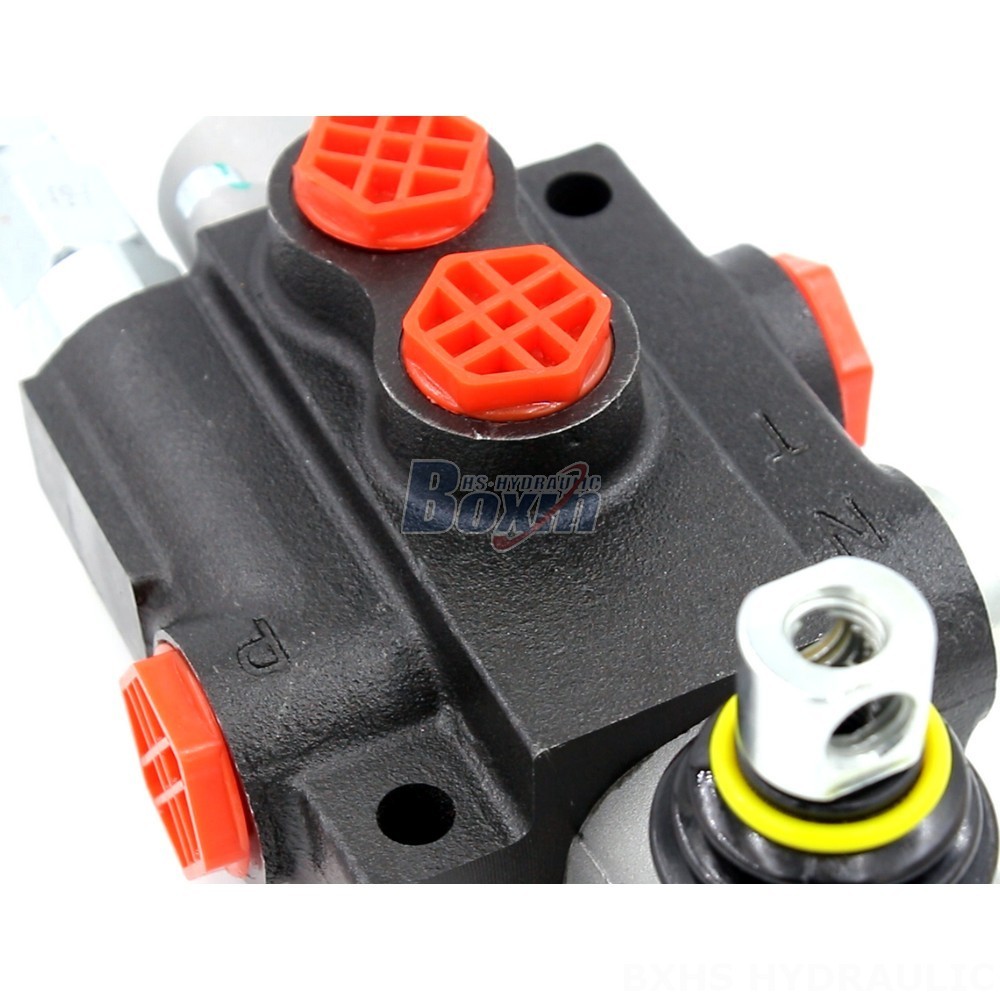

**Hydraulic Directional Valve P40-OW: Engineered for Durability and Reliability**
The Hydraulic Directional Valve P40-OW is a high-performance valve designed for demanding applications. It is constructed with a robust monoblock design that ensures durability and reliability. The valve features a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), making it suitable for a wide range of applications.
The P40-OW has an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F). It comes with 1 spool and is available in the P40 Series. The valve is suitable for various applications, including:
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
The P40-OW is also compatible with various models, including:
* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* AERIAL PLATFORM
* MOTOR GRADER
* MIDI-EXCAVATOR
* MINI-EXCAVATOR
* SKID STEER LOADER
* COMPACT WHEEL LOADER
With its exceptional performance and durability, the Hydraulic Directional Valve P40-OW is an ideal choice for demanding applications.
