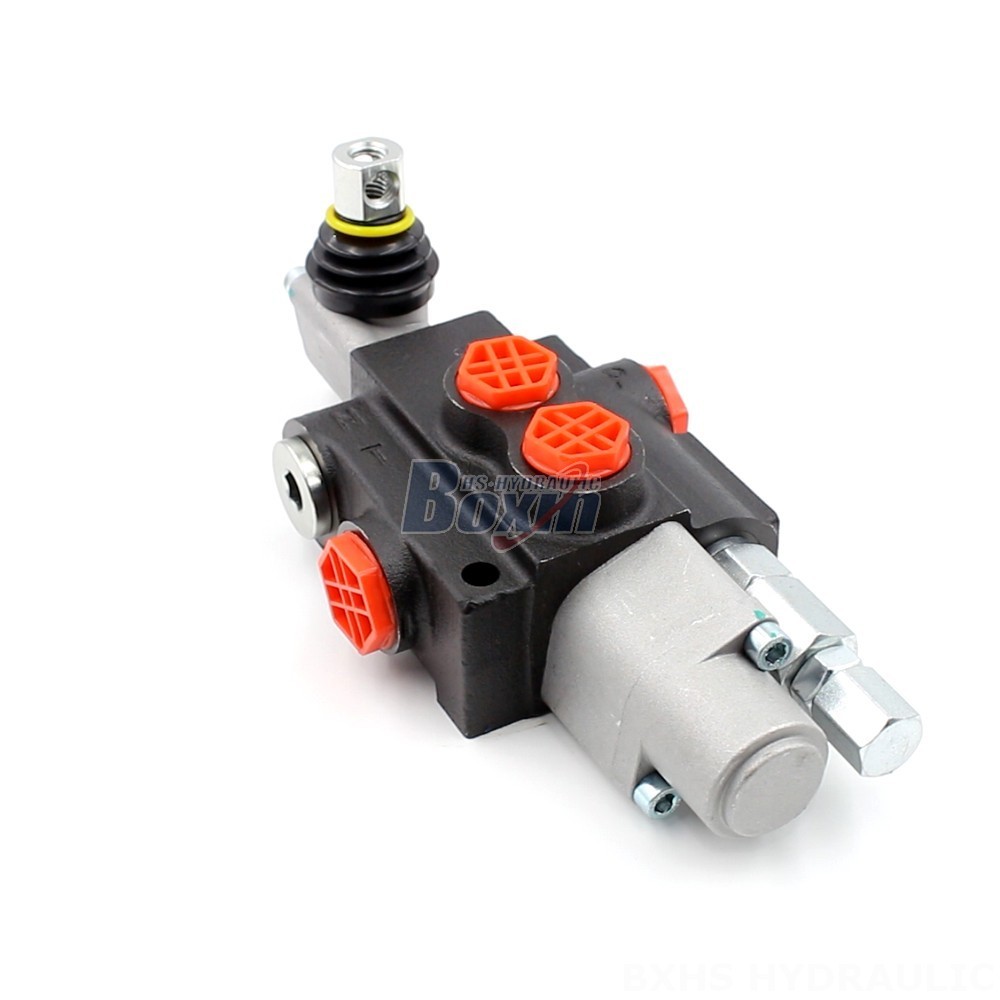

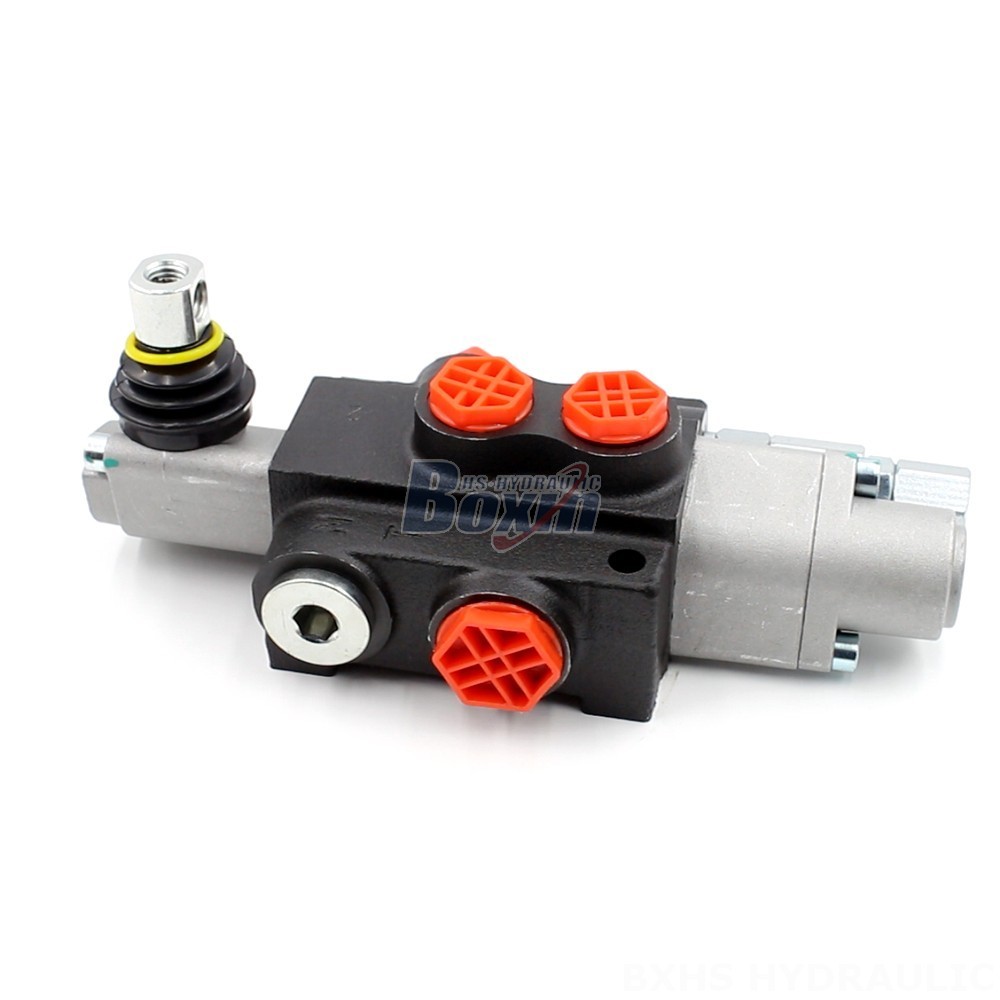

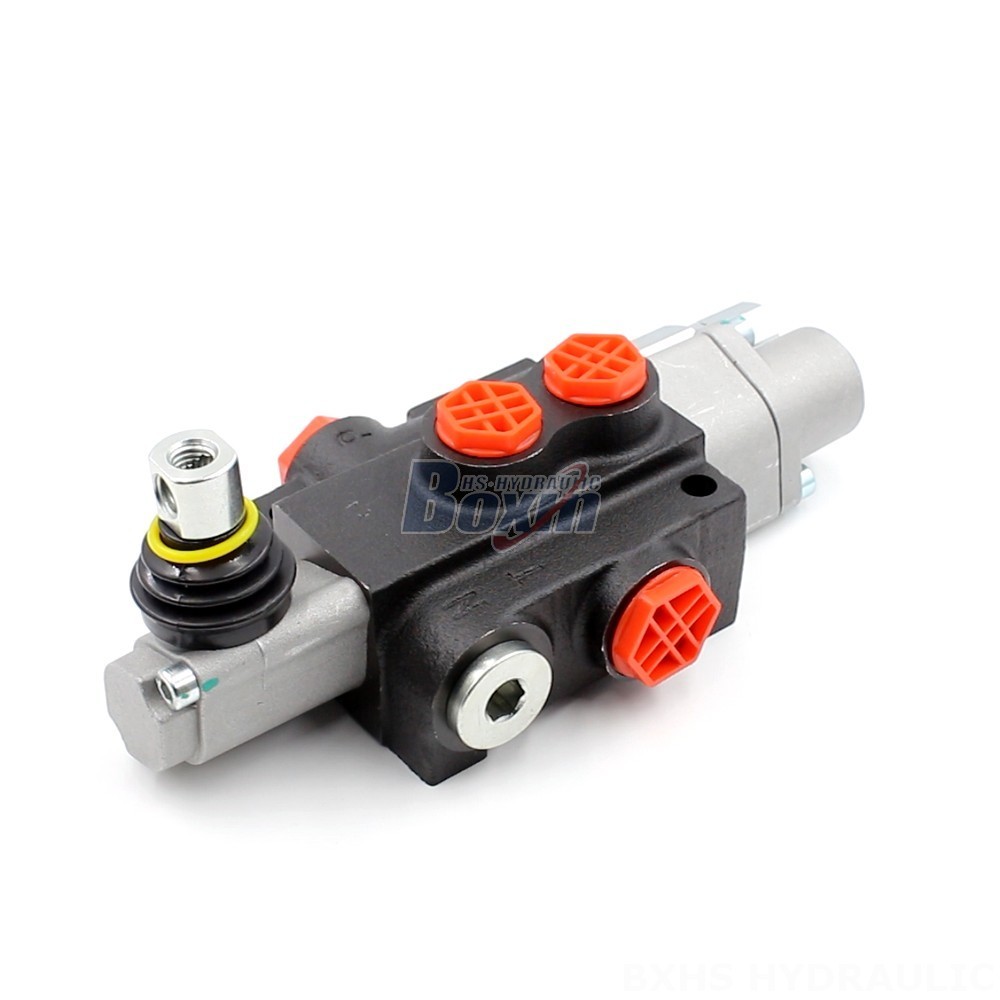

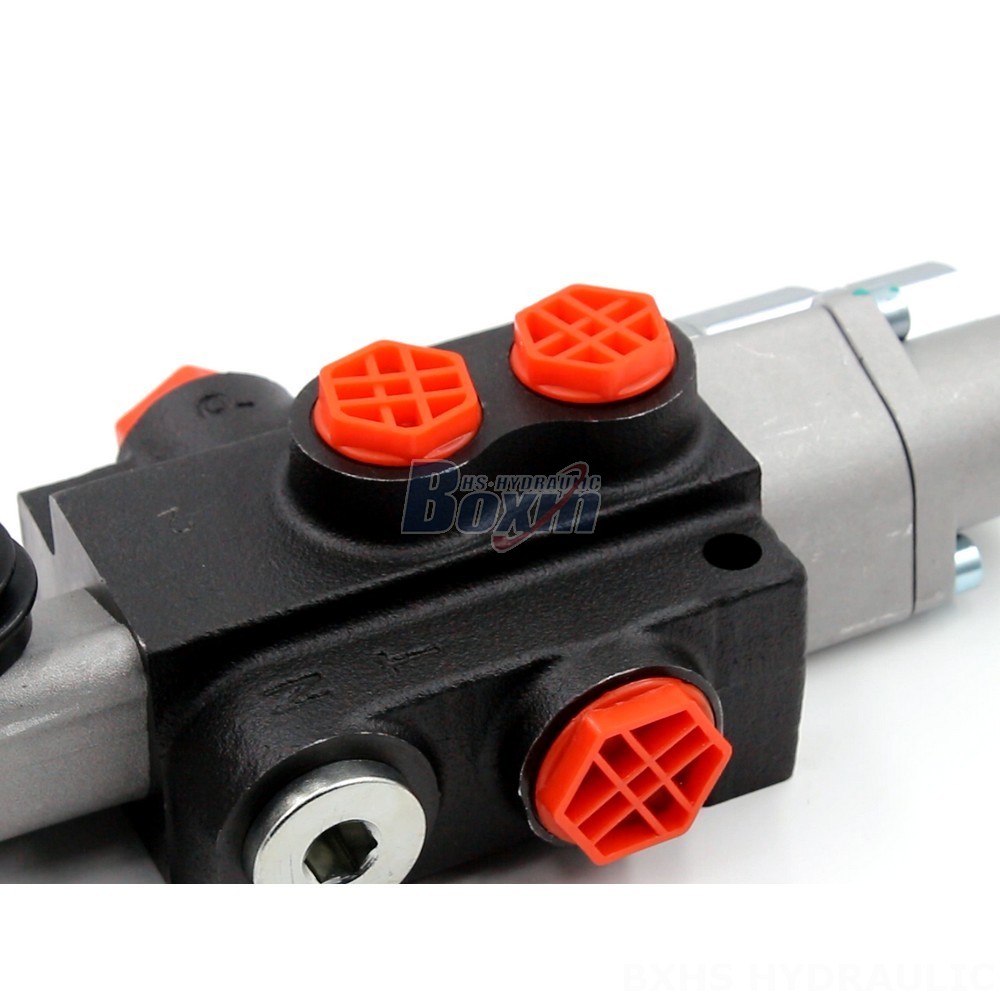

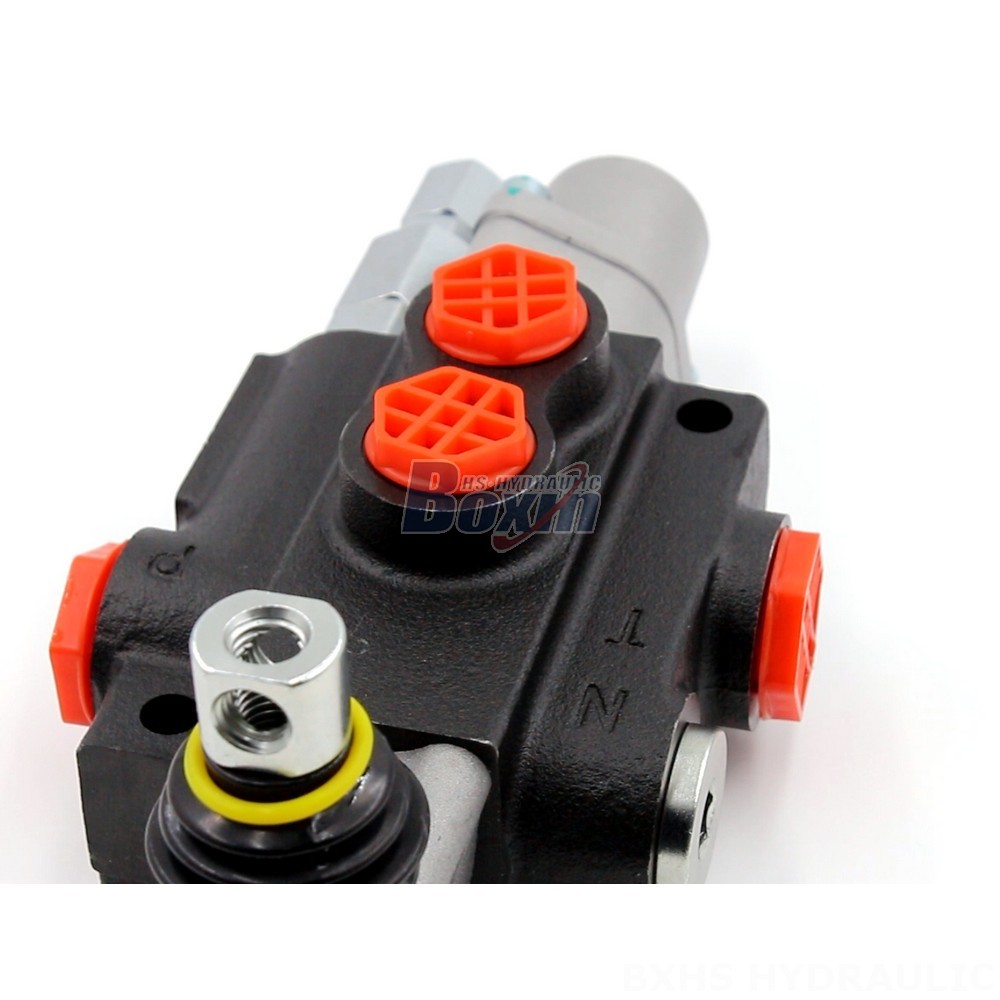

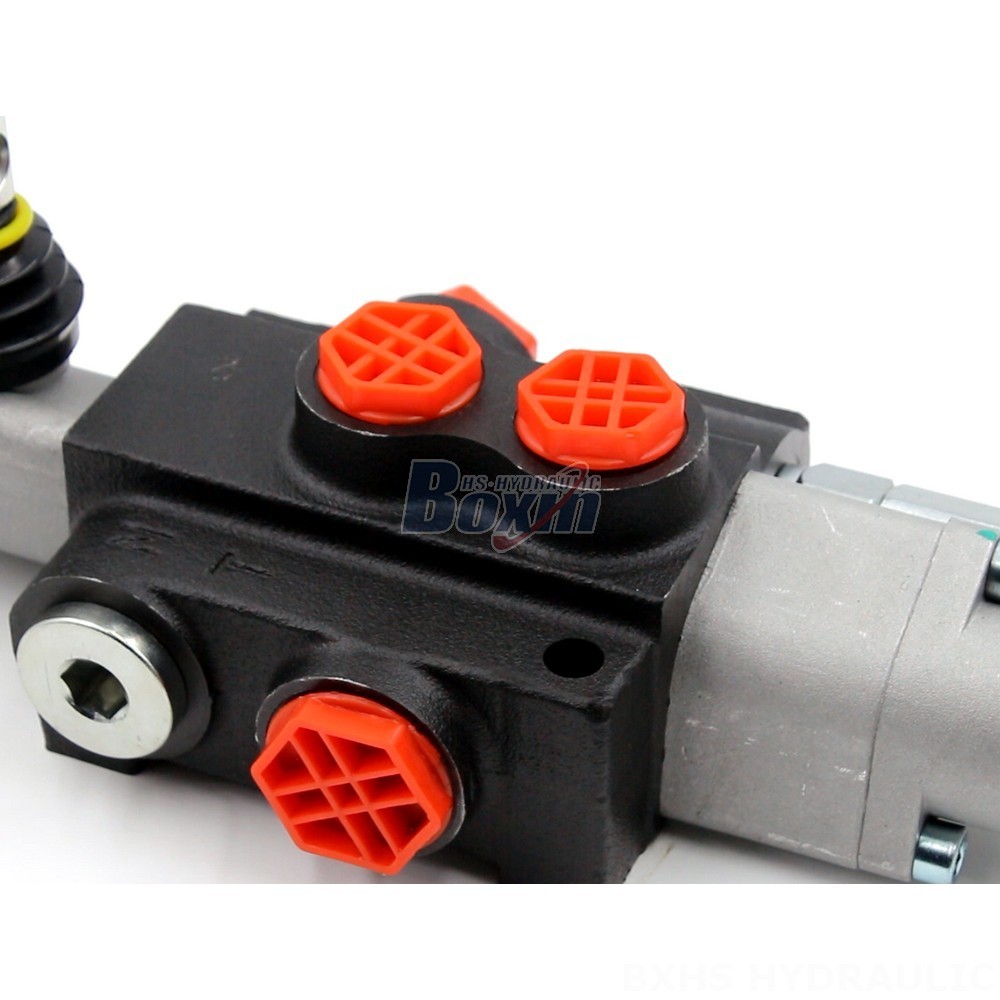

The P40 Series Auxiliary Valve is a high-performance hydraulic valve designed for directional control in tractors and other heavy-duty applications. This manual, monoblock valve features a rated flow of 40 L/min, a maximum pressure of 250 bar, and a wide operating temperature range. It is ideal for use in material handling, construction, agriculture, and industrial vehicles.
| Serie P40 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Solenoide e joystick, Manuale e joystick, A solenoide e a cavo |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 40 L/min (10.5 US gpm) |
| Pressione massima | 250 bar (3600 psi) |
| Attacco di ingresso | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Attacco di uscita | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimensione attacco | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series Auxiliary Valve is a robust and reliable hydraulic valve designed for directional control in various applications, including tractors, telehandlers, forklifts, all-terrain cranes, stackers, and aerial platforms. It features a manual control method, a monoblock valve structure, and a single spool. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve offers excellent performance in demanding environments. The operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) ensures reliable operation across a wide range of hydraulic fluids. The P40 Series is designed for a wide ambient temperature range of -40°C to +80°C (-40°F to +176°F), making it suitable for use in diverse climates. We offer wholesale and OEM options to meet your specific needs. Contact us for more information.
