Produzione e consegna
Tempi di produzione di 15-30 giorni
L’innovazione guida lo sviluppo e la tecnologia forgia il futuro
1054 Le visualizzazioni cercano questo prodotto
The P40-G12-G38-OTW Series Hydraulic Directional Control Valve is a high-performance valve designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. With its manual control, monoblock valve design, 40 L/min rated flow, 250 bar max pressure, and 15 - 75 mm²/s operating viscosity range, this valve offers reliable and efficient control of hydraulic systems.
| Serie P40 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Solenoide e joystick, Manuale e joystick, A solenoide e a cavo |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 40 L/min (10.5 US gpm) |
| Pressione massima | 250 bar (3600 psi) |
| Attacco di ingresso | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Attacco di uscita | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimensione attacco | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

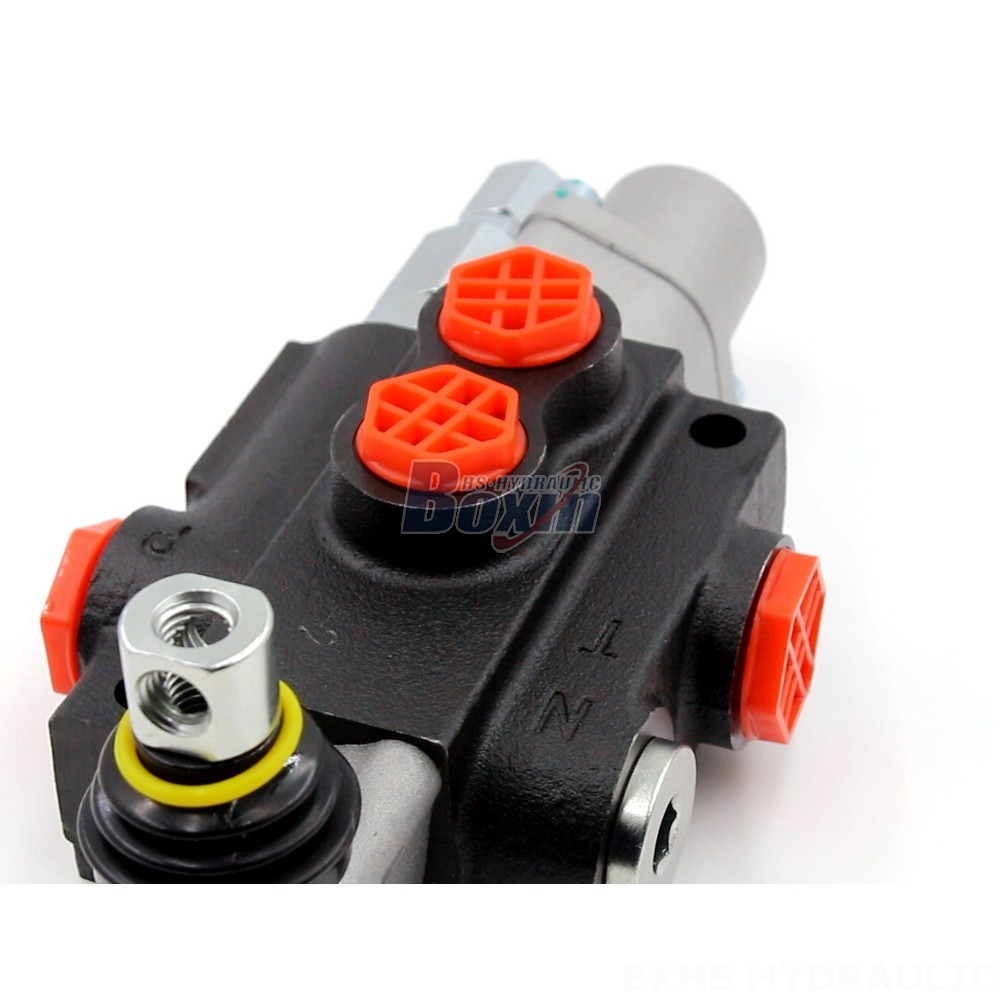

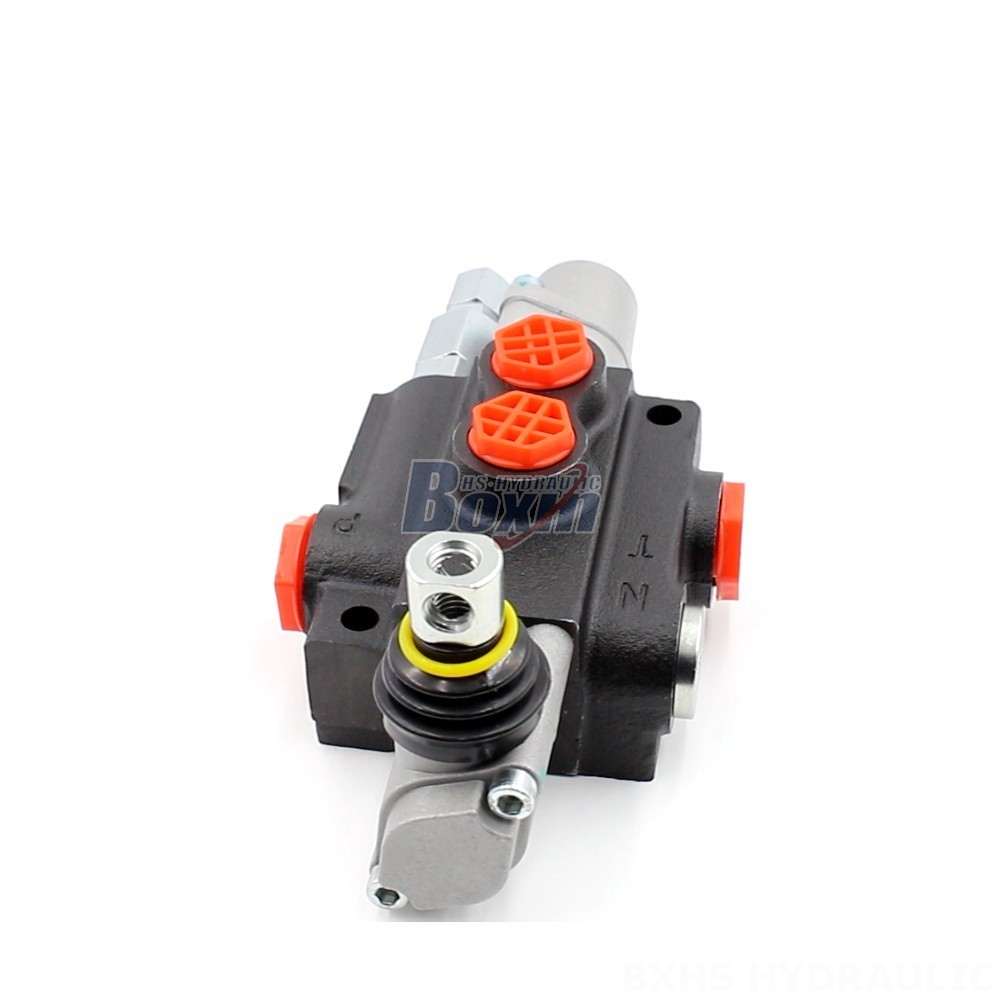

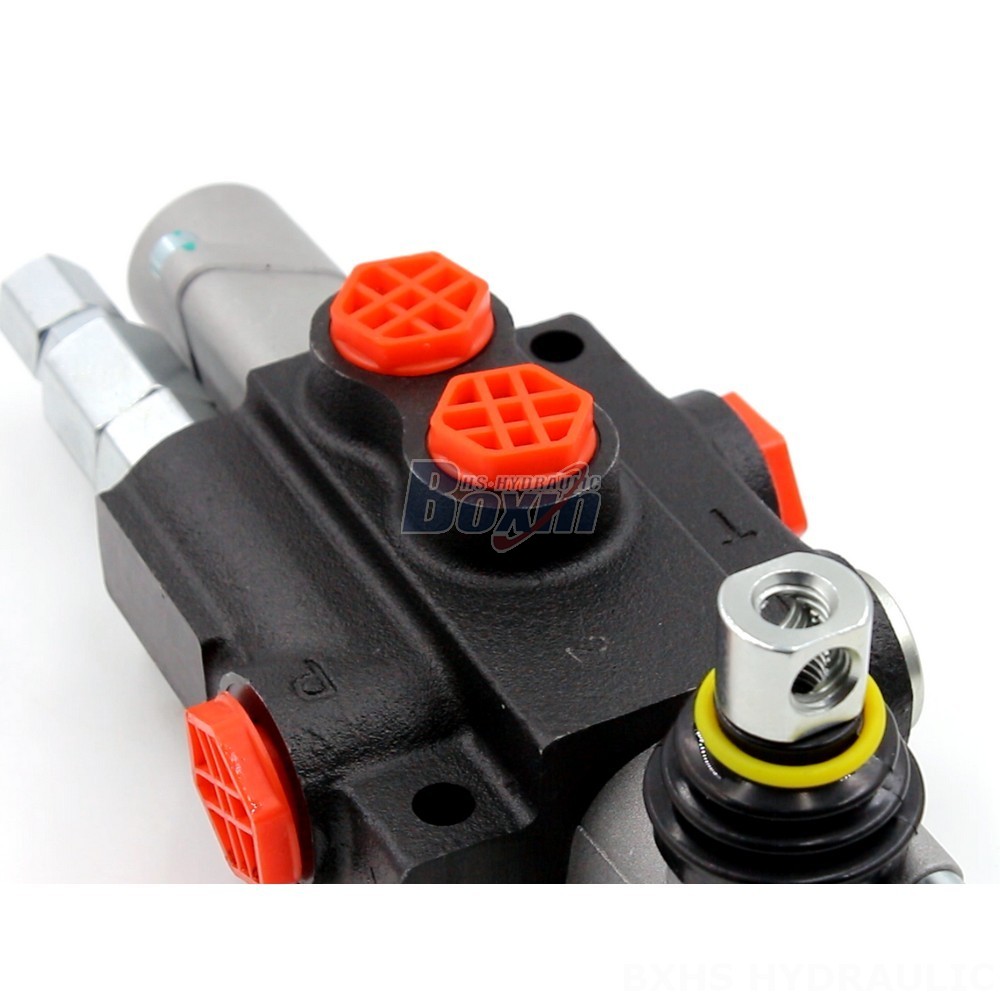

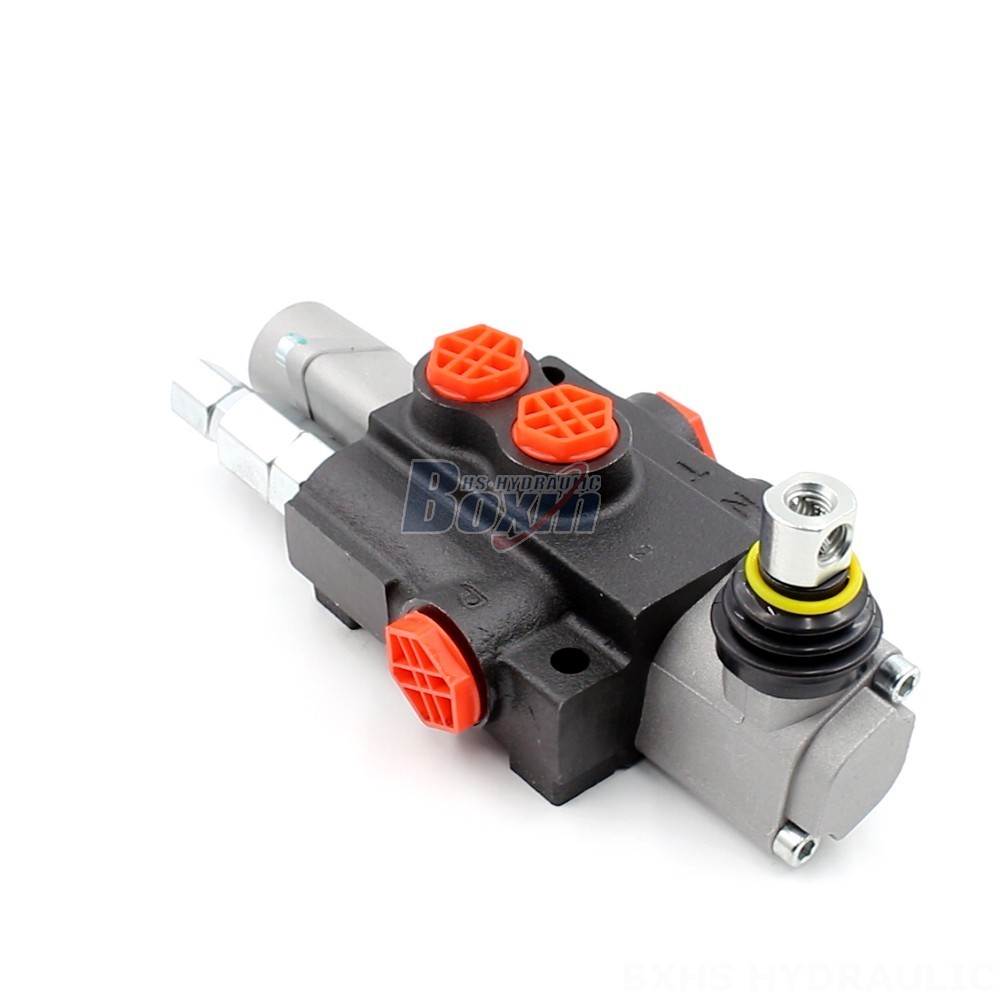

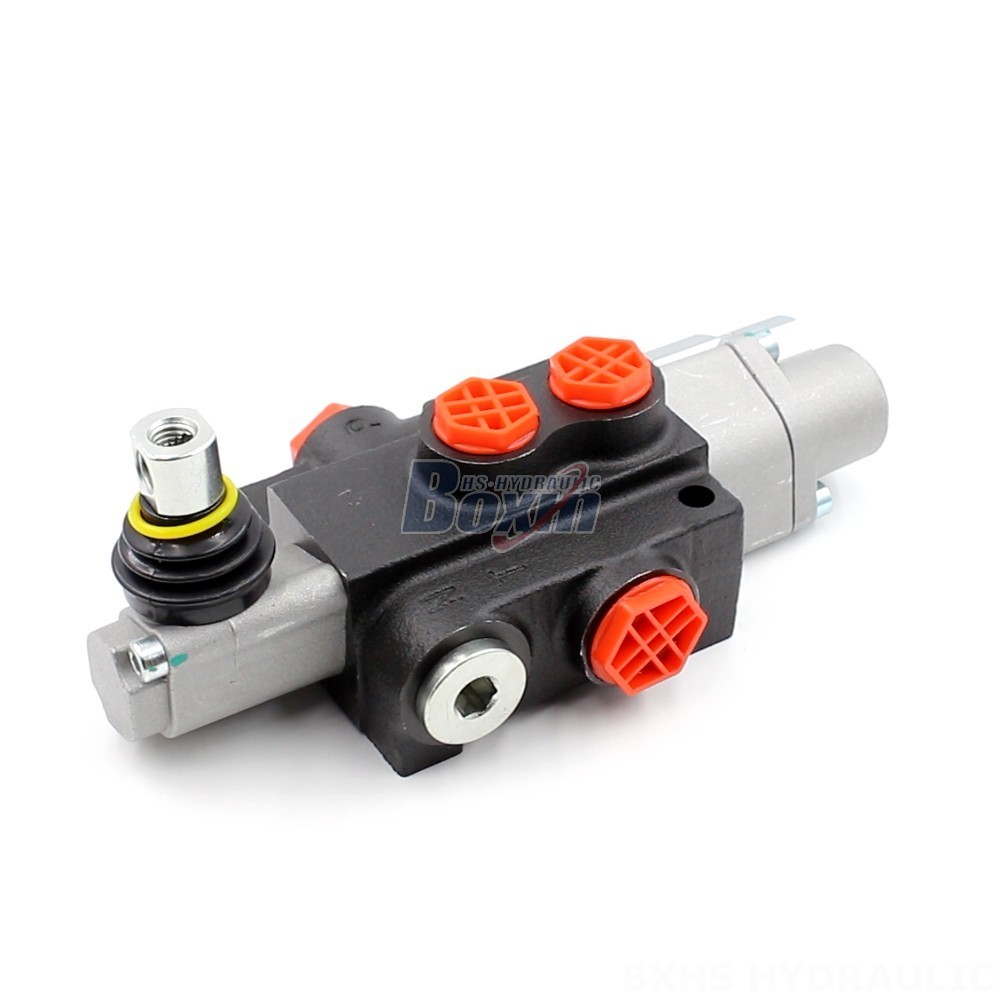

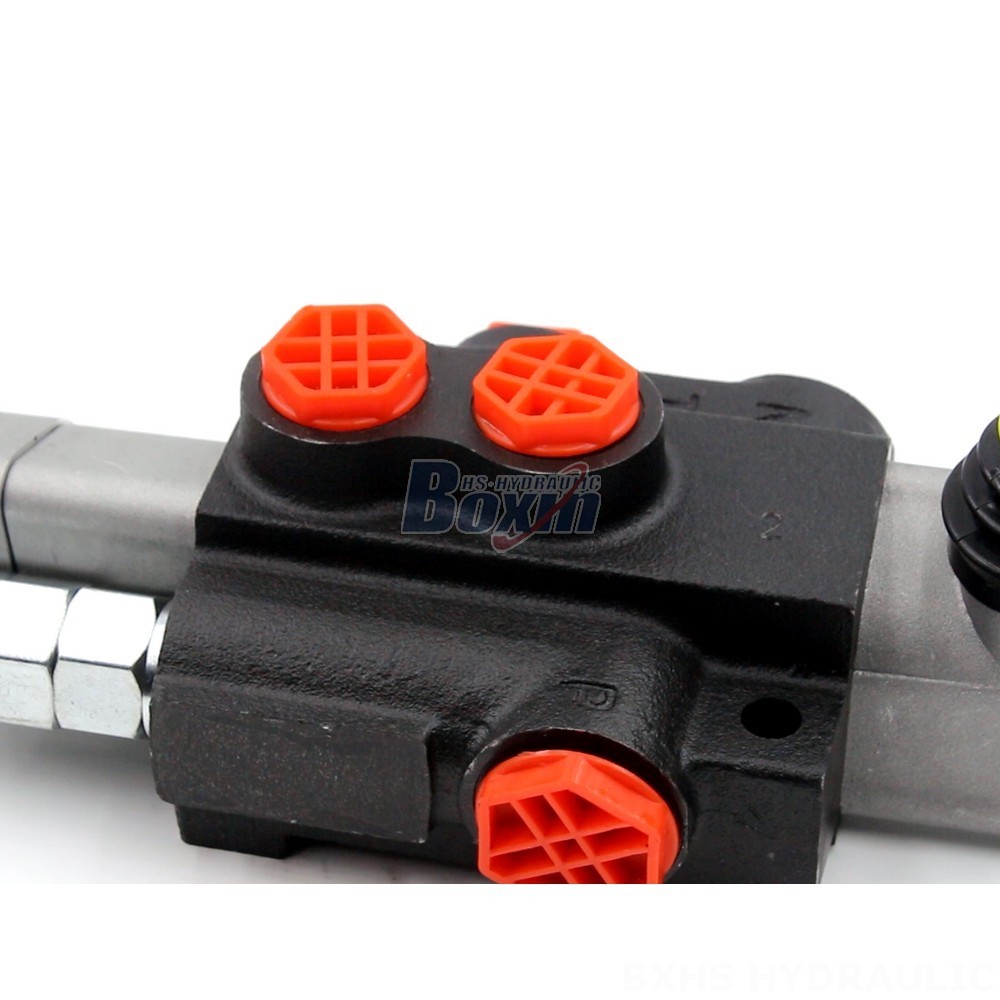

**P40-G12-G38-OTW Series Hydraulic Directional Control Valve**
The P40-G12-G38-OTW Series Hydraulic Directional Control Valve is a monoblock valve with manual control. It has a rated flow of 40 L/min, a max pressure of 250 bar, and an operating viscosity range of 15 - 75 mm²/s. The valve has an ambient temperature range of -40°C to +80°C and is available with 1 spool. It is suitable for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
**Key Features:**
* Manual control
* Monoblock valve design
* 40 L/min rated flow
* 250 bar max pressure
* 15 - 75 mm²/s operating viscosity range
* -40°C to +80°C ambient temperature range
* 1 spool
**Applications:**
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
* Telehandler
* Forklift
* All terrain crane
* Stacker
* Aerial platform
