The P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve offers unmatched accuracy and control for demanding hydraulic applications. Its innovative joystick design provides precise and intuitive operation, while the 2-spool monoblock construction ensures reliability and durability. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for a wide range of applications in material handling, construction, agriculture, and industrial vehicles.
| Serie P40 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Solenoide e joystick, Manuale e joystick, A solenoide e a cavo |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 40 L/min (10.5 US gpm) |
| Pressione massima | 250 bar (3600 psi) |
| Attacco di ingresso | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Attacco di uscita | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimensione attacco | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

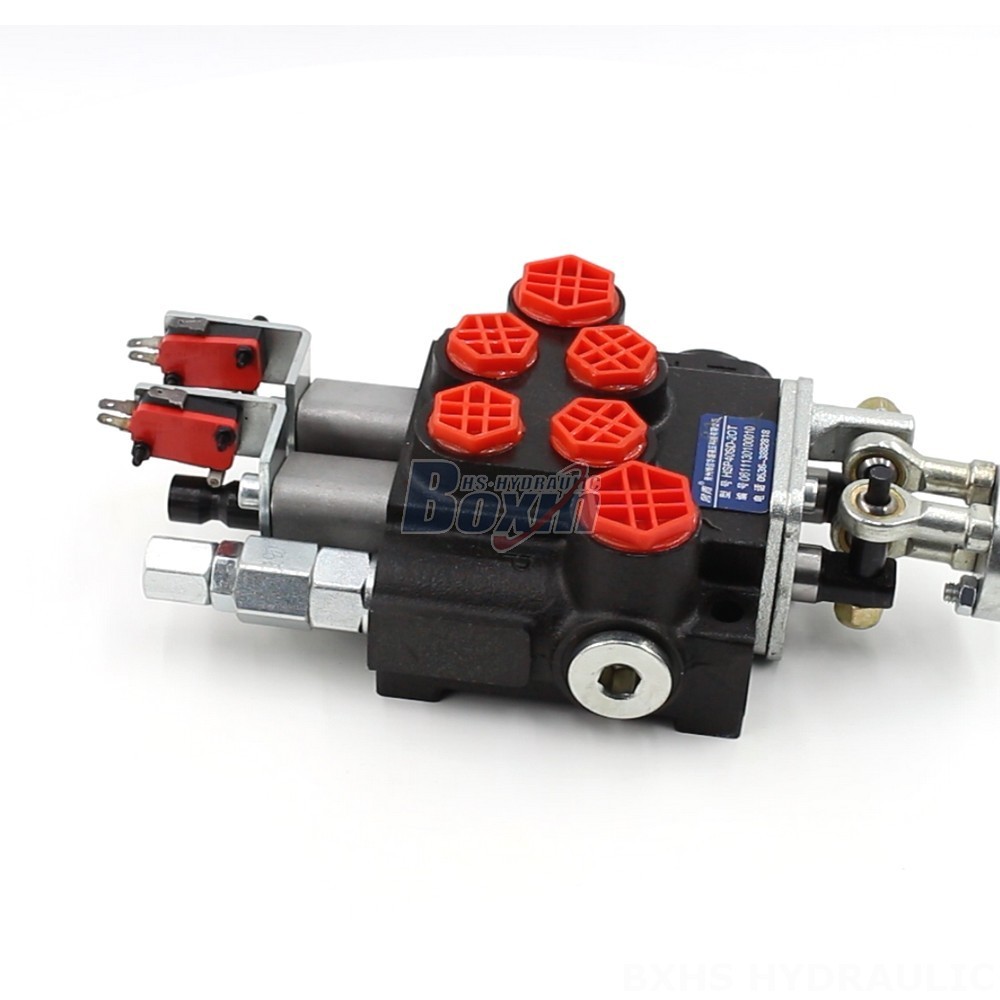

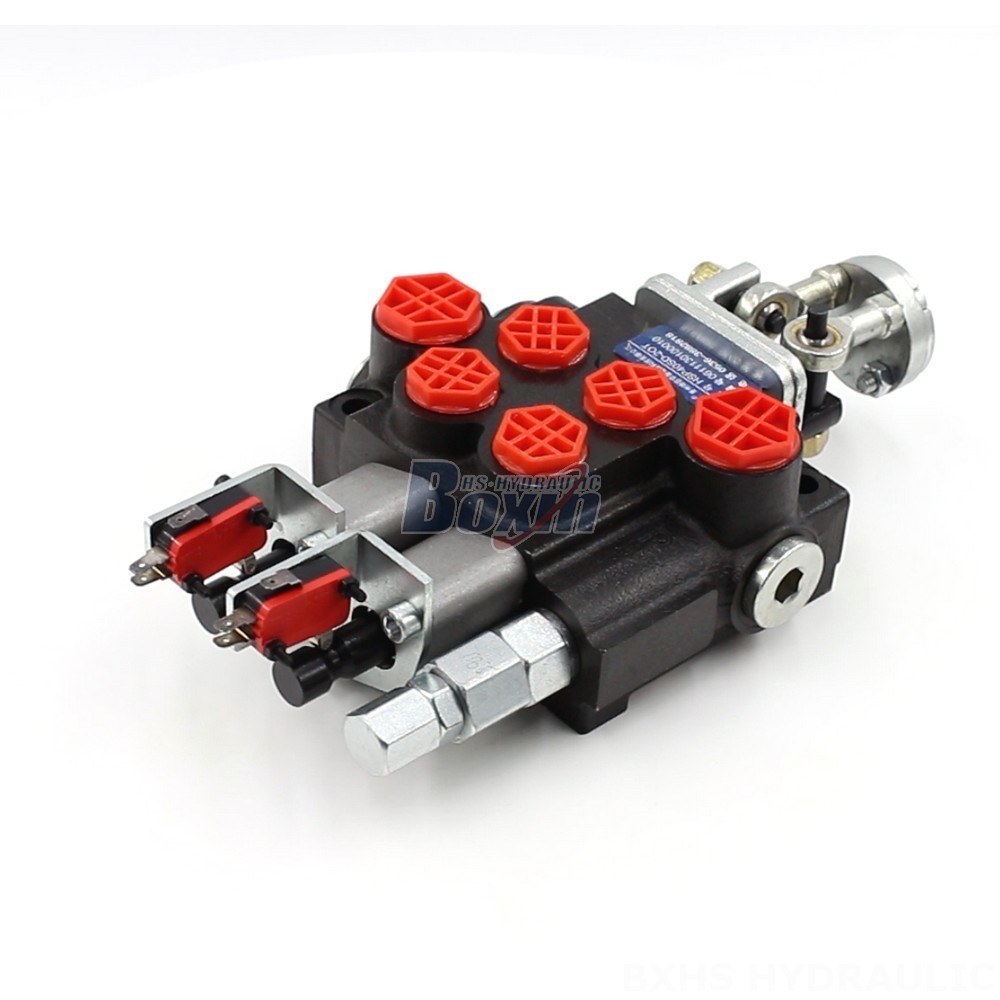

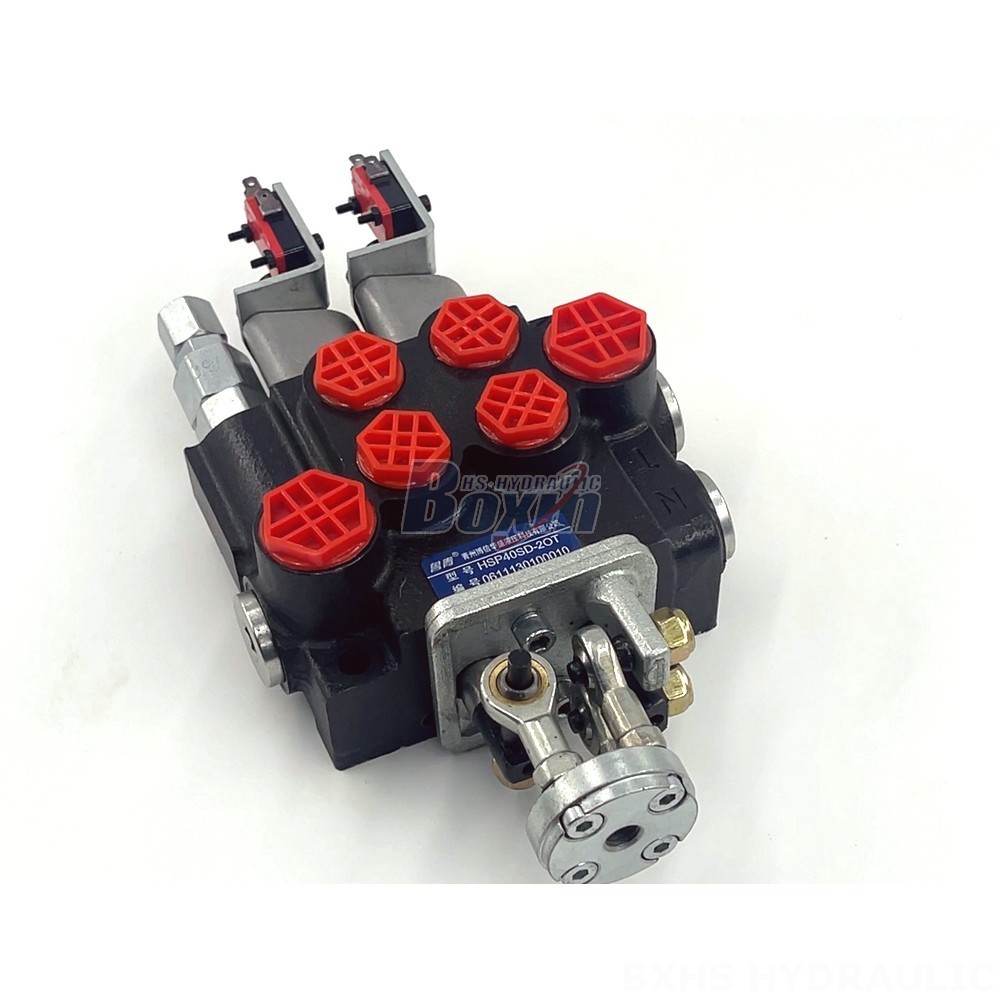

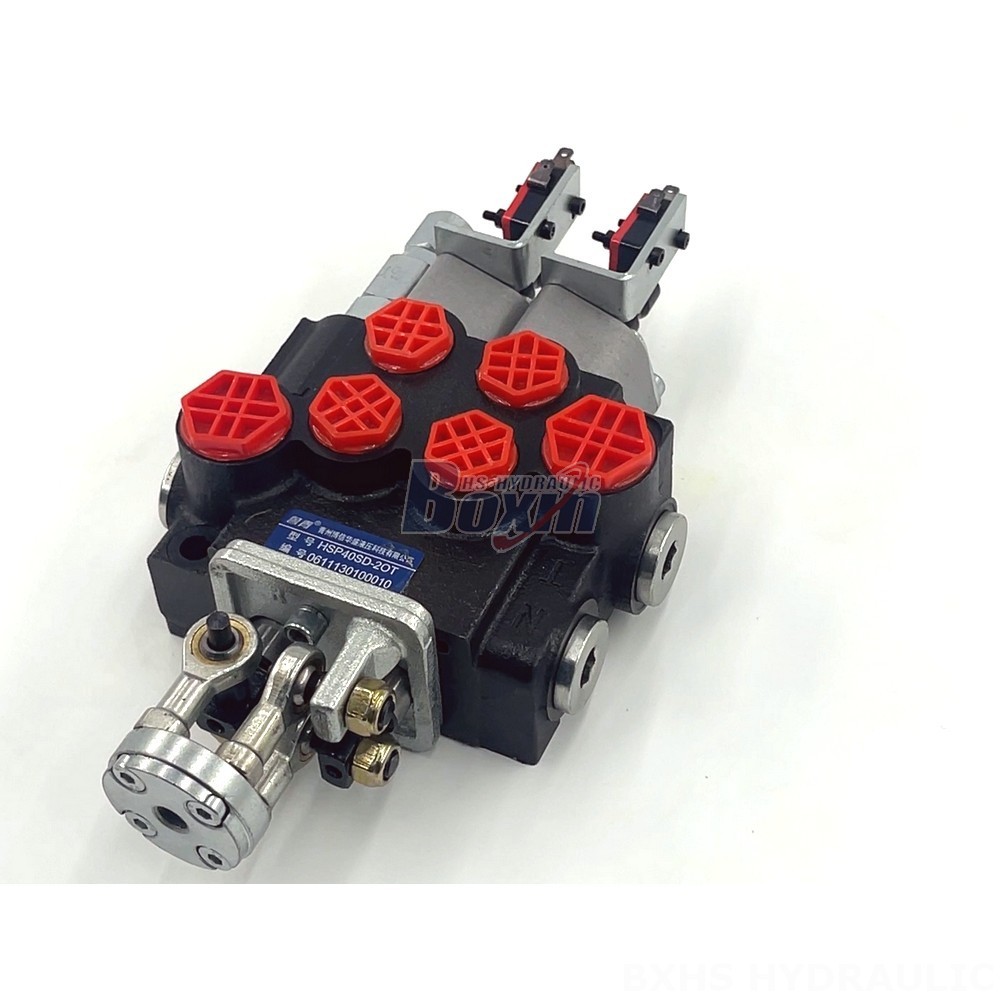

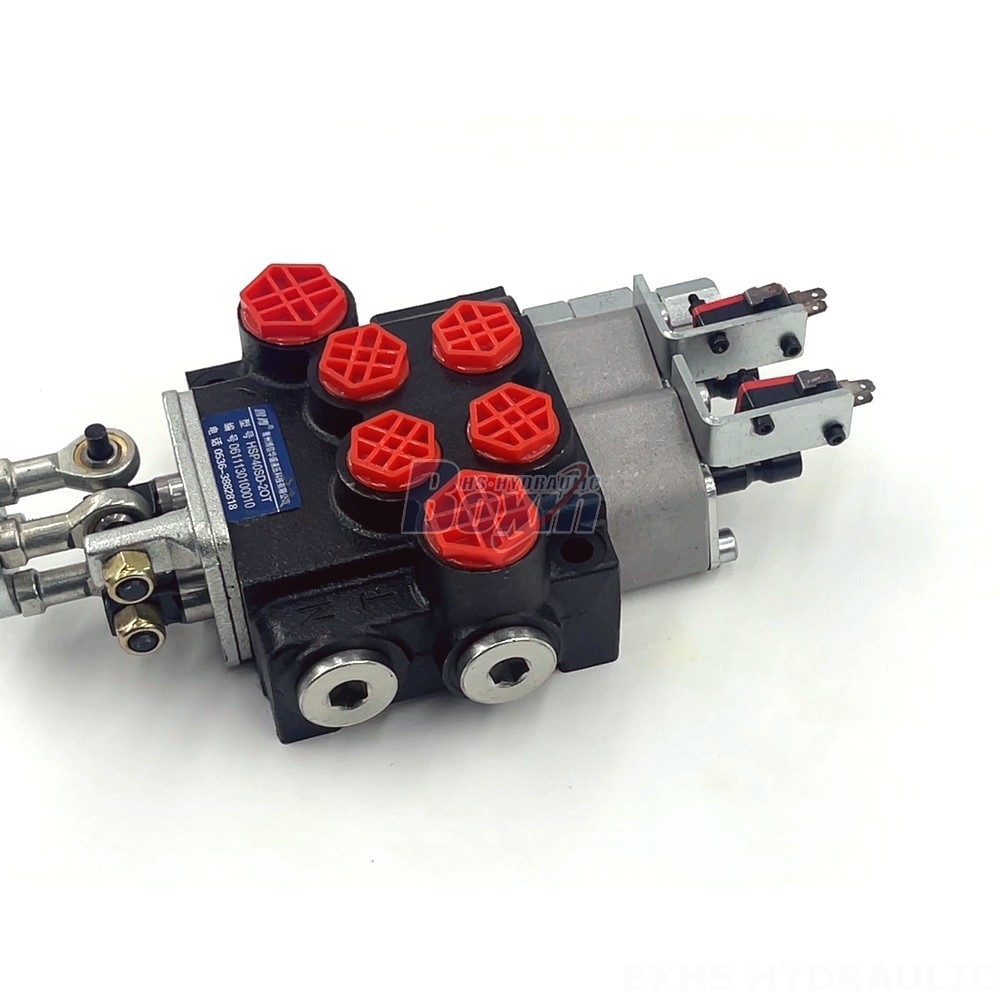

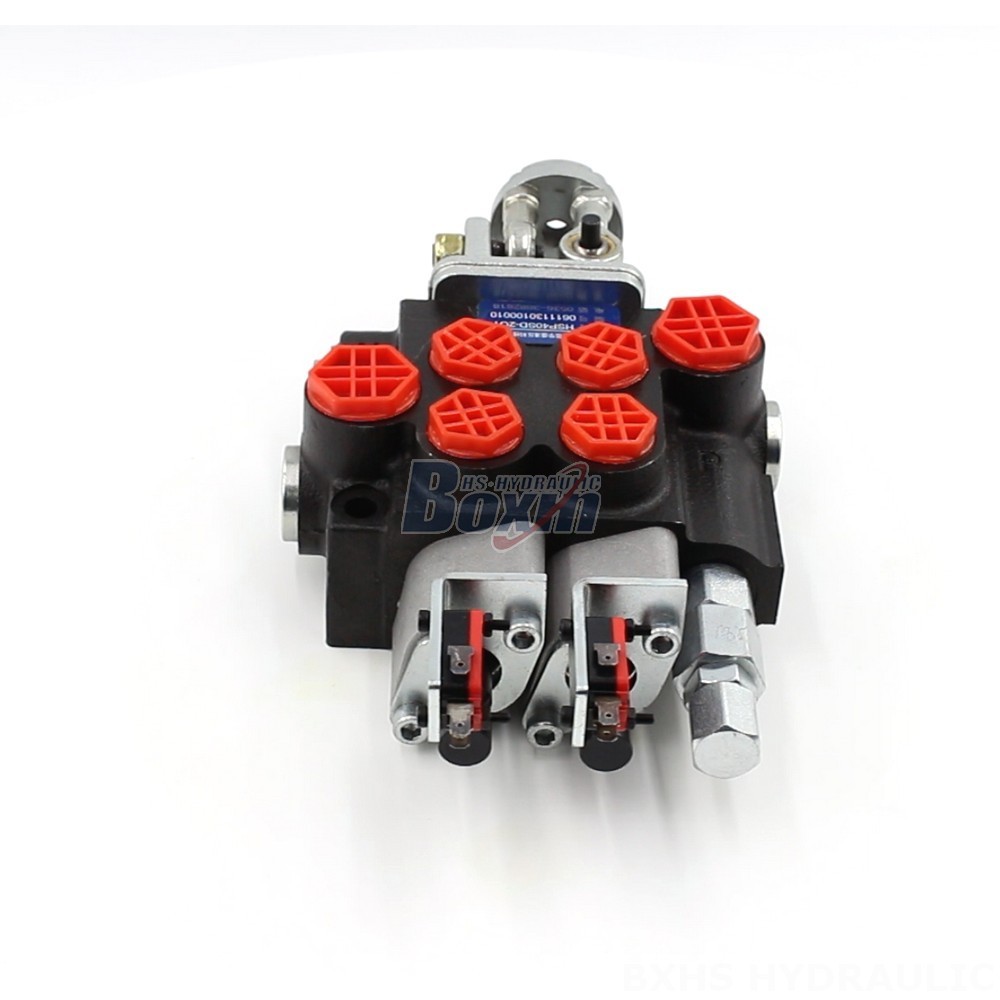

**P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve**
**Key Features:**
* Joystick control for precise and intuitive operation
* 2-spool monoblock construction for reliability and durability
* Rated flow of 40 L/min for efficient performance
* Maximum pressure of 250 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for versatility
* Ambient temperature range of -40°C to +80°C for extreme environments
**Applications:**
* Material handling: telehandlers, forklifts
* Construction and earth moving: mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders
* Agriculture: harvesters, backhoes, sprayers, balers
* Industrial vehicles: forklifts, mobile cranes
The P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve is the ideal choice for applications requiring high-precision control and reliability. Its innovative design and robust construction make it a trusted choice for professionals in a wide range of industries.
