High-Performance P81 Valve for Demanding Hydraulic Applications

Metodo di Controllo:Manuale

Spoo:1 Spola

Portata nominale:80 L/min (21.2 US gpm)

Pressione massima:Pressione max 19 MPa (2735 psi)

Attacco di ingresso:G1/2

Attacco di uscita:G3/4

Dimensione attacco:G3/4

Marchio:BXHS

Tipo di prodotto:Valvola per Spacca-legna

Serie di prodotti:Serie P81 Valvola per Spacca-legna

Dimensioni dell'imballaggio:27*16*12

Peso lordo:4.80 kg

Disponibilità: In magazzino

1674 Le visualizzazioni cercano questo prodotto

High-Performance P81 Valve for Demanding Hydraulic Applications

High-Performance P81 Valve for Demanding Hydraulic Applications

High-Performance P81 Valve for Demanding Hydraulic Applications drawing image

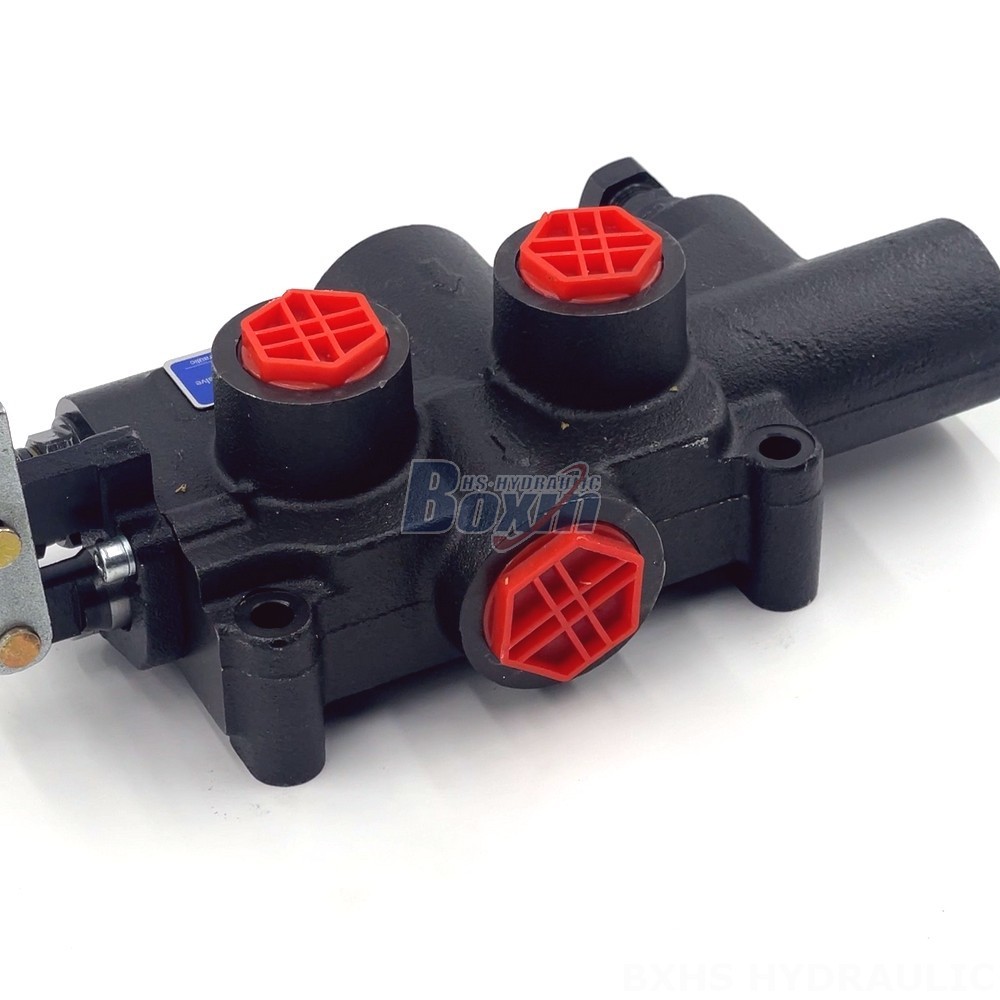

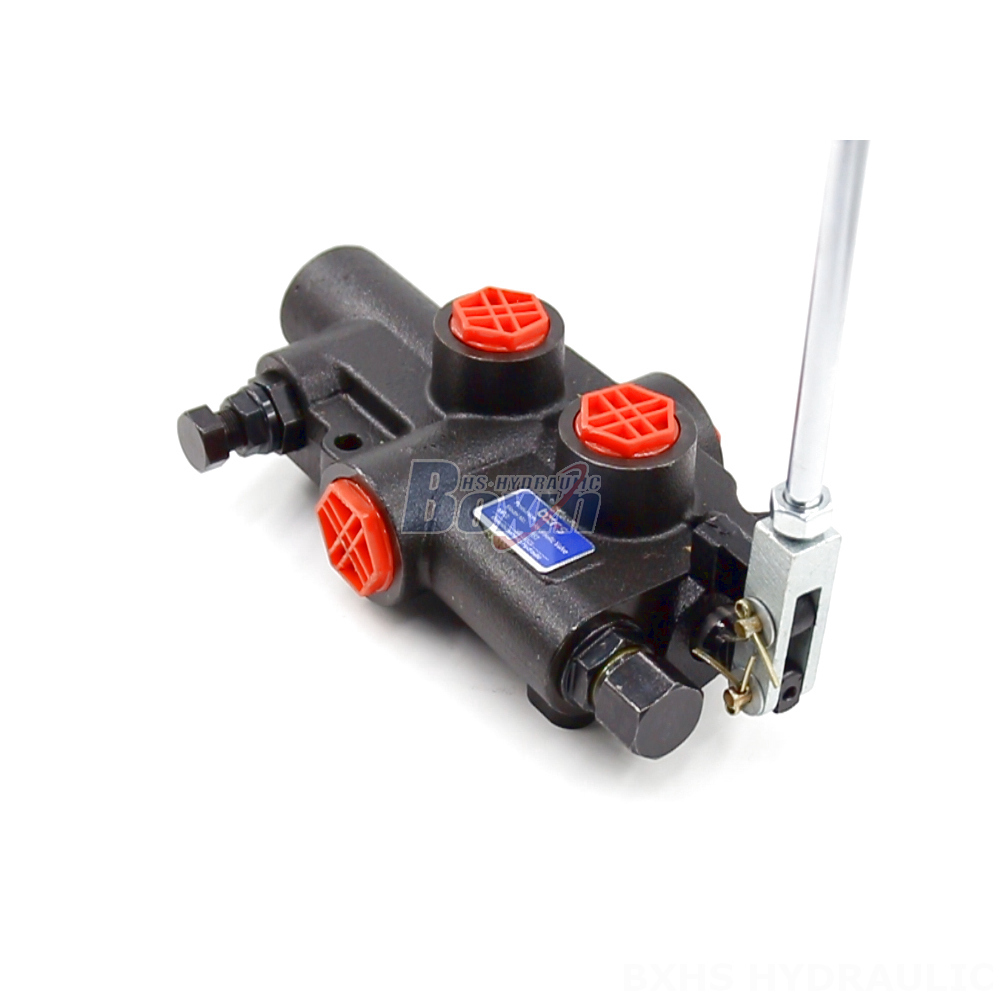

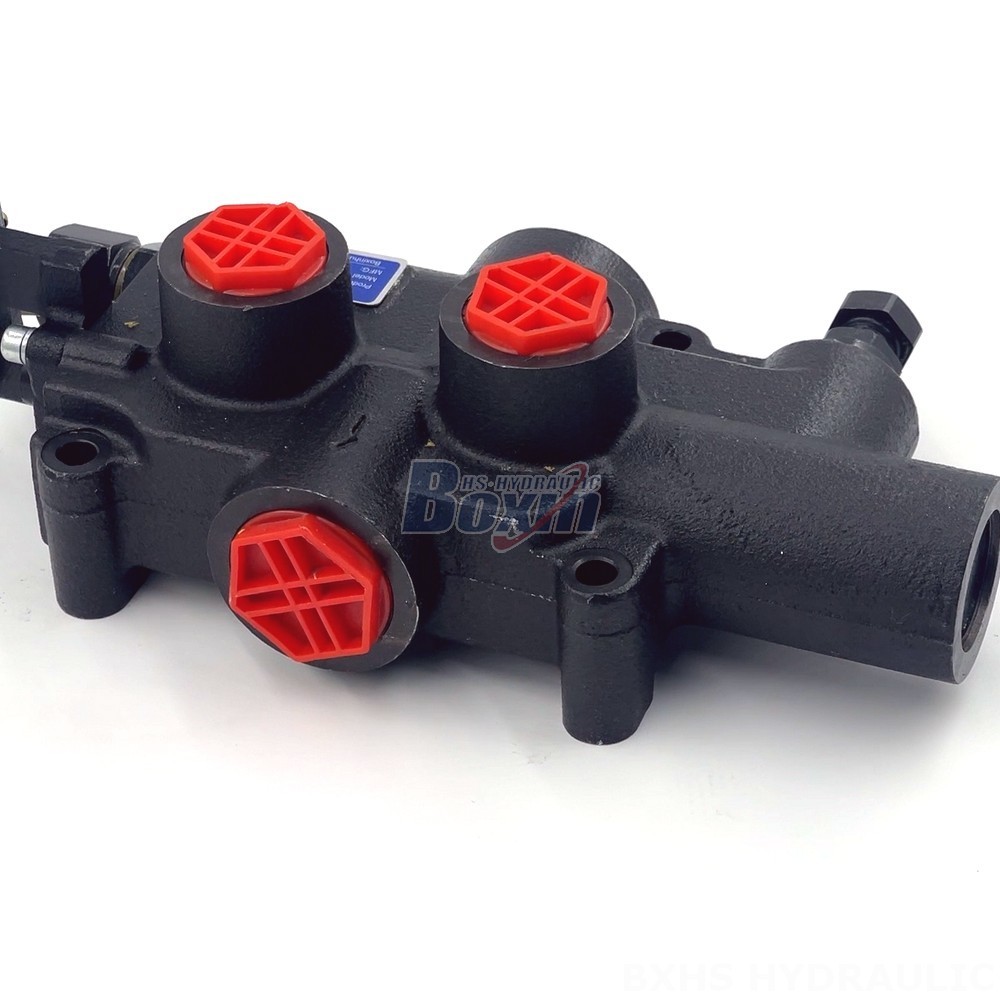

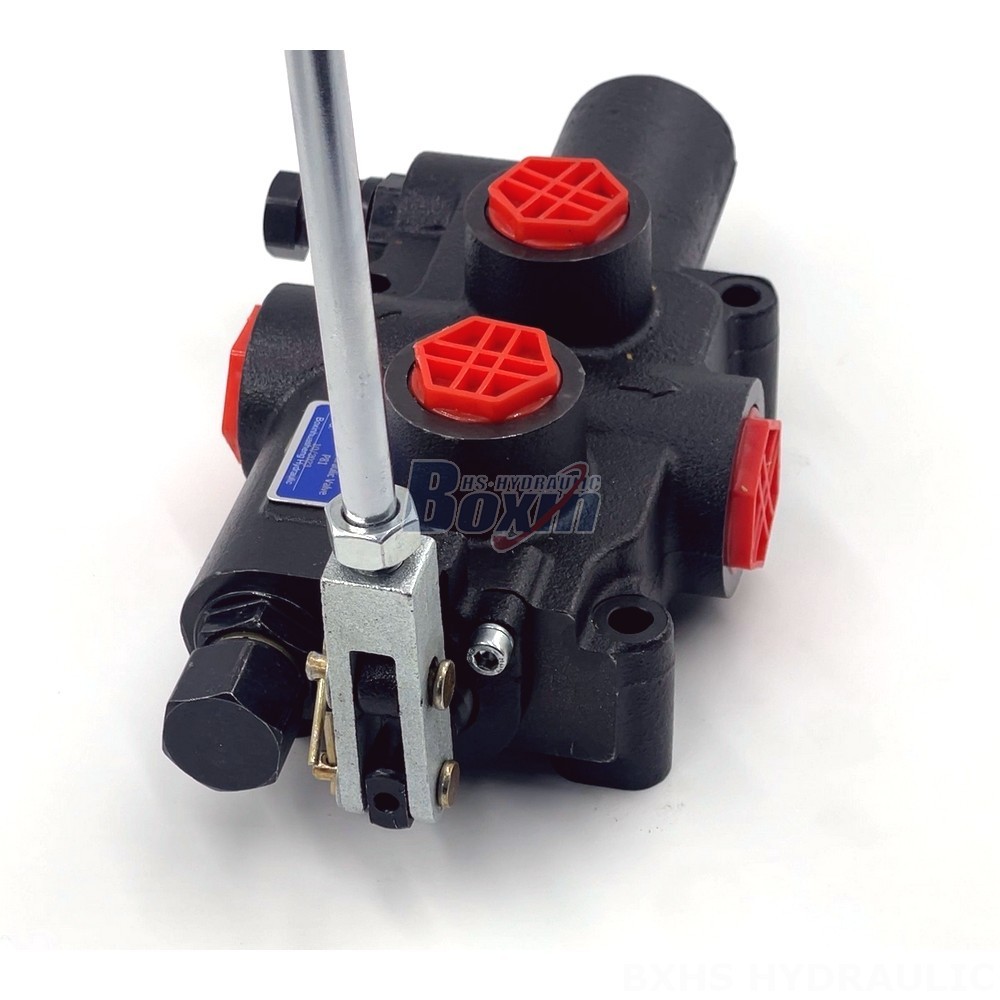

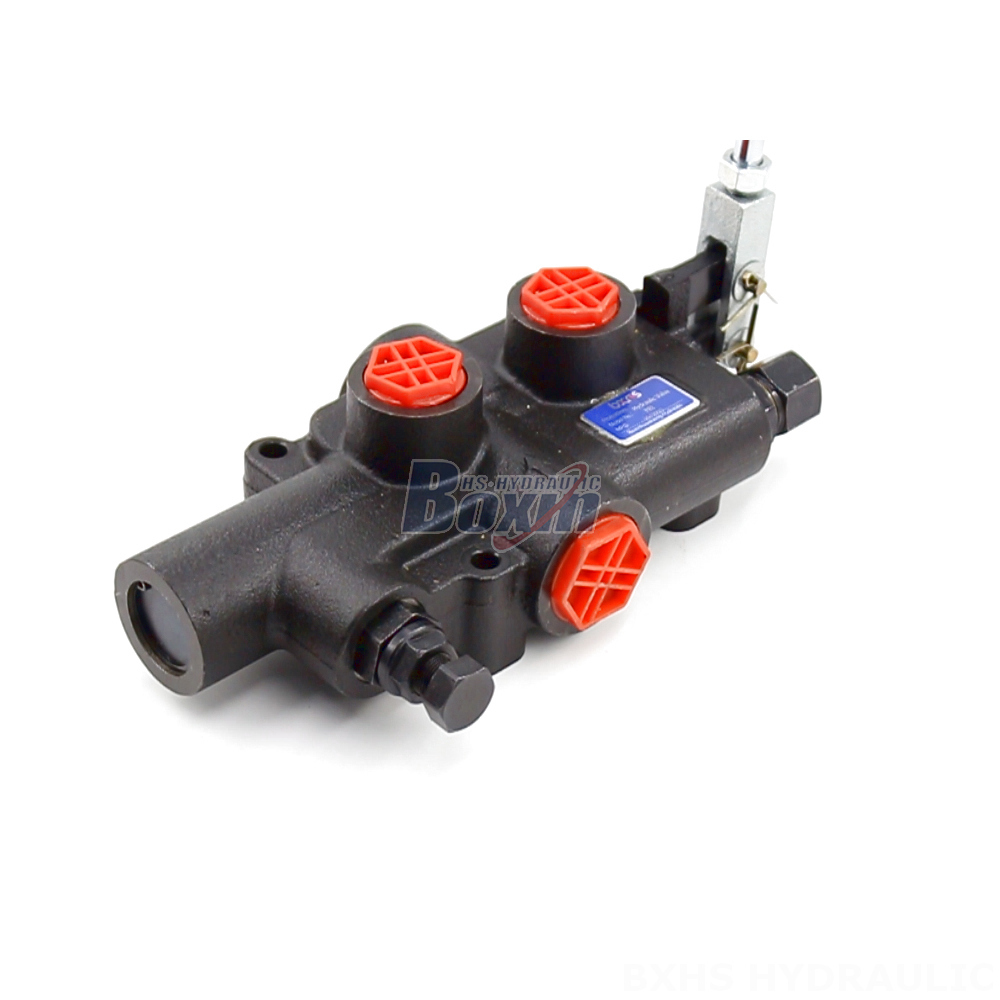

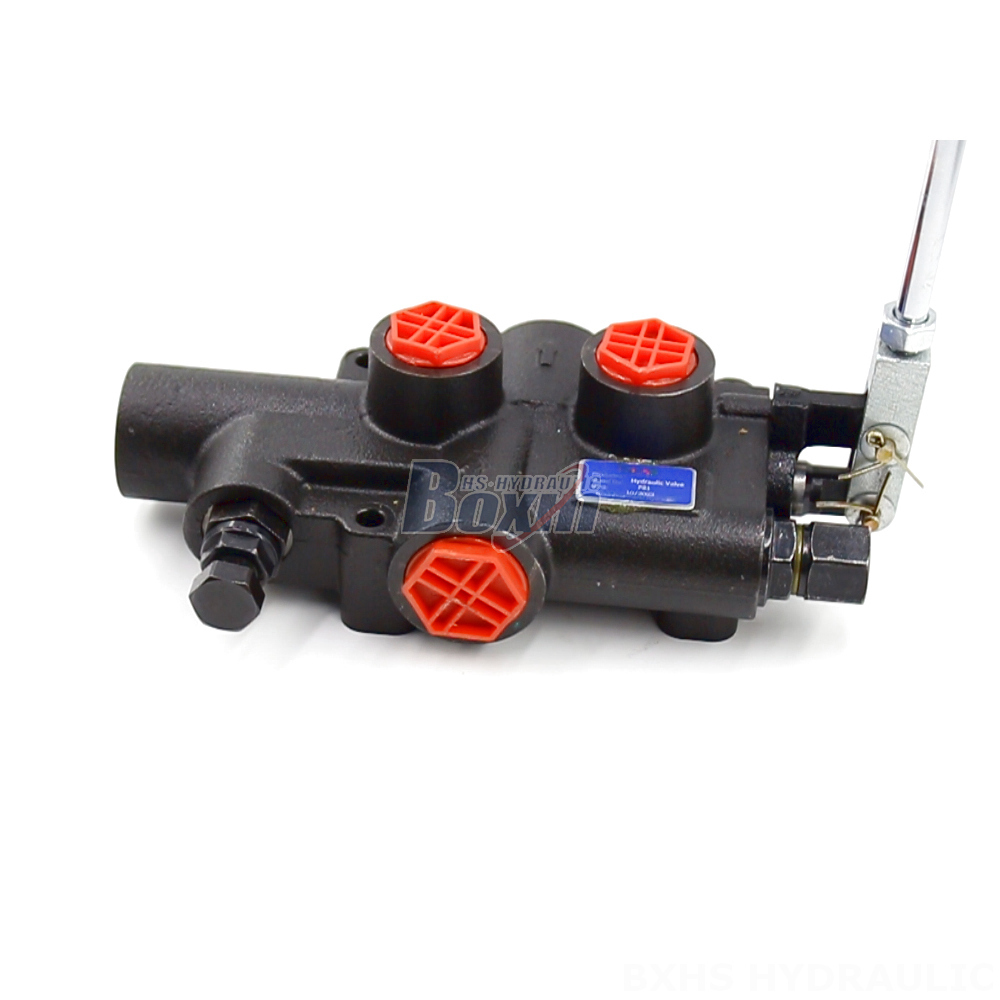

The P81 Series Multiway Directional Valve is a high-performance hydraulic valve designed for demanding applications in industrial vehicles, particularly wood splitters. This manual control valve features a monoblock structure and delivers a rated flow of 80 L/min (21.2 US gpm) at a maximum pressure of 250 bar (3600 psi).

Serie P81 Valvola per Spacca-legna Parametri
Metodo di Controllo Manuale
Spoo 1 Spola
Intervallo di temperatura ambiente -40°C to +80°C (-40°F to +176°F)
Tipo di struttura Valvola monoblocco
Sezione Sezione 1
Intervallo di viscosità operativa 15 - 75 mm²/s (15 cSt to 75 cSt)
Portata nominale 80 L/min (21.2 US gpm), 95 L/min (25.1 US gpm)
Pressione massima Pressione max 19 MPa (2735 psi)
Attacco di ingresso G1/2
Attacco di uscita G1/2
Dimensione attacco G3/4

The P81 Series Multiway Directional Valve is a robust and reliable solution for controlling hydraulic systems in demanding industrial applications. This high-performance valve is specifically designed for wood splitters, offering superior control and efficiency. Its monoblock construction provides durability and strength, ensuring long-lasting performance. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), the P81 valve is capable of handling high-pressure hydraulic systems. The valve operates within a wide viscosity range (15 - 75 mm²/s) and can withstand temperatures from -40°C to +80°C. Its kick-out setting pressure is adjustable between 70~140bar (1015-2030psi), providing precise control and safety. The P81 Series Multiway Directional Valve is an ideal choice for manufacturers and users of industrial vehicles and equipment requiring a high-performance, reliable, and durable hydraulic valve solution.
