Produzione e consegna
Tempi di produzione di 15-30 giorni

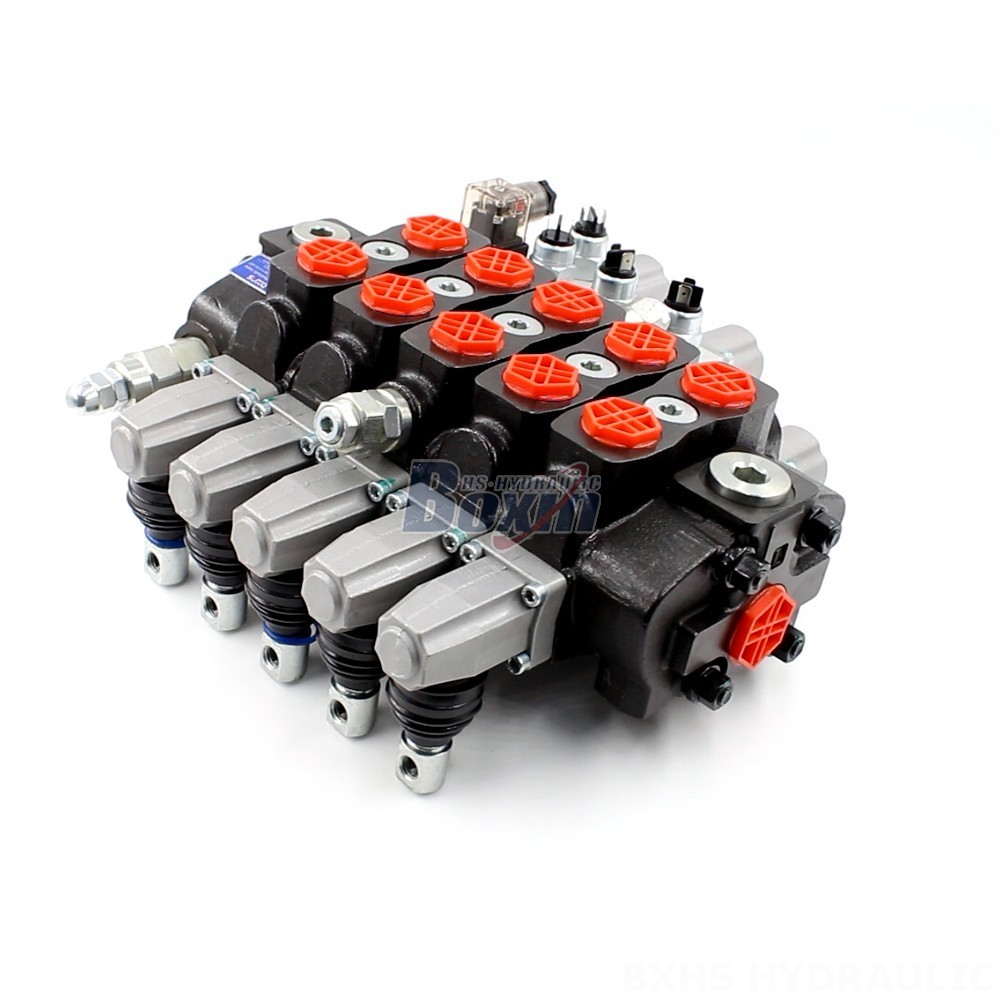

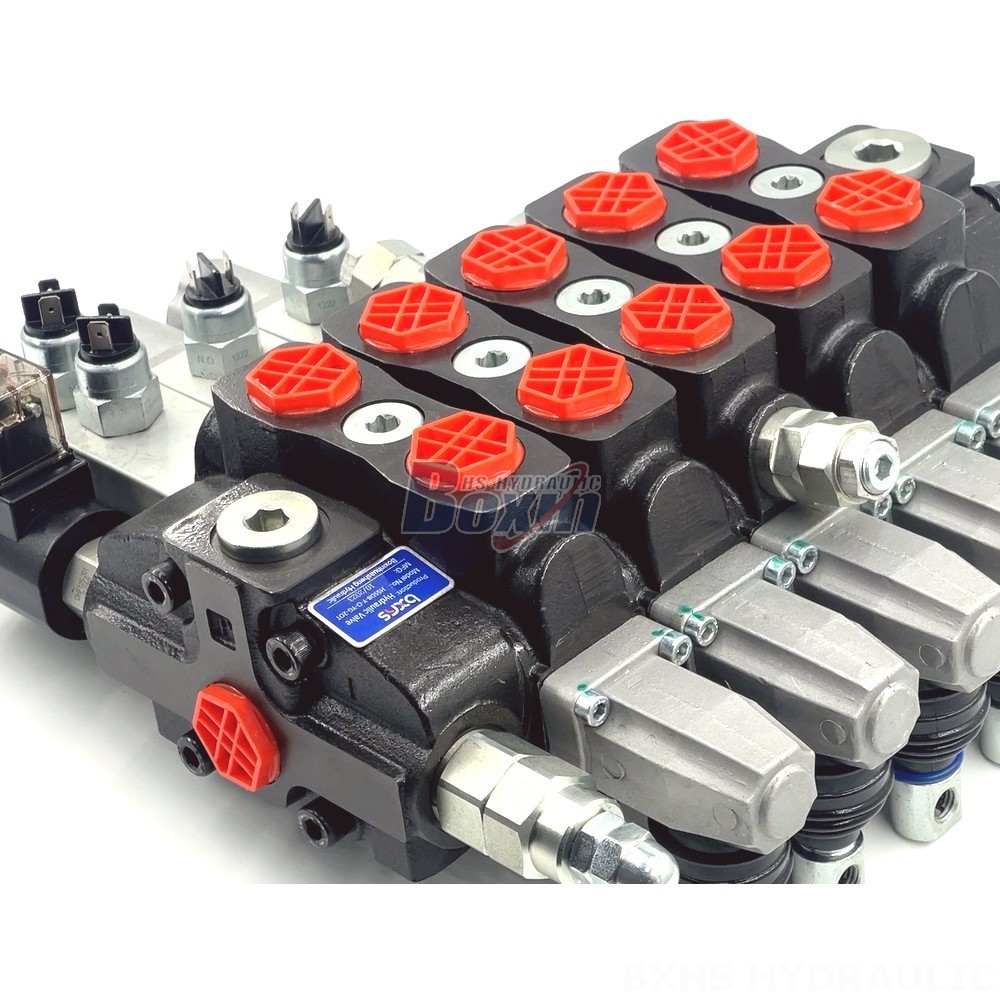

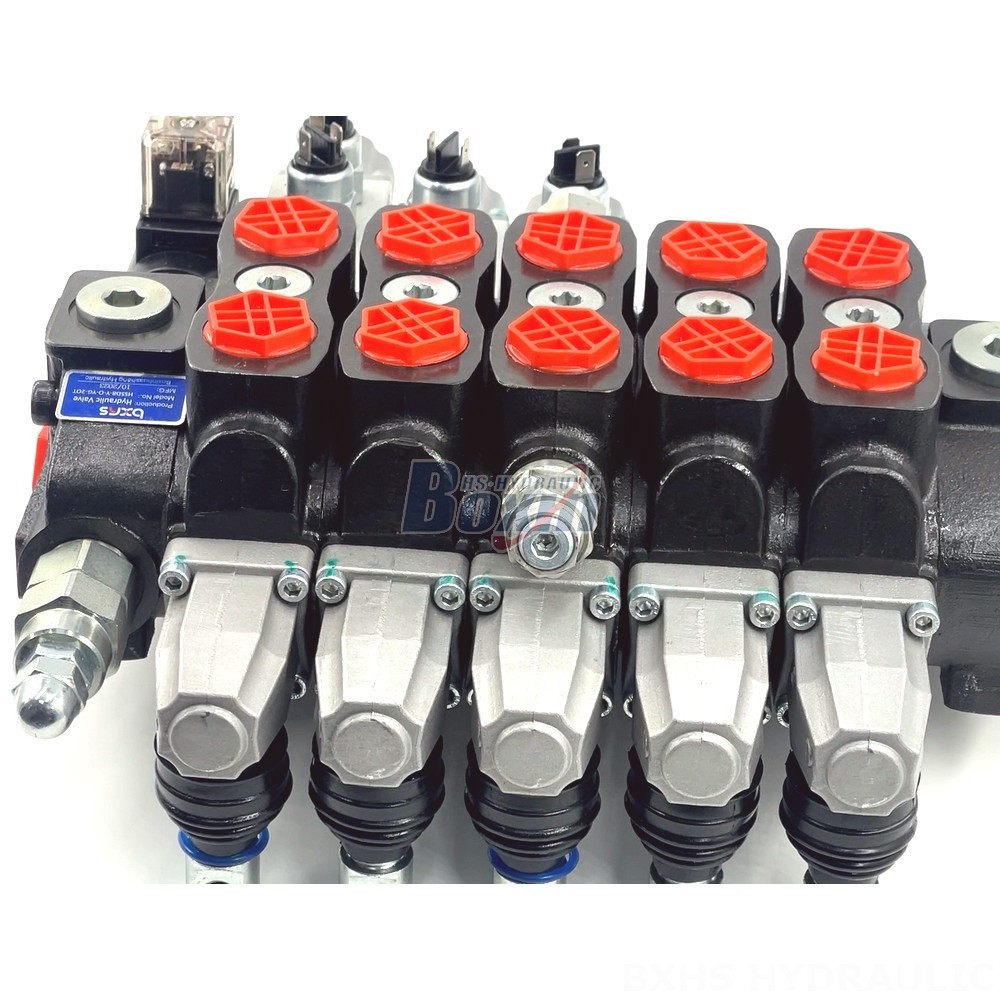

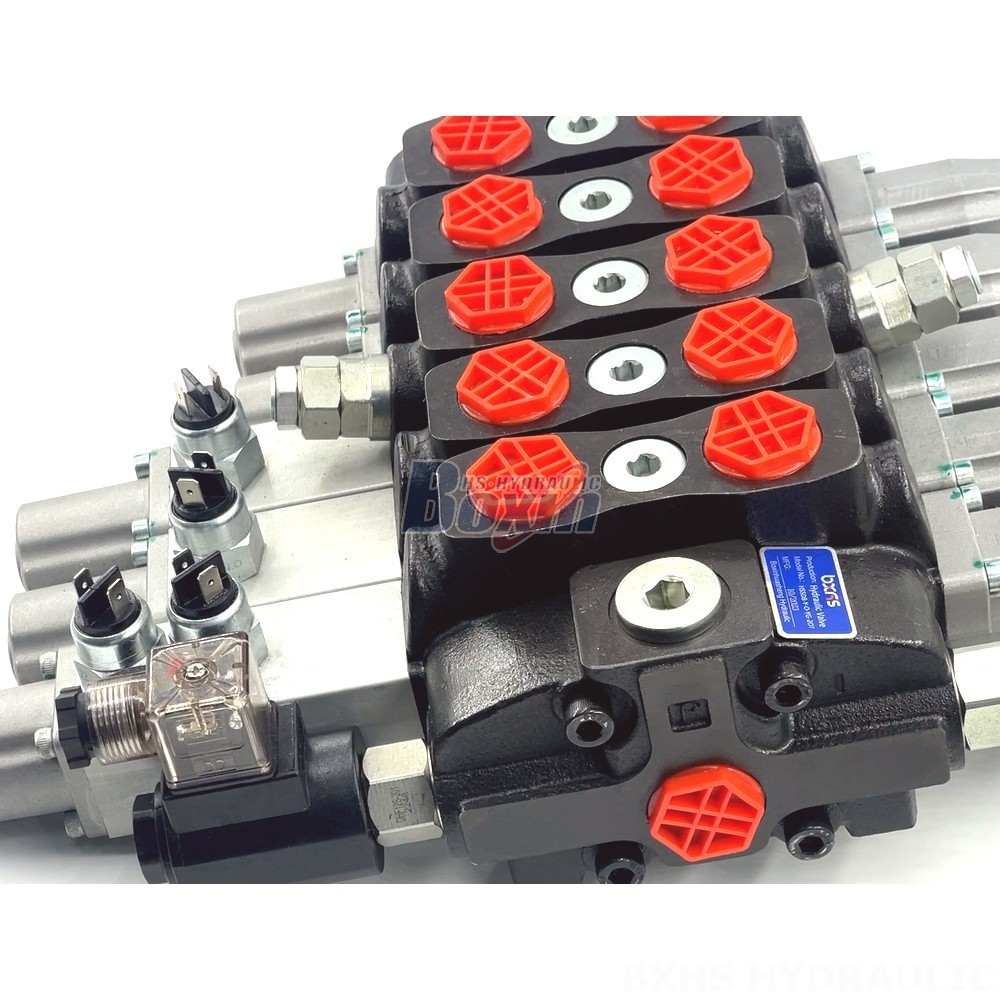

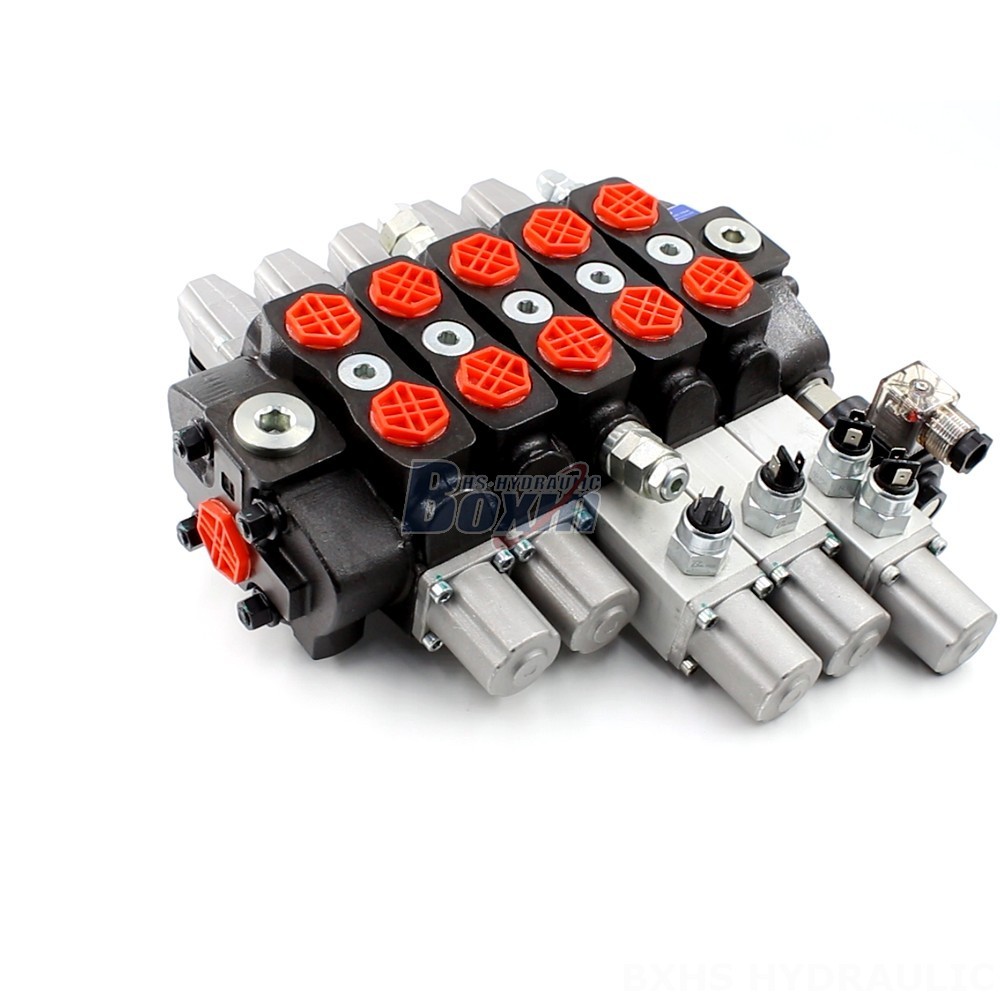

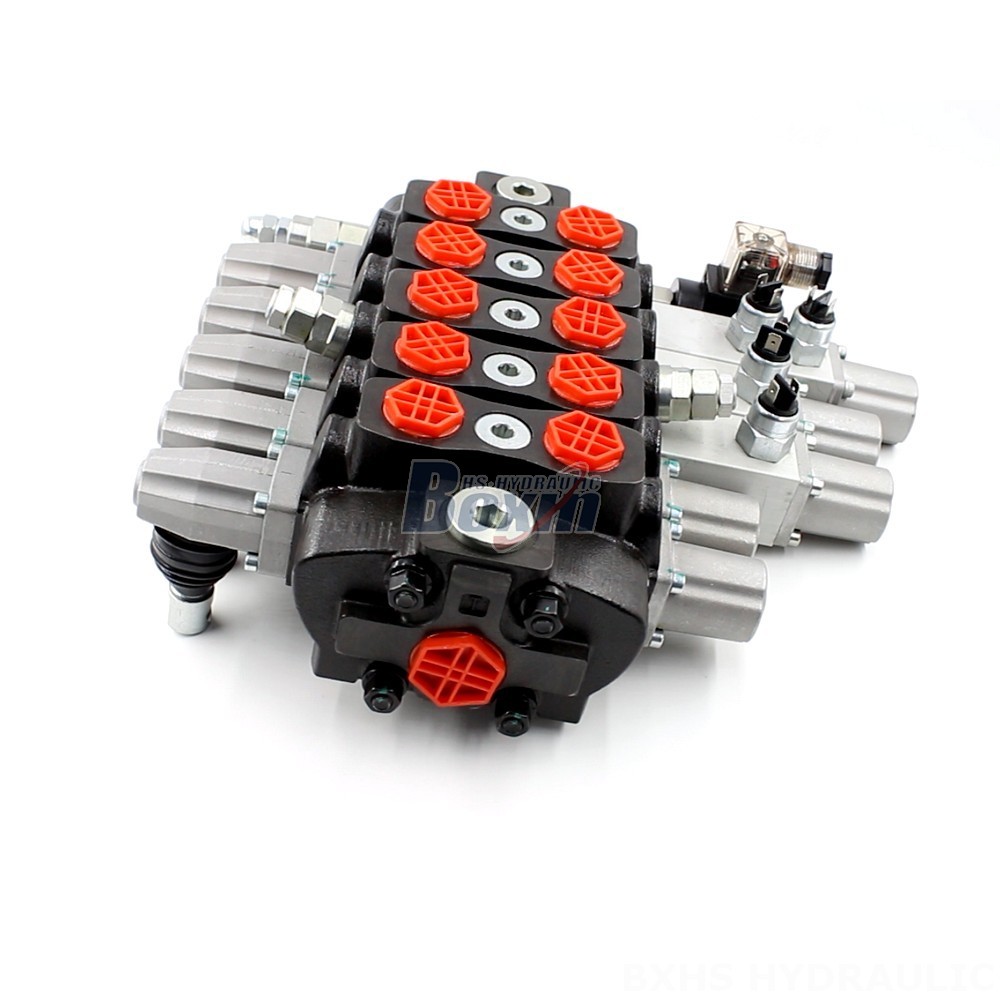

This is a high-performance manual 5 spool sectional directional valve designed for excavators and other heavy equipment. It features a rated flow of 90 L/min and a maximum pressure of 350 bar, making it ideal for demanding applications.
| Serie SD8 Valvola direzionale sezionale Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Solenoide e joystick, Manuale e joystick, Motore elettrico |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole, 8 Spole, 9 Spole, 10 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola sezionale |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7, Sezione 8, Sezione 9, Sezione 10 |
| Intervallo di viscosità operativa | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| Portata nominale | 90 L/min (23.8 US gpm) |
| Pressione massima | 315 bar (4600 psi) |
| Attacco di ingresso | G1/2, G3/4, M22×1.5, SAE 10 |
| Attacco di uscita | G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT |
| Dimensione attacco | G1/2, M22×1.5, SAE 10 |
Our Excavator Joystick Hydraulic Valve is a high-performance, manually controlled, 5 spool sectional directional valve. It is designed for demanding applications in the construction, material handling, agriculture, and industrial vehicle sectors. This valve offers a rated flow of 90 L/min and a maximum pressure of 350 bar. It is suitable for a wide range of applications, including excavators, forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters. The valve features a robust construction and reliable performance, ensuring long-lasting operation. With its 5 spool design, it offers precise control and responsiveness. This valve is an excellent choice for any application requiring high performance and reliable hydraulic control.
