Produzione e consegna
Tempi di produzione di 15-30 giorni
L’innovazione guida lo sviluppo e la tecnologia forgia il futuro
844 Le visualizzazioni cercano questo prodotto

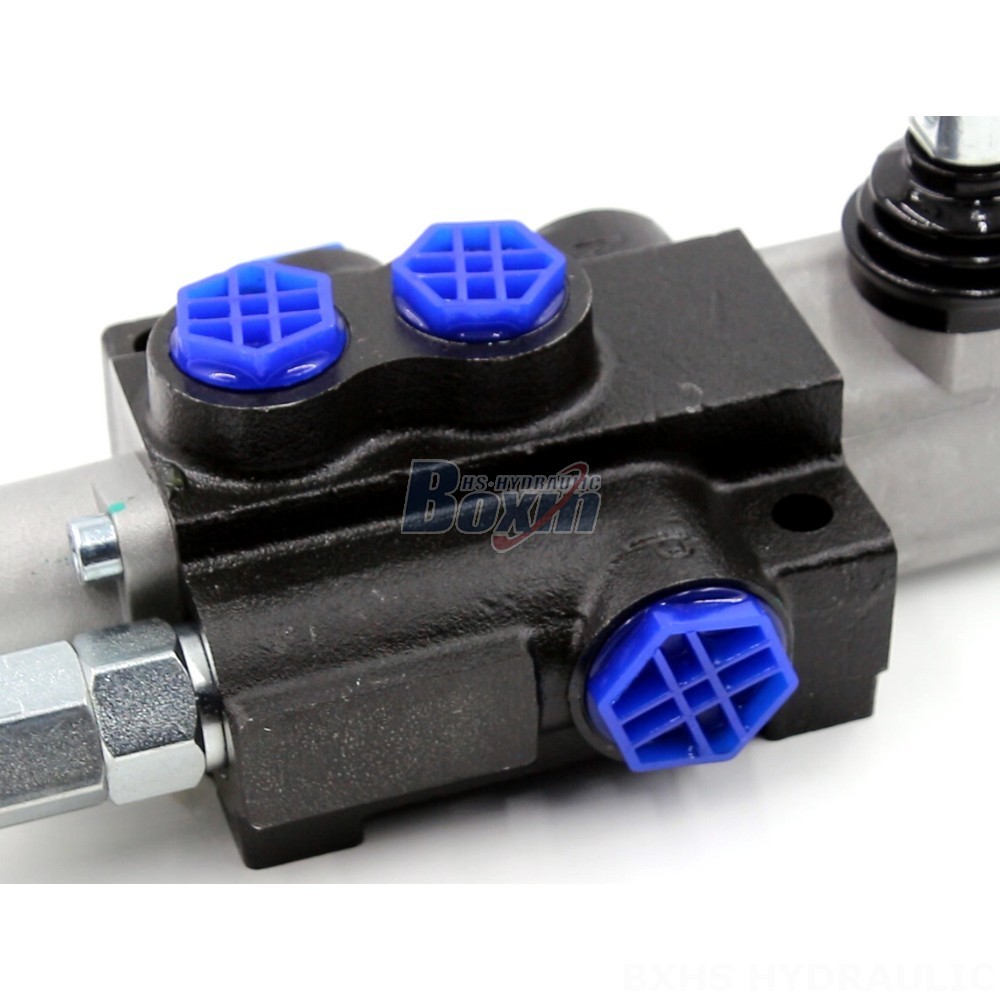

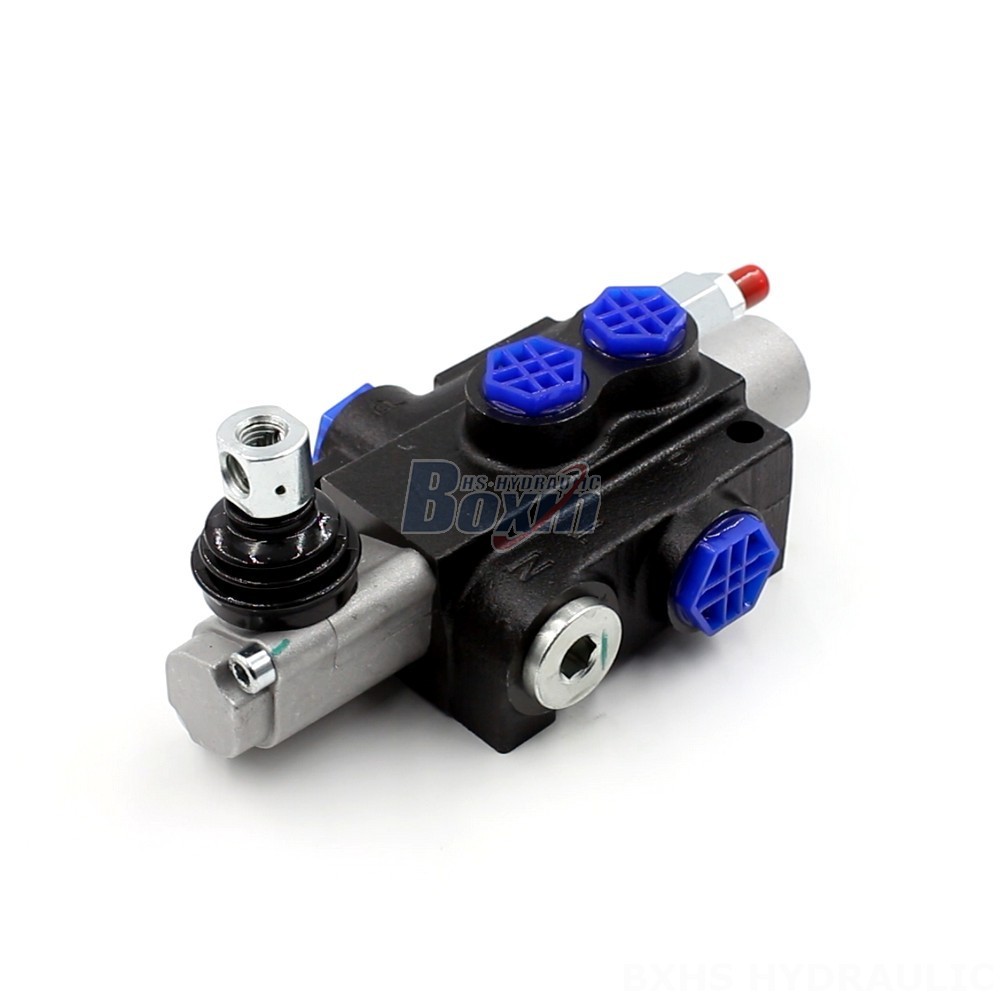

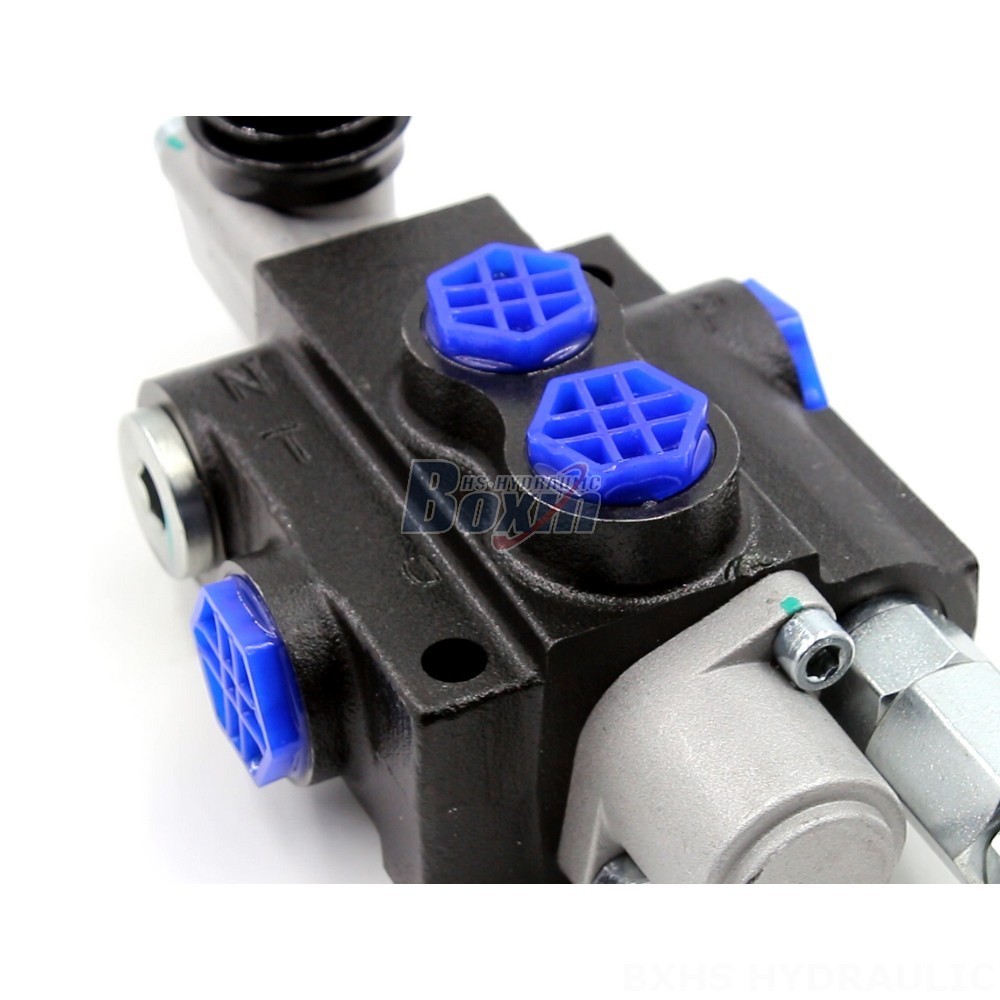

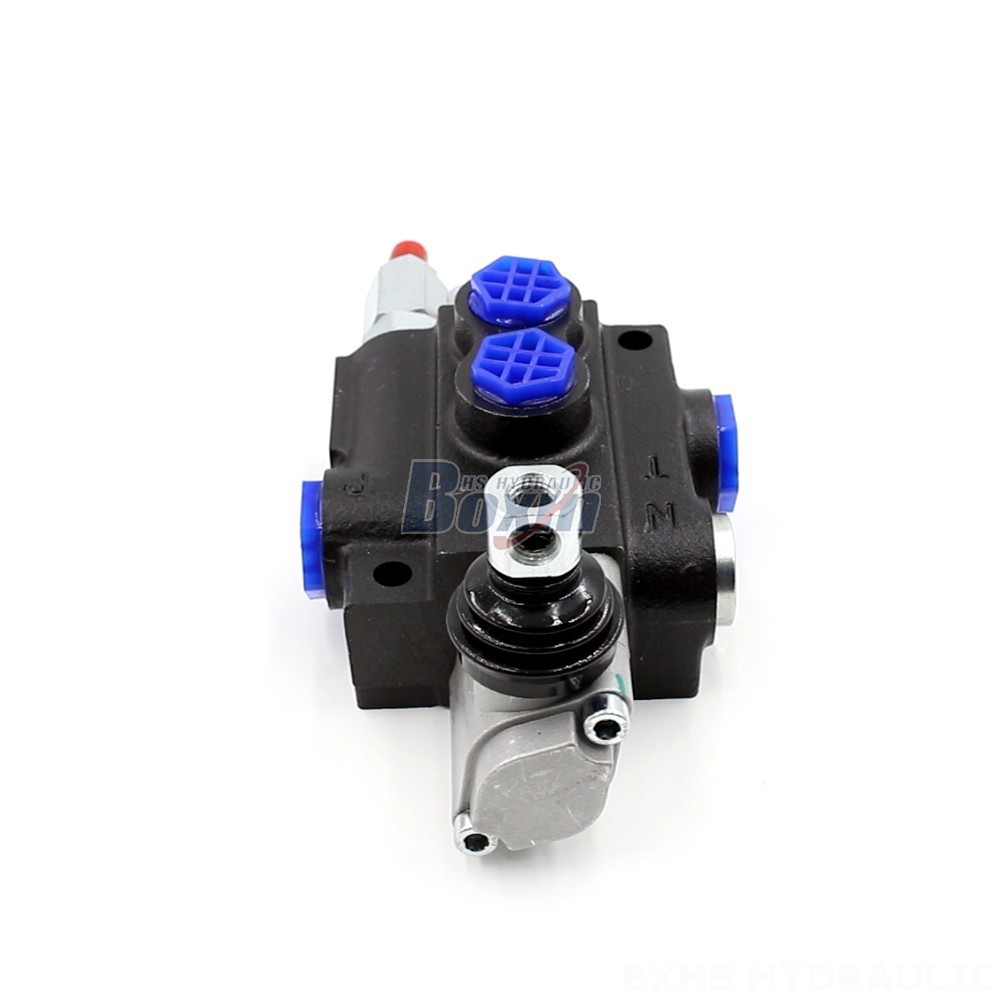

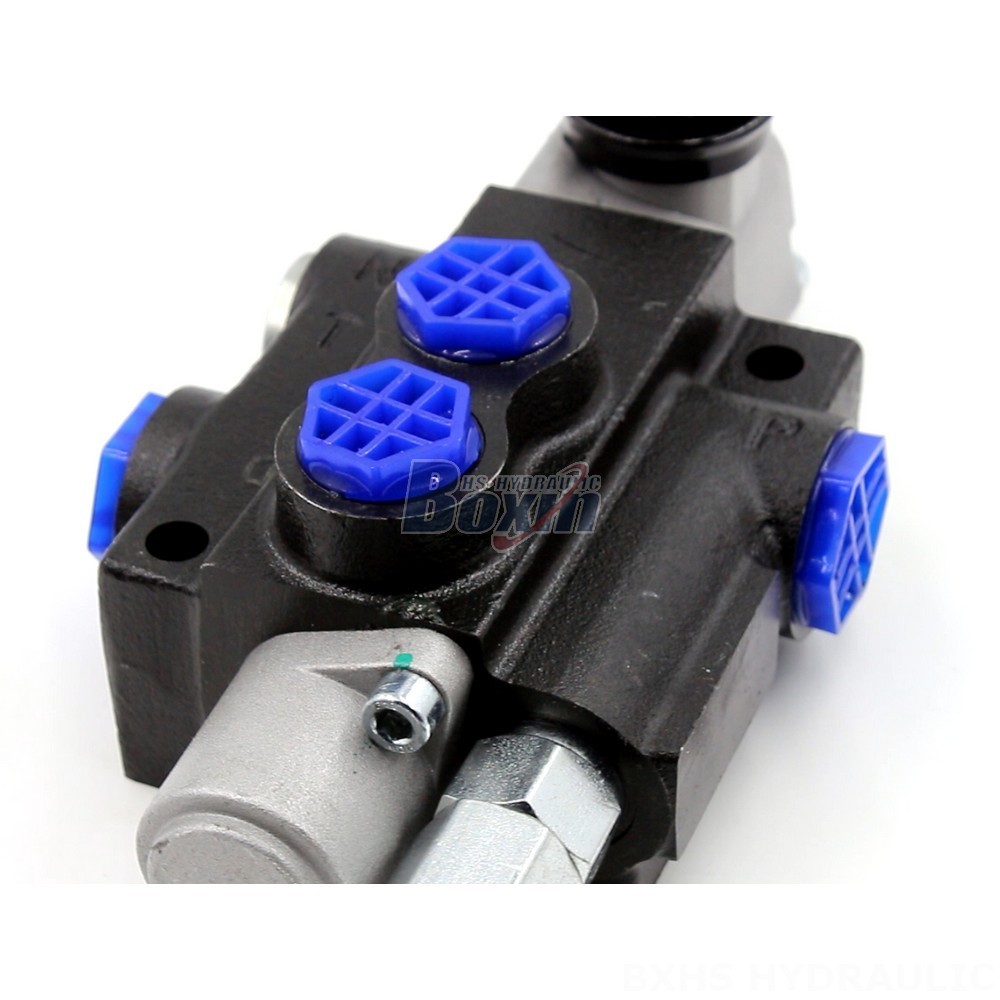

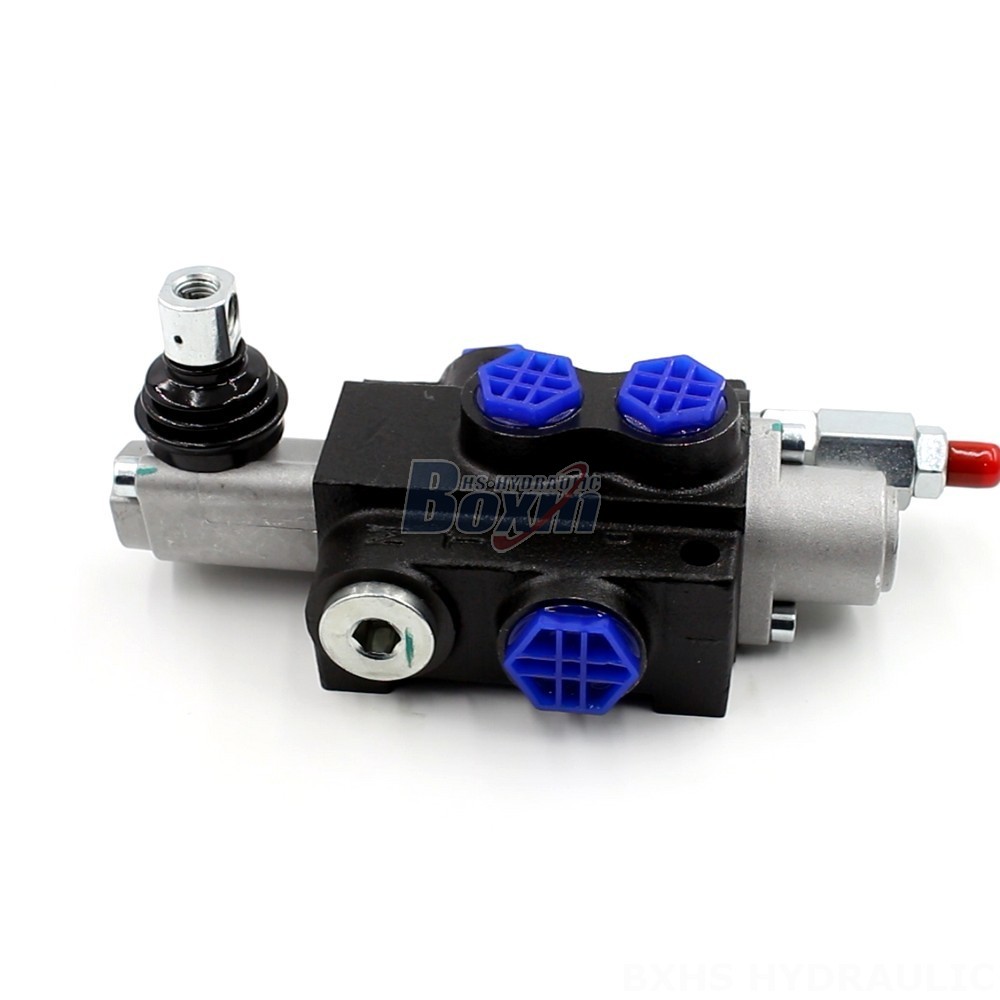

The P40-G12 High-Performance Hydraulic Directional Valve is designed for demanding applications in various industries, including material handling, construction and earth moving, agriculture, and industrial vehicles. This valve features manual control, a monoblock construction, and a rated flow of 40 L/min. With a maximum pressure of 250 bar and an operating viscosity range of 15 - 75 mm²/s, it can withstand challenging operating conditions. The P40-G12 is suitable for use in applications such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, and excavators.
| Serie P40 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Solenoide e joystick, Manuale e joystick, A solenoide e a cavo |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 40 L/min (10.5 US gpm) |
| Pressione massima | 250 bar (3600 psi) |
| Attacco di ingresso | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Attacco di uscita | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimensione attacco | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40-G12 High-Performance Hydraulic Directional Valve**
**Key Features:**
- Manual control for precise operation
- Monoblock construction for durability and reliability
- Rated flow of 40 L/min for efficient performance
- Maximum pressure of 250 bar for demanding applications
- Operating viscosity range of 15 - 75 mm²/s for versatility
- Ambient temperature range of -40°C to +80°C for use in various environments
- 1 spool for simple and effective flow control
**Applications:**
- MATERIAL HANDLING: Telehandlers, forklifts, stackers
- CONSTRUCTION AND EARTH MOVING: All-terrain cranes, motor graders, excavators
- AGRICULTURE: Tractors, harvesters
- INDUSTRIAL VEHICLES: Aerial platforms, skid steer loaders, compact wheel loaders
