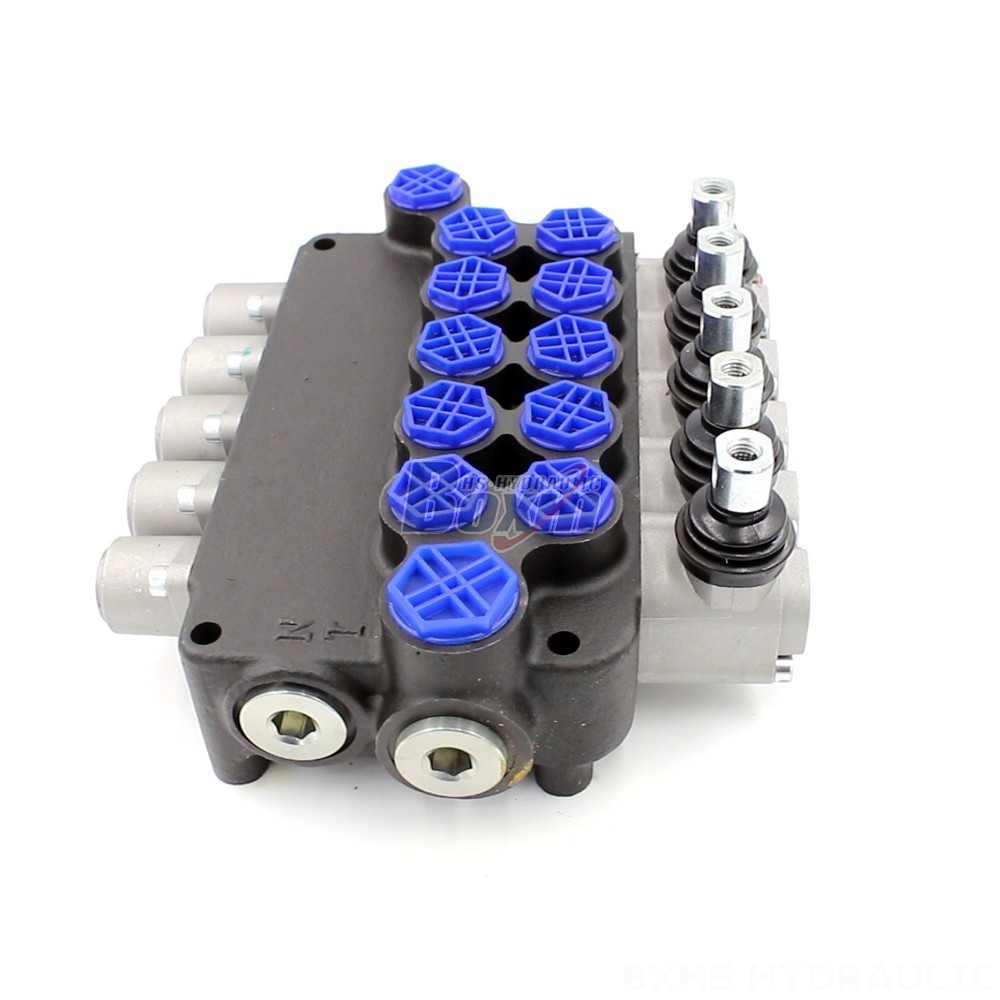

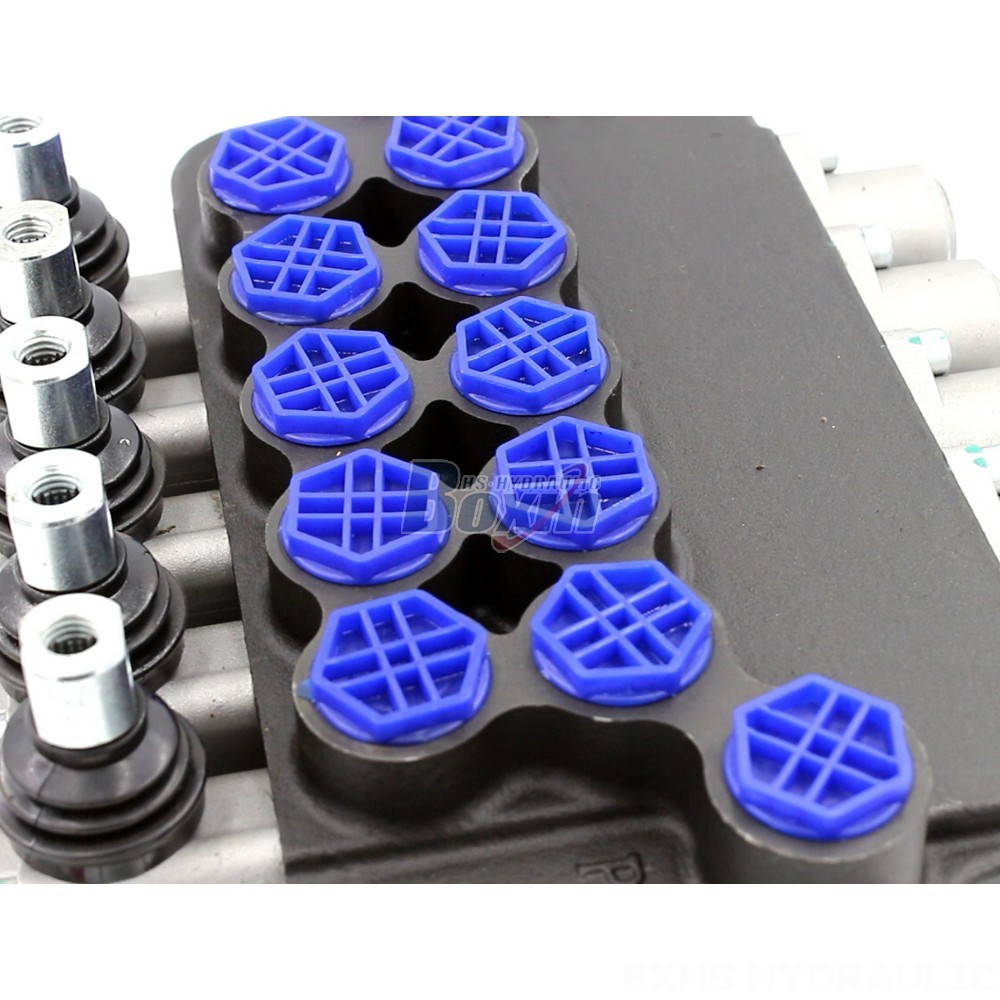

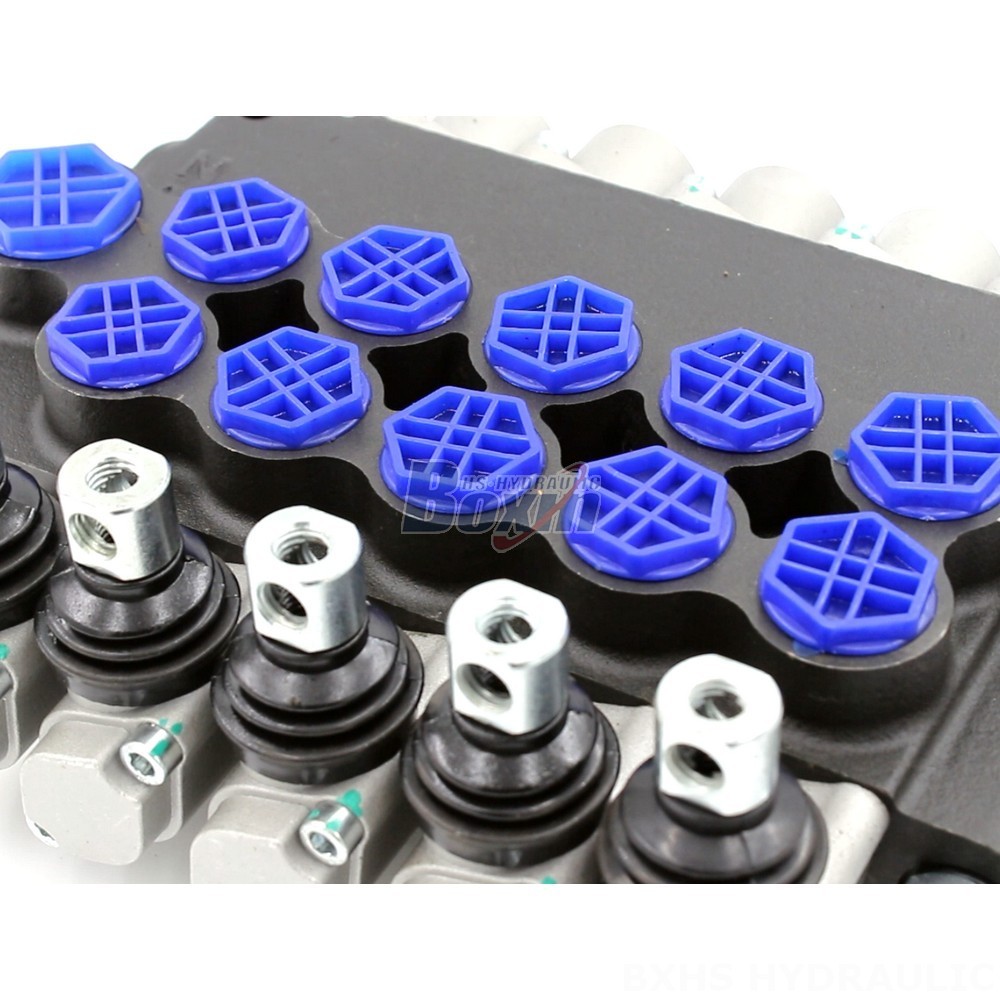

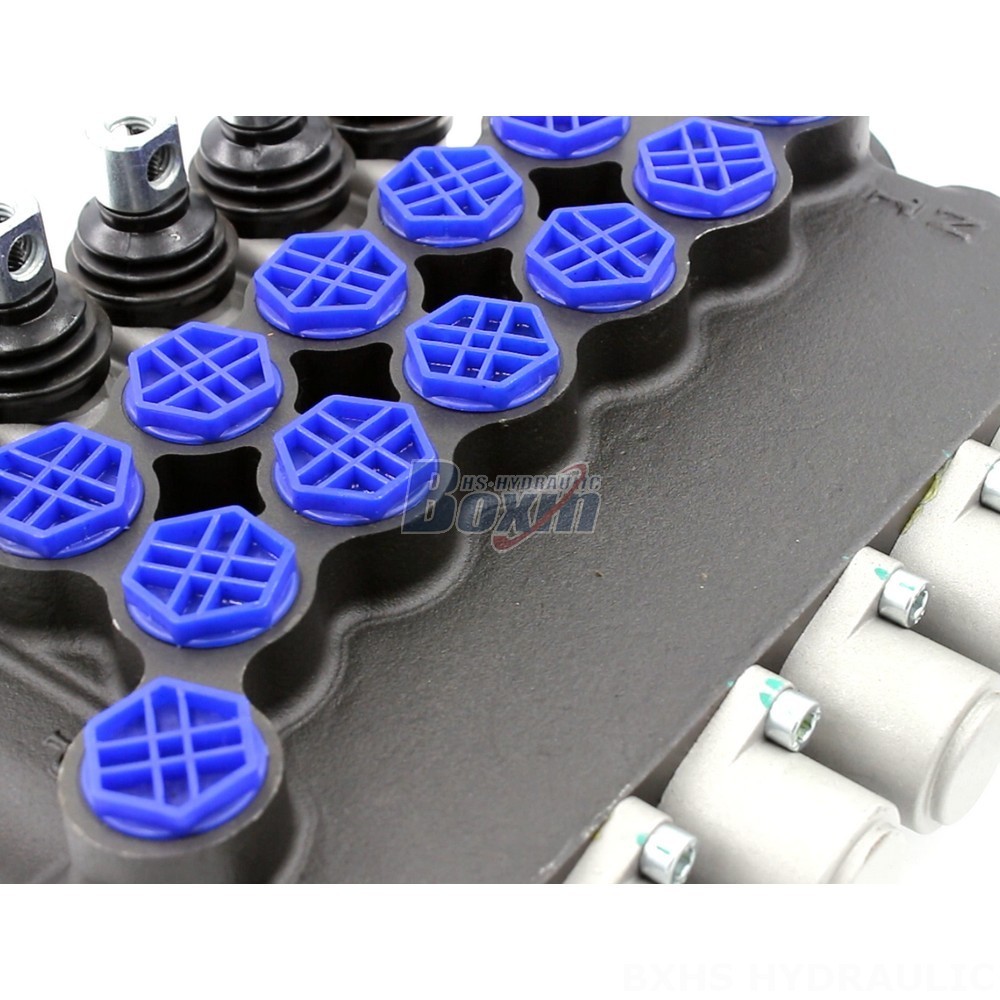

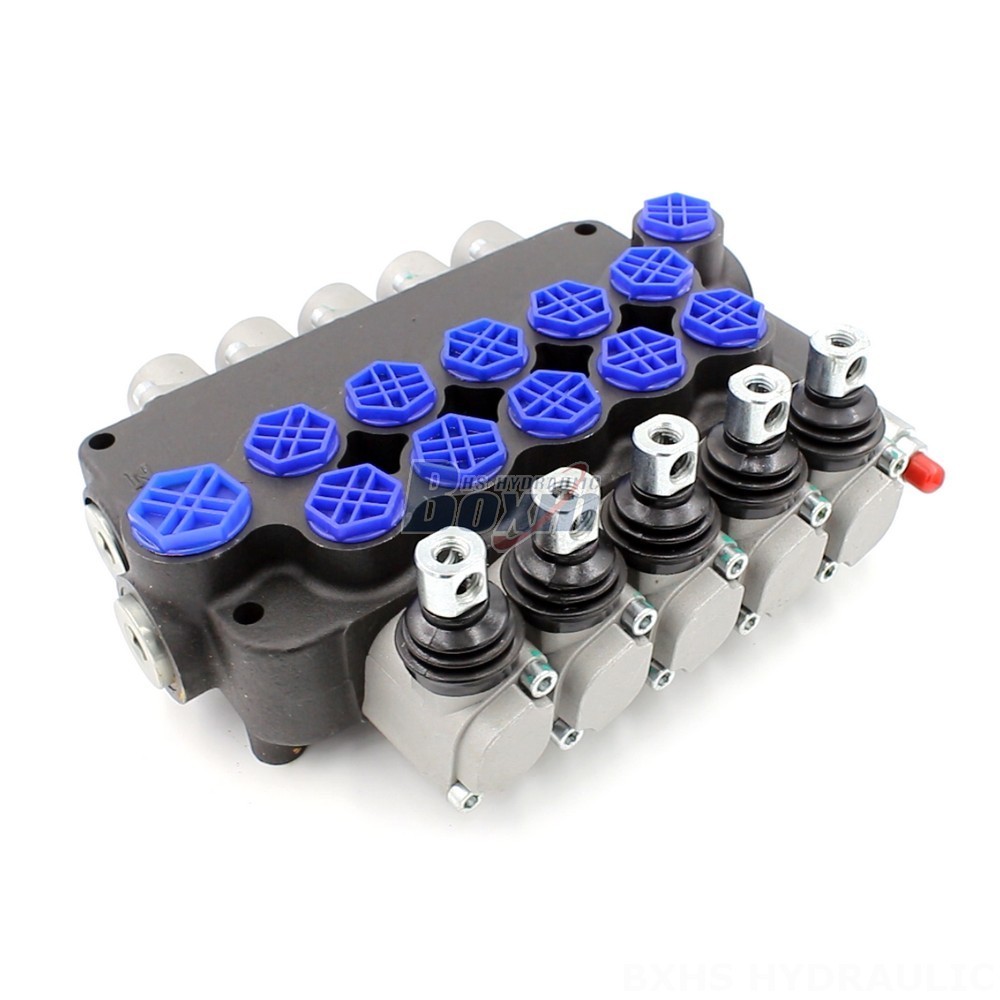

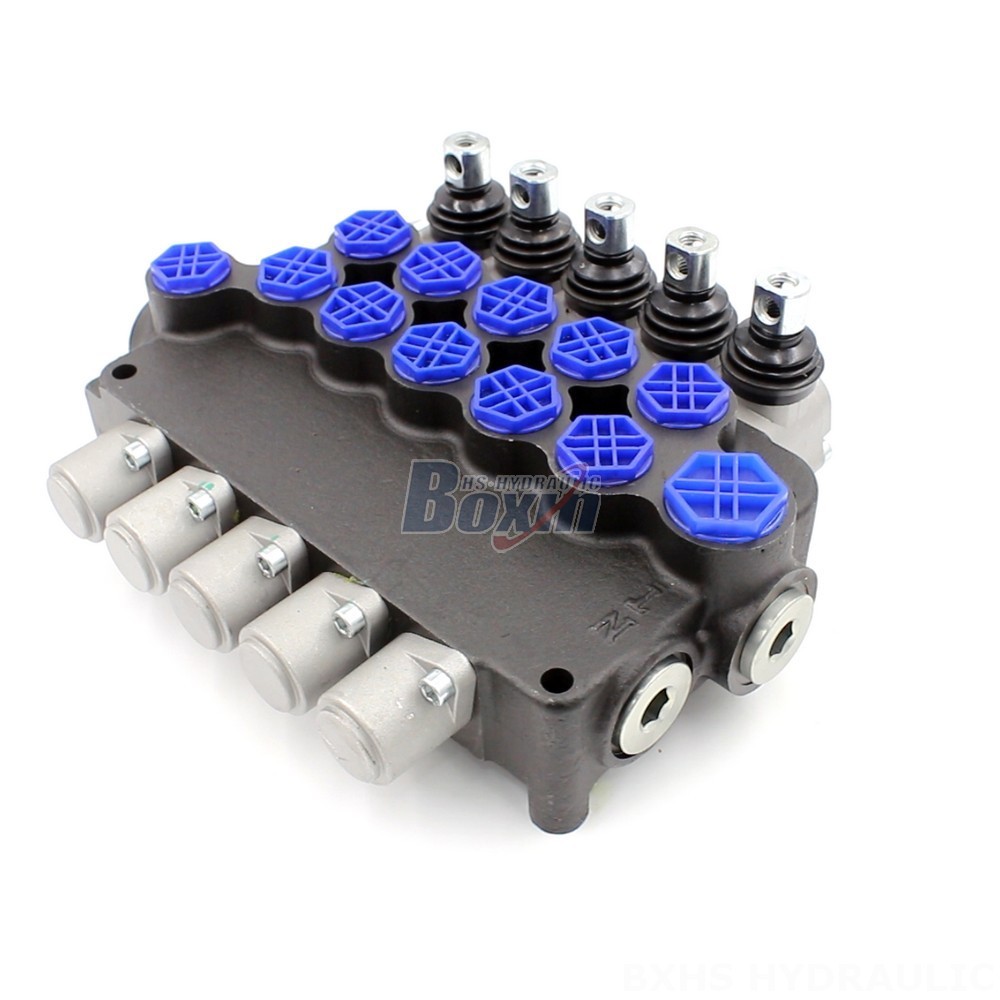

Factory Discounts on P80F-G34-OT Hydraulic Directional Control Valves

Metodo di Controllo:Manuale

Spoo:5 Spole

Portata nominale:80 L/min (21.2 US gpm)

Pressione massima:250 bar (3600 psi)

Attacco di ingresso:G3/4

Attacco di uscita:G3/4

Dimensione attacco:G3/4

Marchio:BXHS

Tipo di prodotto:Valvola direzionale monoblocco

Serie di prodotti:Serie P80F Valvola direzionale monoblocco

Dimensioni dell'imballaggio:26*30*11

Peso lordo:16.00 kg

Disponibilità: In magazzino

1260 Le visualizzazioni cercano questo prodotto

Factory Discounts on P80F-G34-OT Hydraulic Directional Control Valves

Factory Discounts on P80F-G34-OT Hydraulic Directional Control Valves

Factory Discounts on P80F-G34-OT Hydraulic Directional Control Valves drawing image

Our factory manufactures high-quality 4 Way Valve P80F-G34-OT hydraulic directional control valves. These manual control, 5 section, monoblock valves are designed for heavy-duty applications and offer a rated flow of 80 L/min and a maximum pressure of 250 bar. We offer competitive factory prices and direct supply options for bulk orders.

Serie P80F Valvola direzionale monoblocco Parametri
Spoo 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole
Metodo di Controllo Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick
Dimensione attacco G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Sezione Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7
Intervallo di temperatura ambiente -40°C to +80°C (-40°F to +176°F)
Intervallo di viscosità operativa 15 - 75 mm²/s (15 cSt to 75 cSt)
Attacco di uscita G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT
Pressione massima 315 bar (4600 psi)
Portata nominale 80 L/min (21.2 US gpm)
Tipo di struttura Valvola monoblocco
Attacco di ingresso G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

This P80F-G34-OT 4 Way Valve is a high-performance hydraulic directional control valve manufactured in our factory. It features manual control, a 5 section design, and a monoblock structure. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is ideal for heavy-duty applications in various industries. The valve operates within a viscosity range of 15-75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). It is equipped with a 5 spool design and falls under the P80F series. This valve is specifically suitable for material handling, construction and earth moving, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders, harvesters, and bale wrappers. As a manufacturer, we offer competitive factory prices and direct supply options for bulk orders. We welcome inquiries from distributors, wholesalers, agents, and traders worldwide.
