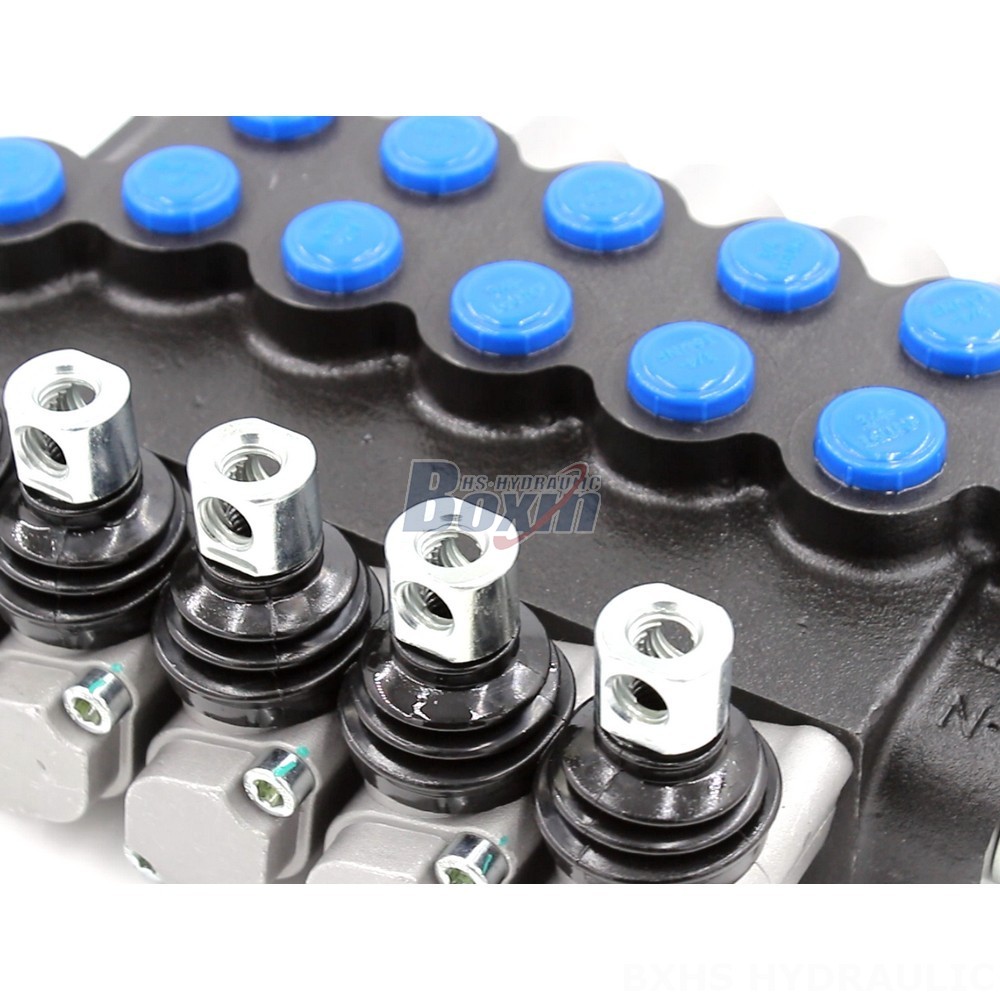

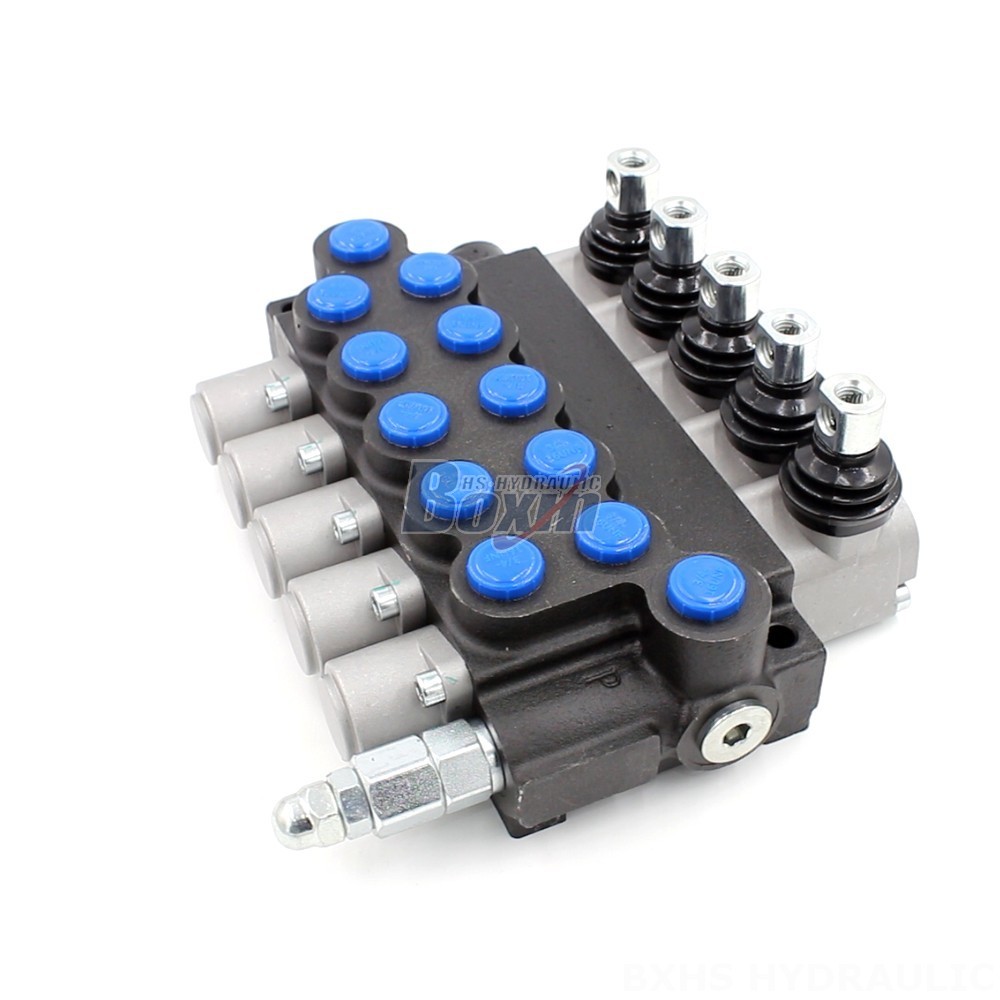

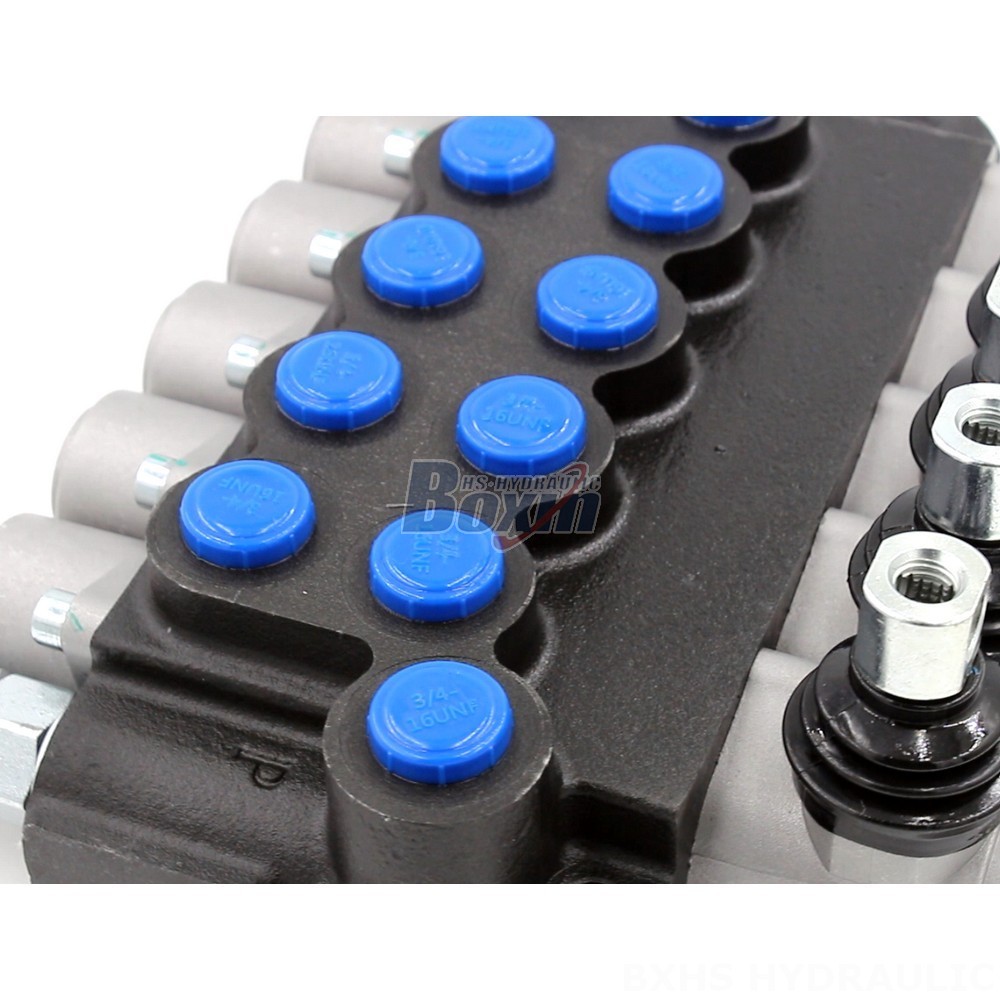

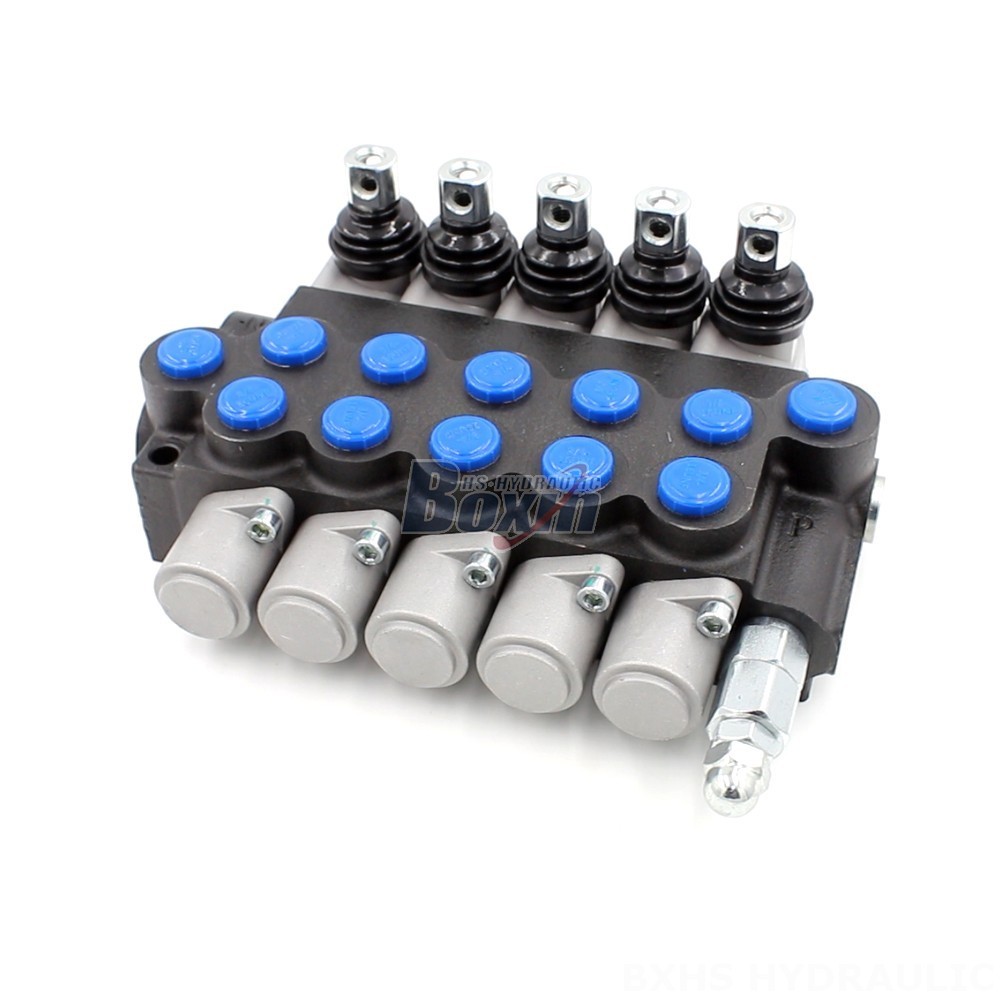

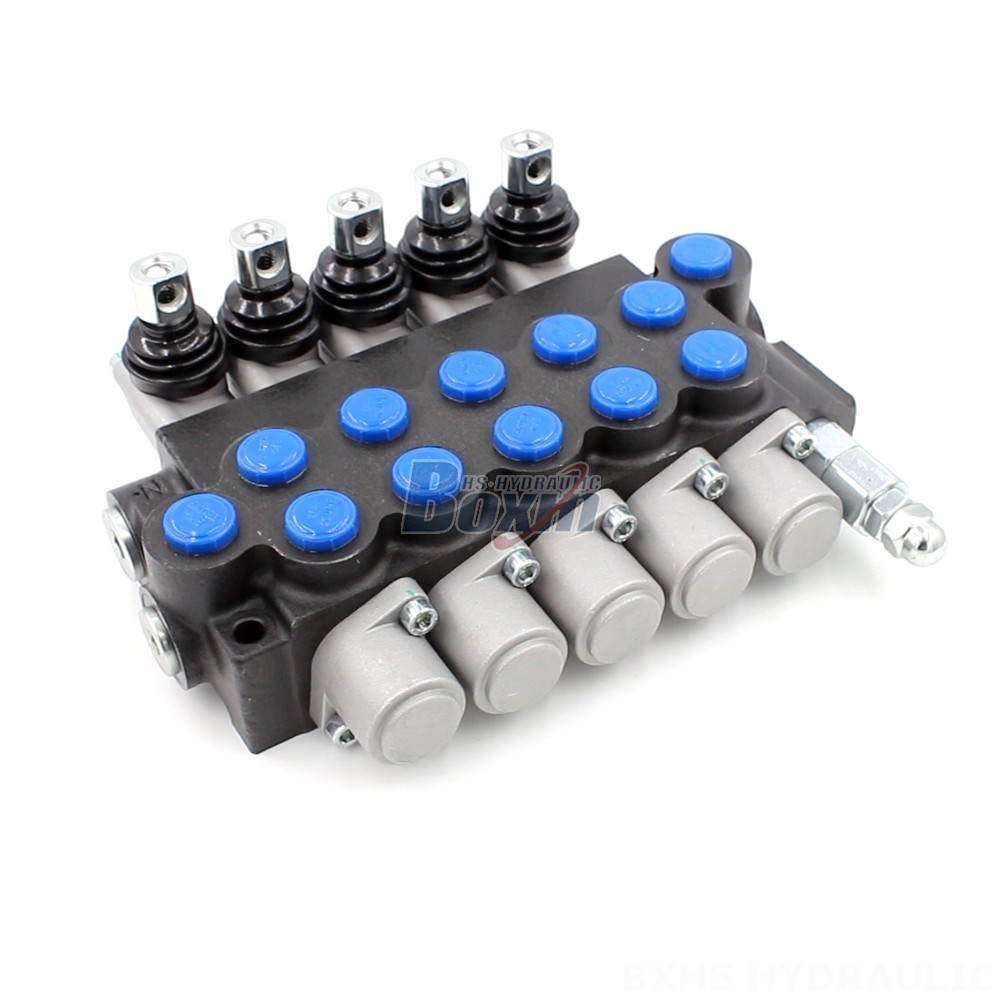

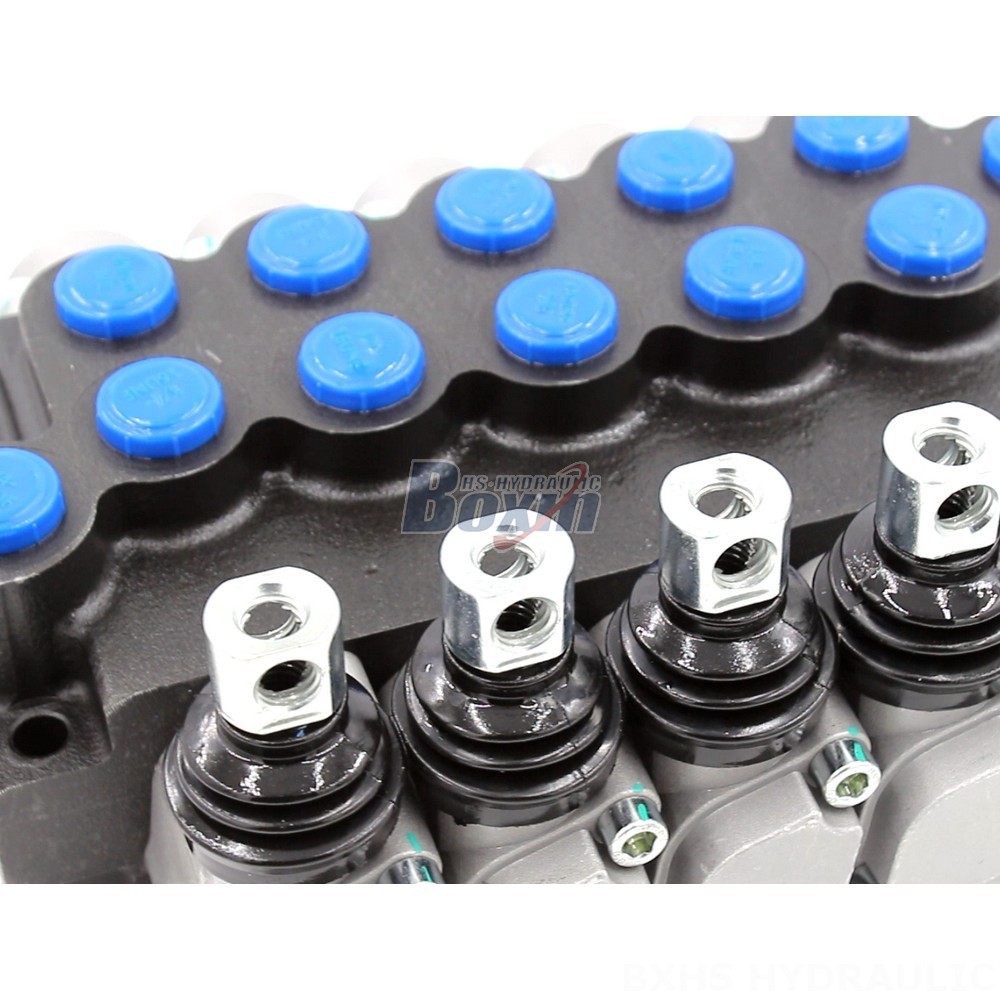

The P40-U78 hydraulic directional valve is a high-quality, 5-section, monoblock valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. It offers reliable performance with a rated flow of 40 L/min and a maximum pressure of 250 bar. This valve is available directly from the manufacturer, providing competitive prices and factory wholesale options.
| Serie P40 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Solenoide e joystick, Manuale e joystick, A solenoide e a cavo |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 40 L/min (10.5 US gpm) |
| Pressione massima | 250 bar (3600 psi) |
| Attacco di ingresso | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Attacco di uscita | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimensione attacco | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40-U78 hydraulic directional valve is a robust and efficient solution for controlling hydraulic systems in a variety of applications. It features manual control for easy operation, a 5-section design for versatility, and a compact monoblock structure for durability. The valve is rated for a flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for demanding tasks. Manufactured with high-quality materials and precision engineering, this valve ensures reliability and long-lasting performance. As a manufacturer, we offer factory direct prices and wholesale options to distributors, wholesalers, and dealers. Contact us today to learn more about this high-performance hydraulic directional valve.
