Produzione e consegna
Tempi di produzione di 15-30 giorni

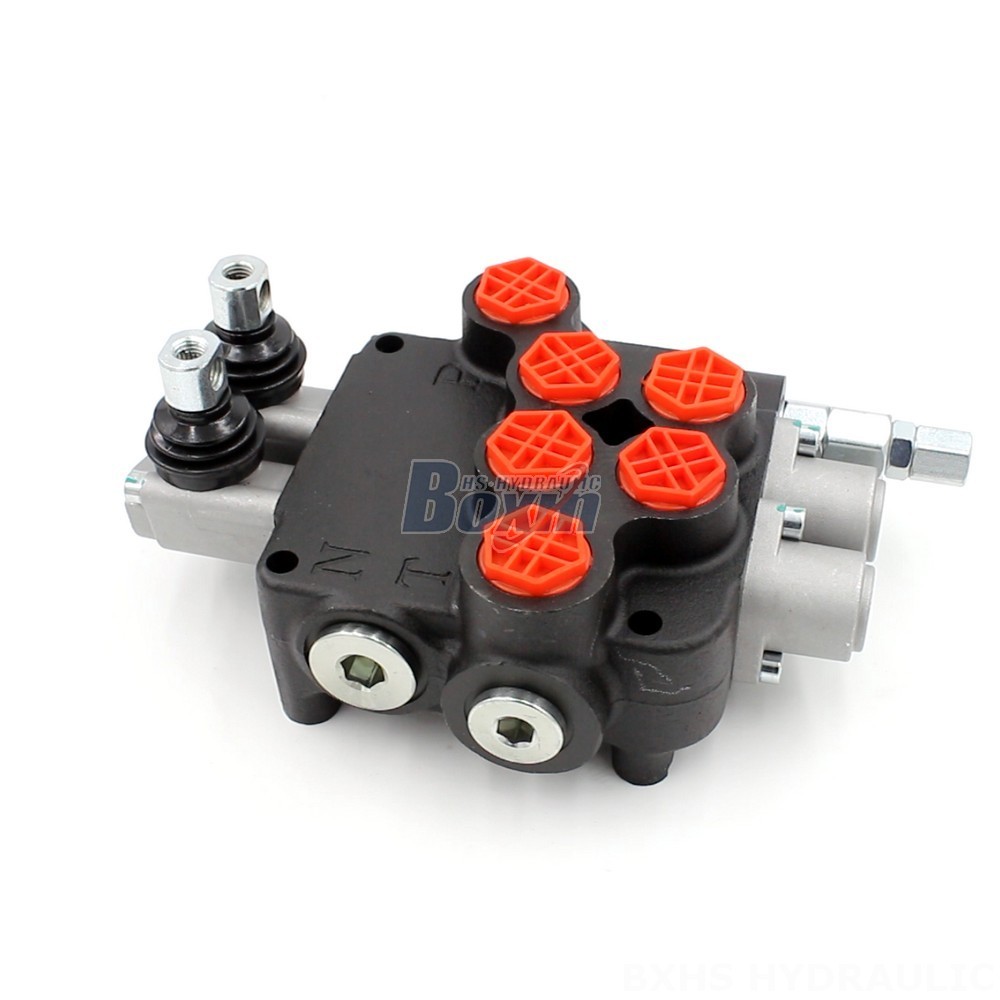

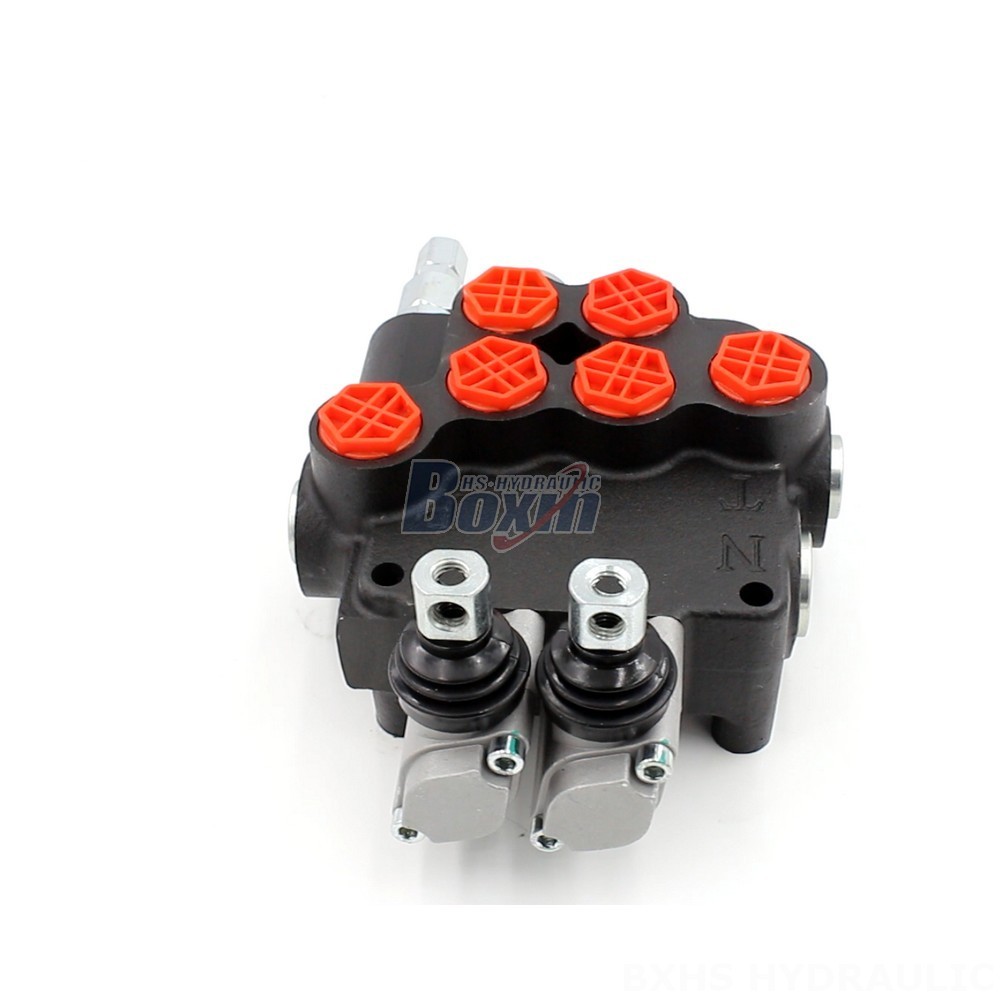

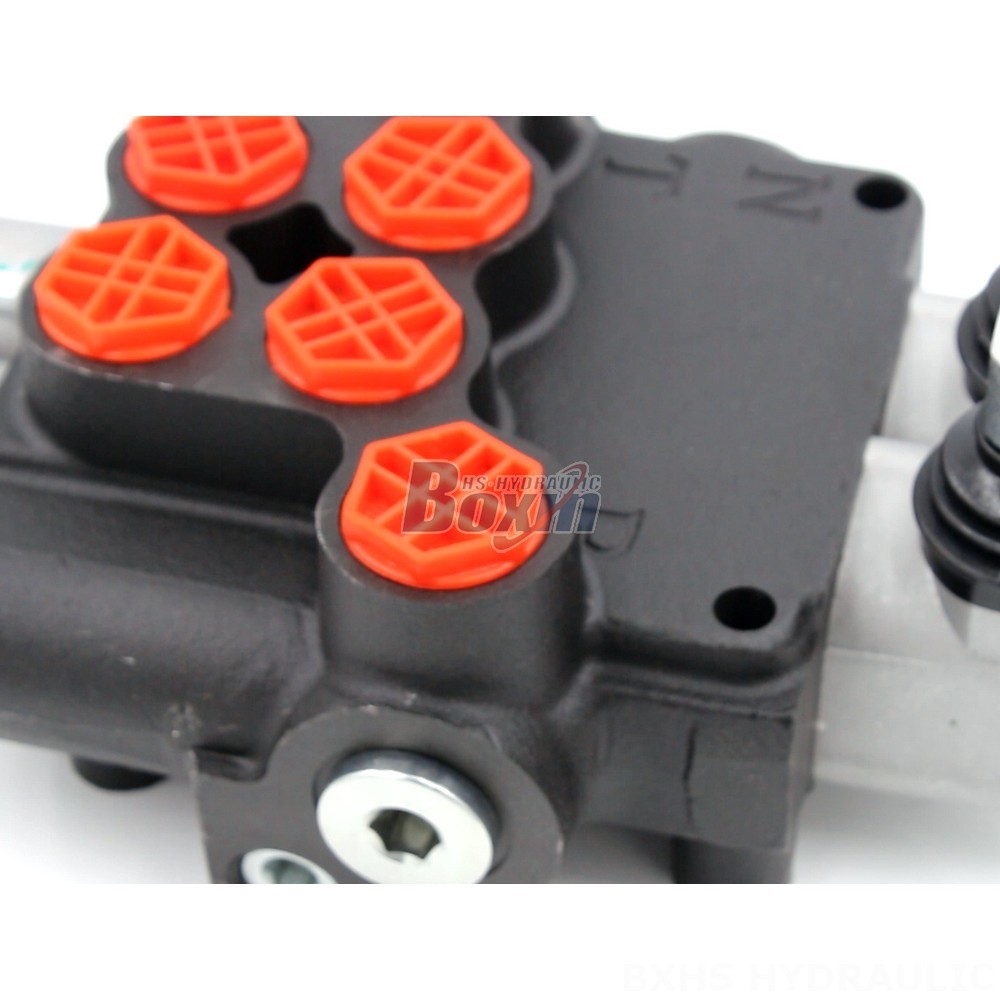

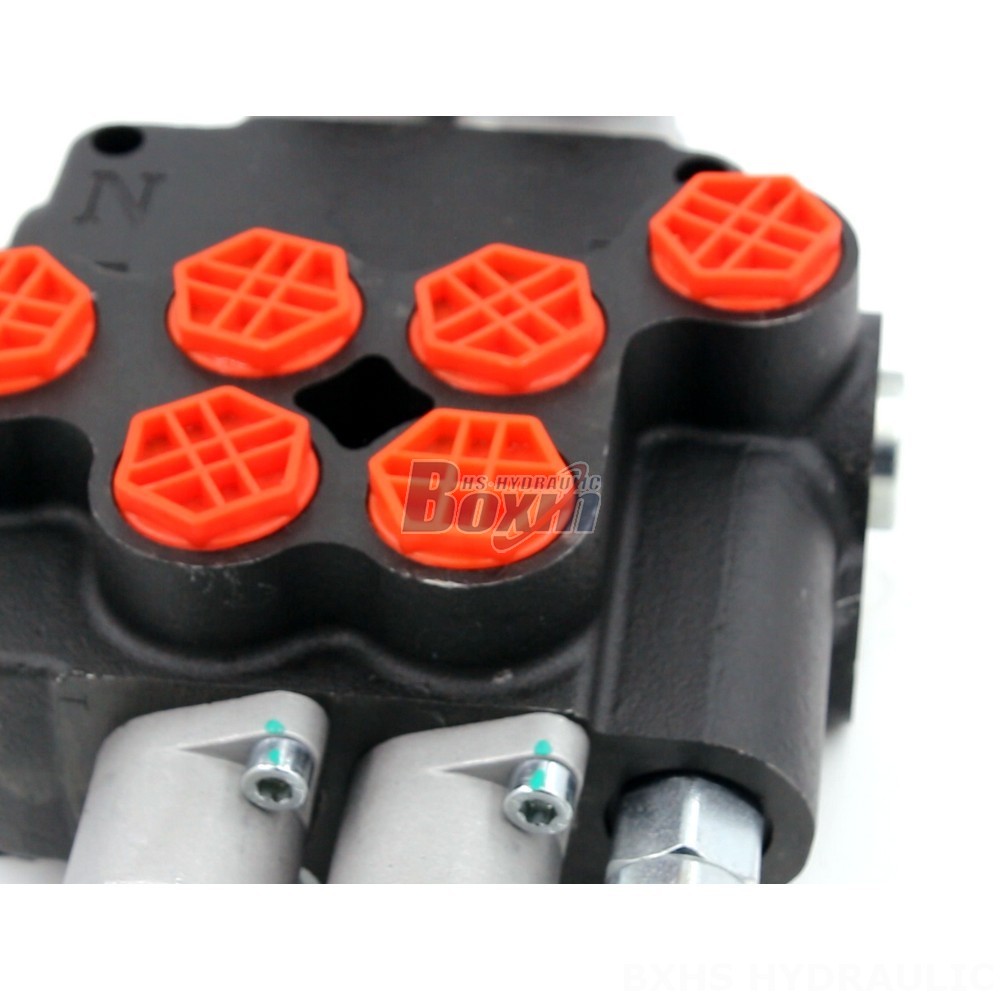

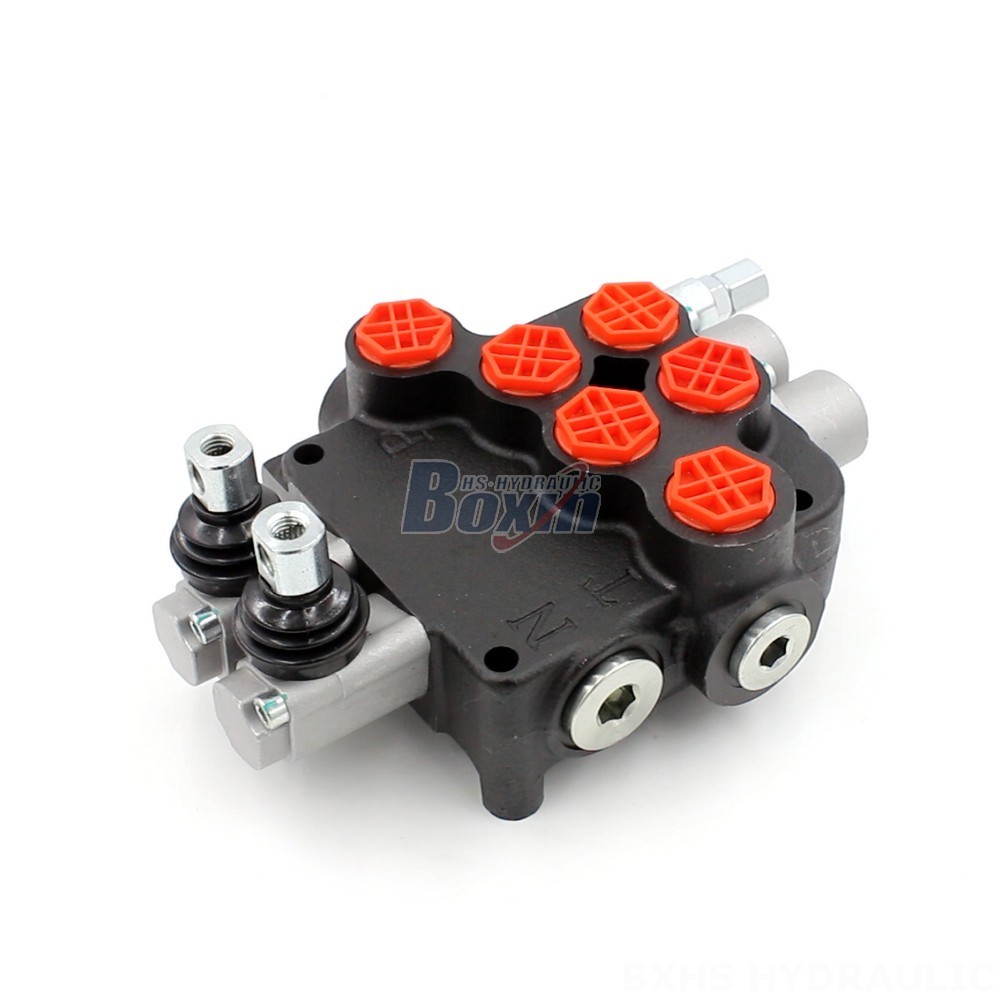

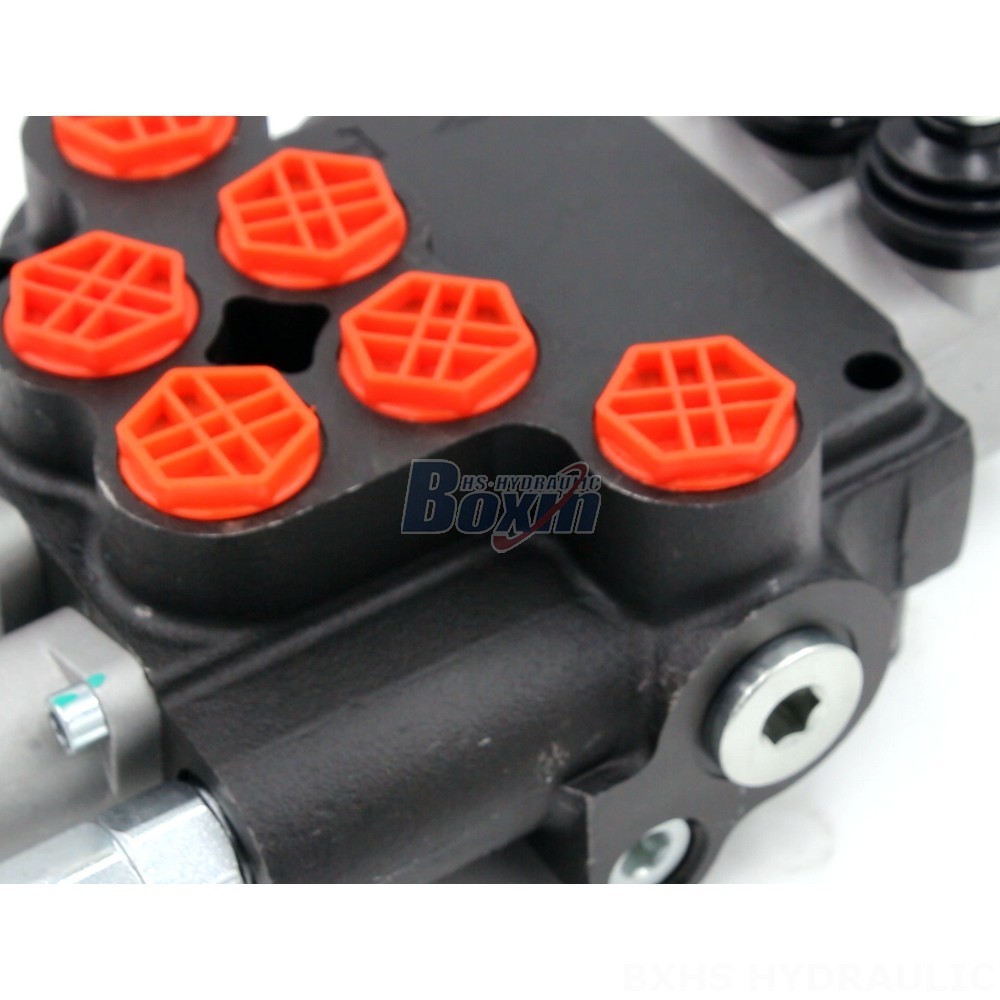

The P80-G34-G12 Air PTO Switch Valve Directional Control Valve is a heavy-duty, manual hydraulic valve designed for construction, material handling, agricultural and industrial vehicle applications. Featuring a 2 section, monoblock design, it boasts a 80 L/min flow rate and a 250 bar maximum pressure rating, making it ideal for a wide range of applications.
| Serie P80 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Manuale e joystick |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 80 L/min (21.2 US gpm) |
| Pressione massima | 315 bar (4600 psi) |
| Attacco di ingresso | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Attacco di uscita | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimensione attacco | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-G34-G12 is a reliable and durable Air PTO Switch Valve Directional Control Valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. Its manual control method ensures user-friendly operation, while its 2 section, monoblock design provides robustness and efficiency. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is capable of handling high-pressure hydraulic systems. Its operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) allows it to perform reliably in a variety of operating conditions. The P80-G34-G12 is designed for use in a wide range of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
