The P80-AQF Series Directional Control Valve is a high-performance hydraulic valve designed for diverse applications in industries such as material handling, construction, agriculture, and industrial vehicles. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve offers reliable and precise control of hydraulic systems.
| Serie P80 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Manuale e joystick |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 80 L/min (21.2 US gpm) |
| Pressione massima | 315 bar (4600 psi) |
| Attacco di ingresso | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Attacco di uscita | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimensione attacco | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Product Overview:**

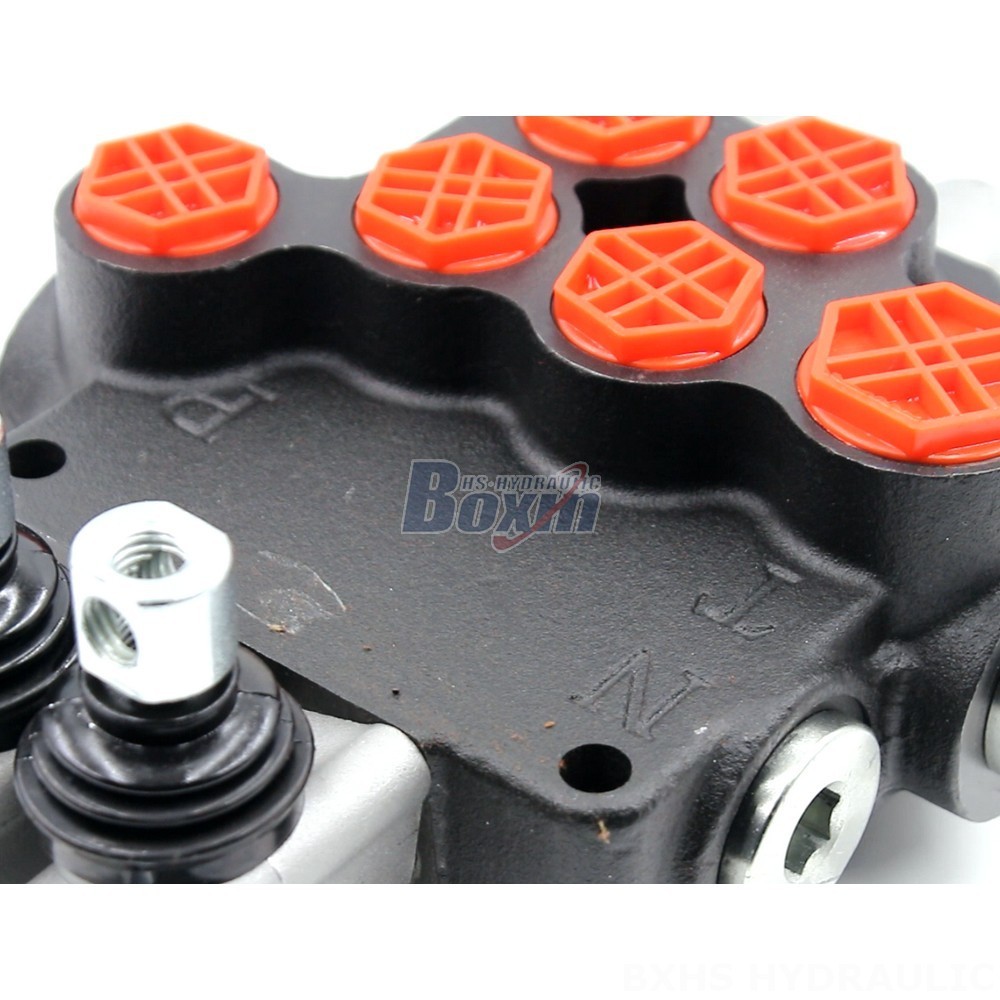

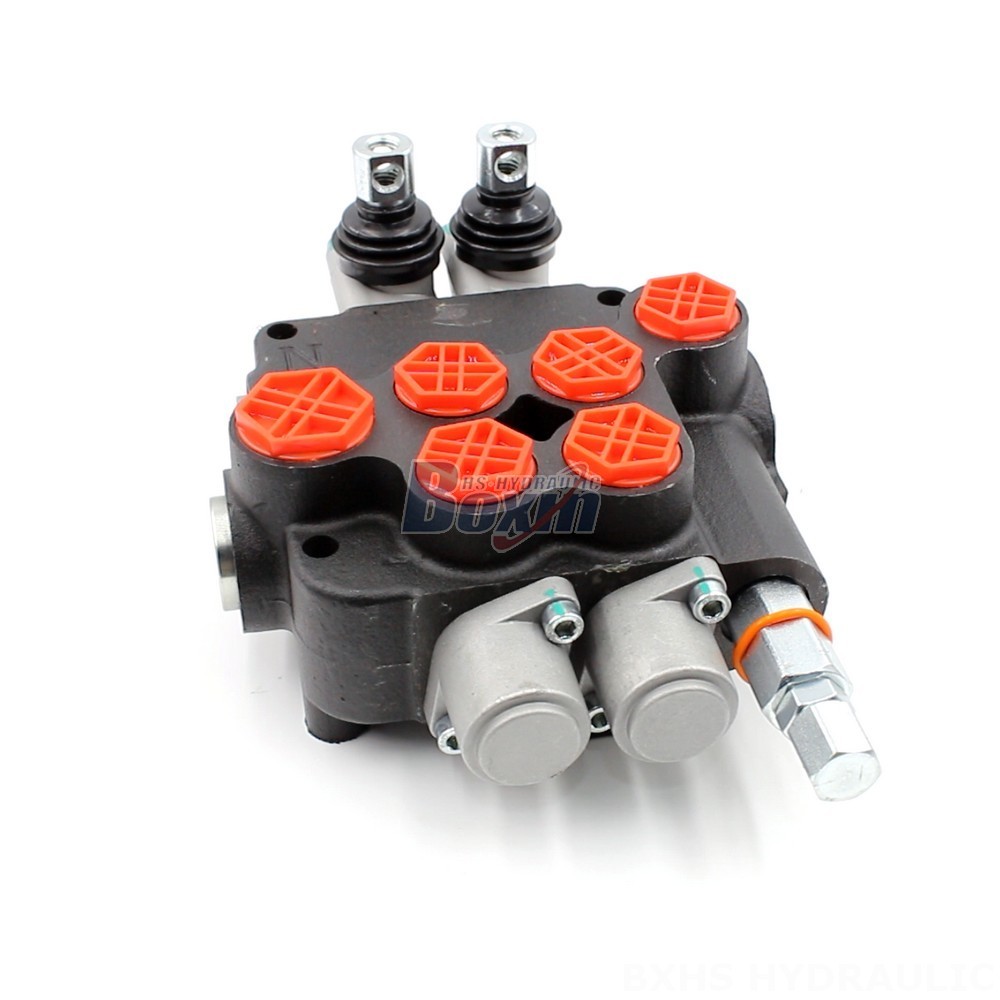

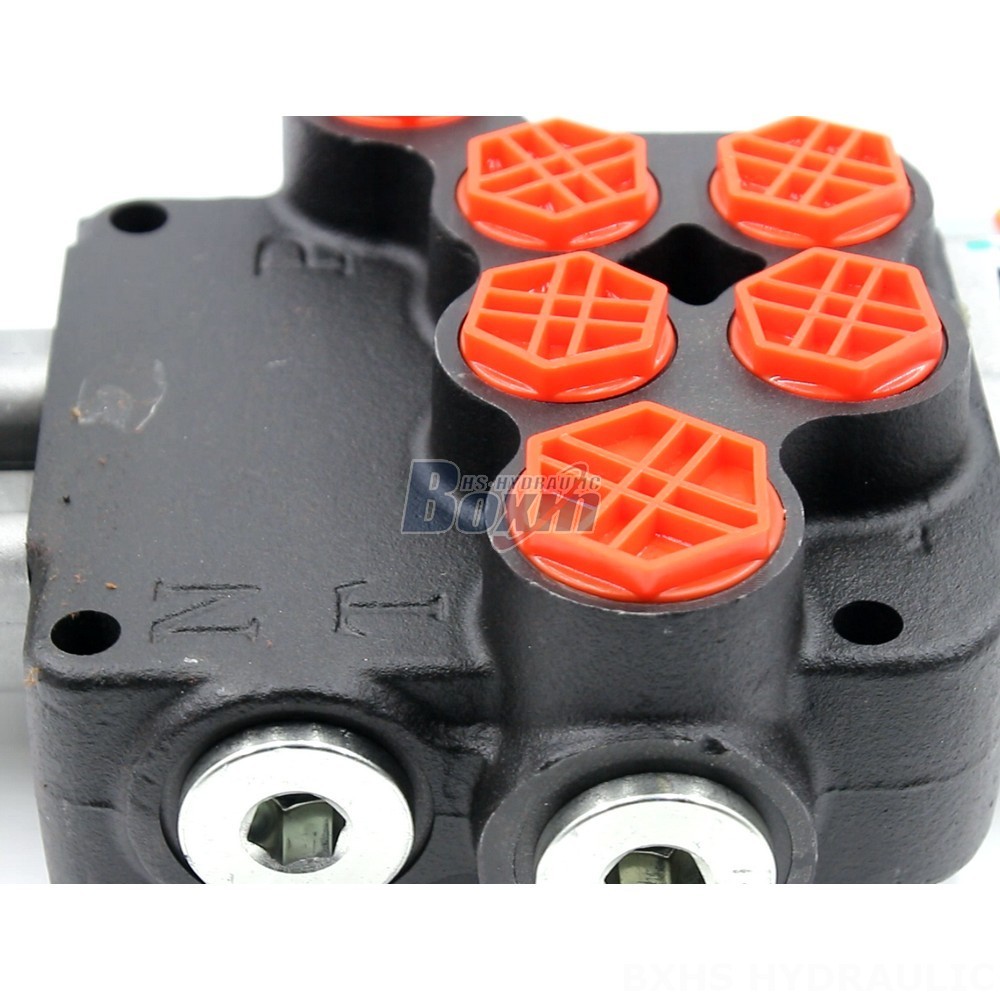

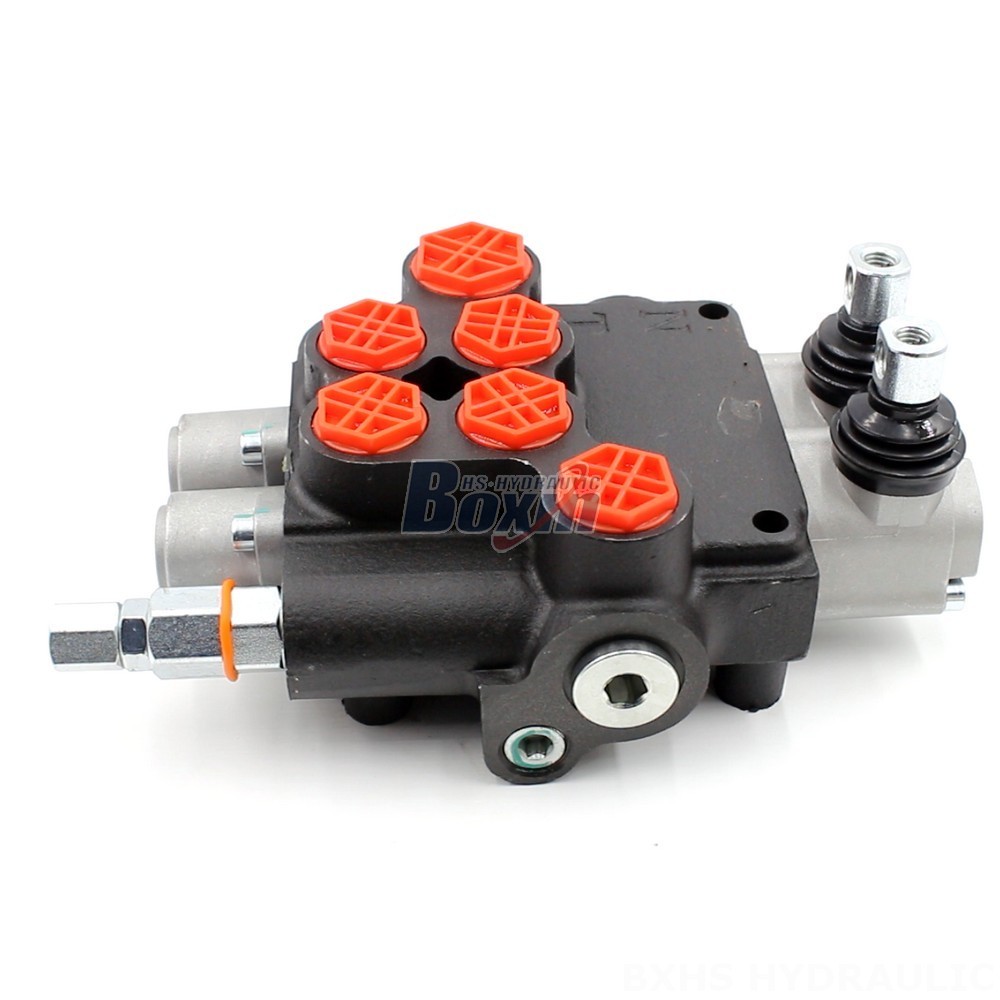

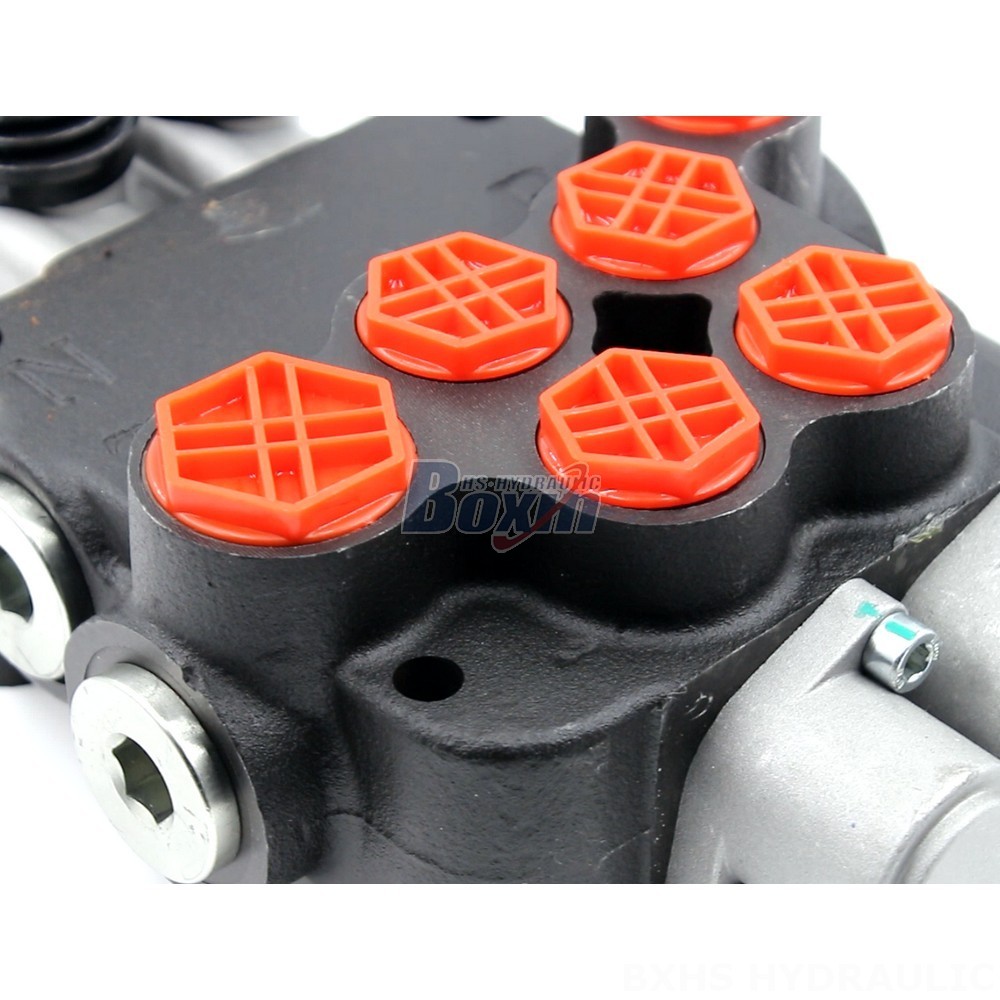

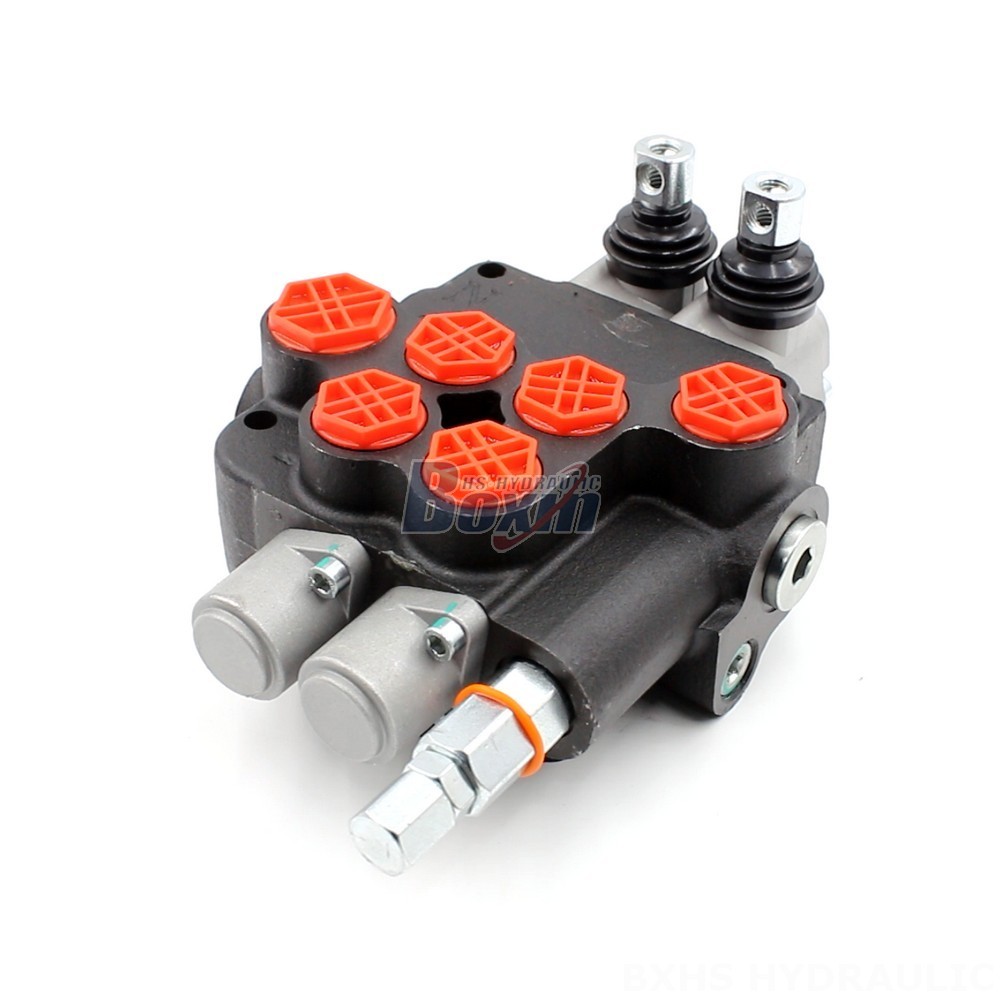

The P80-AQF Series Directional Control Valve is a manually operated, monoblock valve with two sections and two spools. It is designed to handle a wide range of hydraulic applications, including those in harsh environments.
**Key Features:**
* Rated flow: 80 L/min (21.2 US gpm)
* Maximum pressure: 250 bar (3600 psi)
* Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
* Manual control
* Monoblock valve construction
* 2 spool design
**Applications:**
The P80-AQF Series Directional Control Valve is suitable for a variety of hydraulic applications, including those in the following industries:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
**Specific applications include:**
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
* Tractors and front-end loaders
* Harvesters
* Bale wrappers
* Backhoes
* Seeding machines
* Sprayers
* Balers
