The P80-G12-G34-OT Hydraulic Directional Control Valve is a high-performance valve designed for mobile hydraulic applications. It is a 3-section, 3-spool, monoblock valve with a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve has an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve is suitable for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| Serie P80 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Manuale e joystick |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 80 L/min (21.2 US gpm) |
| Pressione massima | 315 bar (4600 psi) |
| Attacco di ingresso | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Attacco di uscita | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimensione attacco | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

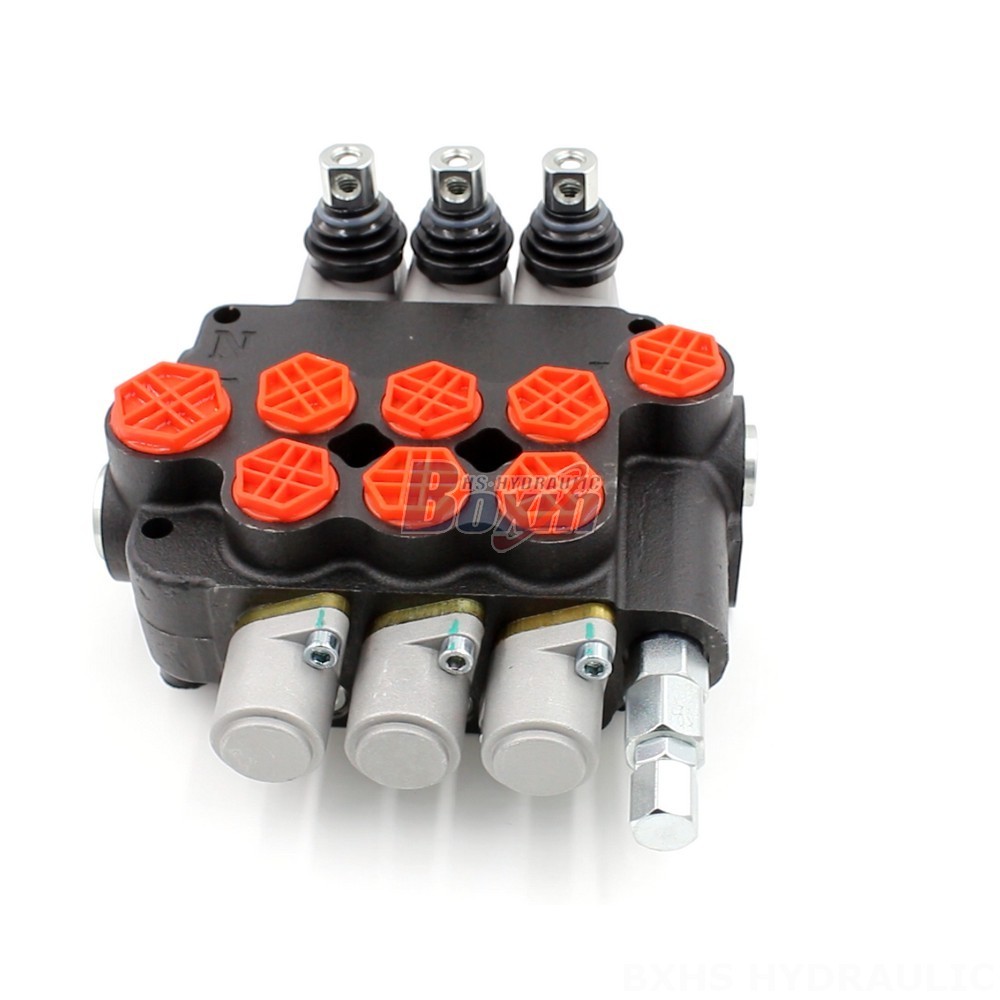

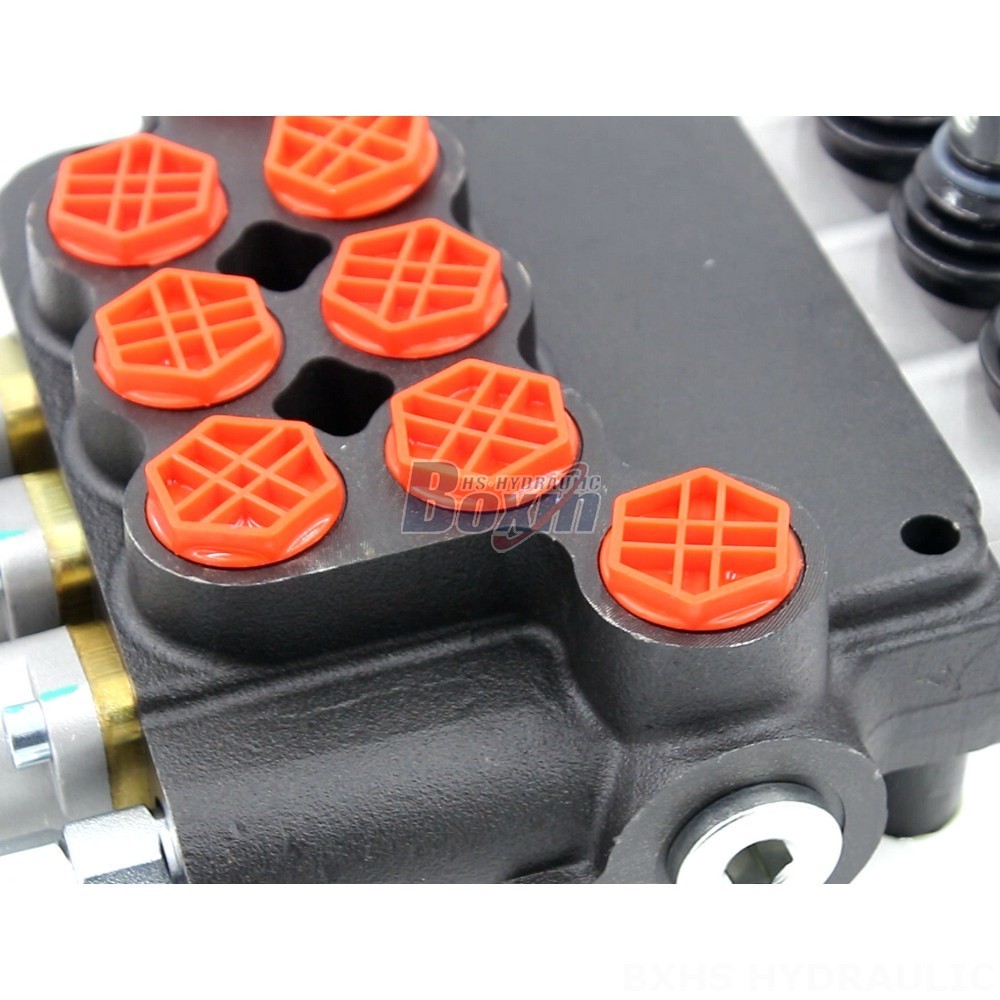

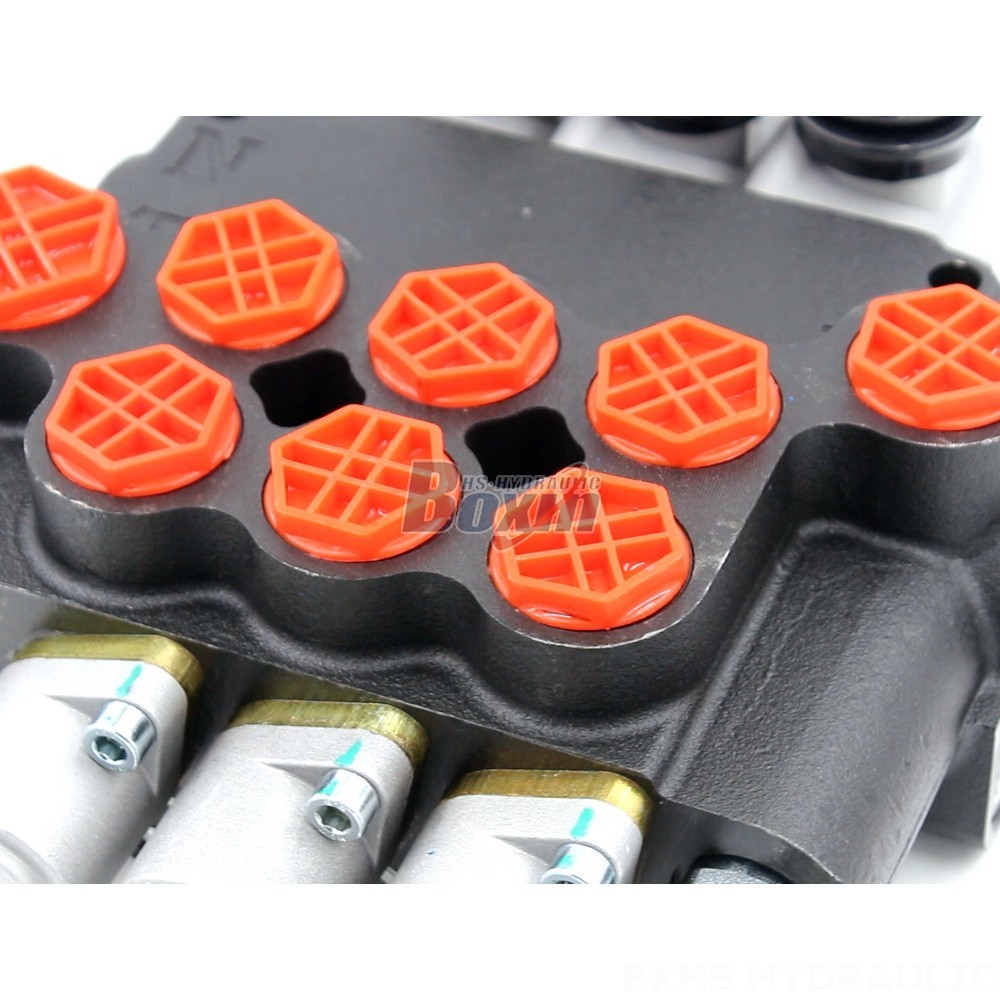

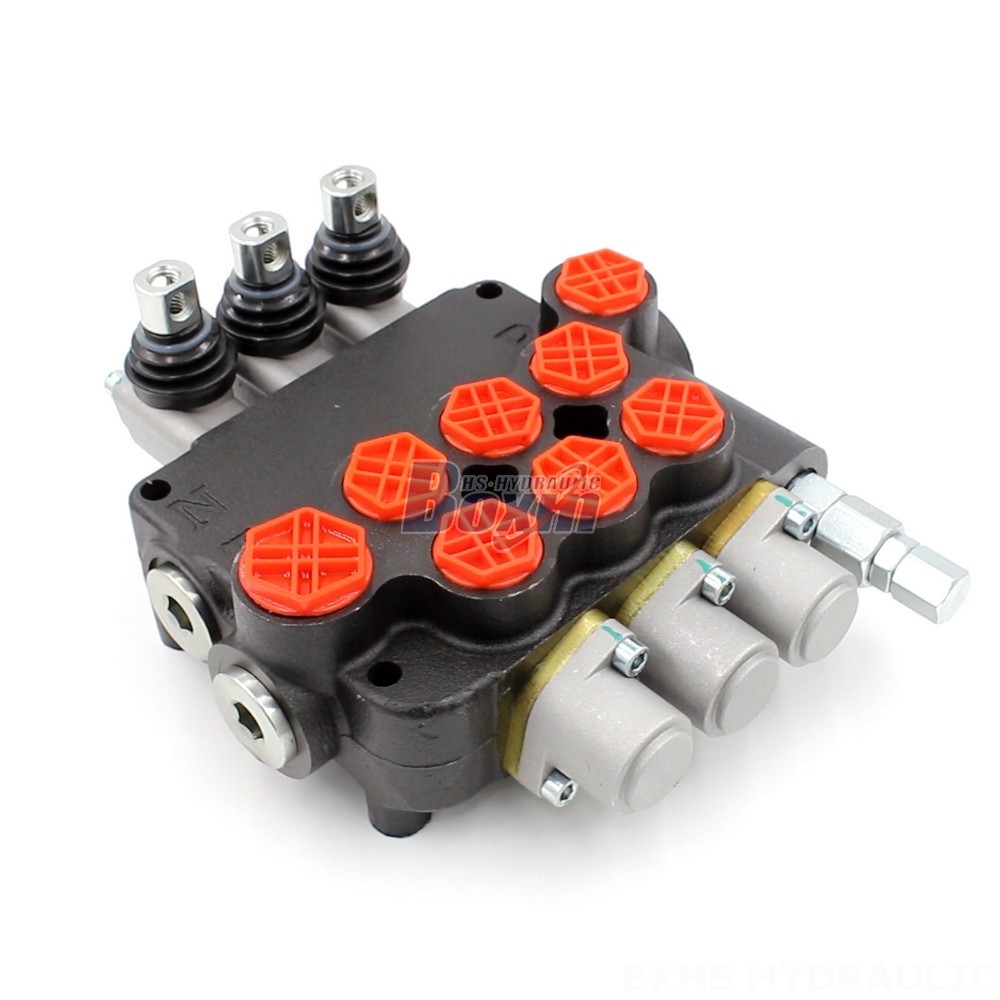

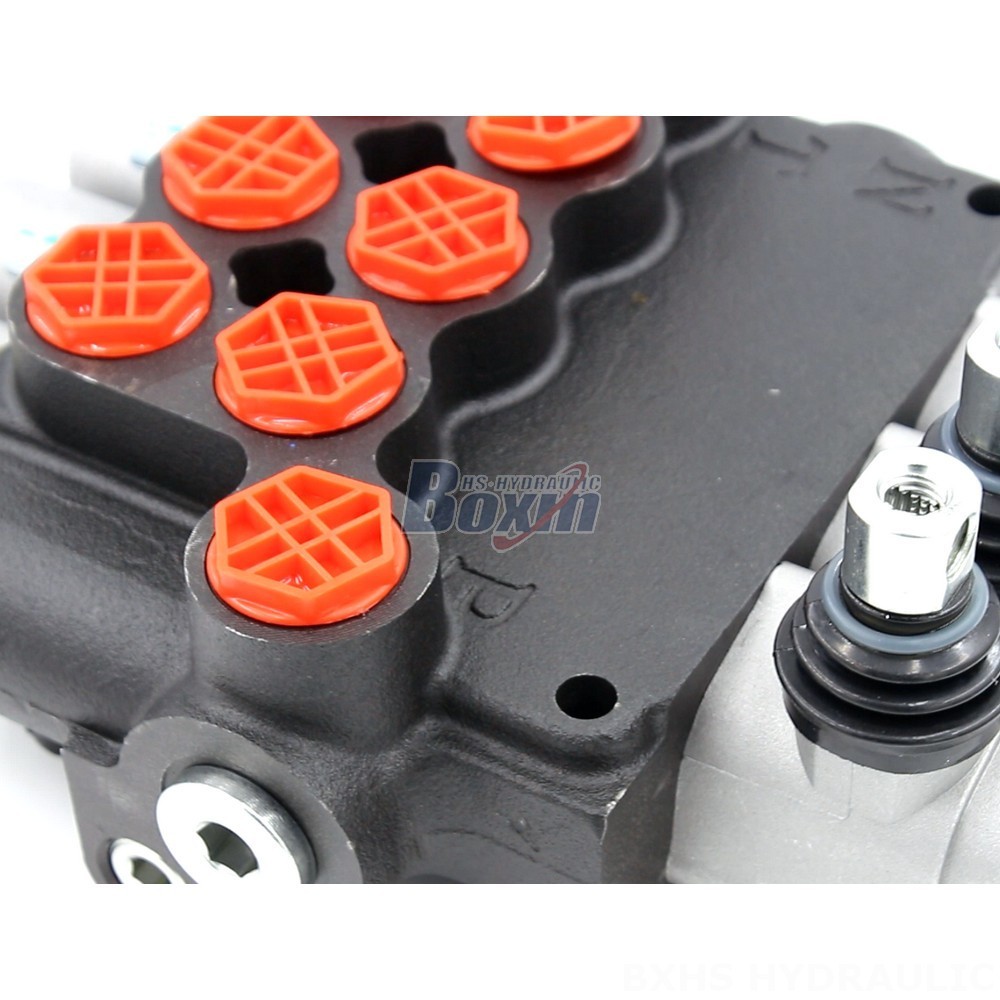

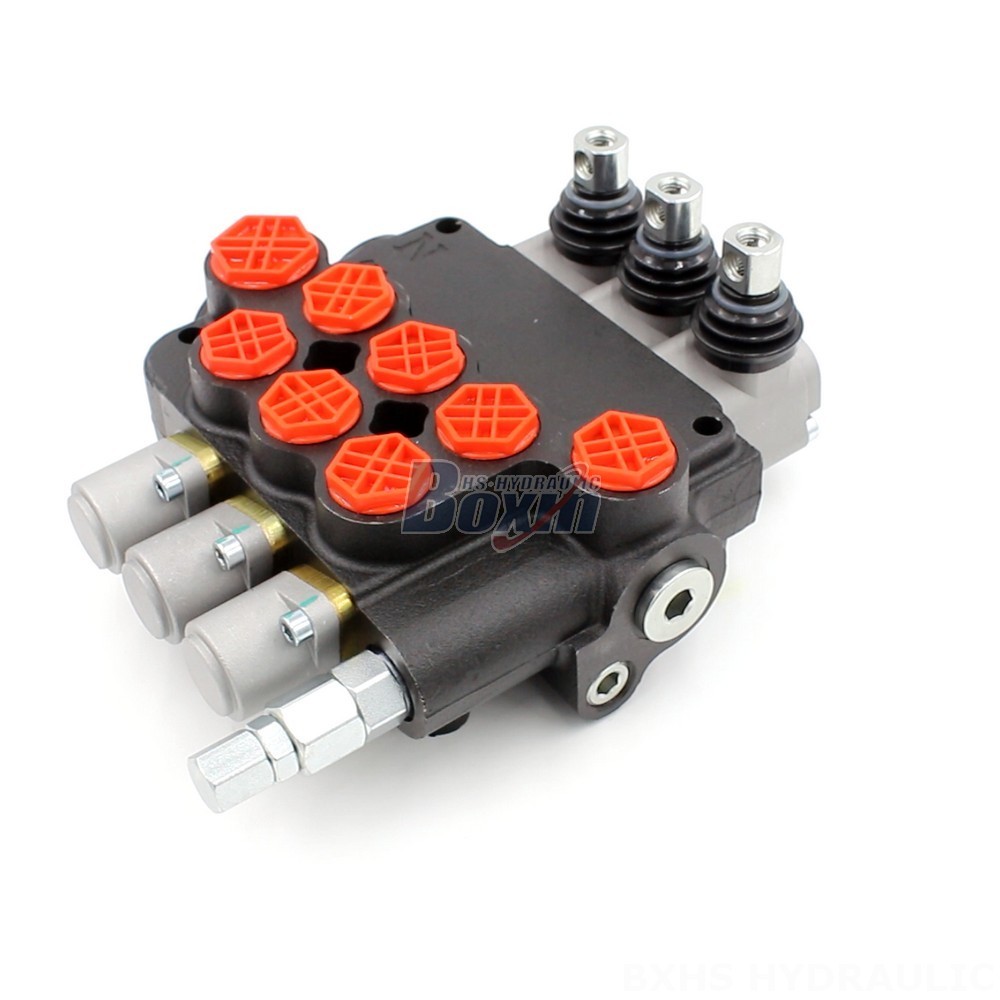

**P80-G12-G34-OT Hydraulic Directional Control Valve**
The P80-G12-G34-OT Hydraulic Directional Control Valve is a high-quality valve manufactured by our company. We are a leading manufacturer of hydraulic products and have been in the industry for many years. Our valves are known for their quality, durability, and performance.
The P80-G12-G34-OT Hydraulic Directional Control Valve is a 3-section, 3-spool, monoblock valve. It has a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve has an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F).
The P80-G12-G34-OT Hydraulic Directional Control Valve is suitable for use in a variety of applications, including:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
We offer a variety of customization options for the P80-G12-G34-OT Hydraulic Directional Control Valve, including:
* Porting
* Mounting
* Spools
* Seals
We also offer a variety of testing and inspection services to ensure that our valves meet your specifications.
If you are looking for a high-quality, durable, and reliable hydraulic directional control valve, the P80-G12-G34-OT is the perfect choice. Contact us today for more information.
