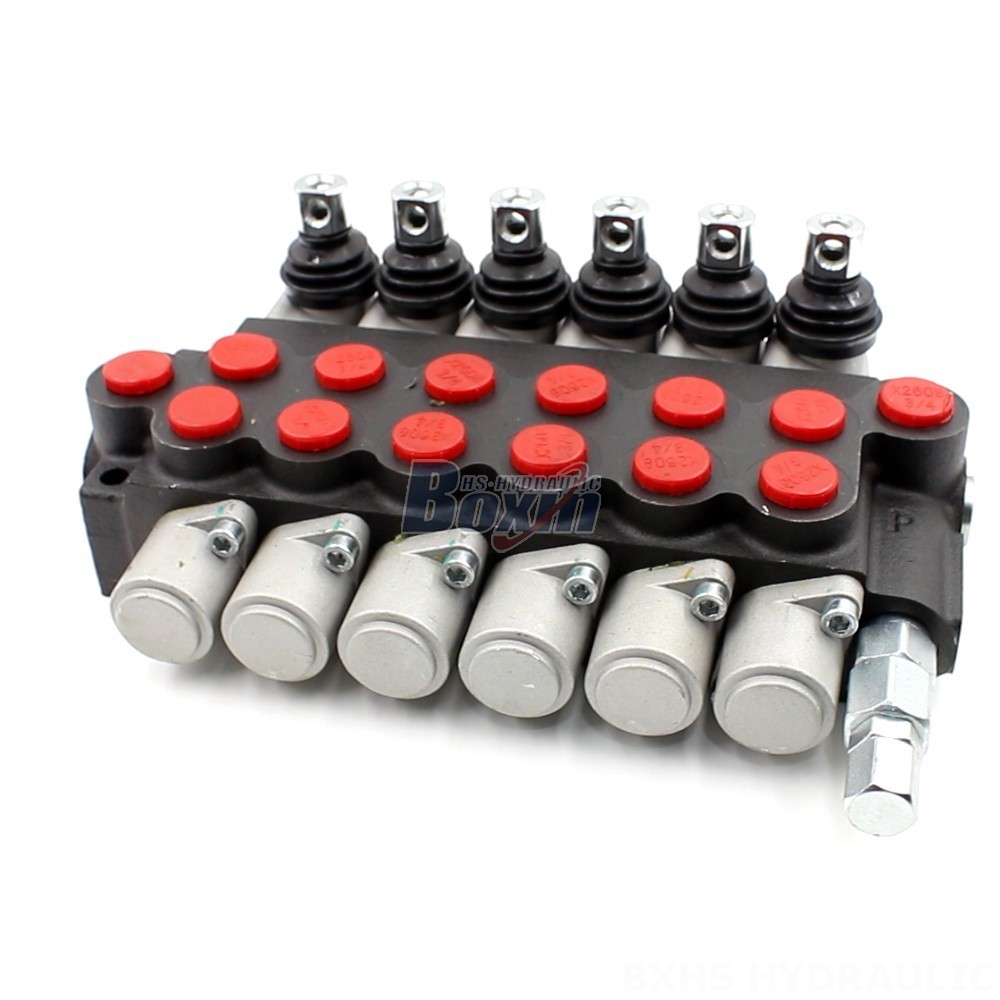

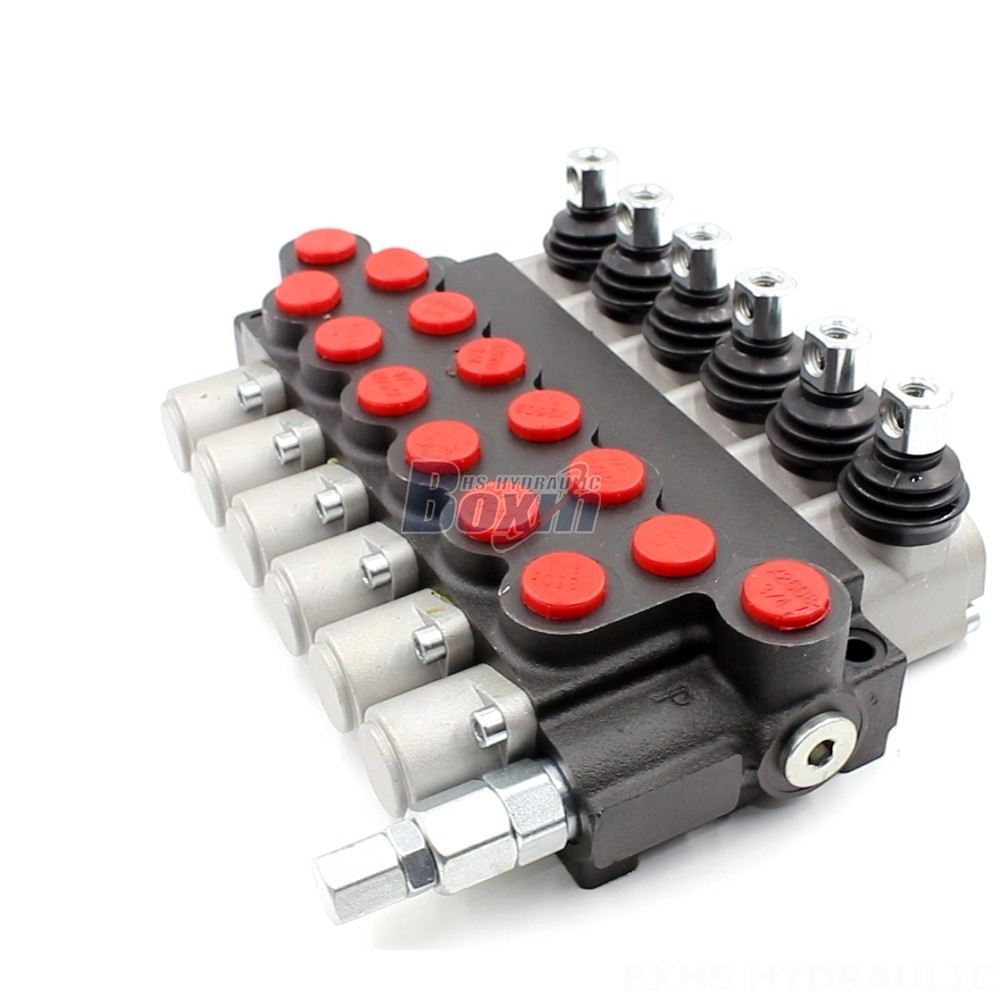

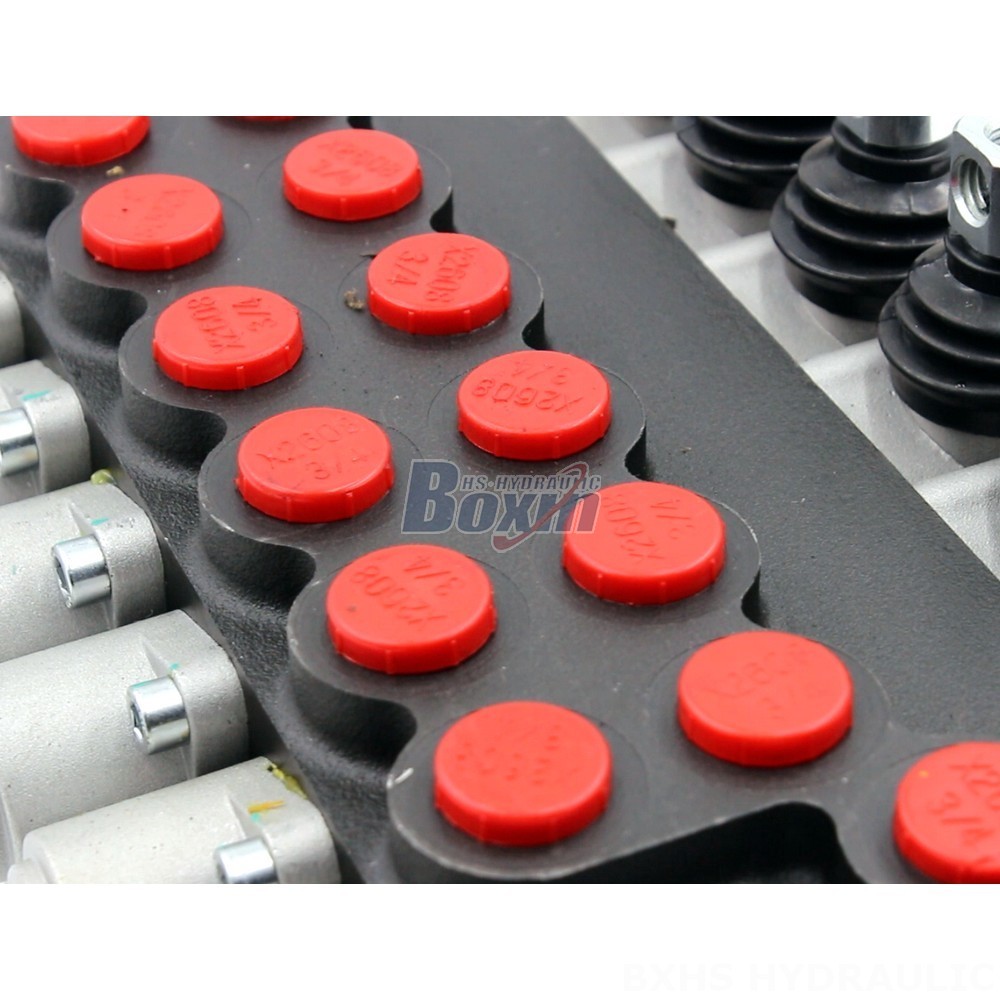

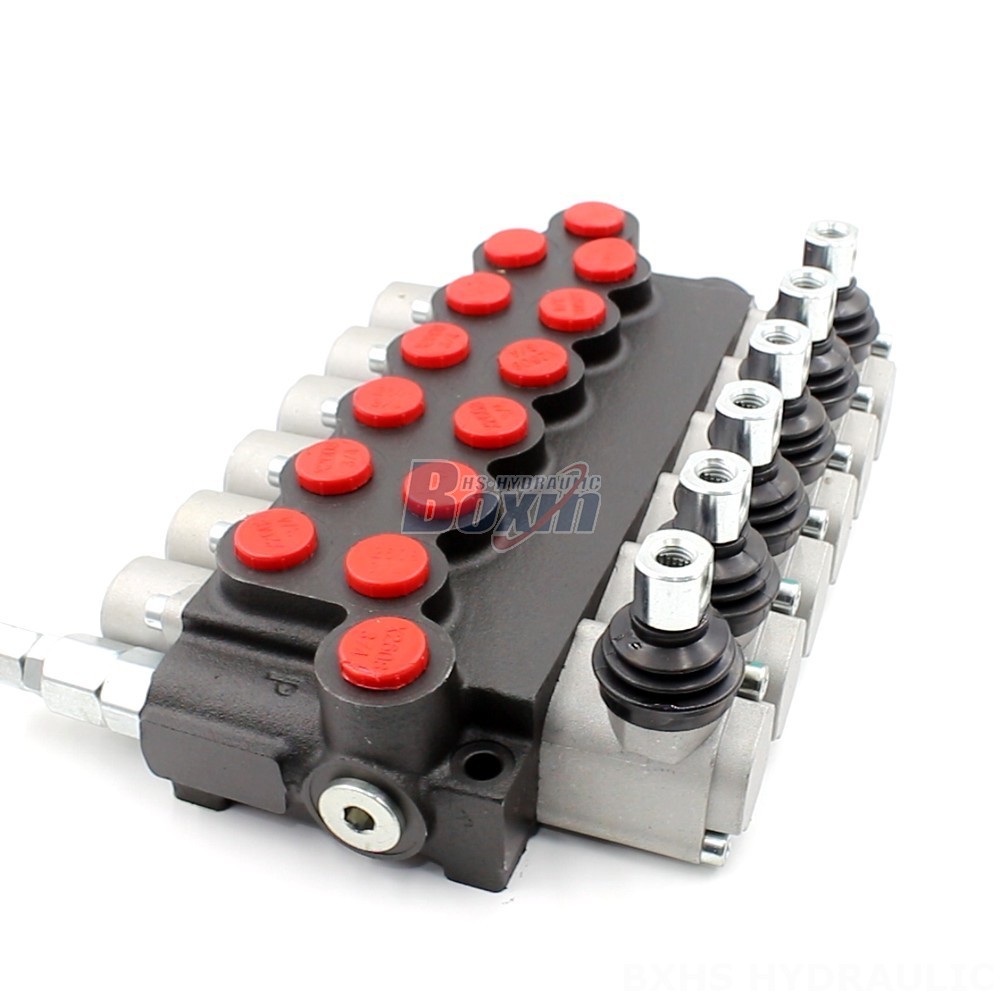

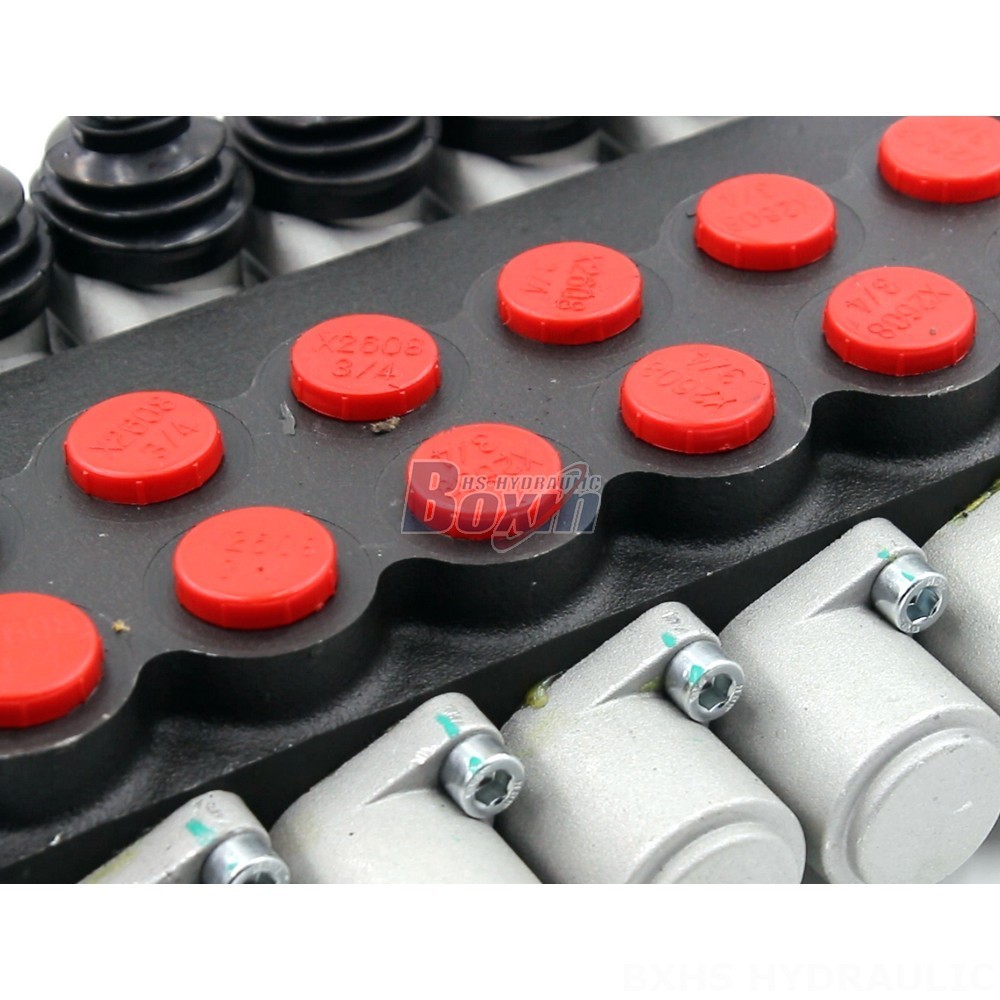

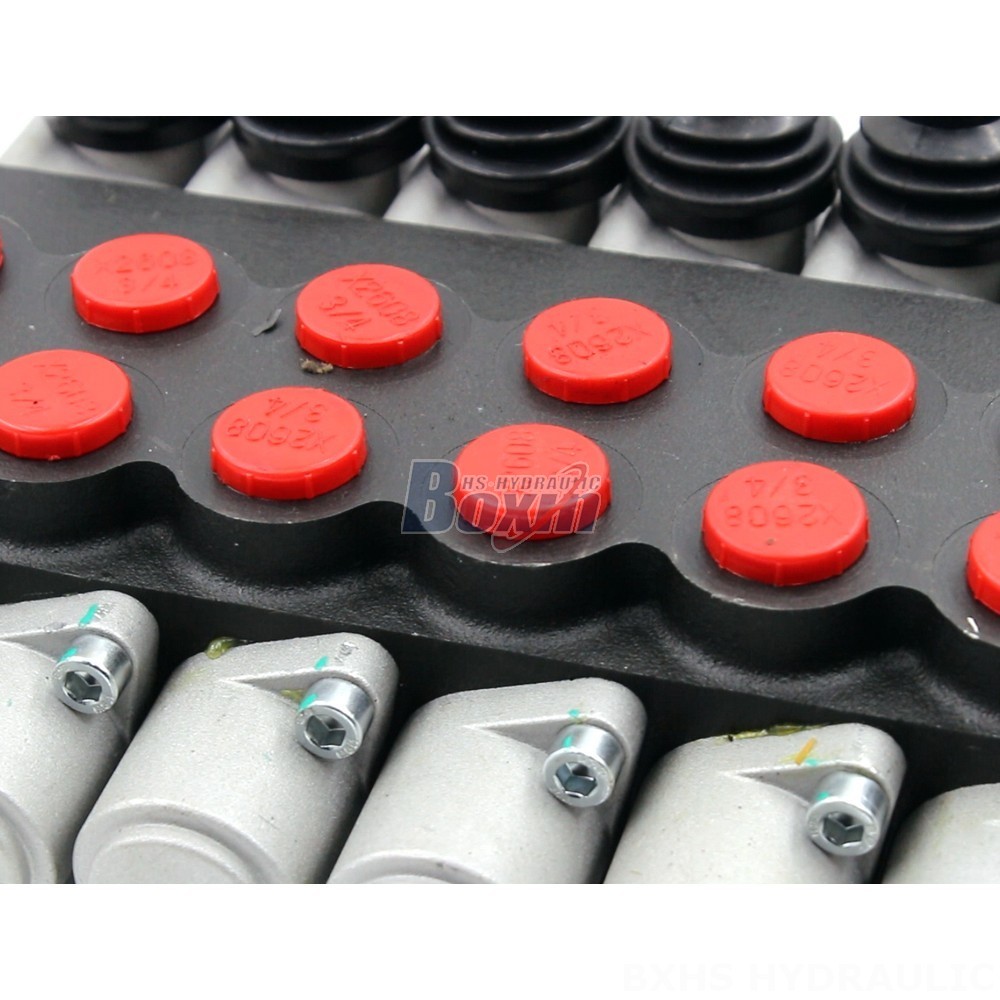

Direct from the Factory: P40-U34 Valves with Competitive Pricing & Fast Delivery The P40-U34 is a high-performance 6-spool directional control valve designed for use in industrial vehicles, construction equipment, and agricultural machinery. Manufactured to the highest standards, it offers exceptional reliability and durability. With its competitive pricing and fast delivery, the P40-U34 is the ideal choice for OEMs and distributors looking for a high-quality hydraulic valve.
| Serie P40 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Solenoide e joystick, Manuale e joystick, A solenoide e a cavo |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 40 L/min (10.5 US gpm) |
| Pressione massima | 250 bar (3600 psi) |
| Attacco di ingresso | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Attacco di uscita | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimensione attacco | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-U34 features a robust monoblock construction, ensuring excellent rigidity and pressure resistance. Its 40 L/min flow rate and 250 bar maximum pressure make it suitable for a wide range of applications. The valve is also equipped with a manual control lever, providing precise and responsive operation.
The P40-U34 is manufactured in our state-of-the-art factory, ensuring the highest levels of quality and consistency. As a factory direct supplier, we offer competitive pricing and fast delivery times to meet your production needs.
Key Features of the P40-U34:
- Rated Flow: 40 L/min (10.5 US gpm)
- Max Pressure: 250 bar (3600 psi)
- Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
- Spool: 6 Spool
- Series: P40 Series
- Control Method: Manual
- Section: 6 Section
- Structure Type: Monoblock valve
- Application Area: INDUSTRIAL VEHICLES,CONSTRUCTION AND EARTH MOVING,AGRICULTURE
- Applicable Model: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER,WHEEL LOADER
Contact us today to request a quote or learn more about our full range of hydraulic valves and solutions.
