Introducing the DCV58 Solenoid 1 Spool Valve, a high-performance hydraulic component designed to enhance the efficiency and control of your hydraulic systems. With a rated flow of 60 L/min and a maximum pressure of 350 bar, this valve ensures optimal flow and pressure regulation in various applications.
| Serie DCV58 Valvola direzionale sezionale Parametri | |
|---|---|
| Metodo di Controllo | Solenoide, Elettrovalvola e Manuale |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole, 8 Spole, 9 Spole, 10 Spole, 11 Spole, 12 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola sezionale |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7, Sezione 8, Sezione 9, Sezione 10, Sezione 11, Sezione 12 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 40 L/min (10.5 US gpm) |
| Pressione massima | 350 bar (5100 psi) |
| Attacco di ingresso | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Attacco di uscita | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Dimensione attacco | G1/2, M22×1.5, SAE 10, 1/2 NPT |

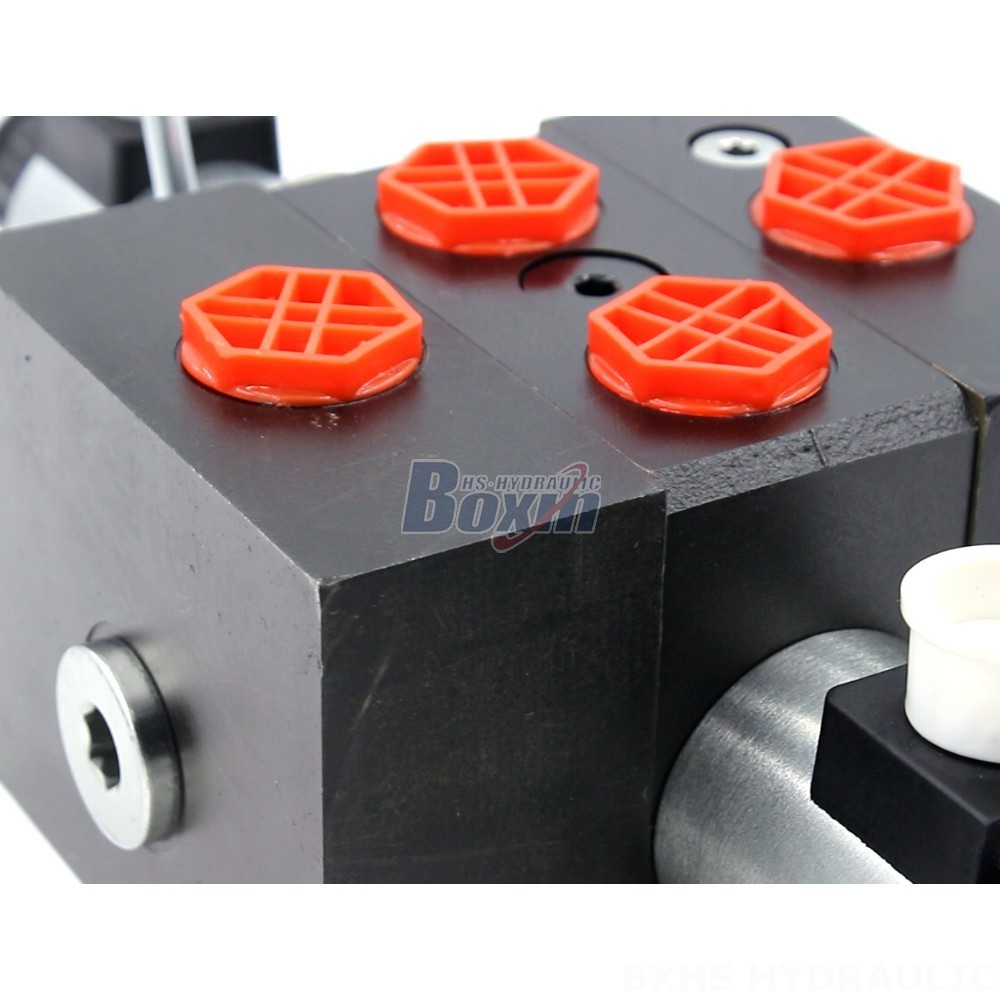

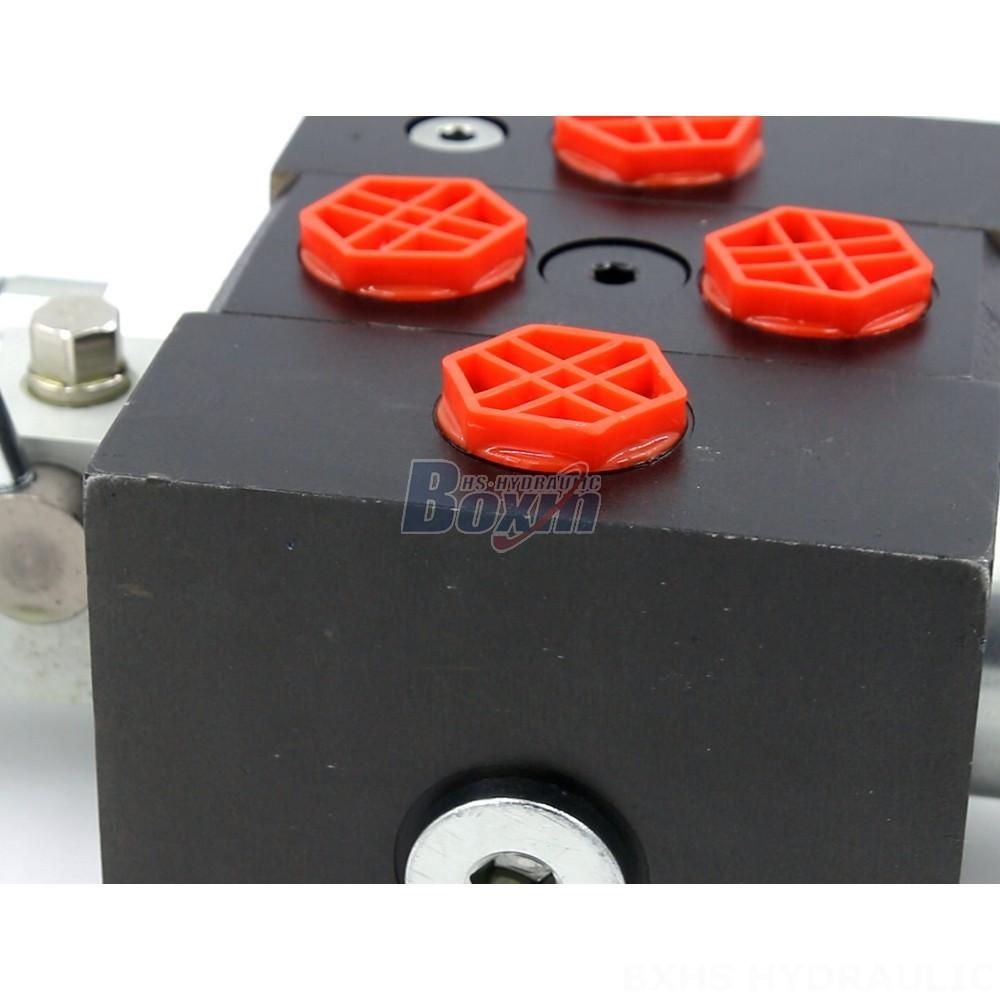

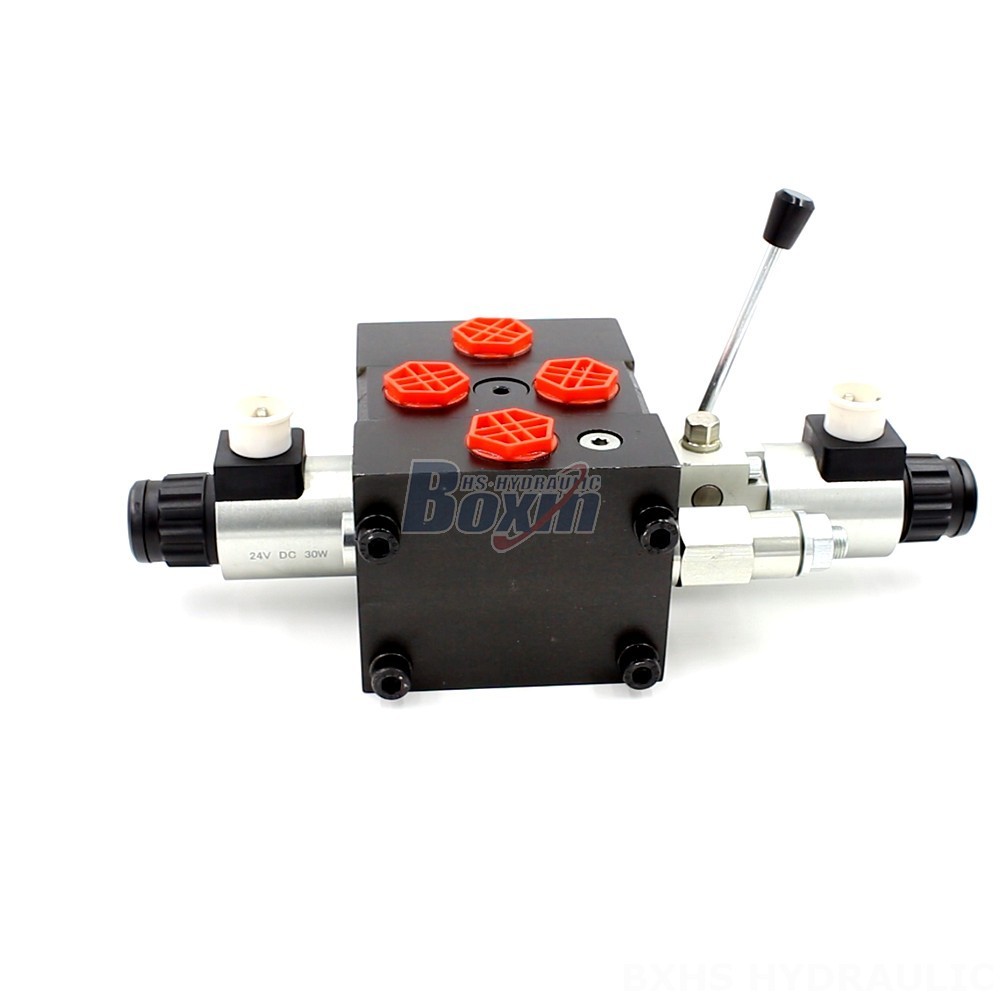

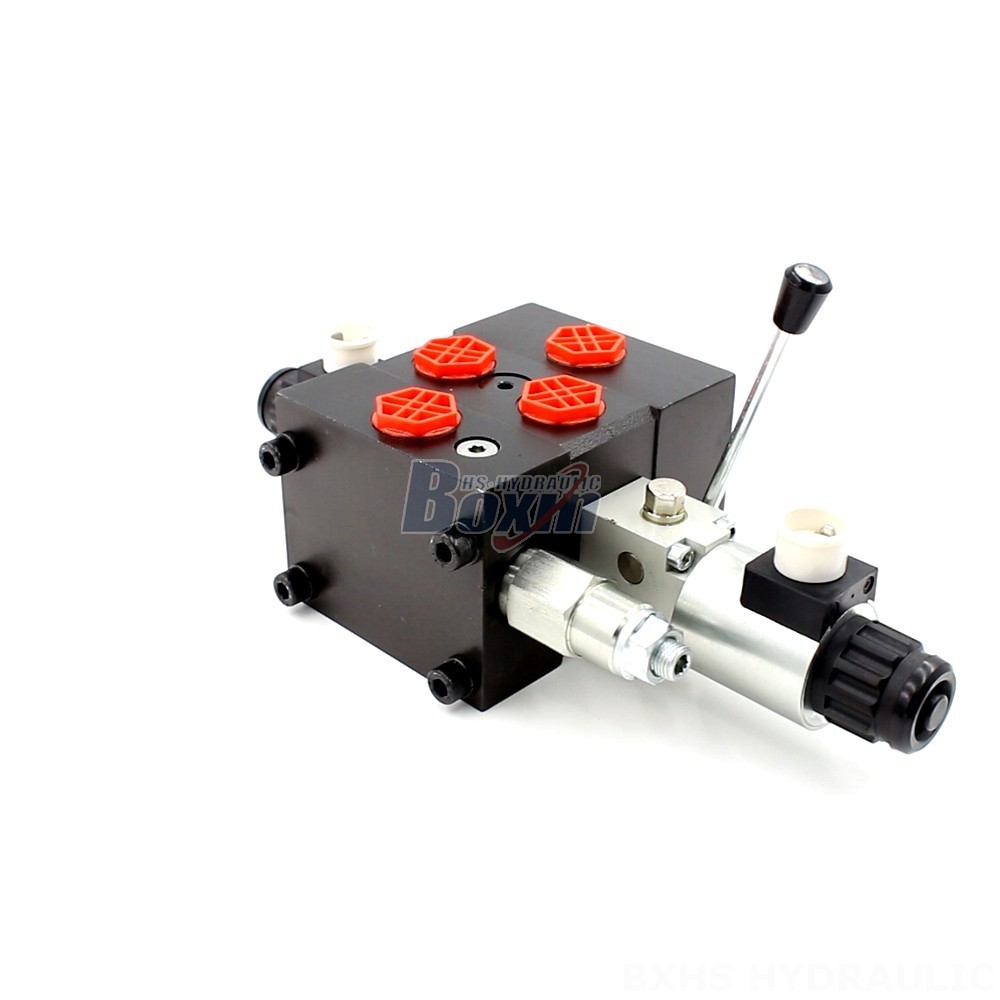

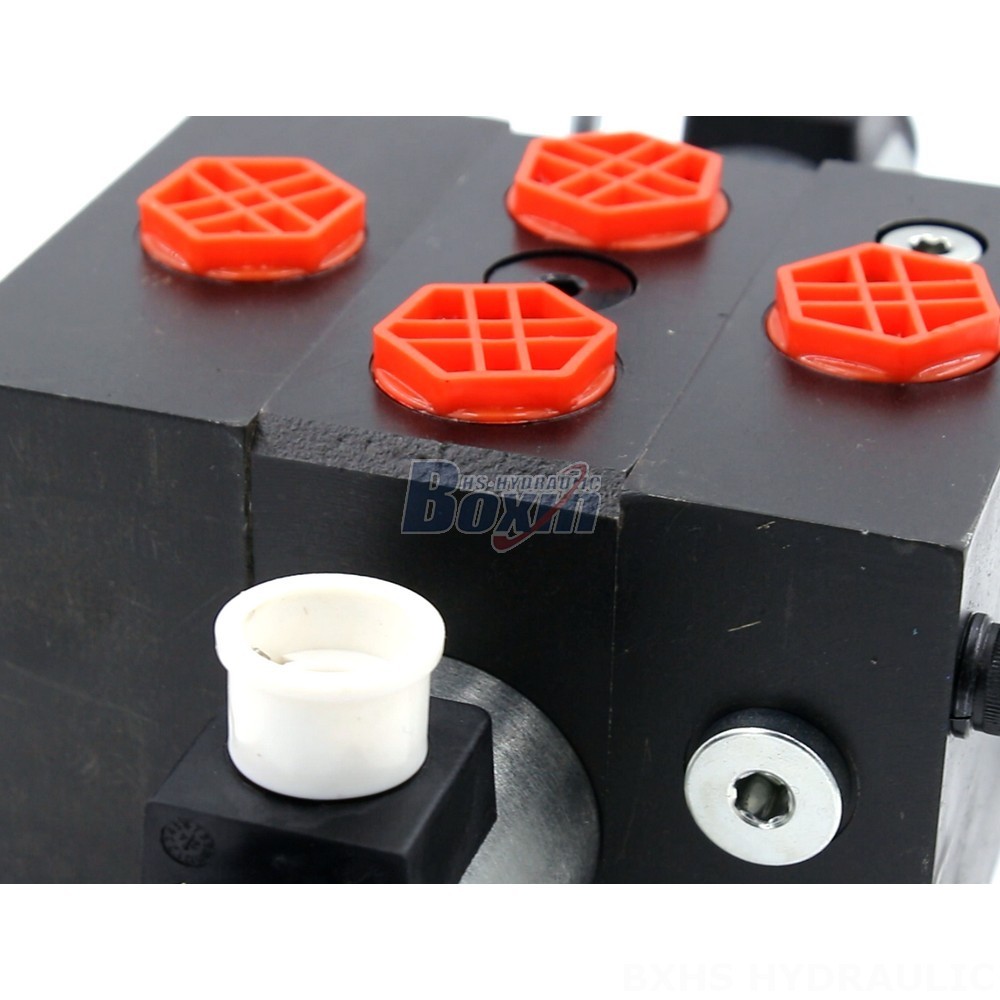

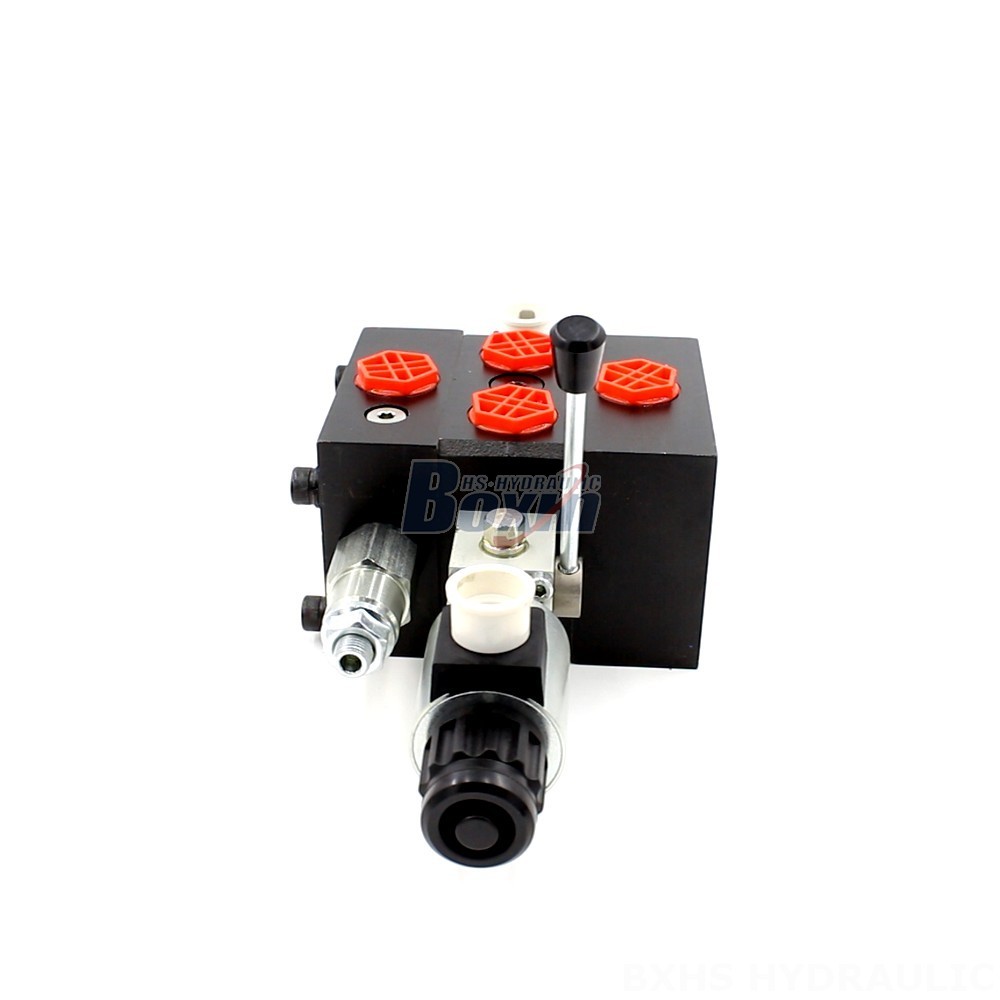

**DCV58 Solenoid 1 Spool Valve**
The DCV58 Solenoid 1 Spool Valve is a sectional valve featuring solenoid control for precise and reliable operation. It is ideally suited for applications in construction machinery, industrial vehicles, and agriculture. With its robust construction and high-quality materials, this valve ensures long-lasting performance and durability.
**Key Features:**
* Control Method: Solenoid
* Section: 1 Section
* Structure Type: Sectional valve
* Rated Flow: 60 L/min (15.8 US gpm)
* Max Pressure: 350 bar (5100 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 1 Spool
* Series: DCV58 Series
* Application Area: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
* Applicable Model: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER
The DCV58 Solenoid 1 Spool Valve is a versatile and efficient hydraulic component that offers exceptional control and performance. It is meticulously designed to meet the demands of modern hydraulic systems in various industries.
