Produzione e consegna
Tempi di produzione di 15-30 giorni
L’innovazione guida lo sviluppo e la tecnologia forgia il futuro
318 Le visualizzazioni cercano questo prodotto

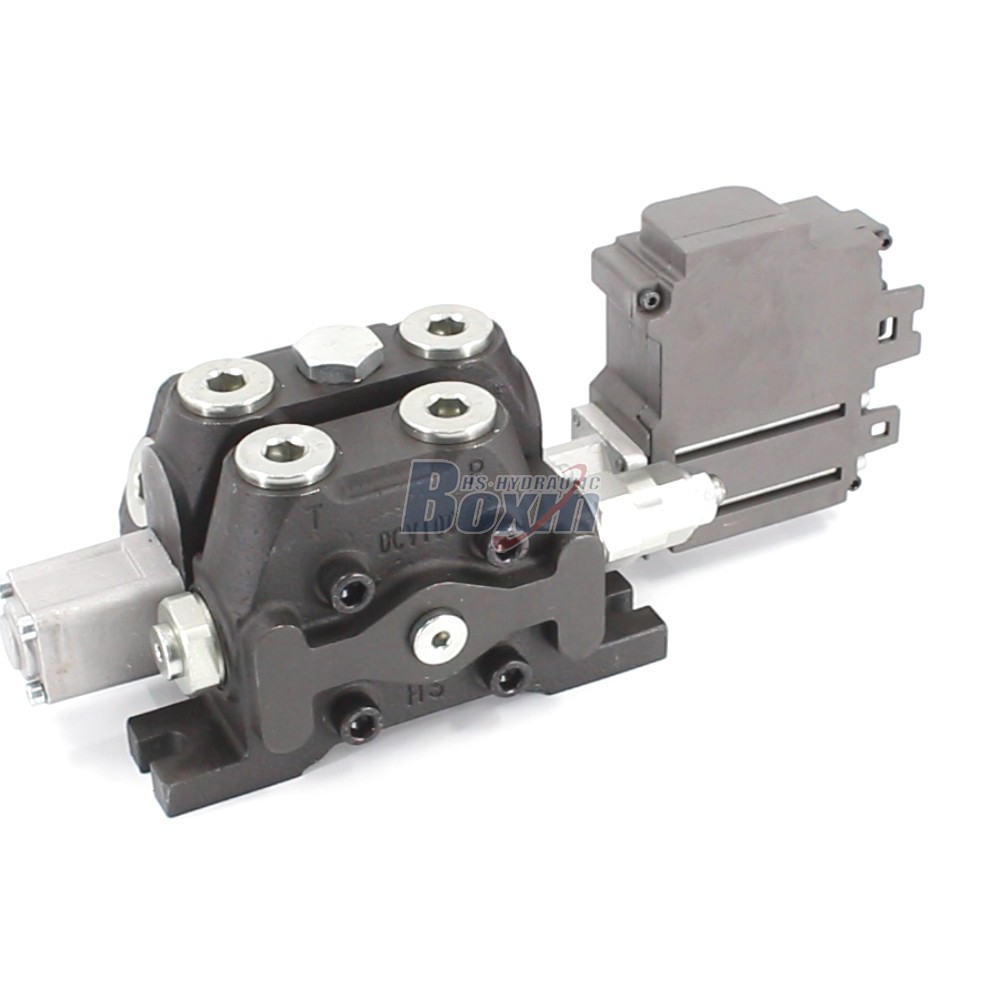

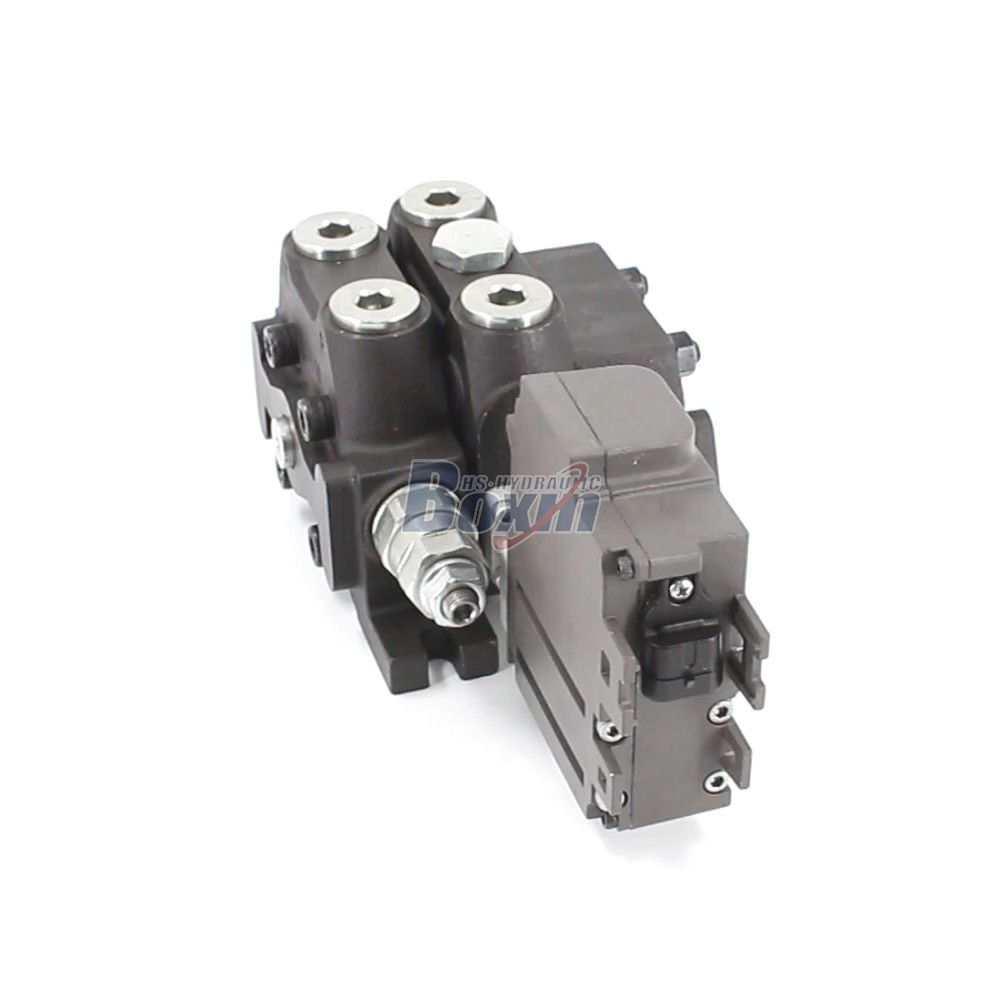

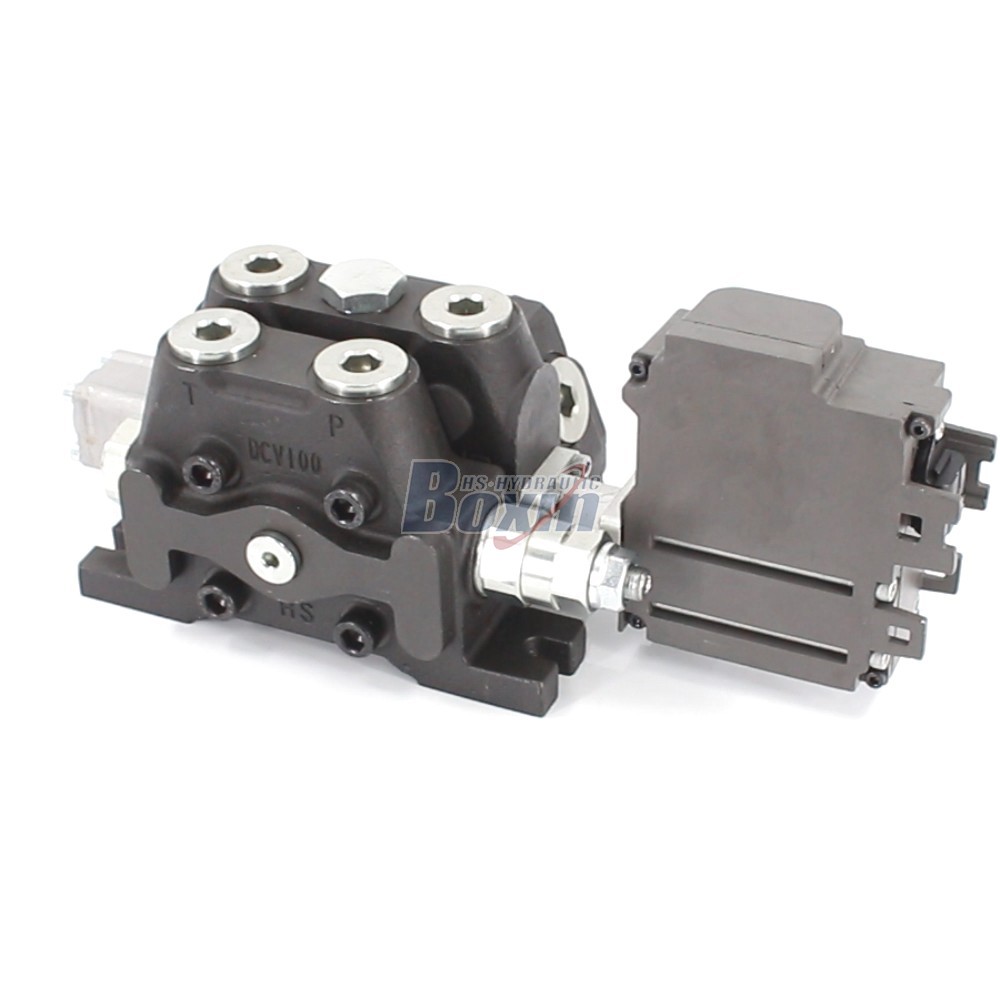

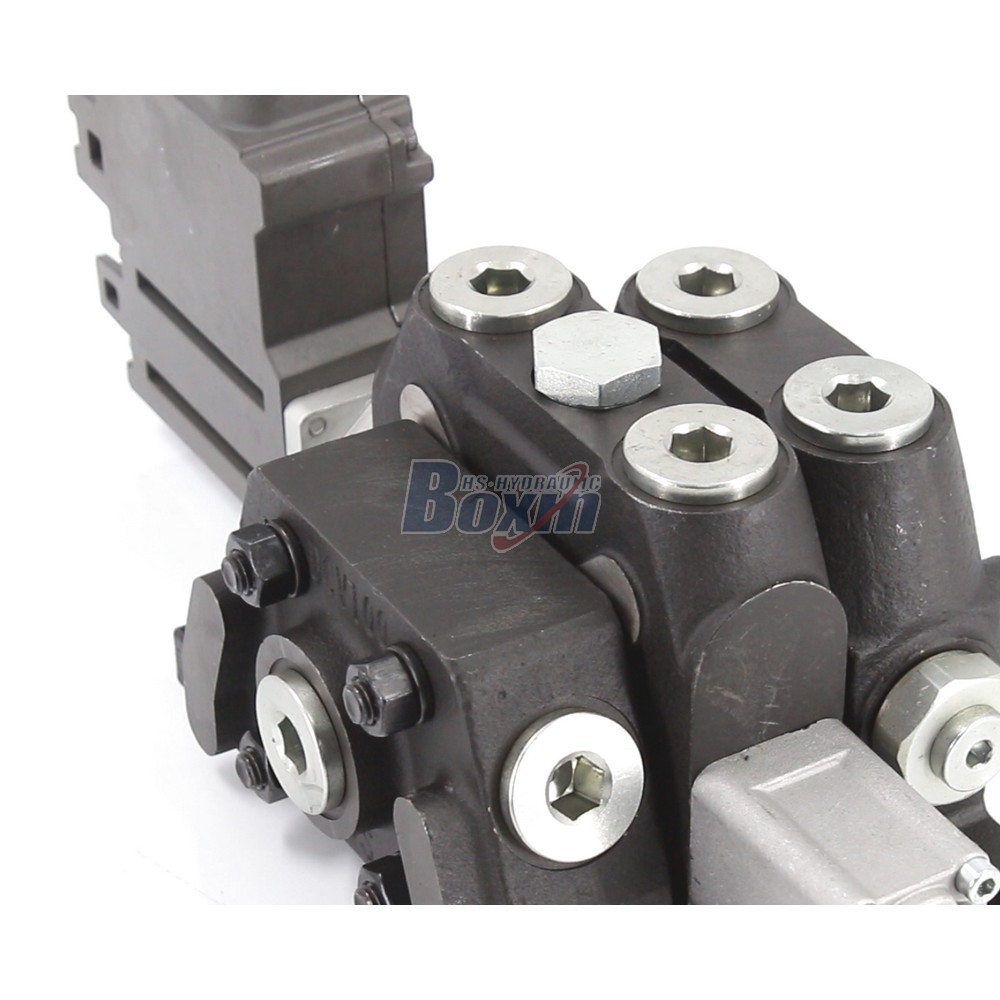

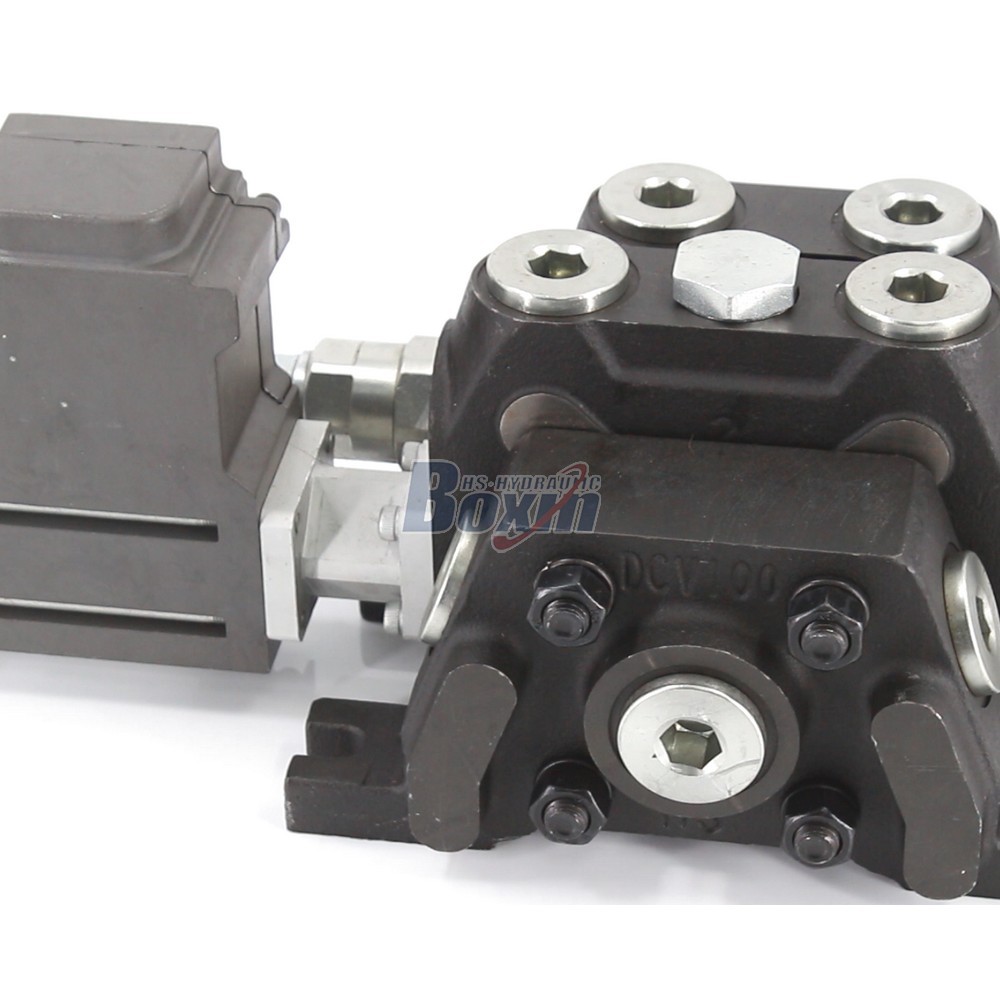

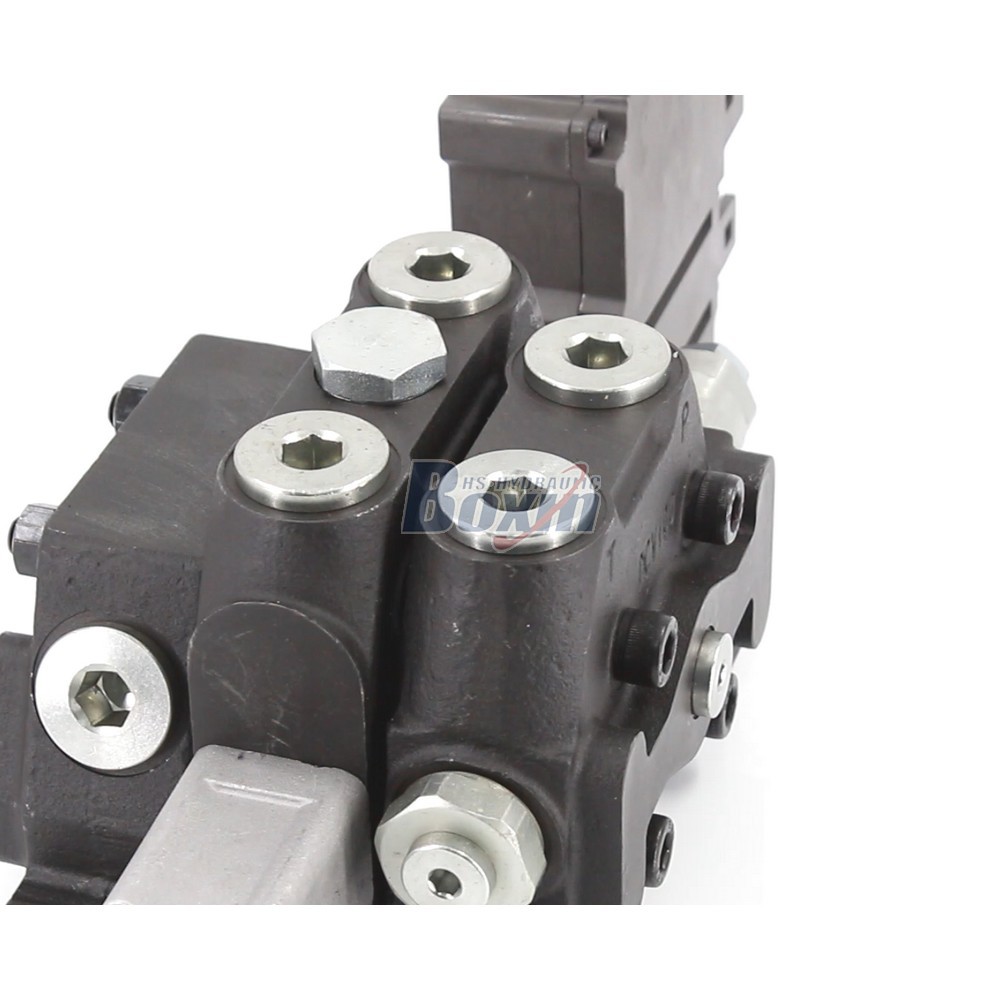

This DCV100EMA-OT is a 1 Spool Sectional Directional Valve driven by an electric motor, designed for hydraulic systems requiring up to 100 L/min flow and 315 bar pressure. Manufactured by a 25-year IATF 16949 certified factory, it ensures reliable performance for telehandlers, forklifts, and agricultural machinery with full OEM/ODM support.
| Serie DCV100 Valvola direzionale sezionale Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Cavo, Joystick, Manuale e joystick, Manuale ed elettroidraulico, Motore elettrico, Elettroidraulico e a solenoide |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole, 8 Spole, 9 Spole, 10 Spole, 11 Spole, 12 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola sezionale |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7, Sezione 8, Sezione 9, Sezione 10, Sezione 11, Sezione 12 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 100 L/min (26.5 US gpm) |
| Pressione massima | 315 bar (4600 psi) |
| Attacco di ingresso | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Attacco di uscita | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Dimensione attacco | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
**1. High-Flow Sectional Directional Valve Specs**
- Rated for 100 L/min (26.5 US gpm) flow with G3/4 inlet/outlet ports, ensuring efficient fluid dynamics.
- Operates safely at max pressure of 315 bar (4600 psi), ideal for demanding material handling tasks.
**2. Reliable Electric Hydraulic Control Valve Design**
- Features integrated electric motor control for precise spool actuation and automated system integration.
- Compact 1 spool configuration simplifies installation in space-constrained industrial vehicle applications.
**3. Durable 1 Spool Directional Valve Construction**
- Built with high-grade castings and finished with anti-rust treatment for extended service life.
- Undergoes 100% bench testing for pressure, flow, and sealing before shipment to guarantee zero defects.
**4. Versatile DCV100 Series Valve Applications**
- Perfectly compatible with telehandlers, mini-excavators, skid steer loaders, and wood splitters.
- Serves as a direct replacement for major international brands, reducing maintenance costs for wholesalers.
**5. Factory Direct Sales & Customization Power**
- Backed by a Professional Manufacturer with 25+ years experience, 68,000 sqm facility, and IATF 16949 certification.
- Supports OEM/ODM services including laser logo marking and custom packaging for China Wholesale buyers.
