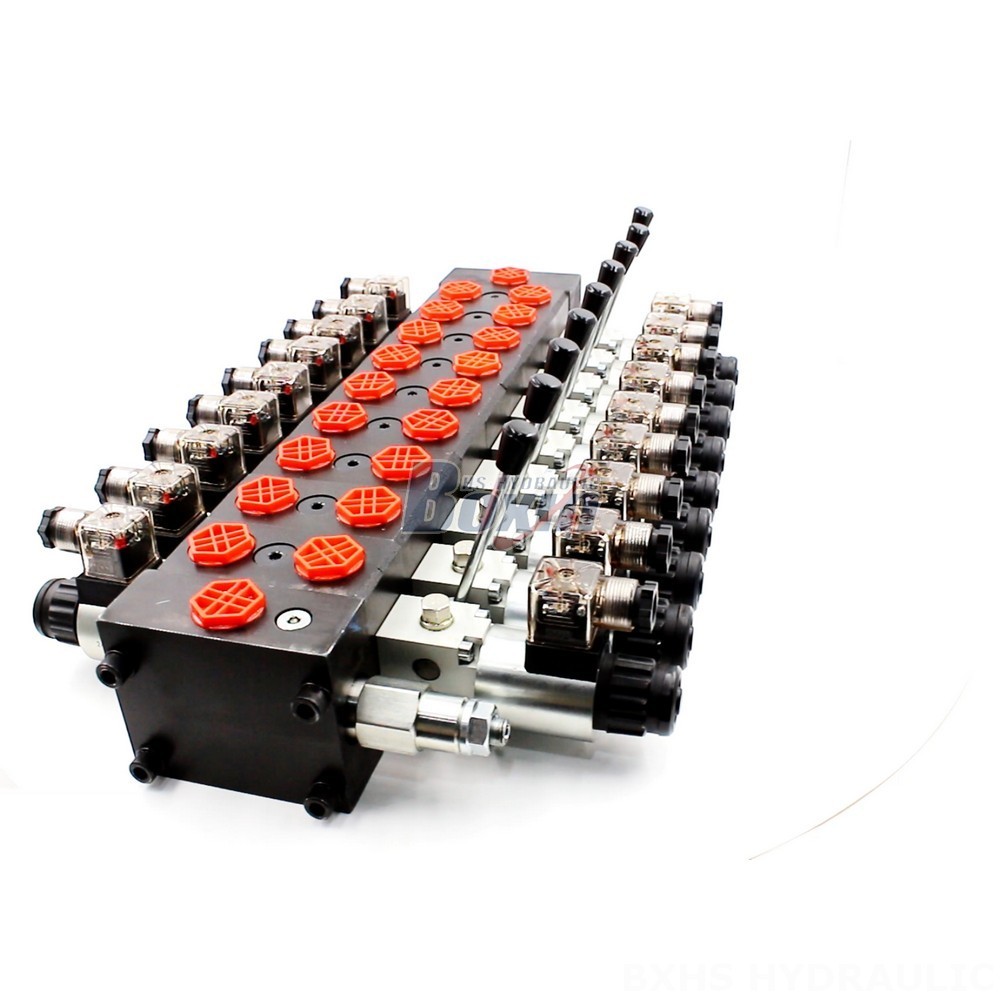

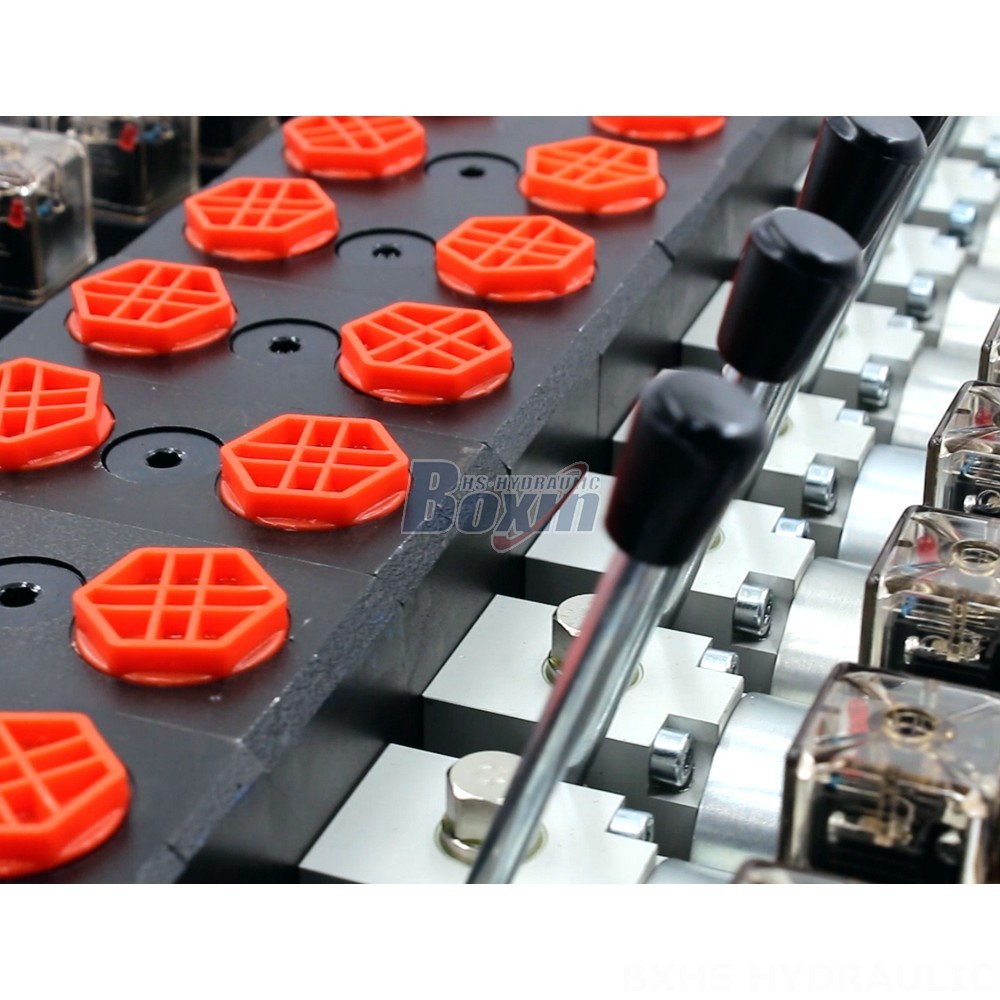

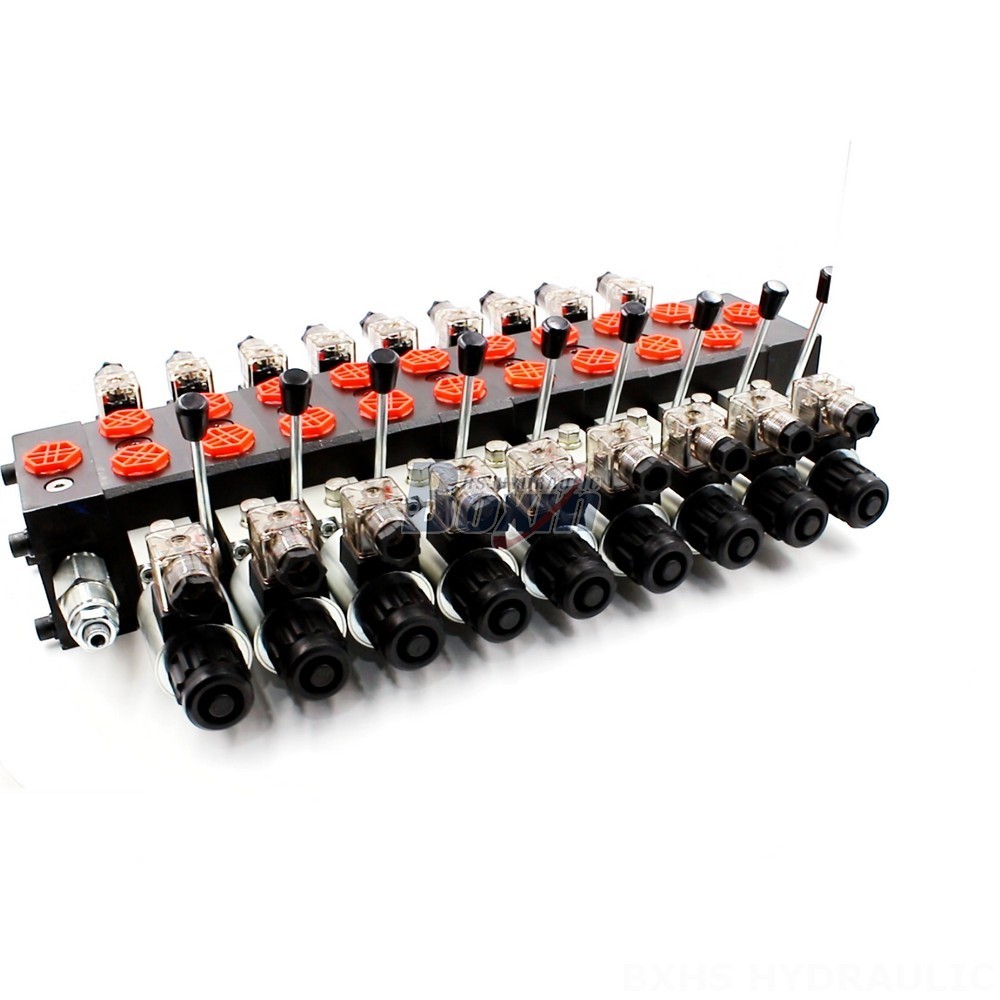

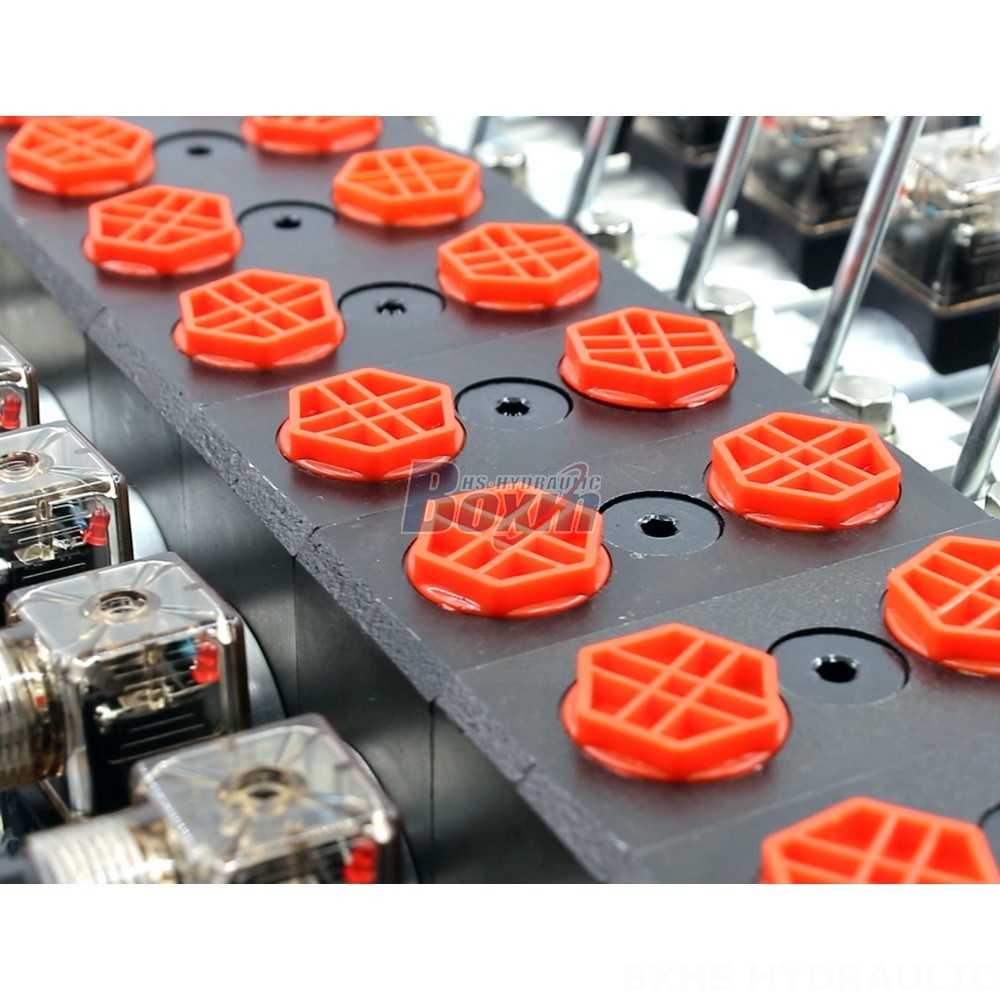

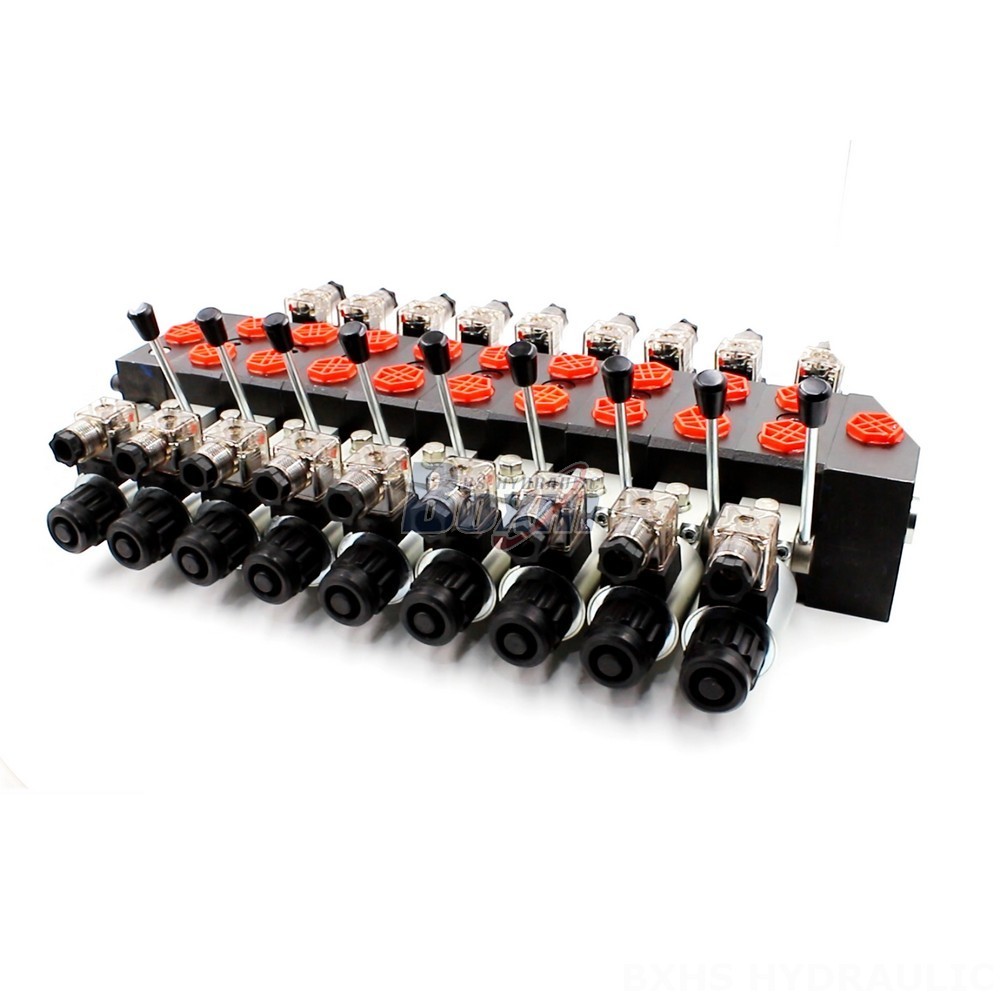

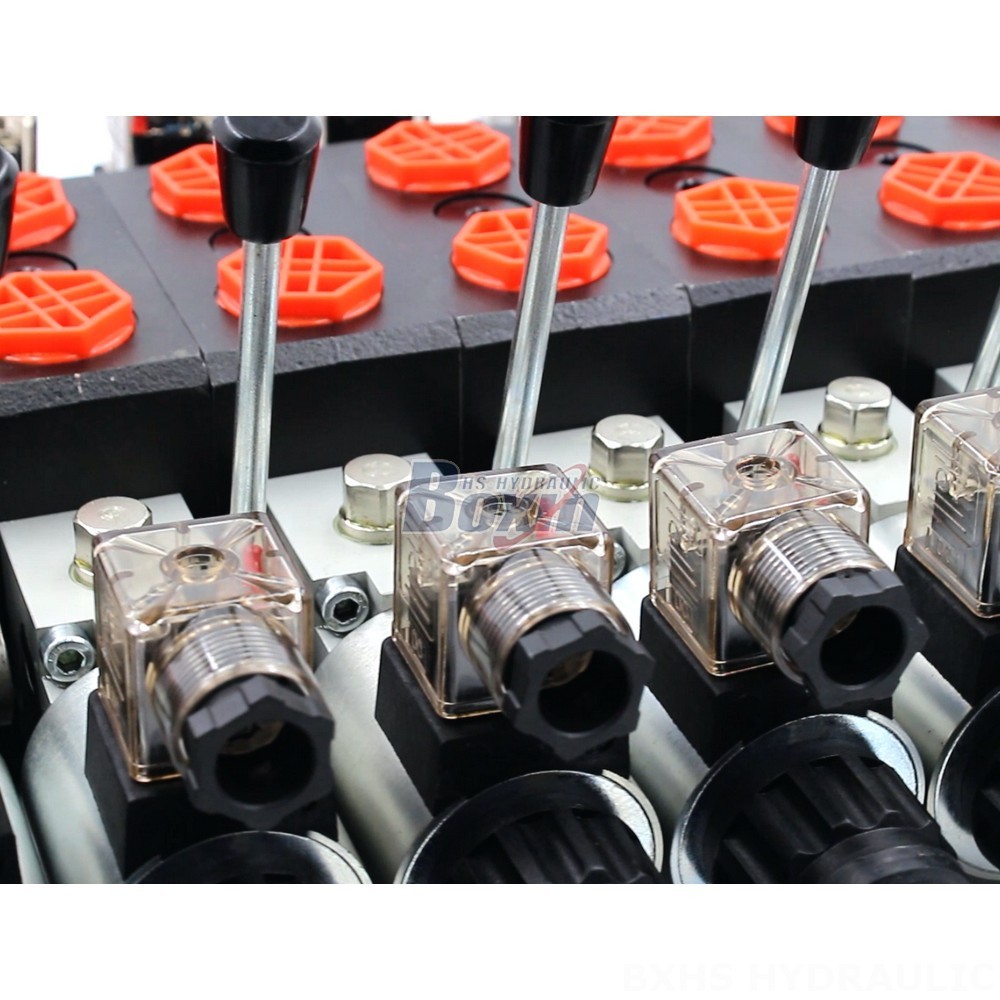

This is a high-performance, customizable hydraulic motor valve designed for demanding industrial applications. It features a 9-section, solenoid-controlled design, high flow rate (60 L/min), and high pressure rating (350 bar). Ideal for material handling, construction, agriculture, and industrial vehicles.
| Serie DCV58 Valvola direzionale sezionale Parametri | |
|---|---|
| Metodo di Controllo | Solenoide, Elettrovalvola e Manuale |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole, 8 Spole, 9 Spole, 10 Spole, 11 Spole, 12 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola sezionale |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7, Sezione 8, Sezione 9, Sezione 10, Sezione 11, Sezione 12 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 40 L/min (10.5 US gpm) |
| Pressione massima | 350 bar (5100 psi) |
| Attacco di ingresso | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Attacco di uscita | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Dimensione attacco | G1/2, M22×1.5, SAE 10, 1/2 NPT |
This versatile **hydraulic motor valve** is a **customizable, high-performance** solution for your industrial needs. The **9-section, solenoid-controlled** design provides precise and reliable operation in a wide range of applications. With a **rated flow of 60 L/min** and a **maximum pressure of 350 bar**, this valve is capable of handling demanding workloads. The **sectional valve** construction allows for easy maintenance and repair. Designed for **heavy-duty operation**, it operates within a broad temperature range (-40°C to +80°C). Suitable for use in **material handling**, **construction and earth moving**, **agriculture**, and **industrial vehicles** such as **telehandlers**, **forklifts**, **all terrain cranes**, **stackers**, **aerial platforms**, **motor graders**, **midi-excavators**, **mini-excavators**, **skid steer loaders**, and **compact wheel loaders**. Part of the **DCV58 Series**, this valve is built to meet the highest industry standards.
