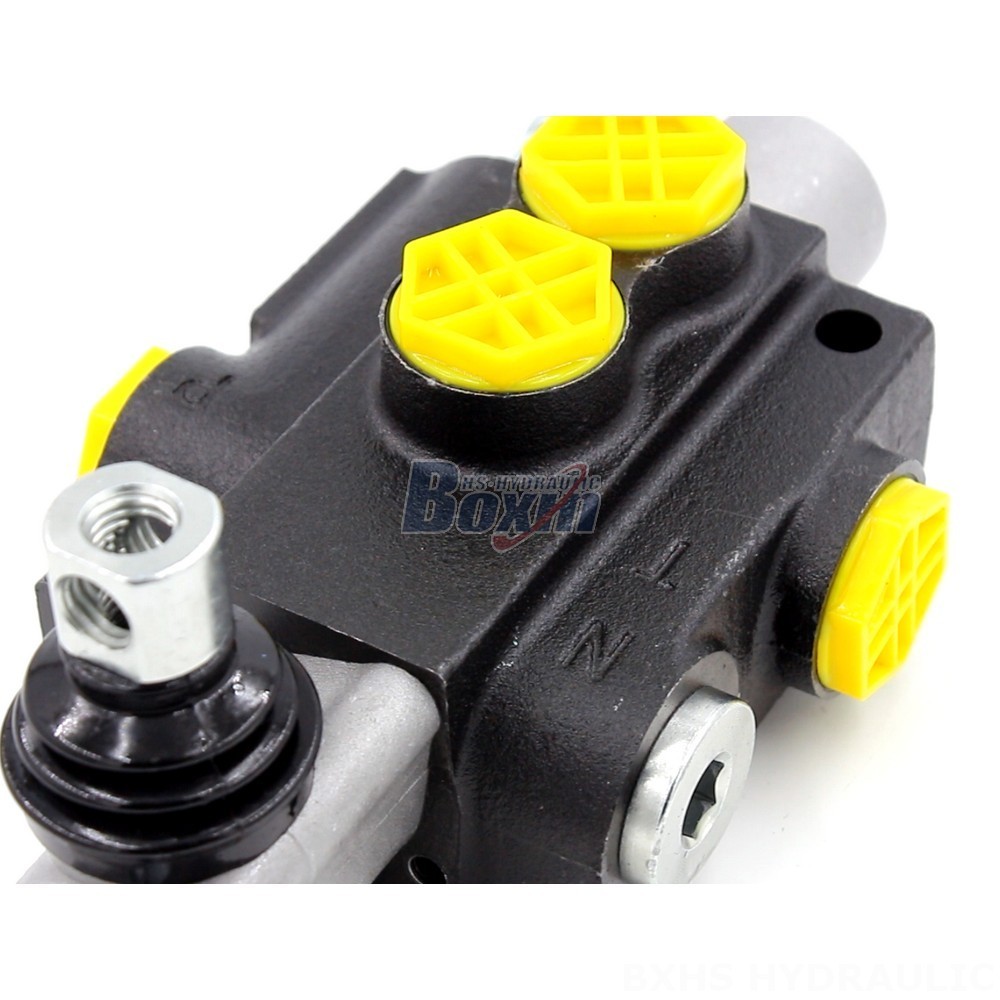

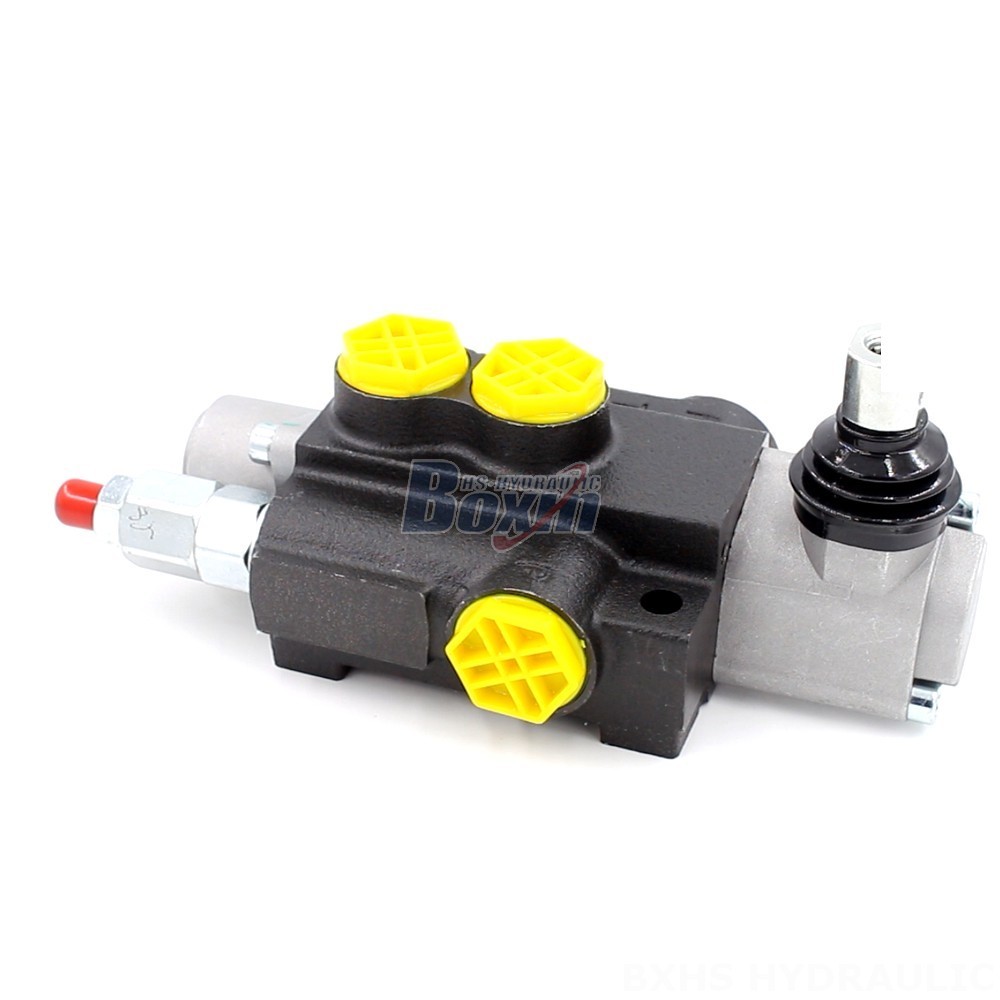

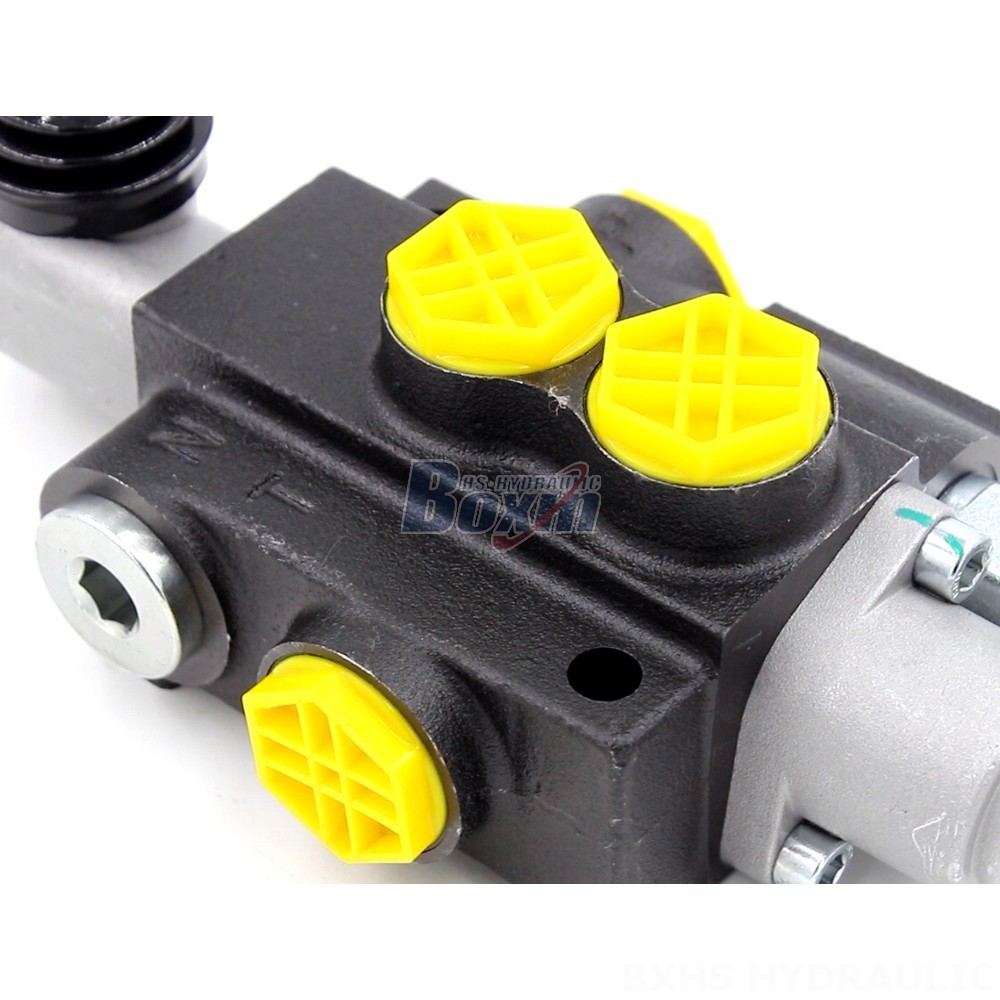

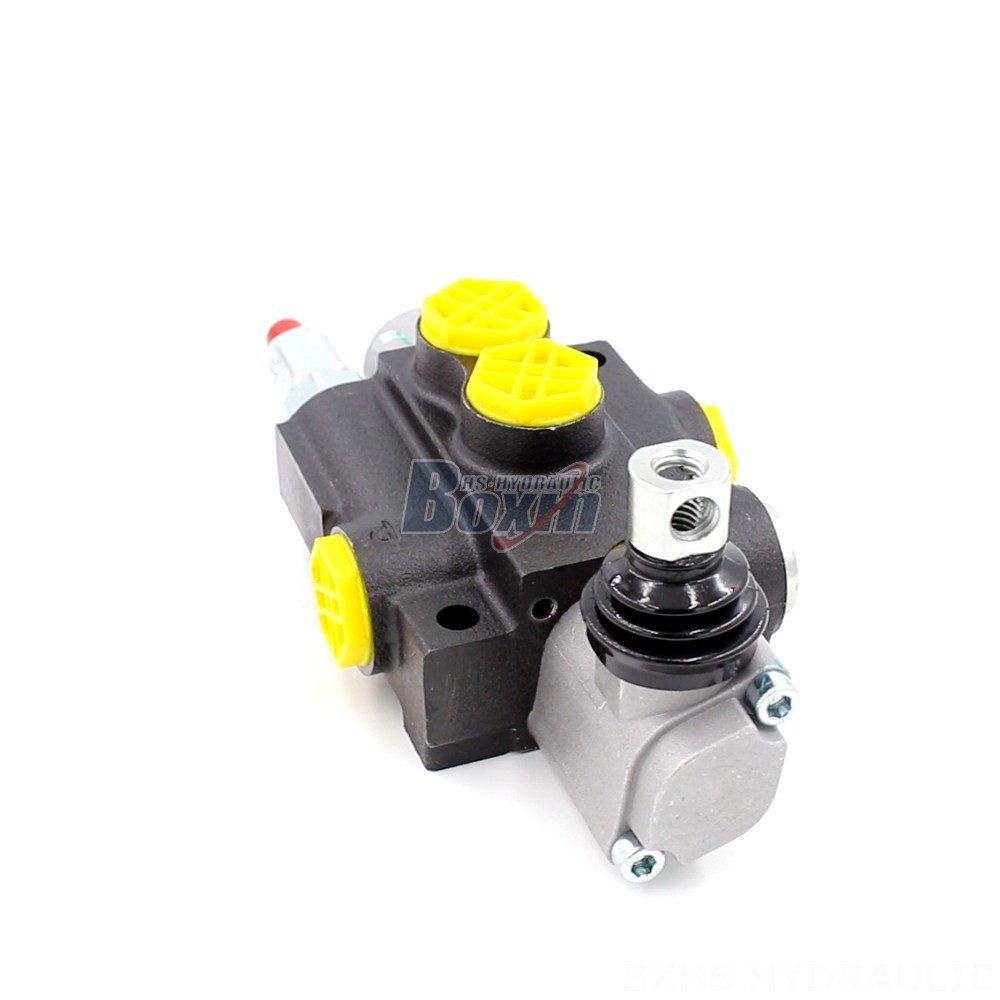

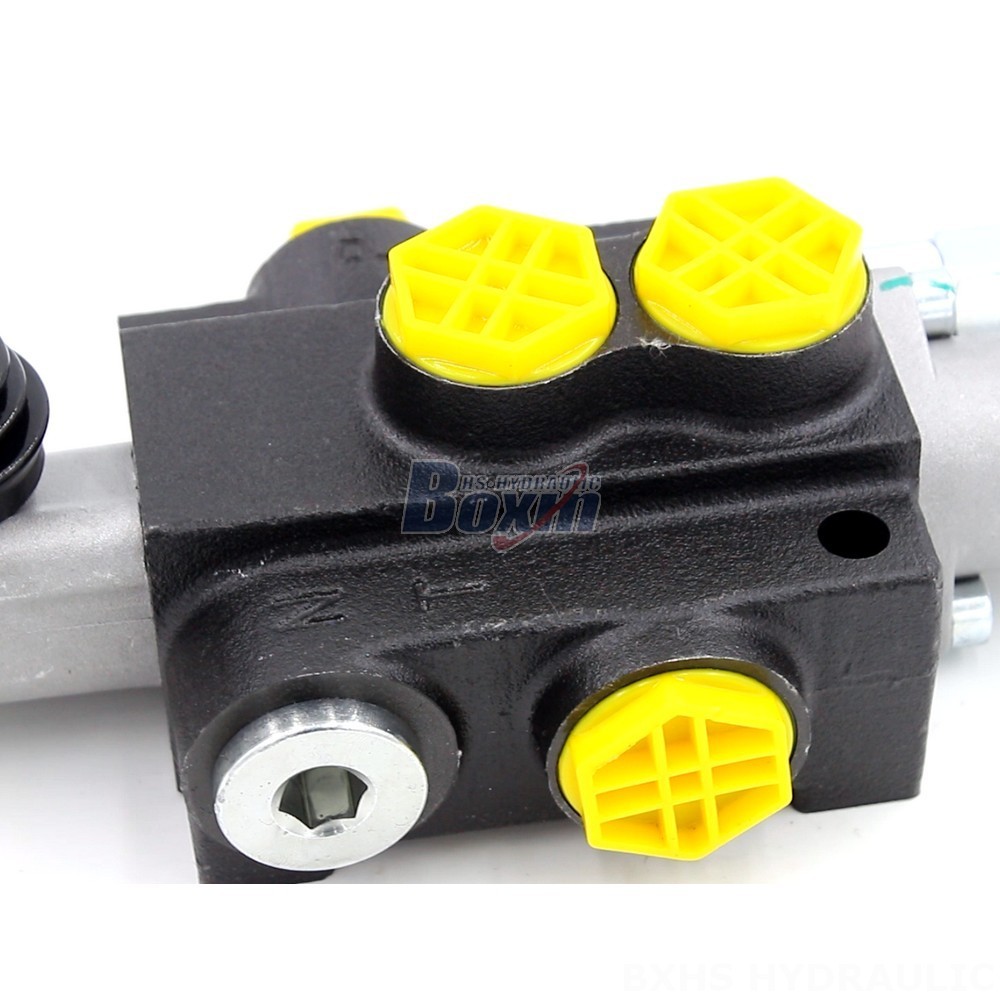

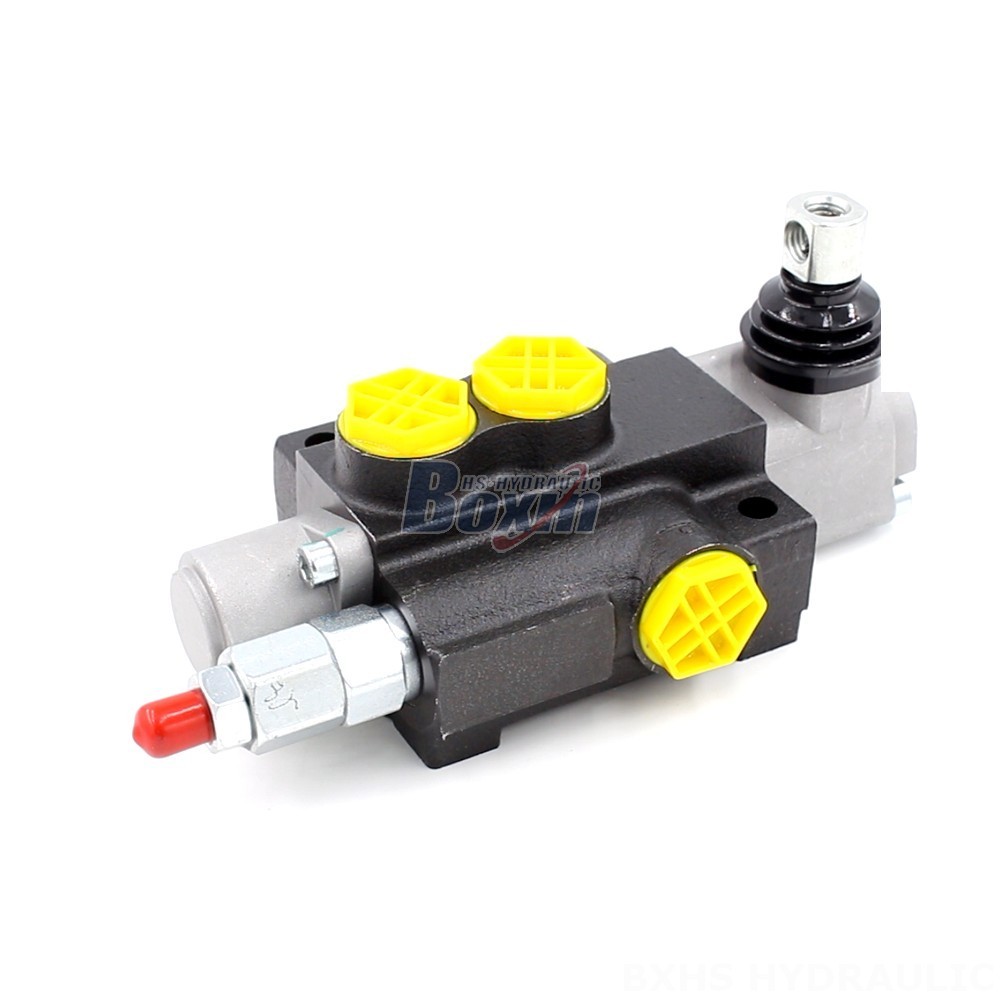

The P40-G12-1OT 1-Spool Monoblock Hydraulic Valve is a high-performance, customizable valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. This manual, monoblock valve offers reliable directional control with a rated flow of 40 L/min and a maximum pressure of 250 bar. It is suitable for a wide range of equipment, including telehandlers, forklifts, excavators, loaders, and more.
| Serie P40 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Solenoide e joystick, Manuale e joystick, A solenoide e a cavo |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 40 L/min (10.5 US gpm) |
| Pressione massima | 250 bar (3600 psi) |
| Attacco di ingresso | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Attacco di uscita | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimensione attacco | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-1OT 1-Spool Monoblock Hydraulic Valve is a high-quality, robust component that delivers precise and efficient fluid control. Featuring a compact monoblock design, this valve is suitable for a variety of applications, including construction equipment, material handling systems, agricultural machinery, and industrial vehicles. Its customizable nature allows for tailored solutions to meet specific requirements. The valve has a rated flow of 40 L/min and a maximum pressure of 250 bar, making it capable of handling high-demanding hydraulic systems. It is compatible with a wide range of operating temperatures and viscosity ranges. With its reliable performance, durability, and versatility, the P40-G12-1OT 1-Spool Monoblock Hydraulic Valve is an ideal choice for demanding applications requiring precise hydraulic control.
