The CBN-F540 hydraulic gear pump is a high-performance, 40cc/rev external gear pump with a rated pressure of 16 MPa. Ideal for construction, agricultural, and industrial vehicles, it's available for OEM, ODM, custom, and wholesale orders.
| Serie CBN-F540/550 Pompa a ingranaggi idraulica Parametri | |
|---|---|
| Cilindrata | 40 cc/giro, 50 cc/giro, 90 cc/giro |
| Pressione nominale | 16 MPa (2320 psi) |
| Pressione massima | 16 MPa (2320 psi) |
| Velocità nominale | 2000 giri/min |
| Velocità massima | 2500 giri/min |
| Rotazione | L: Sinistra (in senso antiorario), R: Destra (in senso orario) |
| Materiale | Alluminio |
| Struttura | Pompa a ingranaggi esterna |
| Versione flangia | Flangia quadrata di tipo B |
| Tipo di albero | H: Scanalatura rettangolare, P: Chiave semplice |

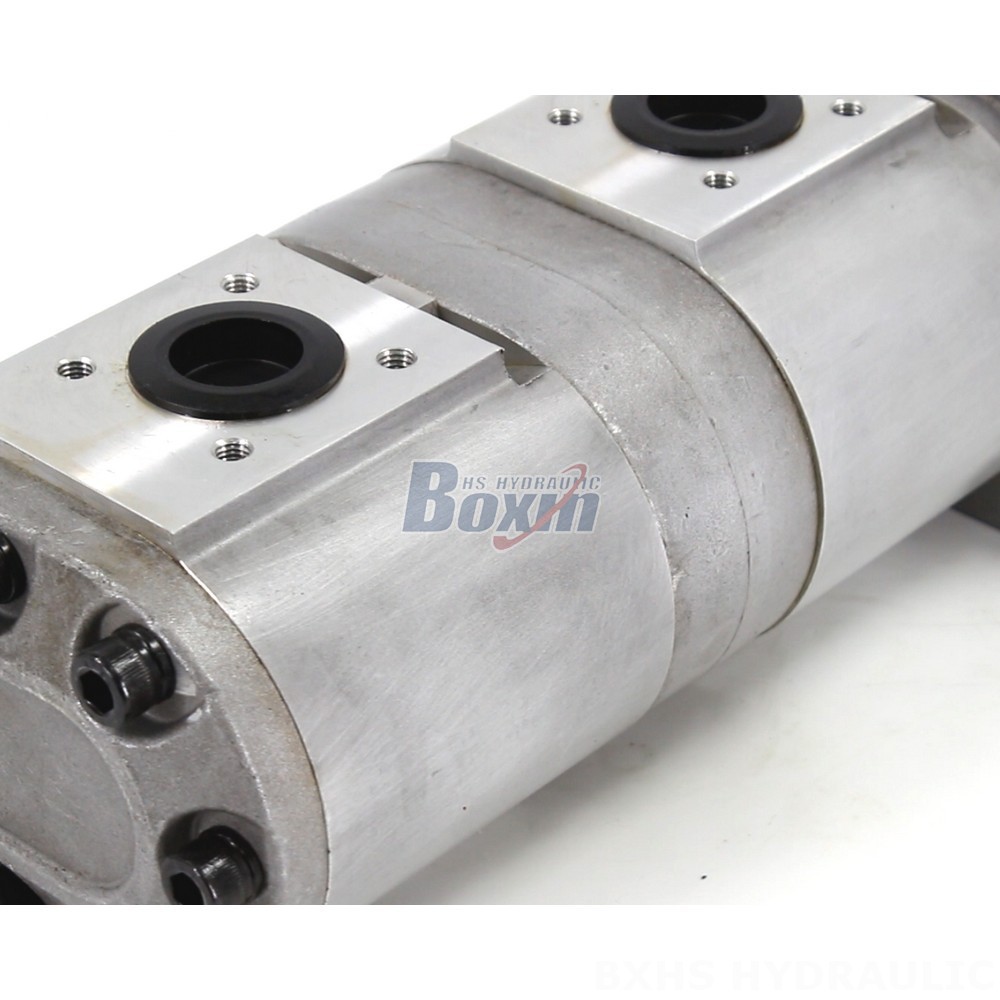

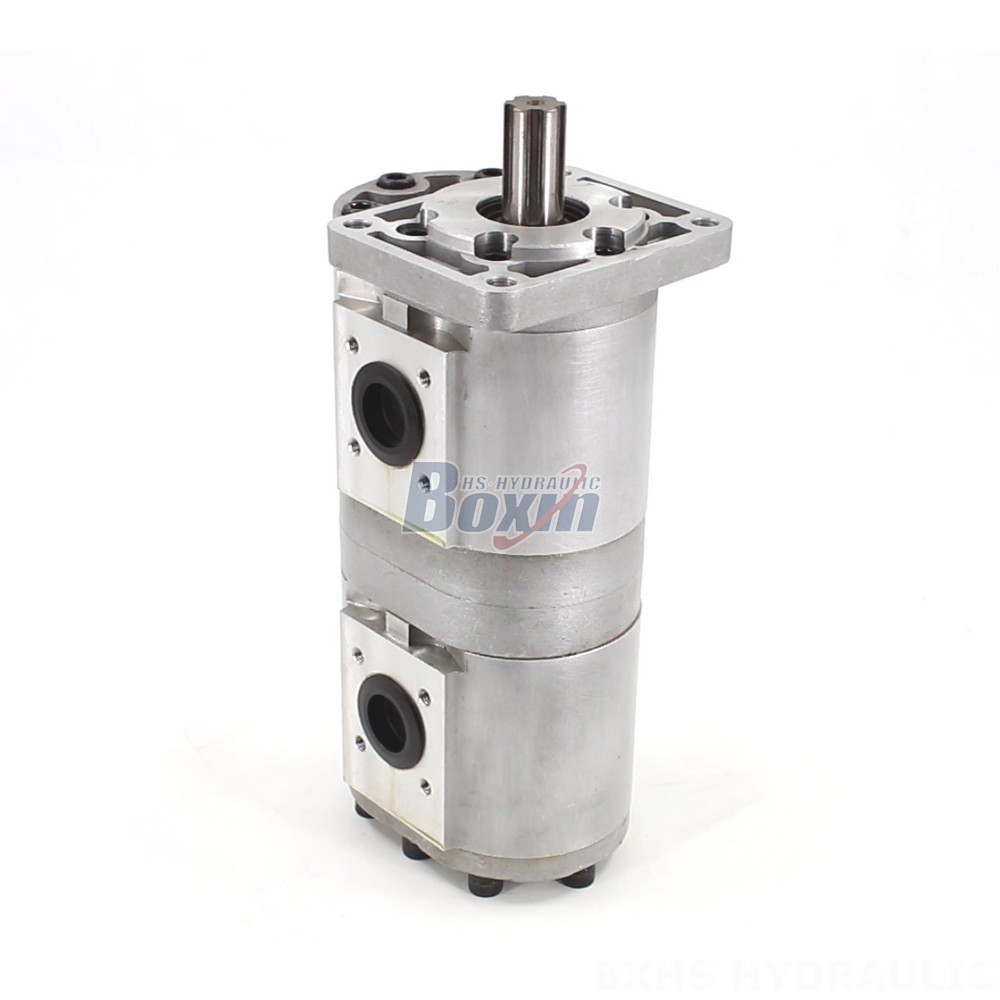

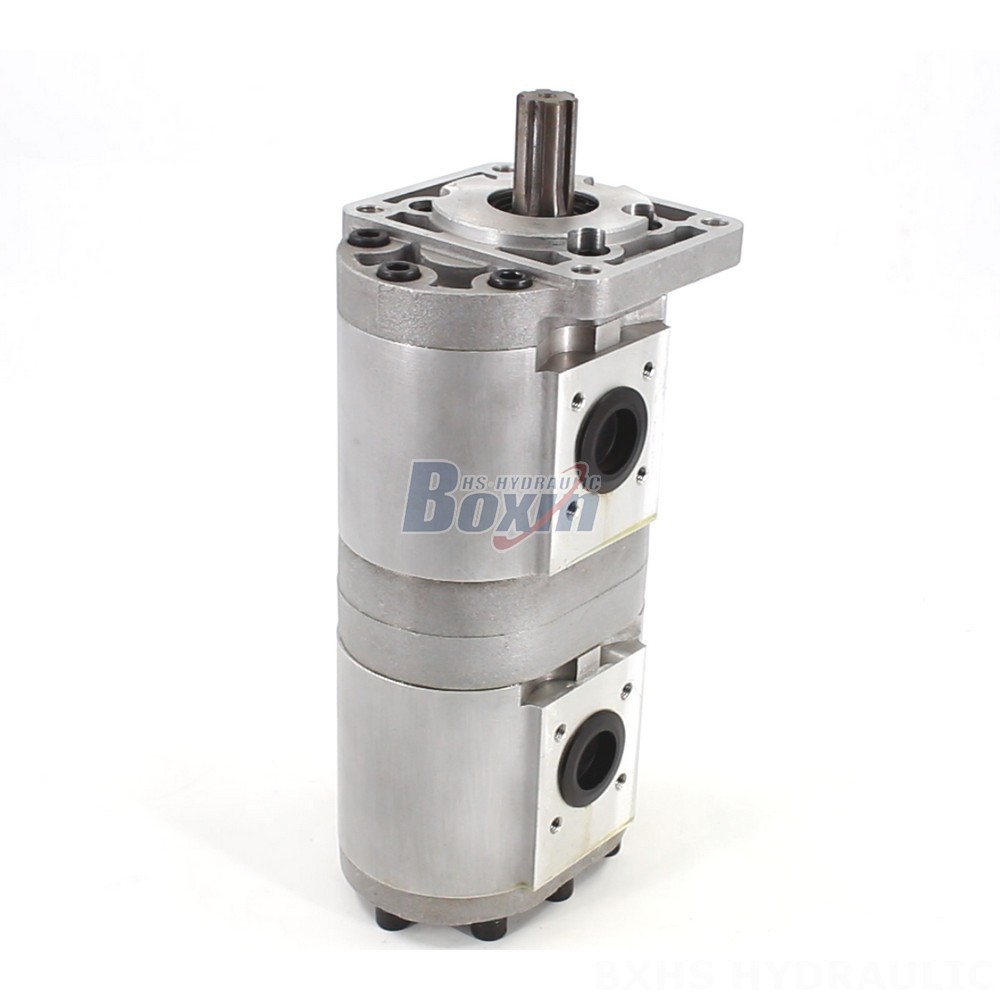

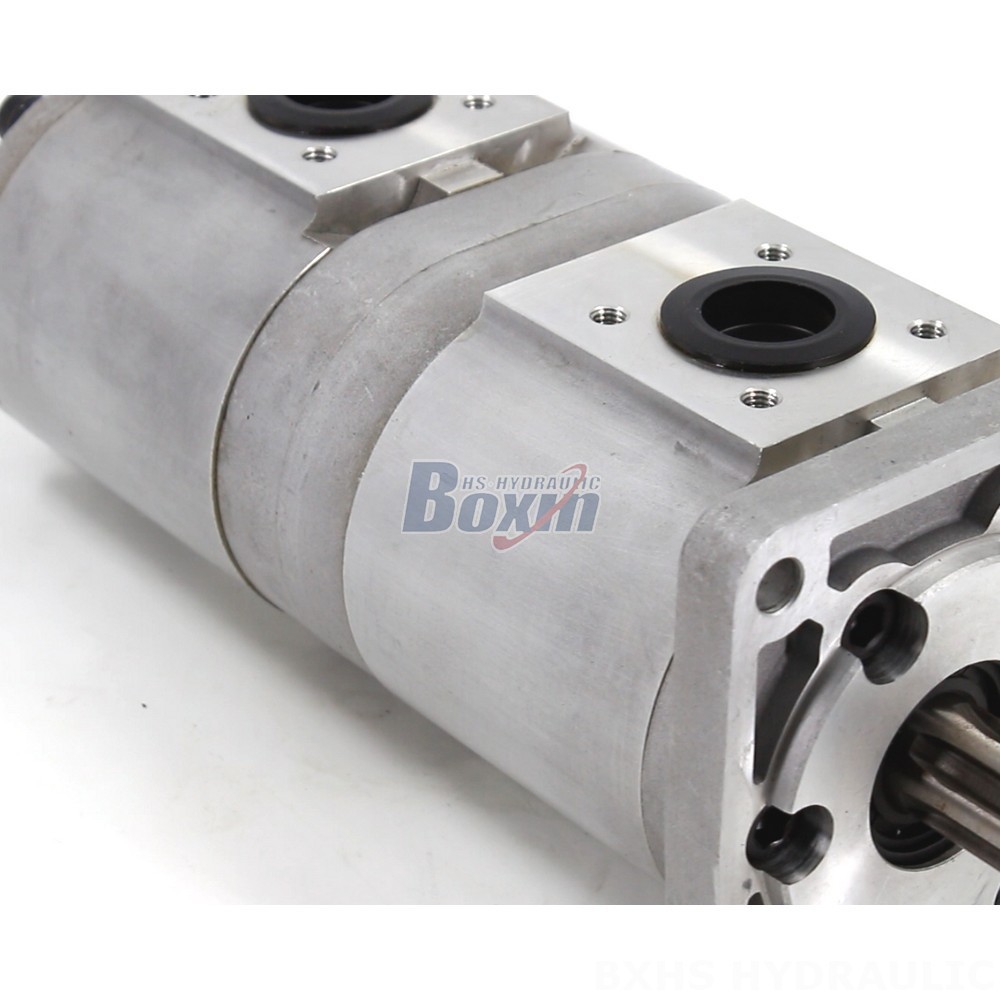

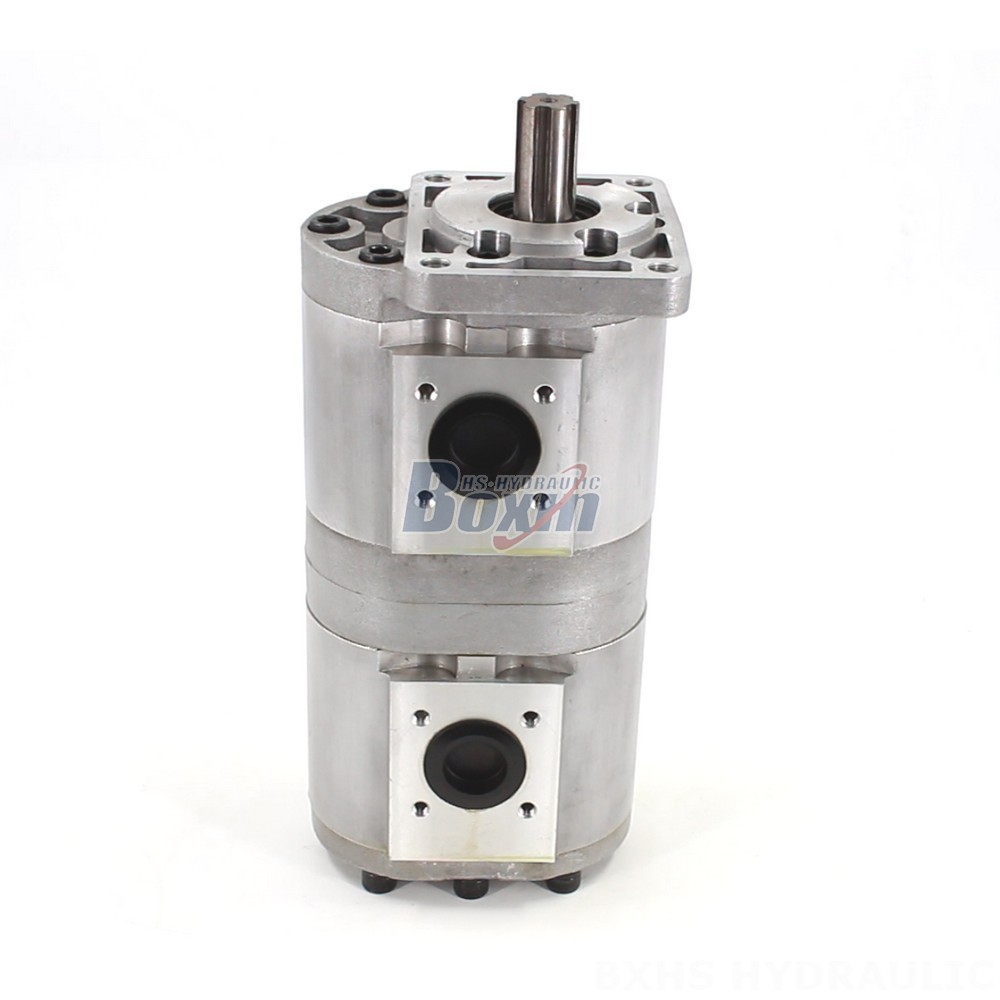

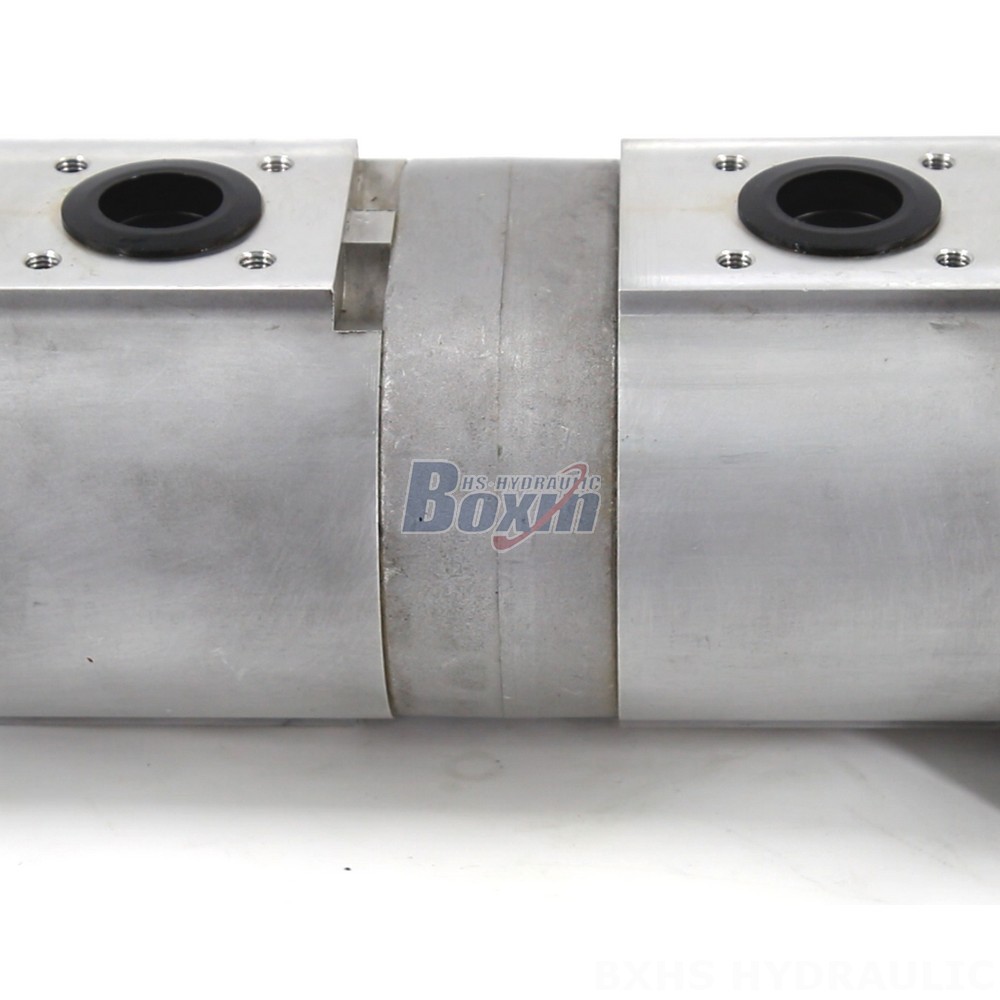

CBN-F540 Hydraulic Gear Pump: OEM & ODM Services Available
This high-performance external gear pump, the CBN-F540, offers reliable hydraulic power for a variety of applications. With a displacement of 40 cc/rev and a rated pressure of 16 MPa (2320 psi), it's perfect for demanding environments. Built from durable cast iron, the CBN-F540 ensures longevity and efficiency.
**Key Features:**
* **Displacement:** 40 cc/rev
* **Rated Pressure:** 16 MPa (2320 psi)
* **Max Pressure:** 16 MPa (2320 psi)
* **Rated Speed:** 2000 r/min
* **Max Speed:** 2500 r/min
* **Rotation:** Right (clockwise) or Left (counter-clockwise)
* **Structure:** External Gear Pump
* **Material:** Cast Iron
* **Flange Version:** B-Square Flange
* **Shaft Type:** Rectangle Spline or Plain Key
* **Applications:** Construction & Earth Moving, Industrial Vehicles, Agriculture (Mini-Excavator, Skid Steer Loader, Compact Wheel Loader, Tractor, Front-End Loader, Backhoe Loader, Harvester, Baler, Sprayer, Concrete Boom Pump, Wheel Loader)
**We offer a full range of services:**
* **OEM (Original Equipment Manufacturer):** Integrate our pump into your existing equipment line.
* **ODM (Original Design Manufacturer):** We can design and manufacture a hydraulic pump to your specific specifications.
* **Custom Manufacturing:** Tailor the pump's features and specifications to meet your unique project needs.
* **Private Labeling:** Brand your own hydraulic pump with your company's logo and branding.
* **Wholesale:** Large-volume purchasing options are available for distributors and wholesalers.
**We are actively seeking:**
* Distributors
* Wholesalers
* Agents
* Trading Companies
As a leading hydraulic pump **manufacturer** and **factory**, we provide high-quality products at competitive prices. Contact us today to discuss your hydraulic pump requirements and explore potential collaborations. Benefit from our **factory direct** wholesale pricing and experience the quality and reliability of our hydraulic gear pumps. Let us help you grow your business with our **private labeling** and **customization** options. We supply globally.
