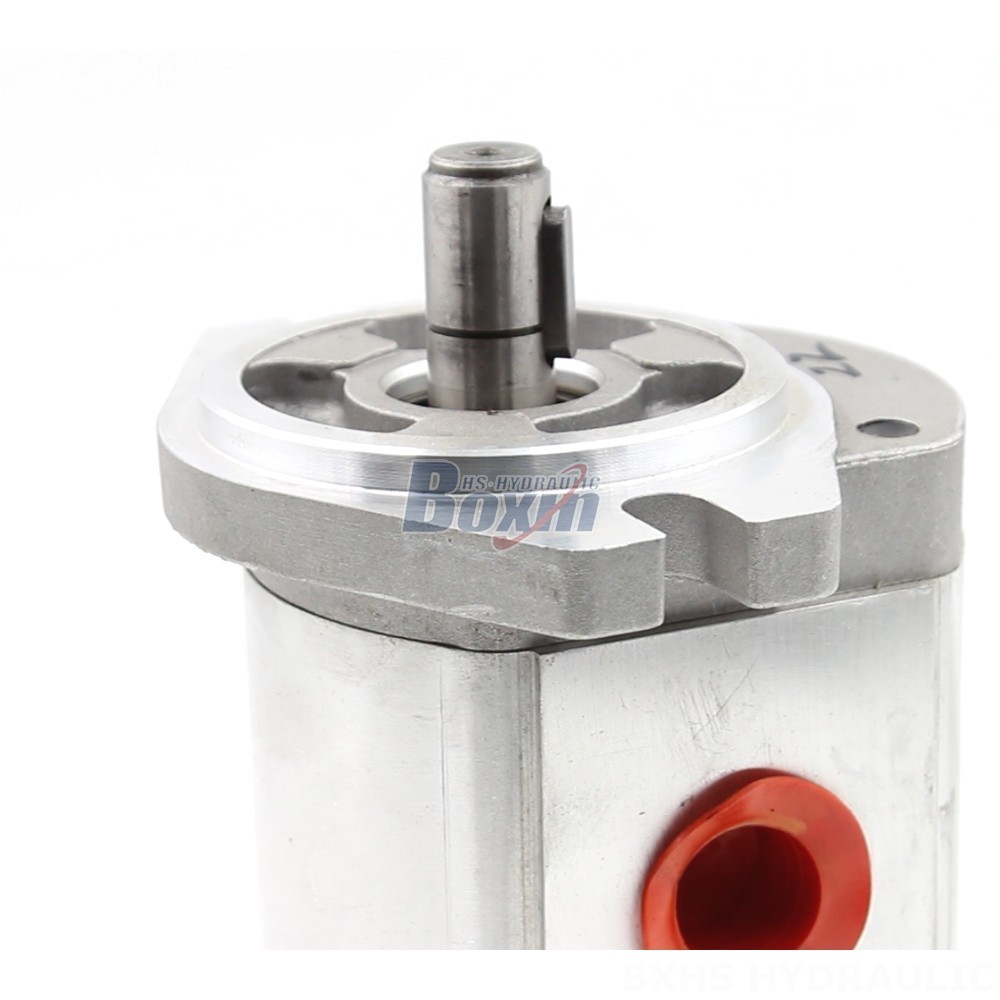

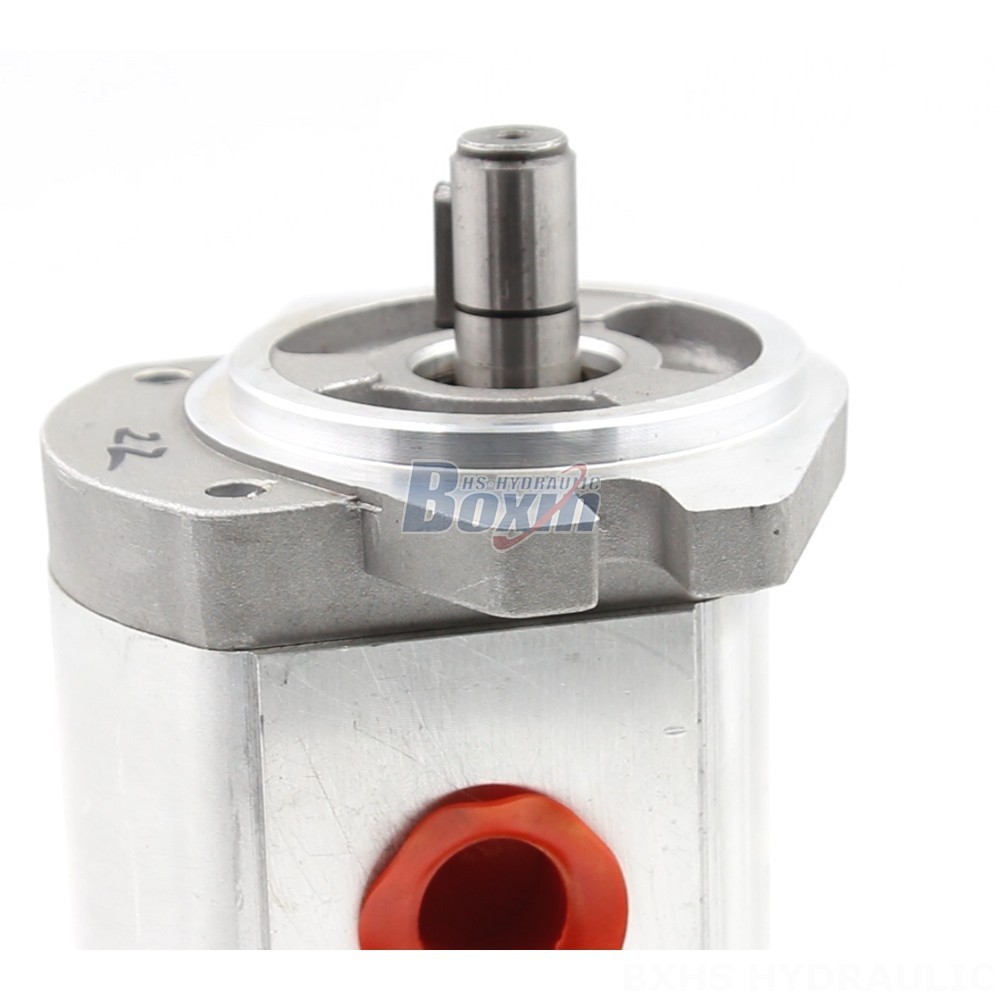

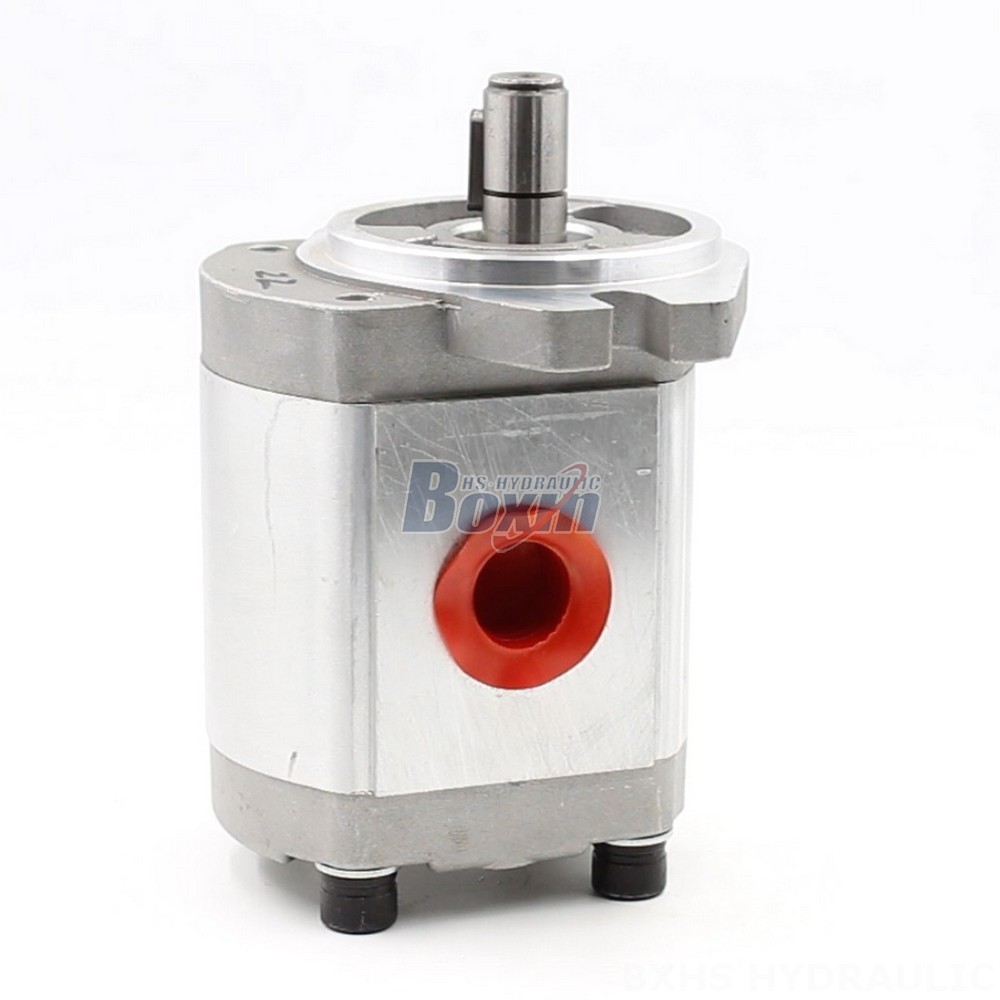

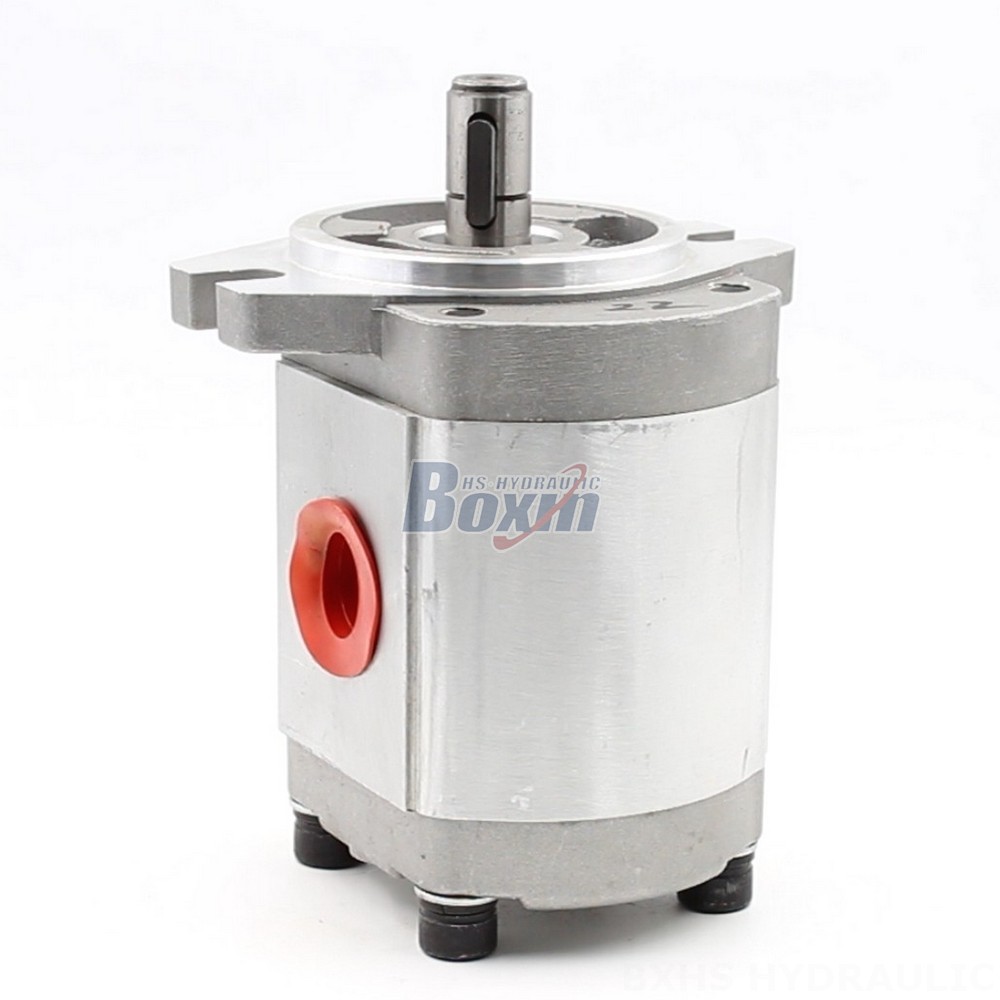

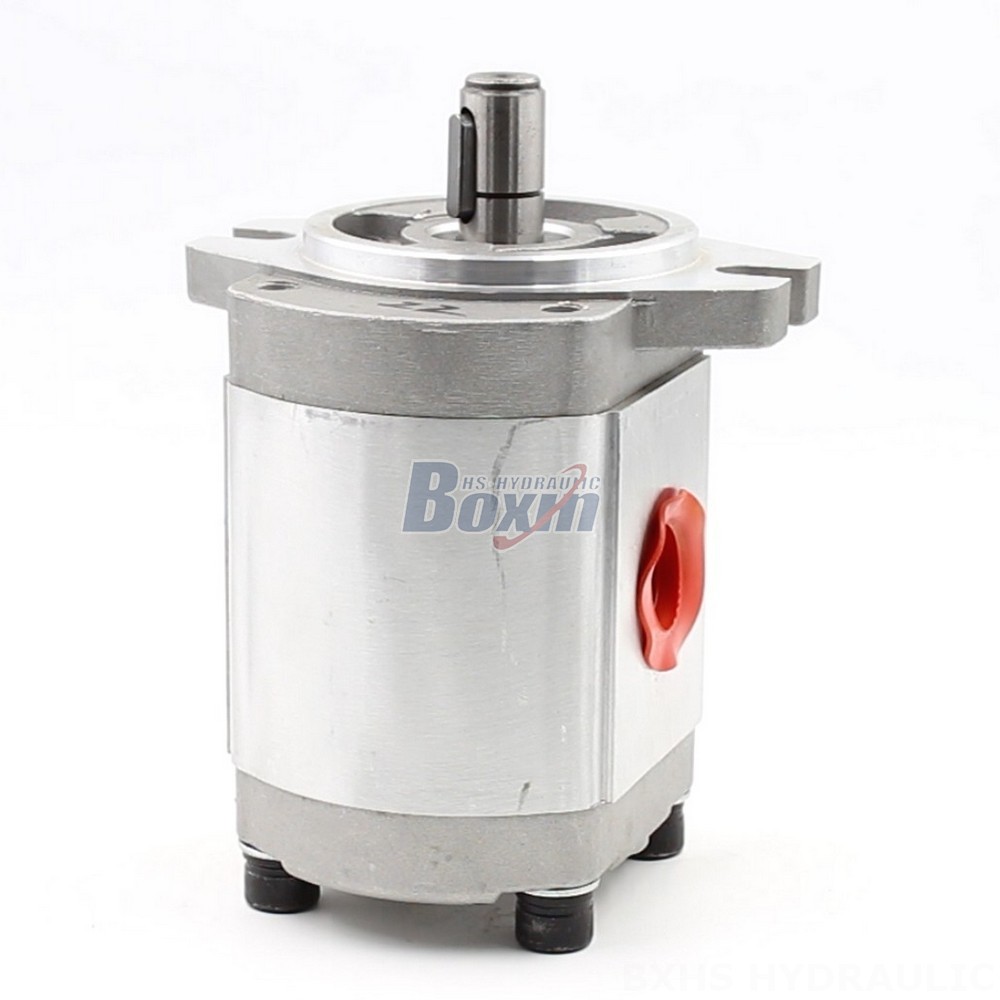

The CBHS-FL304 Hydraulic Gear Pump is a reliable and efficient pump designed for heavy-duty applications in various industries. It features a displacement of 10 cc/rev, a rated pressure of 20 MPa, and a rated speed of 2000 r/min, making it suitable for a wide range of construction and agricultural equipment.
| Serie CBHS-FL3 Pompa a ingranaggi idraulica Parametri | |
|---|---|
| Cilindrata | 10 cc/giro, 4 cc/giro, 20 cc/giro, 16 cc/giro, 14 cc/giro, 6 cc/giro |
| Pressione nominale | 20 MPa (2900 psi) |
| Pressione massima | 25 MPa (3625 psi) |
| Velocità nominale | 2000 giri/min |
| Velocità massima | 3000 giri/min |
| Rotazione | L: Sinistra (in senso antiorario), R: Destra (in senso orario) |
| Materiale | Alluminio |
| Struttura | Pompa a ingranaggi esterna |
| Versione flangia | Flangia a forma ovale di tipo A |
| Tipo di albero | H: Scanalatura rettangolare, X: Scanalatura evolvente, P: Chiave semplice |
The CBHS-FL304 Hydraulic Gear Pump is a high-performance pump designed for demanding applications in construction, agriculture, and industrial vehicles. It features an internal gear pump design with an aluminum body, ensuring durability and efficiency. The pump has a displacement of 10 cc/rev and a rated pressure of 20 MPa, providing strong hydraulic power for a variety of tasks. Its rated speed is 2000 r/min, with a maximum speed of 3000 r/min. The CBHS-FL304 is available with both left and right rotation options. It features an A-Oval flange and a plain key shaft, making it compatible with various equipment. This pump is ideally suited for telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and balers.
