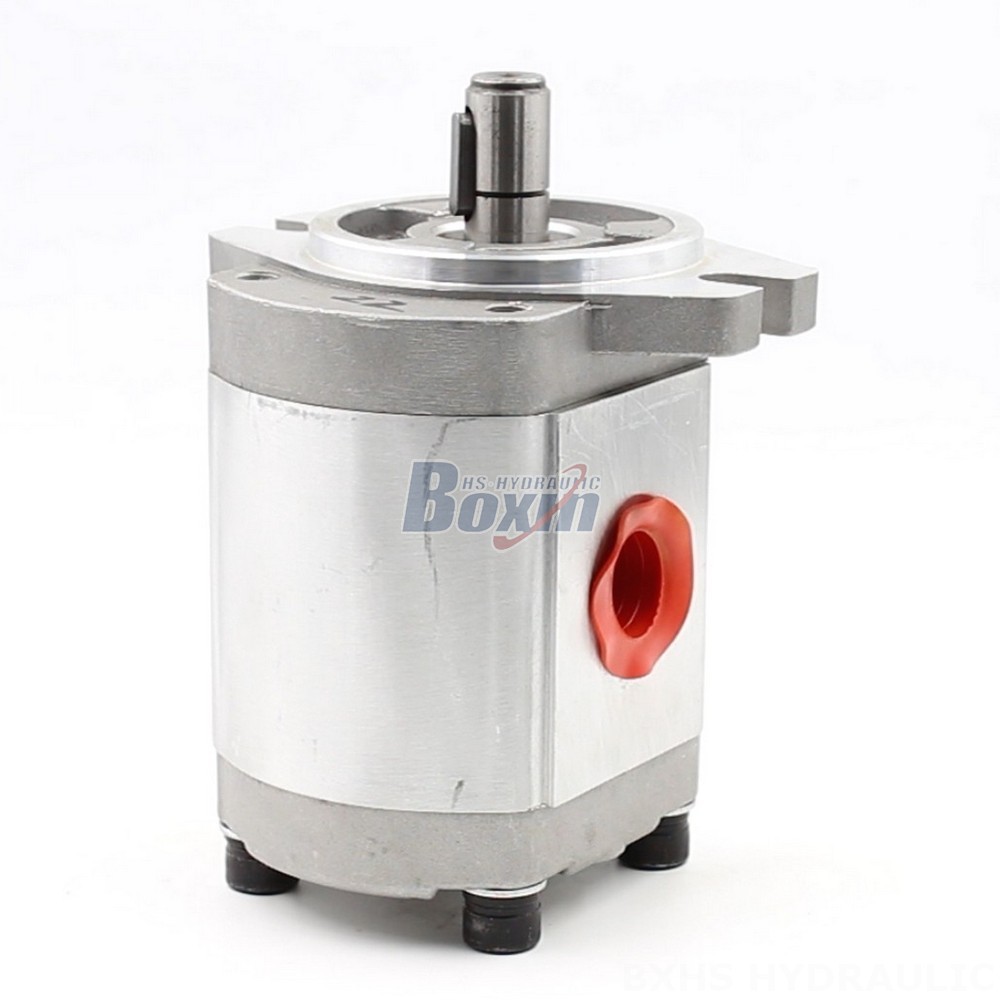

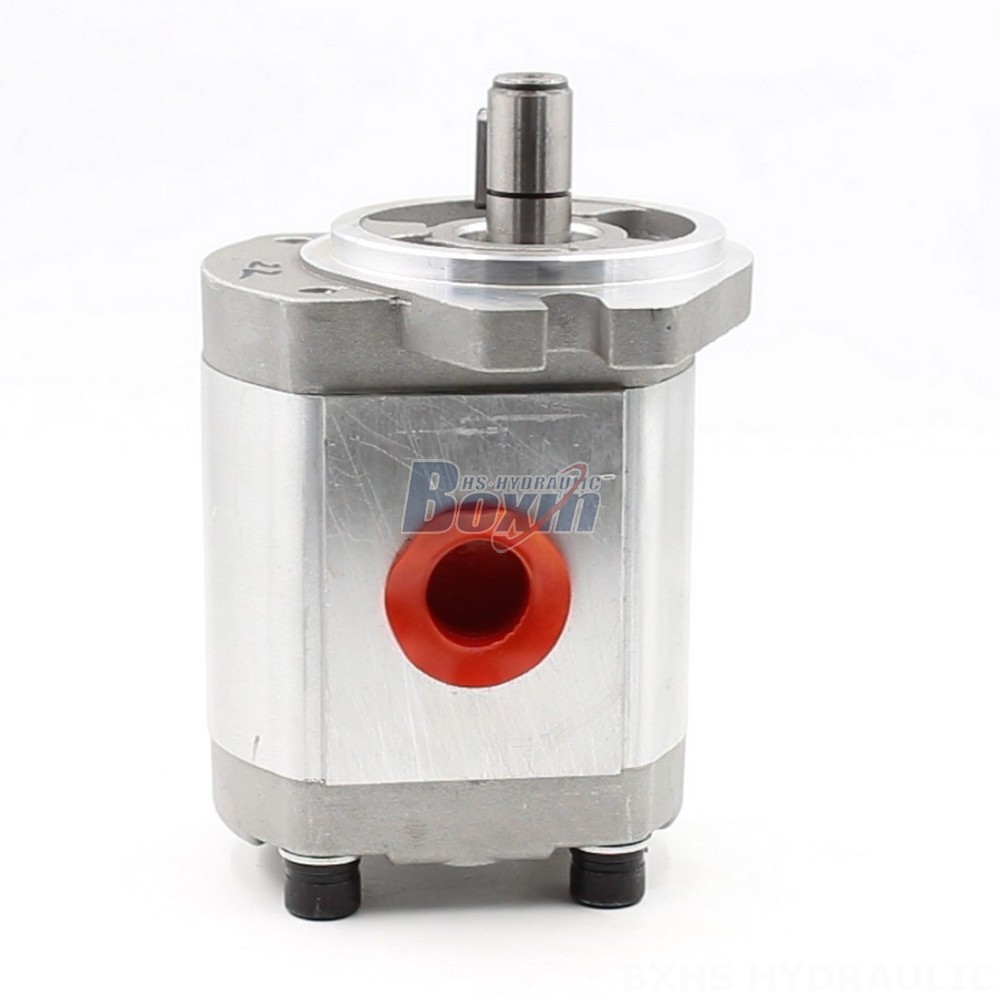

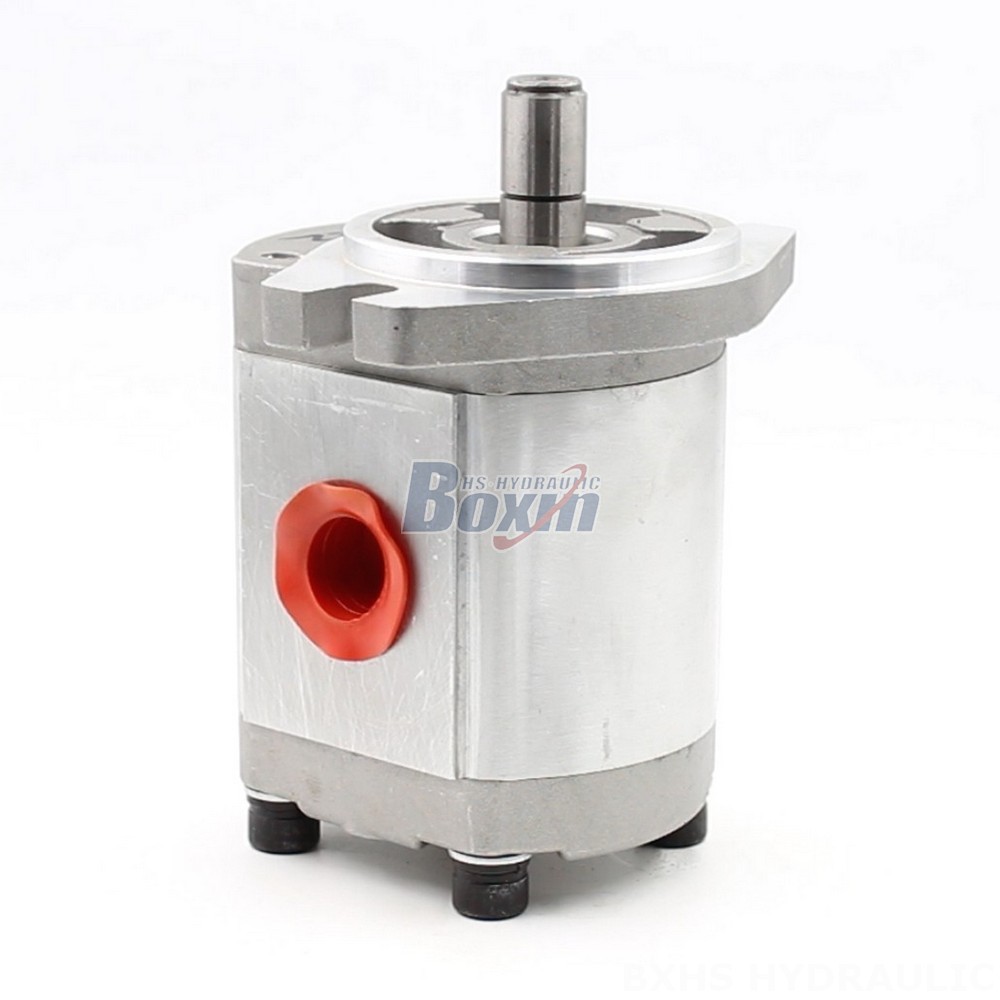

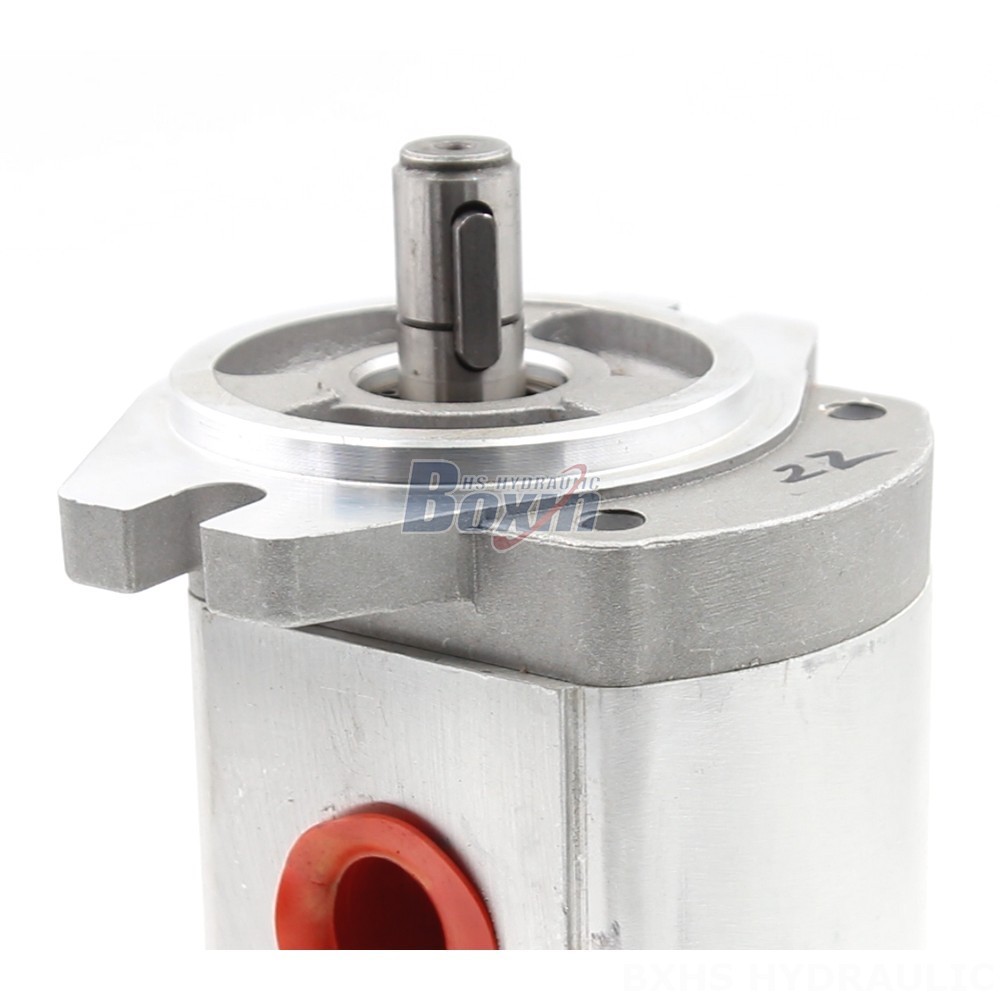

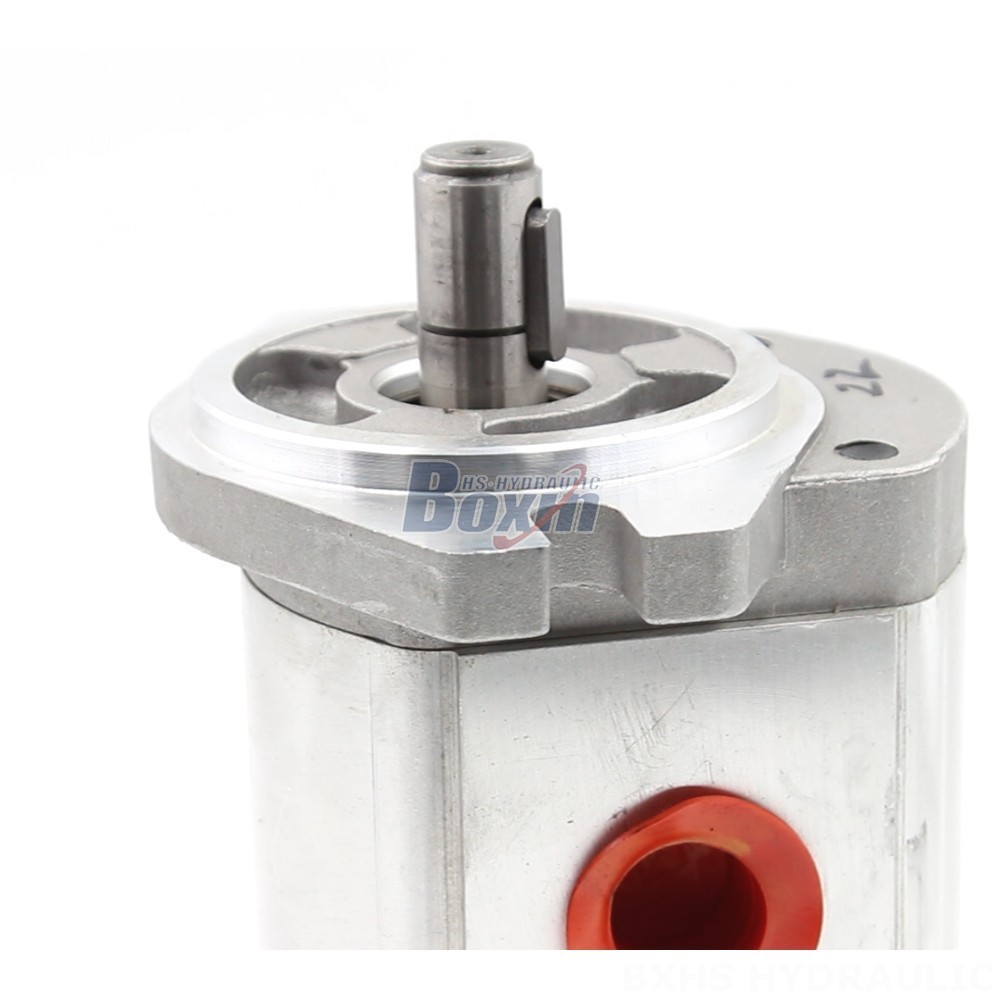

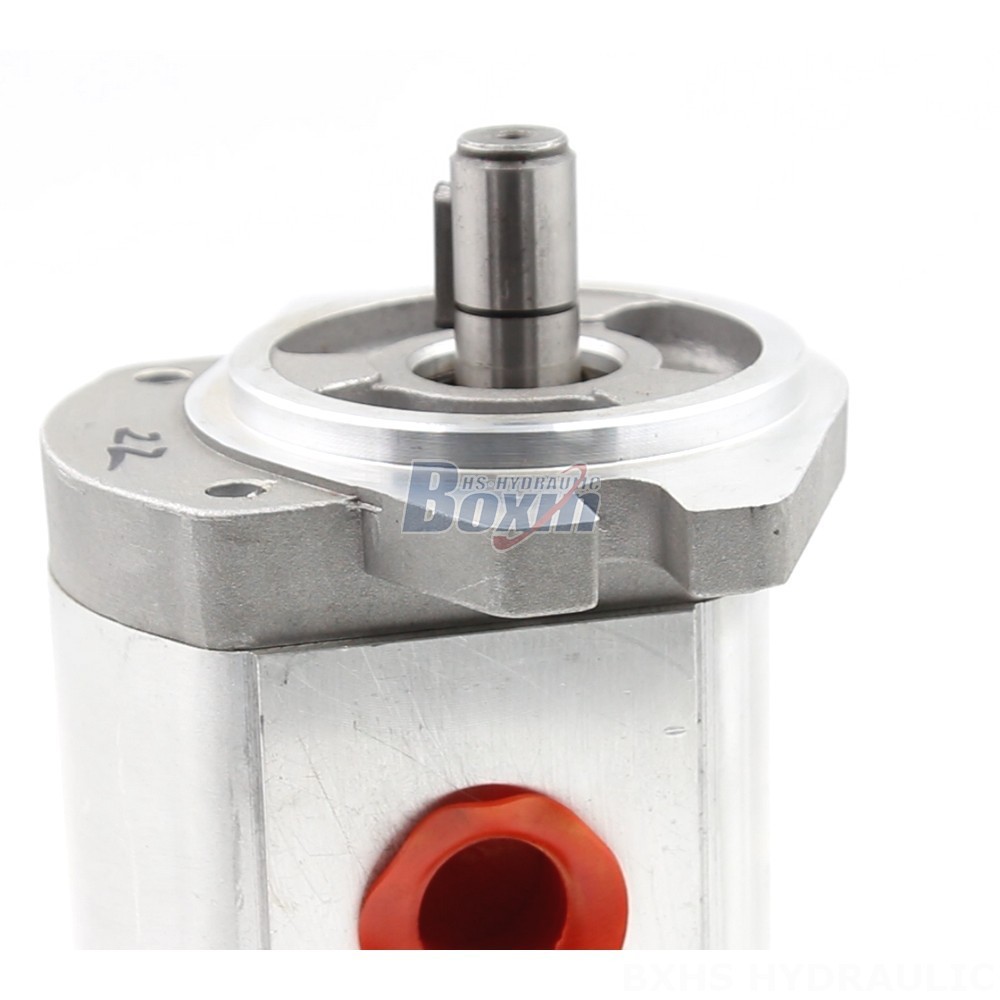

The CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a high-performance, durable, and reliable pump designed for various applications in construction, agriculture, industrial vehicles, and material handling. It features a 10 cc/rev displacement, 20 MPa (2900 psi) rated pressure, and 2000 r/min rated speed, making it ideal for demanding environments.
| Serie CBHS-FL3 Pompa a ingranaggi idraulica Parametri | |
|---|---|
| Cilindrata | 10 cc/giro, 4 cc/giro, 20 cc/giro, 16 cc/giro, 14 cc/giro, 6 cc/giro |
| Pressione nominale | 20 MPa (2900 psi) |
| Pressione massima | 25 MPa (3625 psi) |
| Velocità nominale | 2000 giri/min |
| Velocità massima | 3000 giri/min |
| Rotazione | L: Sinistra (in senso antiorario), R: Destra (in senso orario) |
| Materiale | Alluminio |
| Struttura | Pompa a ingranaggi esterna |
| Versione flangia | Flangia a forma ovale di tipo A |
| Tipo di albero | H: Scanalatura rettangolare, X: Scanalatura evolvente, P: Chiave semplice |
The CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a robust and efficient internal gear pump, manufactured with high-quality aluminum material. It features an A-Oval flange design and a plain key shaft, making it compatible with various machinery. With a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min, this pump delivers exceptional performance in demanding applications such as telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, harvesters, and balers. The pump is also customizable to meet specific requirements. As a manufacturer, we provide manufacturing, OEM, private label, and customization services, along with global distribution network support.
