Our bespoke hydraulic solutions include the customizable P80-U78-1OT directional control valve, designed to meet the specific requirements of our global customers. This valve offers exceptional performance with a rated flow of 80 L/min, max pressure of 250 bar, and a wide operating viscosity range. It is suitable for various applications in material handling, construction, agriculture, and industrial vehicles.
| Serie P80 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Manuale e joystick |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 80 L/min (21.2 US gpm) |
| Pressione massima | 315 bar (4600 psi) |
| Attacco di ingresso | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Attacco di uscita | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimensione attacco | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

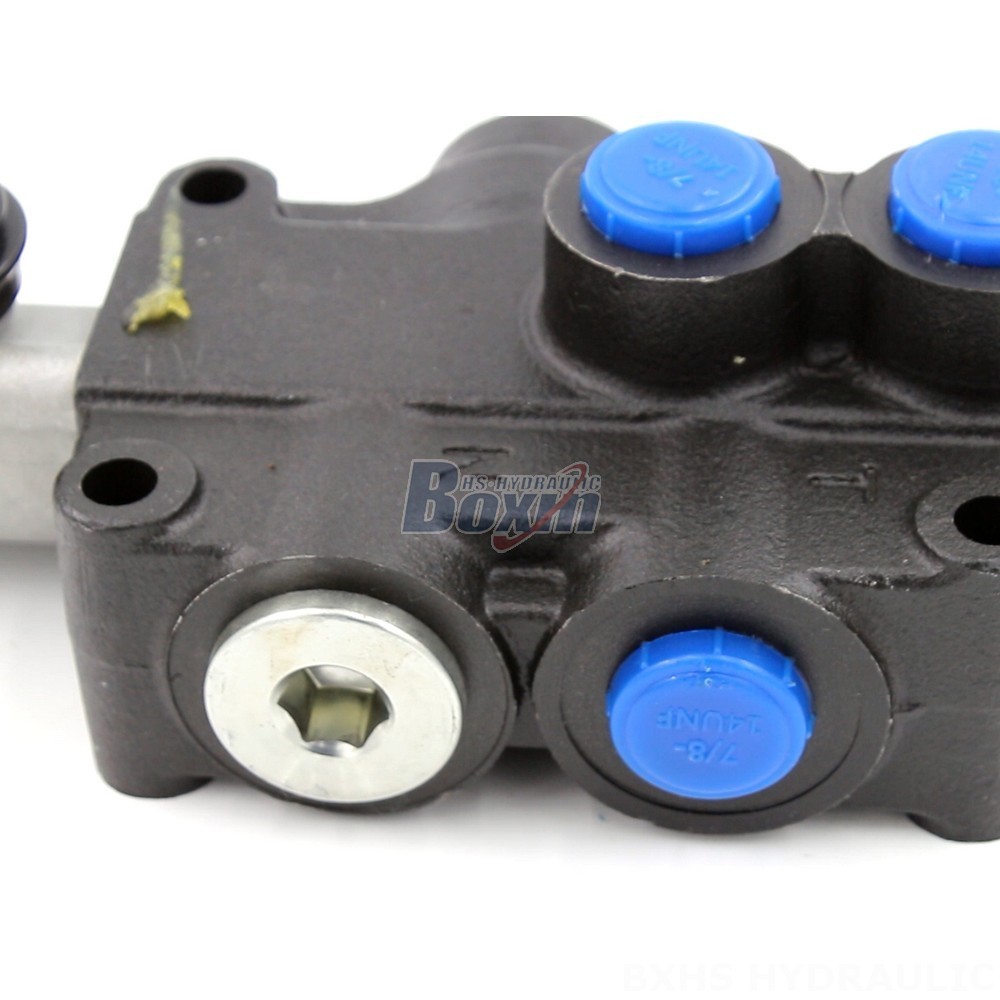

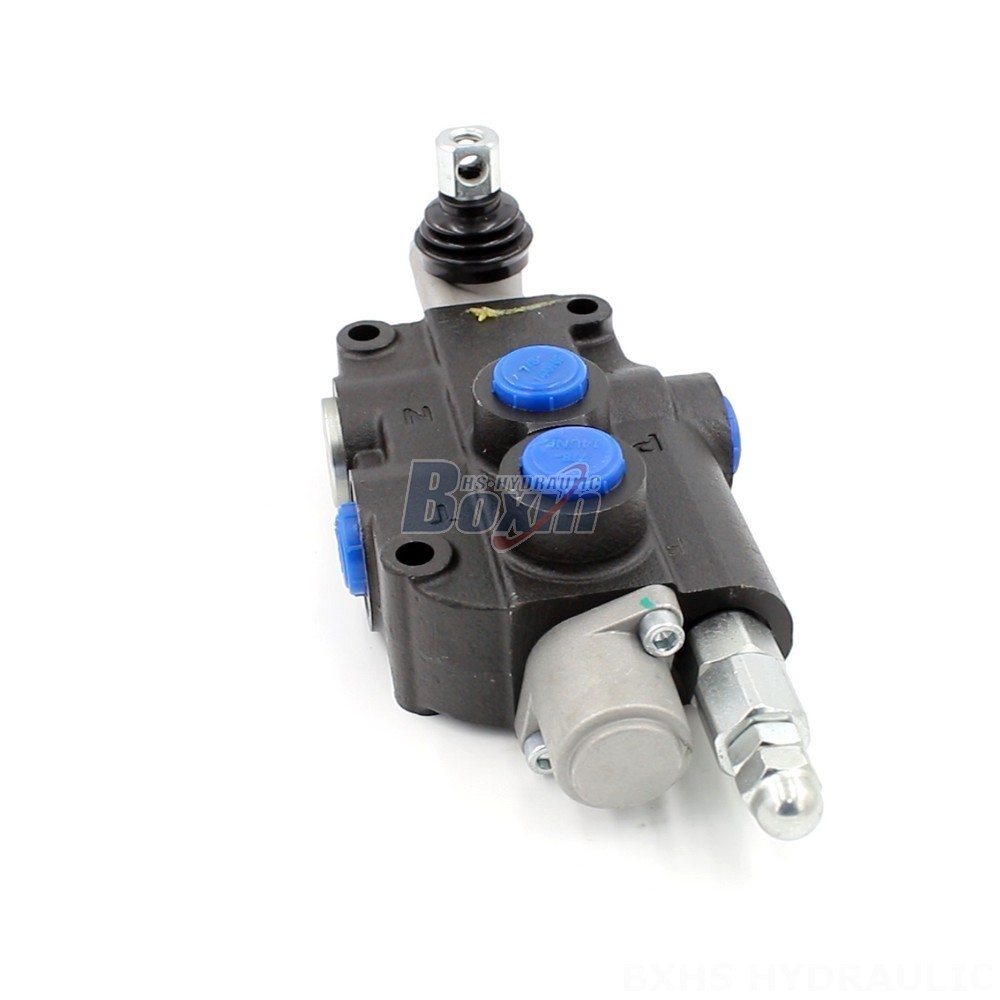

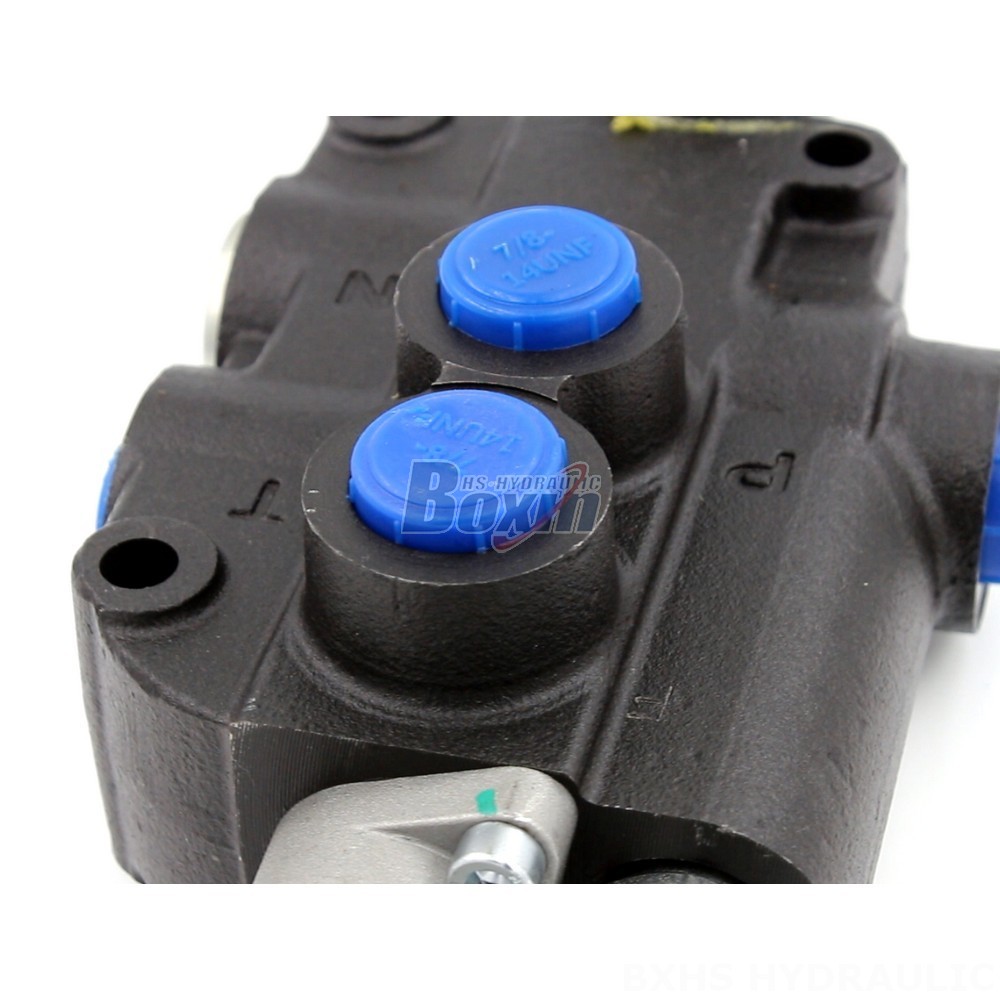

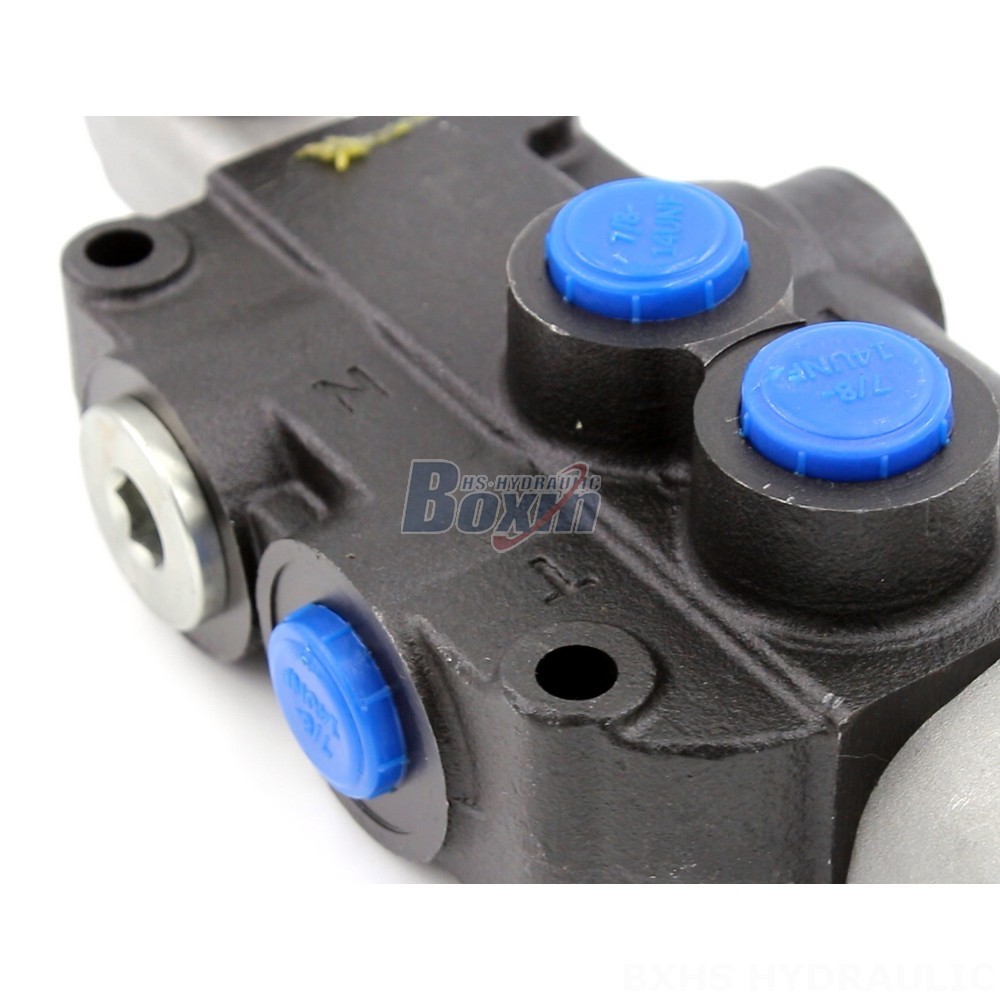

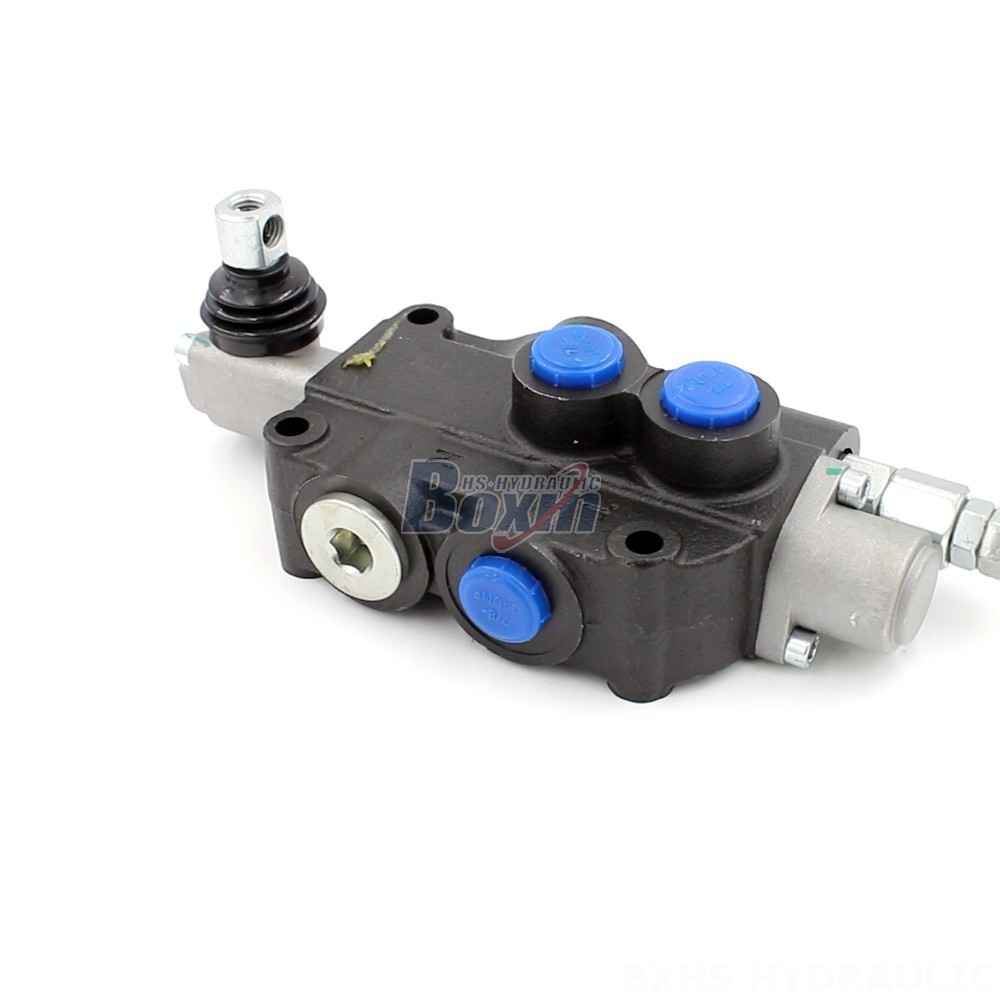

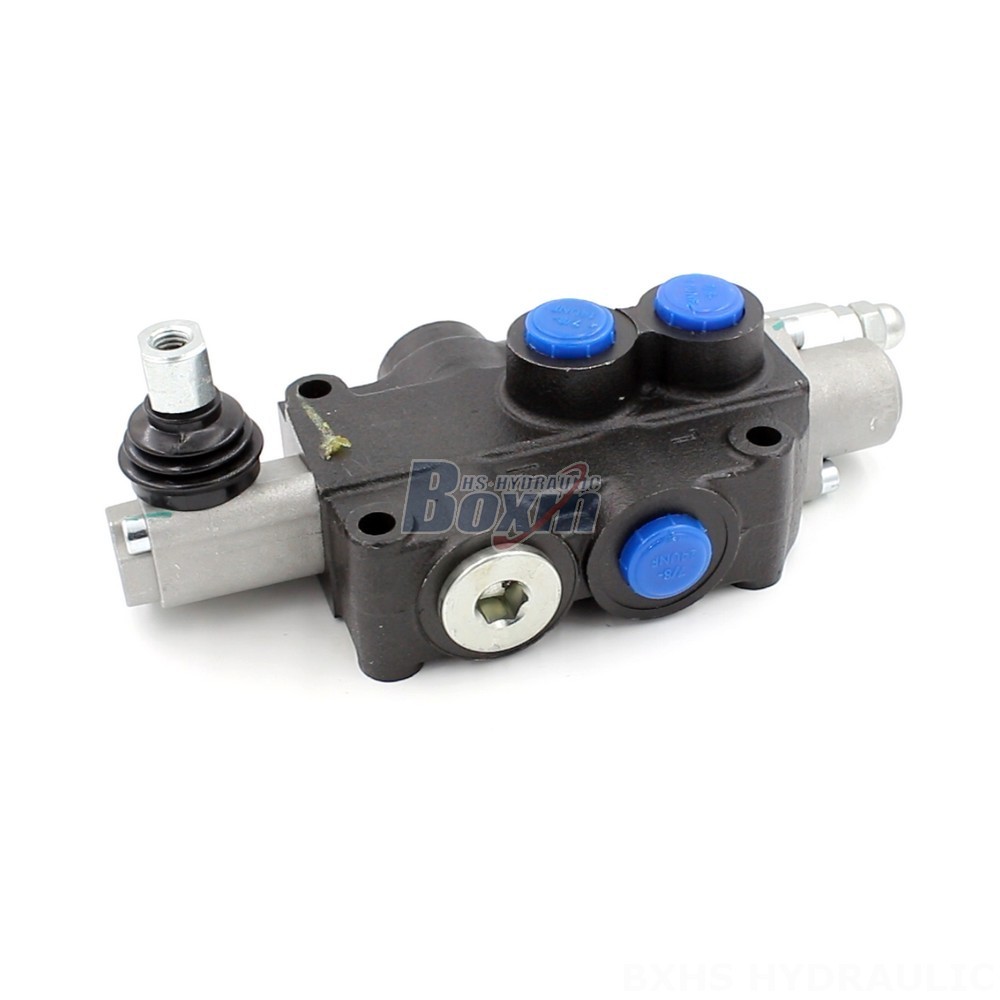

**P80-U78-1OT Directional Control Valve**
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 80 L/min (21.2 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** P80 Series
**Applications:**
The P80-U78-1OT directional control valve is widely used in various applications, including:
- Material Handling: Telehandlers, forklifts, stackers, aerial platforms
- Construction and Earth Moving: Motor graders, excavators, skid steer loaders, compact wheel loaders
- Agriculture: Tractors, harvesters, sprayers
- Industrial Vehicles: Cranes, aerial work platforms, mining equipment
**OEM/ODM/Private Label Services:**
We offer flexible OEM/ODM/Private Label services to meet the unique requirements of our customers. We can customize the P80-U78-1OT directional control valve according to your specifications, including:
- Custom porting configurations
- Specific pressure and flow requirements
- Integration with other hydraulic components
- Your company logo and branding
Our team of experienced engineers will work closely with you to develop a customized hydraulic solution that meets your exact needs and exceeds your expectations.
