Produzione e consegna
Tempi di produzione di 15-30 giorni
L’innovazione guida lo sviluppo e la tecnologia forgia il futuro
1131 Le visualizzazioni cercano questo prodotto

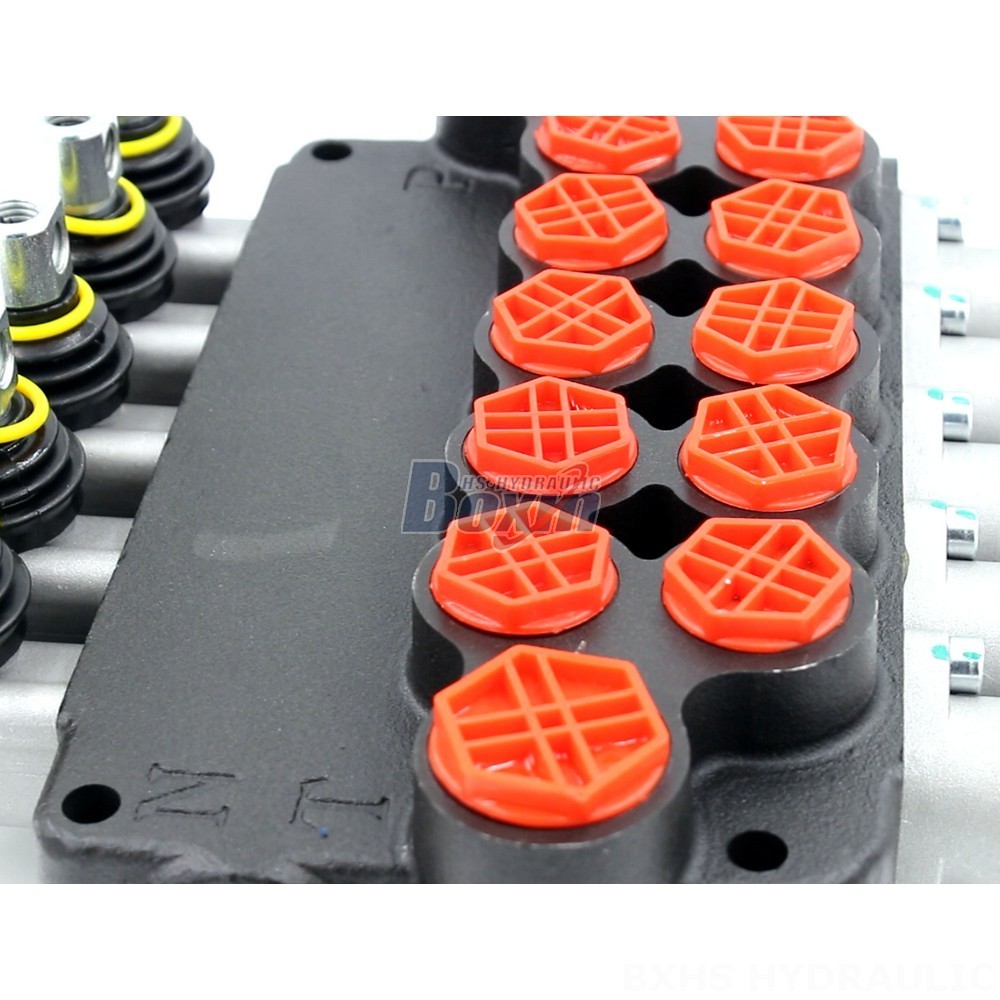

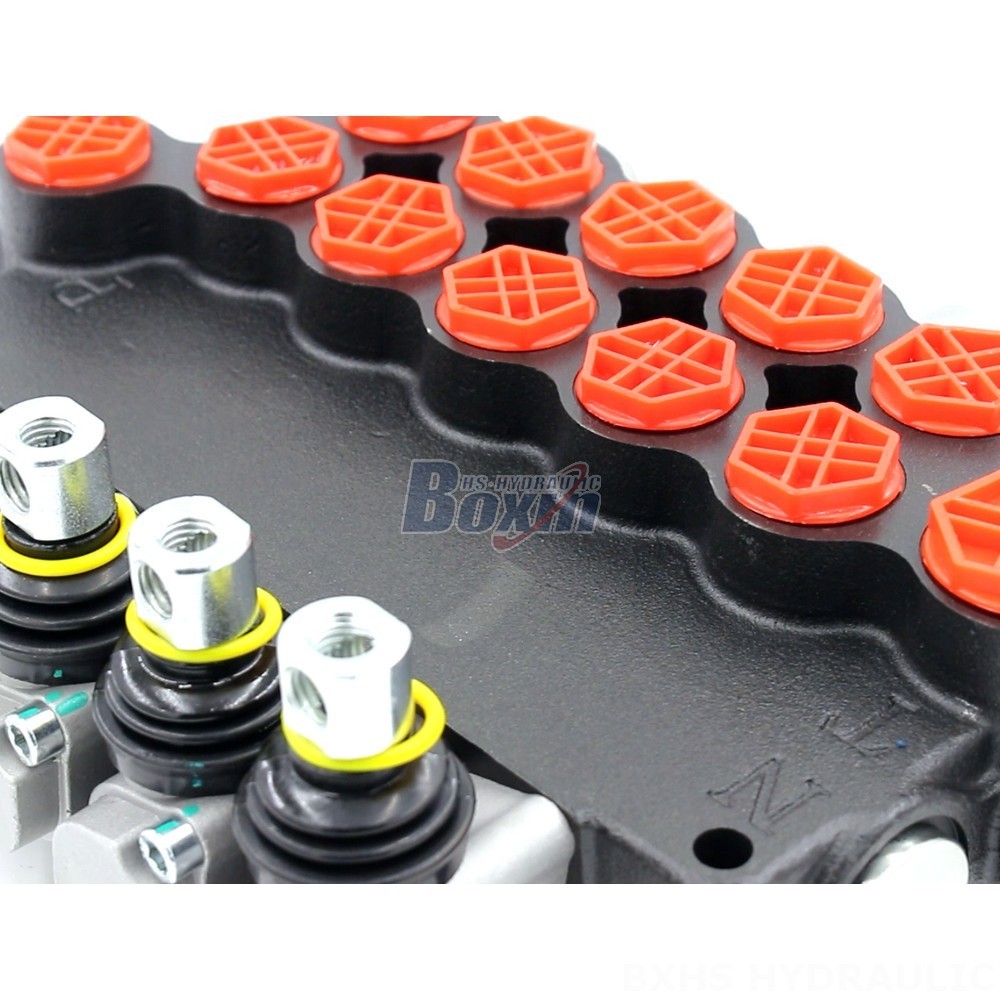

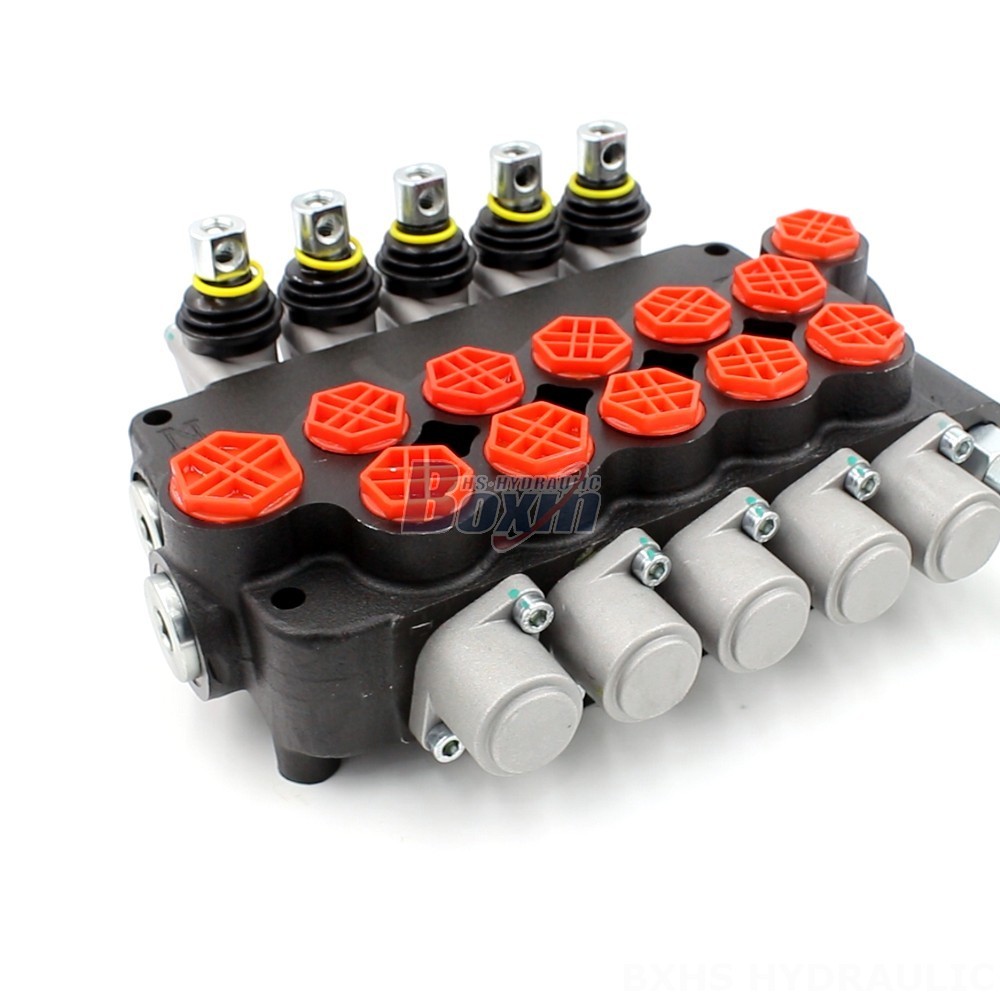

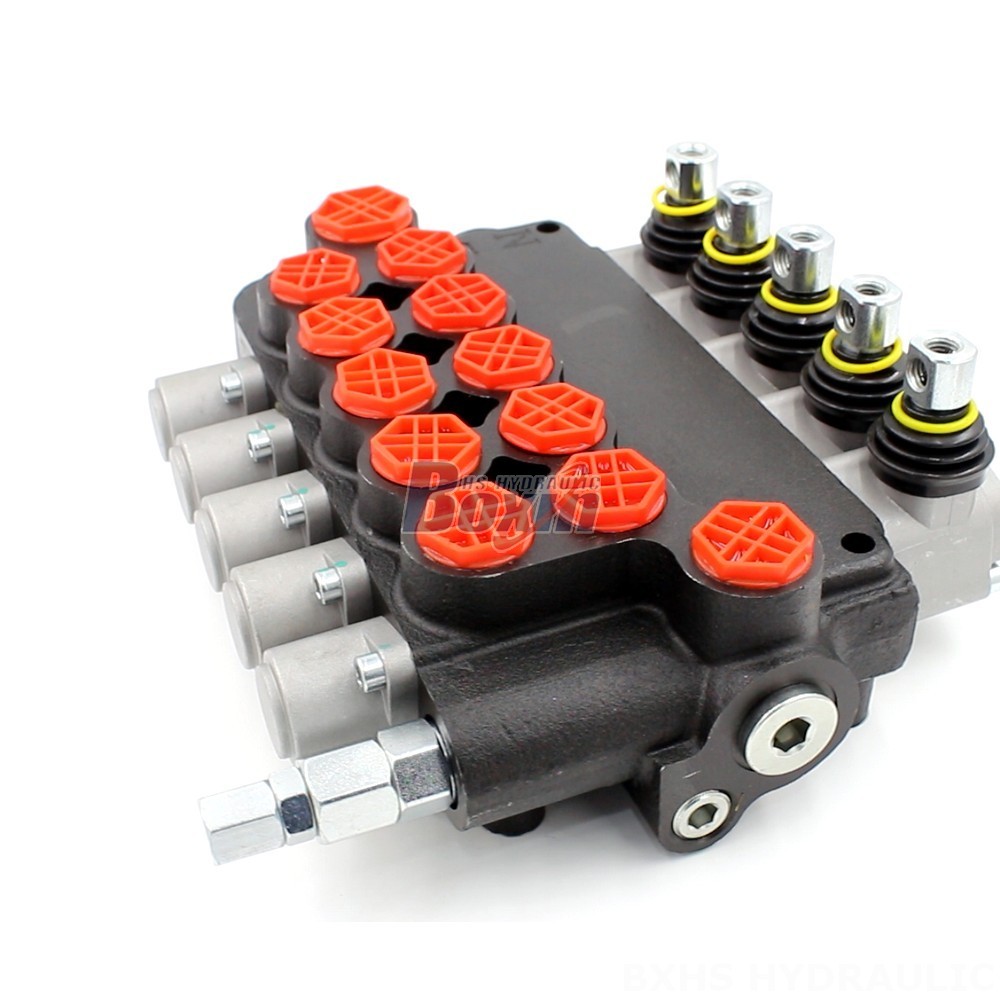

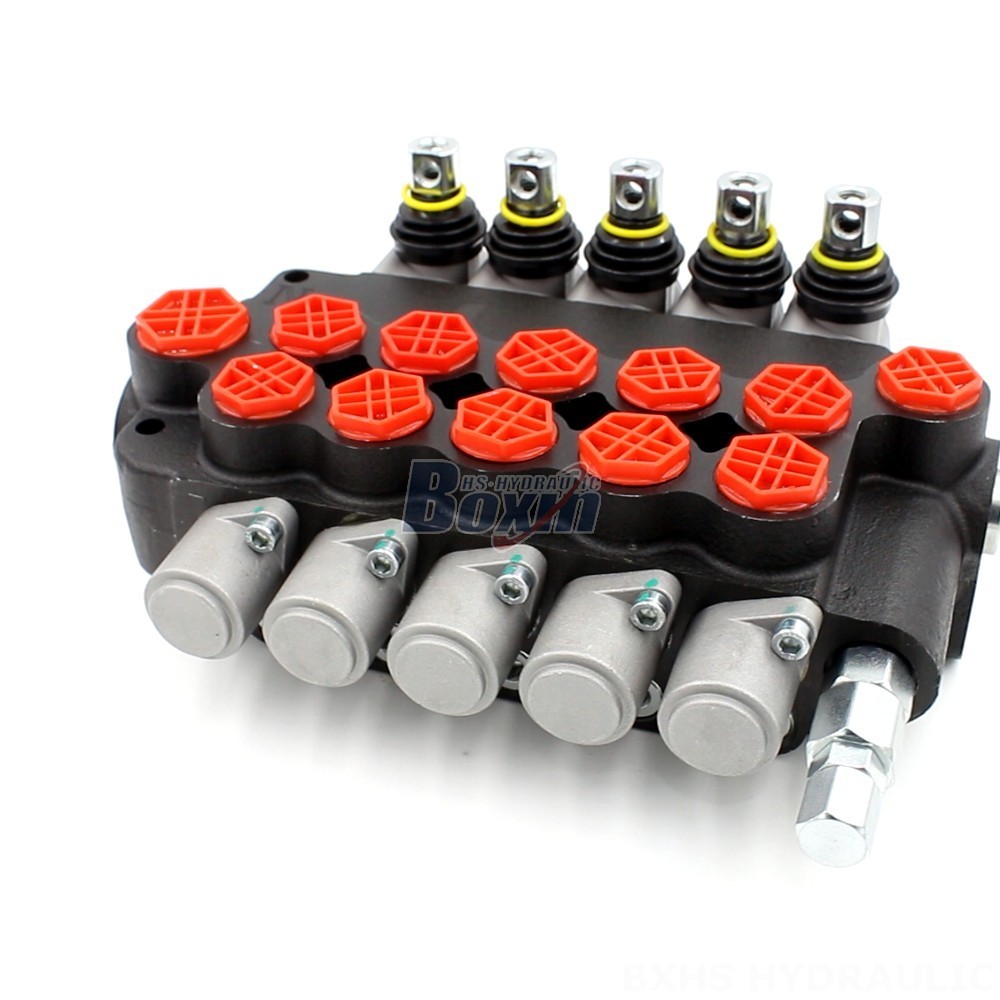

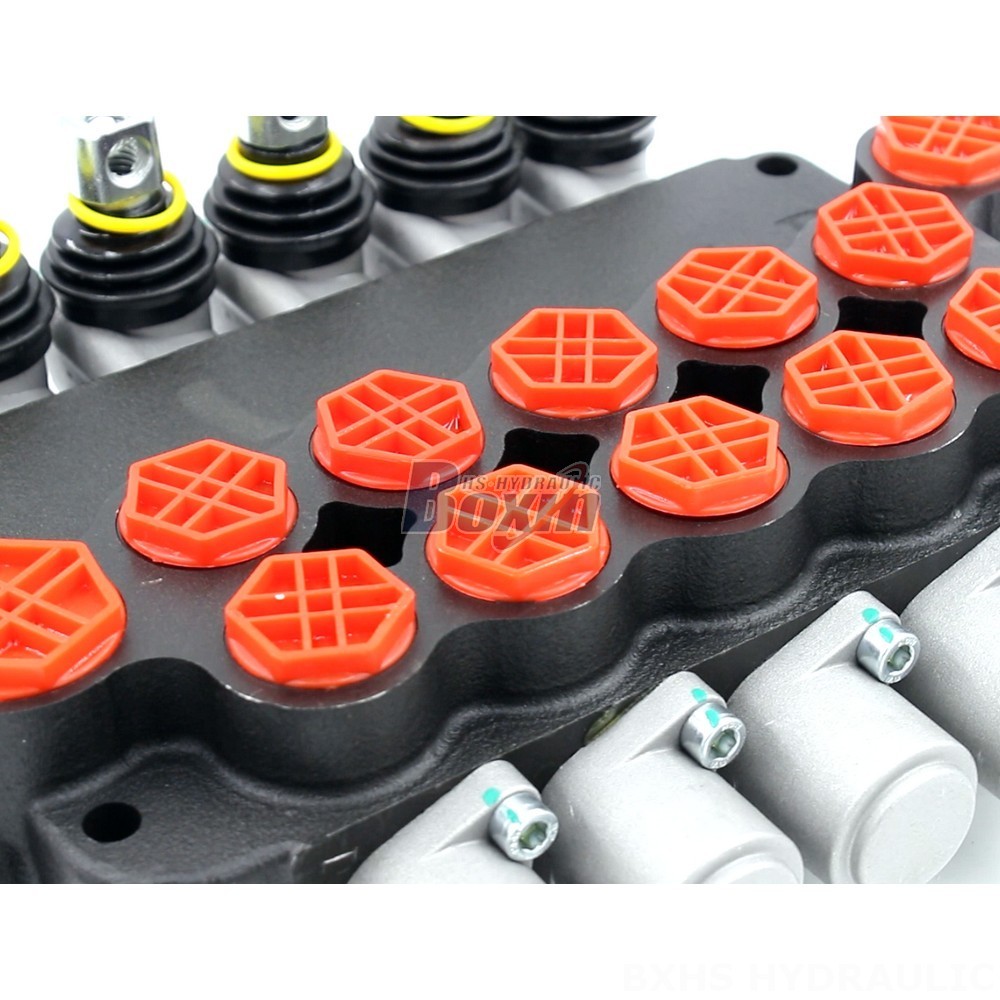

Introducing Bespoke Hydraulic Solutions: P80-G12-G38-OW 5 Spool Directional Control Valves, meticulously engineered to meet your specific hydraulic system requirements. Our valves are highly customizable, allowing you to tailor them to your unique application needs. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), these valves provide exceptional performance and durability.
| Serie P80 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Manuale e joystick |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 80 L/min (21.2 US gpm) |
| Pressione massima | 315 bar (4600 psi) |
| Attacco di ingresso | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Attacco di uscita | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimensione attacco | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
Our P80 Series Directional Control Valves are designed with a monoblock structure, ensuring superior strength and reliability. They feature a wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F), making them suitable for use in demanding environments. We offer a comprehensive range of customization options, including spool configurations, pressure settings, and porting arrangements. Whether you require OEM, ODM, or private label services, our team of experts is dedicated to working closely with you to deliver the perfect solution. Contact us today to discuss your specific requirements and experience the Bespoke Hydraulic Solutions difference.
