The HSDVG32 4 Spool Proportional Control Valve is an advanced hydraulic valve technology designed for demanding applications in various industries. With its high flow rate of 140 L/min and maximum pressure of 315 bar, it provides precise and efficient control of hydraulic systems. The electric proportional and manual control options offer versatility and flexibility in operation.
| Serie HSDVG32 Valvola di Controllo Proporzionale Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettroidraulico, Solenoide, Idraulico e Manuale, Cavo, Proporzionale elettrico, Elettrovalvola e Manuale, Proporzionale elettrico e manuale |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole, 8 Spole, 9 Spole, 10 Spole, 11 Spole, 12 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola sezionale |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7, Sezione 8, Sezione 9, Sezione 10, Sezione 11, Sezione 12 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 140 L/min (37 US gpm) |
| Pressione massima | 315 bar (4600 psi) |
| Attacco di ingresso | G3/4 |
| Attacco di uscita | G3/4 |
| Dimensione attacco | G1/2, G3/4 |

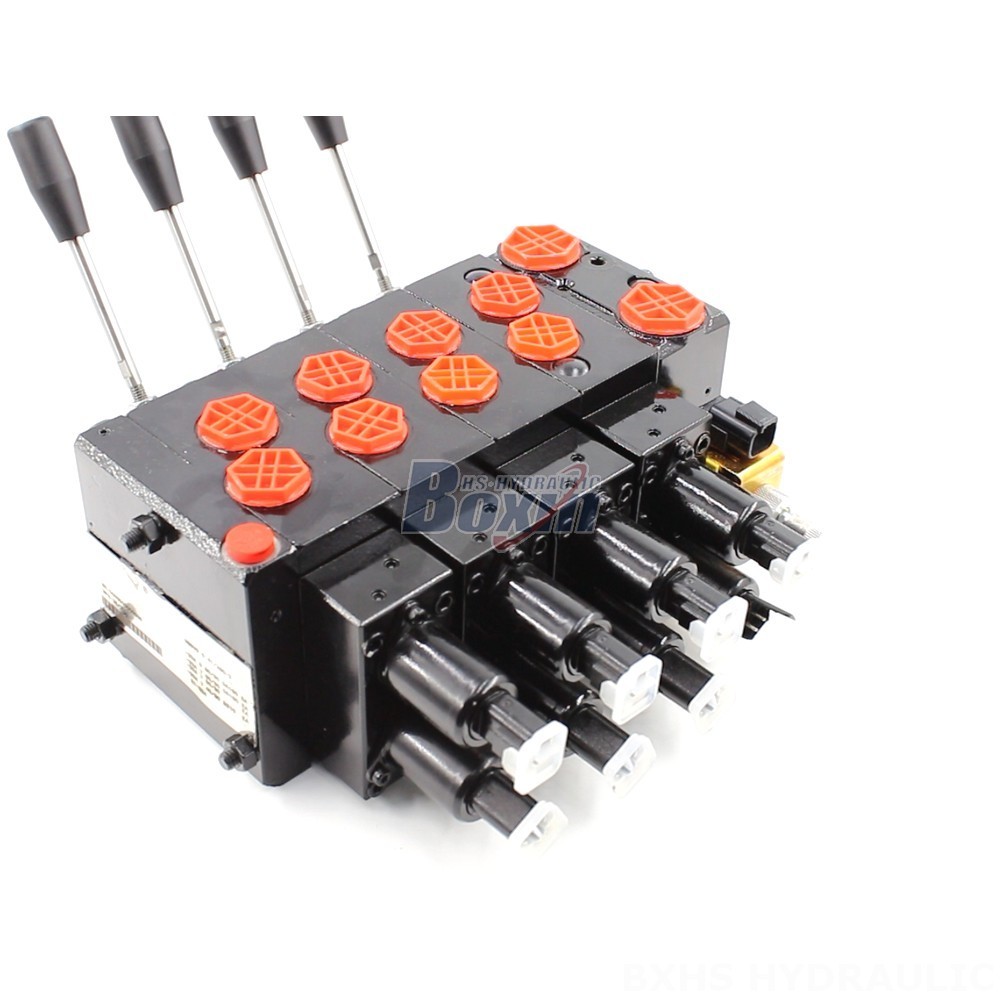

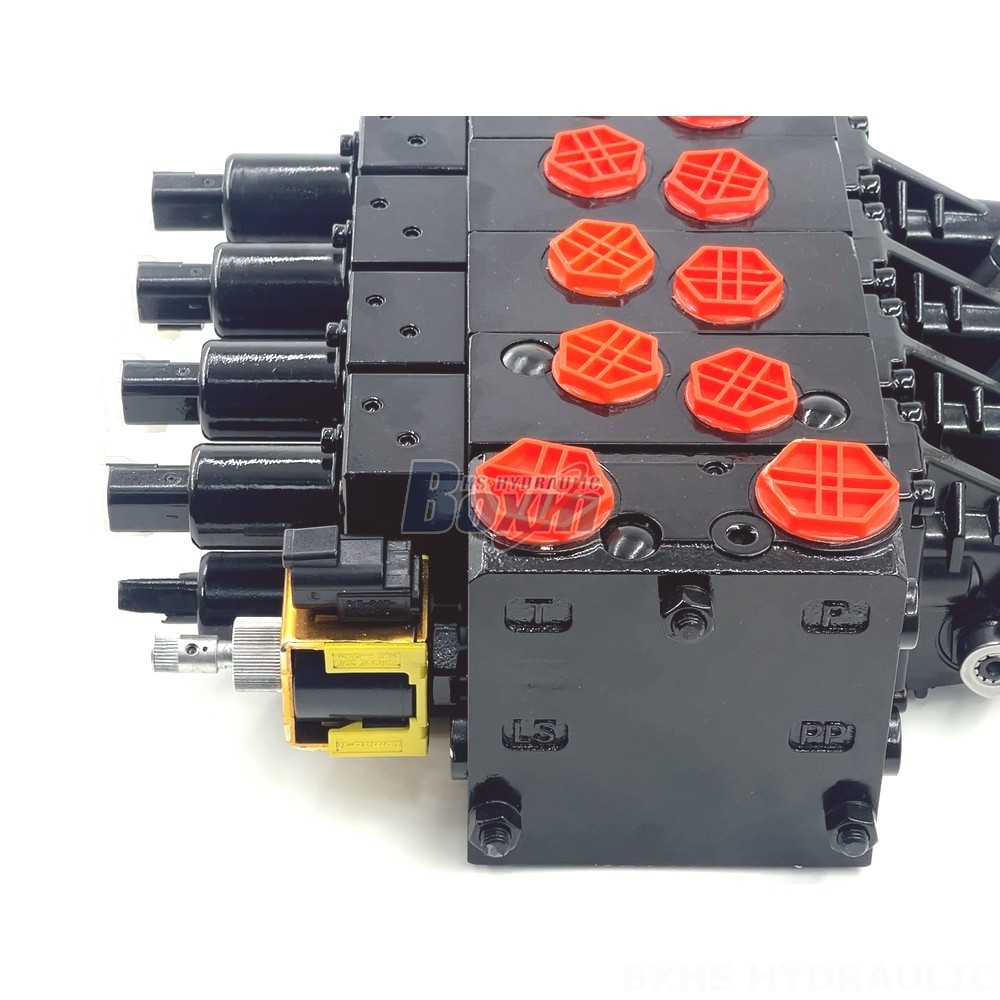

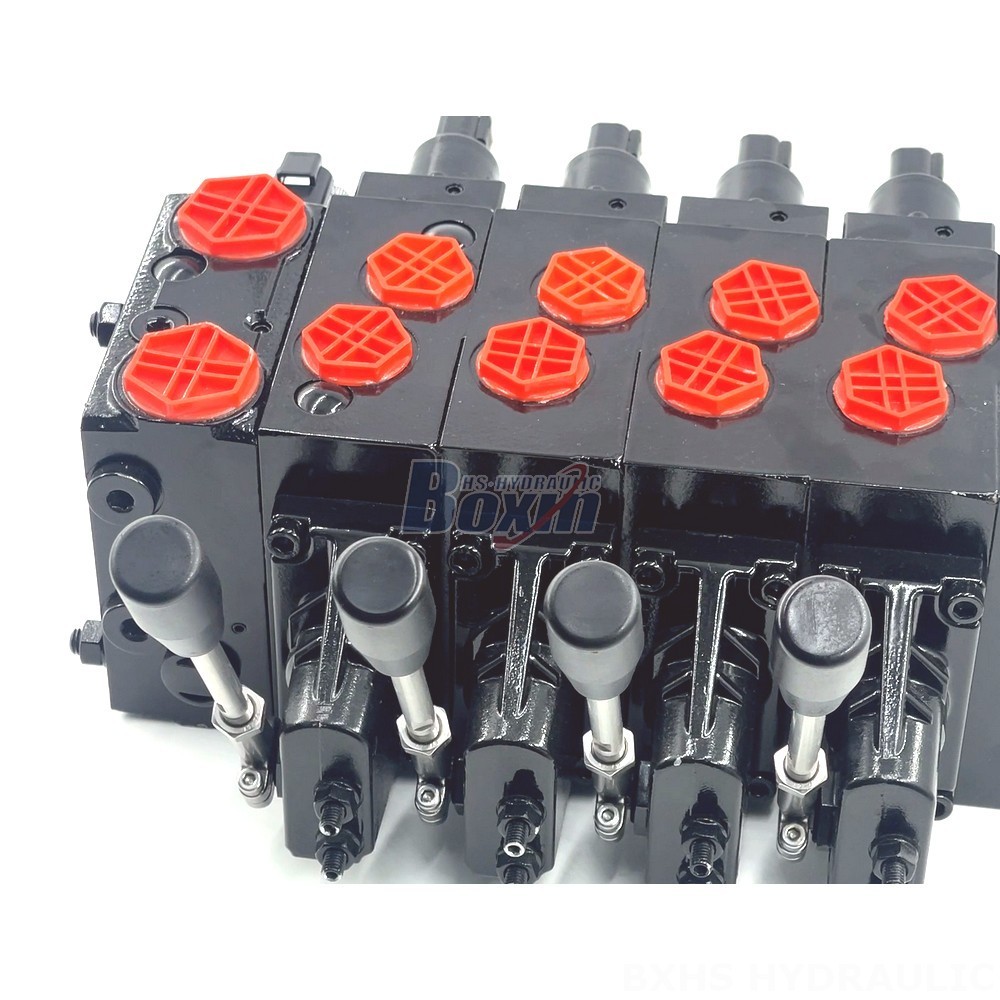

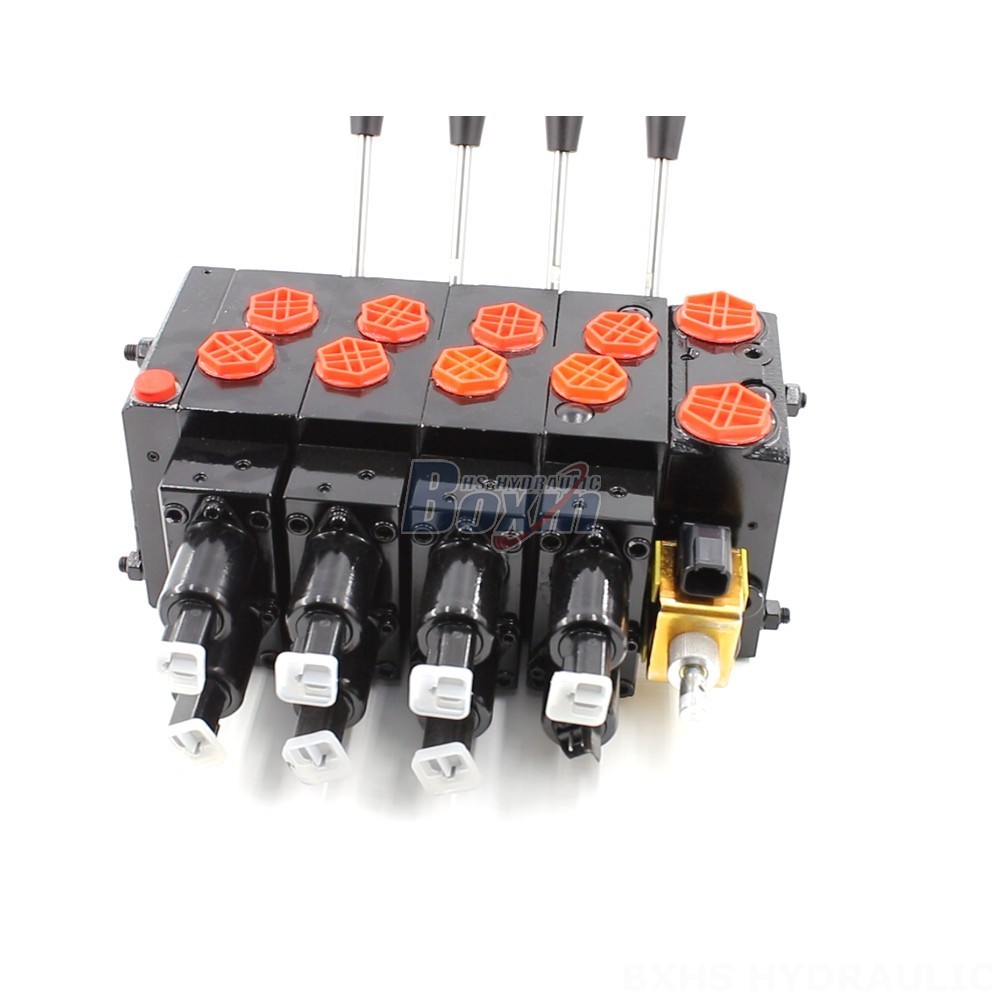

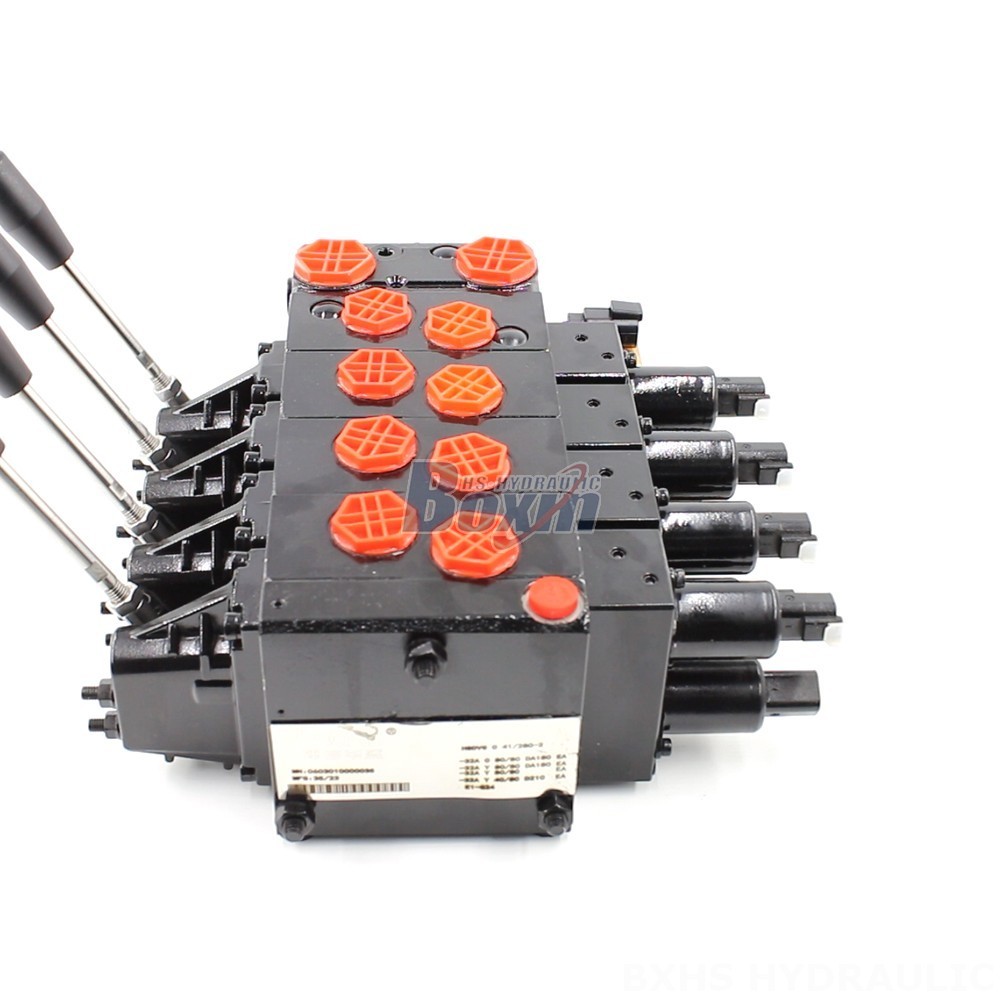

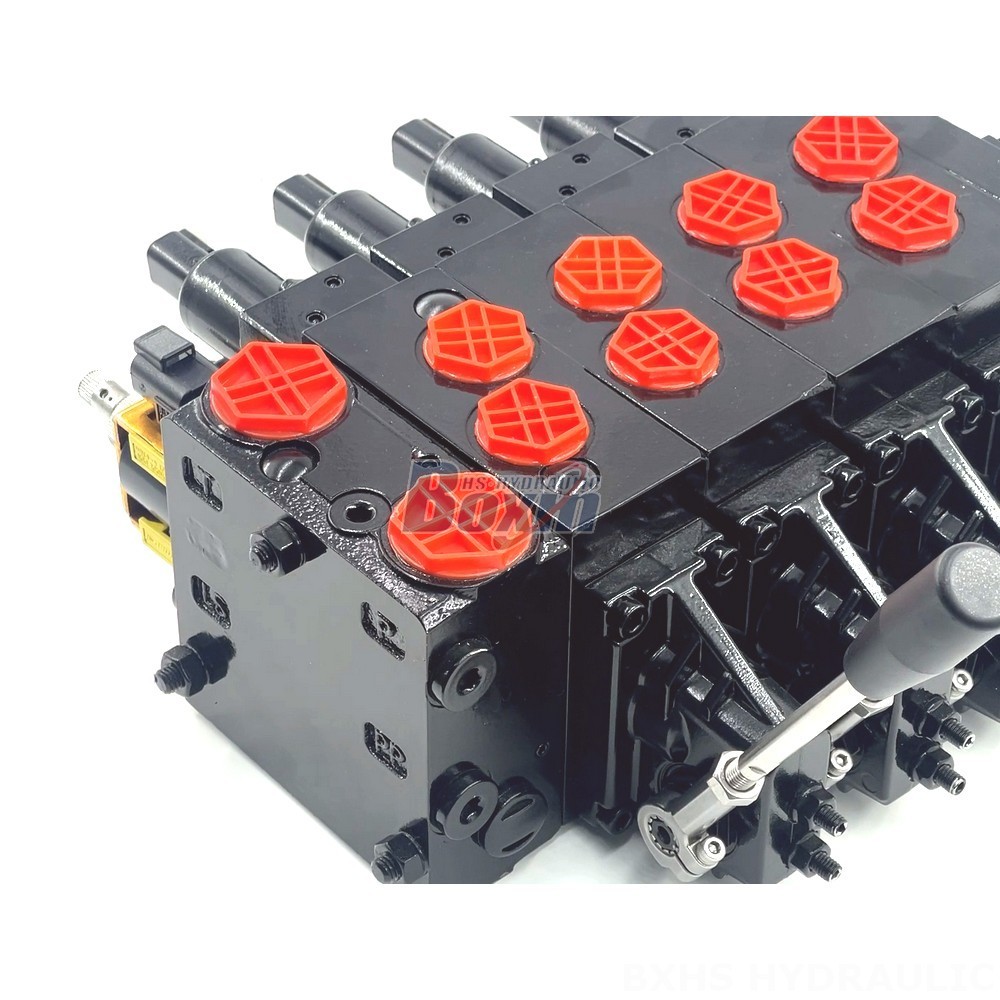

**HSDVG32 4 Spool Proportional Control Valve**
The HSDVG32 4 Spool Proportional Control Valve is a sectional valve with four spools, providing independent control of multiple hydraulic circuits. It is constructed from high-quality materials to ensure durability and reliability in harsh operating conditions. The valve features an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C.
**Key Features:**
* Rated Flow: 140 L/min (37 US gpm)
* Max Pressure: 315 bar (4600 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 4 Spool
* Series: HSDVG32 Series
* Control Method: Electric proportional and Manual
* Section: 4 Section
* Structure Type: Sectional valve
* Application Area: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
* Applicable Model: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER
The HSDVG32 4 Spool Proportional Control Valve is ideal for applications requiring precise flow control and high pressure capabilities. Its versatility and reliability make it suitable for a wide range of hydraulic systems in industries such as material handling, construction, earth moving, agriculture, and industrial vehicles.
