Advanced Hydraulic Gear Pumps - CBHS-F550 Series. Wholesale & OEM. Displacement: 32 cc/rev, 50 cc/rev, 63 cc/rev. Rated Pressure: 20 MPa (2900 psi). Rated Speed: 2000 r/min. Max Speed: 2200 r/min. These pumps are widely used in material handling, construction and earth moving, agriculture, and industrial vehicles.
| Serie CBHS-F5 Pompa a ingranaggi idraulica Parametri | |
|---|---|
| Cilindrata | 32 cc/giro, 50 cc/giro, 63 cc/giro, 20 cc/giro |
| Pressione nominale | 20 MPa (2900 psi) |
| Pressione massima | 25 MPa (3625 psi) |
| Velocità nominale | 2000 giri/min |
| Velocità massima | 2500 giri/min |
| Rotazione | L: Sinistra (in senso antiorario), R: Destra (in senso orario) |
| Materiale | Ghisa |
| Struttura | Pompa a ingranaggi esterna |
| Versione flangia | Flangia quadrata di tipo B |
| Tipo di albero | H: Scanalatura rettangolare, X: Scanalatura evolvente, P: Chiave semplice |

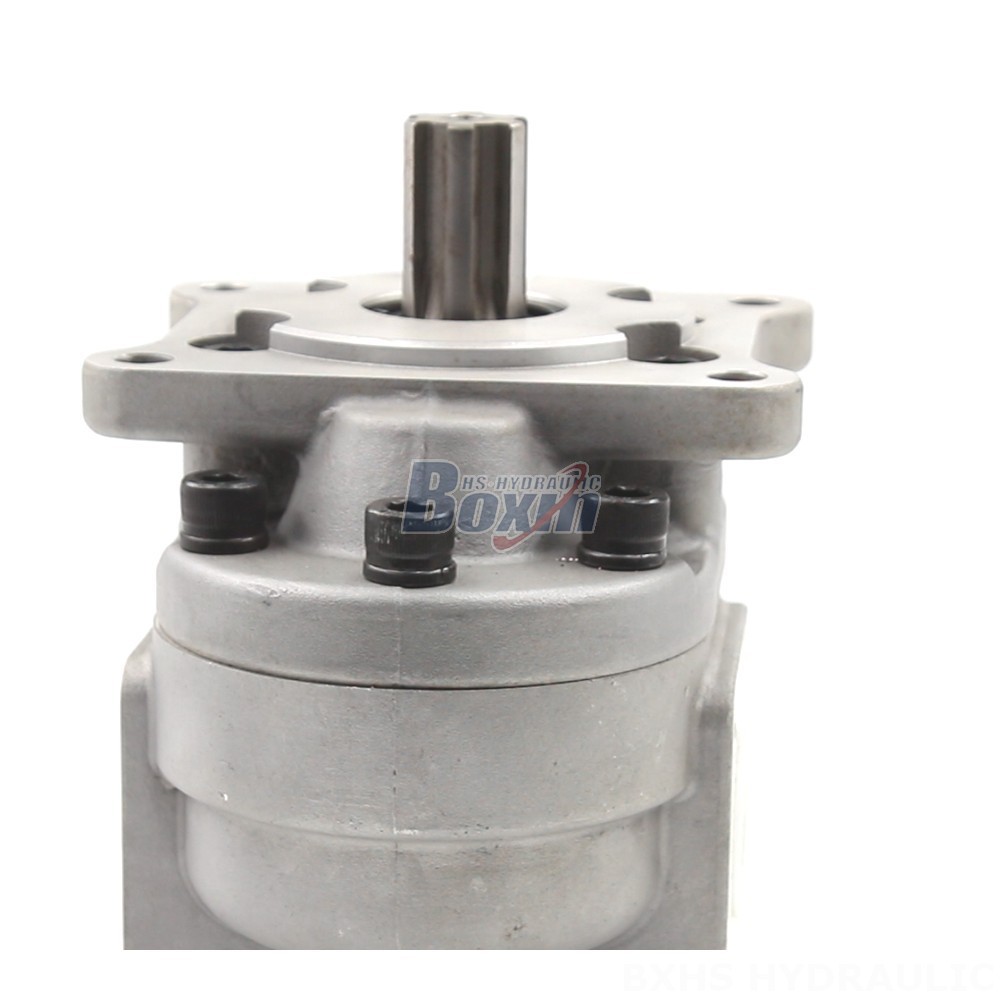

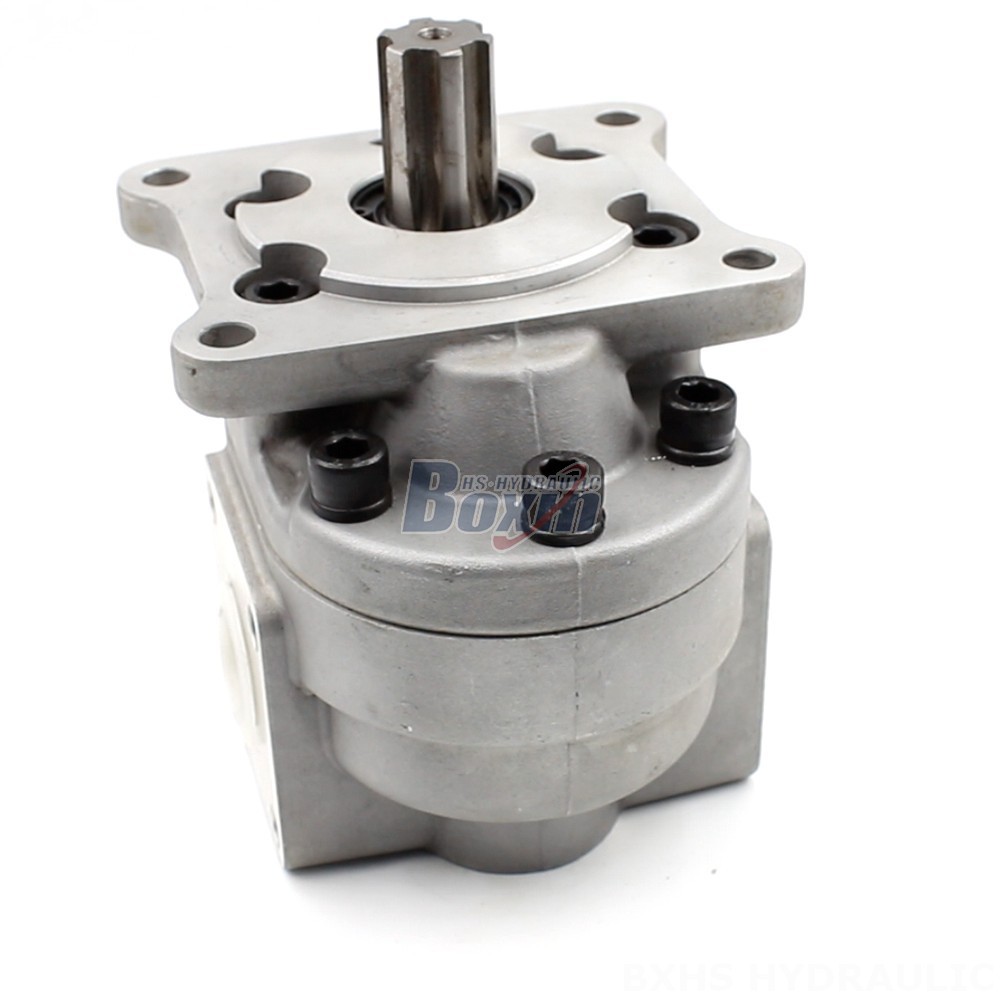

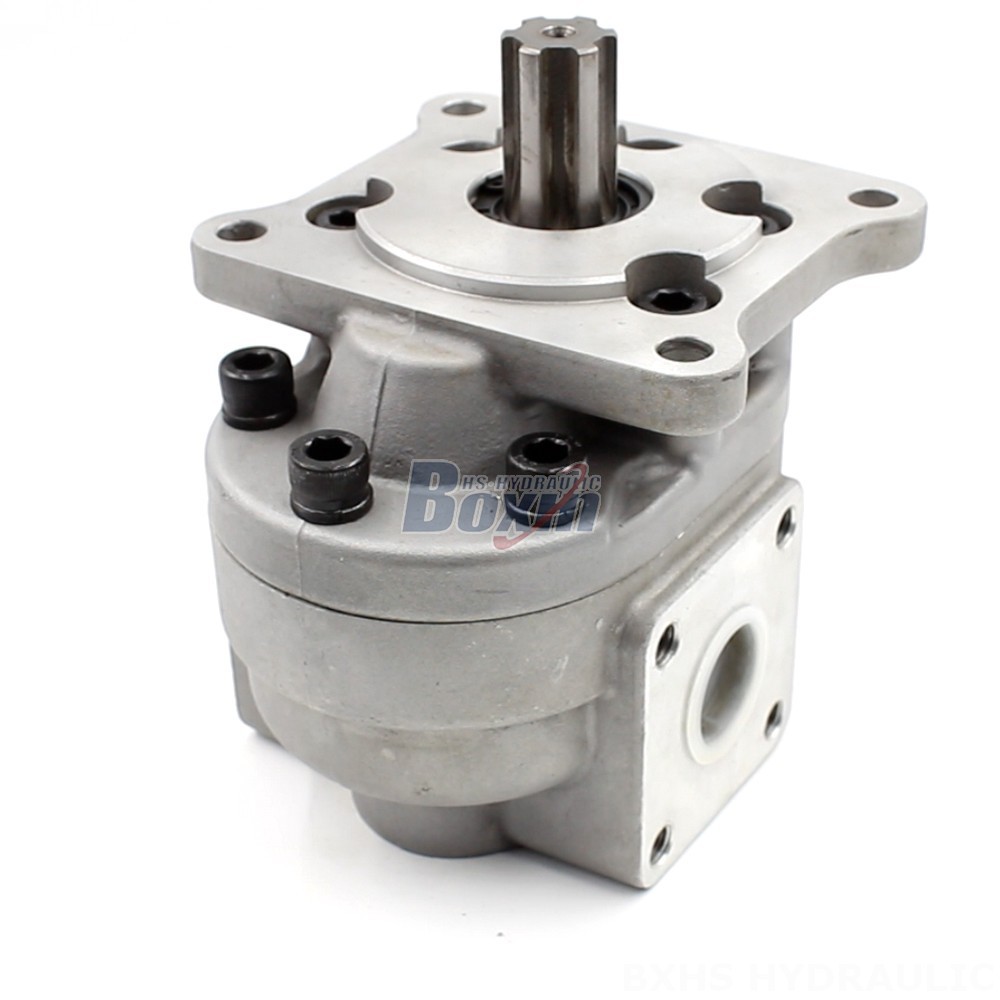

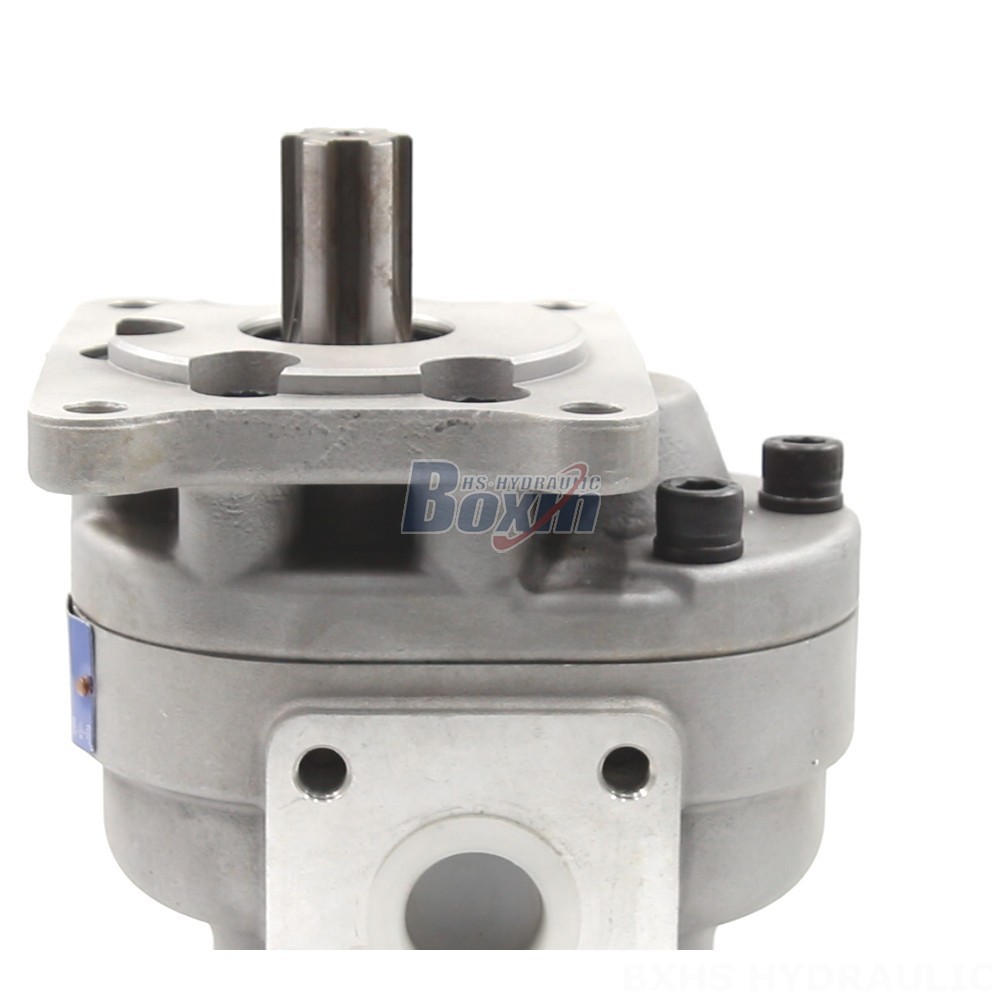

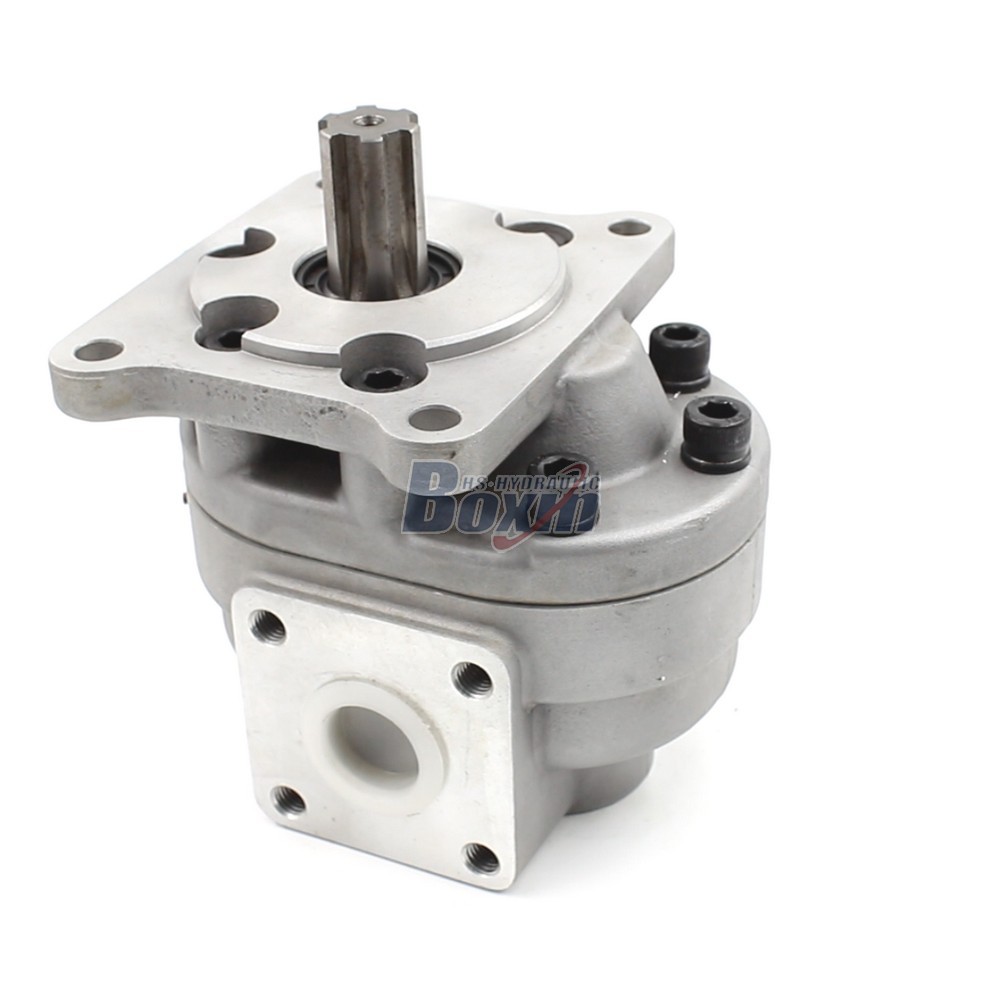

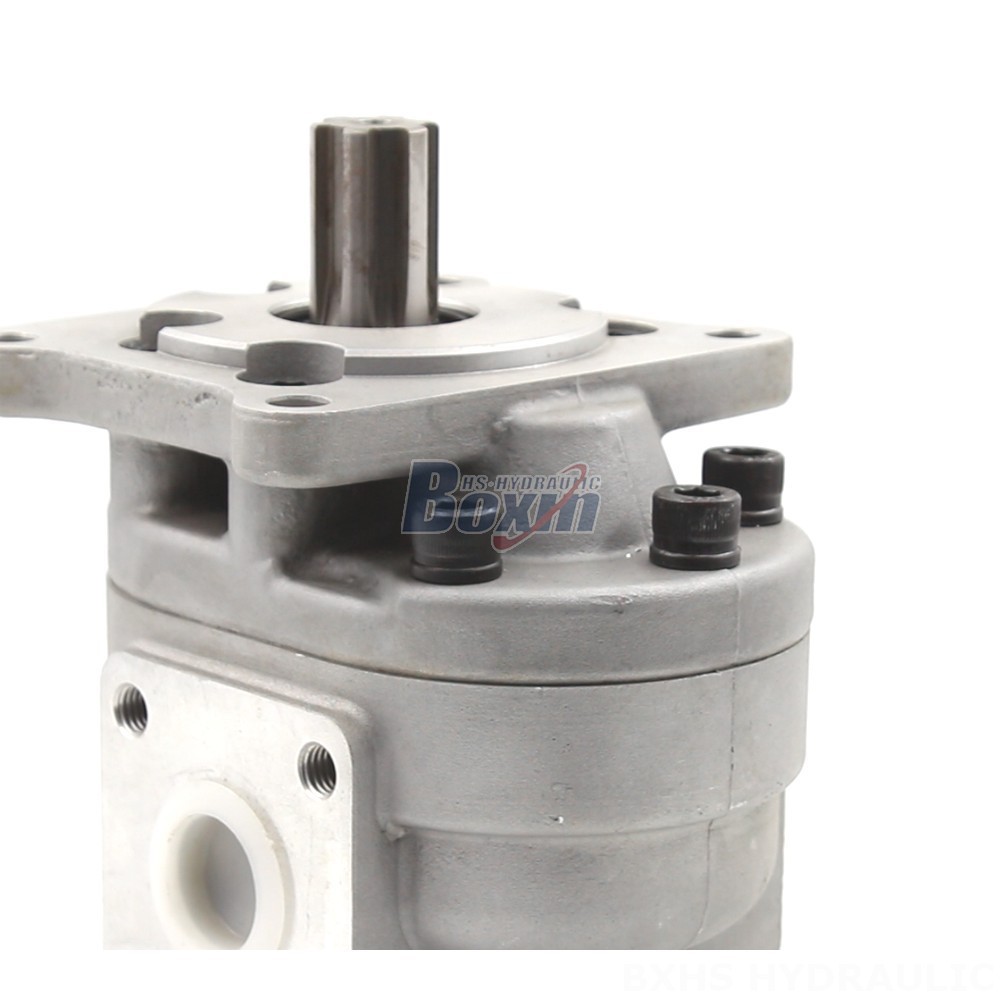

**Advanced Hydraulic Gear Pumps - CBHS-F550 Series**
**Product Description**
The Advanced Hydraulic Gear Pumps - CBHS-F550 Series are designed to provide high performance and reliability in a wide range of applications. These pumps feature a robust cast iron construction and are available with a variety of displacement options to meet the specific requirements of your application.
**Key Features**
* Displacement: 32 cc/rev, 50 cc/rev, 63 cc/rev
* Rated Pressure: 20 MPa (2900 psi)
* Rated Speed: 2000 r/min
* Max Speed: 2200 r/min
* Rotation: Left (counter-clockwise), Right (clockwise)
* Structure: Internal Gear Pump
* Material: Cast Iron
* Flange Version: B-Square Flange
* Shaft Type: Plain Key, Rectangle Spline, Involute Spline
* Series: CBHS-F5 Series
* Application Area: MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
* Applicable Model: TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER
**Benefits**
* High performance and reliability
* Robust cast iron construction
* Variety of displacement options
* Wide range of applications
**Contact us today to learn more about the Advanced Hydraulic Gear Pumps - CBHS-F550 Series.**
