Produzione e consegna
Tempi di produzione di 15-30 giorni

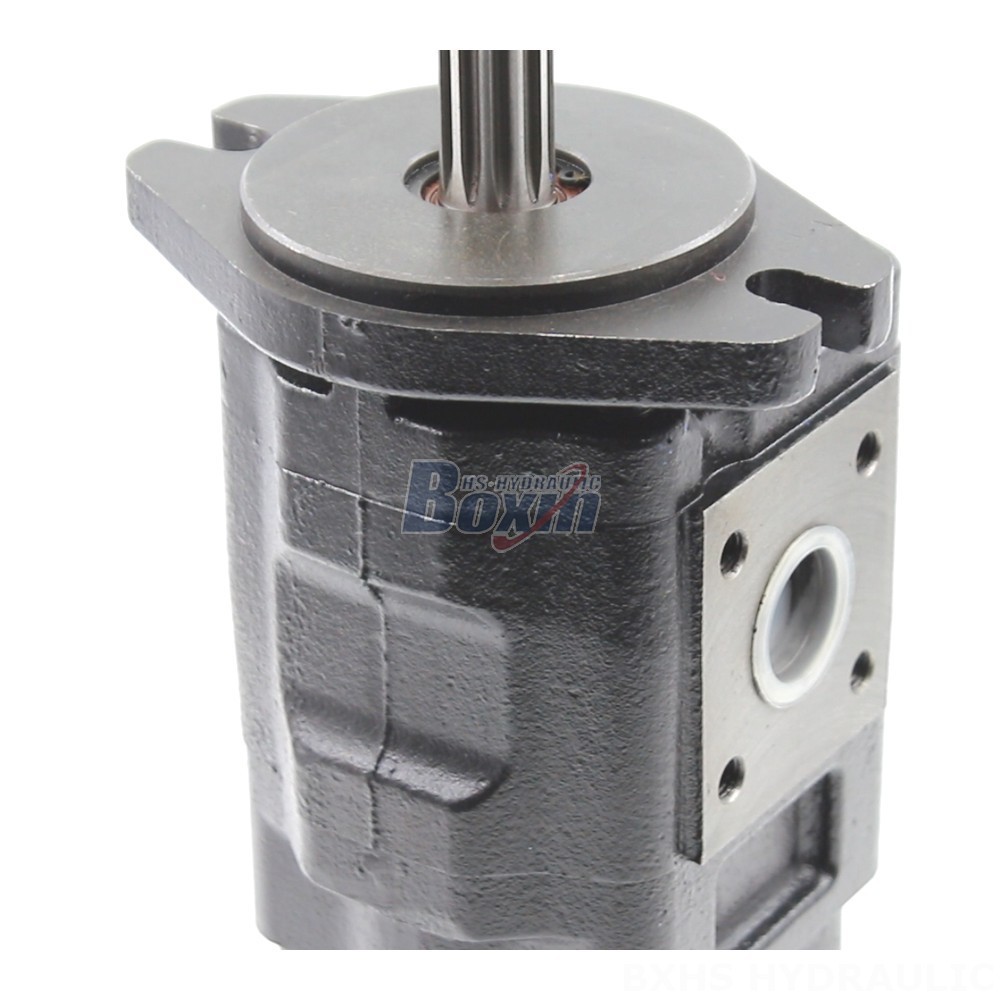

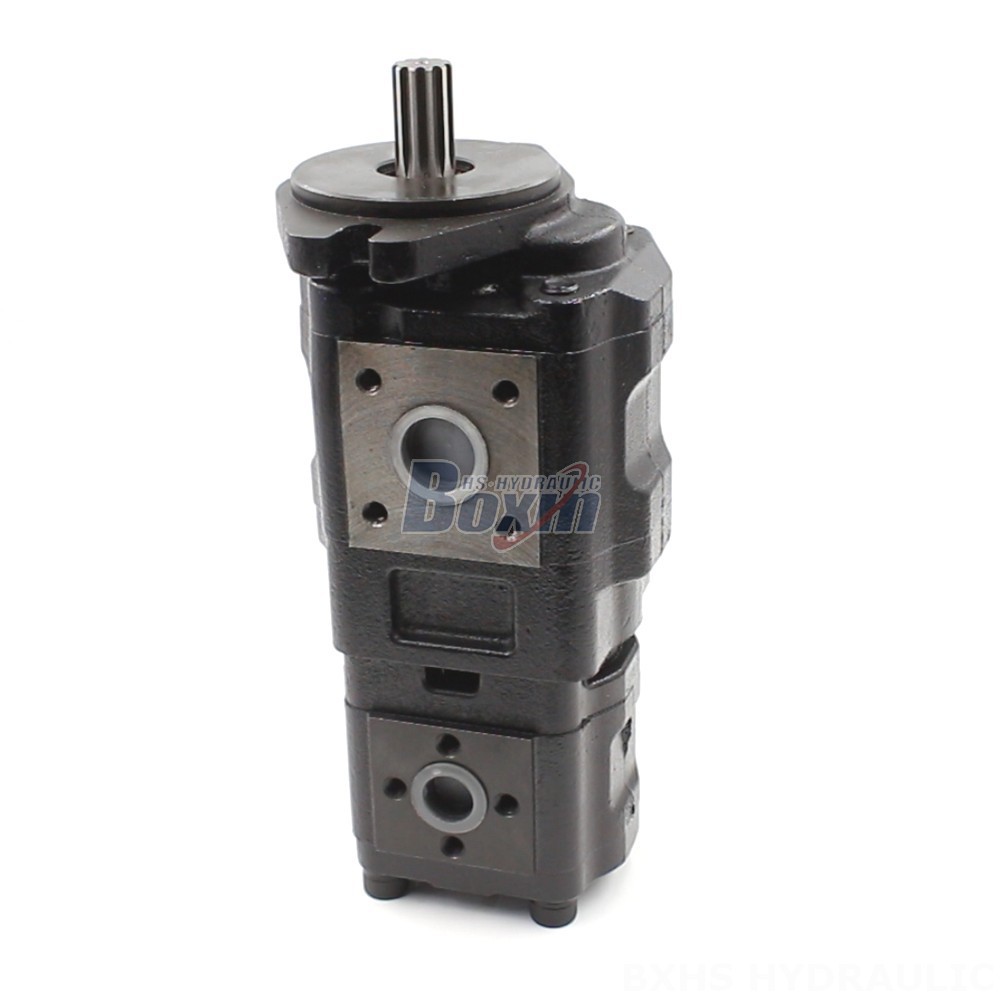

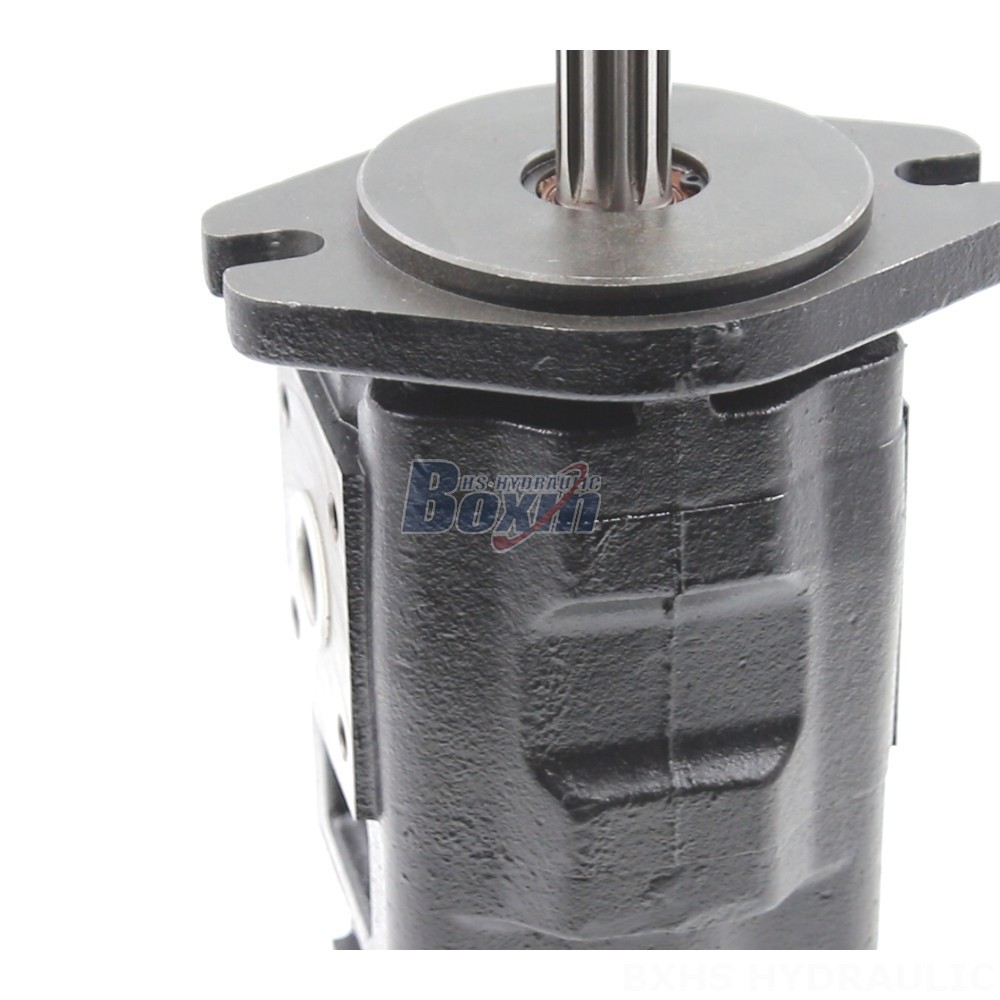

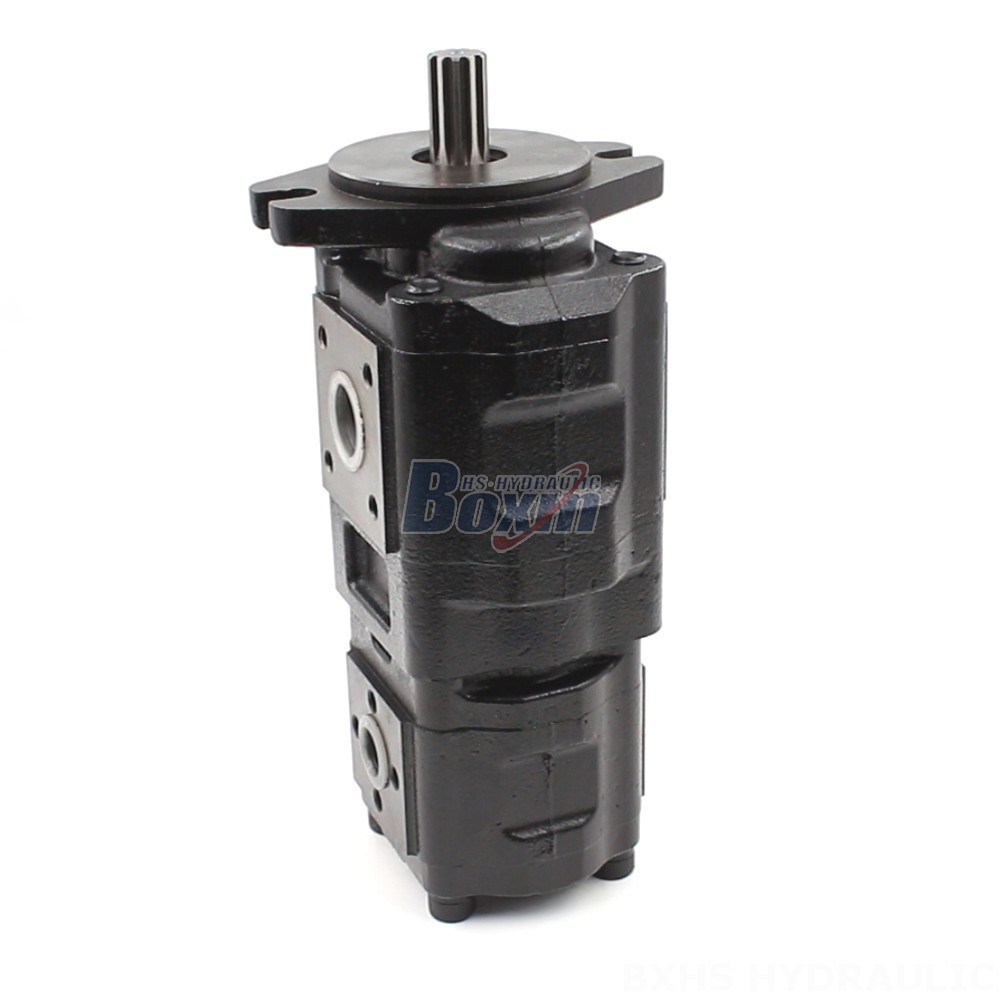

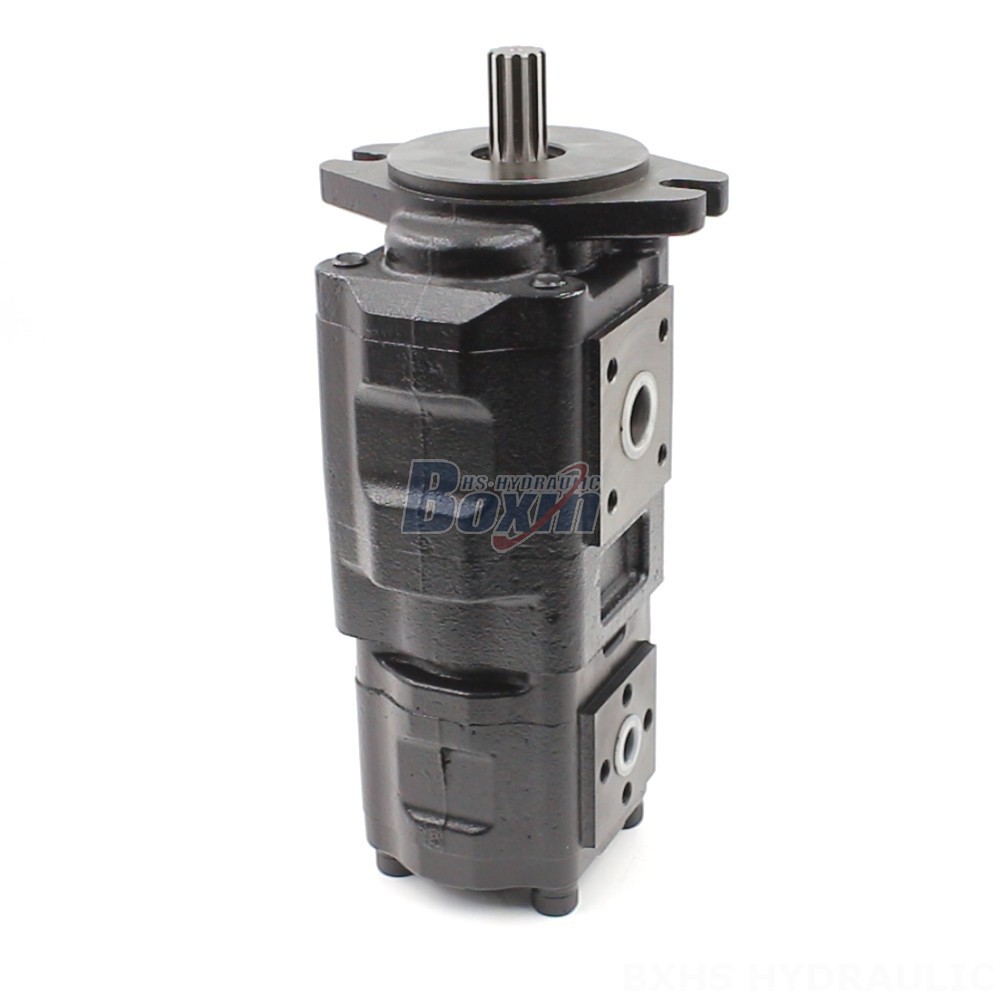

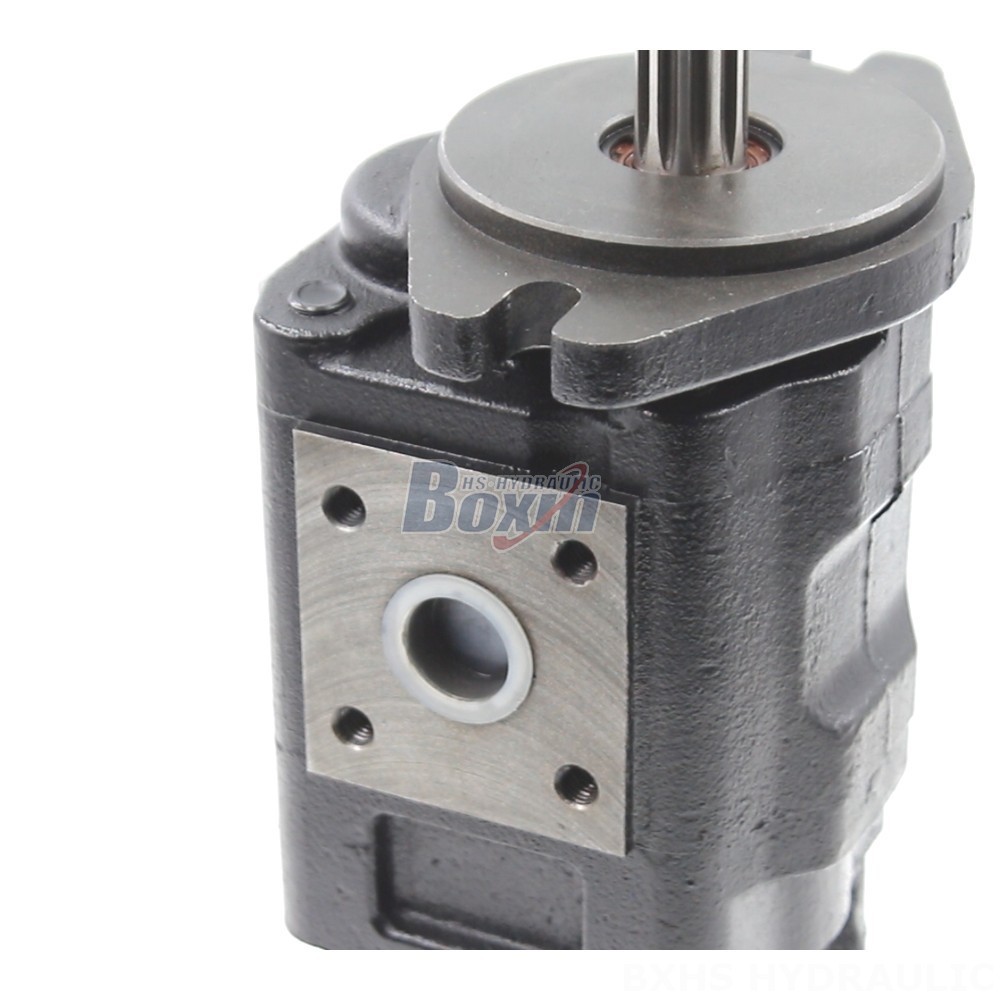

Our 40 cc/rev Hydraulic Gear Pump is a heavy-duty, reliable power source for a wide range of applications in the construction, material handling, agriculture, and industrial vehicle industries. We offer factory direct supply and global distribution, ensuring competitive pricing and timely delivery. Contact us to learn more about our OEM and ODM services.
| Serie CBHS-F4 Pompa a ingranaggi idraulica Parametri | |
|---|---|
| Cilindrata | 40 cc/giro, 25 cc/giro, 20 cc/giro |
| Pressione nominale | 20 MPa (2900 psi), 25 MPa (3625 psi) |
| Pressione massima | 25 MPa (3625 psi) |
| Velocità nominale | 2000 giri/min |
| Velocità massima | 2500 giri/min |
| Rotazione | L: Sinistra (in senso antiorario), R: Destra (in senso orario) |
| Materiale | Ghisa, Ghisa di alluminio, Alluminio |
| Struttura | Tipo di piastra a camme |
| Versione flangia | Flangia a forma ovale di tipo A, Flangia quadrata di tipo B, Fori di montaggio ISO-4, Fori di montaggio UNI-3, Flangia SAE |
| Tipo di albero | H: Scanalatura rettangolare, X: Scanalatura evolvente, P: Chiave semplice |
This 40 cc/rev Hydraulic Gear Pump is designed for high performance and durability in demanding applications. It features various displacement options (63 cc/rev, 80 cc/rev, 45 cc/rev, 32 cc/rev), rated pressure (17 MPa, 23 MPa, 25 MPa), and speed ratings (2200 r/min, 2400 r/min, 2500 r/min) to meet your specific needs. Available in external gear pump, cam plate type construction, with A-Oval Flange and B-Square Flange options, and H: Rectangle Spline shaft type. We are a factory direct supplier and offer global distribution for our CBHS-F4 Series hydraulic gear pumps. This means you can benefit from competitive pricing and fast delivery. We also offer OEM and ODM services to tailor the pump to your specific requirements. Contact us to learn more about our products and services and find the perfect hydraulic gear pump for your application.
